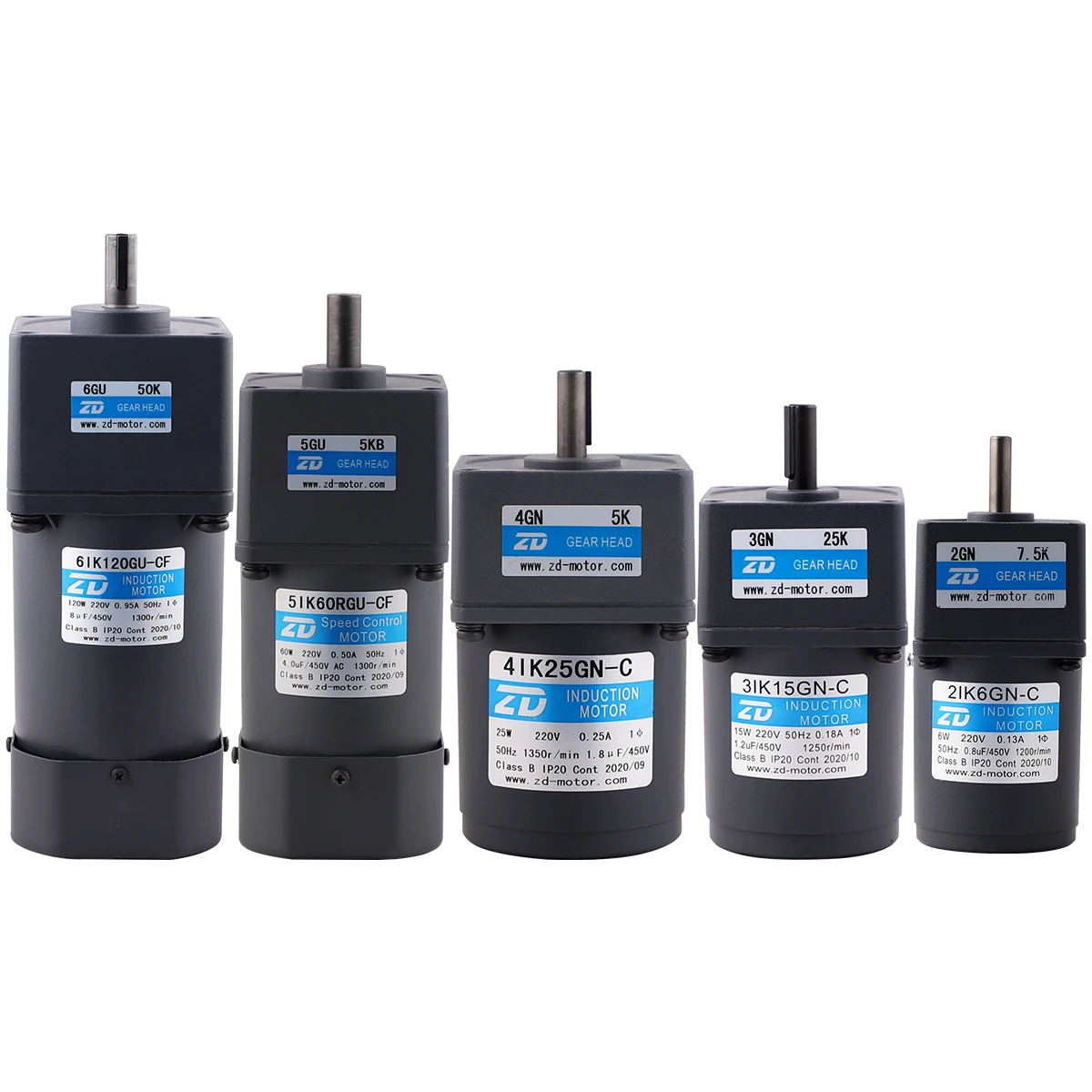

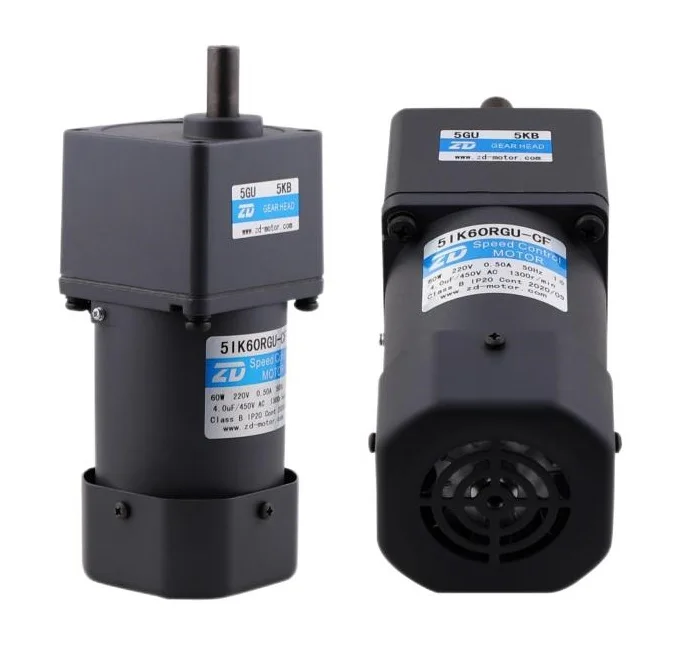

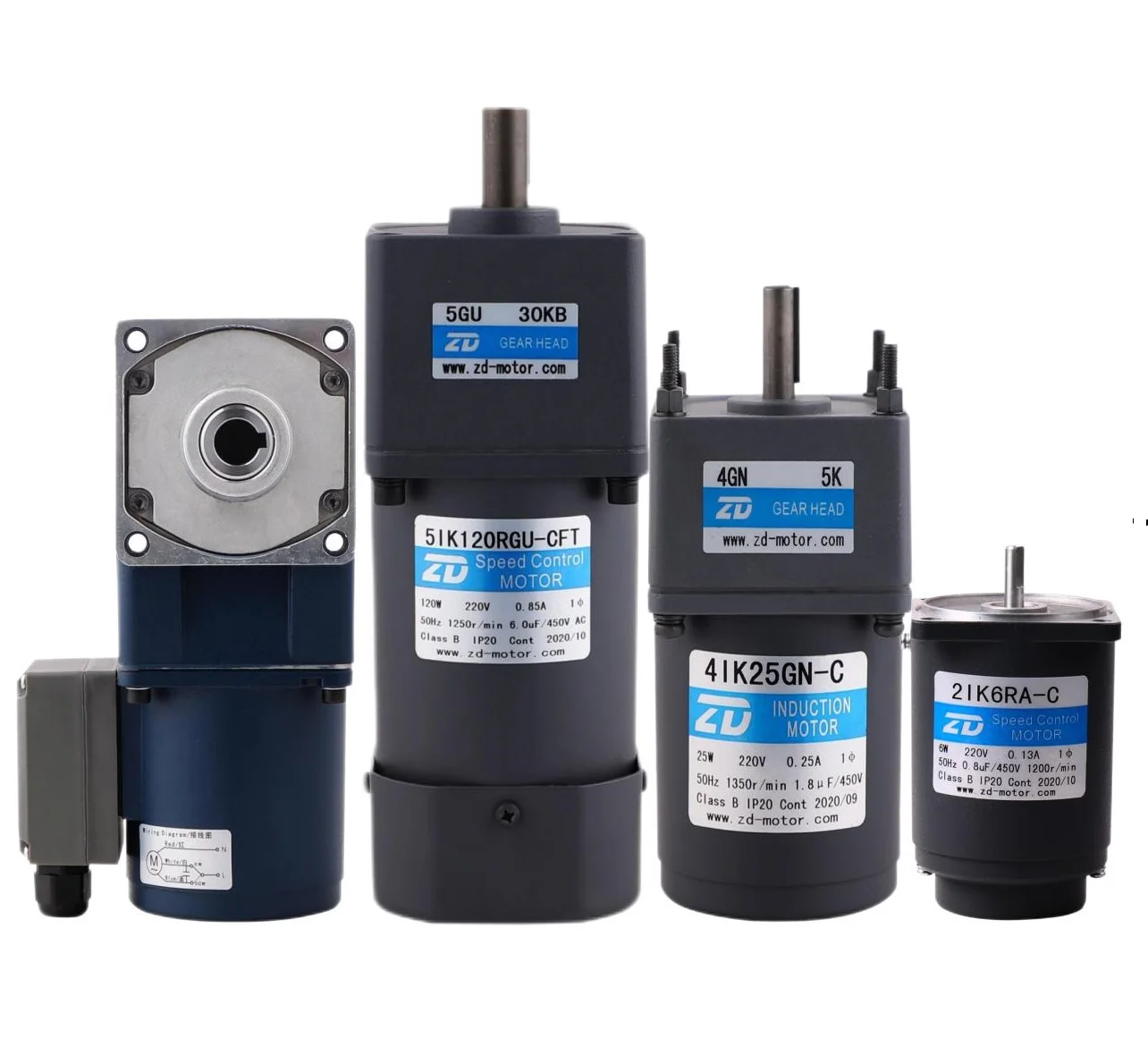

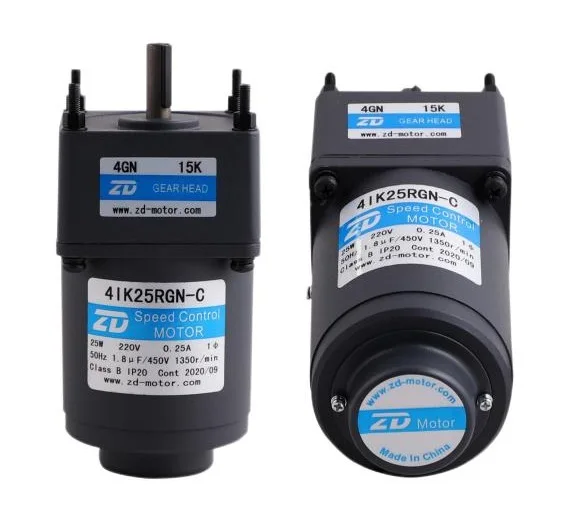

ZD 60mm 104mm 10W 200W Low Rpm High Torque Single Phase 3 Phase Electric AC Induction Gear Motor
ZD 60mm-104mm 10W-200W Low Rpm High Torque Single Phase 3 Phase Electric AC Induction Gear Motor
ZD 60mm-104mm 10W-200W Low Rpm High Torque Single Phase 3 Phase Electric AC Induction Gear Motor
ZD 60mm-104mm 10W-200W Low Rpm High Torque Single Phase 3 Phase Electric AC Induction Gear Motor
ZD 60mm-104mm 10W-200W Low Rpm High Torque Single Phase 3 Phase Electric AC Induction Gear Motor
ZD 60mm-104mm 10W-200W Low Rpm High Torque Single Phase 3 Phase Electric AC Induction Gear Motor
ZD 60mm-104mm 10W-200W Low Rpm High Torque Single Phase 3 Phase Electric AC Induction Gear Motor

ZD 60mm 104mm 10W 200W Low Rpm High Torque Single Phase 3 Phase Electric AC Induction Gear Motor

Share on (1600638966237):


Price:$60.00

Quantity:


Product Overview

Description





Model Selection









ZD Leader has a wide range of micro motor production lines in the industry, including DC Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Drum Motor, Planetary Gearbox, RV Reducer and Harmonic Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.






















Product Description















AC Gear Motor




Induction motors have single-phase type and three-phase type. This kind of motors do not only use electromagnetic coils and
capacitors during starting, but also during operation. Although the starting torque is not very large, but it has a simple structure, high reliability, high efficiency and could continuously work. It is widely used in automation industry,logistics, assembly line and etc.










Product Parameters
































































MOTOR FRAME SIZE

60 mm / 70mm / 80mm / 90mm / 104mm


MOTOR TYPE

INDUCTION MOTOR / REVERSIBLE MOTOR / TORQUE MOTOR / SPEED CONTROL MOTOR


OUTPUT POWER

10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W (Can Be Customized)


OUTPUT SHAFT

8mm / 10mm / 12mm / 15mm ; Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized)


Voltage type

110V,120V,220V,230V,380V,415V


Frequency

50/60Hz


Accessories

Terminal Box / Fan / Thermal protector / Electric Brake / Controller


GEARBOX FRAME SIZE

60 mm / 70mm / 80mm / 90mm / 104mm


Gear Ratio

3K-200K


Type Of Pinion

GN Type / GU Type


Gearbox Type

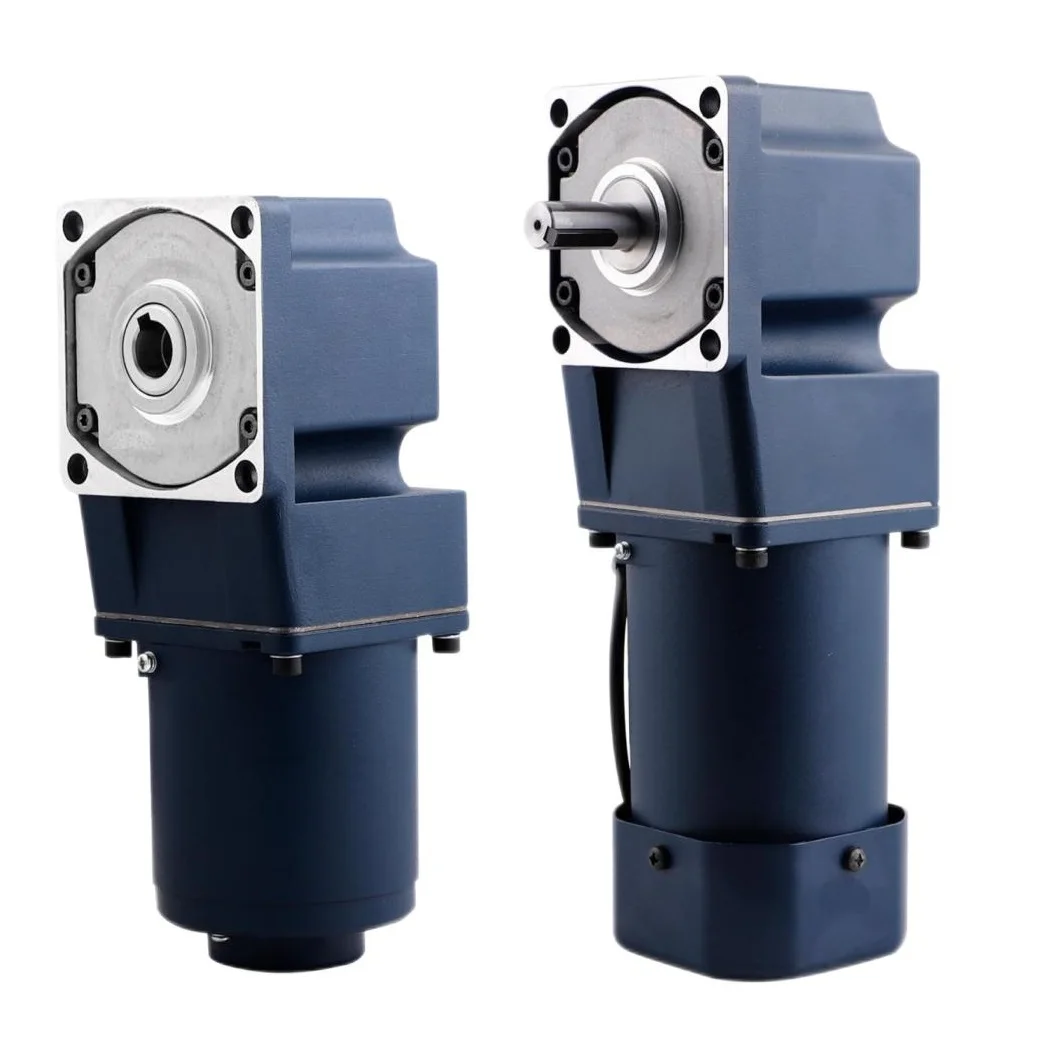

Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox
