CE ISO 3000C system industrial electrical furnace Argon gas protection heat treatment furnace synthetic graphite heating furnace

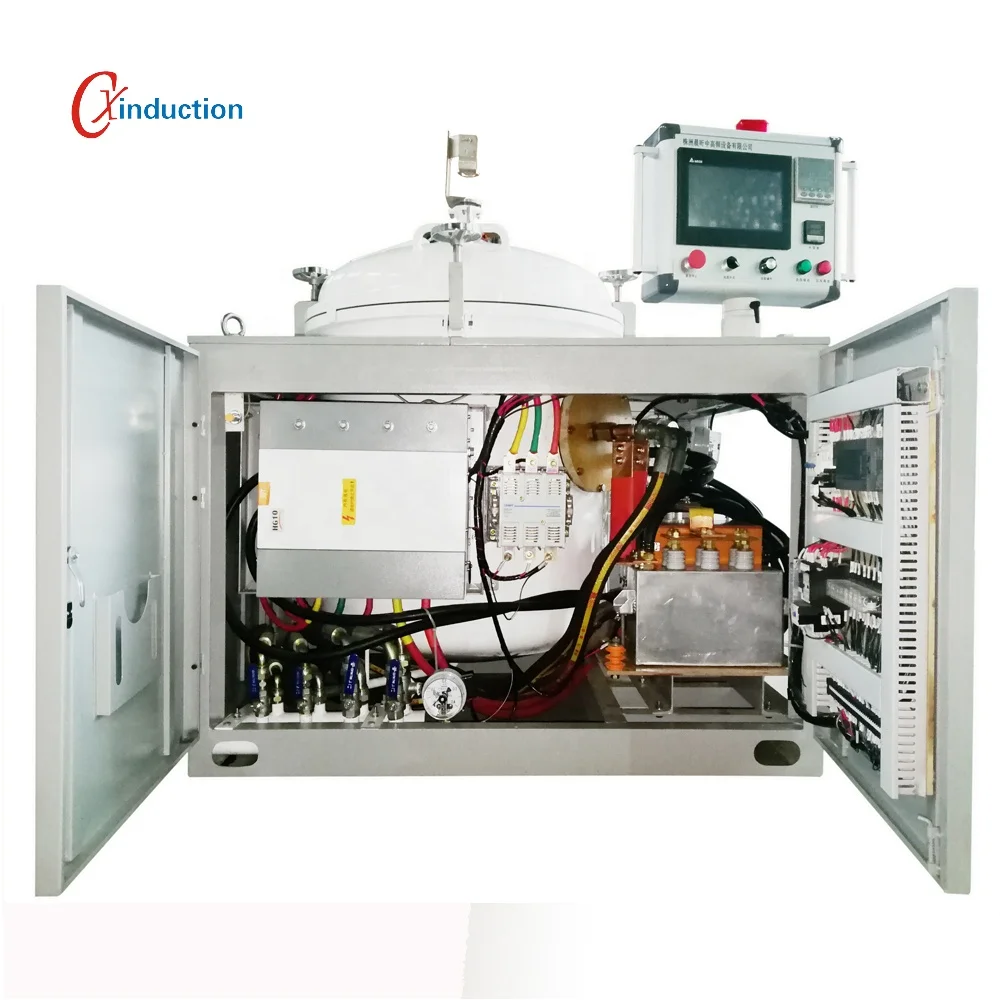

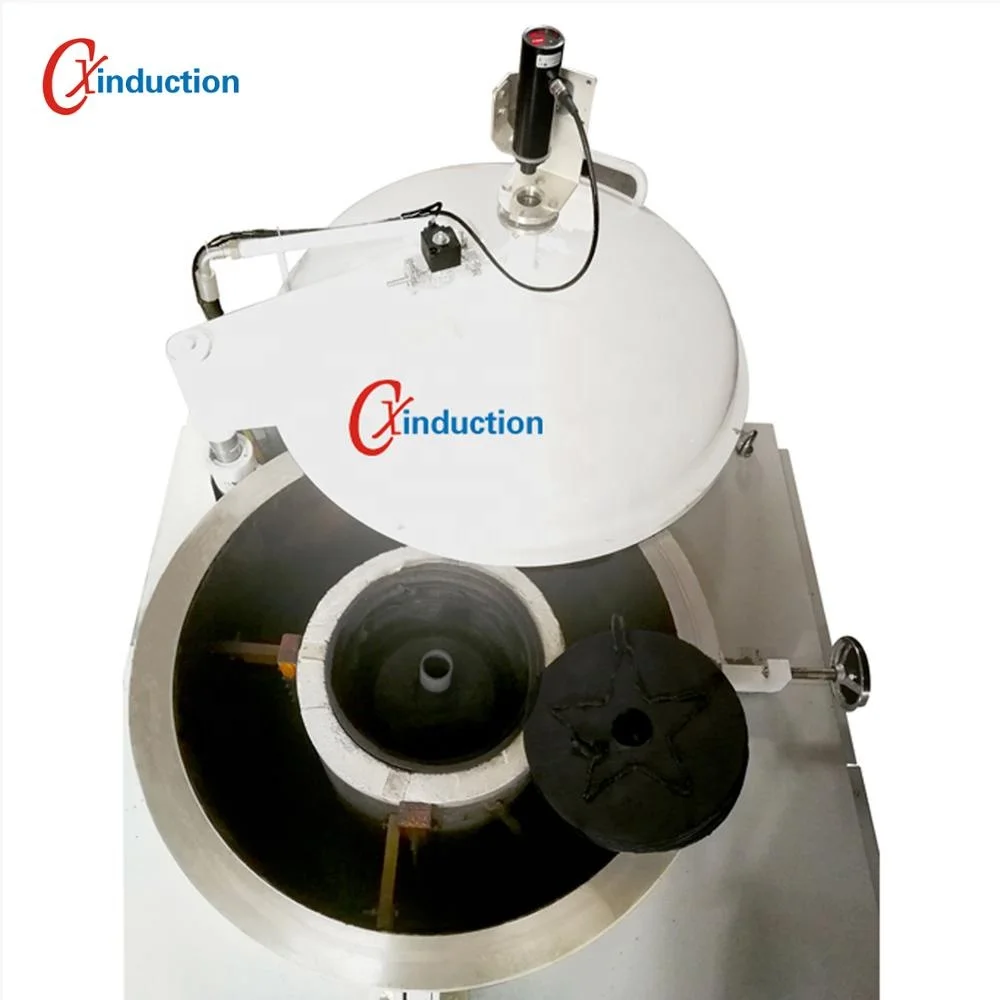

CX-GF- 20/30 VT is vertical top loading induction heating furnace with round graphite crucible hot zone. The max temp can reach
3200℃, this model is ideal for various research applications and new materials development, such as biochar, carbon, synthetic graphite, Lithium ion anode etc .
3200℃, this model is ideal for various research applications and new materials development, such as biochar, carbon, synthetic graphite, Lithium ion anode etc .
With stable quality, certifications, environmental-friendly, energy-saving, simple operation and easy maintenance, our high temp system received good feedback from famous university institutions and research centers both home and abroad.
Model | CX-GF 20/30 VT |
Configuration | Vertical, Top loading |
Max. Working Temperature | 3000 ℃ |
Continuous Working Temperature | ≥ 2850 ℃ |
Usable Space (mm) | Dia. * H: Φ200*300 |
Heating Power | ≤ 80 KW |
Frequency | 4000 Hz (auto-track) |
Ultimate Vacuum | 1.2 * 10-3 mbar |
Optional High Vacuum | 5 * 10-5 mbar |
Working Atmosphere | High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2) |
Supply Power | 3 N/PE, AC/380V, 50/60Hz |
Cooling Water Pressure | 1.5 - 2.5 bar |
Cooling Water Temperature | ≤ 28℃ |
Overall Dimension (L*W*H, mm) | Overall Dimension (L*W*H, mm) |
Weight (KG) | 1500 |
Main Application:
Carbonization and Graphitization treatment of carbon materials, like synthetic graphite, carbon , C/C composites, Graphene, Lithium battery anode materials, VGCF negative material, etc. Purification of Carbon Nanotube (CNT), Natural Graphite, etc. Sintering of high temperature ceramics, other materials which can be sintered or heated in graphite hot zone (carbon included environment).

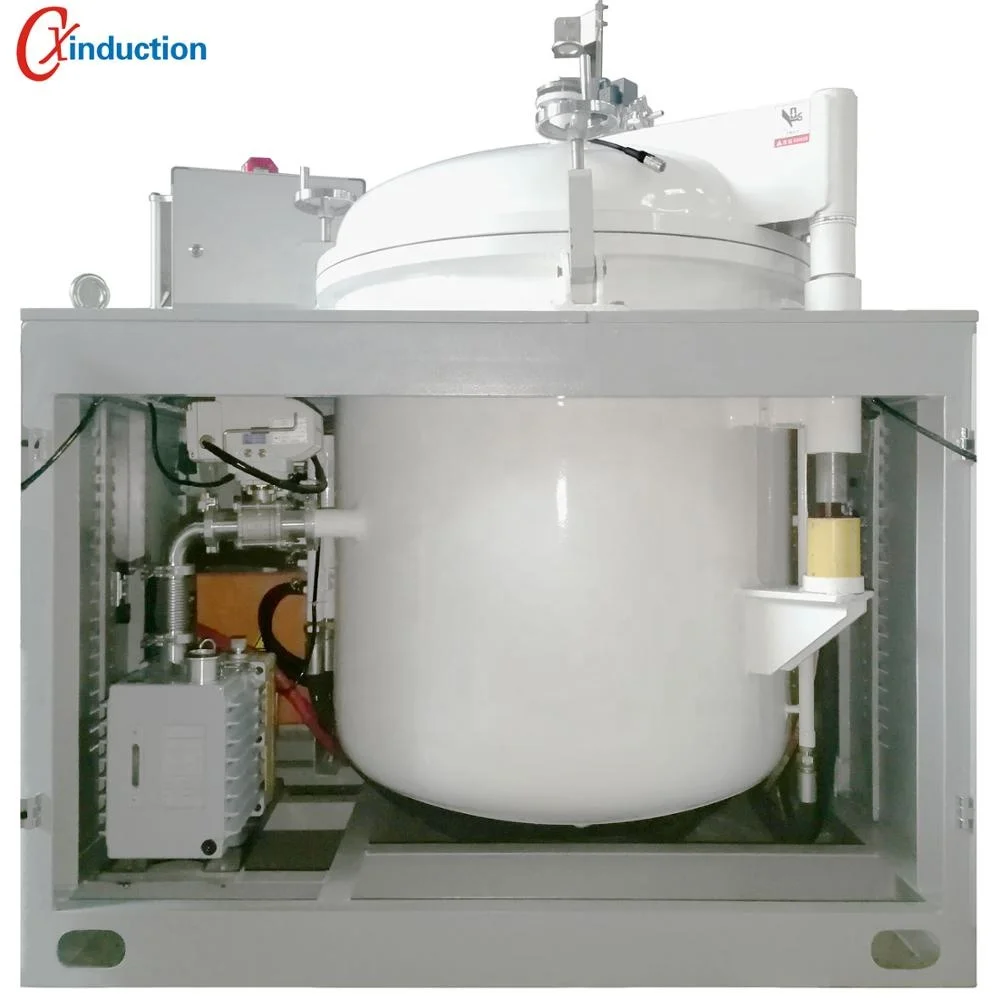

Furnace Structure
Lithium Ion anode material introduction：
The application scenarios of lithium batteries will be more abundant in the future. And next 10 to 15 years will be its golden development period.
It's estimated that by 2025, the global demand for lithium batteries will reach 1223GWh.
In 2021, China's lithium-ion battery shipments reach 324GWh, a year-on-year increase of 106%. From January to February 2022,China's lithium-ion battery industry maintains a rapid growth trend, with shipments exceeding 82GWh.
From the perspective of lithium-ion battery output, according to data from the National Bureau of Statistics of China, the lithium-ion battery output in 2021 is 23.26 billion, a year-on-year increase of 22.4%, and from January to March 2022, lithium-ion battery output reaches 5.85 billion, a year-on-year increase of 14.5%.
It's estimated that by 2025, the global demand for lithium batteries will reach 1223GWh.
In 2021, China's lithium-ion battery shipments reach 324GWh, a year-on-year increase of 106%. From January to February 2022,China's lithium-ion battery industry maintains a rapid growth trend, with shipments exceeding 82GWh.
From the perspective of lithium-ion battery output, according to data from the National Bureau of Statistics of China, the lithium-ion battery output in 2021 is 23.26 billion, a year-on-year increase of 22.4%, and from January to March 2022, lithium-ion battery output reaches 5.85 billion, a year-on-year increase of 14.5%.

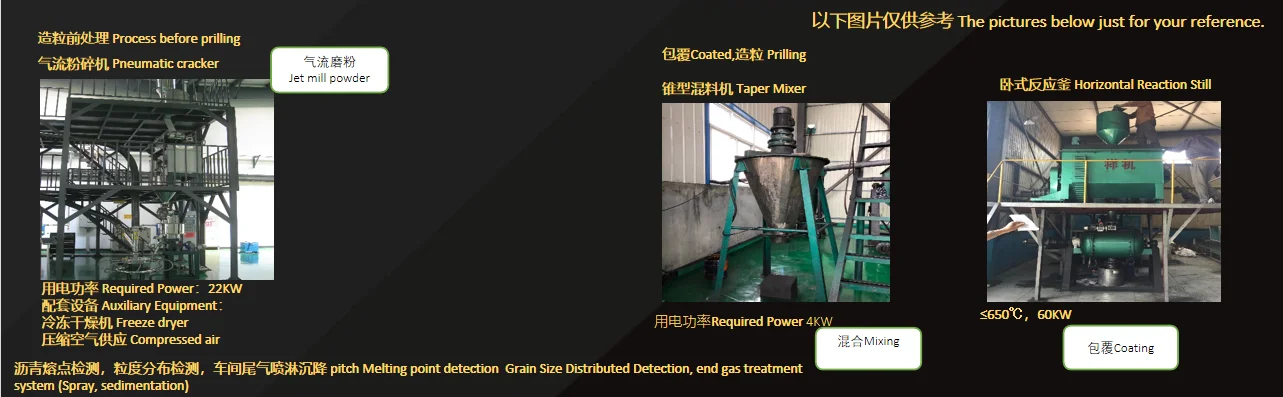

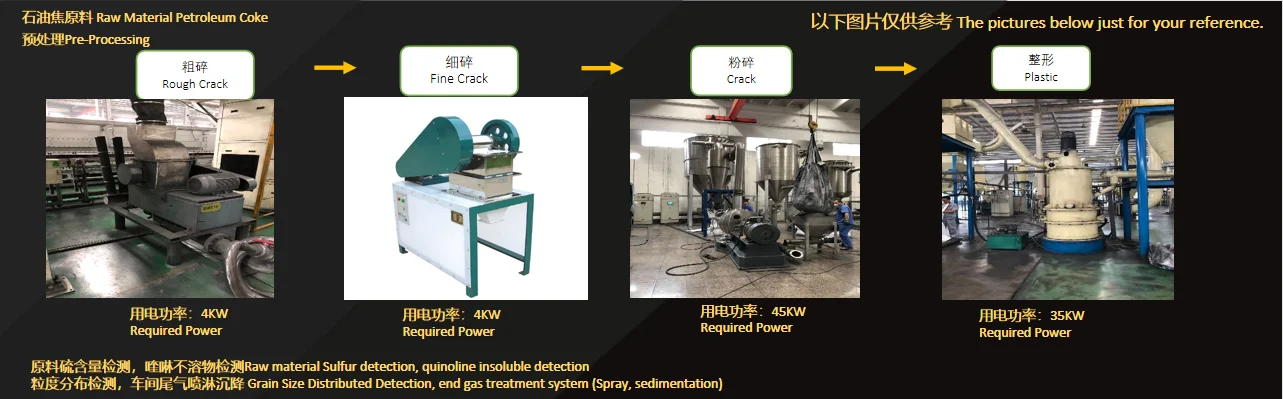

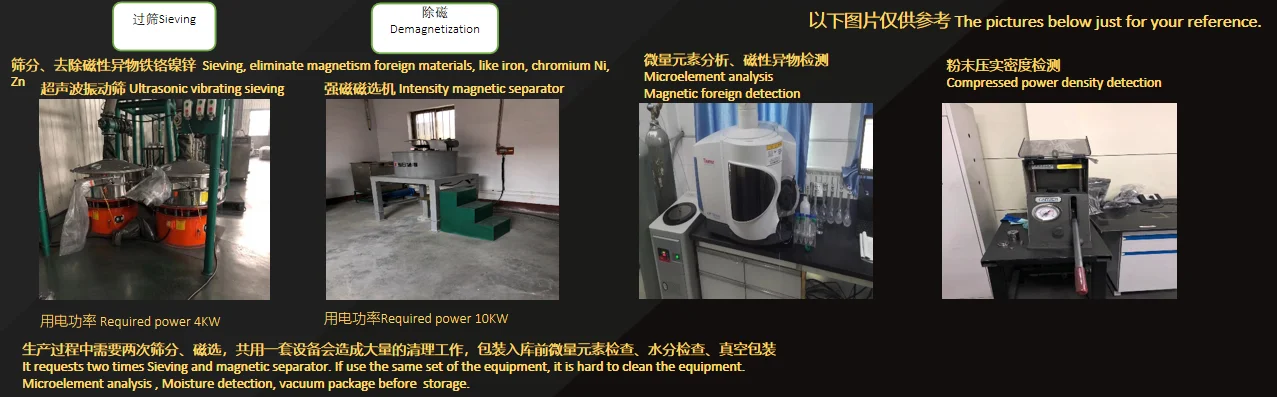

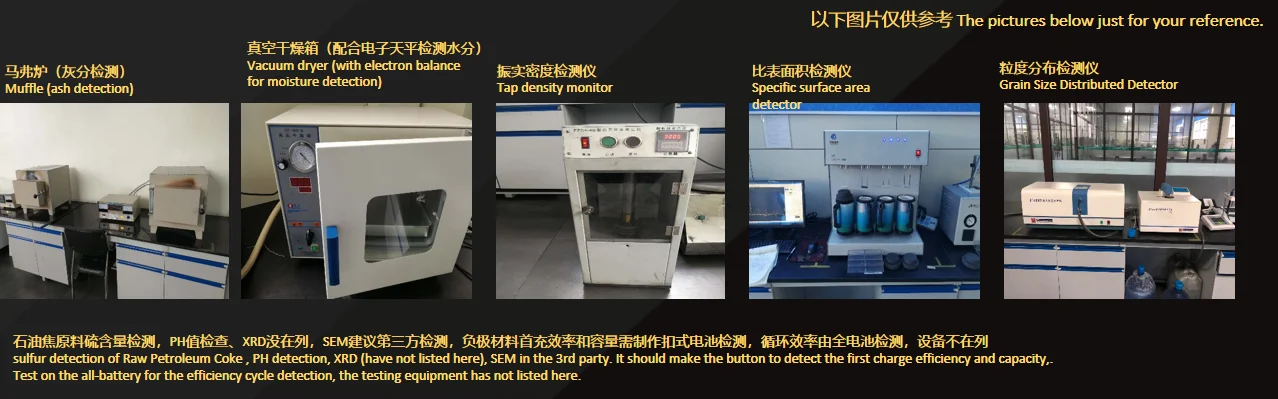

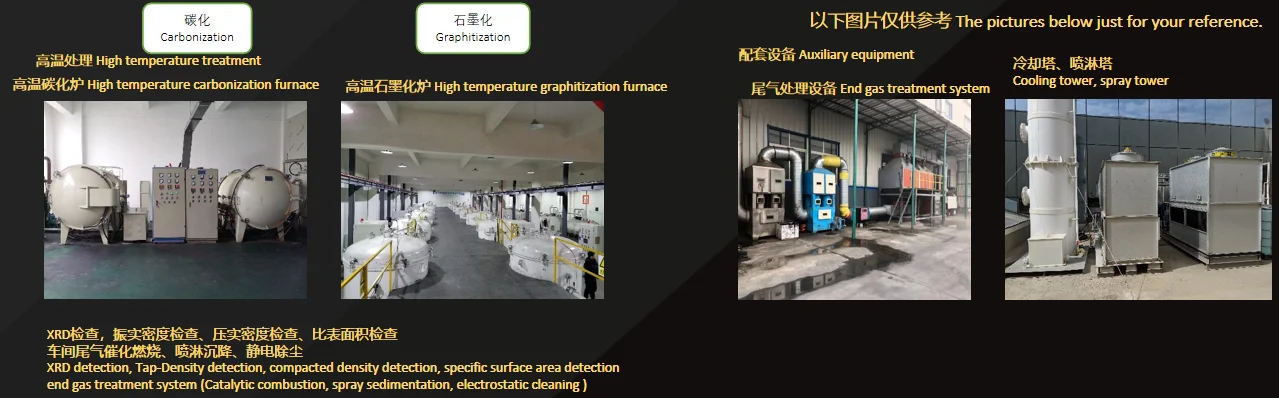

We(Zhuzhou Chenxin Induction Equipment Co.,LTD) have successfully provided the high temperature system to BYD & CATL for lithium battery experiments. And we can also provide the equipment to produce Lithium battery anode material.
Related Products
Packing&Shipping
We have more than ten years of exporting experience.
We have long term cooperation freight forwarding in exporting, customs declaration line.
We can choose the best and economy transport way for you.
We have long term cooperation freight forwarding in exporting, customs declaration line.
We can choose the best and economy transport way for you.
After Sales Service
Company Introduction
Founded in June 2003, Zhuzhou Chenxin Induction Equipment Co.,Ltd is a scientific and technological enterprise relying on semiconductor converting technology. We has always been commitied to the manufacturer of various industrial furnace products, and have won several provincial technological progress awards and patent certificates. Our products have been exported to Vietnam, Thailand, Sayria, South Africa, Japan, Korea, USA and other countries as well as more than 20 domestic provinces and cities.
