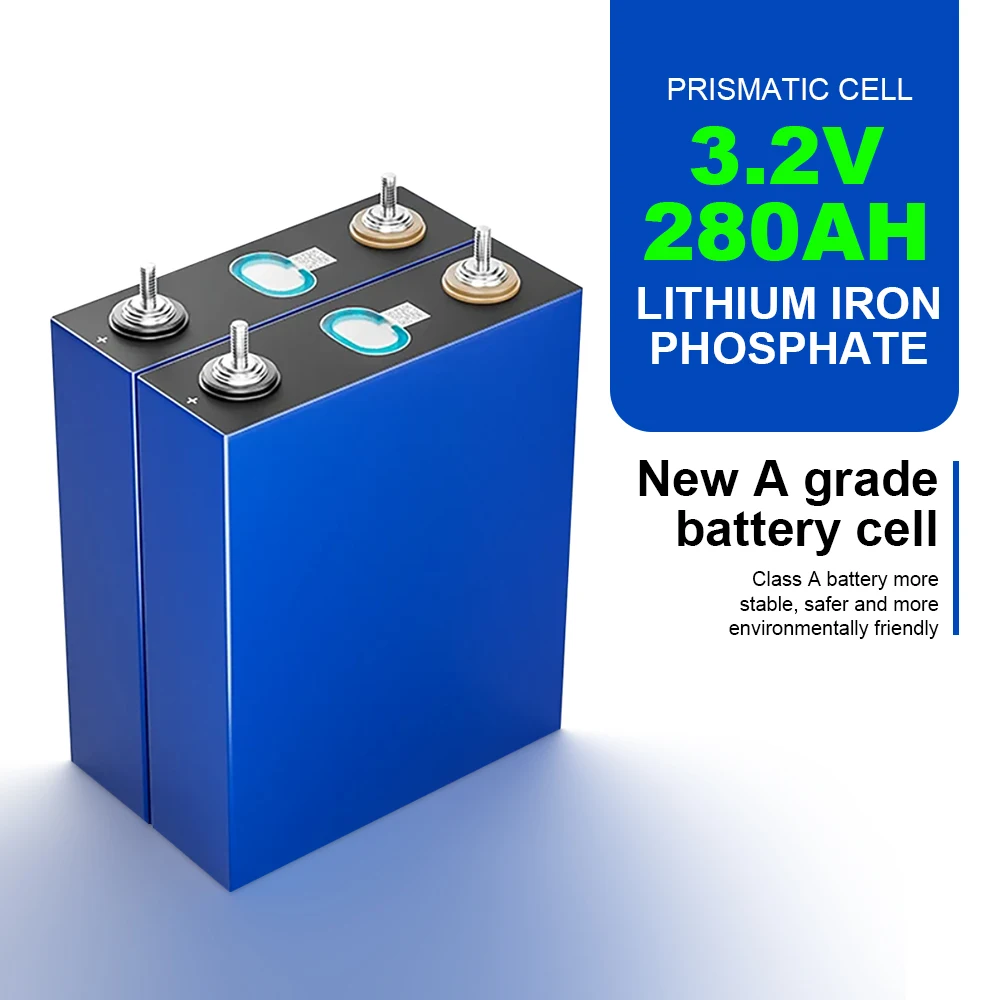

3.2v lifepo4 280ah 200ah 320ah rechargeable lithium battery pack battery cells lithium ion 3.2v 320ah
- Category: >>>
- Supplier: Shenzhen Enersource Technology Co. Ltd.
Share on (1600638975728):
Product Overview
Description
General Specification | Style | Prismatic Lifepo4 Battery |
Typical Capacity | 280Ah | |
Typical Voltage | 3.2V | |
Internal Resistance（1KHz） | ≤0.2mΩ | |
Standard Charge/Discharge Current | 0.5C/0.5C | |
Standard Charge/Discharge Cut-off Voltage | 3.65V/2.5V | |
Max. Continuous Charge/Discharge Current | 1C/1C | |
Cyclelife | 6000 Times | |
Environmental | Charge Temperature | 0℃~55℃ |
Discharge Temperature | -22℃~55℃ | |
Storage Temperature | -20℃~45℃( within 1 month) | |
0℃~35℃( within 1 year) | ||
Dimension and Weight | Width | 173.7±0.3mm |
Thickness | 71.5±0.5mm | |
Height（Total Height） | 204.8±0.5mm | |
Height(Principal Height） | 200.2±0.5mm | |
Central Distance of Positive and Negative Pole | 123.0±0.3mm | |
Net Weight | 5.3±0.30kg |
Before Your Buy
Pls NOTED that ours 3.2V 280 AH is:
1. Automative Grade A battery with original QR code.
2. Capacity all around 290ah
3. Each cell comes test report and shipping certification .
4. Capacity, Voltage and Inner resistance matched, no need balance when you received.

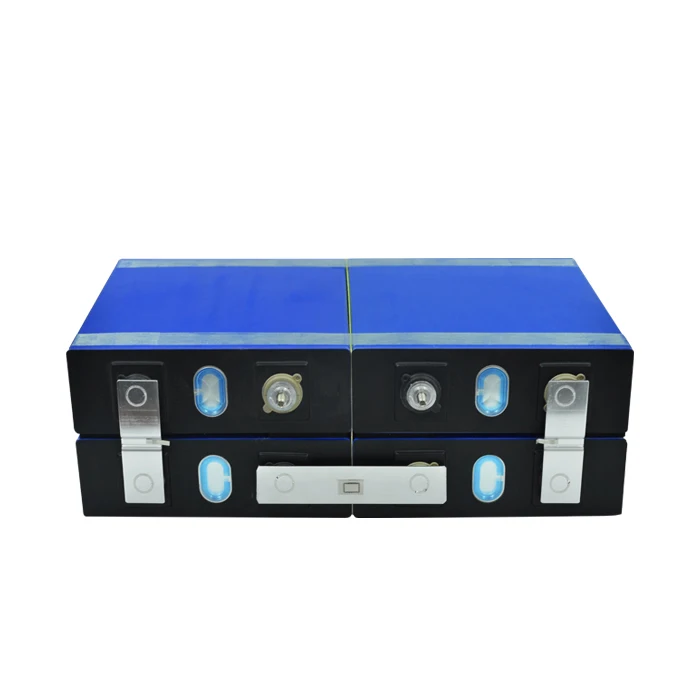

5. FREE Bus bars and Bolts.
size:90*20*2mm(cooper plated with nickel)
Screw size:M6
6. 2024 Fresh production
7. 5 years warranty in our Enersource tech.
8. We will test all the battery Voltage ,Internal resistance and capacity before delivery.
If you need better quality，or longer warranty period，or other capacity products，or just want to chat with us, please click here
We are here at your service.......
If You Need To DIY Yourself Or For Business :
To use in 48V system, you need 16 pcs
To use in 24V system, you need 8 pcs
To use in 12V system,you need 4 pcs
To use in 24V system, you need 8 pcs
To use in 12V system,you need 4 pcs
....
Suit for System:12V 24V 48V 72V 96V 108V... Solar Energy Storage System
Suit for System:12V 24V 48V 72V 96V 108V... Solar Energy Storage System
Applicantion: RV Vans Campers EV Boats Yacht Golf Carts Forklift Solar Battery
Note：
Let you spend a small amount of money, one-stop solution to all your needs and problem!!
3. You can also request us to assemble and customize for you. The processing fee is calculated based on the battery cells, and you only need $2 per cell (which is the maximum benefit price we can offer to our store customers). After calculation, it will be much more favorable than purchasing a separate set of finished batteries.
1. The price come with Bus bars and Bolts, one battery will come with one set bus bar and bolt.
（e.g.,If buy 4pcs battery, we will send 4pcs cells with 4 pcs busbars and 8pcs bolts）
If need more please contact us >>>>>
2. For the accessories required in DIY, we can also provide a set of premium gift packages
Which include: BMS protection board, link piece, shell, connector, wire...
Each accessory has multiple parameters to choose from.
Let you spend a small amount of money, one-stop solution to all your needs and problem!!
3. You can also request us to assemble and customize for you. The processing fee is calculated based on the battery cells, and you only need $2 per cell (which is the maximum benefit price we can offer to our store customers). After calculation, it will be much more favorable than purchasing a separate set of finished batteries.
[Excellent Performance] - 3.2V 280AH Lithium Iron Phosphate Battery provides long-lasting, stable power for your business!
Welcome to our international store, we focus on providing you with high-quality 3.2V 280AH lithium iron phosphate batteries. With its superior performance and reliability, this battery is ideal for a variety of application scenarios.
Products Description
Safety Features:
Overcharge protection:
The battery has an overcharge protection function, which can effectively prevent the damage caused by overcharging to the battery.
Over-discharge protection:
Over-discharge protection:
The battery has an over-discharge protection function, which can effectively prevent the damage caused by over-discharge to the battery.
Short-circuit protection:
Short-circuit protection:
The battery has a short-circuit protection function, which can effectively prevent damage to the battery caused by external short-circuits.
Temperature protection:
The battery has a temperature protection function, which can effectively prevent the battery from being damaged by excessive temperature.
Typical Capacity | 32AH | 90AH | 105AH | 230AH | 280Ah | 310AH | |||||
Typical Voltage | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V | |||||
Internal Resistance | ≤1.5mΩ | ≤0.5mΩ | ≤0.5mΩ | ≤0.30mΩ | ≤0.2mΩ | ≤0.5mΩ | |||||
Standard Charge/Discharge Current | 0.5C/0.5C | 1C/1C | 1C/1C | 0.5C/0.5C | 0.5C/0.5C | 0.5C/0.5C | |||||
Standard Charge/Discharge Cut-off Voltage | 3.65V/2.5V | 3.65V/2.5V | 3.65V/2.5V | 3.65V/2.5V | 3.65V/2.5V | 3.65V/2.5V | |||||
Max. Continuous Charge/Discharge Current | 1C~2C | 2C~3C | 2C~3C | 1C~2C | 1C/1C | 0.5C~1C | |||||
Cyclelife | 6000 Times | 6000 Times | 6000 Times | 6000 Times | 6000 Times | 6000 Times | |||||
Charge Temperature | 0℃～55℃ | 0℃～55℃ | 0℃～55℃ | 0℃～55℃ | 0℃～55℃ | 0℃～55℃ | |||||
Discharge Temperature | -20℃～55℃ | -20℃～55℃ | -20℃～55℃ | -20℃～55℃ | -20℃～55℃ | -20℃～55℃ | |||||
Storage Temperature | -20℃~45℃( within 1 month) | ||||||||||
Width | 139*130*27MM | 130*195*36MM | 130*195*36MM | 173*204*53MM | 173.7±0.3mm | 172*208*72MM | |||||
Net Weight | 0.725±0.050Kg | 1.97KG | 1.98KG | 4.2KG±0.5kg | 5.3±0.30kg | 5.49KG | |||||
How To Oder：
1. Please send us an inquiry through any product link in our store.
2. After we discuss and confirm all details (including product price, shipping price, total price), we will draft this order.
3. You could click on the order link we drafted and follow the system prompts to pay after verifying that all the information in the order is correct.
4. After we receive your payment, we will send you updates,such packages pictures and tracking information. You just need to wait for the arrival of the order.

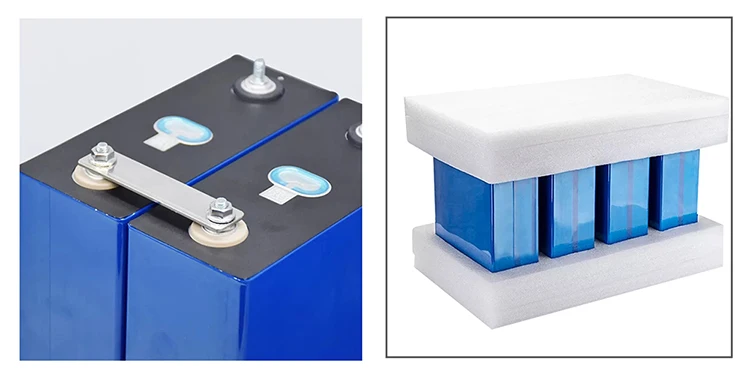

Packing & Delivery
Each cell is fixed and isolated with customized EVA pearl cotton foam with fixed slots to ensure safety.
There is also an EVA pad cover above the battery for shock absorption.
Each cell is equipped with a set of assembly accessories
NOTICE:
We can't deliver the following address directly:
1.USA: Military address and PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online.
2.Portugal: Azores and Madeira
3.Spain：Canary Islands, hueda and melilia
4.Russia: Kamchatka Peninsula
5.Other:Some remote areas not listed，Please provide shipping address and zip code to to us to check.
Tips:
*The tracking will be update after pick up by local express. Please wait patiently or contact us for help.
*Countries that do not appear in the table, Please click here to consult us for freight charges
*Countries that do not appear in the table, Please click here to consult us for freight charges
Please contact us with your delivery address and local zip code and we will provide you with the most suitable shipping solution.
After Your Buy
[After-Sales Service]
We are committed to providing our customers with an excellent after-sales service experience, ensuring that you are fully protected and supported while using our 3.2V 280AH lithium iron phosphate battery.
Our after-sales services include the following:
1.Customer service team is available to provide detailed product information and answer questions.
2.Guarantee the quality of our products and will replace or repair any defective batteries.
3.Technical team provides timely support and solutions for any technical issues.
4.Offer professional advice & services for battery maintenance, ensuring optimal performance and extending battery life.
5.Provide emergency response services to quickly resolve urgent issues.
3.Technical team provides timely support and solutions for any technical issues.
4.Offer professional advice & services for battery maintenance, ensuring optimal performance and extending battery life.
5.Provide emergency response services to quickly resolve urgent issues.
[ Remainder ]
DIY battery pack must get the cells balanced (same voltage ) before assembly.
1).Warranty period: 5 years (from the date of successful delivery),if the single battery capacity less than 80% initial
capacity,take the test pictures or video to us,we will replace it or give satisfied solution.
2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3).These situations not provide return nor refund：
Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund.
If you found problems you can contact us for return or refund.
Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return.
Any return behavior buyers need to be responsible for shipping fee.
1).Warranty period: 5 years (from the date of successful delivery),if the single battery capacity less than 80% initial
capacity,take the test pictures or video to us,we will replace it or give satisfied solution.
2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3).These situations not provide return nor refund：
1. After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
Overall, Enersource aim to provide comprehensive after-sales support to ensure your satisfaction with our products. Contact us at any time for more information.
