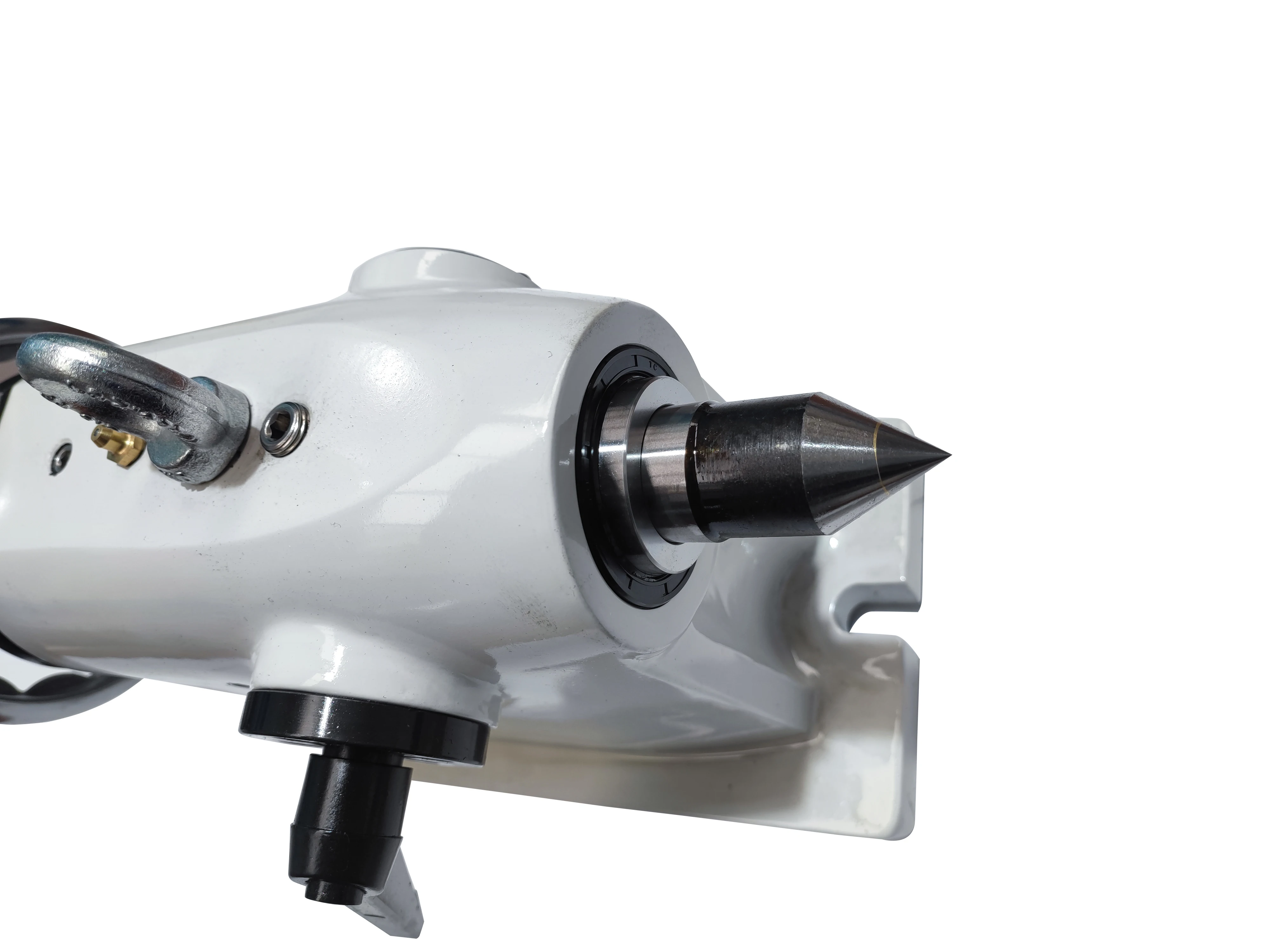

4th CNC rotary tabletail stock HT135
- Category: >>>
- Supplier: Shandong Tiger Cnc Machine Tool Accessories Co. Ltd.
Share on (1600638989205):
Product Overview
Description

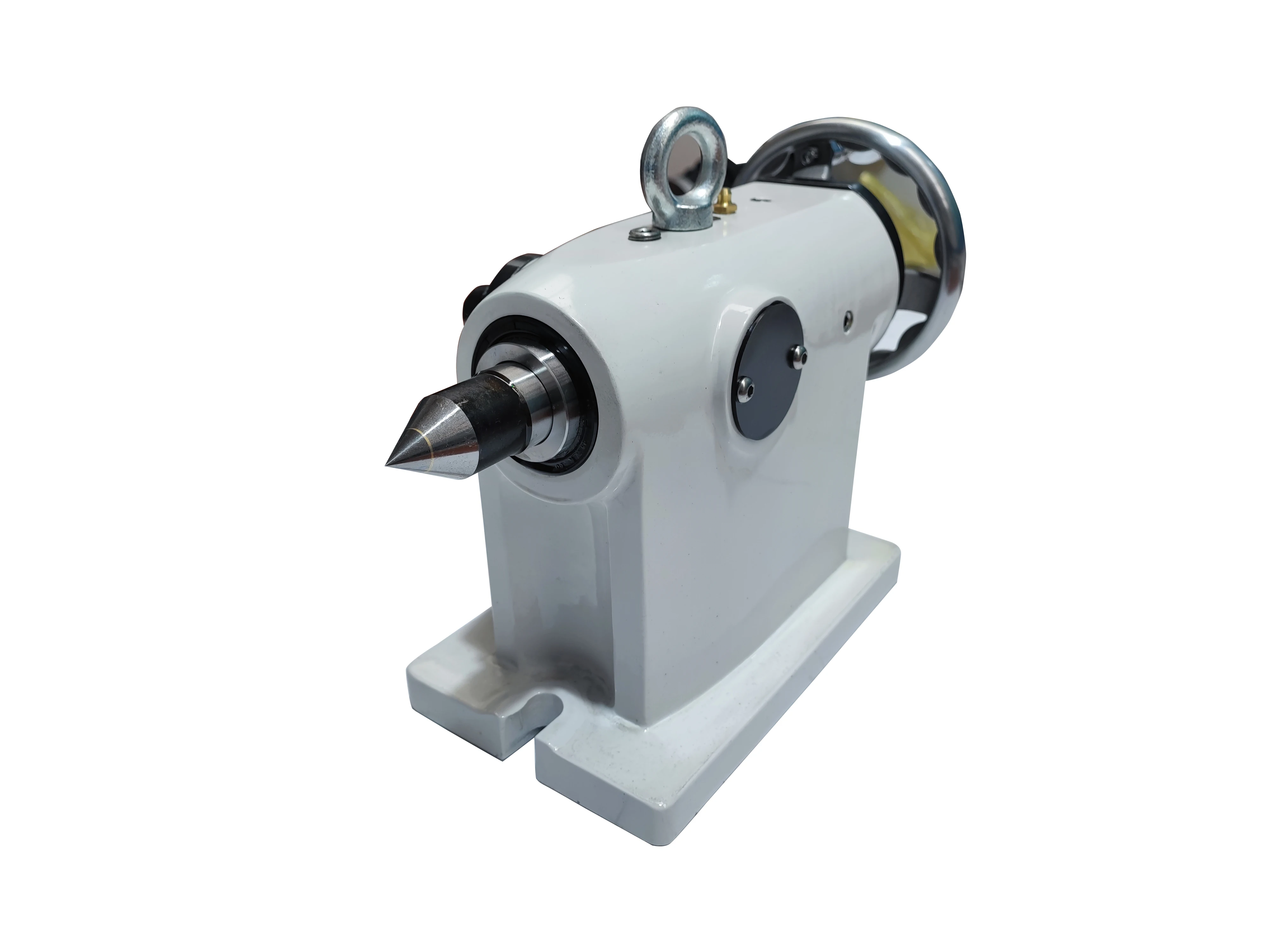

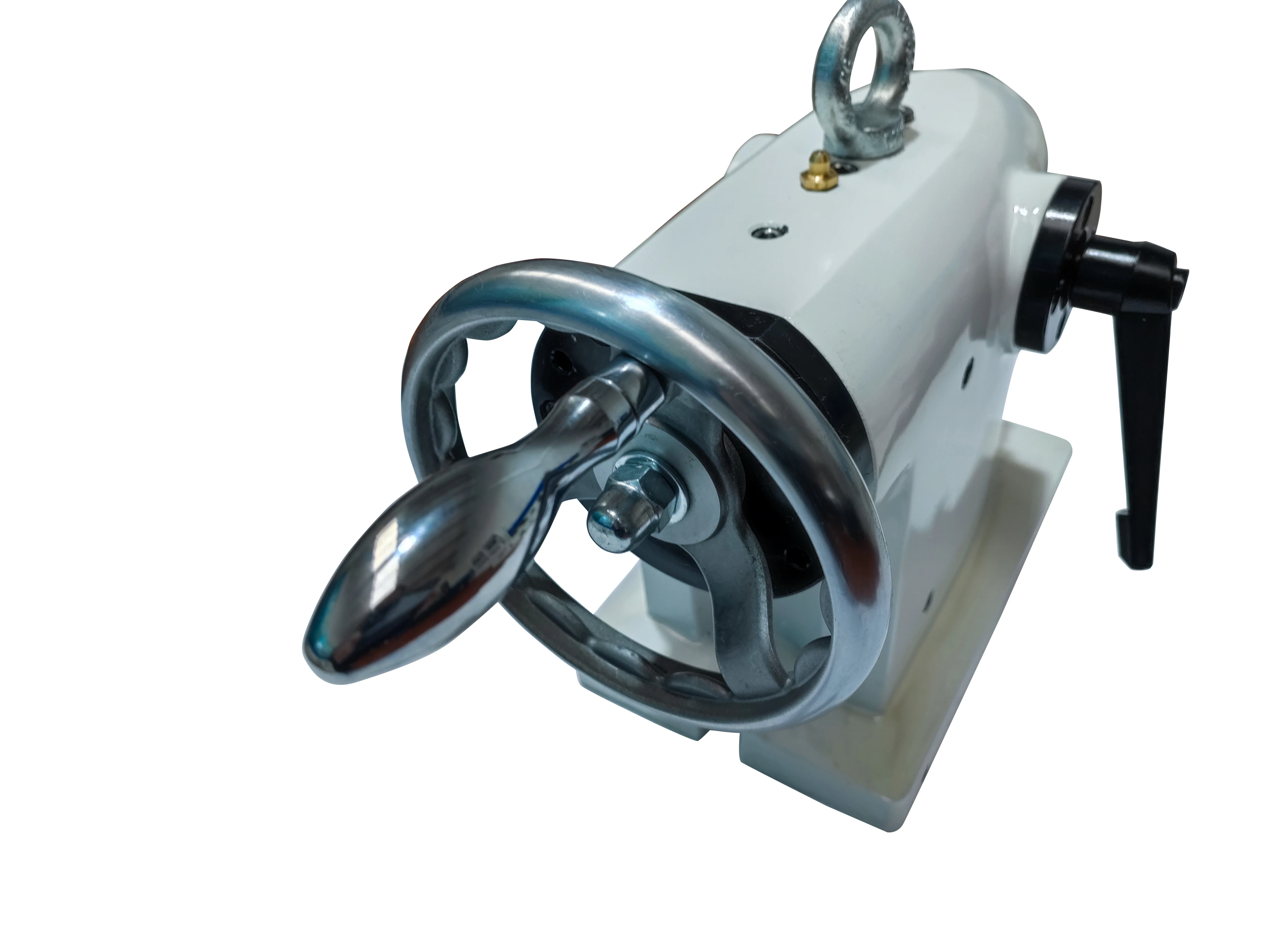

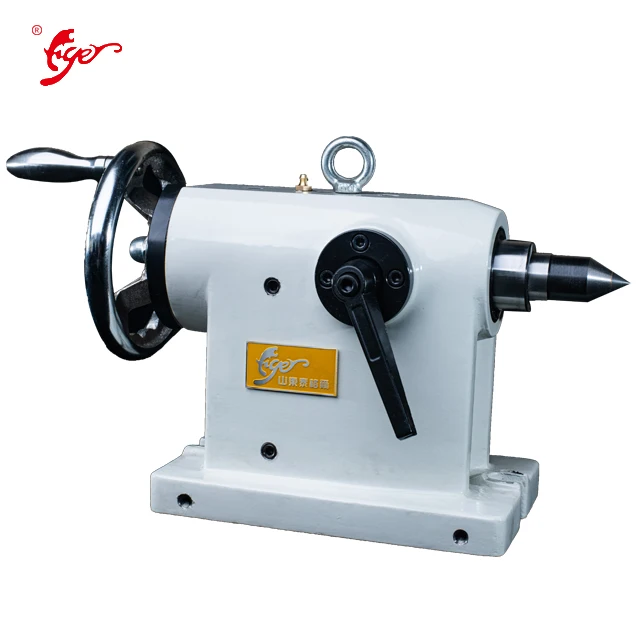

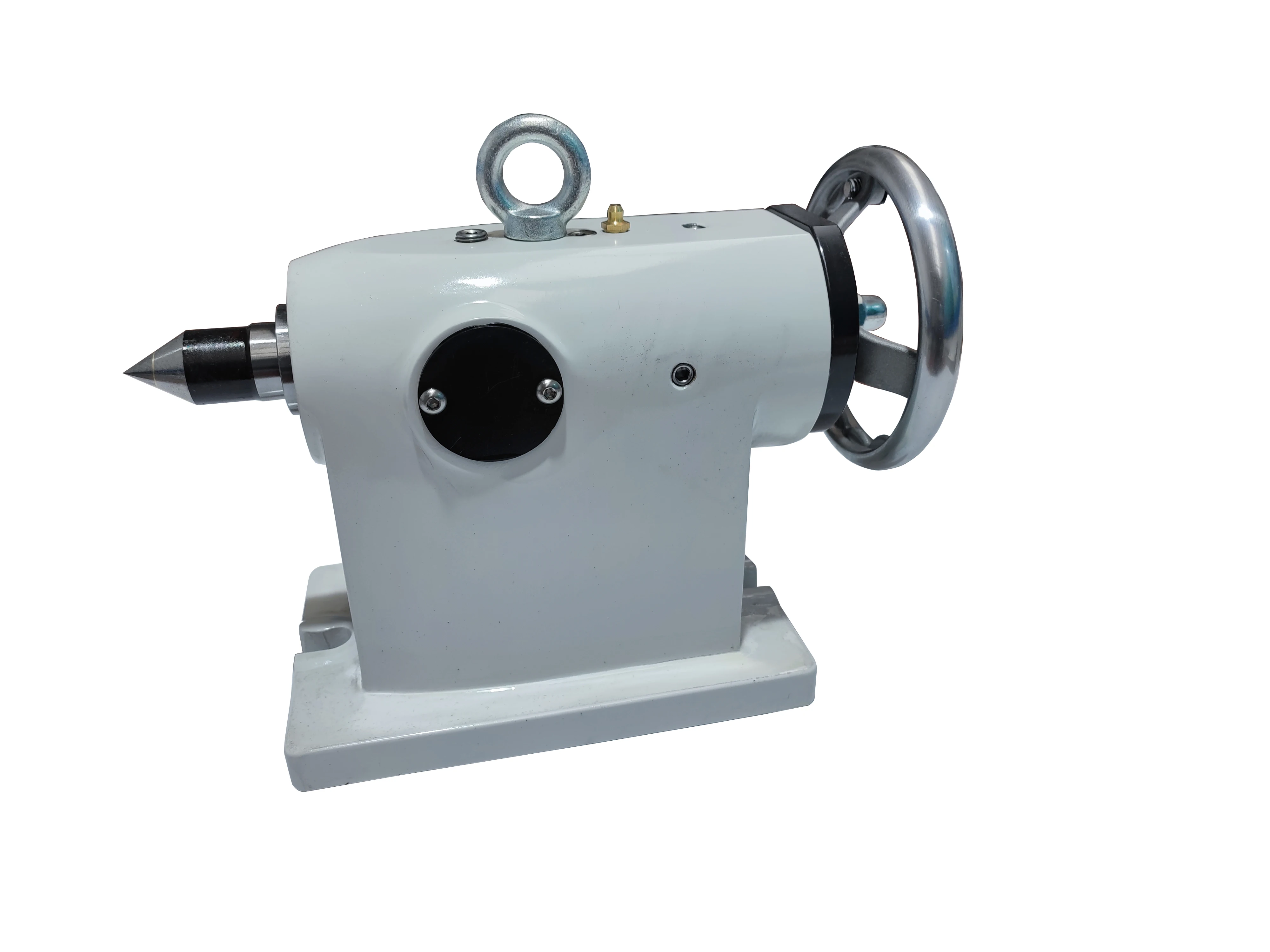

4th CNC rotary tabletail stock HT135

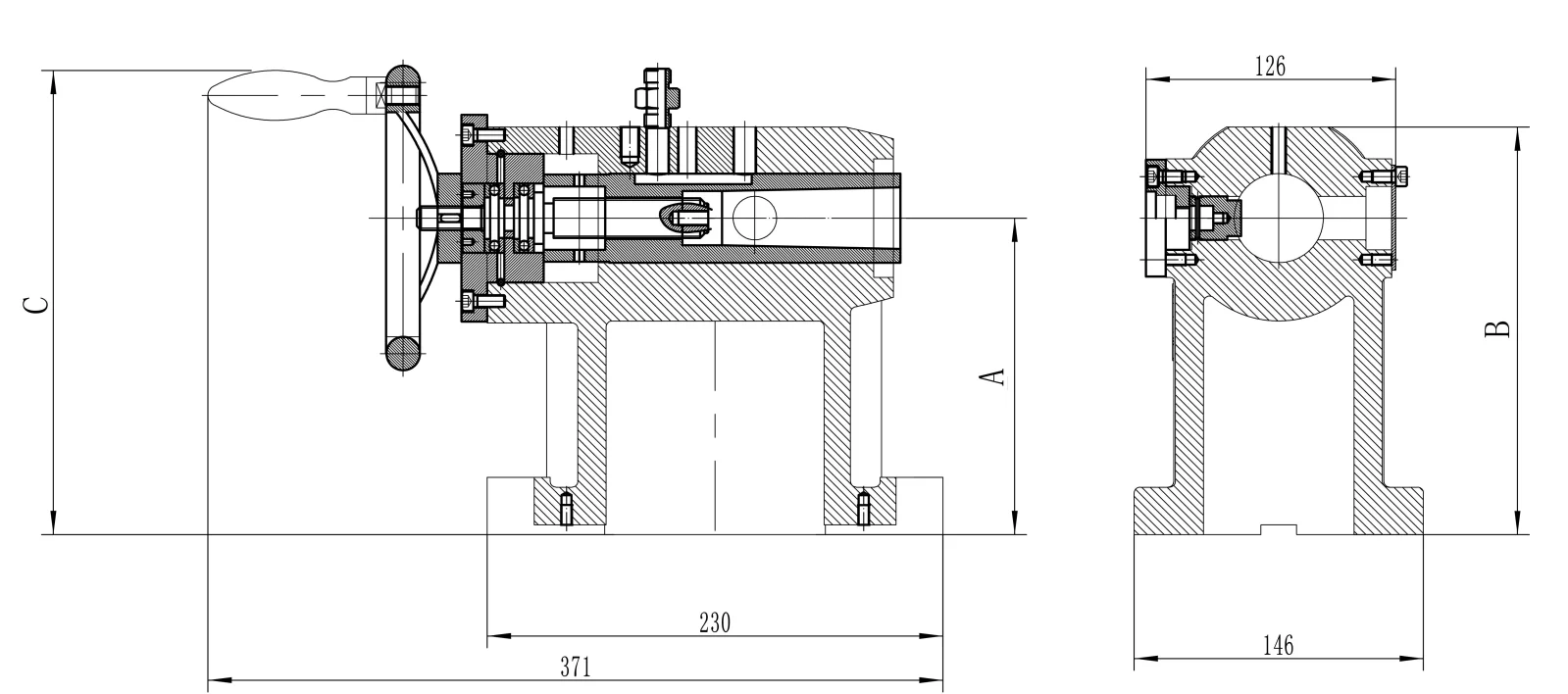

Specification:
| Model | HT135 | HT160 | HT185 | HT210 |
| Center height (mm) | 135 | 160 | 185 | 210 |
| Center nose | MT4 | MT4 | MT4 | MT4 |
| Length of base (mm) | 190 | 190 | 190 | 202 |
| Width of base (mm) | 120 | 120 | 120 | 120 |
| Overall length (mm) | 440 | 440 | 440 | 440 |
| Sleeve range (mm) | 55 | 55 | 55 | 55 |
| Width of key (mm) | 18 | 18 | 18 | 18 |
| Distance of screw (mm) | 205 | 205 | 205 | 205 |
| Overall height (mm) | 185 | 210 | 235 | 265 |
| Gross weight(kg) | 26 | 28 | 30 | 31 |
