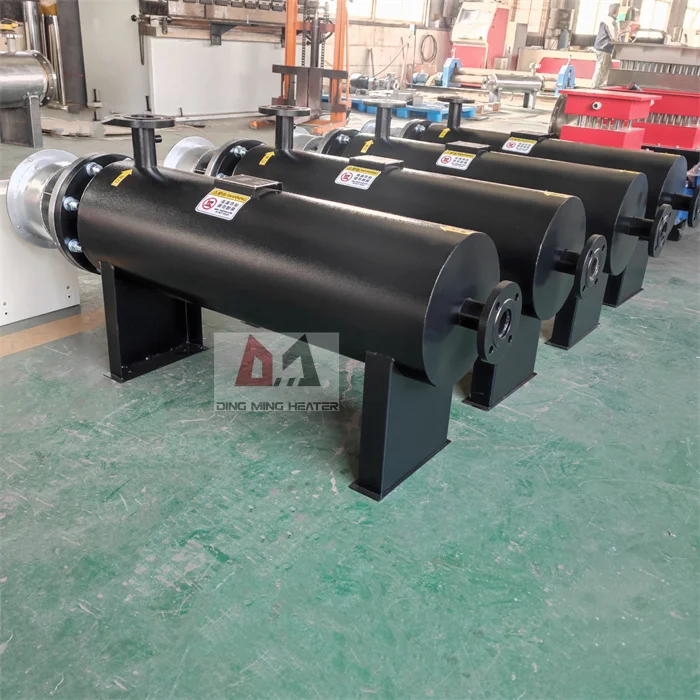

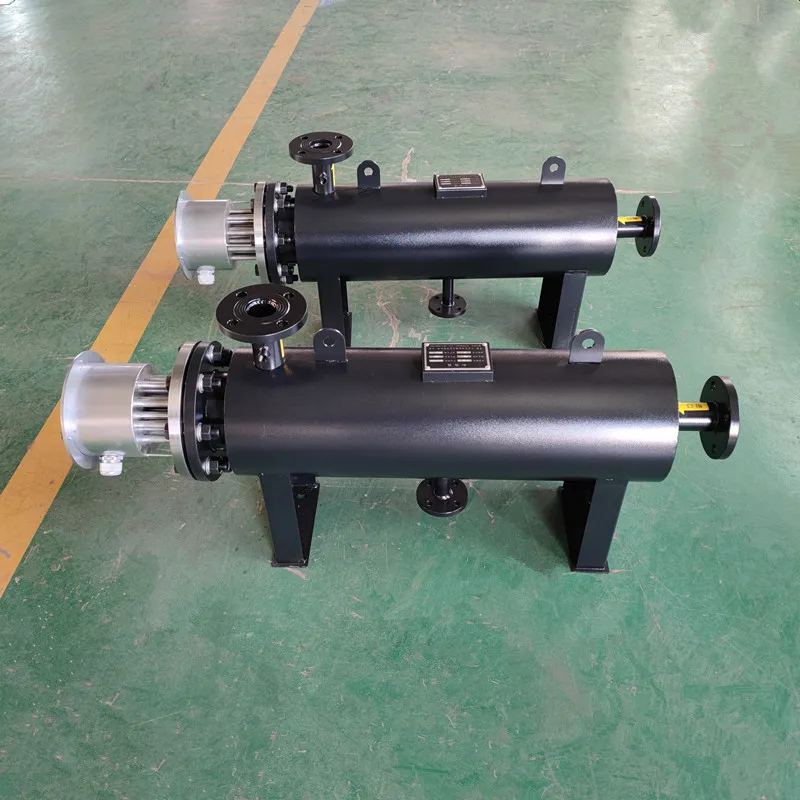

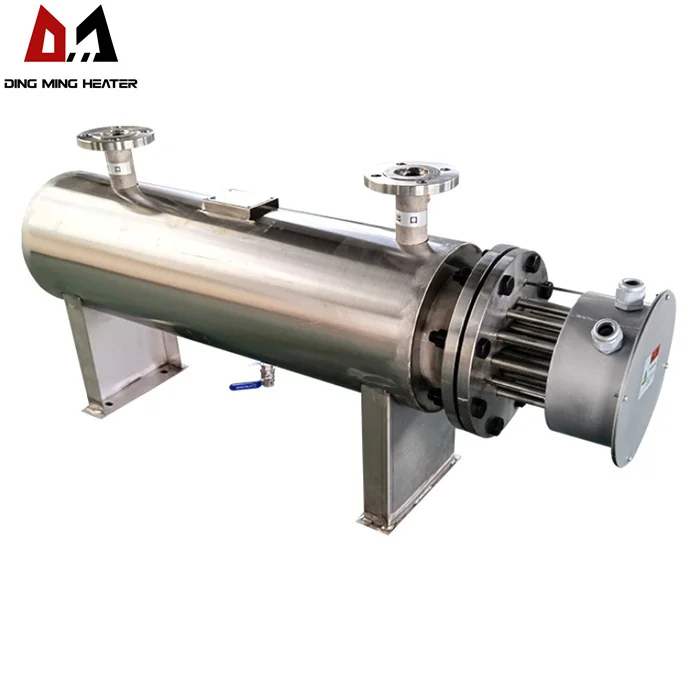

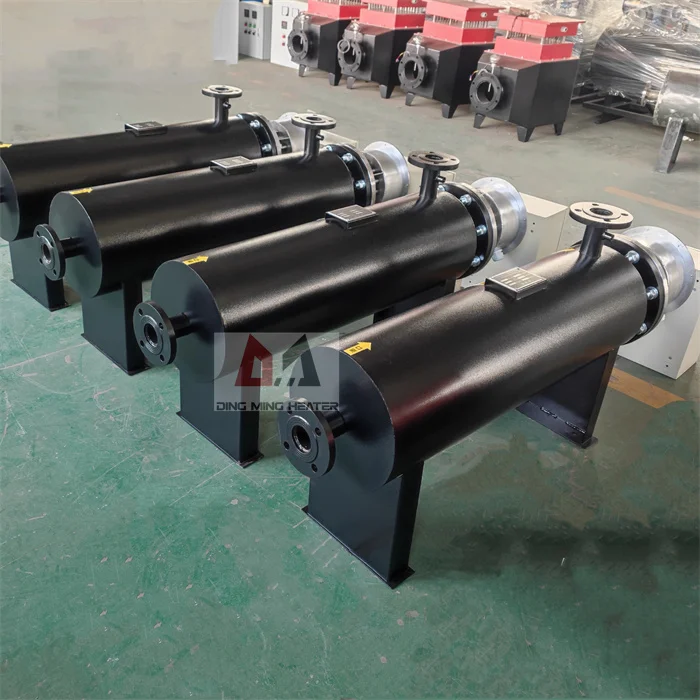

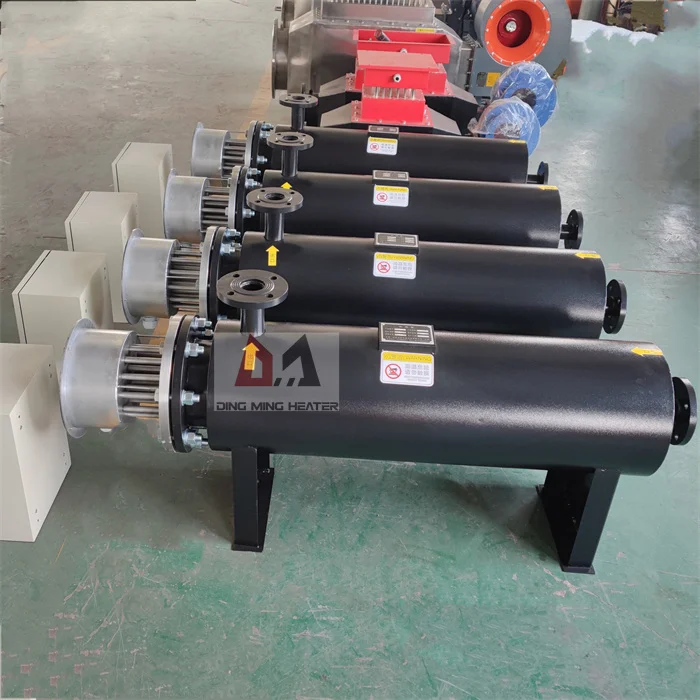

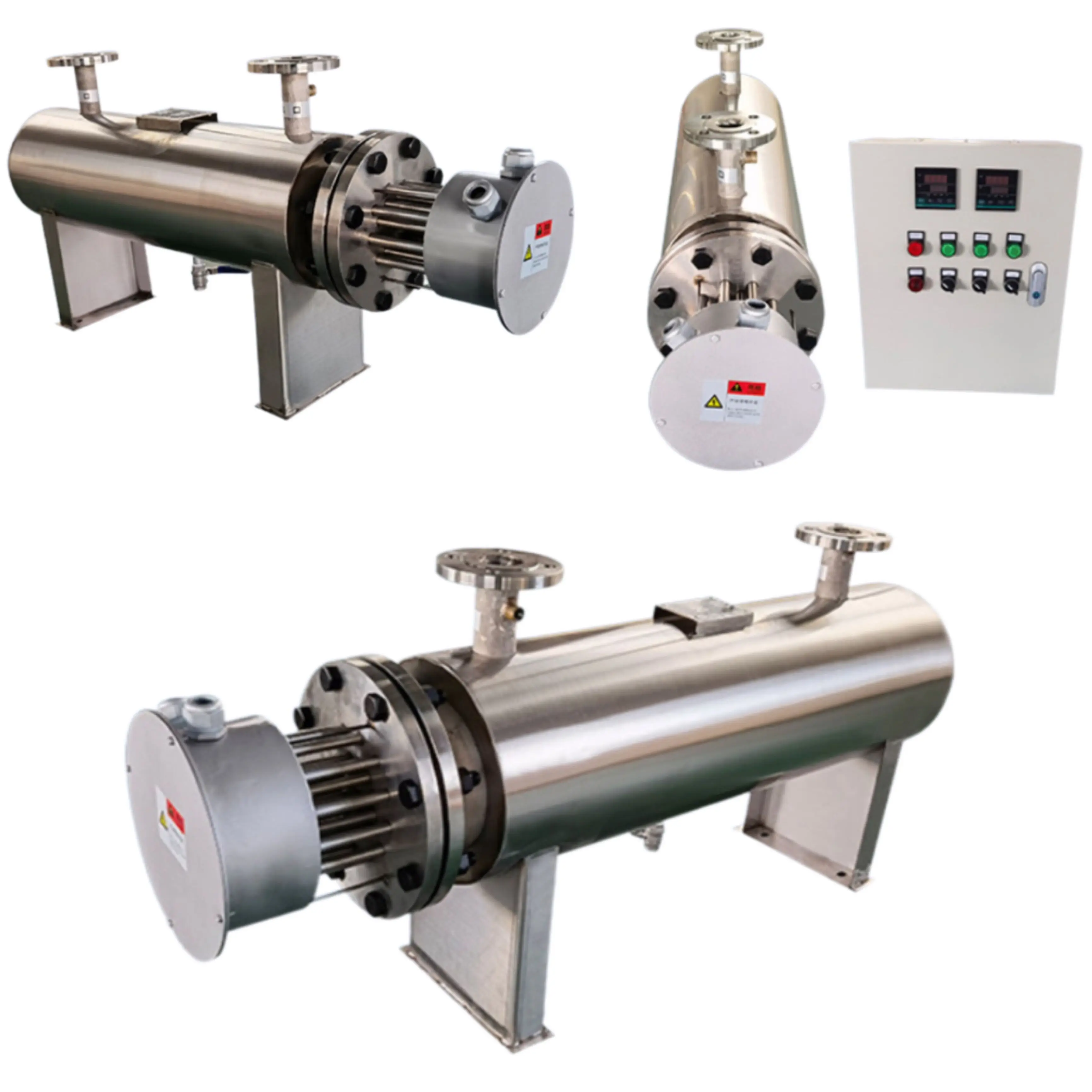

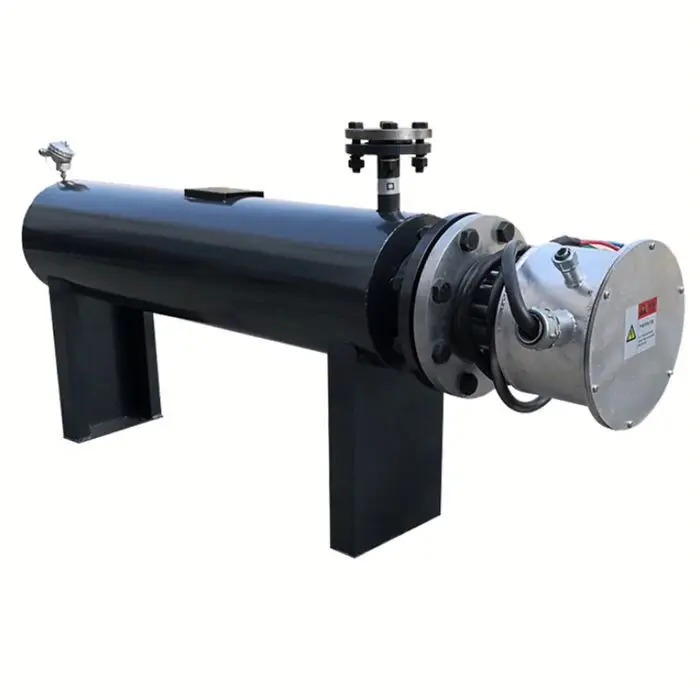

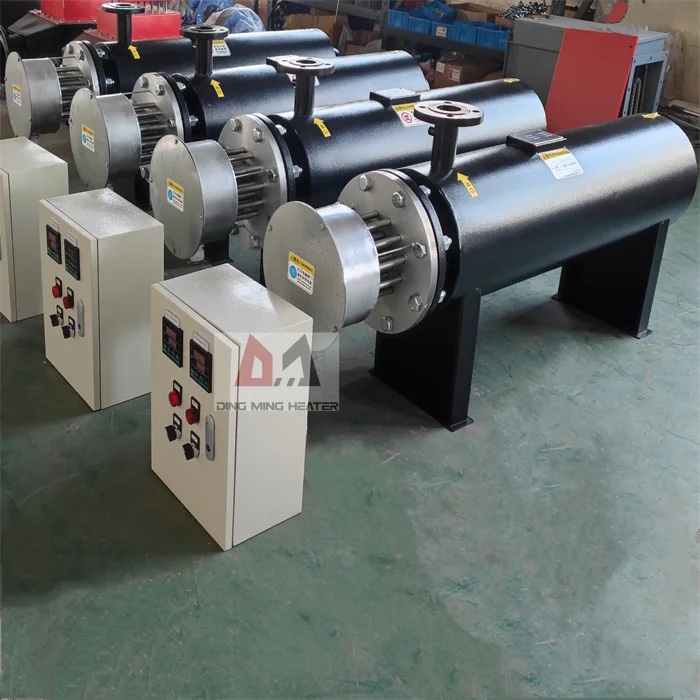

Industrial Horizontal High Temperature Electric Pipeline Circulation Heater For Air Gas Water Or Heavy Oil
- Category: >>>
- Supplier: Yancheng Dingming Electric Heating Technology Co. Ltd.
Share on (1600639019729):
Product Overview
Description
Products Description

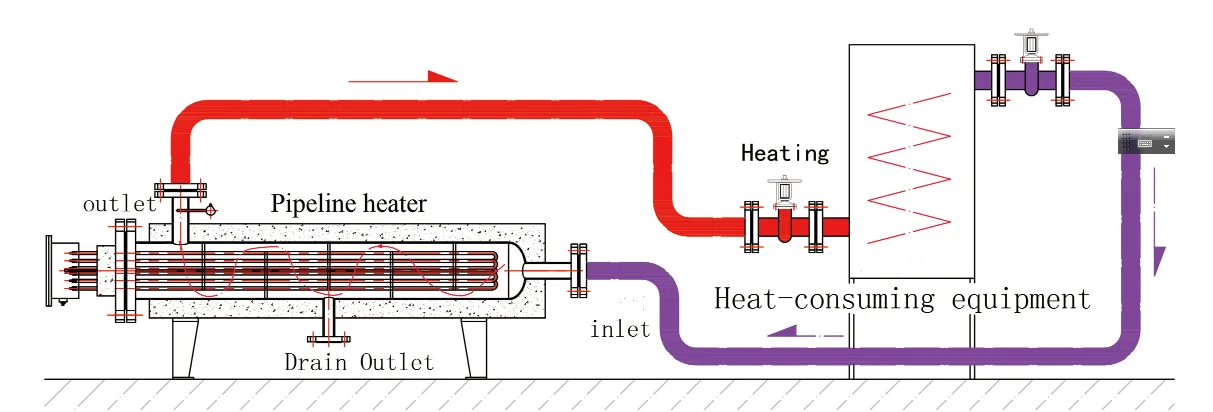

The pipeline heater is an energy-saving equipment that preheats the heating medium. It is installed before the heating medium equipment to directly heat the medium, so that it can circulate heating at high temperatures, and finally achieve the purpose of saving energy. It is widely used in the pre-heating of fuel oil such as heavy oil, asphalt, and clear oil.
The pipeline heater is composed of a body and a control system. The heating element is made of seamless stainless steel pipe as a protective sleeve, high temperature resistance alloy wire and high-purity crystalline magnesium oxide powder, processed by a compression process, and the control part adopts advanced digital Circuits, integrated circuit triggers, etc. constitute an adjustable temperature measurement and constant temperature system to ensure the normal operation of the electric heater.
The pipeline heater is composed of a body and a control system. The heating element is made of seamless stainless steel pipe as a protective sleeve, high temperature resistance alloy wire and high-purity crystalline magnesium oxide powder, processed by a compression process, and the control part adopts advanced digital Circuits, integrated circuit triggers, etc. constitute an adjustable temperature measurement and constant temperature system to ensure the normal operation of the electric heater.
Specification
Technical Parameters | ||||||||
Heat efficient | more than 95% | |||||||
Usage time | standard more than 10 years | |||||||
Thermal insulation layer | 50-100mm | |||||||
Heating element | flange tubular heater | |||||||
Tube diameter | 10/12/16mm | |||||||
Tube mateira | Stainless steel: AISI 321 / AISI 316L / AISI 304 | |||||||
Specific coating | PTFE | |||||||
Tube type | sealed tube, seamless tube | |||||||
Insulation | Mg O | |||||||
Sealing material | Keeps out external moisture | |||||||
Connecting box | Non ATEX connecting box, Explosion-proof connecting box | |||||||
Accessories | Thermocouple Sensors, 3-phase motor, Control Panel, Stainless Steel Insulation Housing, Stainless Steel Support Plate and Corner Posts, Single- and Three-Phase Wiring, 1" (25 mm) Insulation | |||||||
Details Images

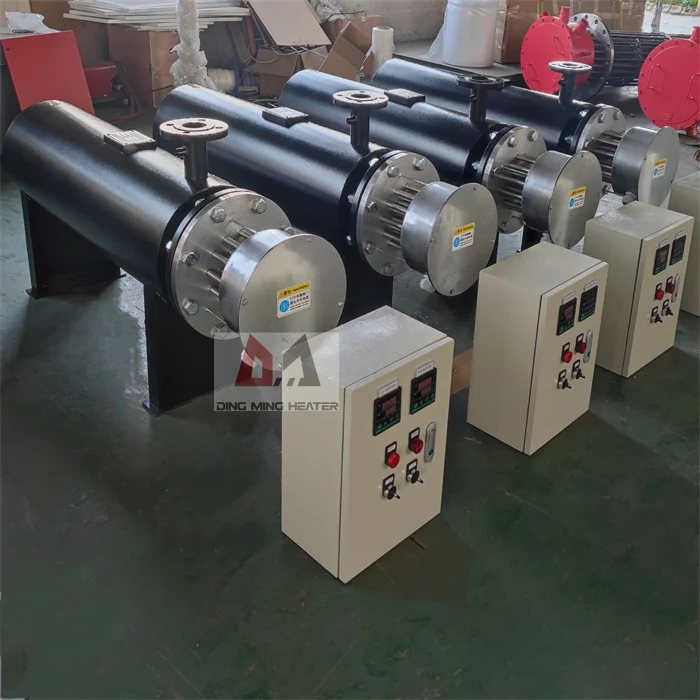

Auto-temperature Control
Rapid heating and cooling
Stable perfirmance
High security

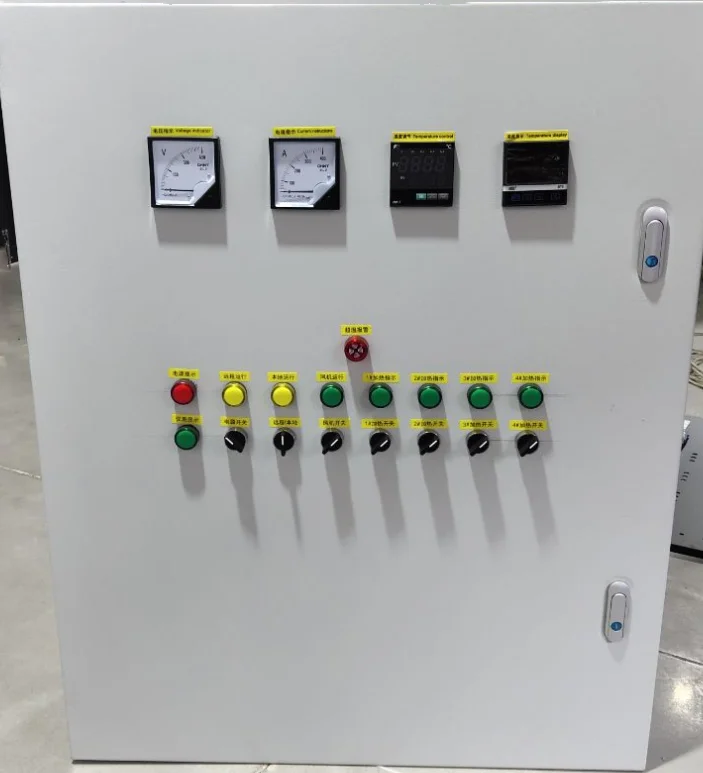

Explosion-proof control cabinet avaible

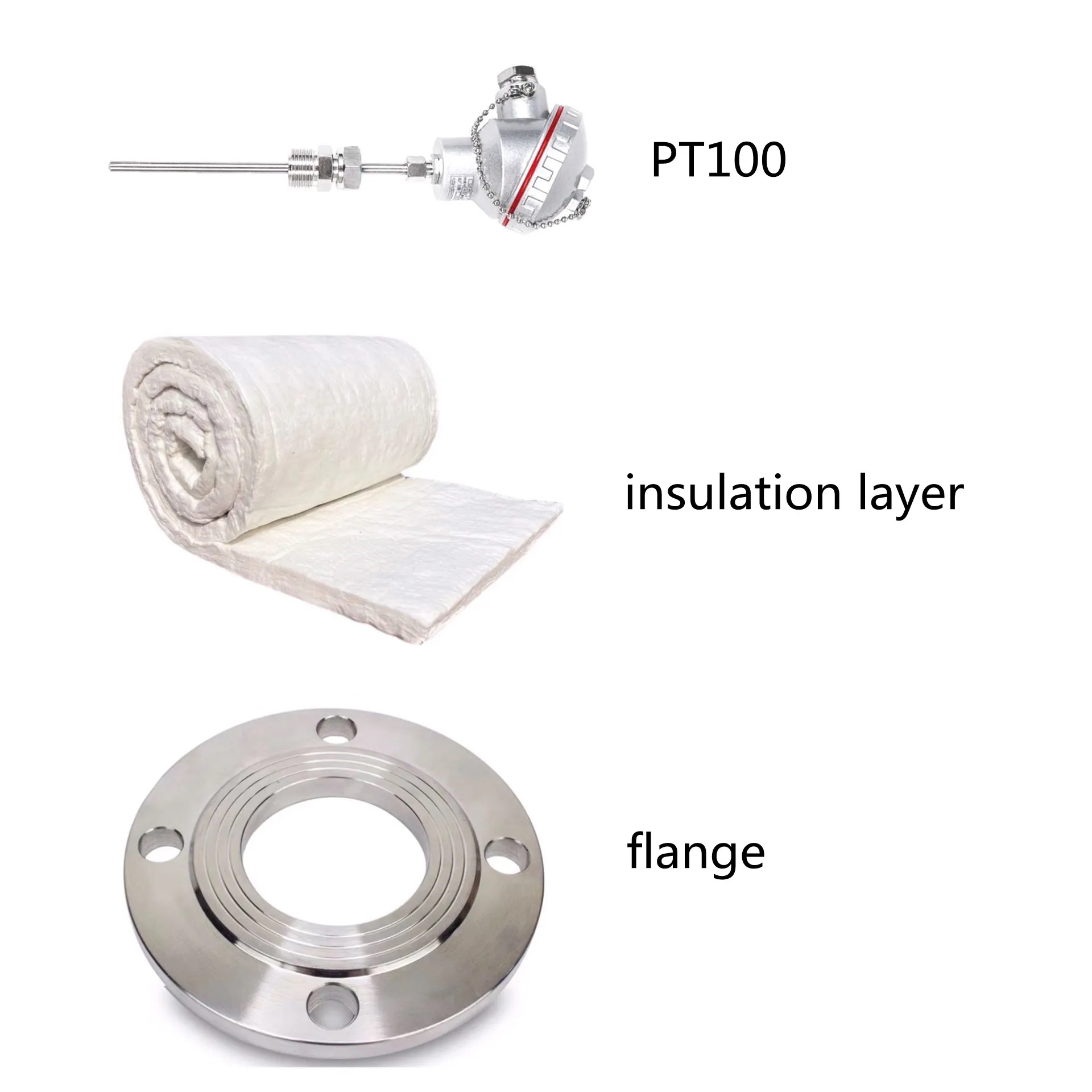

1. Quality PT100 thermocouple
2. Connecting flange: stainless steel / carbon steel
3. Aluminum silicate insulation layer

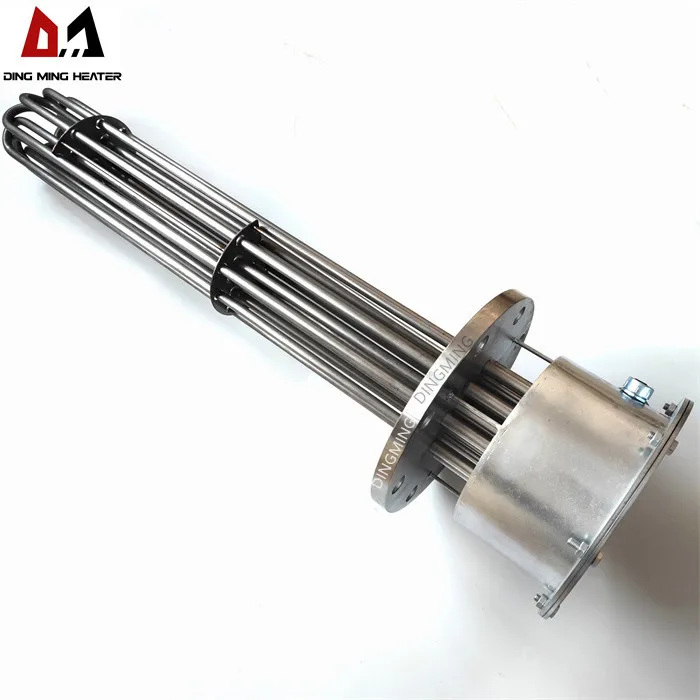

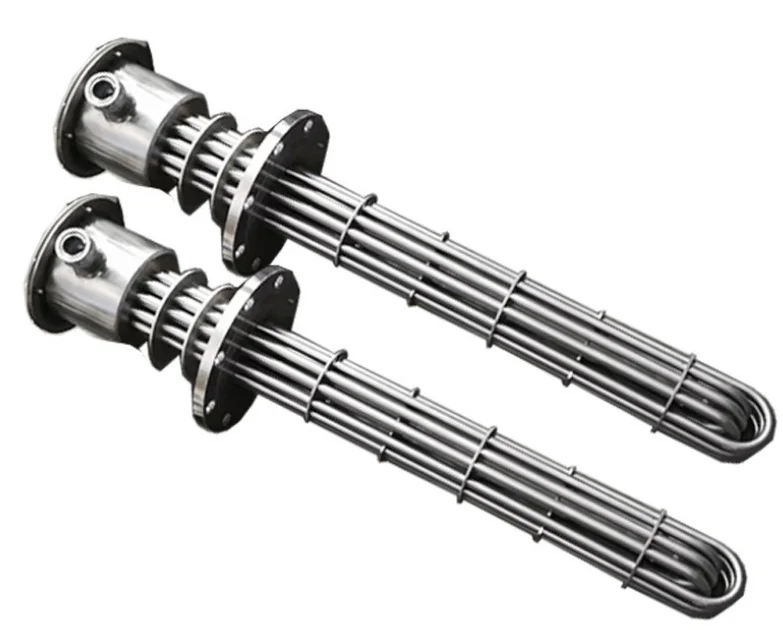

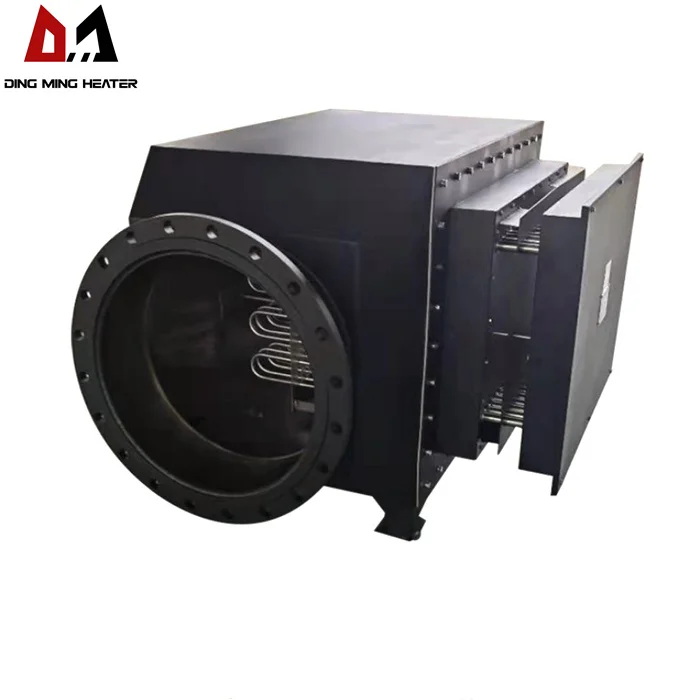

Heating element
--flange heating element
Compact structure, good stability
Easy to disassemble and install
Large surface power, high- density integrated
Water, Recycled water, Seawater Softened water, Domestic water or drinking water
Oil, Thermal oil, Nitrogen Hydraulic oi,l Turbine oil, Heavy fuel oil a
Alkali/lye and different industrial liquids
Non-flammable gas
Air
Product Paramenters
Model | Power (kw) | pipeline heater (liquid) | pipeline heater (gas) | Room temperature to — ℃ | |||
DMFD-10 | 10 | heating room size(mm) | connection diameter (mm) | heating room size(mm) | connection diameter (mm) | ||
DMGD-10 | 10 | DN100*700 | DN32 | DN100*700 | DN32 | ||
DMGD-20 | 20 | DN150*800 | DN50 | DN150*800 | DN50 | ||
DMGD-30 | 30 | DN150*800 | DN50 | DN200*1000 | DN80 | ||
DMGD-40 | 40 | DN150*800 | DN50 | DN200*1000 | DN80 | ||
DMGD-60 | 60 | DN200*1000 | DN80 | DN250*1400 | DN100 | ||
DMGD-80 | 80 | DN250*1400 | DN100 | DN250*1400 | DN100 | ||
DMGD-100 | 100 | DN250*1400 | DN100 | DN250*1400 | DN100 | ||
DMGD-120 | 120 | DN250*1400 | DN100 | DN300*1600 | DN125 | ||
DMGD-150 | 150 | DN300*1600 | DN125 | DN300*1600 | DN125 | ||
DMGD-180 | 180 | DN300*1600 | DN125 | DN350*1800 | DN150 | ||
DMGD-240 | 240 | DN350*1800 | DN150 | DN350*1800 | DN150 | ||
DMGD-300 | 300 | DN350*1800 | DN150 | DN400*2000 | DN200 | ||
DMGD-360 | 360 | DN400*2000 | DN200 | 2-DN350*1800 | DN200 | ||
DMGD-420 | 420 | DN400*2000 | DN200 | 2-DN350*1800 | DN200 | ||
DMGD-480 | 480 | DN400*2000 | DN200 | 2-DN350*1800 | DN200 | ||
DMGD-600 | 600 | 2-DN350*1800 | DN200 | 2-DN400*2000 | DN200 | ||
DMGD-800 | 800 | 2-DN400*2000 | DN200 | 4-DN350*1800 | DN200 | ||
DMGD-1000 | 1000 | 4-DN350*1800 | DN200 | 4-DN400*2000 | DN200 | ||
When order, would you please share us with the following data?( Standard Voltage 380V)
1) Air/Liquid flow rate
2) Temperature range
3) Heating time
4) Usage environment
Package: Plywood or export wooden case packaging
Delivery: By sea or air
Related product

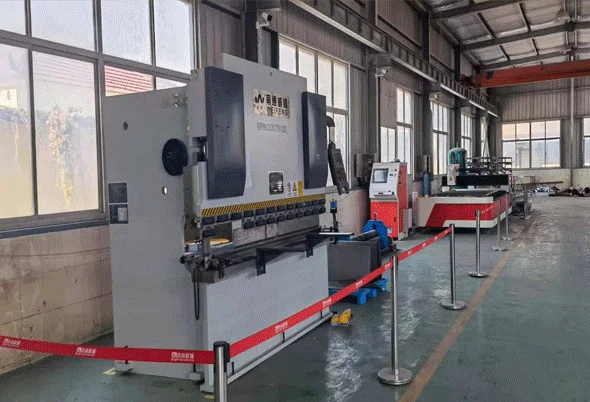

Company Profile
