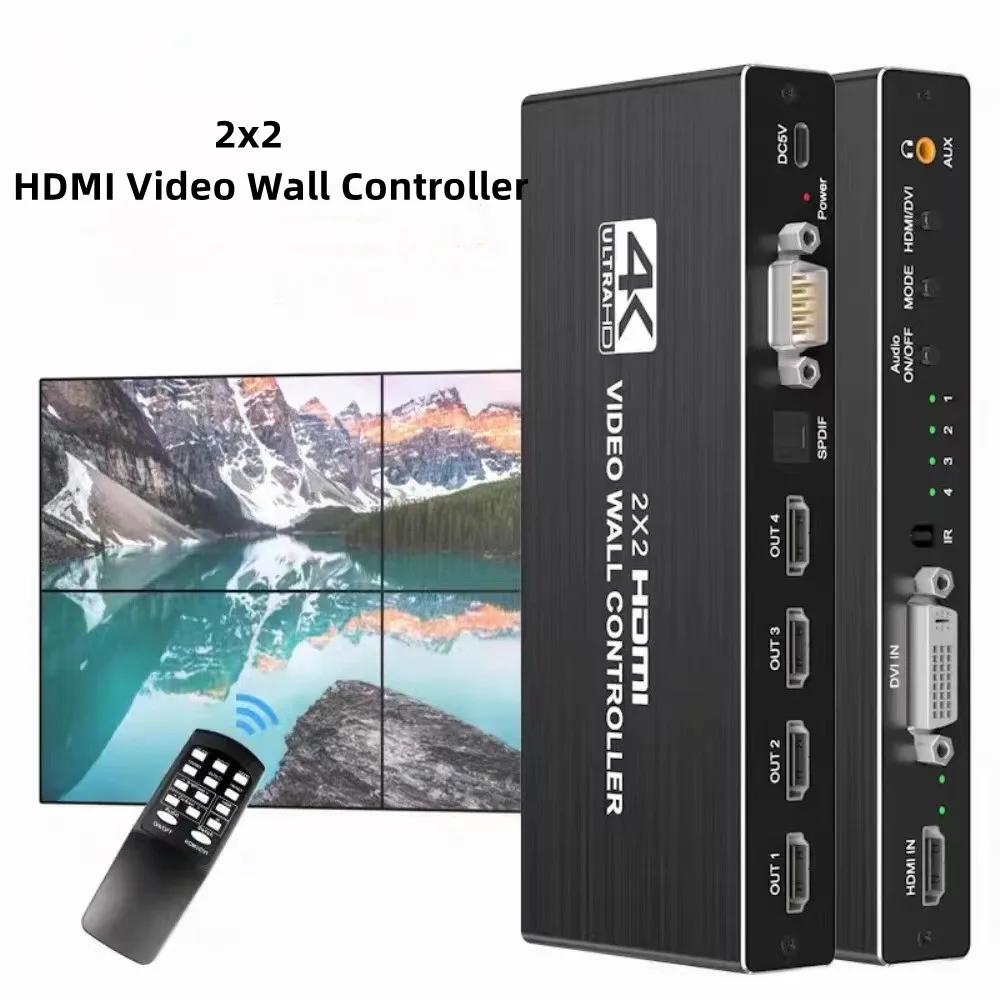

4K 2x2 HDMI Video Wall Controller with Remote
- Category: >>>
- Supplier: Dongguan Ouzheng Technology Co. Ltd.
Share on (1600639073778):
Product Overview
Description
Product Description
| HDMI Version | HDMI1.4 HDCP1.4 |
| HDMI Resolution | up to 3840x2160P/30Hz |
| Support Video Format | 24 bit deep color |
| Power Adapter Format | Output: DC5V/2A |
| Material | Aluminum Alloy |
| Color | Black |
| Dimension(LxWxH) | 148X62X21mm |
| Weight | 378g |
| Package | Box (Remote+User Manual+Power Adapter) |

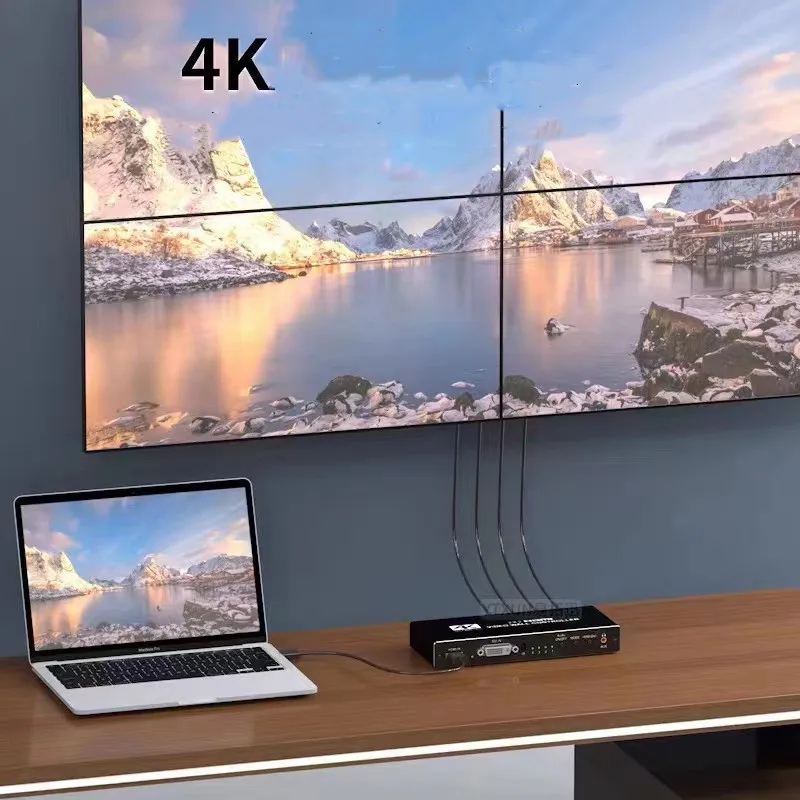

The 4K 2X2 video wall controller, support 1-way HDMI or DVI input and 4 HDMI output, the main function is to divide a complete HDMI, DVI HD image singal into 4 blocks and assign to 4 video display unit (such as rear projection unit, LCD TV, etc.). Complete with 4 HDMI high-definition video display units to form a large dynamic image screen.
* Supports one DVI input or HDMI input.
* Input support HDMI1.4, HDCP1.4.
* Input format: RGB/YUV24bit;
* Output format: RGB444 24bit.
* Support 2X2 stitching, easy operation, plug and play;
* Input support 1920x1080P
25/30/50/60Hz,3840x2160P 24/30HZ.

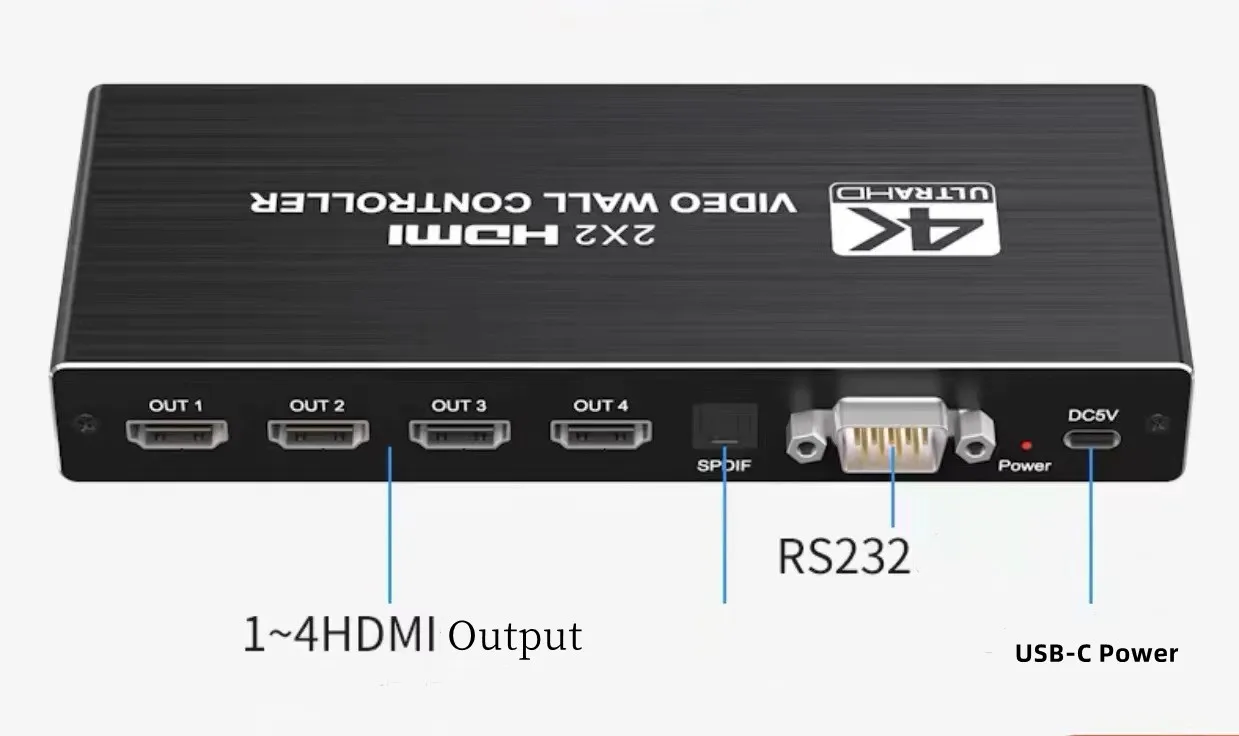

* Support four HDMI output, one 3.5mm stereo output.
* Supports 5.1CH audio output over optical fibers.
* Output support 1920x1080P 60HZ;
* Supports RS232
* Supports remote control
* DC5V / 2A power supply
Box Package contents
1x 4K HDMI Video Wall Controller
1x Type-c Power Adaper
1x Remote Control
1x User Manual
Product Pictures
