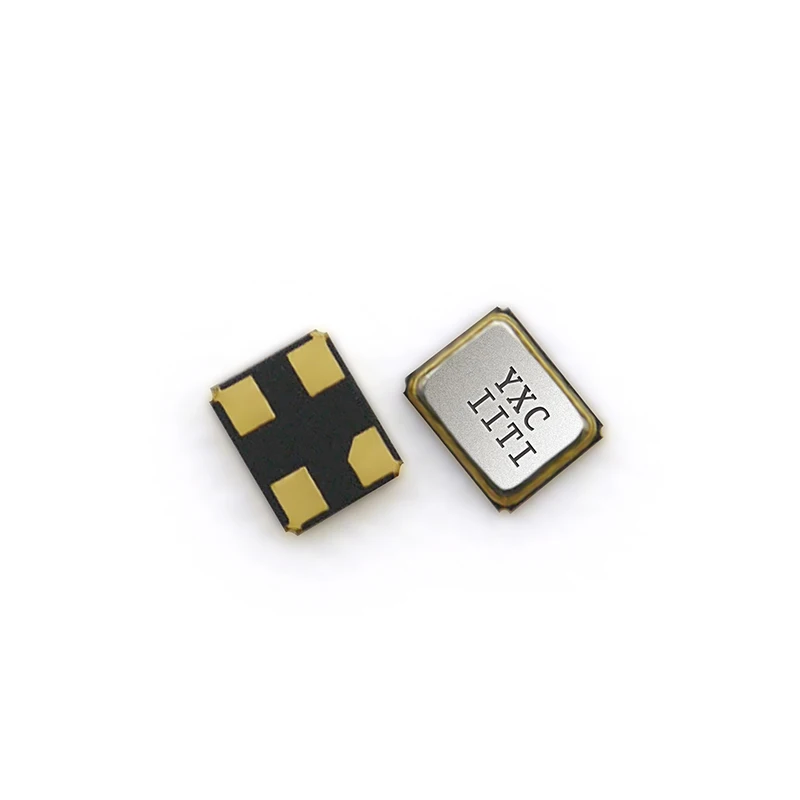

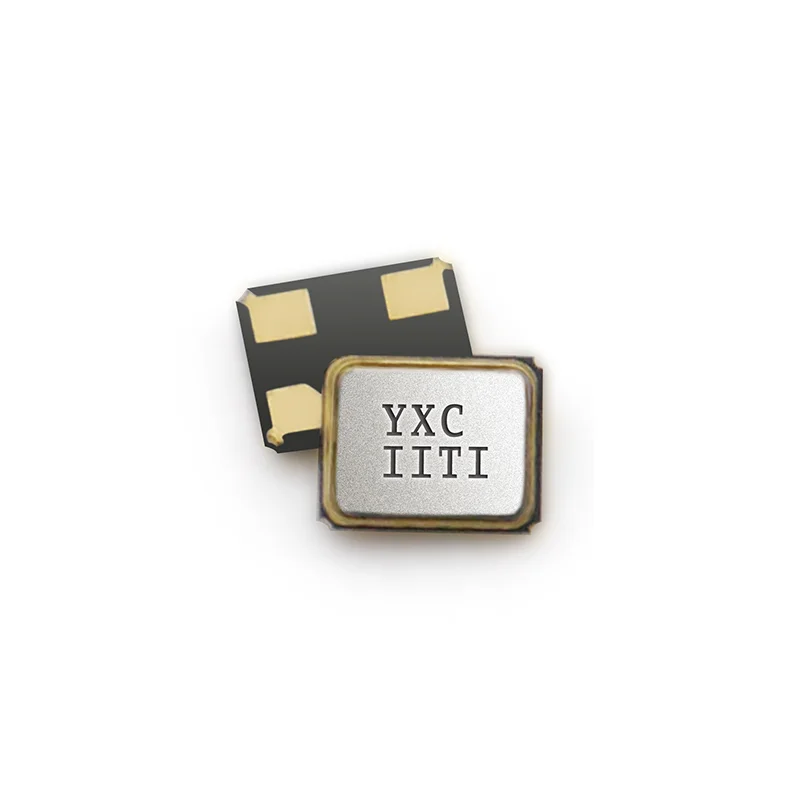

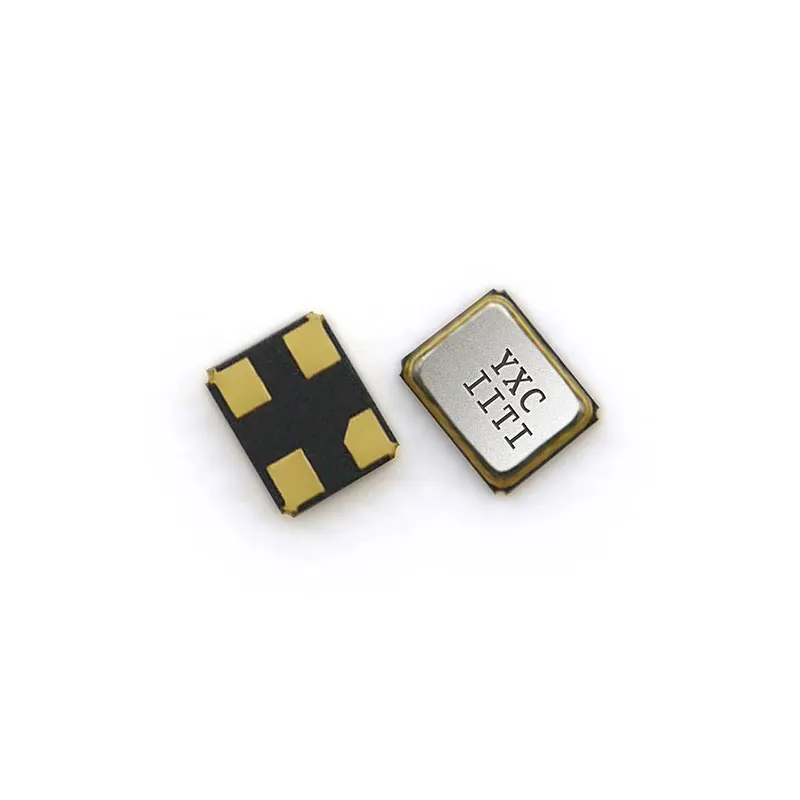

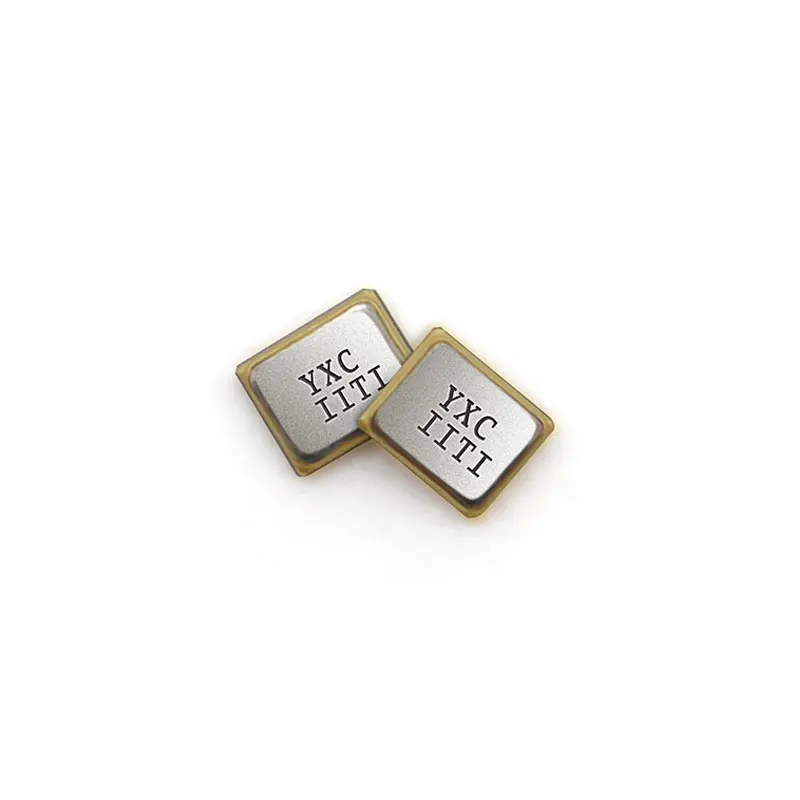

YSX211SL 2016 SMD 9pF 20PPM 16.000MHz Quartz Crystal Oscillator 16MHz
- Category: Oscillators old >>>
- Supplier: Yqm Electronics Intl Limited
Share on (1600639102413):
Product Overview
Description
Specifications

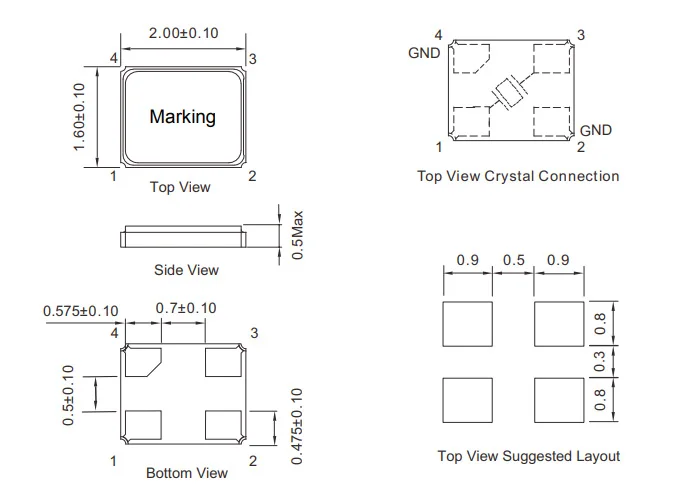

External Dimensions
Electrical Specifications
Item/ Type | YSX211SL |
Nominal Frequency Range | 16~54MHz |
vibration Mode | AT Fundamental |
Load Capacitance | 8pF, 9pF, 12pF or specify |
Frequency Tolerance(at 25°C): | ±10ppm, ±15ppm, ±20ppm,or specify |
Frequency versus Temperature Characteristics | ±20ppm,or specify |
Operating Temperature | -20°C ~ +70°C, -40°C ~ +85°C,or specify |
Storage Temperature | -40°C ~ +85°C,or specify |
Shunt Capacitance | 3 pF Max |
level of Drive | 10~200 W Max |
Frequency Aging (at 25°C) | ±3ppm Max/Year |
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
