GY D Series Sodium hypochlorite generator electrolysis sodium hypochlorite producing machine disinfection machine
- Category: >>>
- Supplier: New Yuda Environmental Protection Technology Co. Ltd.
Share on (1600639117485):
Product Overview
Description
Products Description

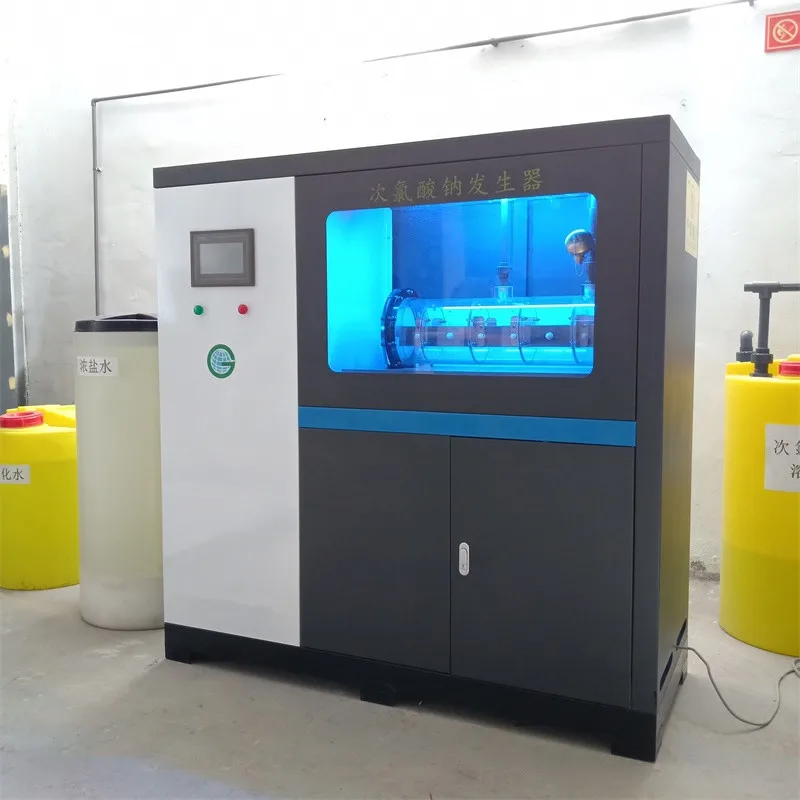

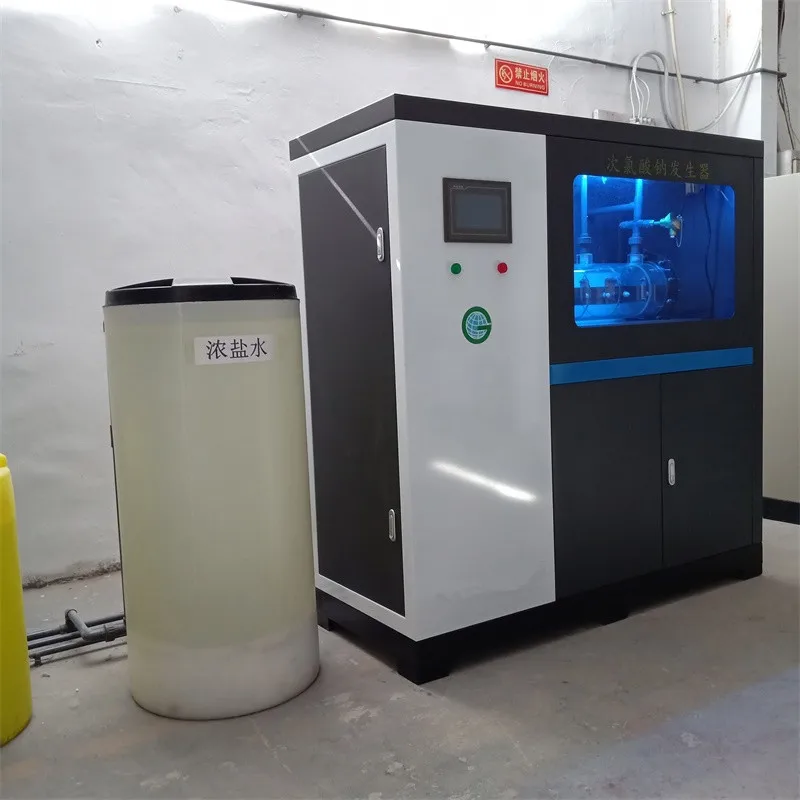

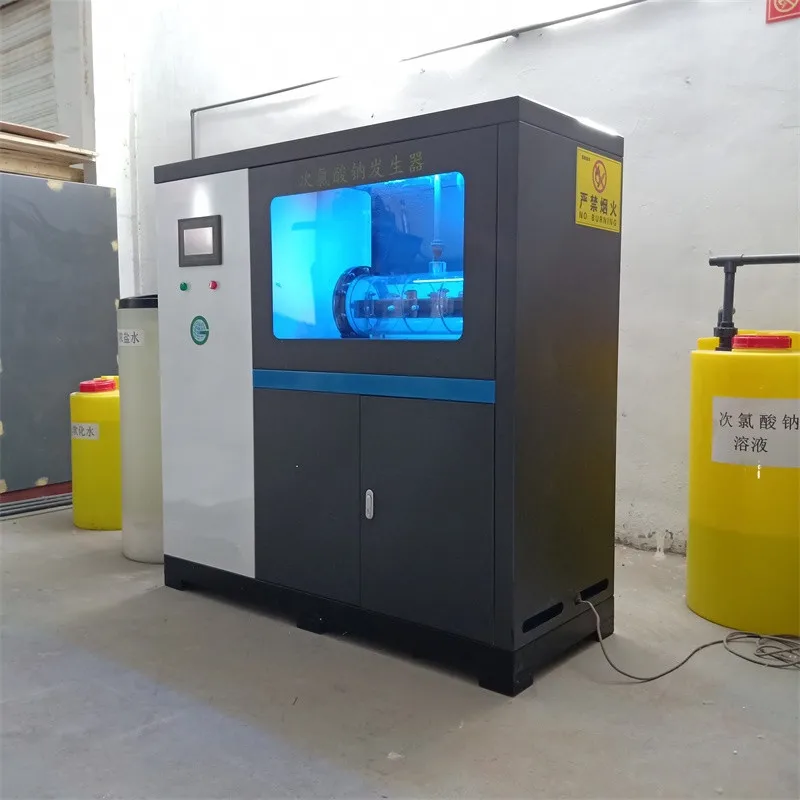

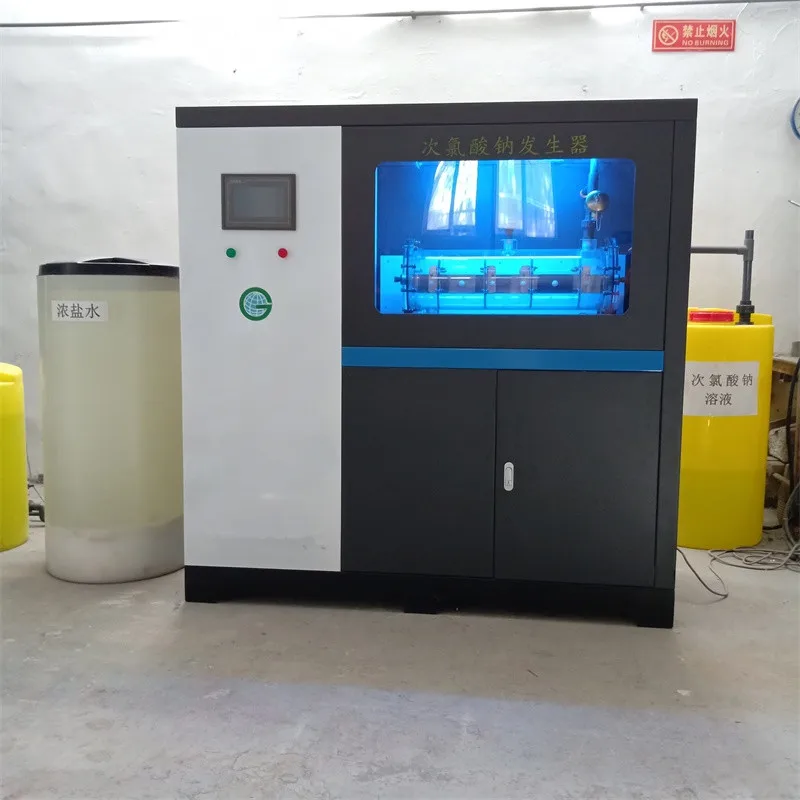

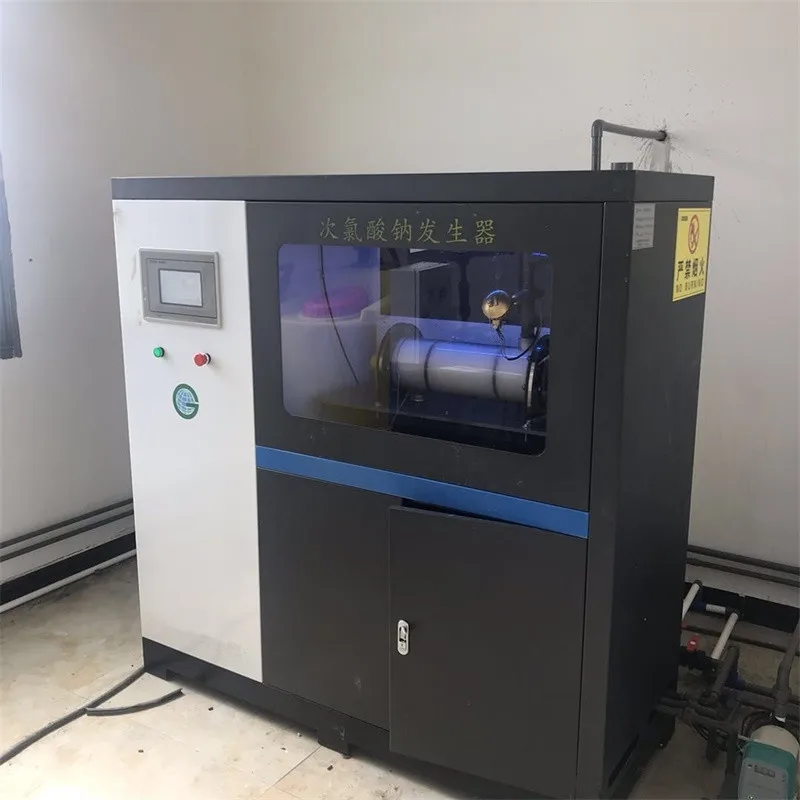

GY-D sodium hypochlorite generator
Integrated overall chassis, softening water unit, automatic salt unit, dilute salt automatic ratio unit, electrolytic electrode
assembly unit, rectifier power unit, Siemens control unit, solution storage unit, solution plus unit electrolytic reaction
equation:
NACI + H2O => NACIO + H2
Industrial raw materials:
Iodine iodine refined salt: national label: GB5461
Iodine iodine refined salt: national label: GB5461
Product performance characteristics:
Fully transparent electrolytic slot, which can be visualized. Electrolytic slot scaling and pickling in time
Overall chassis, transparent glass windows visible Comes with water inlet softening function to reduce the frequency of electrolytic slot cleaning.
Fully automatic Siemens PLC control, all the composition modules are abnormal and then reported to the police to stop
Multiple safety protection system, fan hydrogen drainage system IoT mobile phone control, remote real -time monitoring equipment status. High level of intelligence and simple operation. Through emerging technologies such as the Internet of Things and the cloud. platform big data, one -click intelligent control of the device can be achieved, remote monitoring of mobile apps, and automatic alarm of faults can be uploaded.
Fully transparent electrolytic slot, which can be visualized. Electrolytic slot scaling and pickling in time
Overall chassis, transparent glass windows visible Comes with water inlet softening function to reduce the frequency of electrolytic slot cleaning.
Fully automatic Siemens PLC control, all the composition modules are abnormal and then reported to the police to stop
Multiple safety protection system, fan hydrogen drainage system IoT mobile phone control, remote real -time monitoring equipment status. High level of intelligence and simple operation. Through emerging technologies such as the Internet of Things and the cloud. platform big data, one -click intelligent control of the device can be achieved, remote monitoring of mobile apps, and automatic alarm of faults can be uploaded.
Main technical indexes of GY-D sodium
hypochlorite generator
1. Salt concentration: 3-4%;
2. DC power consumption: <4KW.H/CLKG;
3. AC power consumption: <5KW.H/CLKG
4. Salt consumption: <3.2kg/kgcl
5. Continuous use of anode coating: rare metal coating of titanium materials, reused;
6. Effective chlorine concentration: 6G/L-8G/L;
7. Work status of the generator: automated control of the whole process, can work continuously for 24 hours;
8. Adapt to ambient temperature: -10 <0 ~+50 <0;
hypochlorite generator
1. Salt concentration: 3-4%;
2. DC power consumption: <4KW.H/CLKG;
3. AC power consumption: <5KW.H/CLKG
4. Salt consumption: <3.2kg/kgcl
5. Continuous use of anode coating: rare metal coating of titanium materials, reused;
6. Effective chlorine concentration: 6G/L-8G/L;
7. Work status of the generator: automated control of the whole process, can work continuously for 24 hours;
8. Adapt to ambient temperature: -10 <0 ~+50 <0;
9. Electrolytic liquid temperature rising: V45 heart;
Model | Effective chlorine output G/H | Power KW/H | solution concentration g/h | Power Supply AC | Size: L*W*H MM |
GY-D-500 | 500 | 5.0 | 6-8 | 380V | 1500*650*1500 |
GY-D-800 | 800 | 6.0 | 6-8 | 380V | 1500*650*1500 |
GY-D-1000 | 1000 | 7.5 | 6-8 | 380V | 1600*650*1600 |
GY-D-2000 | 2000 | 11.0 | 6-8 | 380V | 1700*700*1700 |
GY-D-3000 | 3000 | 17.5 | 6-8 | 380V | 1800*700*1800 |
GY-D-4000 | 4000 | 20.0 | 6-8 | 380V | 1800*700*1800 |
GY-D-5000 | 5000 | 30.0 | 6-8 | 380V | 1900*800*1800 |
Company Profile
NEW YUDA Environmental Protection Technology Co., Ltd. is a comprehensive environmental protection enterprise integrating consulting and design, equipment manufacturing, construction, investment and financing, and operation and maintenance management. Its business areas focus on urban and rural environmental governance, industrial and service wastewater treatment, and water supply purification, solid waste treatment and environmental services. The company is committed to providing overall environmental solutions for local governments' rural revitalization strategic projects and enterprises.
1) National Hi-tech Enterprise, Guangxi Famous Brand, Class A Credit Enterprise
2) More than 60 intellectual property rights, including trademarks, software copyrights, utility and invention patents.
3) Strong technical ability, cooperate with Tsinghua University, Tianjin University, Tokyo University,etc.
4) More then 15 years experiences in the industry
5) General contracting qualification of municipal public works construction. Professional contracting qualification of environmental protection engineering
2) More than 60 intellectual property rights, including trademarks, software copyrights, utility and invention patents.
3) Strong technical ability, cooperate with Tsinghua University, Tianjin University, Tokyo University,etc.
4) More then 15 years experiences in the industry
5) General contracting qualification of municipal public works construction. Professional contracting qualification of environmental protection engineering
Certifications
Packaging Logistics
FAQ
A) How could I get a sample?
Sample are available, but please afford sample costs and express fee.
B) Sample lead time?
Existing items: Within 7-10 days.
C) Do you offer OEM service and marked our logo on the products?
Yes, We offer OEM services.
D) What is the delivery time?
Normally, delivery time is 20-30days after order.
E) How to guarantee the quality of your products?
1) We have strict quality control system, every product has been strictly inspect and stamped QC psssed before shipping out.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
Sample are available, but please afford sample costs and express fee.
B) Sample lead time?
Existing items: Within 7-10 days.
C) Do you offer OEM service and marked our logo on the products?
Yes, We offer OEM services.
D) What is the delivery time?
Normally, delivery time is 20-30days after order.
E) How to guarantee the quality of your products?
1) We have strict quality control system, every product has been strictly inspect and stamped QC psssed before shipping out.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
