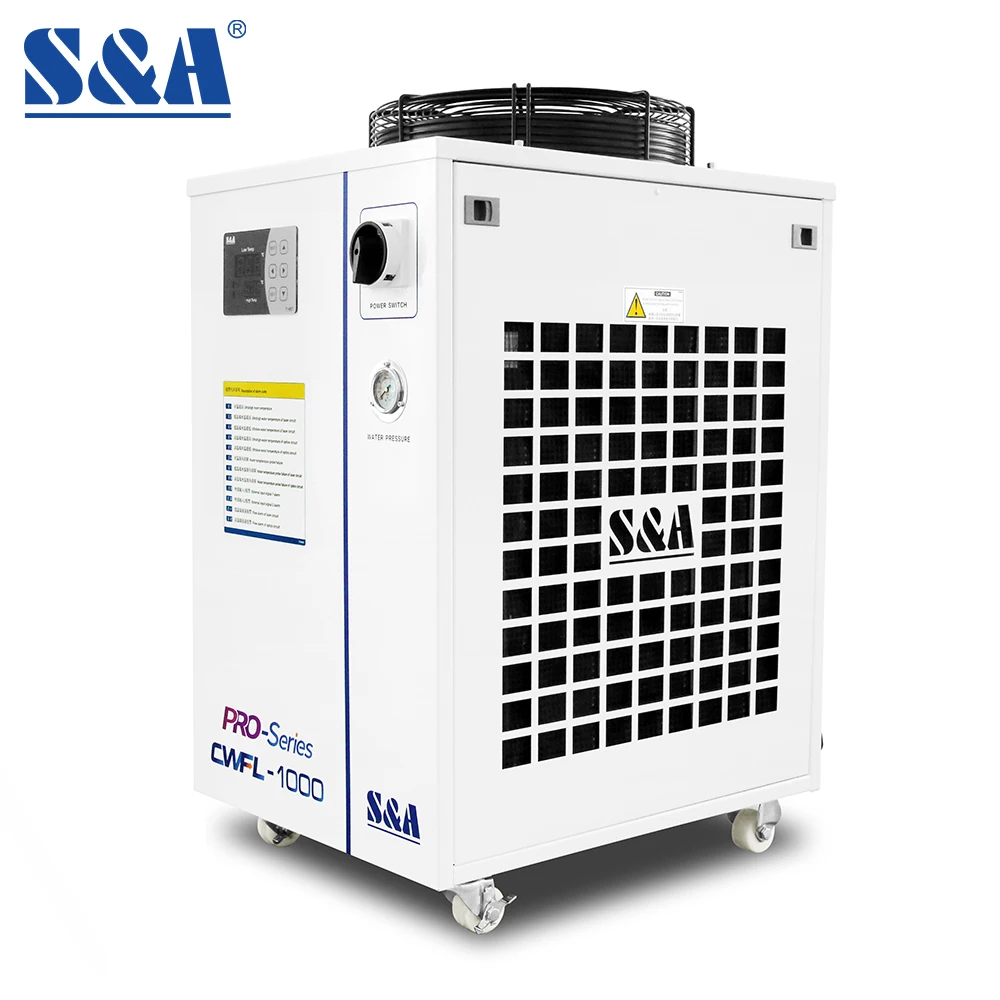

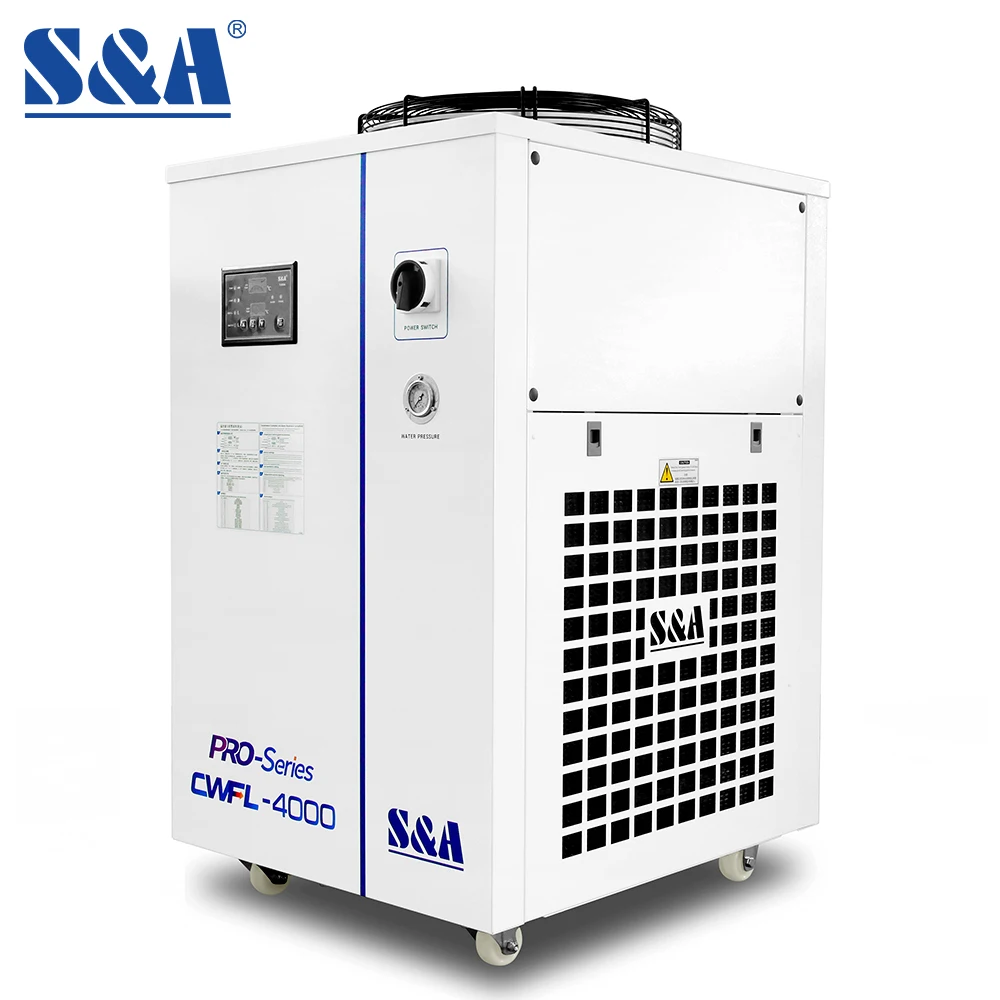

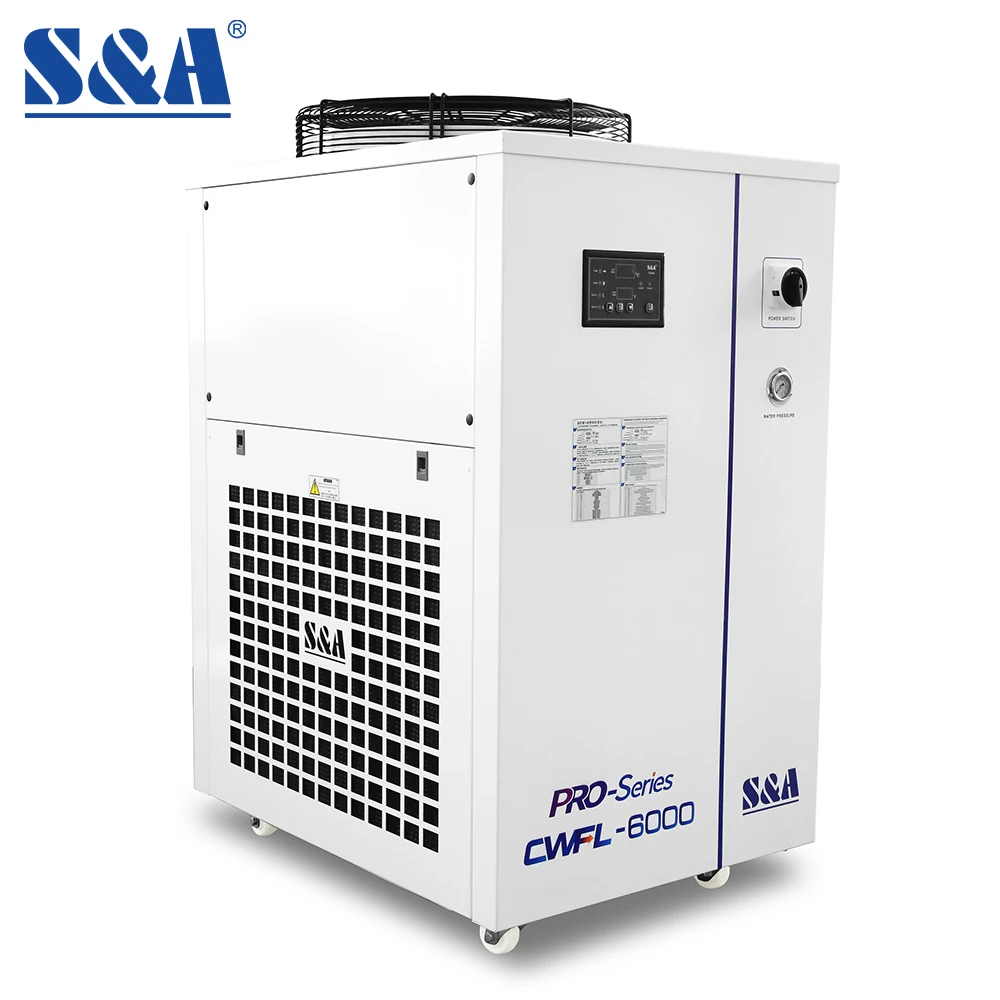

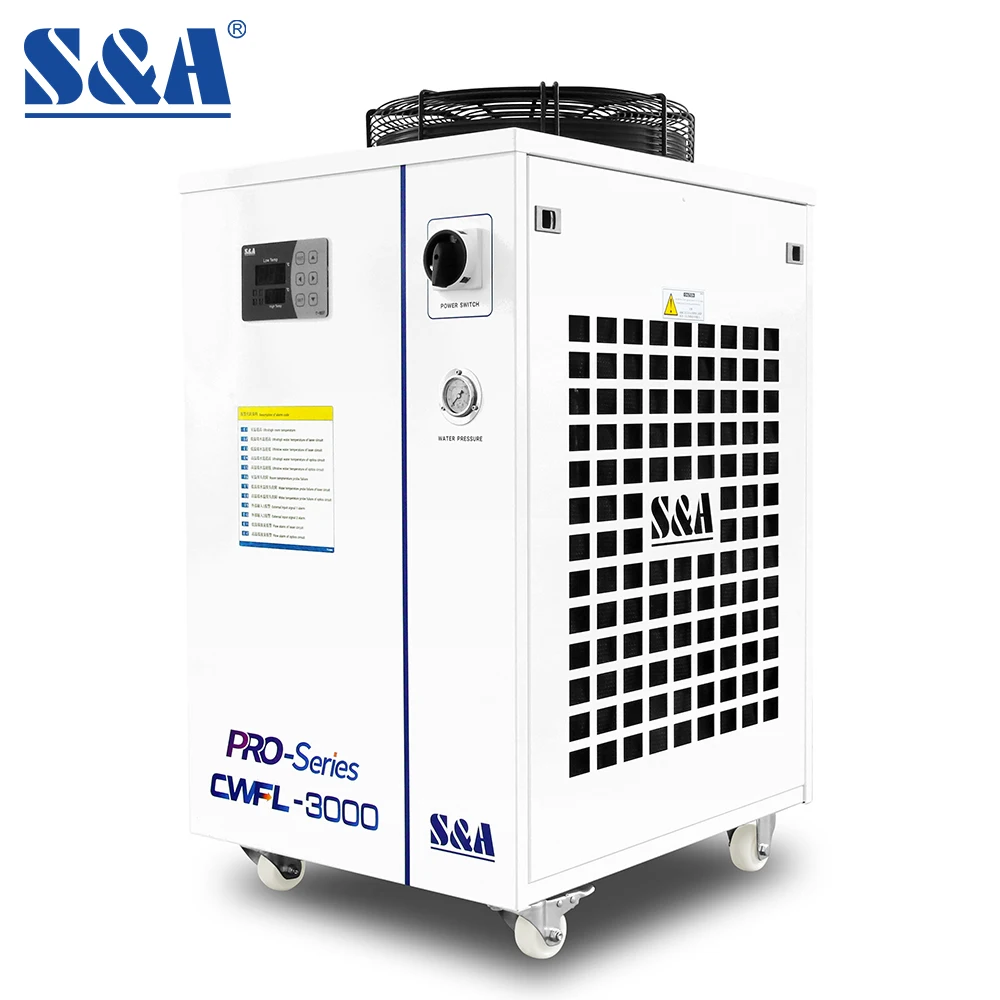

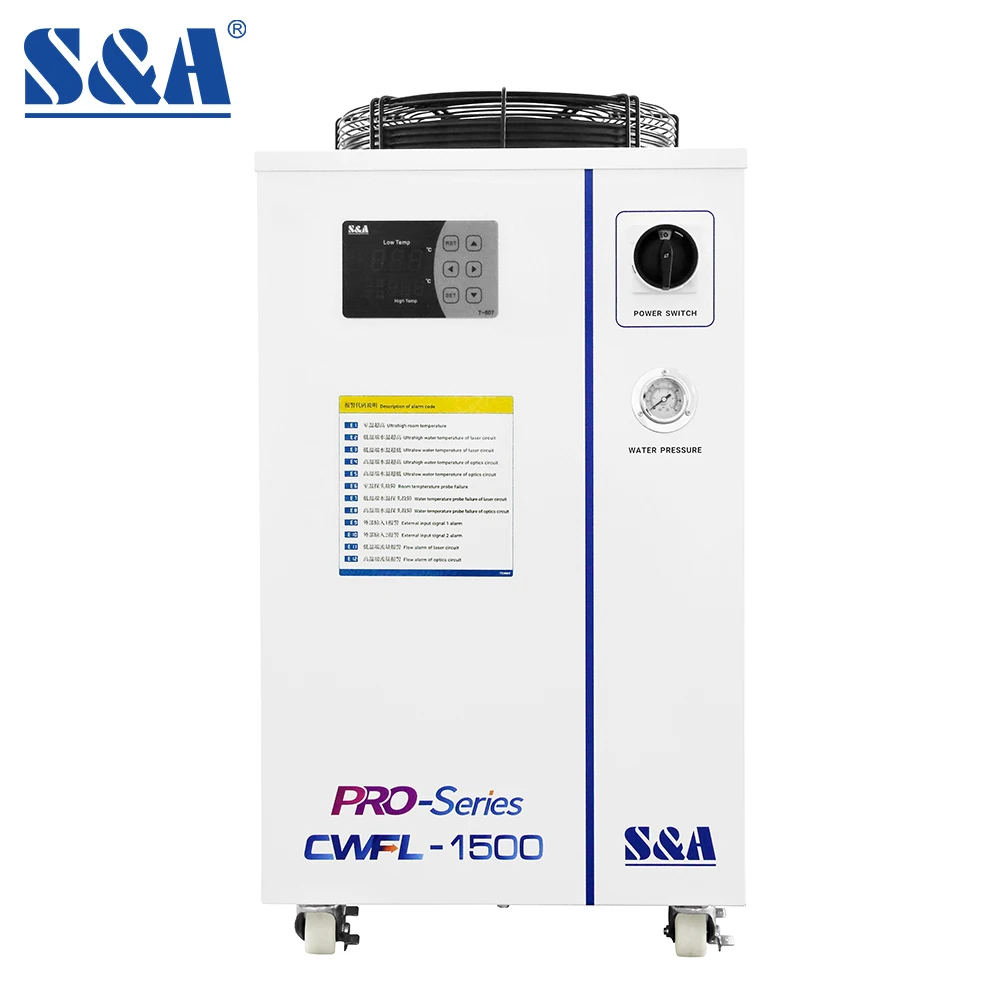

S&A CWFL 1000 1500 2000 3000 4000 6000 Enfriador De Agua Industrial Low Temperature Recirculating Cooled Water Chiller
- Category: >>>
- Supplier: Guangzhou Teyu Electromechanical Co. Ltd.
Share on (1600639117697):
Product Overview
Description
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Model | CWFL-1000 | CWFL-1500 | ||||
CWFL-1000AN | CWFL-1000BN | CWFL-1500AN | CWFL-1500BN | |||
Voltage | AC 1P 220~240V | AC 1P 220~240V | AC 1P 220~240V | AC 1P 220~240V | ||
Frequency | 50Hz | 60Hz | 50Hz | 60Hz | ||
Current | 2.5~12.1A | 3.9~13A | 2.5~16.1A | 3.9~17.5A | ||
Max. power consumption | 2.21kW | 2.56kW | 2.65kW | 2.68kW | ||
Heater power | 600W+600W | 400W+600W | ||||
Precision | ±0.5℃ | ±0.5℃ | ||||
Reducer | Capillary | Capillary | ||||
Pump power | 0.37kW | 0.75kW | 0.37kW | 0.75kW | ||
Tank capacity | 14L | 14L | ||||
Inlet and outlet | Rp1/2"+Rp1/2" | Rp1/2"+Rp1/2" | ||||
Max. pump pressure | 36M | 53M | 36M | 53M | ||
Rated flow | 2 L/min+＞12 L/min | 2 L/min+＞15 L/min | ||||
N.W | 63Kg | 66Kg | 70Kg | |||
G.W | 75Kg | 76Kg | 82Kg | |||
Dimension | 70 X 47 X 89 cm (LX W X H) | 70 X 47 X 89 cm (LX W X H) | ||||
Package dimension | 73 X 56 X 105 cm (LX W X H) | 73 X 56 X 105 cm (LX W X H) | ||||
Model | CWFL-2000 | CWFL-4000 | ||||
CWFL-2000ANS | CWFL-2000BNS | CWFL-4000BN | CWFL-4000EN | |||
Voltage | AC 1P 220~240V | AC 1P 220~240V | AC 1P 220~240V | AC 3P 380V | ||
Frequency | 50Hz | 60Hz | 60Hz | 50Hz | ||
Current | 3.4~17.8A | 3.9~17.3A | 3.6~25.5A | 1.7~10.1A | ||
Max. power consumption | 3.03kW | 3.38kW | 5.2kW | 4.41kW | ||
Heater power | 600W+600W | 600W+1800W | ||||
Precision | ±0.5℃ | ±1℃ | ||||
Reducer | Capillary | Capillary | ||||
Pump power | 0.55kW | 0.75kW | 1.0kW | 0.75kW | ||
Tank capacity | 14L | 40L | ||||
Inlet and outlet | Rp1/2"+Rp1/2" | Rp1/2"+Rp1" | ||||
Max. pump pressure | 44M | 53M | 59M | 50M | ||
Rated flow | 2L/min+＞15L/min | 2 L/min+＞40 L/min | ||||
N.W | 75Kg | 70Kg | 123Kg | 135Kg | ||
G.W | 87Kg | 82Kg | 150Kg | 154Kg | ||
Dimension | 70 X 47 X 89 cm (LX W X H) | 87 X 65 X 117 cm (LX W X H) | ||||
Package dimension | 73 X 56 X 105 cm (LX W X H) | 95X77X 135cm (L X W X H) | ||||
Model | CWFL-3000 | CWFL-6000 | ||||||
CWFL-3000ANS | CWFL-3000BNS | CWFL-3000ENS | CWFL-6000EN | CWFL-6000FN | ||||
Voltage | AC 1P 220~240V | AC 1P 220~240V | AC 3P 380V | AC 3P 380V | AC 3P 380V | |||
Frequency | 50Hz | 60Hz | 50Hz | 50Hz | 60Hz | |||
Current | 5.0~26.9A | 3.6~24.5A | 2.1~10.3A | 2.1~16.9A | 2.1~24.7A | |||
Max. power consumption | 4.65kW | 4.85kW | 4.68kW | 7.56kW | 7.65kW | |||
Heater power | 800W+1400W | 600W+1400W | 600W+1800W | |||||
Precision | ±0.5℃ | ±1℃ | ||||||
Reducer | Capillary | Capillary | ||||||
Pump power | 0.75kW | 1.0kW | 1.1kW | 1.1kW | 1kW | |||
Tank capacity | 22 L | 70L | ||||||
Inlet and outlet | Rp1/2"+Rp1" | Rp1/2"+Rp1" | ||||||
Max. pump pressure | 50M | 59M | 61.5M | 61.5M | 59M | |||
Rated flow | 2L/min+＞20L/min | 2 L/min+＞50 L/min | ||||||
N.W | 93Kg | 87Kg | 105Kg | 181Kg | 178Kg | |||
G.W | 109Kg | 103Kg | 121Kg | 206Kg | 203Kg | |||
Dimension | 77 X 55 X 103 cm (LX W X H) | 105X 71 X 133 cm (LX W X H) | ||||||
Package dimension | 78 X 65 X 117cm (LX W X H) | 112X 82X 150cm(LX W X H) | ||||||
Q1.Is S&A Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
Q2.What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
Q3.How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q4.What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q5.How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team
We are professional industrial chiller manufacturer since 2002.
Q2.What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
Q3.How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q4.What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q5.How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team
