Direct Wholesale Good Quality Vertical Movable Column Drilling Micro CNC Milling Machine
- Category: >>>
- Supplier: Ningxia Bangrong Trading Co. Ltd.
Share on (1600639144014):
Product Overview
Description
Specification

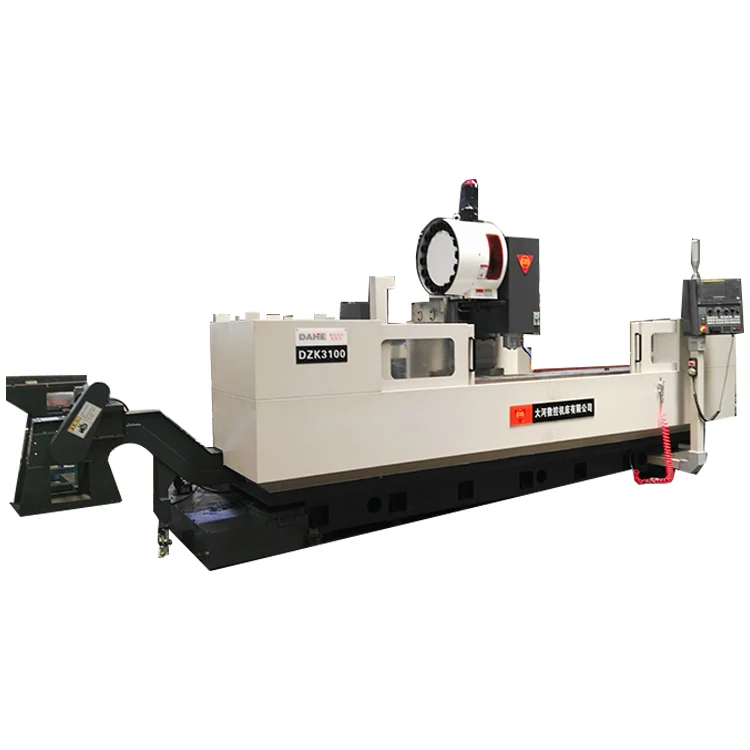

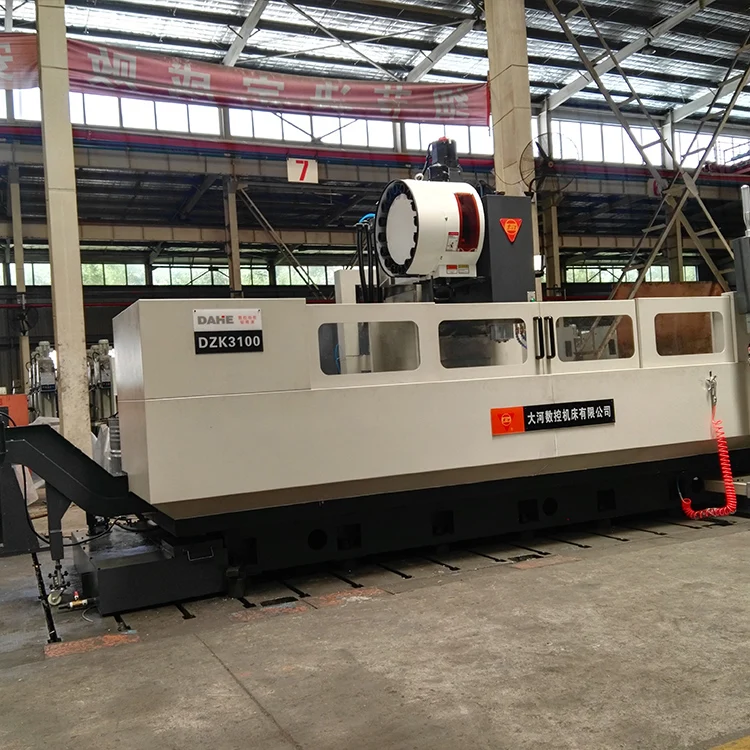

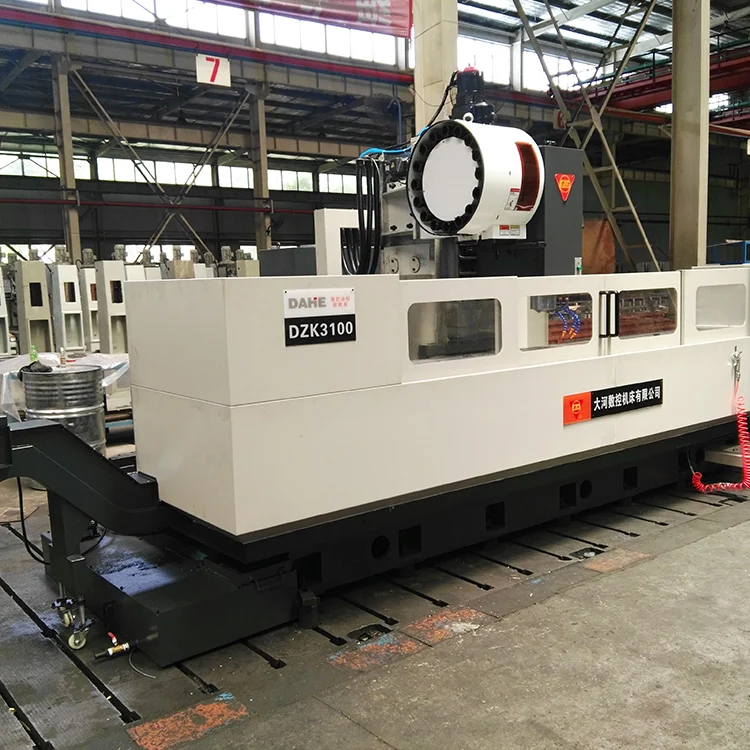

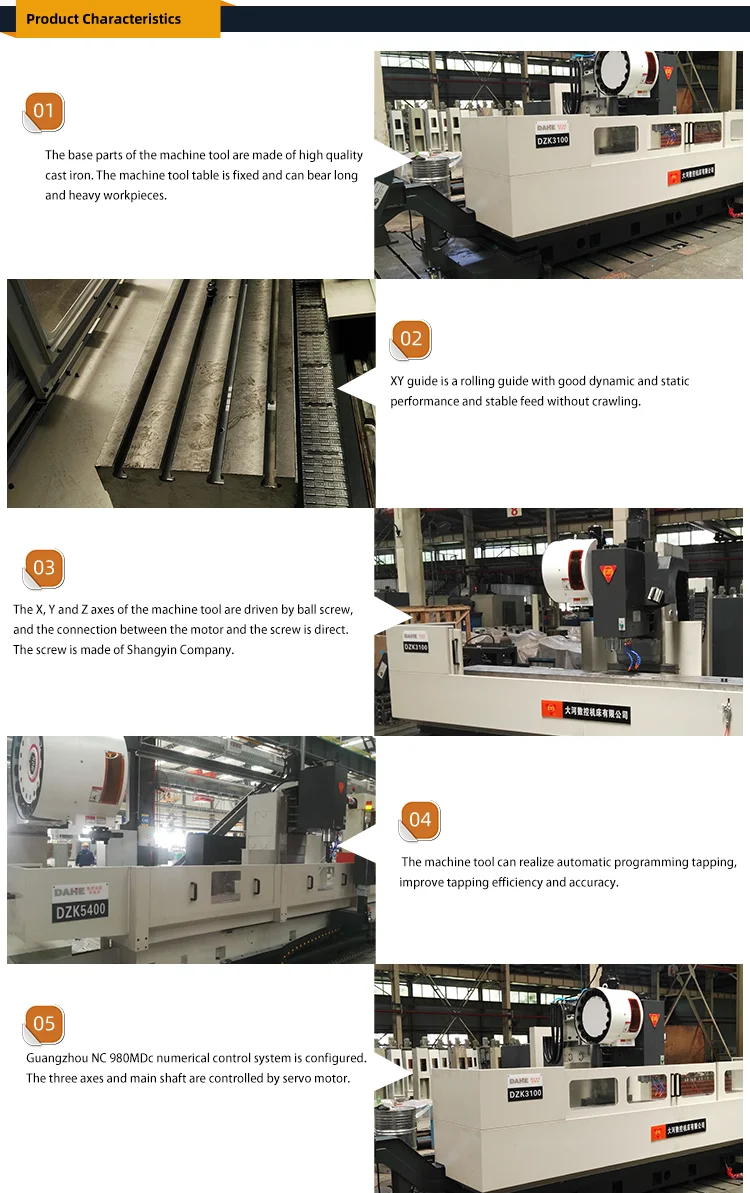

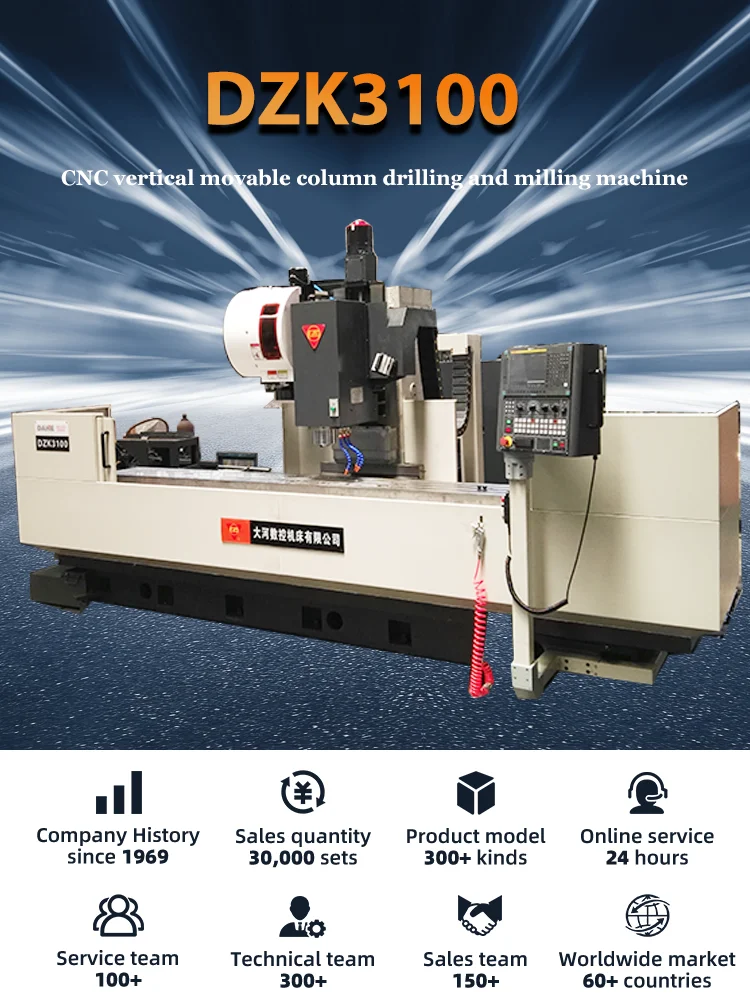

DZK3100 CNC vertical moving column drilling and milling machine can realize automatic programming tapping, improve tapping efficiency and accuracy. Bearings are made of Luoyang bearing Company products. The machine is equipped with 12 CAM manipulator tool library. Equipped with Guangzhou CNC 980MDc numerical control system, three axes and spindle are servo motor control mode.
Main technical parameters | unit | Parameter value |
Large tapping diameter | mm | M27×3 (45# Steel) |
Large bore diameter | mm | Ф50 |
Table area | mm | 4000X500 |

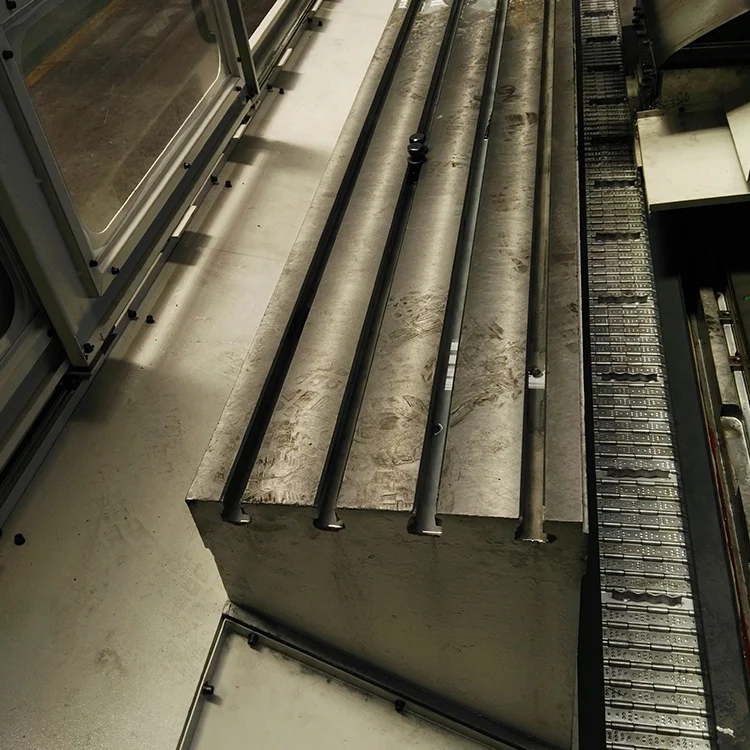

T-slot width x number of slots | mm | 18X4（100） |
Spindle taper hole | No | BT40 |
Spindle speed | rpm | 45-2000 |
Main motor power | Kw | 3.7/5.5 (servo) |
Range of movement | mm | 3400×500×510 |
Numerical control system | Guangzhou CNC 980MDc | |
High spindle torque | N.m | 320 |
Distance from spindle end face to work surface | mm | 170-680 |
Distance from spindle center line to column guide rail surface | mm | 540 |
Fast moving speed X/Y/Z | m/min | 10/10/10 |
Tool storage capacity | piece | 12 |
Greater feed resistance | N | 16000 |
Positioning accuracy (JB/T8357.1-2008) | mm | 0.03/300 |
Repeated positioning accuracy (JB/T8357.1-2008) | mm | 0.02/300 |
Net/gross weight of machine tool | T | 13/14.5 |
Machine tool shape size (length x width x height) | mm | 3570x2550x3000 |

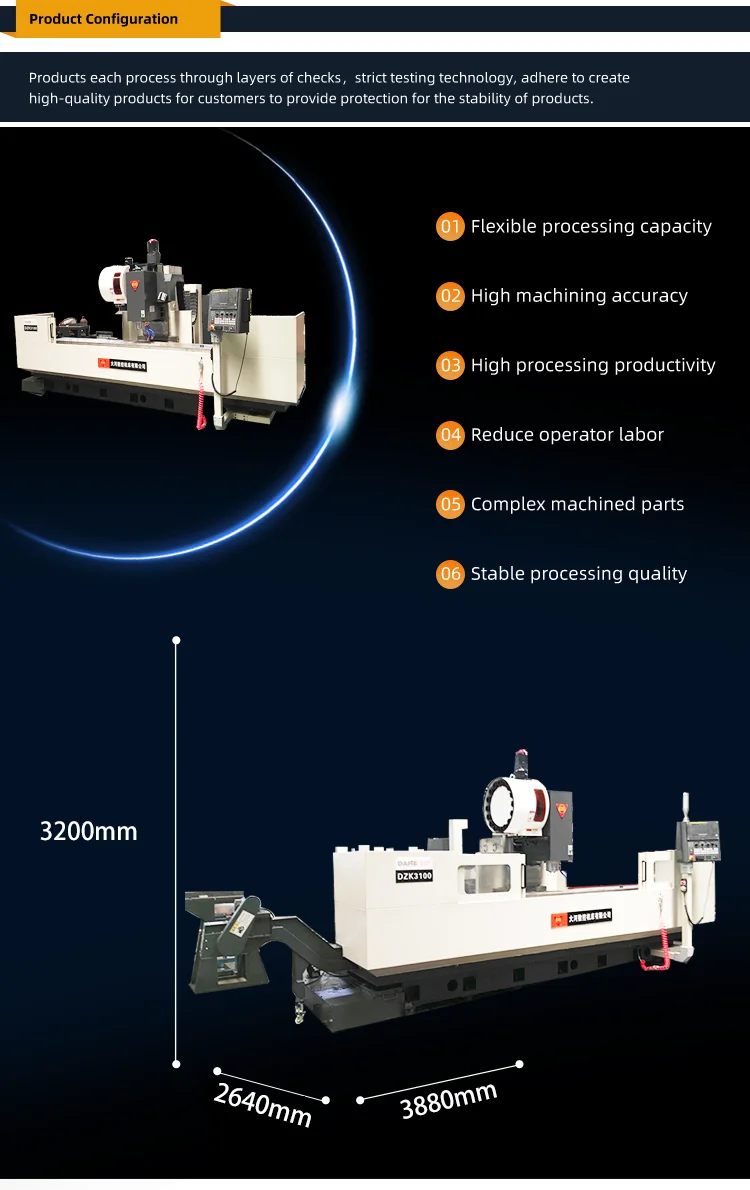

Packing box size (length x width x height) | mm | 3880x2640x3200 |
The new generation of popular milling machine CNCGSK980MDc developed by Guangzhou CNC adopts 32-bit high performance CPU and super-large scale programmable device FPGA, and realizes μm precision motion control and PLC logic control by real-time multi-task control technology and hardware interpolation technology.
*8.4 "widescreen color LCD display.
*X, Y, Z three-axis control, three-axis linkage, 0.001mm interpolation precision.
*Linear, exponential acceleration and deceleration control, suitable for high speed and processing
It has pitch error compensation, reverse clearance compensation, tool length compensation, tool wear compensation.
*Support for metric/imperial programming.
*Integrated Chinese and English display interface, selected by parameters.
*With USB port, support USB flash drive file processing, system configuration, and software upgrade.
Parts program full screen editing, can store 40MB 10000 parts program.
Drive servo:

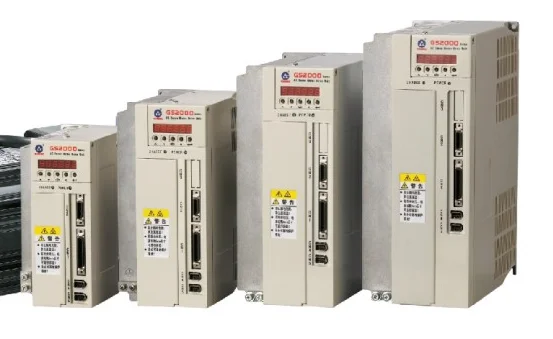

GS2000T series full digital AC servo drive unit, reliable performance, stable operation, the use of digital signal processor (DSP) and large scale integrated circuit chip, high integration, good reliability, the use of optimized PID control algorithm, improve the accuracy and speed of position and speed control, Mitsubishi intelligent power module (IPM), It has perfect protection function.
Driving motor:
GSK SJT series AC servo motor is applied, using high-performance rare earth permanent magnet material, high power density, strong overload capacity, good sinusoidal back potential, sine wave current drive, good low speed characteristics, the motor inertia is particularly suitable for machine feed drive, part of the F grade insulation material, prolong the life of the motor.
Installation environment of machine tools：
1, power supply :AC 3 with 380V +10% ~ -15% 50HZ±1Hz
2, relative humidity :≤80%
3. Ambient temperature :5° ~ 40°C
Packing and transportation：
1, wooden case packing, moisture-proof, rust-proof, shock-proof, suitable for overall lifting.
2. Mode of transport: land transport, train or car.
Service:
The machine tool provides one year warranty service and is responsible for lifetime maintenance. Warranty period to provide free parts and services, warranty period to provide the most favorable price to provide technical services and machine tools, spare parts supply.
GS2000T series full digital AC servo drive unit, reliable performance, stable operation, the use of digital signal processor (DSP) and large scale integrated circuit chip, high integration, good reliability, the use of optimized PID control algorithm, improve the accuracy and speed of position and speed control, Mitsubishi intelligent power module (IPM), It has perfect protection function.
Driving motor:
GSK SJT series AC servo motor is applied, using high-performance rare earth permanent magnet material, high power density, strong overload capacity, good sinusoidal back potential, sine wave current drive, good low speed characteristics, the motor inertia is particularly suitable for machine feed drive, part of the F grade insulation material, prolong the life of the motor.
Installation environment of machine tools：
1, power supply :AC 3 with 380V +10% ~ -15% 50HZ±1Hz
2, relative humidity :≤80%
3. Ambient temperature :5° ~ 40°C
Packing and transportation：
1, wooden case packing, moisture-proof, rust-proof, shock-proof, suitable for overall lifting.
2. Mode of transport: land transport, train or car.
Service:
The machine tool provides one year warranty service and is responsible for lifetime maintenance. Warranty period to provide free parts and services, warranty period to provide the most favorable price to provide technical services and machine tools, spare parts supply.
