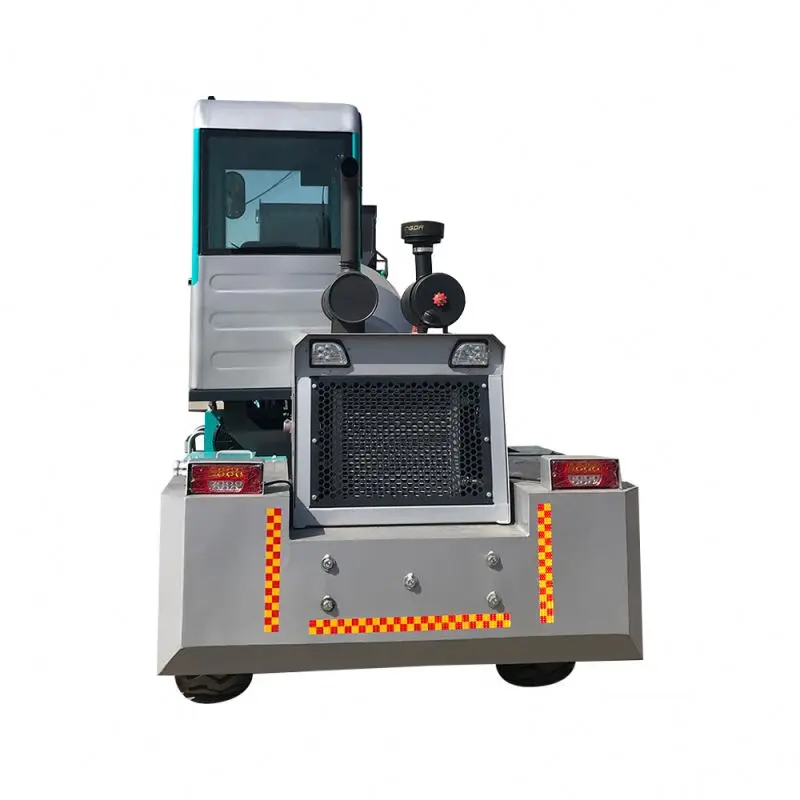

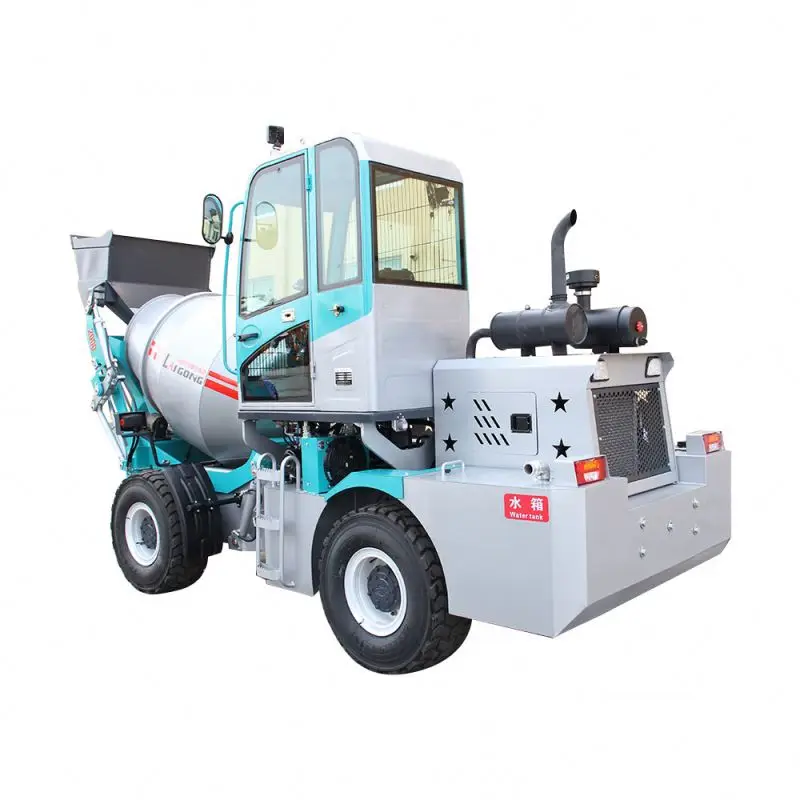

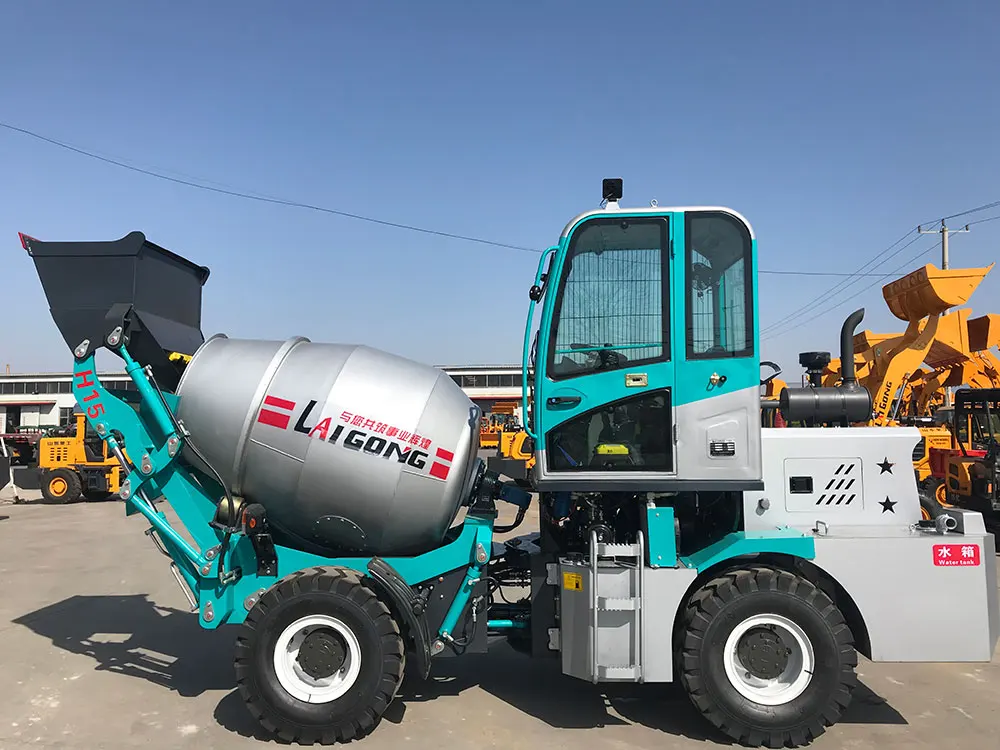

Laigong Diesel self loading mobile concrete mixer trucks
- Category: >>>
- Supplier: Shandong Laigong International Business Co. Ltd.
Share on (1600639170183):
Product Overview
Description
Advantage
3 in 1 self loading mixer truck=Loader + Mixing truck + Transport truck
1.Concrete mixer truck with automatic feed and water supply. The latest technology saves
time and effort.
time and effort.
2. Mobile and highly motorized on site, more efficient.
3.Low maintenance cost
4. High reliable and durable
5. Easy operation and high intelligent

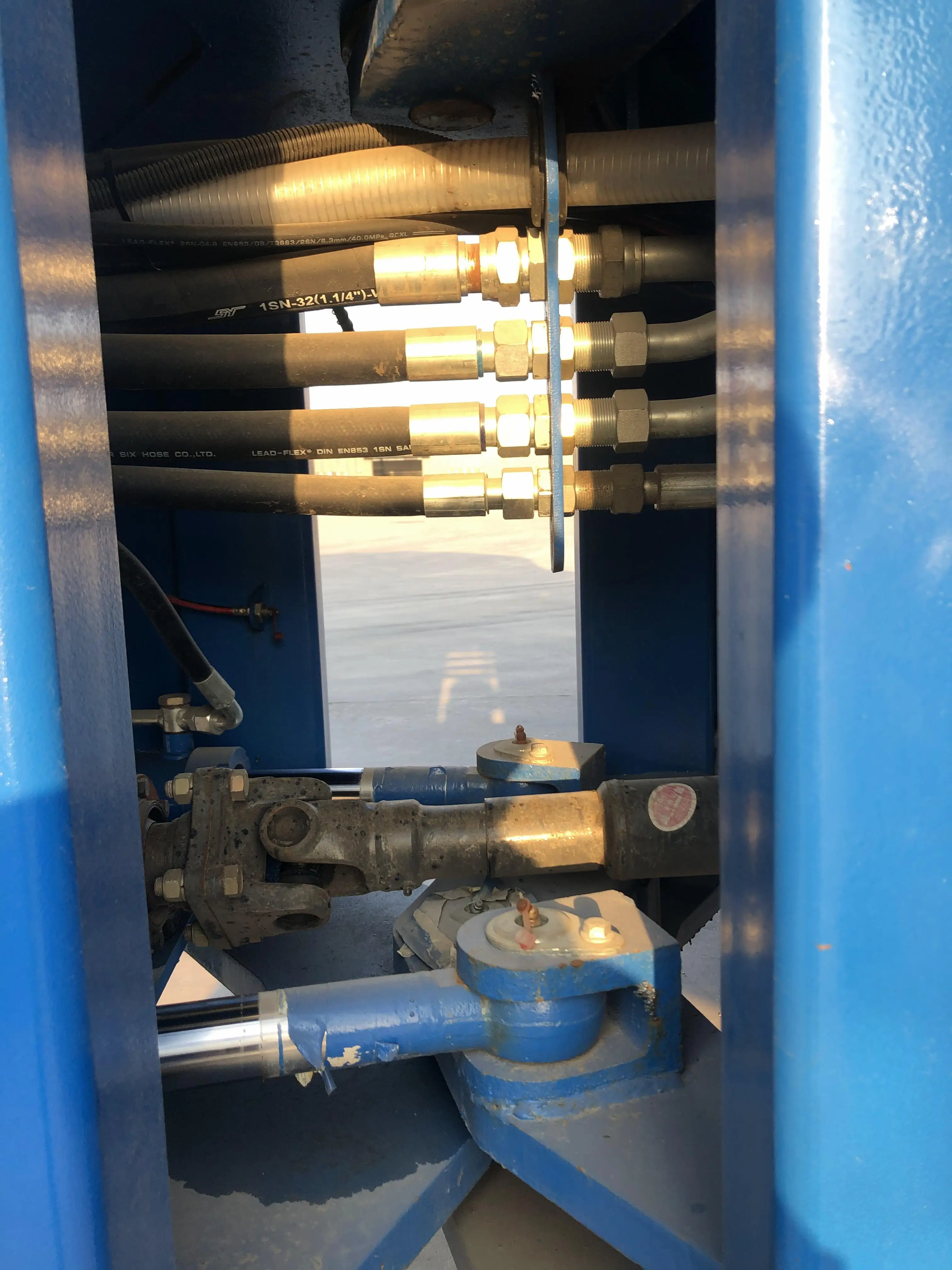

6. Closed circuit hydraulic system, more powerful and reliable.
6. Closed circuit hydraulic system, more powerful and reliable.
Product Description
Item No. | Unit | H15 |
Engine Type | / | Yunnei 490 |
Engine power(KW) | KW | 58 |
Drum Capacity(m³) | m³ | 2 |
Valid output(m³) | m³ | 1.5 |
Overall dimension Length*Width*Height(mm) | mm | 6340*1860*2920 |
Axle base | mm | 2440 |
Front wheel base | mm | 1860 |
Rear wheel base | mm | 1860 |
Dumping height | mm | 1080 |
Minimum ground clearance(mm) | mm | 270 |
Total weight(KGS) | KGS | 4500 |
Fuel consumption (Theoretical)L/H | L/H | 5.0-7.0 |
Maximum drive speed | KM/H | 25 |
Tank rotation speed | Turn/minute | 16 |
Tank rotation angle | ° | 0 |
Drive Bridge | / | ZL-30 |
Gear box | / | 265 |
Tire Dimensions (Front) | / | 23.5-16 |
Tire Dimensions (Rear) | / | 23.5-16 |
Braking distance | mm | 1000 |
Engine oil capacity | L | 22 |
Hydraulic oil capacity | L | 120 |
Hydraulic oil type | L | No. 46 efficient wearable |
Fuel tank | L | 120 |
Water tank | L | 500 |
Small pump displacement | L/MINUTE | 150 |
Big pump displacement | L/MINUTE | 150 |
Radius of turning circle | / | |
Bucket capacity | m³ | 0.4 |
Transmission oil type/capacity | L | No. 8 transmission oil/50 |
Axle gear oil type/capacity | L | No. 18 double curve bight/3.5 |
Hub reduction gear oil type/capacity | / | No. 18 double curve bight/1.8 |
Double tire pressure | Bar | 10 |
Single tire pressure | Bar | 6 |
Tank pressure | Bar | 4.0-8.0 |
Brake mode | / | Disc brake |
Related Products
Main Categories
Company Profile
Customer Case
Transportation
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
