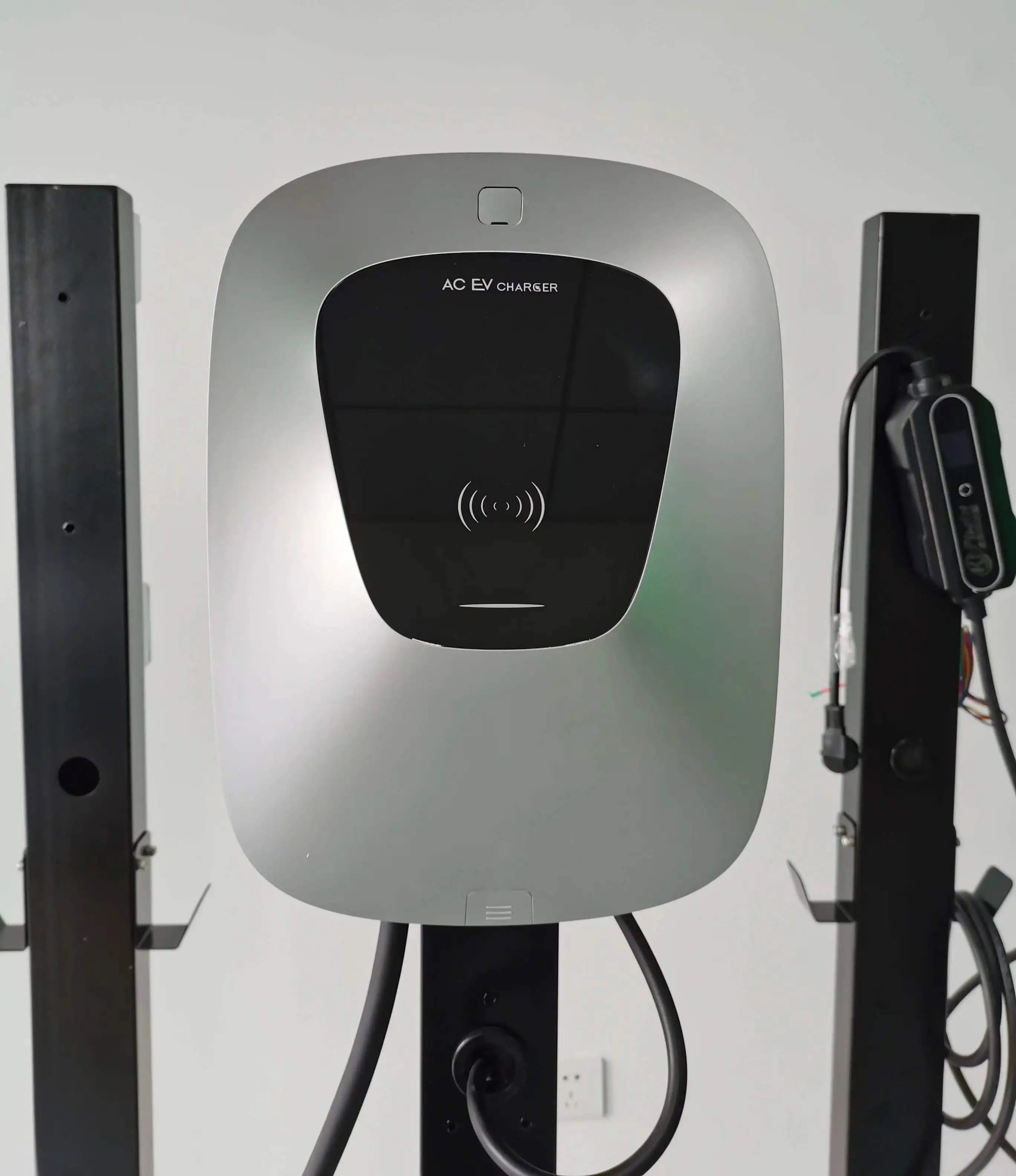

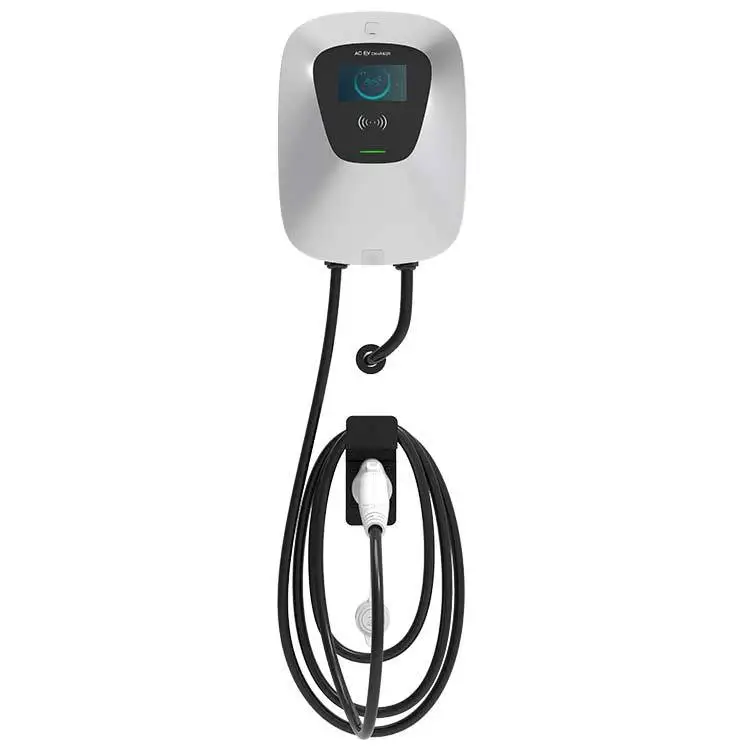

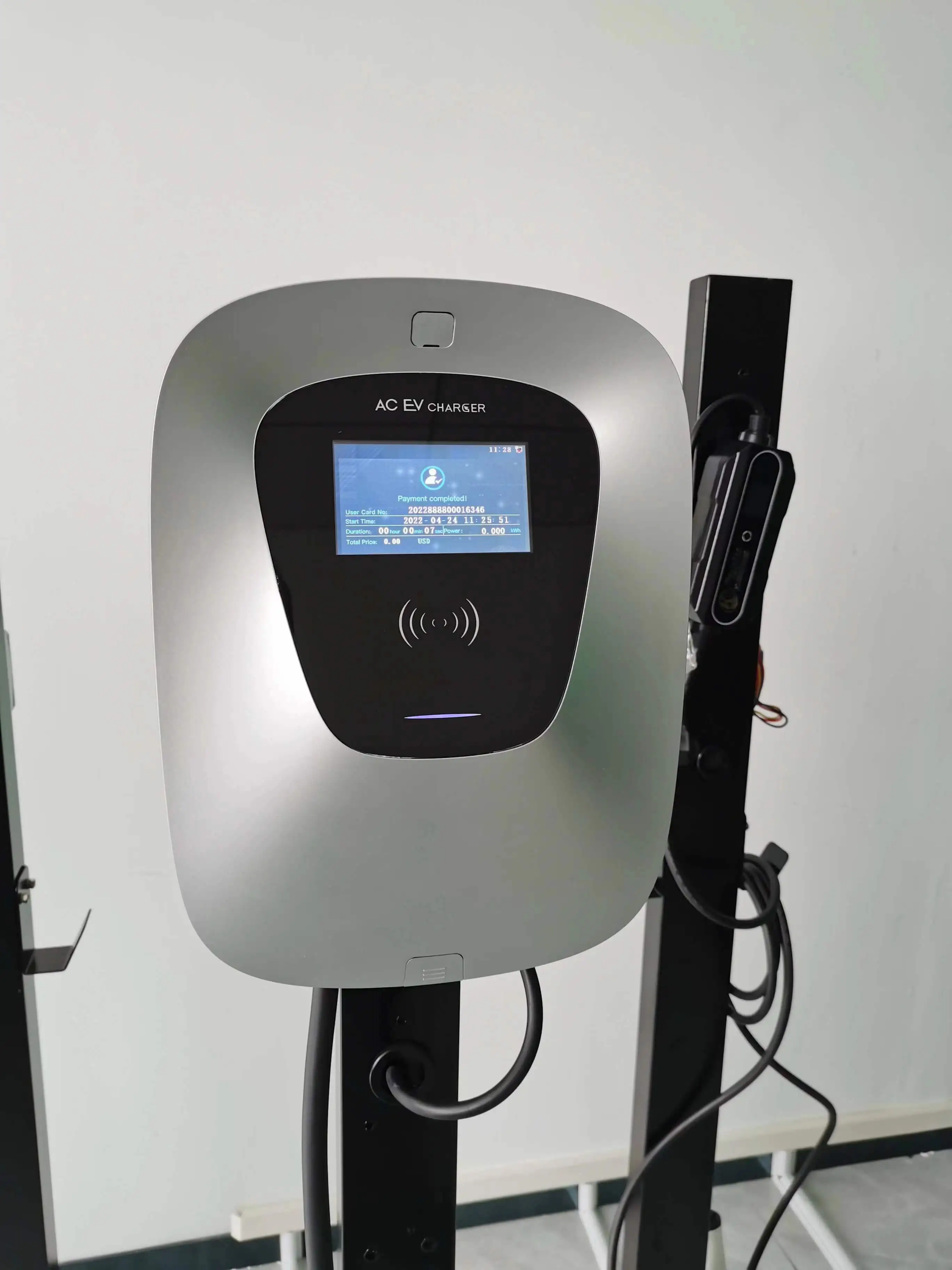

AC USA UK SAE J1772/Mennekes Connector Type1 Type2 Electric EV Car Charger EV Charging wallbox EV Charging station
- Category: >>>
- Supplier: Shinging Technology Co. Ltd. (shanghai)
Share on (1600639218461):
Product Overview
Description
Product Description
Product Name | AC Charger Wallbox | ||
Model | YHEVW-01 | ||

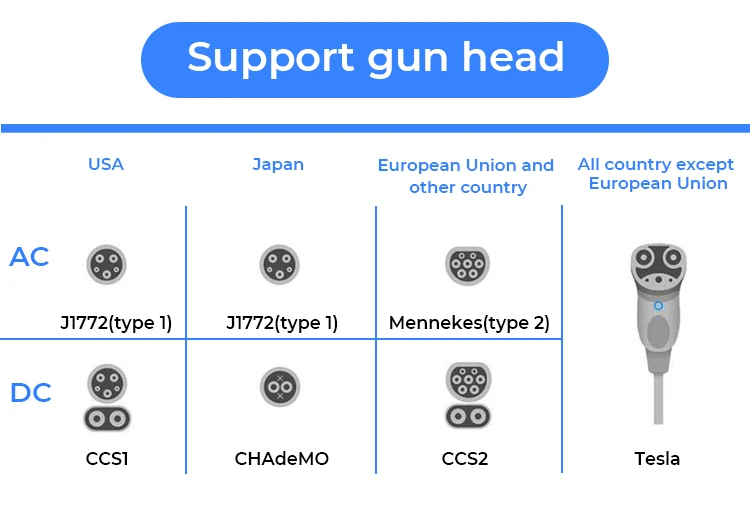

Structure | Charge Connector | Type 1 /Type 2 | |
Power Cord Plug | UK / US / Schuko/ CEE / Nema | ||
Cable Length | 5m or Optional | ||
LED Indicator | Green/Blue/Red | ||
LCD Display | 4.3 Inch Touch Color Screen(Optional) | ||
RFID Reader | ISO/IEC 14443 RFID Card Reader | ||
Start Mode | Plug&Charge/RFID Card/APP | ||
Housing Material | ABS+PC | ||
Accessory | Cable Holder,Pedestal(Optional) | ||
Power Input | Input Type | 1P+N+PE/3P+N+PE | |
Rated Voltage | 230VAC±10%/400VAC±10% | ||
Rated Current | 16A or 32A | ||
Grid Frequency | 50Hz or 60Hz | ||
Power Output | Output Voltage | 230VAC±10%/400VAC±10% | |
Maximum Current | 16A or 32A | ||
Rated Power | 7KW/11KW/22KW | ||
Installation and Use | Installation Method | Wall-mount/Pole-mount | |
Charging Methods | Swipe the card, Scan the code | ||
Communication Mode | Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet(Optional) | ||
Charging Protocol | OCPP 1.6J support（Optional） | ||
Charging Mode | Automatic filling, Fixed power, Fixed amount, Fixed time | ||
Operating Temperature | -30 ~ +50 °C | ||
Storage Temperature | -40 ~ +85 °C | ||
Max. Operating Humidity | 95%，Non-condensing | ||
Max. operating altitude | 2000m | ||
Safety and Certification | Energy Metering | Embedded Meter Circuit Component With 1% accuracy | |
Residual Current Device | DC 6mA+Type A AC 30mA | ||
Impact Protection | IK10 | ||
Cooling method | Natural Cooling | ||
Electrical Protection | Over/under voltage protection Over current protection Short circuit protection Lightning protection Scram protection PE link detection protection L/N Reverse connection detection protection Over temperature protection Toppling protection Leakage protection (A-type leakage circuit breaker) | ||
Ingress Protection | IP55 | ||
Certification | CE | ||
Certification and Conformity | IEC61851-1,IEC62196-1/-2,SAE J1772 | ||
Warranty | 2 years | ||
Package | Product Dimension | 270mm*135mm*365mm（W*D*H） | |
Package Dimension | 325mm*260mm*500mm（W*D*H） | ||
Weight | 5kg(Net ) / 6kg(Gross) | ||

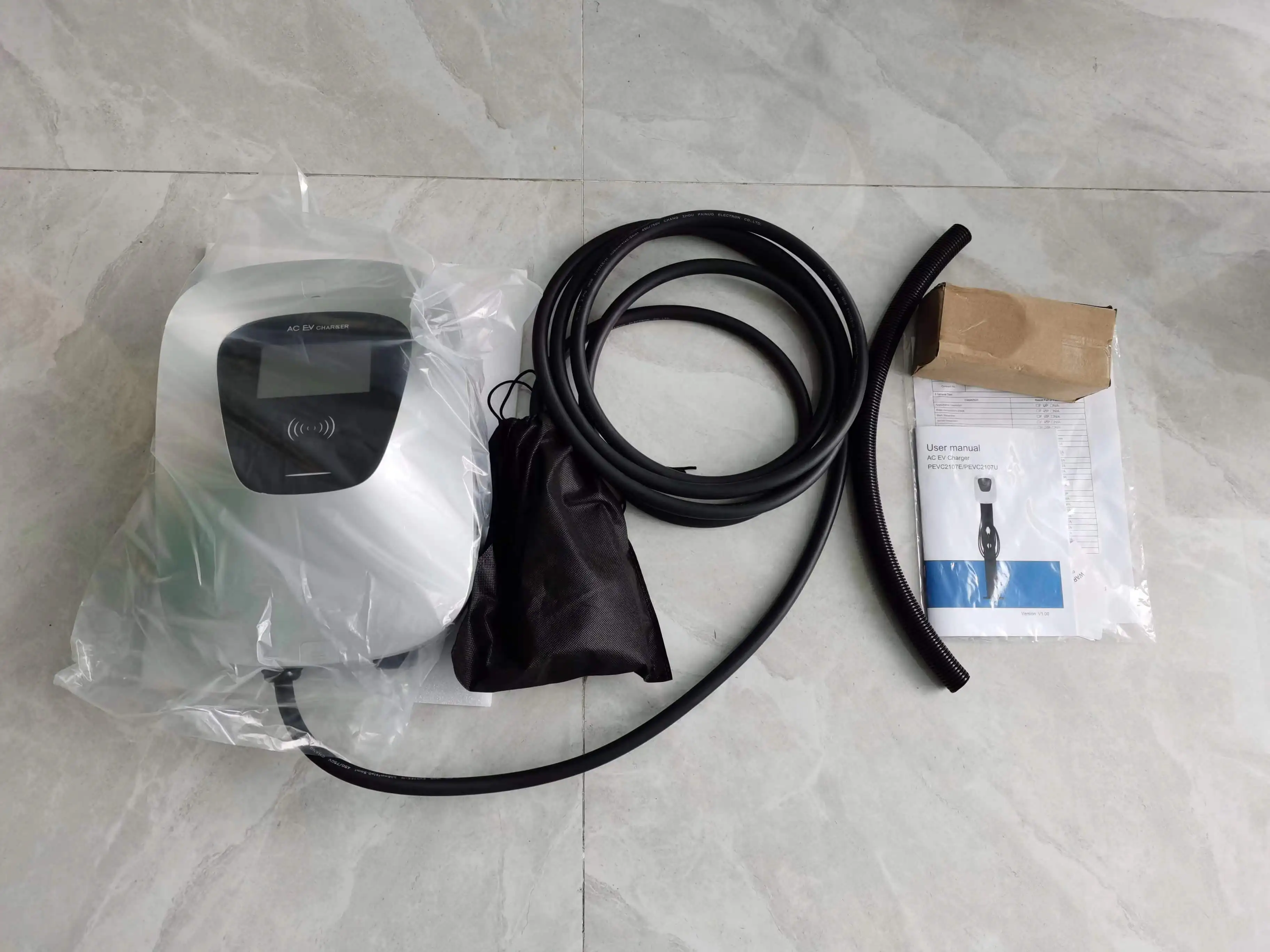

External Packing | Carrying case + Carton box | ||

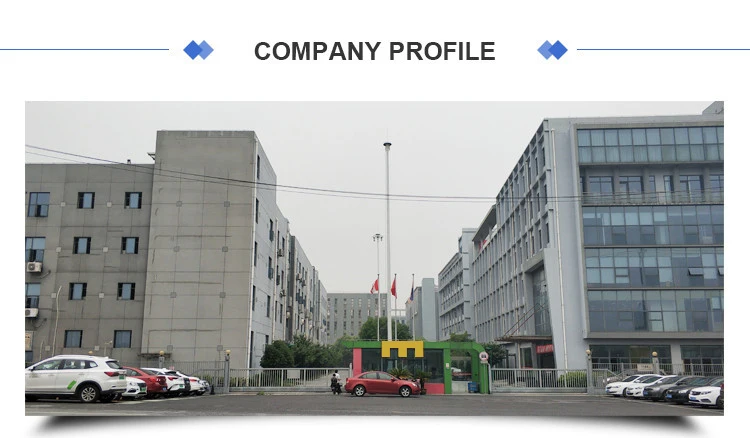

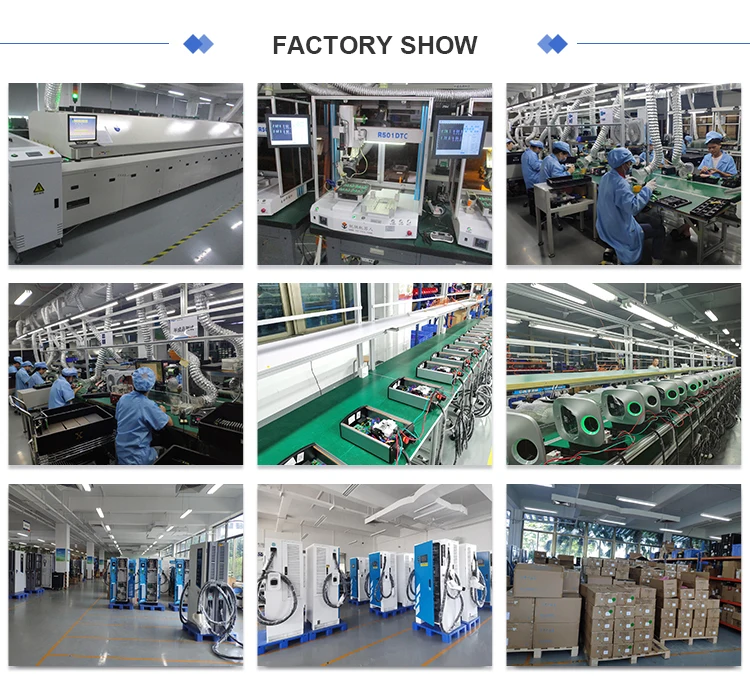

Shinging Technology Co.,Ltd. was founded in 2008 and located in Shanghai, China,specialized in researching, manufacturing and selling EV charger product.We focuse on the R&D and manufacturing of auto- motive precision parts and EV charging products like plugs, sockets, charging connectors,portable ev chargers and charging cables.Our factory building area covering 22,585 square meters, with 13 production lines.We have optical electronic laboratories, advanced professional test equipment. Our products have passed the EU TUV CE certification, U.S. UL certification, and exported to Europe,North America, Southeast Asia and other regions. We can accept OEM&ODM orders also. Welcome to contact with us.
FAQ
1.Can we require you to do our trademark?
Trademark service is available,and the order quantity should be more than 10pcs.
2.Can you produce according to the samples?
Yes,we could produce based on your samples or technical drawings.We could build corresponding molds and fixtures.
3.What is your sample policy?
We can provide a sampleupon request.Customers need to pay for the shipping cost.
2.Can you produce according to the samples?
Yes,we could produce based on your samples or technical drawings.We could build corresponding molds and fixtures.
3.What is your sample policy?
We can provide a sampleupon request.Customers need to pay for the shipping cost.
4.What are your terms of payment?
T/T 30%as deposit,and 70% balance before delivery. For small orders,Alipay and Paypal is available
5.What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU, etc.
T/T 30%as deposit,and 70% balance before delivery. For small orders,Alipay and Paypal is available
5.What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU, etc.
