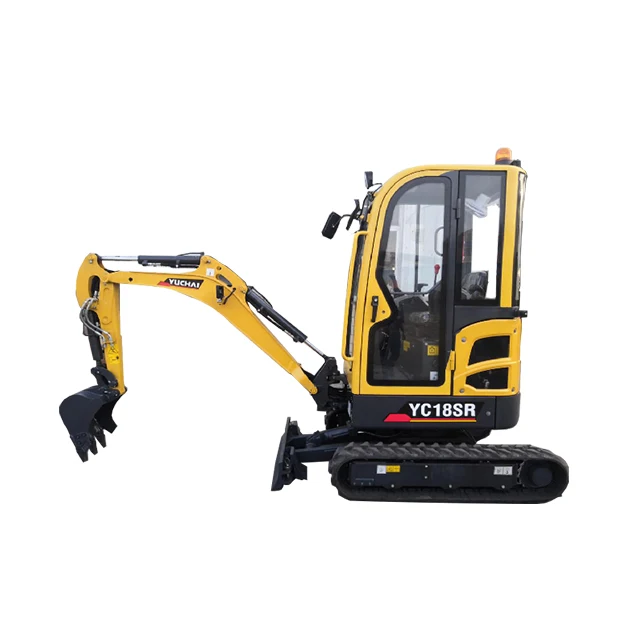

For sale chinese yuchai Crawler Digger Versatile Crawler Digger 1.8ton 14.5KW diesel mini excavator
- Category: >>>
- Supplier: Guangxi,Nanning,Guishengning,Automobile,Sales,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Details Images
技术规格 Technical specifications | 参数 Parameter | 单位Unit |
基本参数 Basic parameter | ||

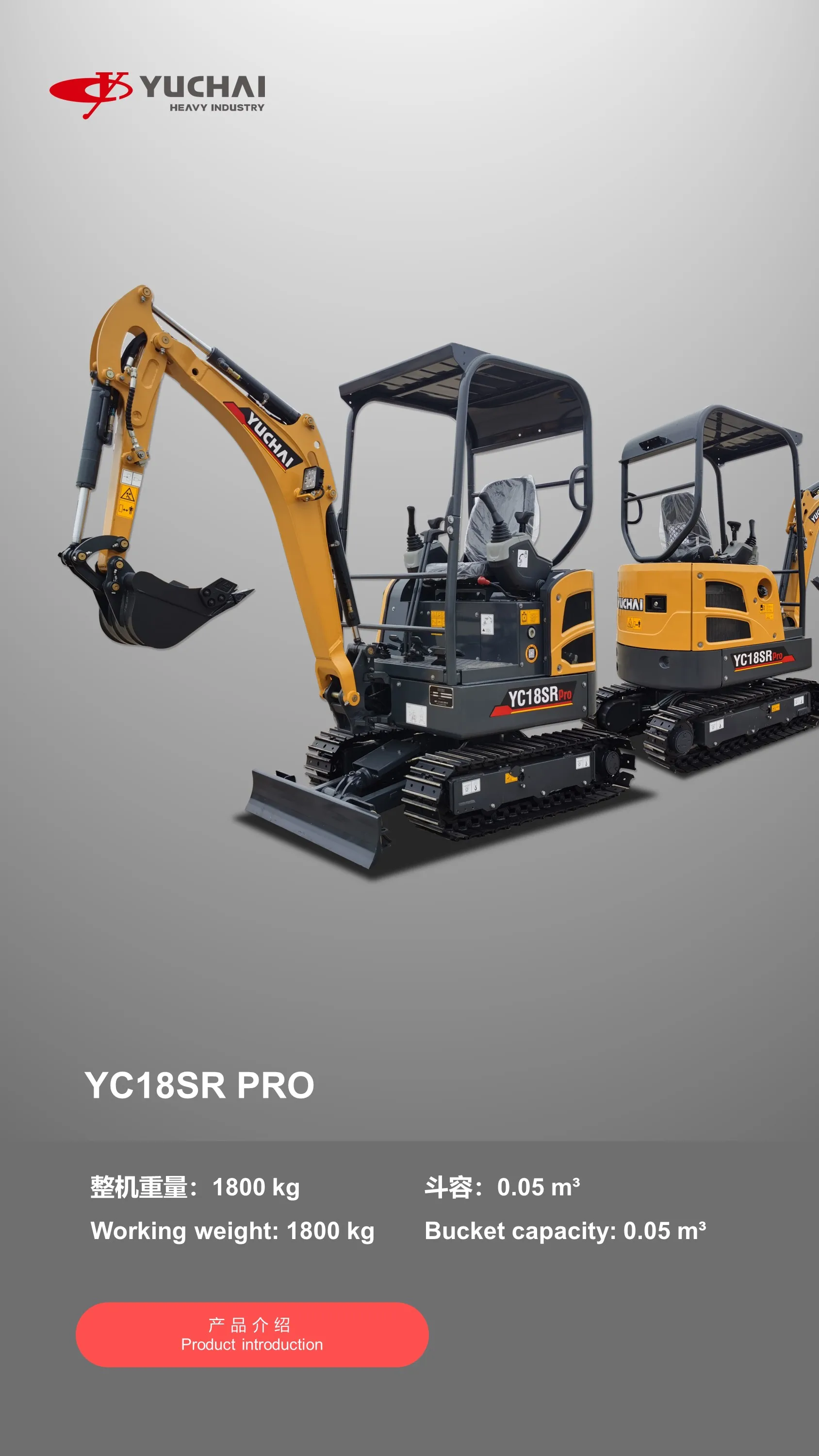

整机重量Machine weight | 1800 | kg |
标准斗容Bucket capacity | 0.05 | m³ |
性能参数 Performance parameter | ||
发动机 Engine model | 洋马Yanmar | |
发动机额定功率Engine power | 14.5/2400 | kW/rpm |
爬坡能力 Max. Gradeability | 30 | ° |
斗杆最大挖掘力Max. digging force of arm | 8.5 | kN |
铲斗最大挖掘力 Max. digging force of bucket | 15.5 | kN |
行驶速度Traveling speed | 4/2 | km/h |
平台回转速度 Slewing speed of platform | 8.5-11.5 | rpm |
作业参数 Operating parameter | ||
最大挖掘高度 Max. digging height | 3615 | mm |
最大挖掘深度Max. digging depth | 2300 | mm |
最大挖掘半径Max. digging radius | 4125 | mm |
最大地面挖掘半径 Max. digging radius on ground level | 4060 | mm |
最大卸载高度Max. dumping height | 2500 | mm |
最小回转半径Min. slewing radius | 1690 | mm |
最大垂直挖深 Max. vertical digging depth | 1905 | mm |
运输尺寸 Transportation dimension | ||
总长(运输状态) Overall length | 3750 | mm |
总宽(运输状态)Overall width | 1080/1400 | mm |
总高(运输状态)Overall height | 2350 | mm |
其他参数 Other Parameter | ||
履带宽度 Width of undercarriage | 1080/1400 | mm |
履带长度 Length of track | 1585 | mm |
最小离地间隙 Height between undercarriage and ground | 145 | mm |
平衡重离地高度 Height between platform and ground | 465 | mm |
尾部回转半径 Platform tail turning radius | 700 | mm |
燃油箱容量Fuel tank capacity | 23 | L |
液压油箱容量 Hydraulic oil tank capacity | 20 | L |
Our Advantages
Company Profile
Guangxi Yuchai Heavy Industry Co., Ltd. is a Sino-foreign joint venture controlled by Yuchai Machinery Group Co., Ltd. Since 1989,it has been a professional manufacturer focusing on crawler excavators, integrating R&D, manufacturing and sales of variousprojects. It is the first small excavator manufacturer in China and the main export base for small construction machinery. Theannual production capacity is 10,000 units Yuchai excavator has participated in many trade fairs, and high-quality brands attractmany buyers. Yuchai excavator adopts pure accessories management system and the most powerful accessory supply system. Each link has passed strict quality control and inspection. All accessories adopt unified standards, unified identification and unified packaging of Yuchai Heavy Industry. At the same time, we can provide customers with high quality OEM/ODM services to meet the needs of dealers/customers.
Packaging&Shipping
We have mature transportation lines, which can be transported to the destination by trailer, railway and sea transportation
By Flat Rack Container Shipment to middle east
Shipping to Africa、Central and South America by roll-on-roll-off ship
Transported to Southeast Asia and Central Asia by trailer or train
FAQ
1.Are you the original manufacturer?
Yes, we are a manufacturer of Chinese construction machinery. We have the full range of products you need, including engines, excavators, forest havesters, skidders, rotary drills and all kinds of attachments.
2. What kind of payment terms can we accept?
T/T, L/C, Alibaba transaction guarantee.
3. Which INCOterms can we use?
Usually we use FOB,CFR,CIF,FCA,CIP,CPT.
4. What is the delivery time?
The prepayment is 30% of the total price. Generally, We usually deliver the products within 30 days after receiving the prepayment. If there is inventory, it will be shipped earlier. If there is no inventory, it is necessary to arrange the production. Please consult customer service for specific delivery times.
5. What is the delivery method?
① Land transportation, railway transportation.
(2) Shipping. The products will be shipped to their destination from Guangzhou Port, Qinzhou Port or Shenzhen Port.
6. The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years. During warranty, the warranty period of the replacement parts or assemblies shall be accumulated on the date original parts or assemblies have been used.
7. What's the minimum order quantity?
The minimum order quantity is 1 set.
8. Can you put the customer's brand on the product?
Yes. We provide customized service. We can manufacture machinery products according to the requirements of the customers and then affixed to the customer-specified brand.
9. How to supply spare parts:
We recommend a 2 year spare parts list, you can choose and order some spare parts.
