Low cost 10 inch touch panel pc for cnc machine 6 36v wide voltage 2 lan ports
Low cost 10 inch touch panel pc for cnc machine 6-36v wide voltage 2 lan ports
Low cost 10 inch touch panel pc for cnc machine 6-36v wide voltage 2 lan ports
Low cost 10 inch touch panel pc for cnc machine 6-36v wide voltage 2 lan ports
Low cost 10 inch touch panel pc for cnc machine 6-36v wide voltage 2 lan ports
Low cost 10 inch touch panel pc for cnc machine 6-36v wide voltage 2 lan ports
Low cost 10 inch touch panel pc for cnc machine 6-36v wide voltage 2 lan ports

Low cost 10 inch touch panel pc for cnc machine 6 36v wide voltage 2 lan ports

Share on (1600640208152):


Price:

Quantity:


Product Overview

Description







PRODUCT PARAMETERS


Item Name
Low cost 10 inch touch panel pc for cnc machine 6-36v wide voltage 2 lan ports
System Parameters
CPU
•Onboard Intel® 1037U Dual Core 1.8GHz, NM70 Chipset
•Onboard Intel® J1900 Four Cores, 2.0GHz, 2M Cache ,NM70 Chipset
•Onboard Intel® i3,i5,i7, 4th~9th Generation
Memory
2/4/8GB DDR3
Storage
1*2.5" SATA Bay 32/64/128/256GB SSD
Cooling System
Fanless design
OS
Linux/Windows
BIOS
AMI 16MB DPI Flash
Watchdog Timer
255 level, 0~255 sec
Audio
Realtek ACL662 Audio controller, Line-out, Mic-in.
LAN
1*Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan
Expansion Port
2 x MINI PCI-E full slot, 1 x SIM

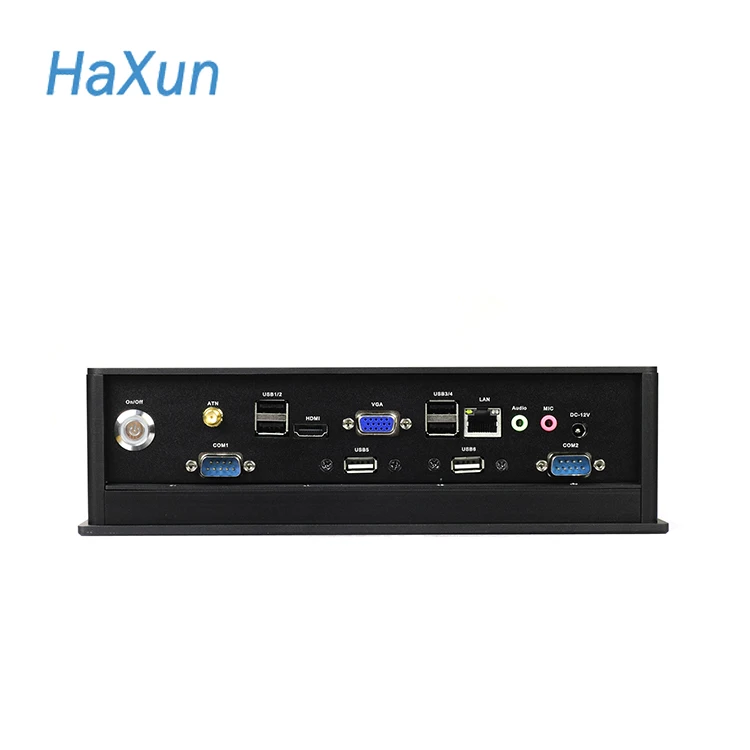

IO Interface
COM
2 x COM(Default RS232, 6 maximum)
RS422/485
Optional (1x RS485/422)
USB
3 x USB2.0+1 x USB2.0
LAN
1 x RJ45, 10/100/1000M(2RJ45 Optional)
Audio
Line-out, Mic-in
VGA
1xVGA
HDMI
1xHDMI
Display Parameters
LCD Size
10.4" TFT (LED Backlight)
Resolution
1024*768
Brightness
400cd/m² (1000cd/m² optional)
Aspect ratio
4:3
Life Time
50,000hrs
Contrast Radio
(400:1)
Response Time
8ms
Viewing Angle
70/60(U/D), 70/70(L/R)
Color Resolution
16.7M
Touch Screen Parameters
Touch Type
5 wired Resistive Touch
Touch Validity:
>1,000,000
Capacitive Touch
Optional
Surface Hardness
6H>(Capacitive Touch)
Resolution
4096*4096
Life Time
50,000hrs
Transparent Rate
>85%
Power Supply
Power Supply
6~36V Wide Voltage or 12V
Power Comsuption
<45W
Wide Voltage
Optional (DC 6~36V Wide Voltage, IPTS )
Installation
VESA
100mm*100mm
Embedded
Cabinet Hole Size: 273mm*193.5mm
Enclosure
Housing Material
Aluminum Chassis with fanless design
Dimensions
283 mm (W) x 203.5 mm (D) x 68mm (H)
Net Weight
4KG
Place of Origin
China
Certification
CE,FCC,RoHS
Packaging Details
5 pieces for one carton

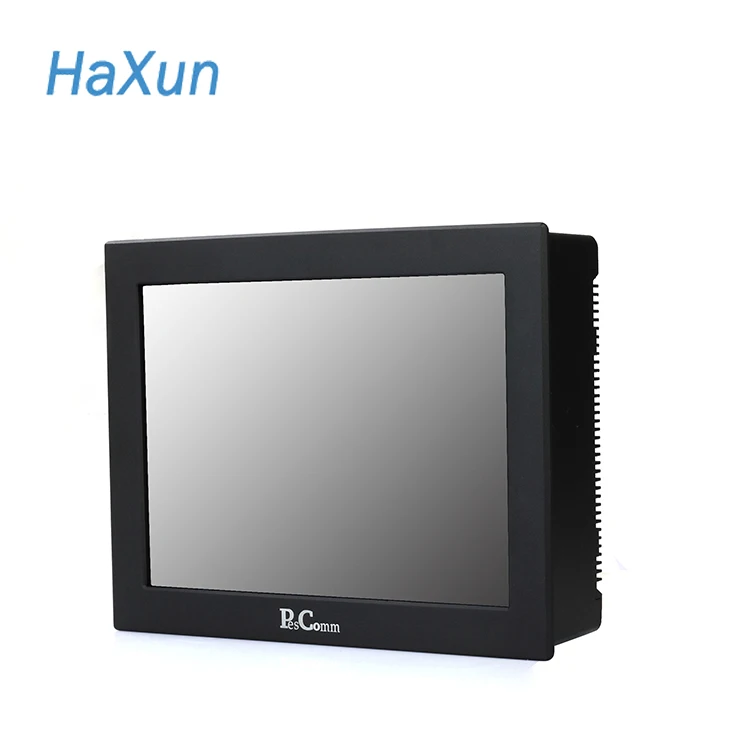

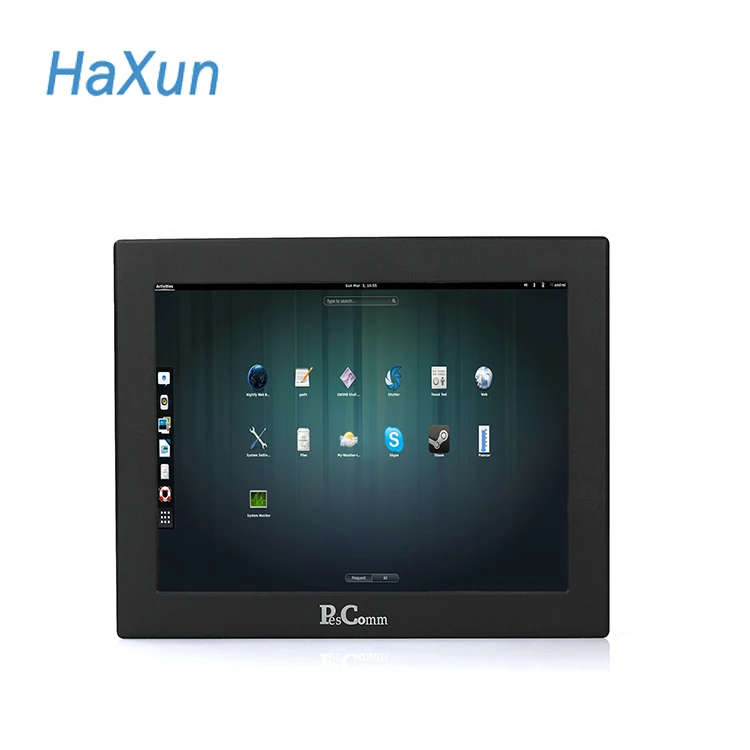

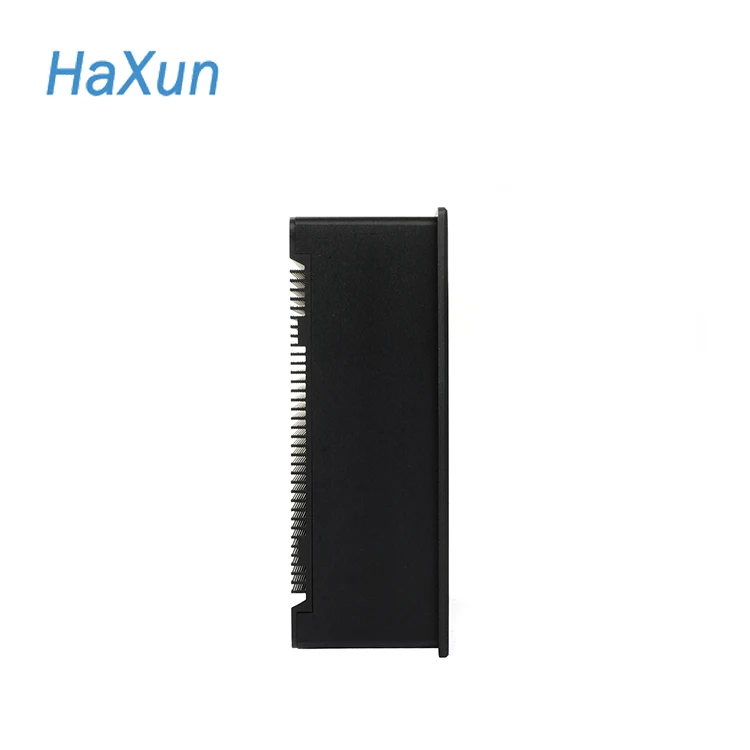

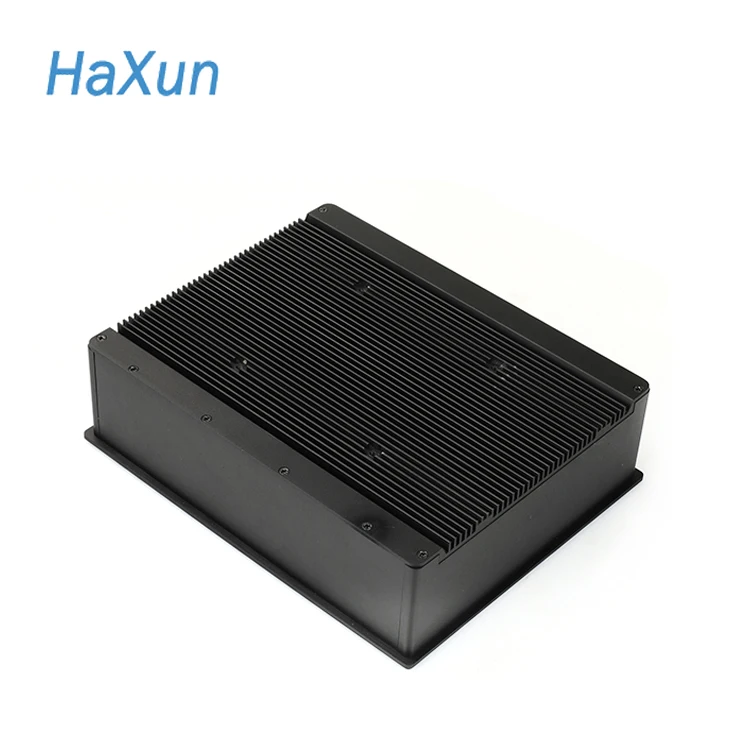

PRODUCT PICTURES




PRODUCT CATEGORY






COMPANY PROFILE




WHY CHOOSE US




CERTIFICATE




SHIPPING




FAQ


Q1: Can you put my brand name (logo) on industrial computer?
A1: Yes, we can support OEM/ODM service.The process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: Start production.

Q2: What is your MOQ?
A2: MOQ= 1 piece

Q3: What is the lead time for embedded industrial computer?
A3: 3-5 working days for the sample,15-25 working days for bulk order.

Q4: Do you have aftersales services?
A4: Yes, we can provide after -sales services, once you have any questions, you can consult with our hardware engineers.

Q5: What payment method do you accept?
A5: L/C, T/T, Western Union, PayPal and Alibaba Trade Assurance, etc.

Q6:Are you manufacturer?
A6: Yes, we are Computer Hardware developer and Manufacturer, IT Solutions Provider, our factory located in Dongguan&Shenzhen.
