3nh TS7020 tomato paste color meter cheap colorimeter with UTC
- Category: >>>
- Supplier: Shenzhen 3NH Technology Co. Ltd.
Share on (1600640214910):
Product Overview
Description
Product Description

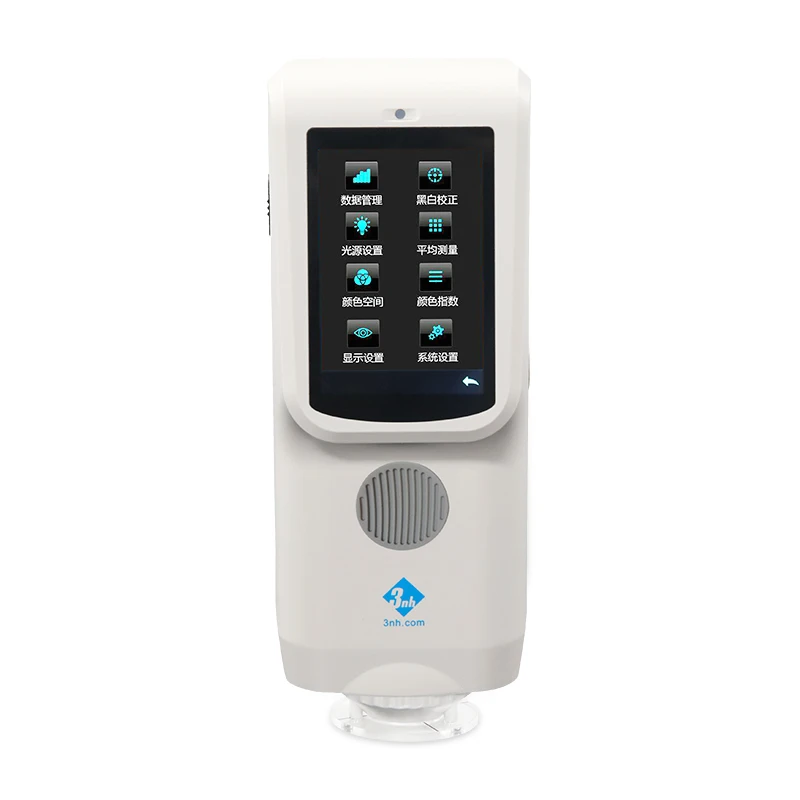

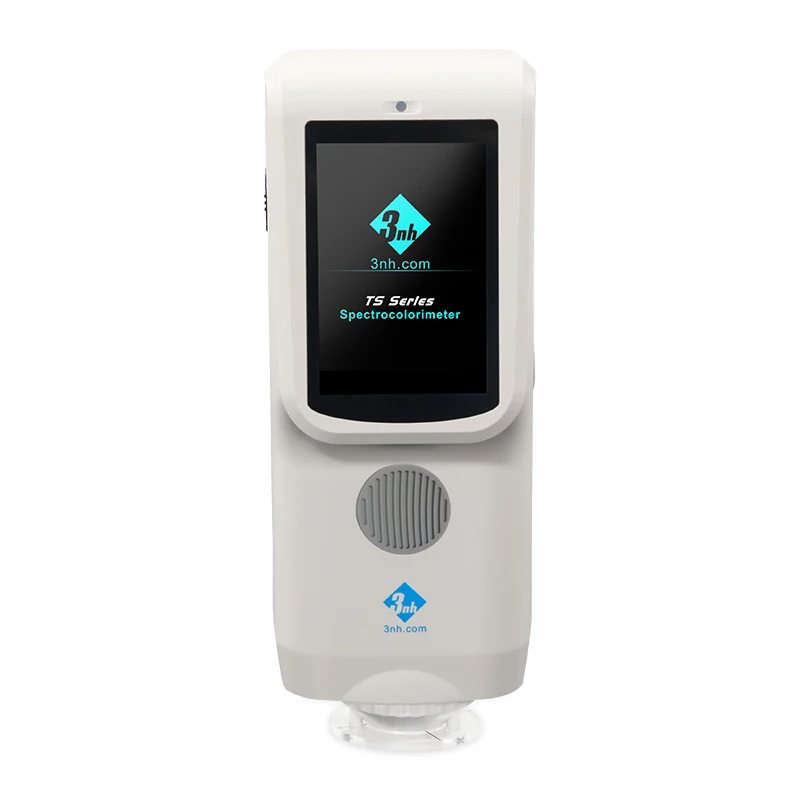

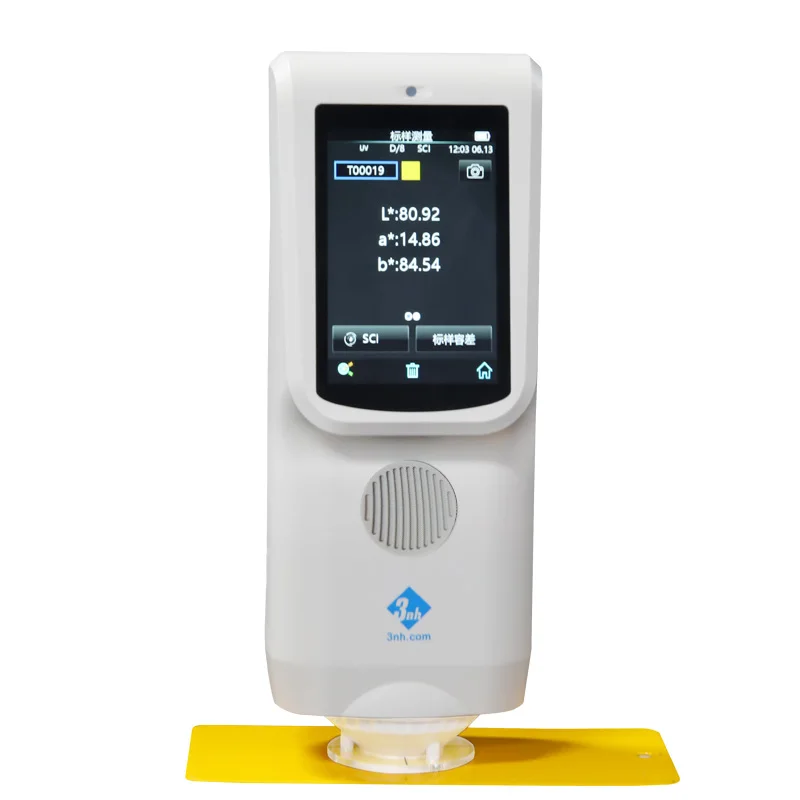

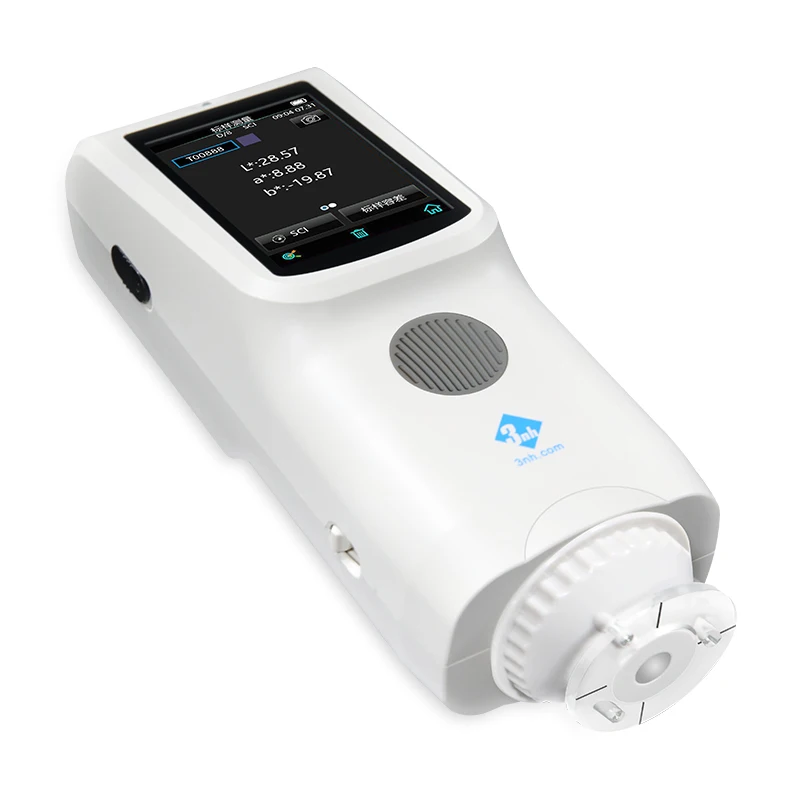

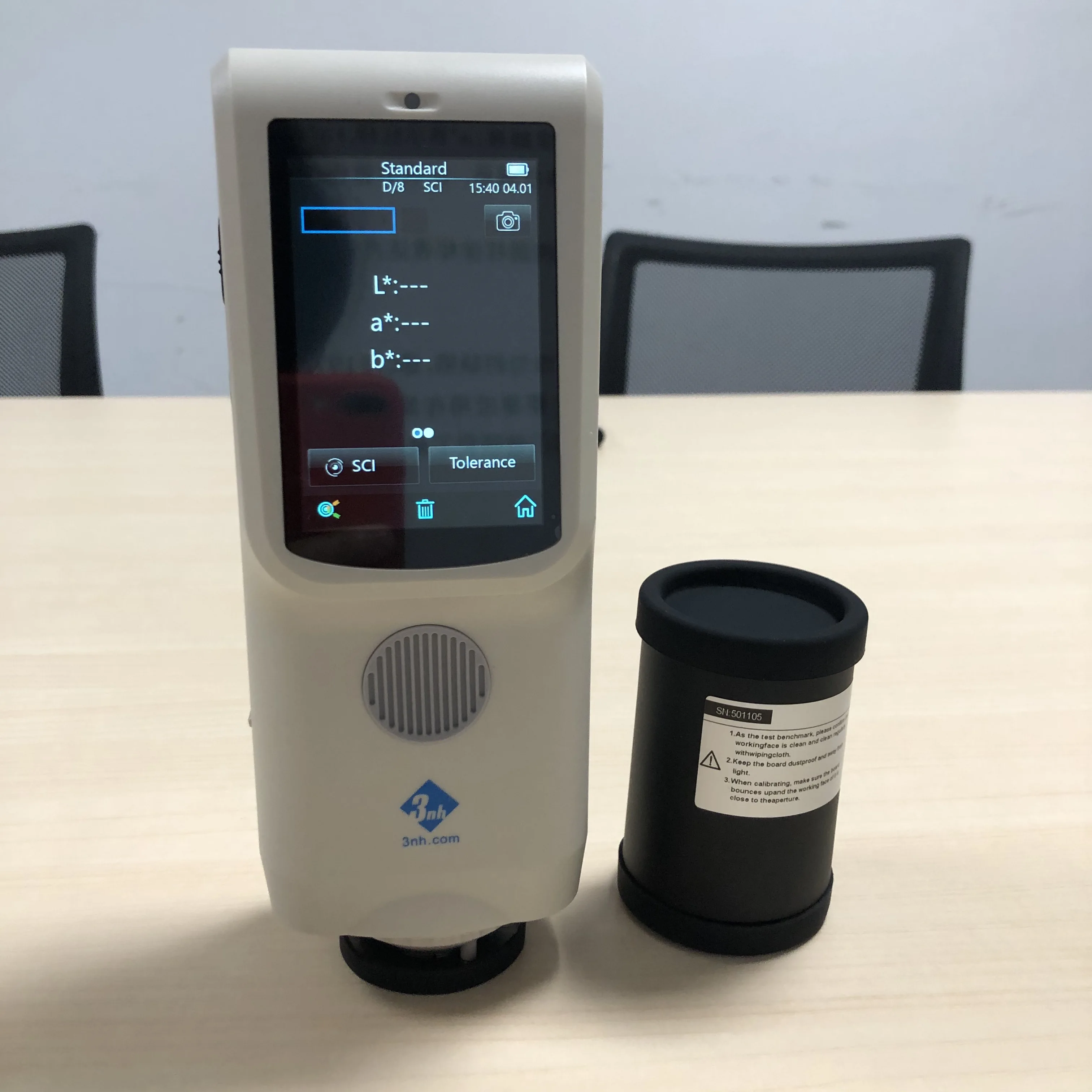

3nh TS7020 Color Spectrocolorimeter

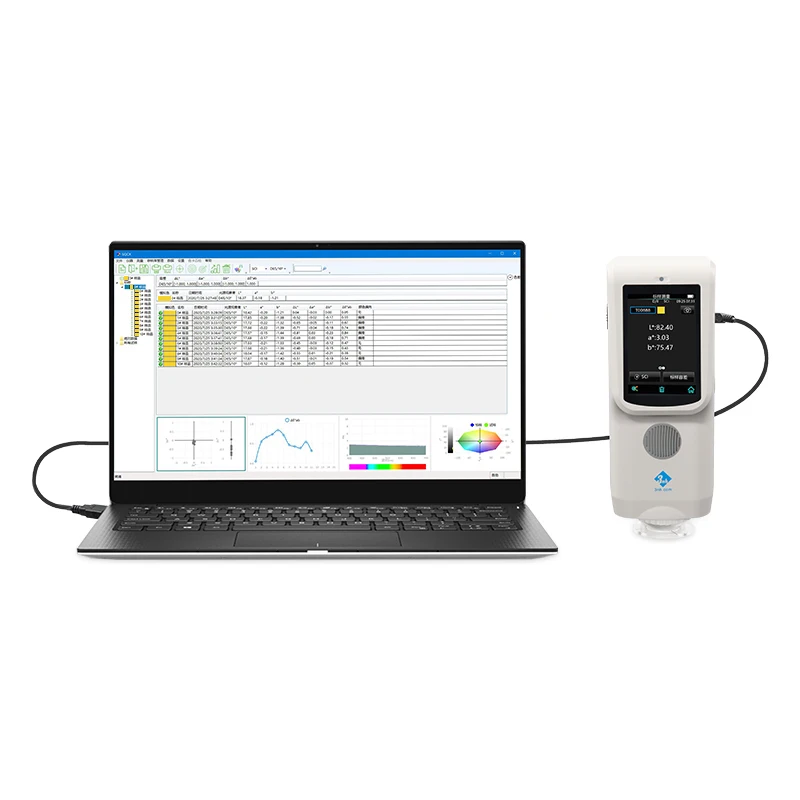

TS7020 is 3nh using autonomous core technology research and development of A portable light color difference instrument, is the high level in spectral architecture color difference instrument, in addition to ensure accurate relative Δ E at the same time, also to ensure the accuracy of the absolute value of L, A and B for A long time, anytime, anywhere can pass the international standards and national standards of measurement. Using the built-in silicon photodiode array (double row 24) sensors, import the whiteboard, repetitive Δ E * ab easily control within 0.08, both measurement speed and convenience of operation, can connect PC quality management software, to achieve more extensions, 8 mm diameter meet plastic electronics, paint and ink, textile printing and dyeing, printing, such as the ceramic industry accurate color difference of production and the quality control.
Specification
Model | TS7036 | TS7030 | TS7020 | TS7010 | |||
Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) SCI/SCE Mode Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | D/8(diffused illumination, 8-degree viewing angle) SCI Mode Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |||||
Characteristic | double apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries | single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries | ||||
Integrating Sphere Size | Φ40mm | ||||||
Light Source | Combined full spectrum LED light source, UV light source | Combined full spectrum LED light source | |||||
Spectrophotometric Mode | Flat Grating | ||||||
Senso | Silicon photodiode array (double row 32 groups) | Silicon photodiode array (double row 24 groups) | |||||
Wavelength Range | 400～700nm | ||||||
Wavelength Interval | 10nm | / | |||||
Semiband Width | 10nm | ||||||
Measured Reflectance Range | L:0~120; reflectivity:0~200% | L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm) | L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelengths specified by the user (default: 550nm) | ||||
Measuring Aperture | Dual Apertures：MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm | Single Apertures：Φ8mm/Φ10mm | Φ8mm | ||||
Specular Component | SCI/SCE | SCI | |||||
Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2) | CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2) | CIE LAB,XYZ,Yxy,LCh | ||||
Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 | ΔE*ab,ΔE*00 | ||||
Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， YI(ASTM D1925,ASTM 313), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search | / | |||||
Observer Angle | 2°/10° | 10° | |||||
Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) | D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) | D65,A,F2(CWF) | ||||
Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset | Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset | Reflectivity (the user specifies the reflectivity at 1 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset | ||||
Displayed Accuracy | 0.01 | Display 0.1, storage 0.01 | |||||
Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) | About 1.5s | |||||
Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.08 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |||
Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles) | MAV/SCI, Within ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles) | |||||
Measurement Mode | Single Measurement, Average Measurement(2-99times) | ||||||
Locating Method | Camera Locating,stabilizer cross position | Stabilizer cross position | |||||
Dimension | L*W*H=81X71X214mm | ||||||
Weight | About 460g | ||||||
Battery | Li-ion battery, 6000 measurements within 8 hours | ||||||
Illuminant Life Span | 5 years, more than 3 million times measurements | ||||||
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | ||||||
Data Port | USB,Bluetooth 5.0 | USB | |||||
Data Storage | Standard 1000 Pcs, Sample 30000 Pcs(One data is able to include SCI/SCE) | Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE) | Standard 500 Pcs, Sample 10000 Pcs | ||||
Language | Simplified Chinese, English, Traditional Chinese | ||||||
Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | ||||||
Storage Environment | -20~50℃, 0~85%RH (no condensing) | ||||||
Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture | ||||
Optional Accessory | USB Micro Printer, Powder Test Box,Bluetooth Micro Printer | USB Micro Printer, Powder Test Box, | |||||
Notes | Technical parameters are only for reference, subject to the actual sale of the product | ||||||
Packing & Delivery

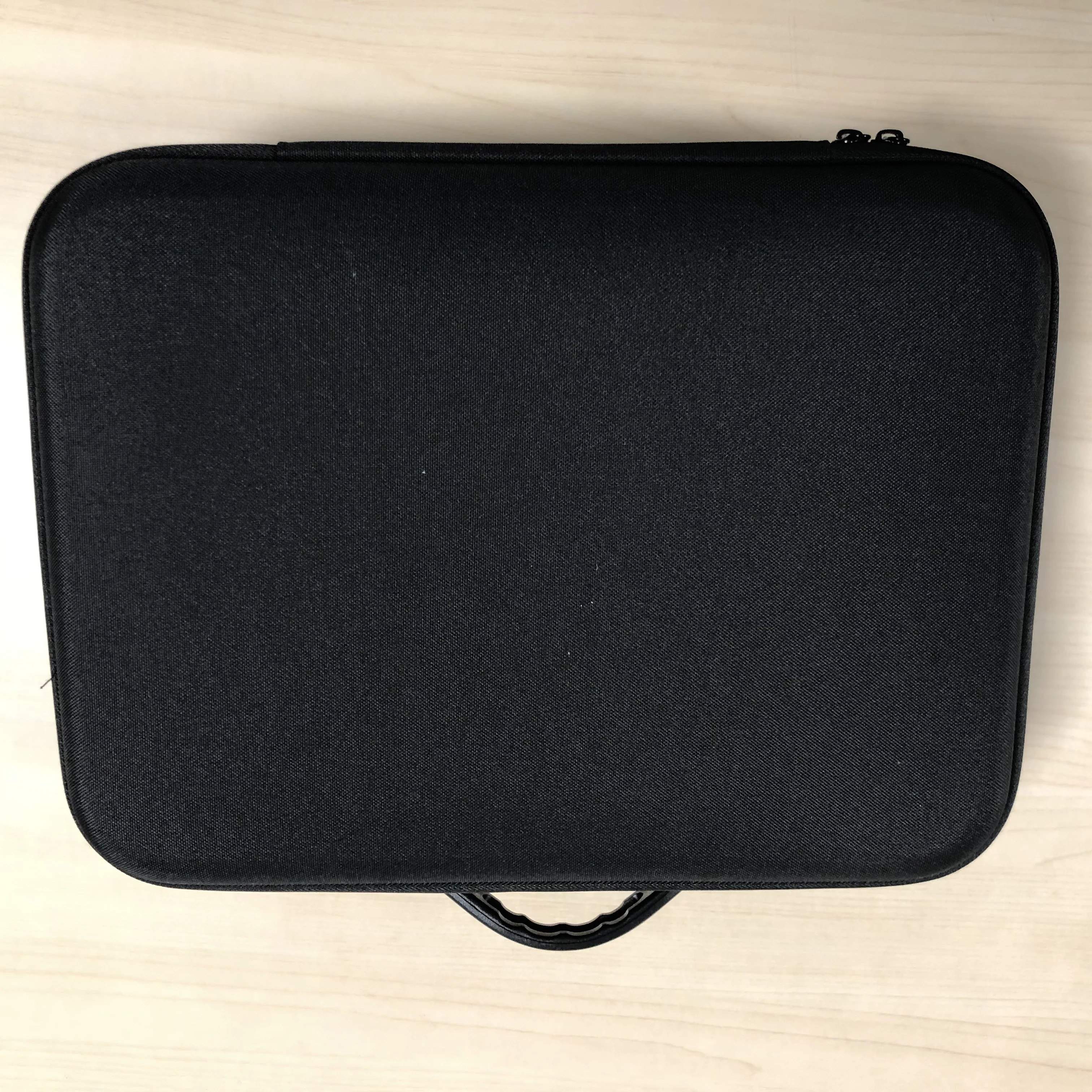

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.
Our Certificates:
ISO9001; CE; FCC; ROHS; TUV; SCM.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Our Certificates:
ISO9001; CE; FCC; ROHS; TUV; SCM.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
