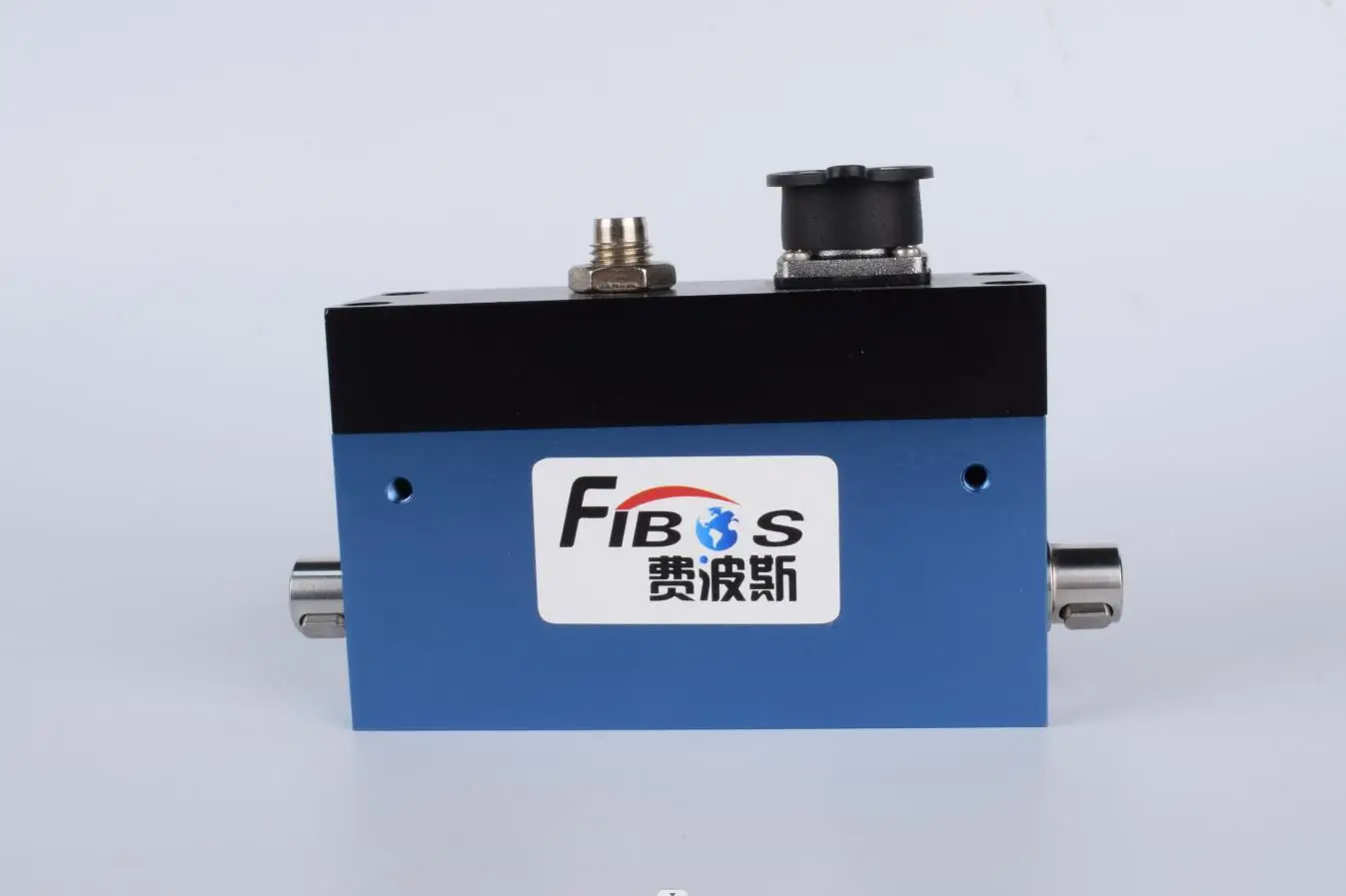

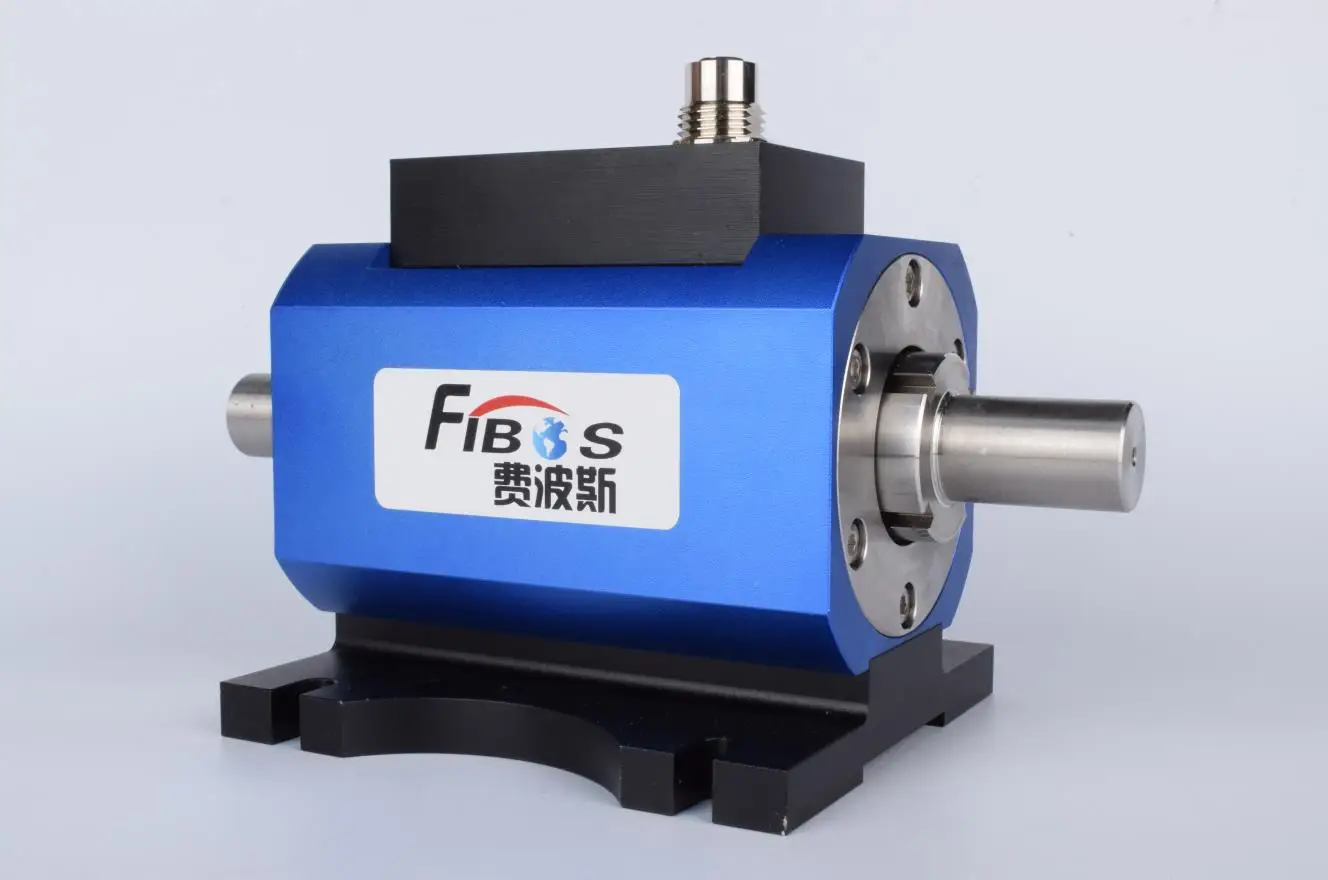

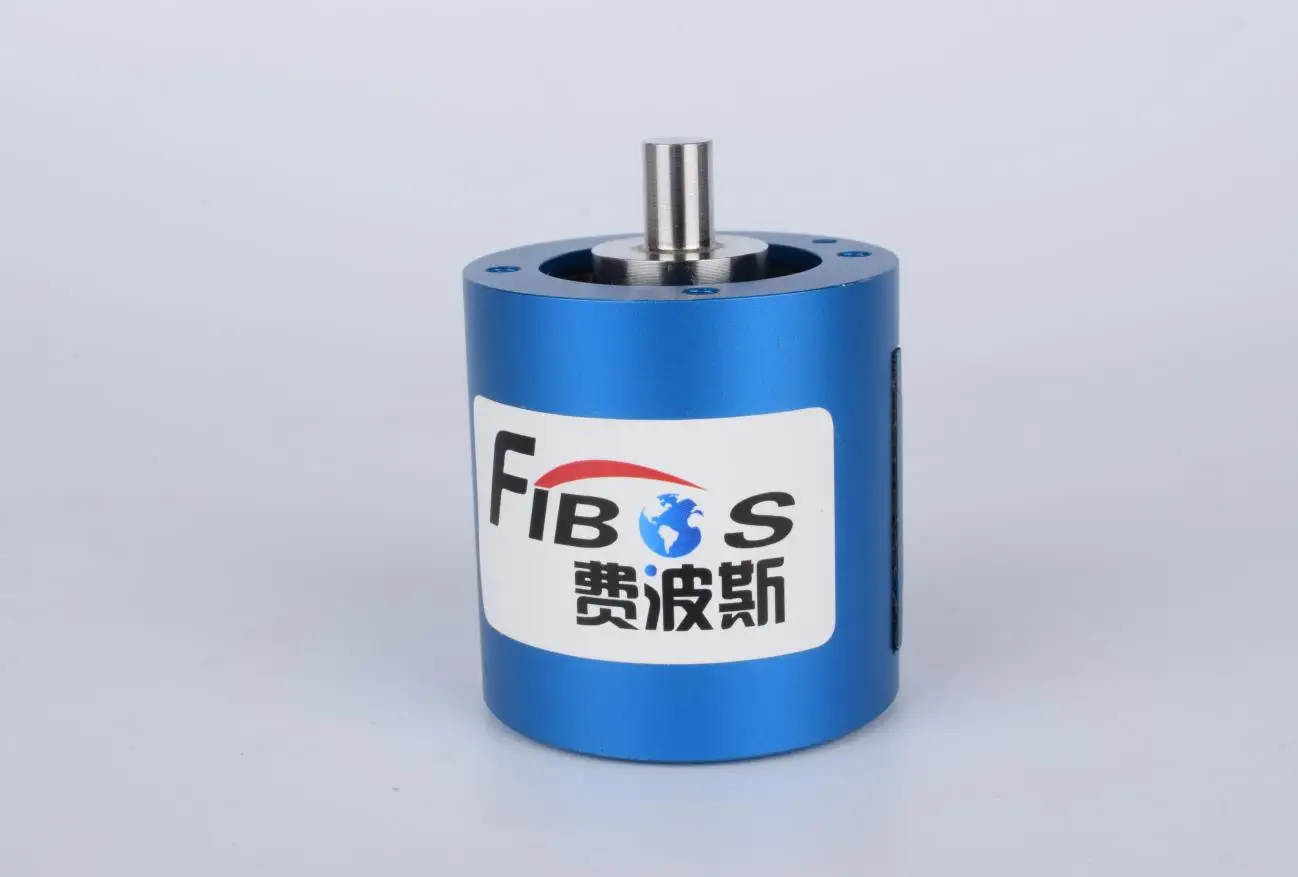

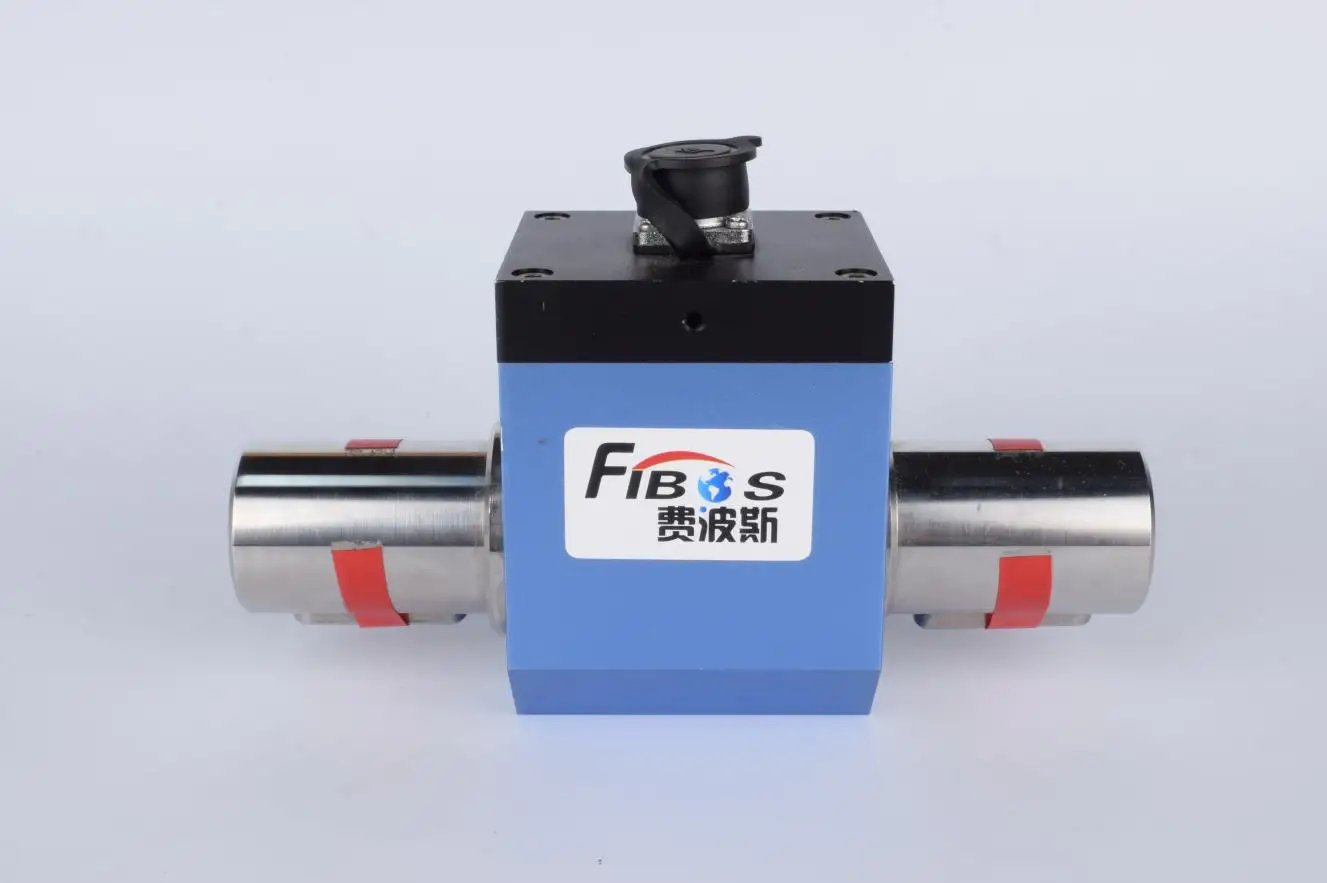

Dynamic Torque Sensor Driver Torsion Dynamic Rotary Torque Sensor Rotational Transducer
- Category: >>>
- Supplier: Fibos Measurement Technology (changzhou) Co. Ltd.
Share on (1600640248394):
Product Overview
Description
Product Description
Specification
model | FA603 | FA604 | FA605 |
Capacity | 5,10,20,50,100,200,500N.m | 0.1,0.3,0.5,1,2,30,500Nm | 0.1,0.2,0.3,0.5,1,2,3,5Nm |
Sensitivity | 1.0~1.5mV/V | 1.0~1.5mV/V | 1.0~1.5mV/V |
Zero Balance | ±0.01mV/V | ±0.01mV/V | ±0.01mV/V |
Creep | ≤0.1%FS | ≤0.1%FS | ≤0.1%FS |
Non-linearity | ≤0.2%FS | ≤0.2%FS | ≤0.2%FS |
Hysteresis | ≤0.2%FS | ≤0.2%FS | ≤0.2%FS |
Repeatability | ≤0.1%FS | ≤0.1%FS | ≤0.1%FS |
Input impedance | 350/700±10Ω | 350/700±10Ω | 350±10Ω |
Output impedance | 350/700±10Ω | 350/700±10Ω | 350±10Ω |
Temp.effect on output | 0.05%FS/10℃ | 0.02%FS/10℃ | 0.1%FS/10℃ |
Insulation resistance | ＞2000MΩ/100V(DC) | ＞2000MΩ/100V(DC) | ＞2000MΩ/100V(DC) |
Recommended Excitation | +15V | 12V | 12V |
Maximun excitation | 24V | 15V | 20V |
Compensated Temp Range | -10~60℃ | -10~60℃ | -10~60℃ |
Operating Temp Range | -20~60℃ | -20~60℃ | -20~60℃ |
Safe overload | 120%FS | 120%FS | 120%FS |
Ultimate overload | 150%FS | 150%FS | 150%FS |
Cable size | 3m | 3m | 3m |
IP Class | IP66 | IP66 | IP66 |
Company Profile
Fibos Measurement Technology (Changzhou) Co., Ltd. is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers.
With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.
