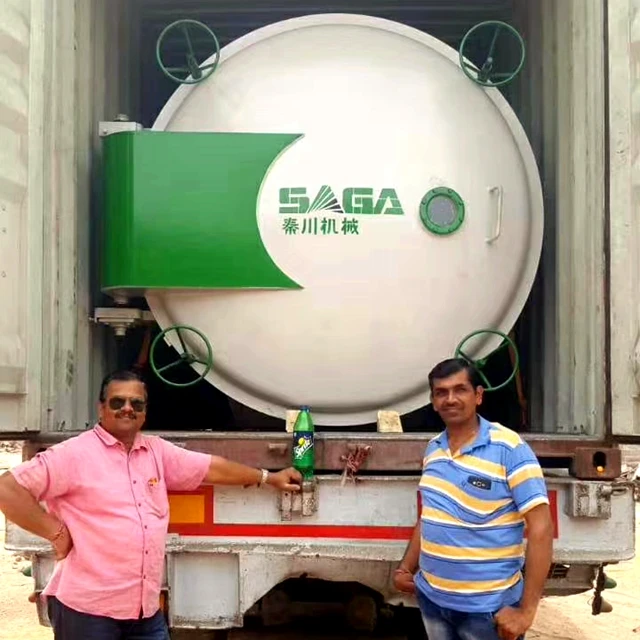

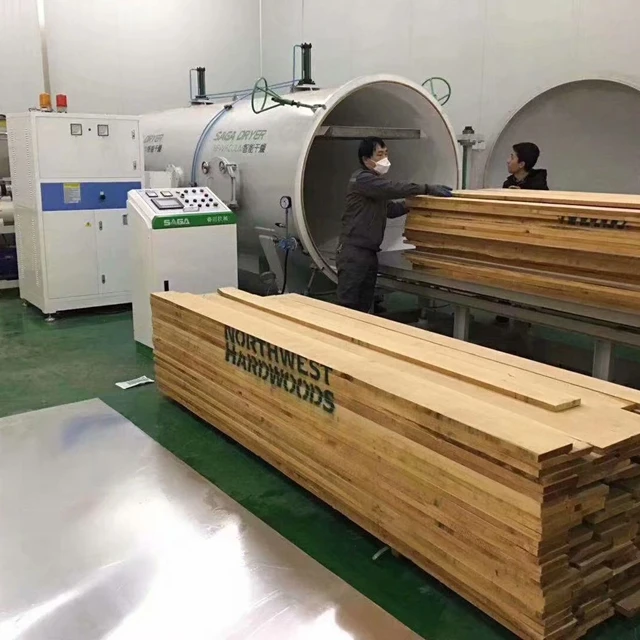

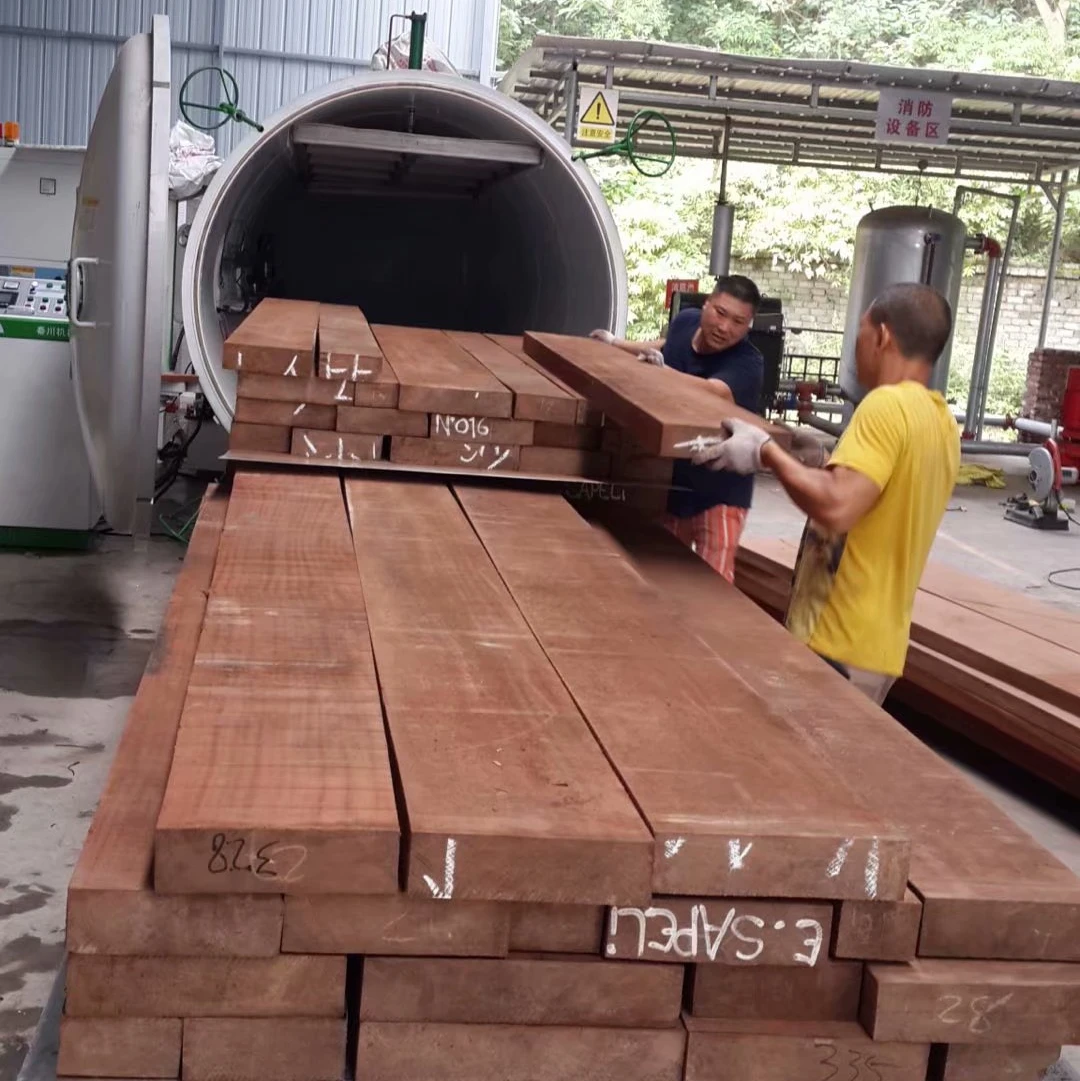

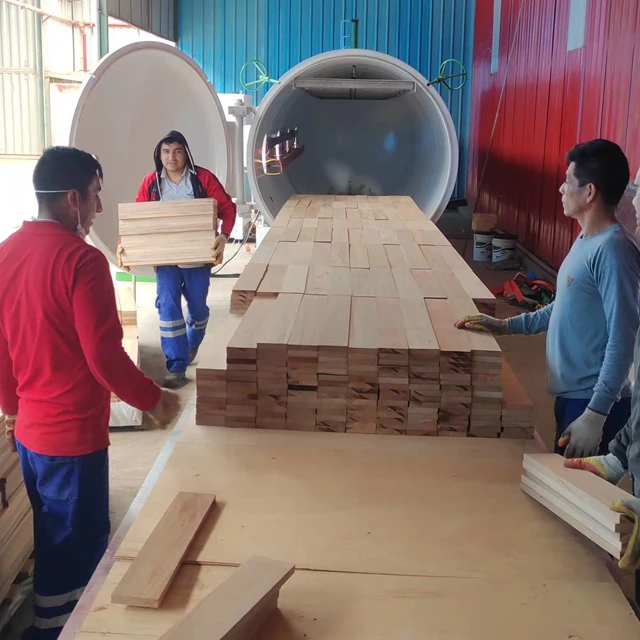

3m3 High Frequency Wood Drying Vacuum Chamber Kiln Oven Equipment HFVD30 SA

Product Overview

Description

Feature of High Frequency Wood Drying Vacuum Chamber Kiln Oven Equipment

*Fast drying cycle: heating by high frequency dielectric power,many times faster than conventional wood kilns

*Automatic feeder: feeding cart with a motor,easy to push the timber into the dryer

*Optional capacity: 3m3, 4.5m3, 10m3, 13m3, small but with a quick,automated drying cycle, meet different customer's requirement

*PLC automated systems with touch screen panel: easy to set data and operate,only One-button start and stop

*Uniform heating: HF power acts on water or moisture in the wood, make sure moisture uniform after drying

*No sparking or bending problem: hydraulic press cart keeps the wood straight

*Veneer, panels, softwood and hardwood planks, heavy timber with large dimension: suiatble for all kinds of wood

*Patented weighing system: calculate the moisture by program automatically, and showing recent moisture on PLC screen all the time

*Stainless steel cooling system: stainless steel vacuum pump, pipe and condenser,avoid of rusting problem

*Schneider, Omron, Siemens etc European spare parts: International standard, good quality and easy to replace

 Our engineers can provide overseas installtion, training and are available to provide after-sell service and maintenance. We recommend proper training for sfe and prolonged use of the machinery.

Bastic Parameter of HFVD30-SA

Overall Size	High Frequency Generator	950*1050*1950mm
	Tank	5700*2100*2100mm
	Cooling System	1650*1050*1300mm
Gross Weight		6000kgs
Inner Diameter of Tank		1700mm
Stacking Timber Size		1000*1000*3000mm (3.28feet *3.28 feet * 9.84 feet)
Stacking Timber Capacity		3 cubic meters
Input Power of High Frequency Generator		40KVA
Output Power of High Frequency Generator		30KW
Temperature Testing		Fiber optic temperature sensor
Moisture Testing		Weighing sensors (PATENT)
Cooling System		Stainless steel condenser with stainless steel water-ring vacuum pump
Extraction		Full automatic by peumatic valves
Pressure of Hyrdraulic Cylinders		3 ton (2 pieces of stainless steel cylinders)
Vacuum Pump		Stainless steel type, 7.5KW
Feeding Cart		Manually
Tank Door		Safe and powerfull ear doors
Control System		Full automatic PLC touch screen
Packing		3 packages- 20 feet container

Optional Models

Model	HF Input Power	HF Output Power	Stacking Timber Size	Stacking Timber Capacity	Container
HFVD45-SA	40KVA	30KW	1*1*4.5m	4.5 cubic meters	40" GP
HFVD100-SA	75KVA	50KW	1.3*1.3*6m	10 cubic meters	40" HQ
HFVD120-SA	75KVA	50KW	1.3*1.3*8m	13 cubic meters	40" HQ

Main Parts

1.High frequency generator

2.Control cabinet

3.Vacuum tank

4.Hydraulic system

5.Weighing system

6.Temperature tesing system

7.Cooling system

8.Full-auto feeder

Drying Cases

Case	Drying Time	Drying Result	Consumption
Sliced veneer	about 40 hours	High quality on flatness and water content uniform	200~250kw/cbm
Surface of floorboard	about 45 hours	High quality on flatness, no end cracking and deformation, no color change	about 200kw/cbm
Middle hardwood for second time drying	about 35 hours	Relieving tension, make water content uniform and make wood stable	about 150kw/cbm
Hardwood drying	Rosewood: 7 days Red Sandalwood: 14 days	No cracking or deformation, moisture content uniform, more stable	about 500~600kw/cbm,different consumption for different wood
Large plank	7~10 days , moisture content from 60% to 20%,10cm thick+, like Birch,Larch,Pinus and Pine	No deformation on vertical direction, no cracking problem, more stable	different wood with different power consumption
