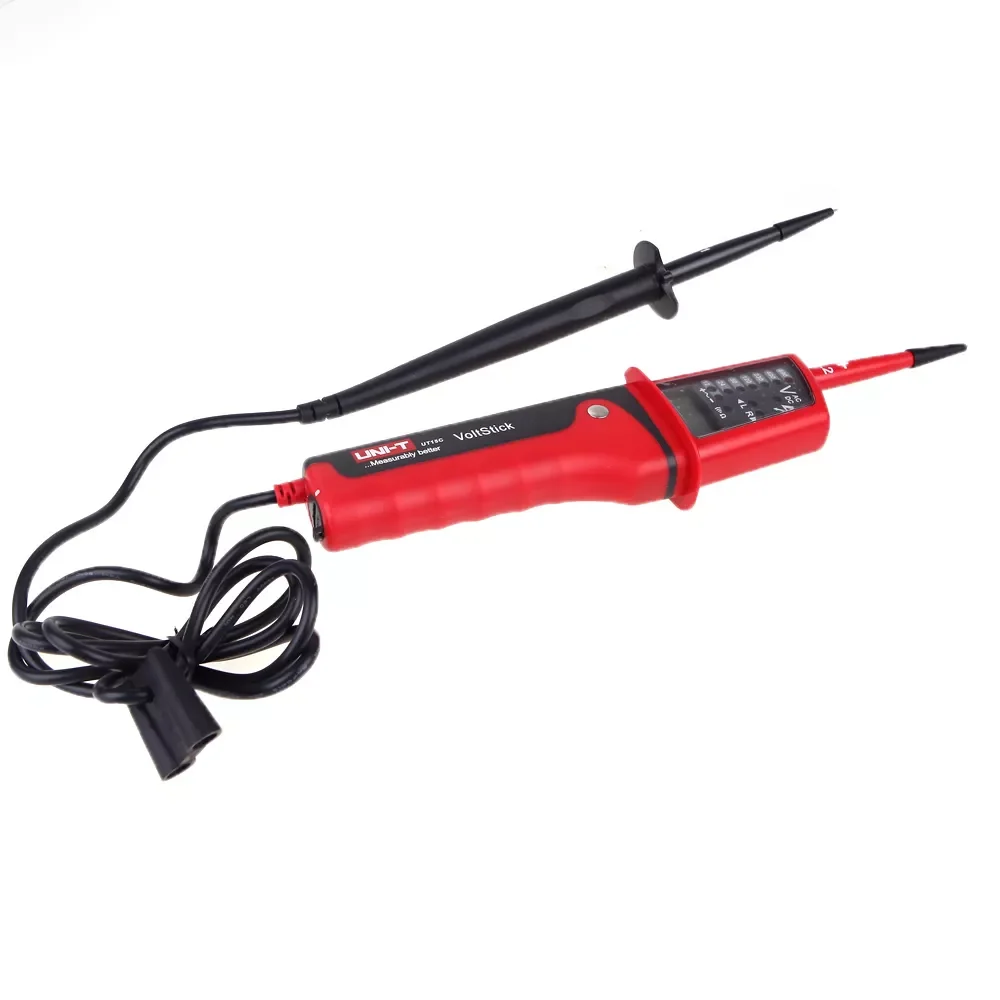

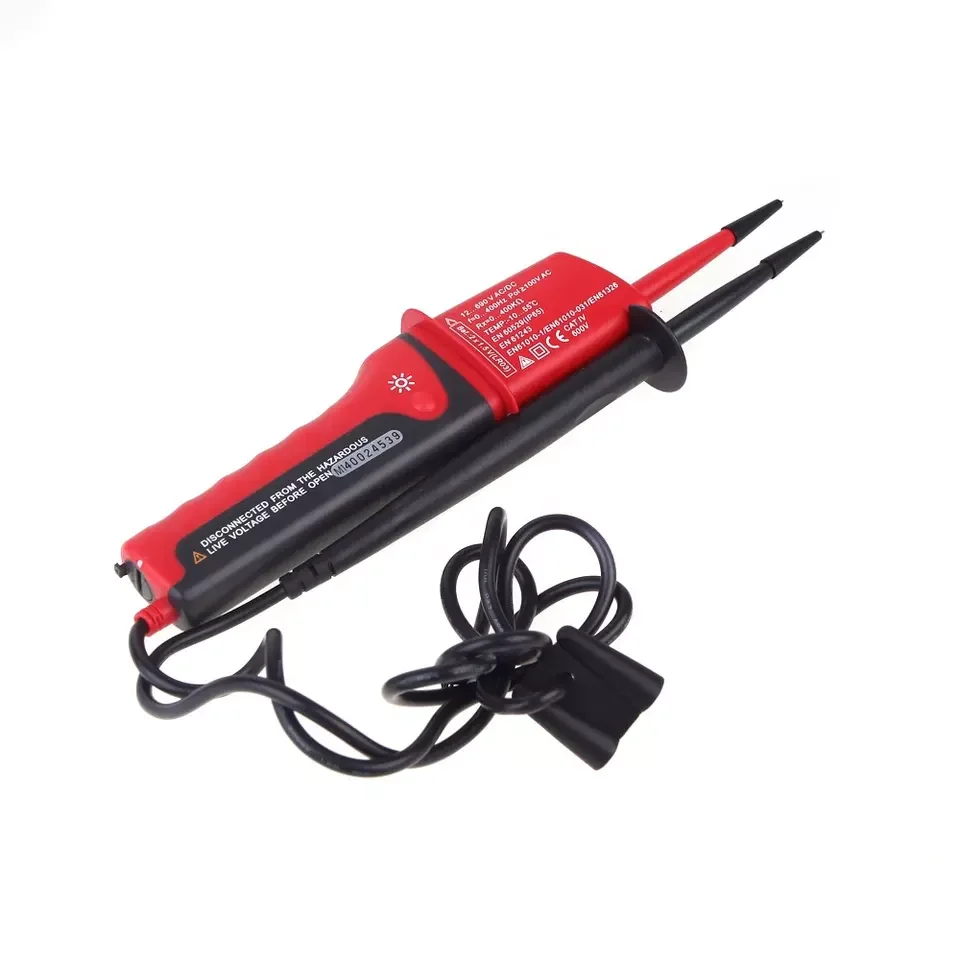

UT15C Waterproof Digital Voltage Meter 24V~690V Voltage Testers LED AC / DC Voltmeter Indicator Auto Test Multimeter
- Category: >>>
- Supplier: Chengdu Jiebo Technology Co. Ltd.
Share on (1600640322346):
Product Overview
Description
Products Description

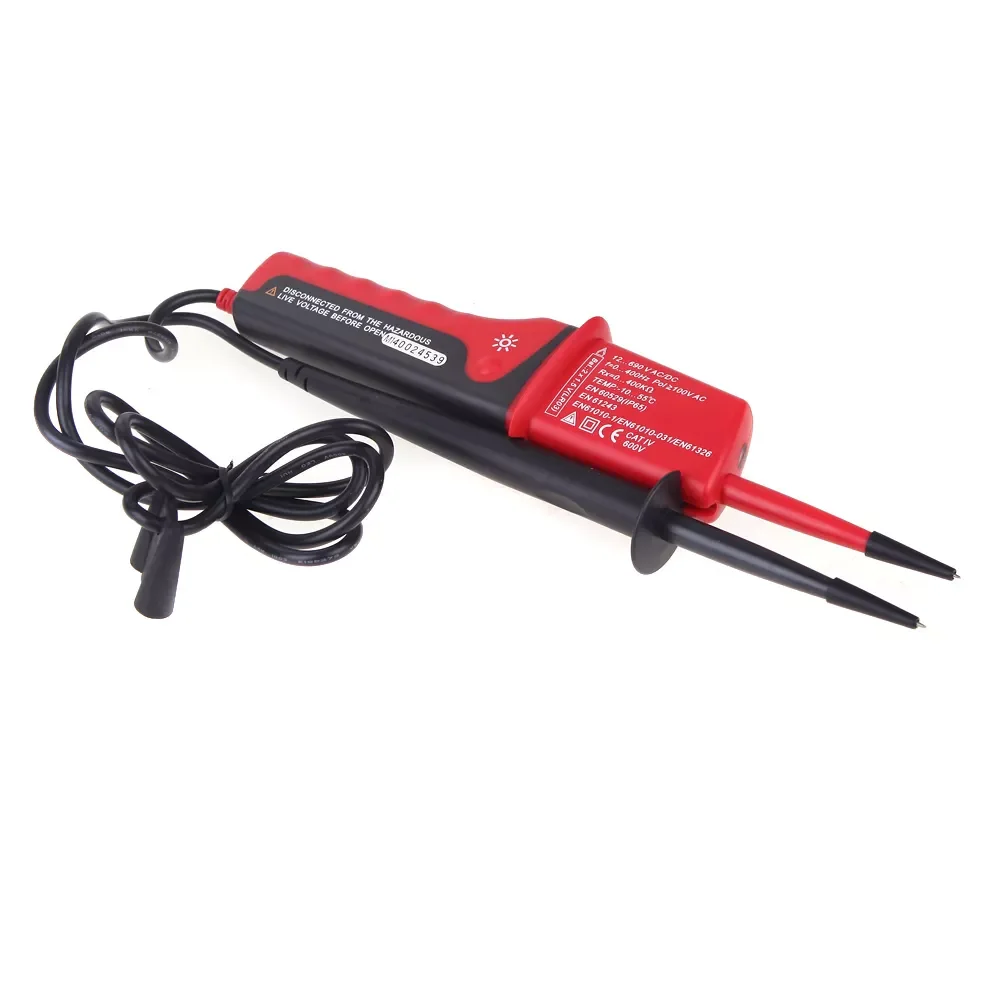

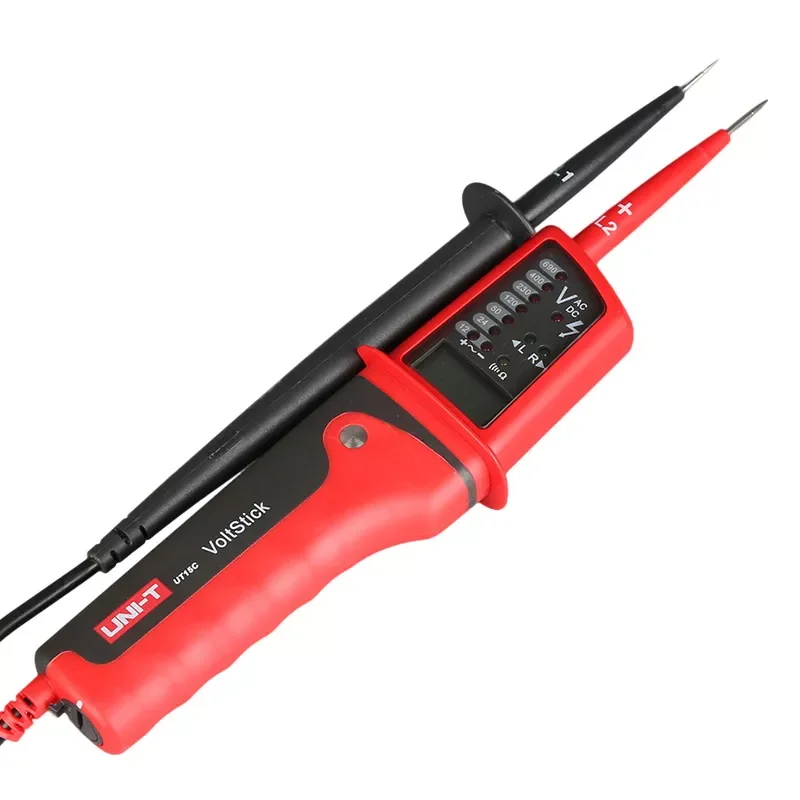

UT15C Waterproof Type Voltage Tester

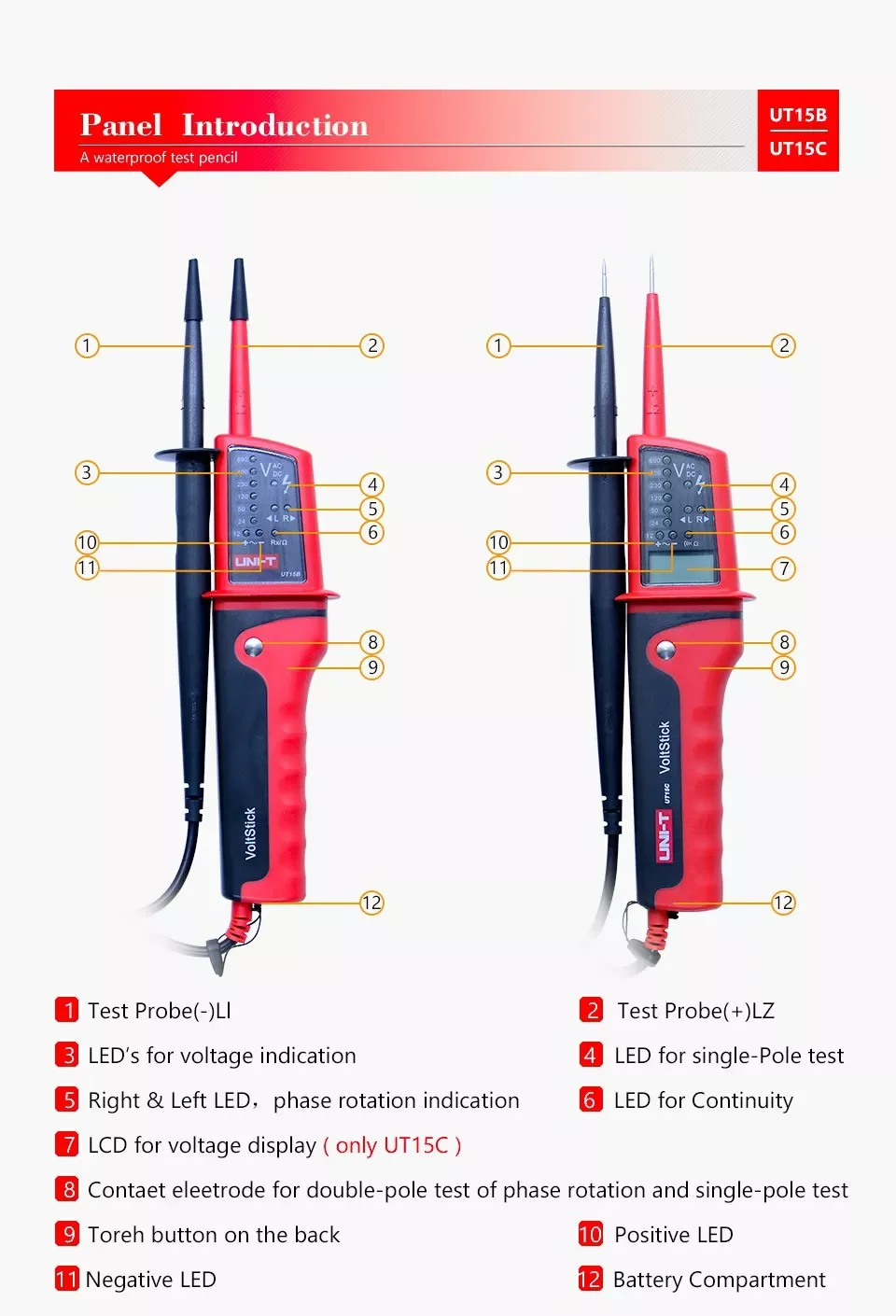

UT15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electron, factory automation, electric power distribution and electromechanical device.
UT15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electron, factory automation, electric power distribution and electromechanical device.
Features
UT15 Series test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It is applicable to smelting,
electron, manufacture, fossil oil, national defense, electricity and chemical engineering and so on. It can also solve the complex problems of electron, factory automation, electric power distribution and electromechanical device.
electron, manufacture, fossil oil, national defense, electricity and chemical engineering and so on. It can also solve the complex problems of electron, factory automation, electric power distribution and electromechanical device.
Models & Comparison
Specifications | Range | UT15B | UT15C | |||
LED AC/DC voltage indication (V) | 12V | 0~12V | 0~12V | |||
24V | 17V±2V | 17V±2V | ||||
50V | 35V±5V | 35V±5V | ||||
120V | 80V±15V | 80V±15V | ||||
230V | 165V±20V | 165V±20V | ||||
400V | 300V±30V | 300V±30V | ||||
690V | 510V±40V | 510V±40V | ||||
Phase rotation test | Operating Voltage: 0V~690V | √ | √ | |||
Frequency: 50Hz~60Hz | ||||||
Single lead (L2) voltage detection | Operating Voltage: 0V~690V | √ | √ | |||
Frequency: 50Hz~400Hz | ||||||
Continuity test | Resistance: 0~100kΩ | √ | √ | |||
Beeper and LED light Indicator | ||||||
Polarity detection | Positive & Negative | √ | √ | |||
Features | ||||||
Water-proof (IP65) | √ | √ | ||||
Auto range | √ | √ | ||||
Work light | √ | √ | ||||
Low battery indication | Short circuit two leads, LED and beeper off when the bettery is low | √ | √ | |||
LCD AC/DC voltage display | 24V~690V | ±(3%+5) | ||||
General Characteristics | ||||||
Power | 1.5V battery (R03) × 2 | |||||
Display | UT15C- 23mm × 12mm | |||||
Product color | Red and grey | |||||
Product net weight | 210g | |||||

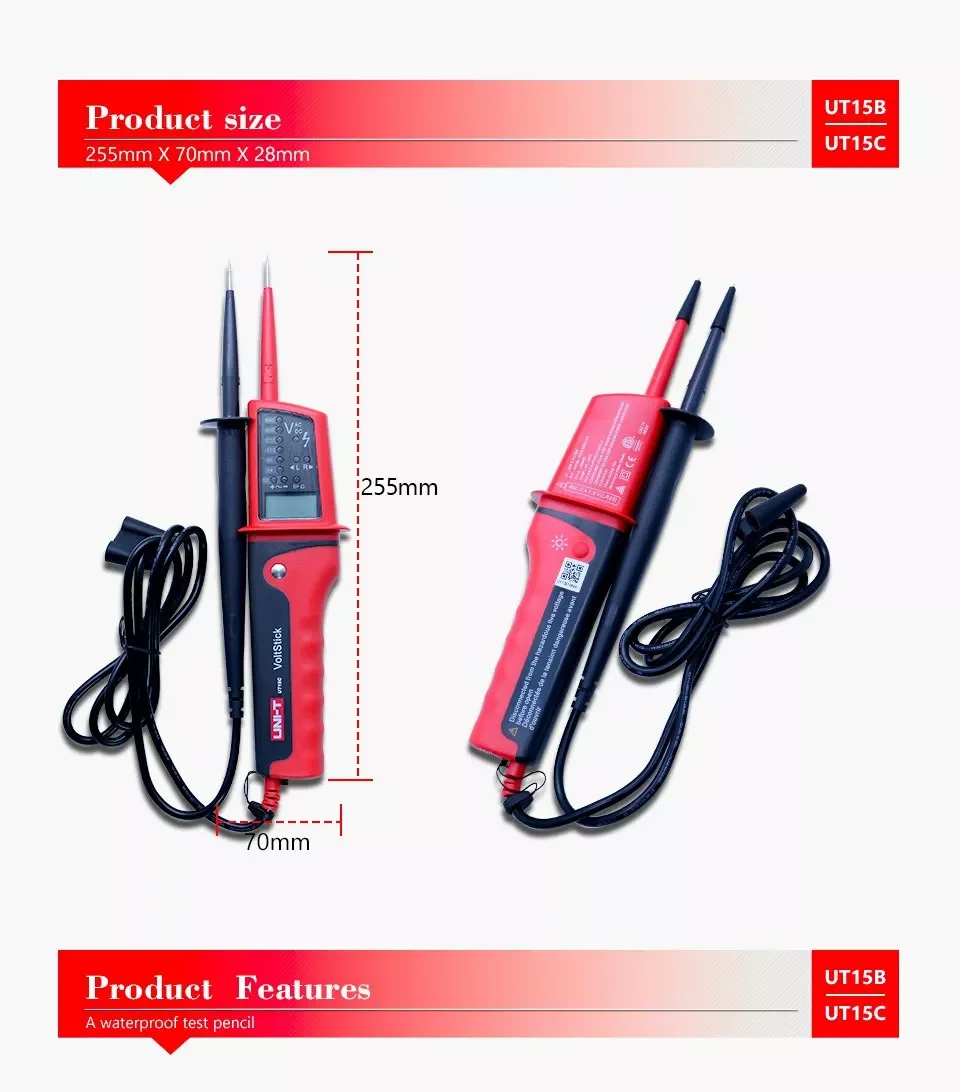

Product size (W x H x D) | 275mm × 51mm × 30mm | |||||

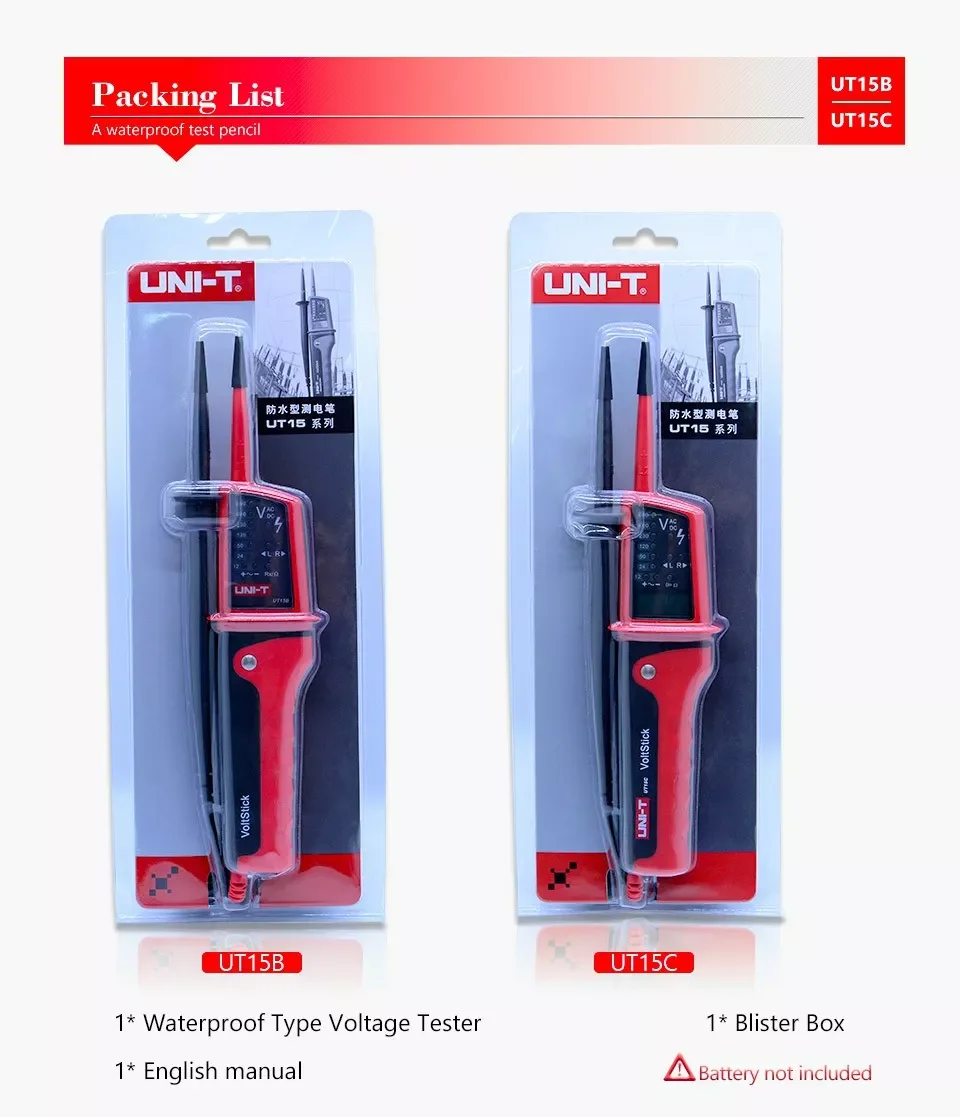

Standard accessories | Batteries | |||||

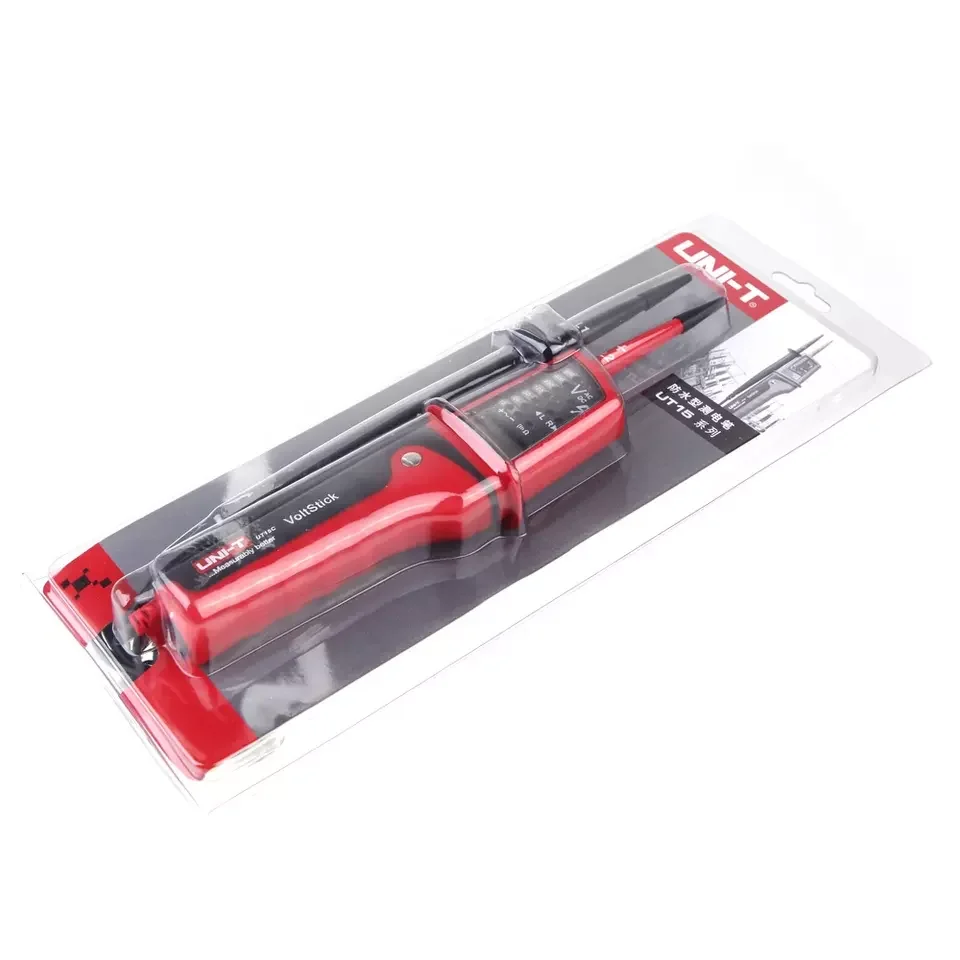

Standard individual packing | Blister, English manual | |||||
Standard quantity per carton | 30 pcs | |||||
Standard carton measurement | 440mm × 395mm × 455mm (0.079CBM Per standard carton) | |||||
Standard carton gross weight | 17kg | |||||
