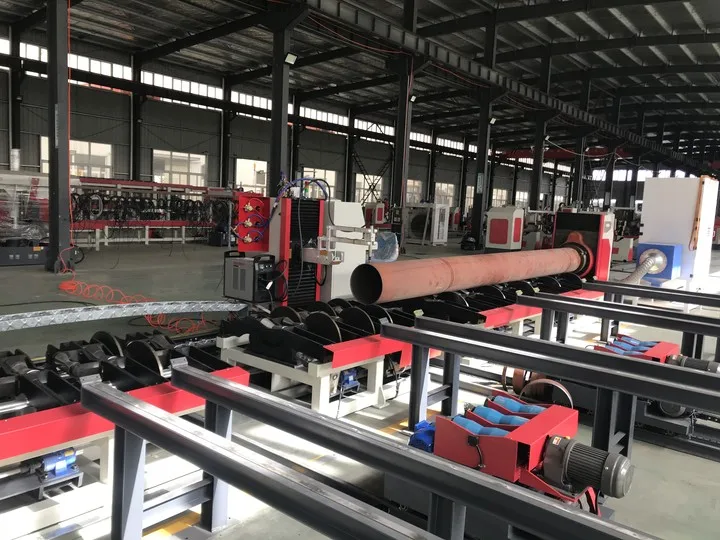

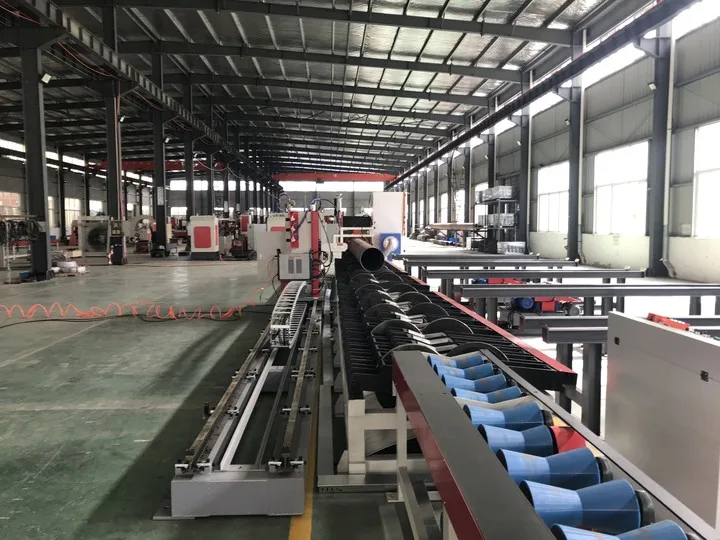

CNC Pipe Profile Saddle Nozzle Flame Cutting Machine

Product Overview

Description

CNC Pipe Profile Cutting Machine

Model:CNCPCM-24A/32A/48A/60A

Technical parameters:

•





































  Technical Description	Standard Type
  Pipe diameter applicable:	Φ50-Φ600/800/1200/1500mm
  Cutting Pipe wall thickness:	1-25mm (plasma cutting) or as per plasma generator; 5-60mm(flame cutting)
  Cutting speed: plasma cutting speed:	50—3800 mm/min
  flame cutting speed:	50-750mm/min
  Angle of bevel:	plasma cutting±45°(adjustable)
  flame cutting:	±60°(adjustable)
  Cutting Pipe length:	≤12000mm















  Max load pipe weight:	4000KGS
  CNC system:	original import IPC










•


  Number of axis under control:3-6 Axis




                   Work piece axis of rotation(X)




                   Cutting the first work piece along the axis of axial movement(Y)




                   Cutting torch along the axial swing axis work piece (Z)




                   Cutting torch along the work piece swing radial axis (W)




                   Cutting the first spindle axis vertical take-off and landing (U)




                   Cutting nozzle strength out and draw back axis  (V)





•


  Cotrol way:full CNC control with touch screen & man-machine interface





•


  Integrated precision of the machine




                   Portrait Moving Error: ≤±0.2mm/1000mm




                   Turning Angle Error:  ≤1° per 180°




                   Surface quality:          Clean and no dregs




                   Repeat positioning accuracy of generatrix: ≤±0.3mm




  Basic Configuration





• NC pipe Profile cutting machine mainly are consists of the control system, machine arm system, driving unit, clamp unit, support unit, guide rail, airway system, control cabinet and operation table, etc. One set of flame cutting system (including plasma cutting) is provided as the main cutting system.(or as per customer’s request )

Welcome to  visiting our factory or project site at any time in Shanghai City, P.R.China; For more detail information please contact us. Thank you !

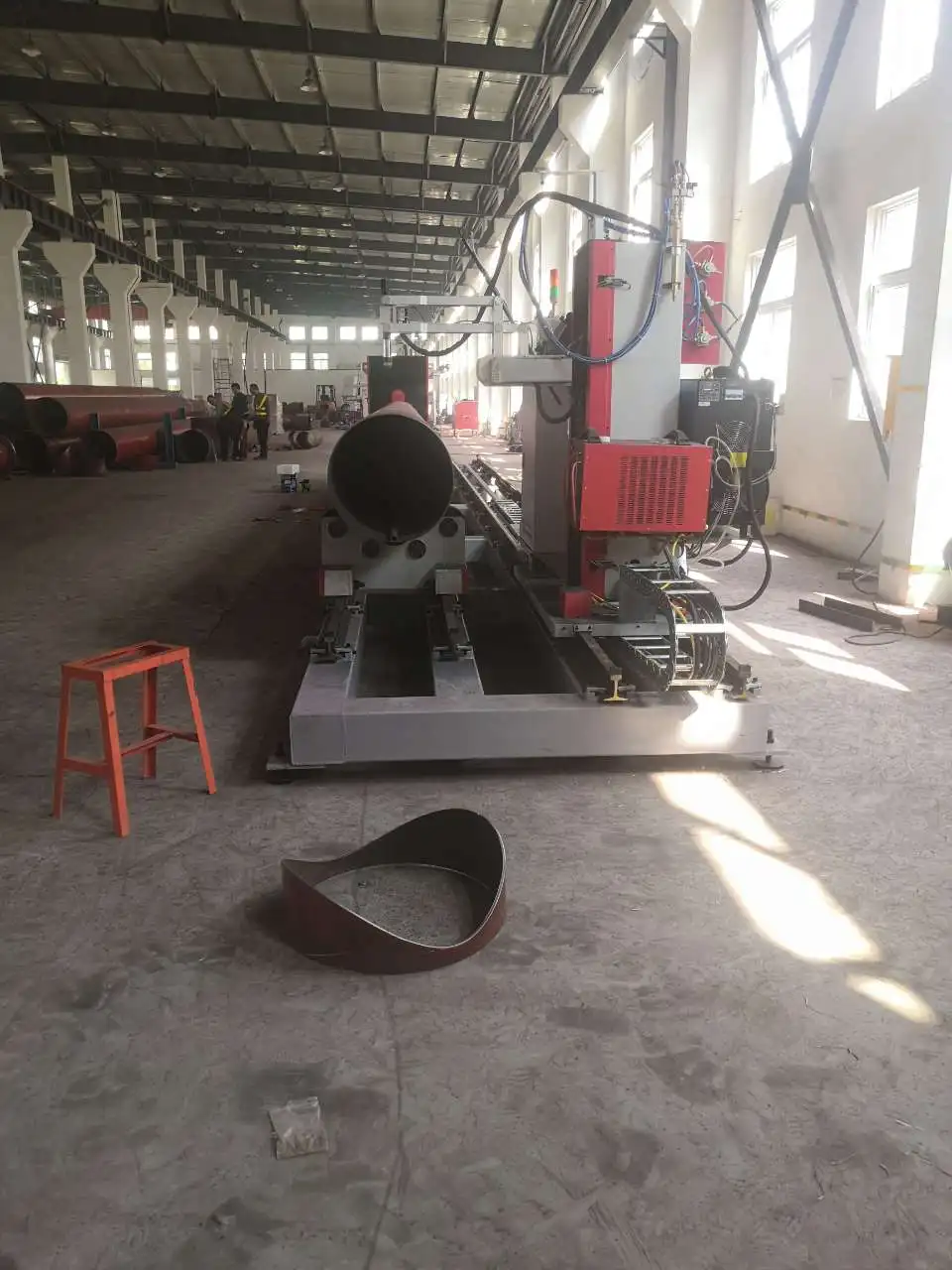

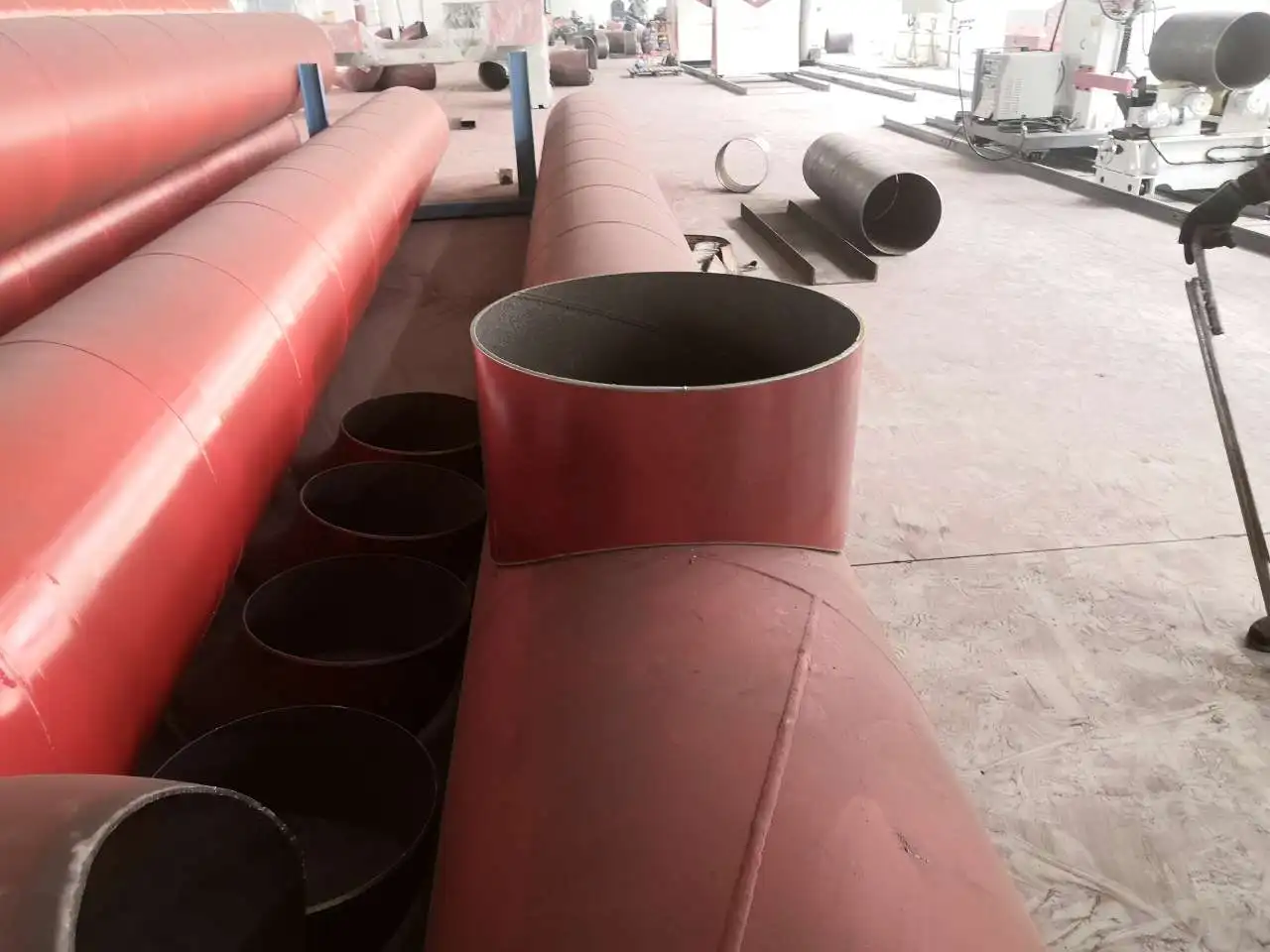

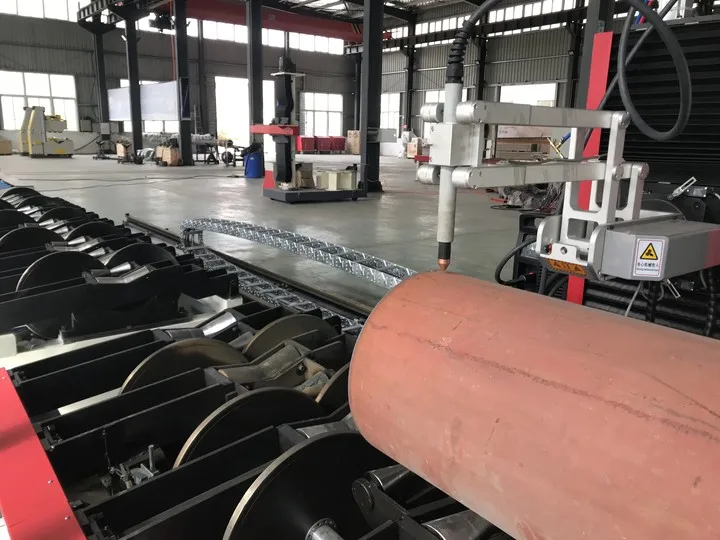

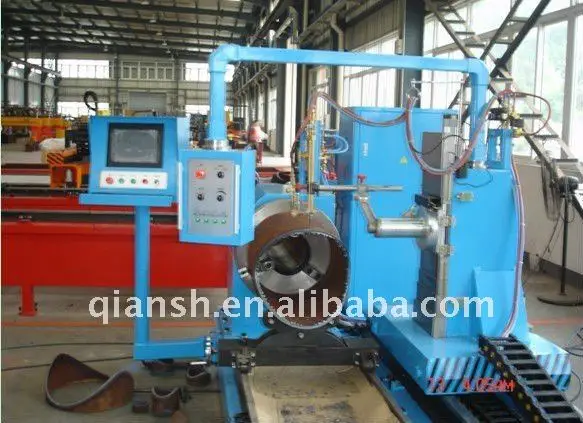

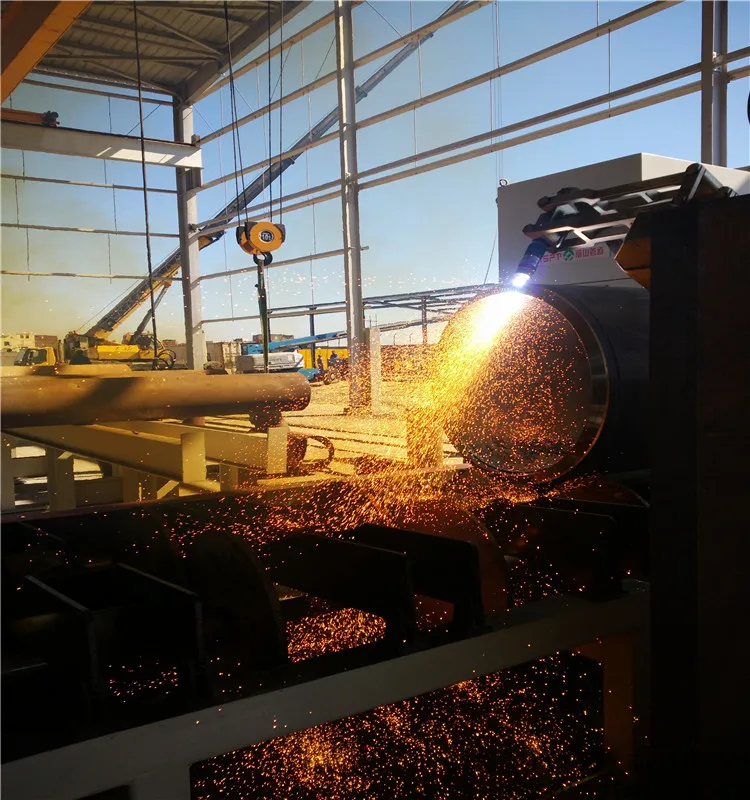

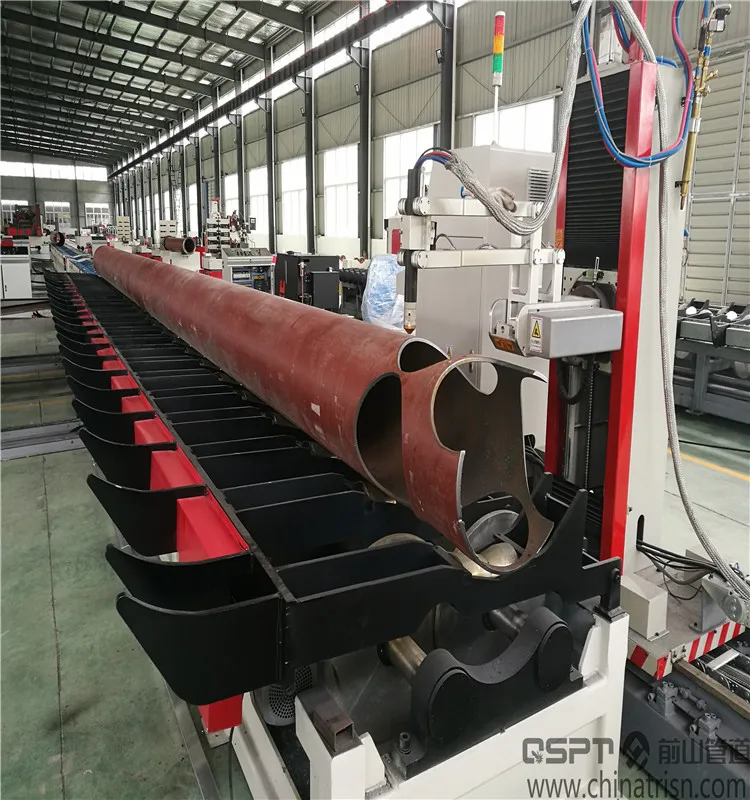

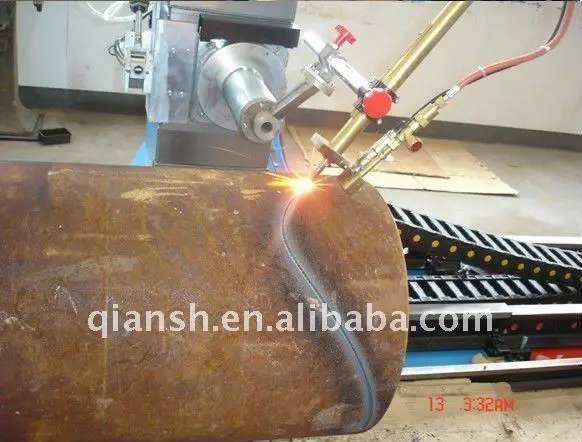

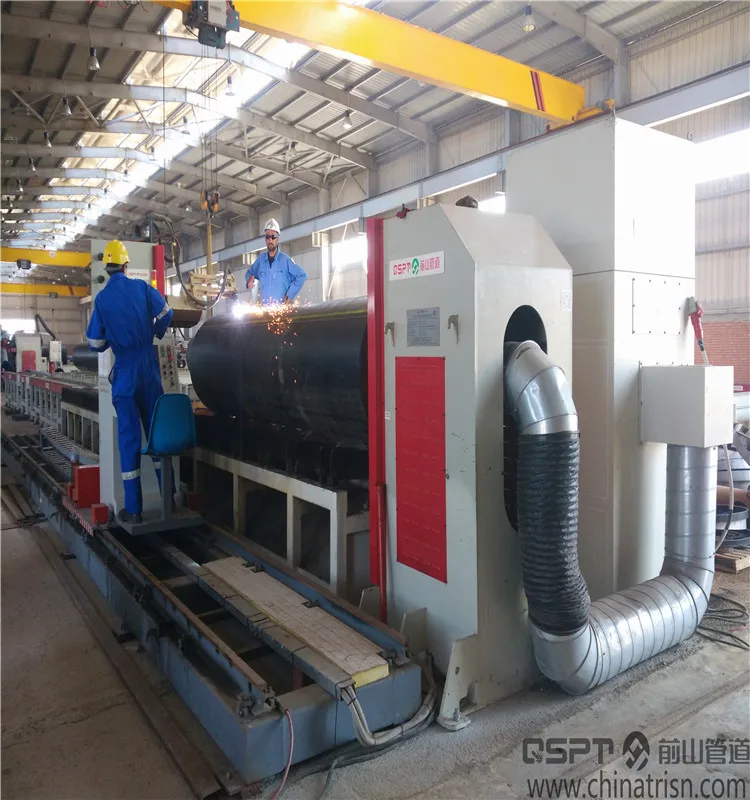

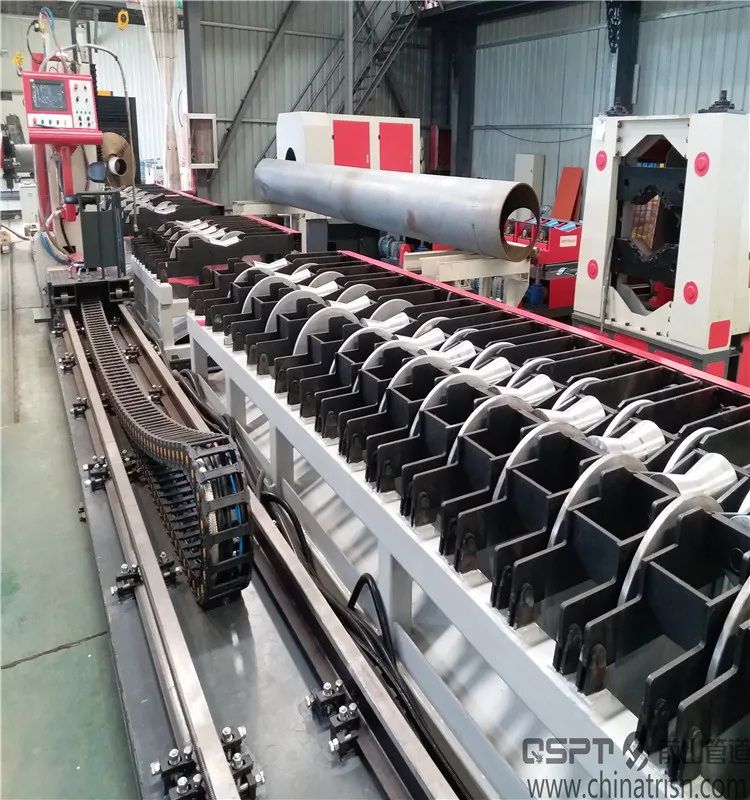

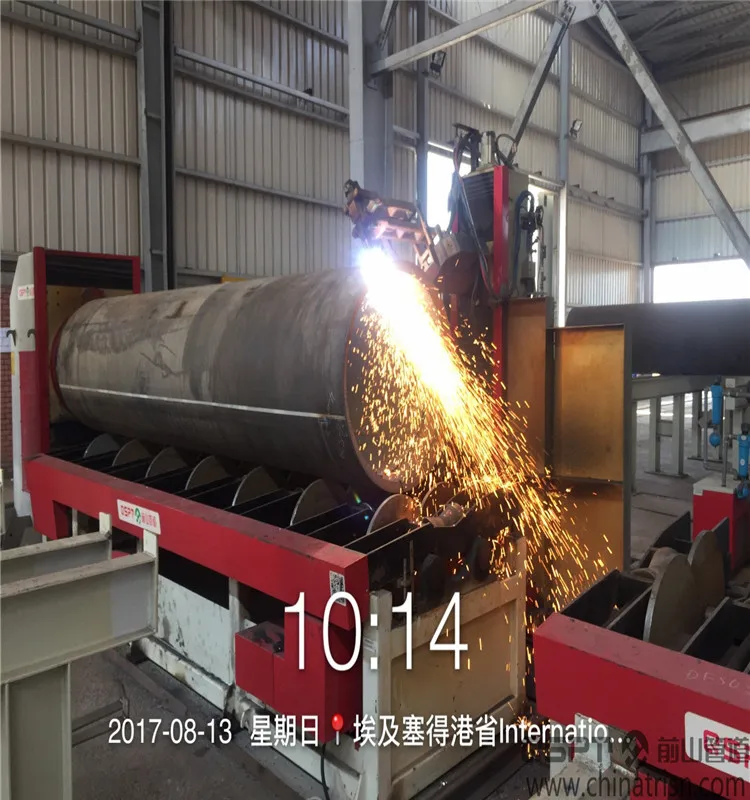

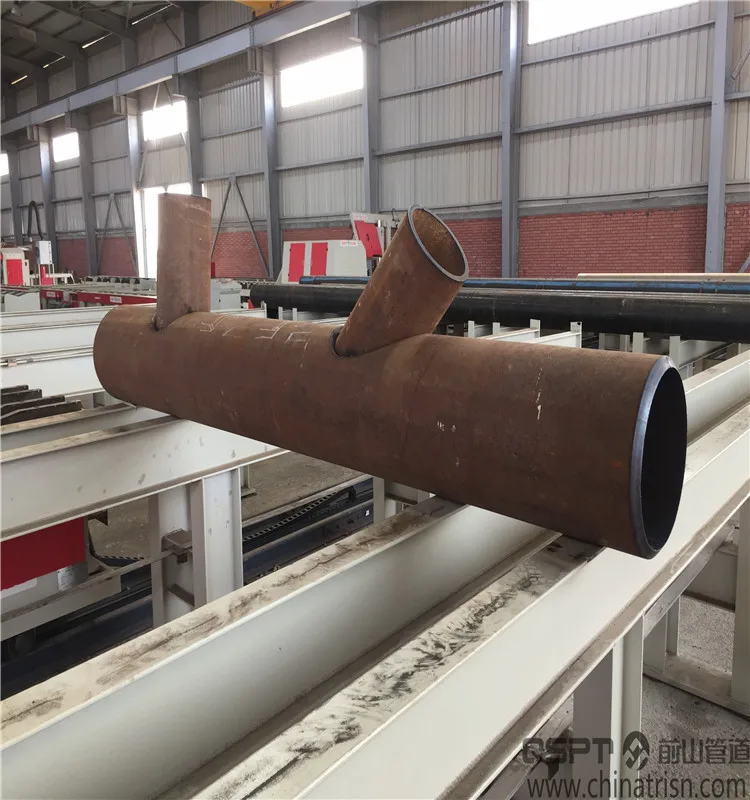

Photos:
