  • freezer, cold store and air conditioning unit Oil filled Pressure Gauge, high pressure 0.1~5.5, low pressure 0.1~1.8
freezer, cold store and air conditioning unit Oil filled Pressure Gauge, high pressure 0.1~5.5, low pressure 0.1~1.8
freezer, cold store and air - conditioning unit Oil-filled Pressure Gauge, high pressure -0.1~5.5, low pressure -0.1~1.8
freezer, cold store and air - conditioning unit Oil-filled Pressure Gauge, high pressure -0.1~5.5, low pressure -0.1~1.8
freezer, cold store and air - conditioning unit Oil-filled Pressure Gauge, high pressure -0.1~5.5, low pressure -0.1~1.8
freezer, cold store and air - conditioning unit Oil-filled Pressure Gauge, high pressure -0.1~5.5, low pressure -0.1~1.8
freezer, cold store and air - conditioning unit Oil-filled Pressure Gauge, high pressure -0.1~5.5, low pressure -0.1~1.8
freezer, cold store and air - conditioning unit Oil-filled Pressure Gauge, high pressure -0.1~5.5, low pressure -0.1~1.8

freezer, cold store and air conditioning unit Oil filled Pressure Gauge, high pressure 0.1~5.5, low pressure 0.1~1.8

Share on (1600640348336):


Price:$5.00 - $30.00

Quantity:


Product Overview

Description



Product Details










Product Description

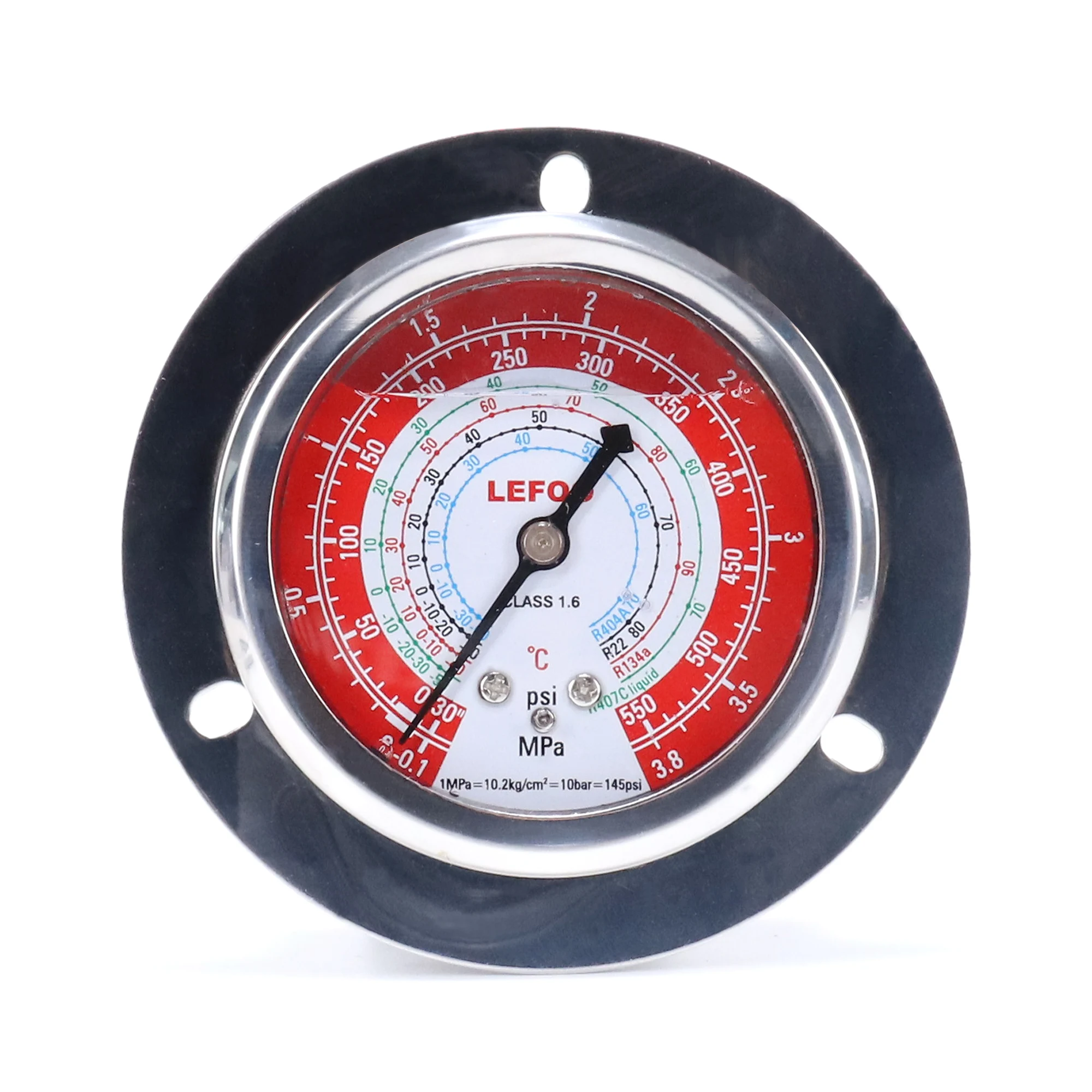

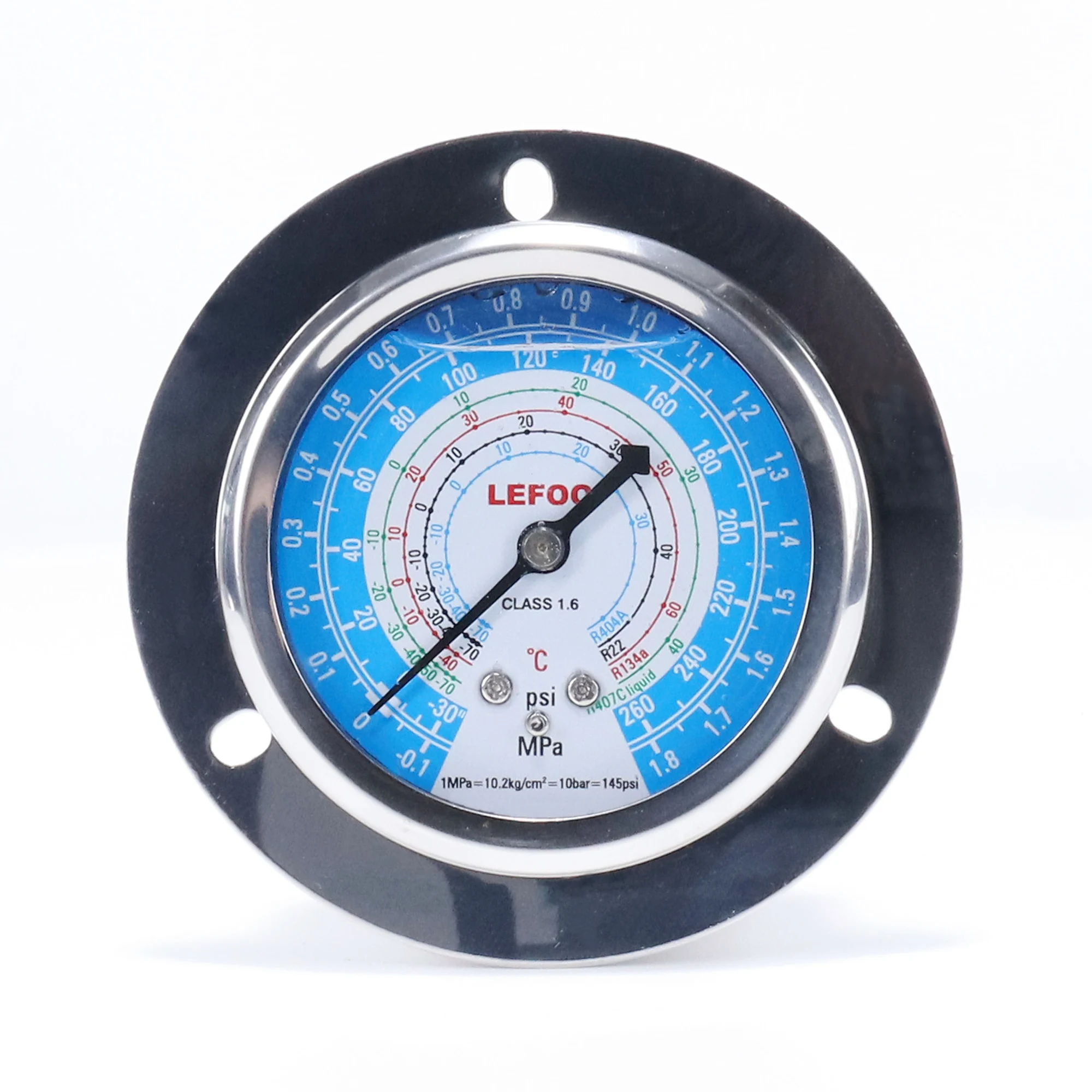

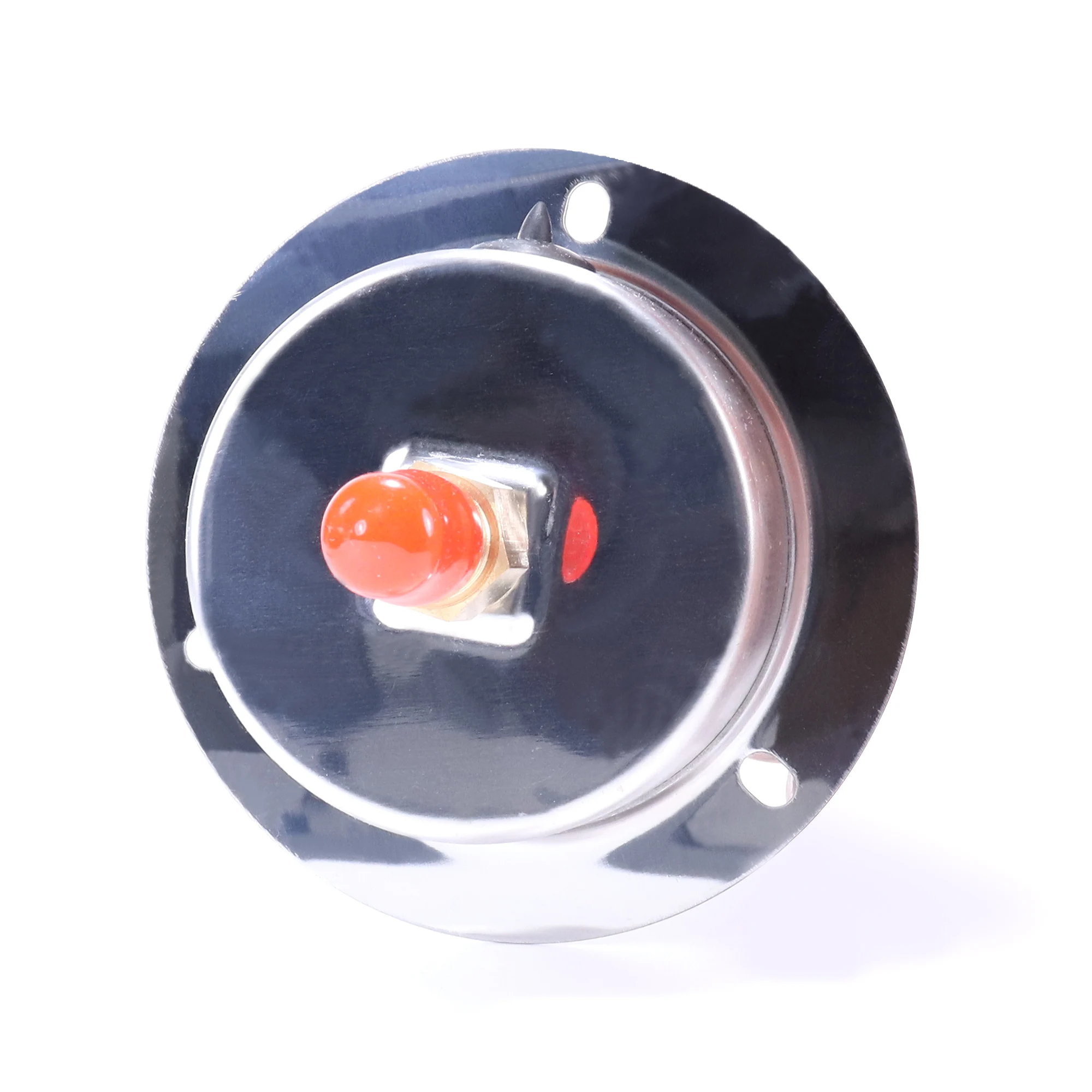

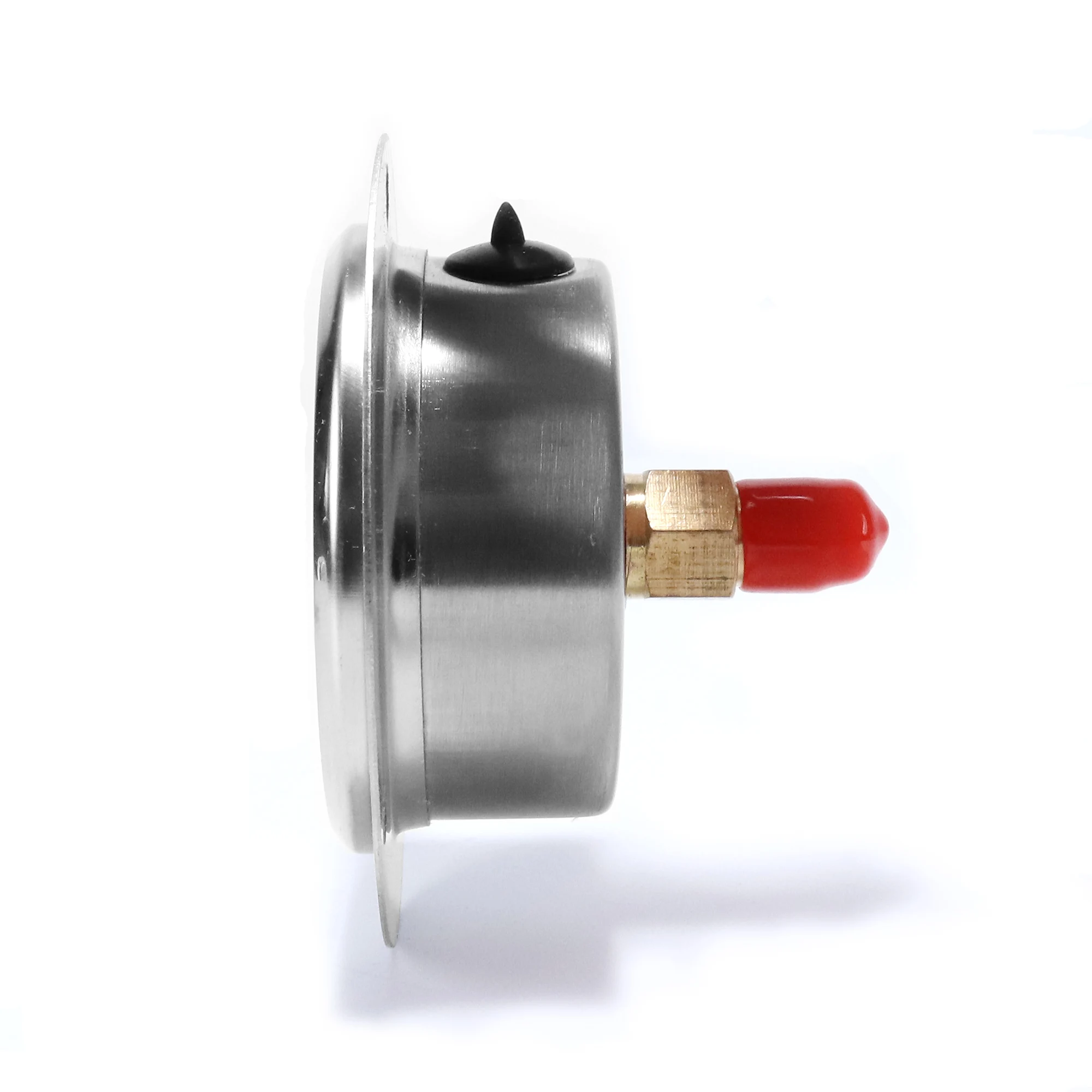

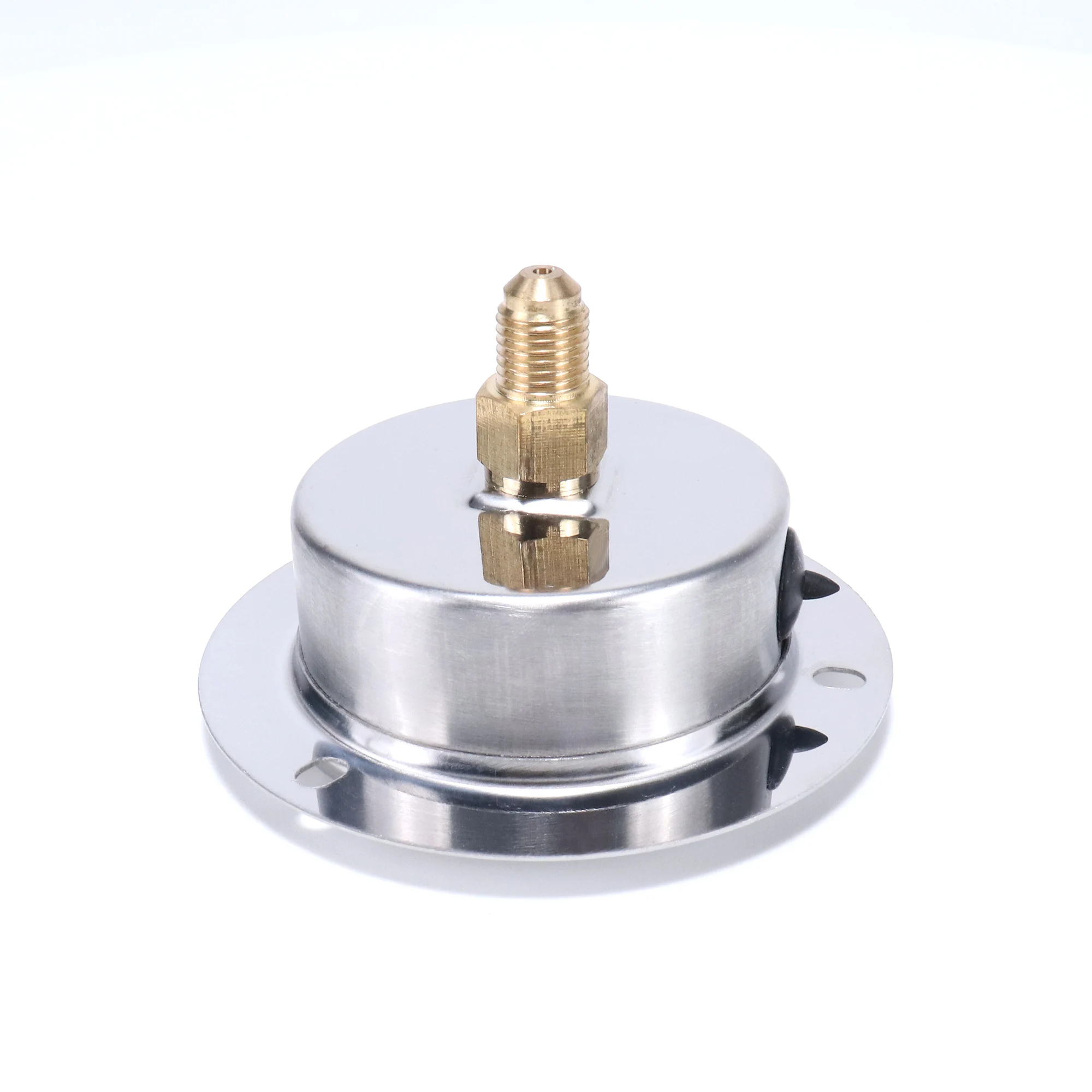

The pressure gauge is a vibration - proof pressure gauge with oil filled inside for refrigeration use only.

The oil-filled pressure gauge is used on freezer, cold store and air - conditioning unit.

The oil-filled pressure gauge is convenient in application as it features one gauge for multiple refrigerants.

The oil-filled pressure gauge has full stainless steel casing and wider ber yllium bonze spring tube .


Features


• The inside filled oil functions damping to the high frequency vibration of
machinery
• The damping oil cup prevents gauge pointer from quick jumping.
• The flanged edge is for convenient mounting.
• Over-pressure limit stop is equipped.
• Zero error is ensured with strengthening overpressure measures.
• Rational oil seal design and no oil leakage worry.
• Pressure versus Temperature readings for easy use.
• Extra long service life.

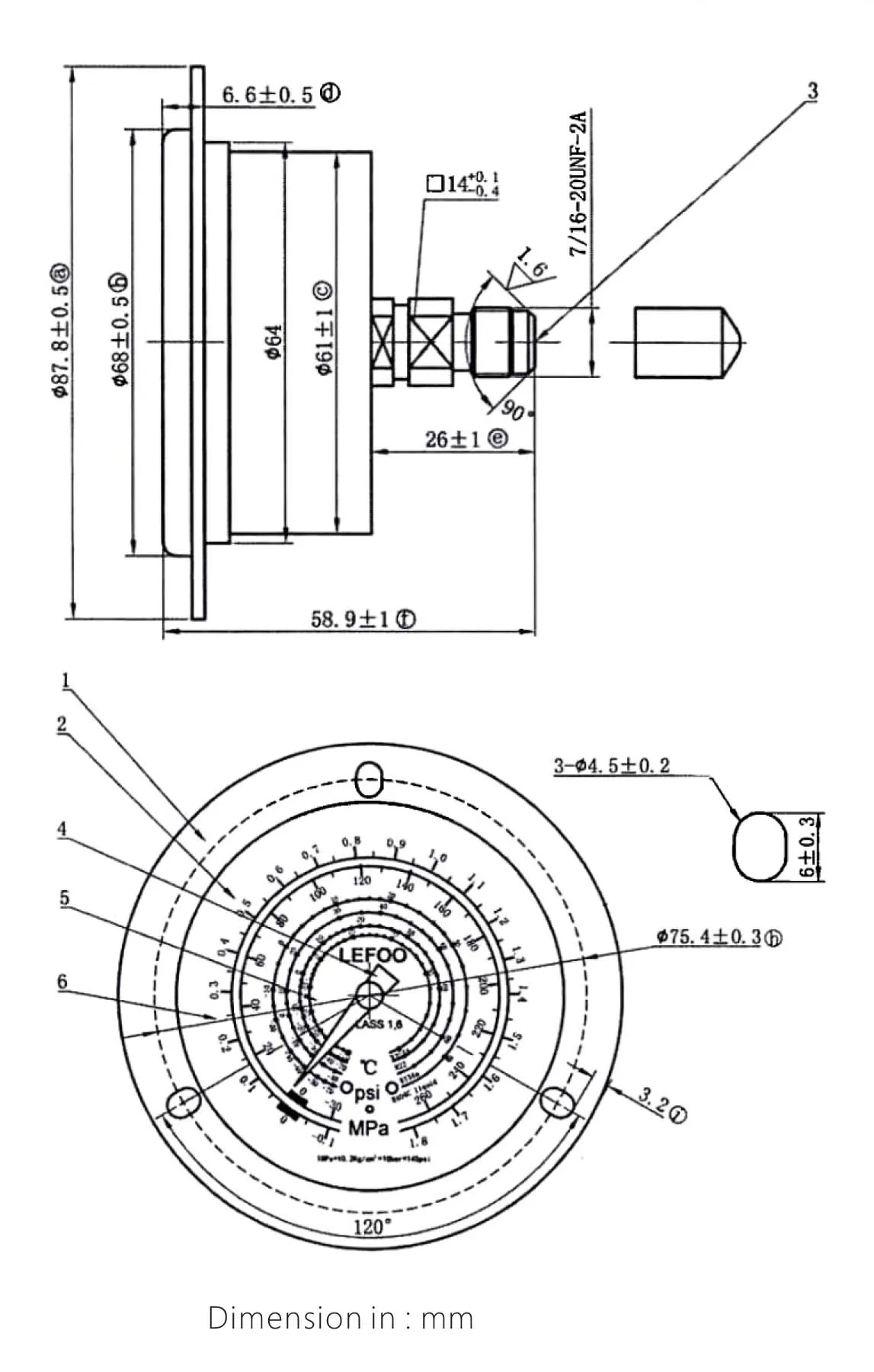

Product Specification


General
Value
Measuring range high pressure
-0.1~5.5 low pressure：-0.1~1.8
（Can be customized according to customer needs）
Applicable Refrigerant
HCFC or HFC
Applicable Medium Temperature
-5℃~+120℃ (-40℃~ + 120℃)
Connection Size
1/4SAE
Structure
Axial concentrically-embedded
Casing Nominal Diameter
2.5 in(φ63.5)
Accuracy Class
1.6
