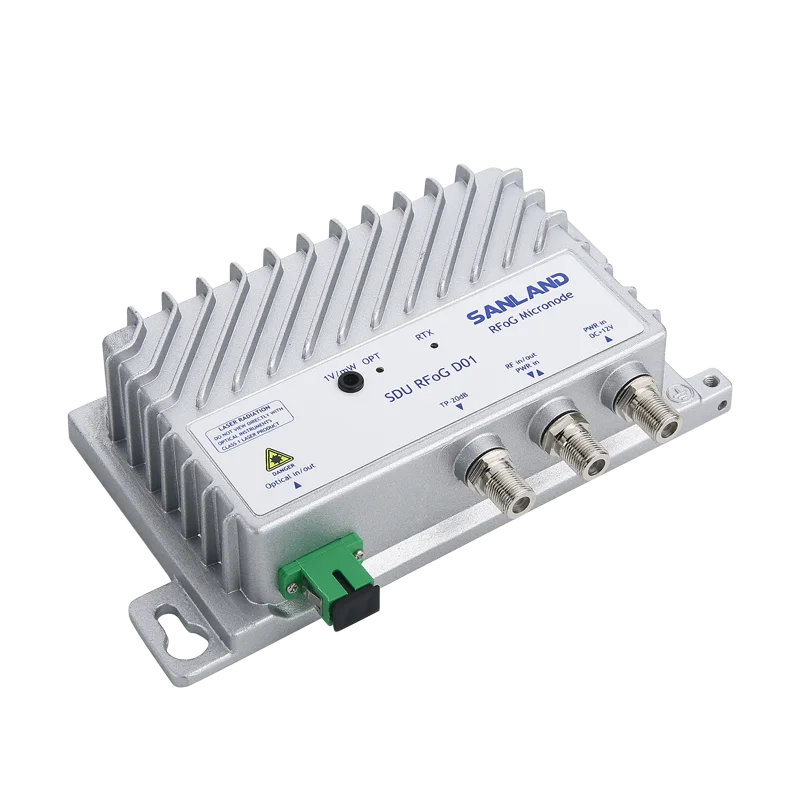

Cable TV CATV FTTH Optical Receiver RFOG Mini Fiber FTTH Optic Fiber Receiver
- Category: >>>
- Supplier: Shenzhen Sanland Technology Co. Ltd.
Share on (1600640353061):
Product Overview
Description
Products Description
PRODUCT OVERVIEW

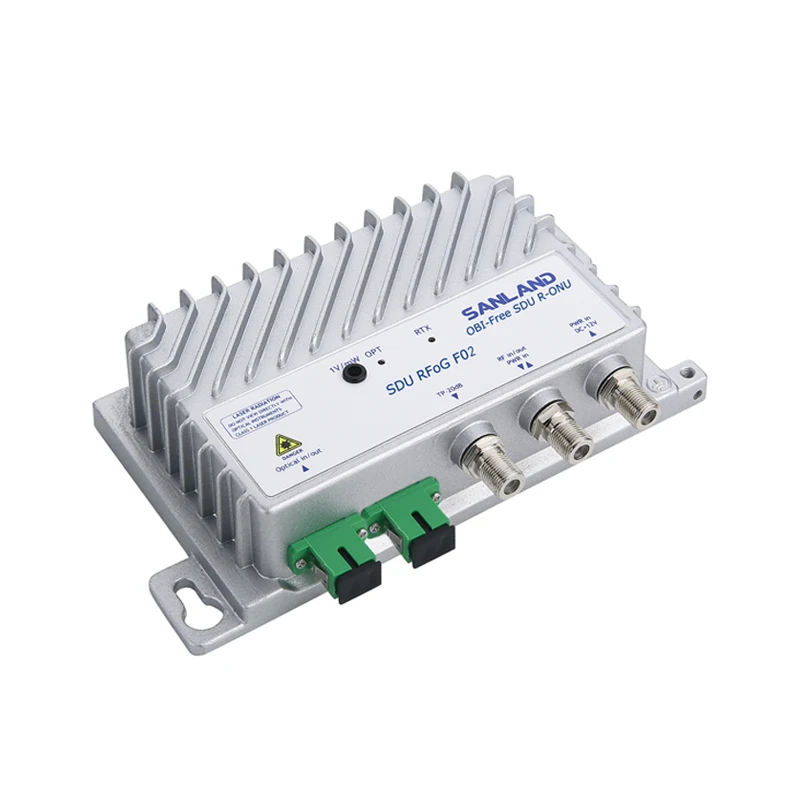

The SANLAND SDU RFoG F02 Optical Network Unit (R-ONU) for Single Dwelling Unit (SDU)applications support cost-effective deployment of full interactive video, voice, and data services over an RFoG network.SDU RFoG F02 enables multiple simultaneous upstream RF channel transmissions, enabling multiple MAC domains and full DOCSIS 3.0 channel usage to efficiently coexist, offering increased upstream bandwidth usage for RF returns as compared to non-OBI-free models. The 19 dBmV RF output with AGC (Automatic Gain Control) supports a wide array of SDU designs, with a 5–42/65/85/204MHz return path using 1610 nm wavelength optics and a 54/87/105/258–1218MHz forward path on 1550 nm wavelength optics.
The SANLAND SDU RFoG F02 Optical Network Unit (R-ONU) for Single Dwelling Unit (SDU)applications support cost-effective deployment of full interactive video, voice, and data services over an RFoG network.SDU RFoG F02 enables multiple simultaneous upstream RF channel transmissions, enabling multiple MAC domains and full DOCSIS 3.0 channel usage to efficiently coexist, offering increased upstream bandwidth usage for RF returns as compared to non-OBI-free models. The 19 dBmV RF output with AGC (Automatic Gain Control) supports a wide array of SDU designs, with a 5–42/65/85/204MHz return path using 1610 nm wavelength optics and a 54/87/105/258–1218MHz forward path on 1550 nm wavelength optics.
Features
* Standards compliant OBI‐free technology enables high performance upstream operation in an RFoG environment .
* 19 dBmV RF output level for single subscriber (SDU) applications Burst mode is supported.
* OBI-Free technology on this model supports up to 16 R-ONUs transmitting into a single optical input.
* 54/87/105/258–1218MHz forward on 1550 nm and 5–42/65/85/204MHz return on 1610 nm wavelengths.
* 1610nm DFB laser transmitter supports full DOCSIS® 3.0 operation .
* 19 dBmV RF output level for single subscriber (SDU) applications Burst mode is supported.
* OBI-Free technology on this model supports up to 16 R-ONUs transmitting into a single optical input.
* 54/87/105/258–1218MHz forward on 1550 nm and 5–42/65/85/204MHz return on 1610 nm wavelengths.
* 1610nm DFB laser transmitter supports full DOCSIS® 3.0 operation .
* DC power supported via RF port or dedicated power port.
* 10/10, 10/1, 2/1, 1/1Gbps PON pass-through and no PON pass-through options.
Specification
OBI-Free SDU R-ONU | ||||||||||||
Channel Loading | Analog PAL-D(up to 550MHz), 64QAM(550-1GHz) | |||||||||||
AGC Range | +2~-6dBm(LED lights green within AGC range, otherwise red) | |||||||||||
RF Output Level | 19dBmV at DS22 | |||||||||||
Slope | 3~5dB | |||||||||||
Flatness(excluding Slope) | ±1dB | |||||||||||
Output Return Loss | <-16dB | |||||||||||
Output Level Stability | ±2.0dB (over +1 to -5 dBm input power) | |||||||||||
CSO | <58dB(at 0 dBm input power) | |||||||||||
CTB | <62dB(at 0 dBm input power) | |||||||||||
C/N | ≥47dB(at -5 dBm input power) | |||||||||||
UPSTREAM | ||||||||||||
Item | Specification | |||||||||||
Optical Transmitter | ||||||||||||
Transmission Wavelength | 1610±10nm | |||||||||||
Output Power | 2.5±0.5mW | |||||||||||
RF Performance | 2.5±0.5mW | |||||||||||
Upstream Passband | 5–42/65/85/204MHz | |||||||||||
Flatness in Band | ±0.75dB | |||||||||||
RF input Return Loss | <-16dB | |||||||||||
RF Input Range | 15-45dBmV | |||||||||||
Laser on Level | 15±1dBmV | |||||||||||
Laser off Level | 5±1dBmV | |||||||||||
Maximum Delay from Monitoring RF Power on to Laser on | 1.3us | |||||||||||
Maximum Delay from Monitoring RF Power off to Laser off | 1.6us | |||||||||||
About Sanland
Specialized in the CATV & FTTH 19+years already!
>Founded in 2002 with own ability in design/production/sales>Certified with ISO9000 & ISO14001 in 2005
>Was listed in the NEEQ in 2016, with the stock code: 837305
>ODM/OEM service support
>Lead Time can be as short as customer request
>Price advantages is promised
>Strict QC process is executed from the raw materials to end product
>After-sales service is promised
>Was listed in the NEEQ in 2016, with the stock code: 837305
>ODM/OEM service support
>Lead Time can be as short as customer request
>Price advantages is promised
>Strict QC process is executed from the raw materials to end product
>After-sales service is promised
Our Exhibition
Our Customers
Product packaging
FAQ
Q1: Are you a manufacturer or trader?A: We have our own factory to make sure the product quality/lead time/price advantage
Q2: What's your MOQ?
A: The MOQ based on different product series is different actually(100~1000pcs), send your inquiry to the sales for the exact
feedback
Q3: Can you offer free samples?
A: Yes the free samples are available for the product verify, don't hesitate to ask for it!
Q4: How about the lead time?
A: 2-4 weeks for the regular order qty ≤5k pcs. The stock can be prepared in advance based on long-term partnership!
Q2: What's your MOQ?
A: The MOQ based on different product series is different actually(100~1000pcs), send your inquiry to the sales for the exact
feedback
Q3: Can you offer free samples?
A: Yes the free samples are available for the product verify, don't hesitate to ask for it!
Q4: How about the lead time?
A: 2-4 weeks for the regular order qty ≤5k pcs. The stock can be prepared in advance based on long-term partnership!
