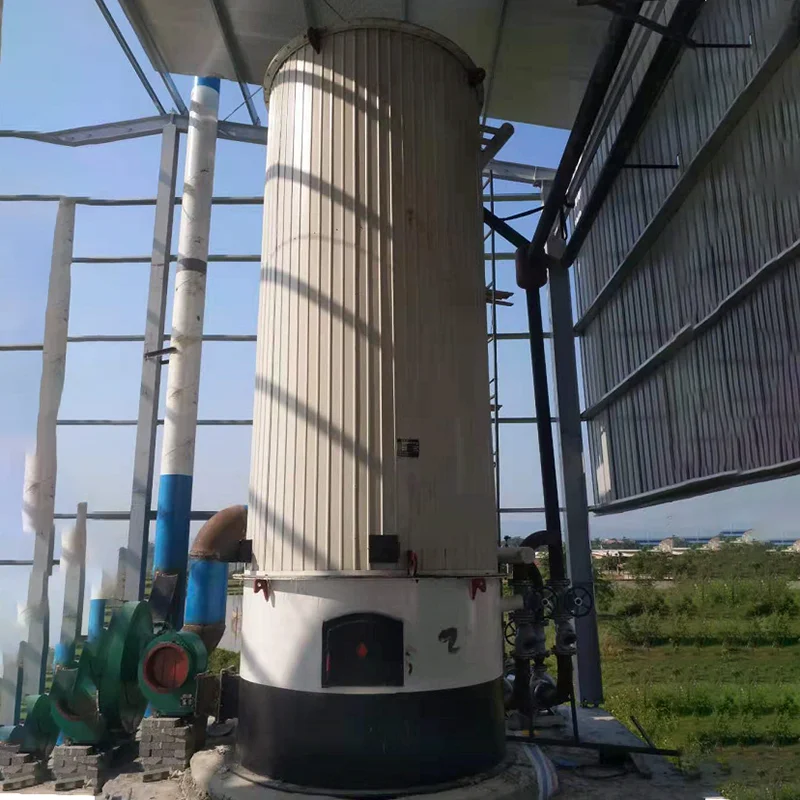

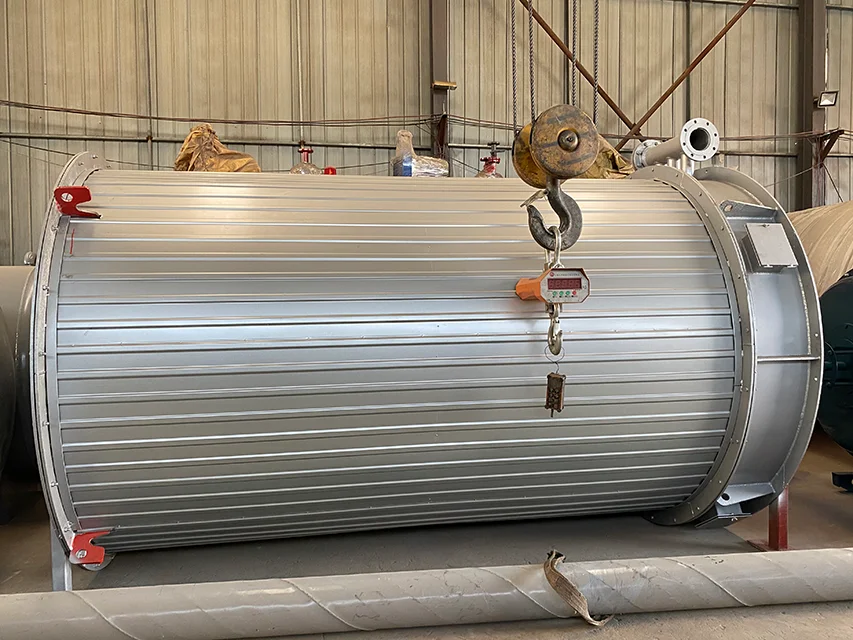

High Temperature Industrial Oil Gas Fired Thermal Oil Heater / Thermal Oil Boiler machine
- Category: >>>
- Supplier: Shandong Sinoeuro International Trade Co. Ltd.
Share on (1600640410892):
Product Overview
Description

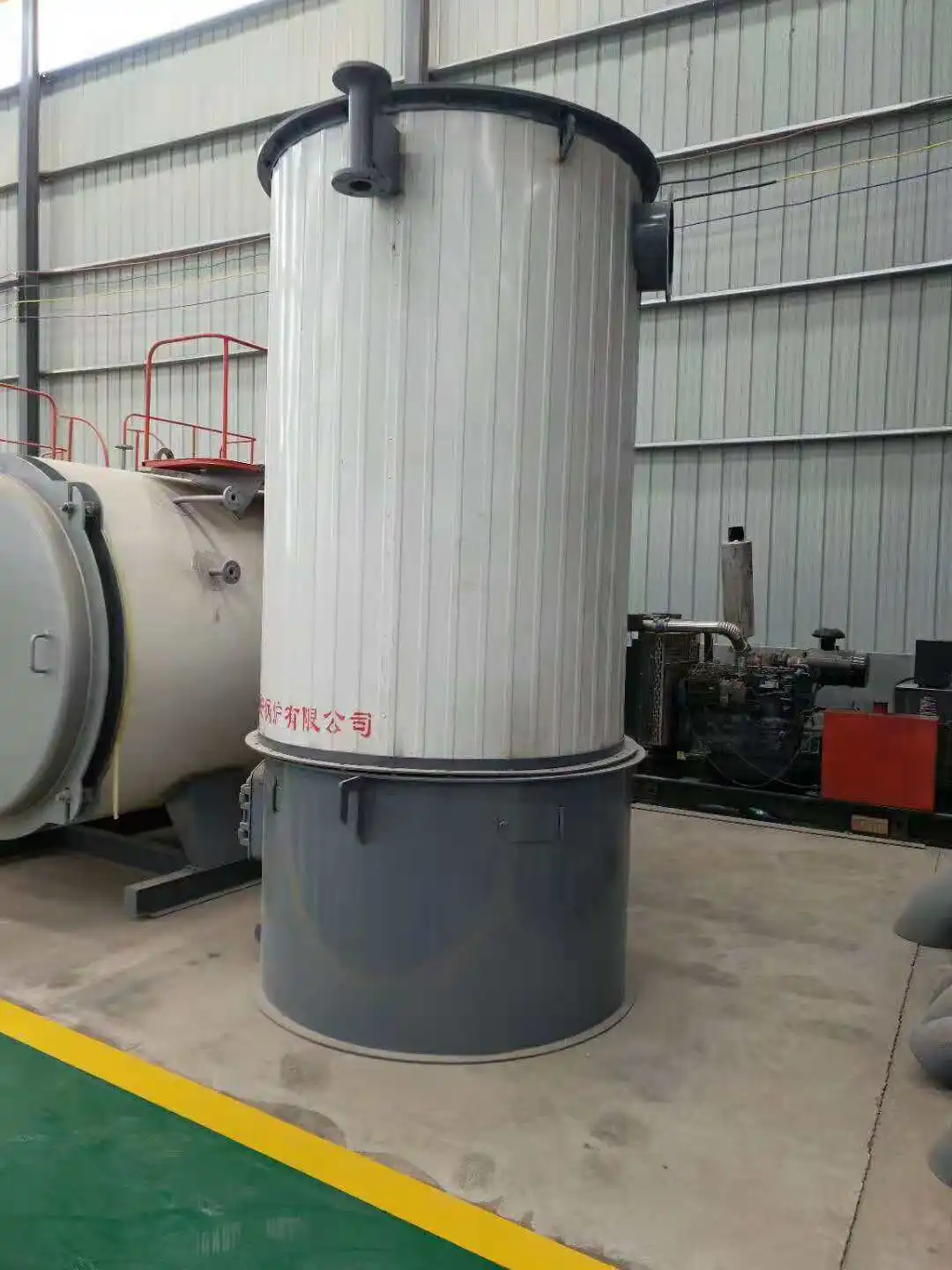

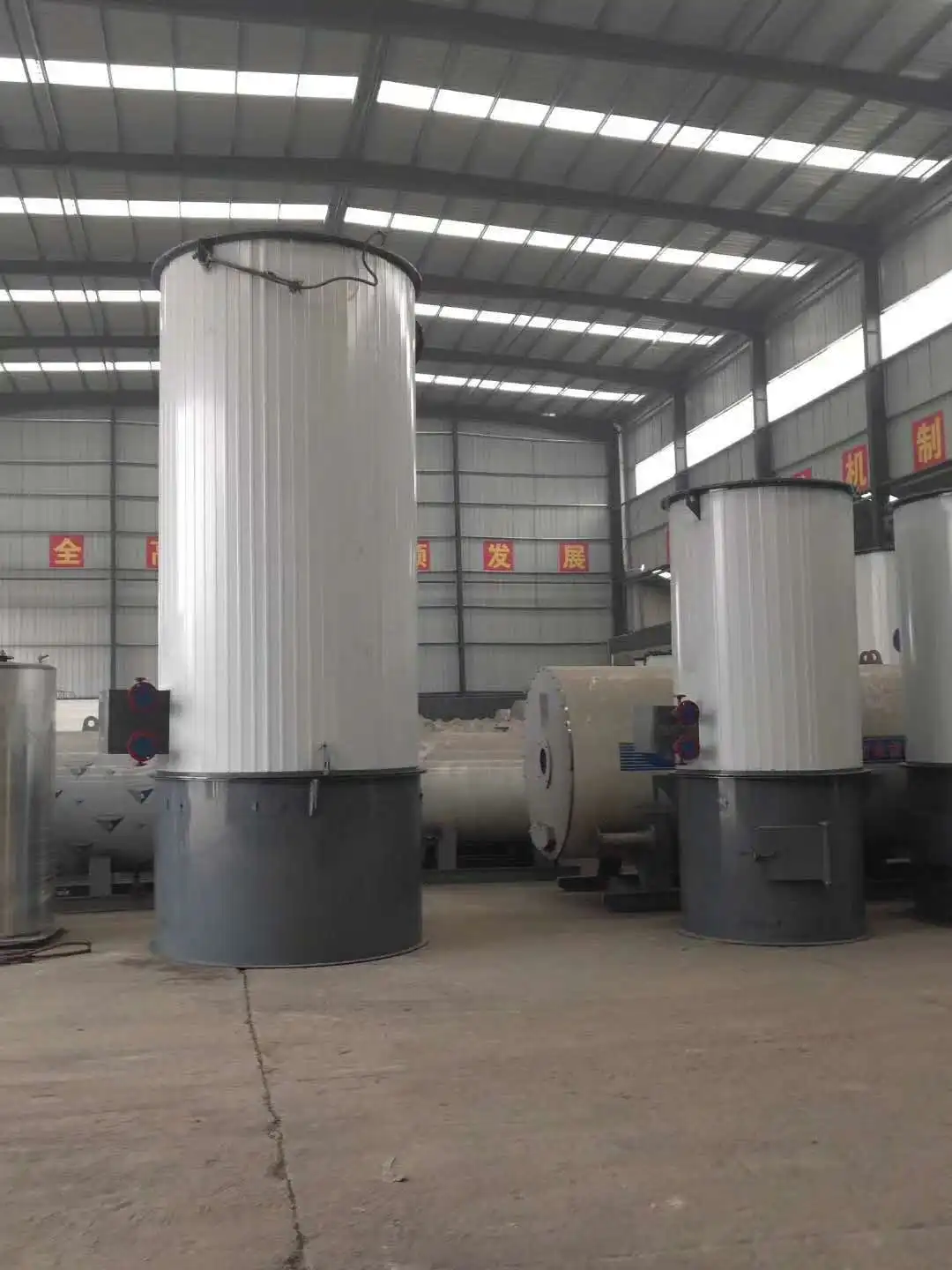

Industrial thermal oil boiler
Specification
Name and Model | TOB-700 | TOB-1400 | TOB-2300 | TOB-2900 |
Thermal power rate | 700KW | 1400KW | 2300KW | 2900KW |
Capacity | 600000KCAL/H | 1200000KCAL/H | 2000000KCAL/H | 2500000KCAL/H |
Working pressure rate | 1.0MPa | 1.0MPa | 1.0MPa | 0.8MPa |
Oil tempreture rate | 310°C | 310°C | 280°C | 320°C |
Reture oil tempreture rate | 290°C | 290°C | 290°C | 290°C |
Oil circulation rate | 40.99m3/h | 100m3/h | 160m3/h | 160m3/h |
Fire grate size | 1.45m² | 1.9m² | 1.7m² | 1.7m² |
Radiant heating surface | 15.122m² | 36.12m² | 31.6m² | 33.8m² |
Convective heated surface | 38.35m² | 73.88m² | 95.5m² | 99.1m² |
Heat exchanger heated surface | 12.174m² | 21.5m² | 21.5m² | 21.5m² |
Theoretical thermal efficiency | 75.52% | 79.52% | 79.52% | 78.05% |
Exhaust gas temperature | 192.69 °C | 192.69 °C | 166°C | 147°C |
Oil exit pressure | ≤1.0MPa | ≤1.0MPa | ≤1.0MPa | ≤0.8MPa |
Design calculation pressure | 1.3 MPa | 1.3 MPa | 1.1 MPa | 1.1 MPa |
Test pressure | 1.5 MPa | 1.5 MPa | 1.2 MPa | 1.2 MPa |
Oil volume | 0.56m3 | 1.9m3 | 1.95m3 | 2.2m3 |
Furnace theoretical resistance | 213741Pa | 213741Pa | 213741Pa | 213741Pa |
Max. furnace resistance | ≤220000Pa | ≤220000Pa | ≤220000Pa | ≤220000Pa |
Fuel | Wood, Biomass particles | Wood, Biomass particles | Wood, Biomass particles | Wood, Biomass particles |
Thermal energy conversion | 17694KJ/Kg | 12665KJ/Kg | 17694KJ/Kg | 16830KJ/KG |
Chimney diameter | Φ325*25000mm | Φ325*25000mm | Φ325*25000mm | Φ325*25000mm |
Overall diameter of boiler main body | Φ1865*3640mm | Φ2400*4950mm | Φ2900*2800*4500mm | 5100*2950*2800mm |
Total weight | 8Ton | 12Ton | 18Ton | About 20Ton |
Product Description
Close-packed disc tube heating surface arrangement is sufficient to reduce the tube sheet heat load, conducting oil safer to use.
Boiler quality insulation materials and special construction technology, less heat loss, the exhaust gas temperature is low, the high thermal efficiency of the boiler.

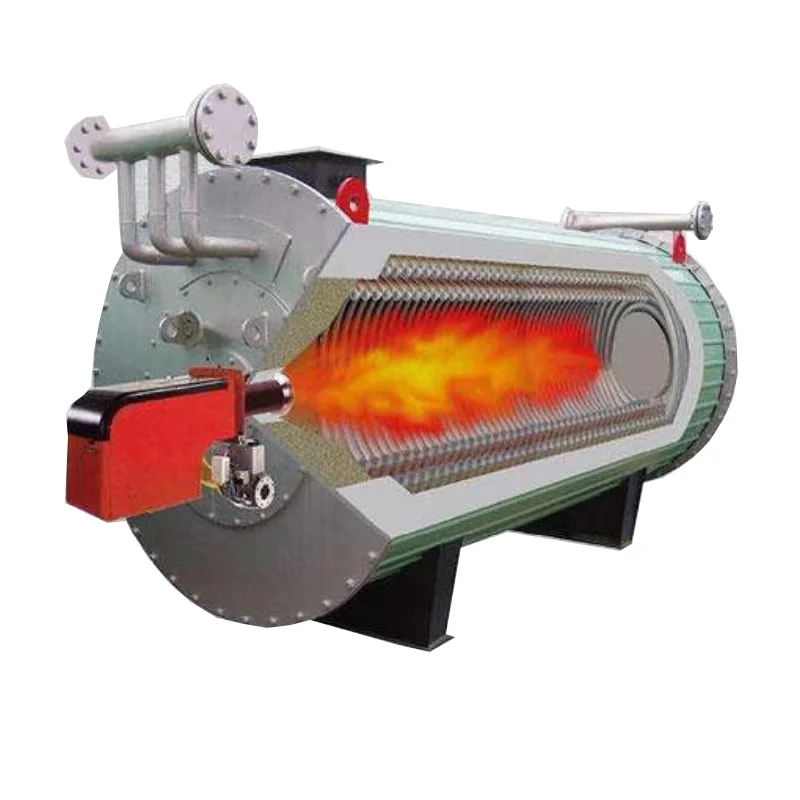

Boiler heating surface compact structure, the heating surface from the inside, outside close-packed circular tube constitutes the inner coil radiation heating surface, the outer surface and coil and the inner coil convection heating surface.
Full assembled, compact structure, small footprint, is extremely easy to install and flexible, as long as the boiler is located based on.
Applicable fuel: light diesel oil, heavy oil, gas, peanut shell, dry firewood, fuel and so on.
Company Profile
Why Choose Us
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Can you offer good price with fine quality also?
Surely,if without quality, we cannot win long market.we will loose long-terms customers.Quality is our responsibility. We must produce and test machine well. Because we are always expecting long term business.Regarding the price.
We are not sure if it is lowest or highest, but we will be offering reasonable.We don’t want heavy profits, We want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2. We will be protected if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.
3. What's your warranty? can you do more service for us? we wish would be protected after purchasing machine.
We are pleased to give life continuous after-sales service. within 12 months, if components broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don’t be worried,we will keep opening 24 hours for all customers problem or difficulties. We must help to make solutions within 48 hours.
4. What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10 days. make fast shipment always. shipping time depends on shipping company.
Surely,if without quality, we cannot win long market.we will loose long-terms customers.Quality is our responsibility. We must produce and test machine well. Because we are always expecting long term business.Regarding the price.
We are not sure if it is lowest or highest, but we will be offering reasonable.We don’t want heavy profits, We want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2. We will be protected if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.
3. What's your warranty? can you do more service for us? we wish would be protected after purchasing machine.
We are pleased to give life continuous after-sales service. within 12 months, if components broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don’t be worried,we will keep opening 24 hours for all customers problem or difficulties. We must help to make solutions within 48 hours.
4. What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10 days. make fast shipment always. shipping time depends on shipping company.
