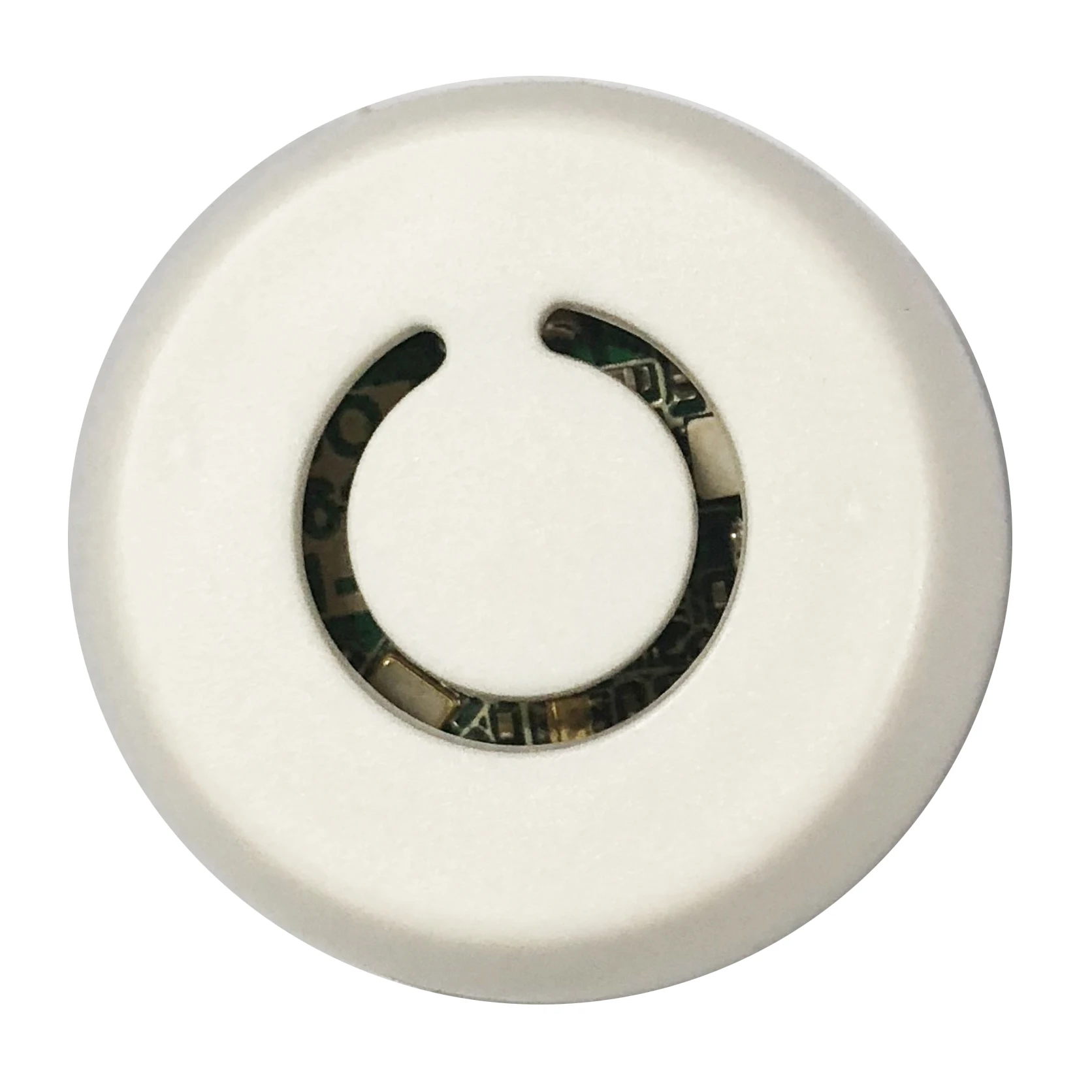

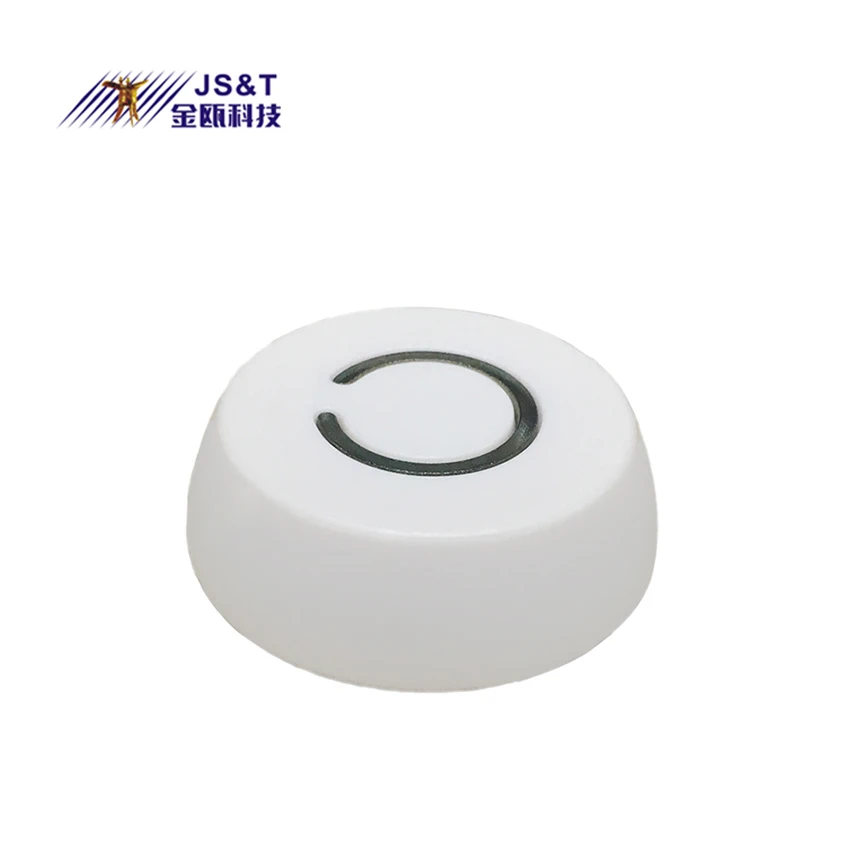

6 Axis Triple Axis Accelerometer/Motion sensor tag Bluetooth 5.0 BLE Beacon

Share on (1600640414223):


Price:

Quantity:


Product Overview

Description



Product Description


Six axis acceleration sensor Beacon is a new generation sensor product developed by Chongqing Jinou Science and Technology Development Co., Ltd. based on Beacon technology. The product can send the collected acceleration data information to the mobile phone or gateway through Beacon broadcast.

The six axis sensor combines the characteristics of three-axis gyroscope+three-axis accelerometer to make data acquisition more accurate and fast.


Specification


Standard
BLE 5.0
Spread Spectrum
FHSS
Input Voltage
6V
Transmitting power
0dBm
Receiving sensitivity
< -96dBm at < 0.1% BER
Operating temperature
-40゜C ~ 85゜C
Store temperature
-55゜C ~ +125゜C
Working band
ISM2.402~2.480GHz
Effective distance
10m-30m
Bluetooth connection standby current
about 60uA
Antenna standard
2.4G,50ohm
Safety standard
AES 128bit
Acceleration acquisition range
-2g~+2g、-4g~+4g 、 -8g~+8g 、-16g~+16g
Angular velocity acquisition range
250dps、500dps、1000dps 、2000dps

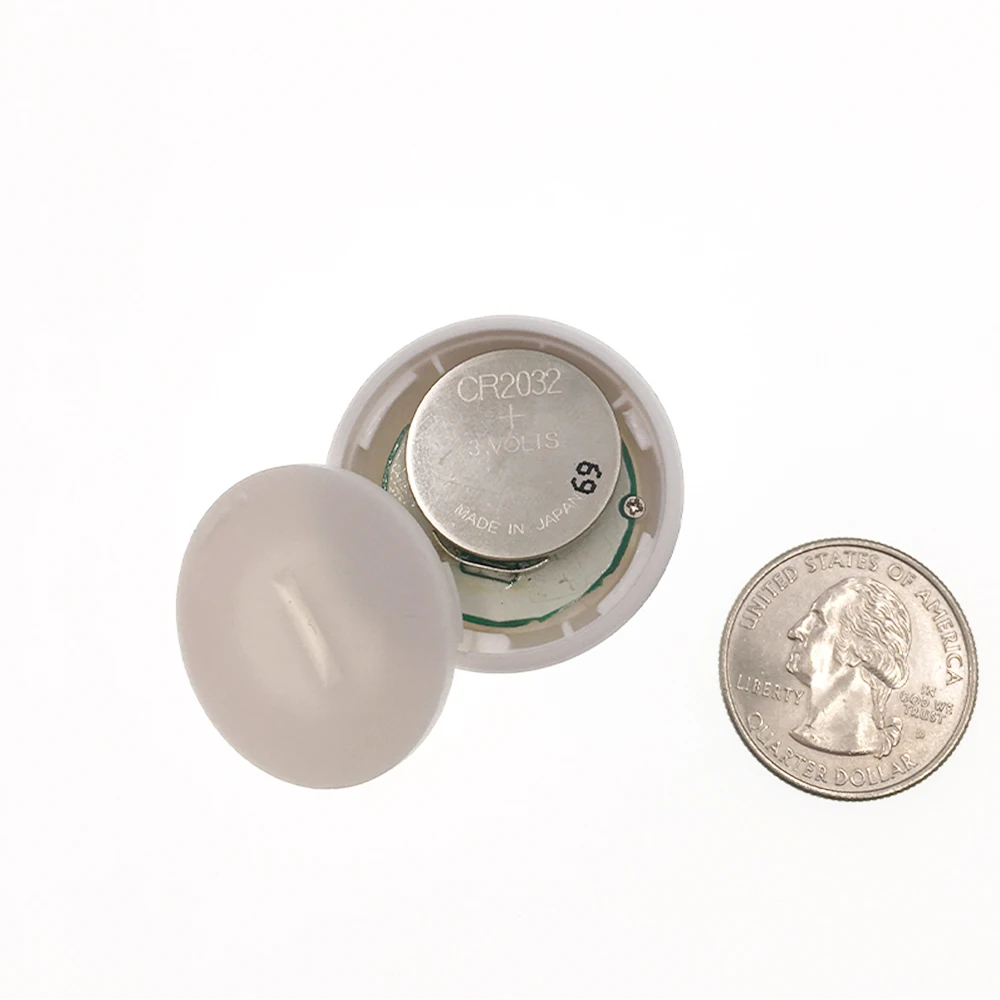

Battery
CR2032
Measurement accuracy
1%
Acceleration and gyro value range
-32768~+32767
Size
34mm*10mm


Beacon Product


You can choose :




Beacon manager

Scan 13pcs broadcasting in 8s

Connect 1 beacon


Network:  RJ45 / WiFi



JO-BCE01

Size: 35.6mm*17.4mm
Battery model: CR2032

JO-BCE05

Size: 29.5mm*10mm
Battery model: CR2032

JO-BCE08

Weight:30g
Battery model: CR2032



JO-BCE03

Size: 76mm*34mm*18.3mm
Battery model: Two 2A

JO-BCE04

Size: 38.6mm*34.8mm*17mm
Battery model: CR2477

JO-BCE09

Size: 34mm*10mm
Battery model: CR2032



JO-BCE06

Size: 32mm*17.2mm
Battery model: CR2032

JO-BEC14

Size: 56mm*40mm*15 mm
Battery model: CR2477

JO-BCE201

Size:42mm*20.5mm

USB Power Supply



Company Profile






Chongqing JINOU Science and Technology Development Co., Ltd. was established in September, 2000. We are the first Bluetooth Management Company in China which is dedicated to research, manufacture and distribution of Bluetooth Products.

We have well-trained, qualified and competent engineers specialized in Computer & Communication both at home and abroad, as well as experienced professors and doctor's or master's degree holders from universities and colleges of Communication who are capable of handling R&D.

In the year 2000, our JINOU Bluetooth Technology Institute was established as the first Bluetooth Technology Research Institute in China, in charge of developing and controlling standards of Bluetooth Industry. In our growth years, we have obtained intensive support by government. We are involved in 200 wireless government projects. In addition, we have got more than 33 patents, published 7 works on wireless communication study, and also presented more than 30 disquisitions.

We could be your best associate in terms of high quality products and technology supports of reasonable price. We can accept OEM and ODM orders for your need. Our proficient sales team has the experience to ensure that buyers like you will get the logistic support you need, as urgent response with teams of 25 engineers who are ready to work and assist on your project.
