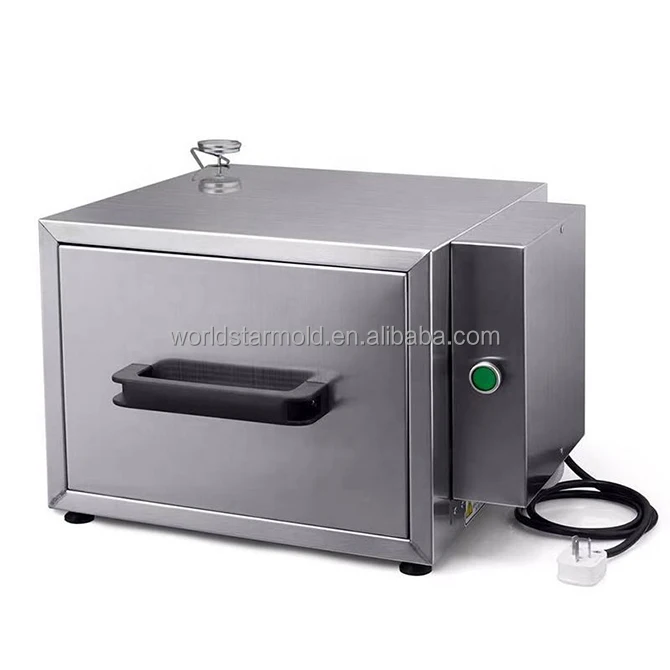

Small Proofing Lunch Box Packaging Leak proof Heat Sealing Insulation Film Sleeve Steam Shrinking Tunnel Label Machine
- Category: >>>
- Supplier: Shenzhen World Star Industry Limited
Share on (1600640423401):
Product Overview
Description
Products Information
Note: All mould are produced by ourself, all mould pictures are not allowed to be used without permission, or we will complain!
Title goes here.
This machine has the advantages of strong reliability, simple operation and use, environmental protection and energy saving.

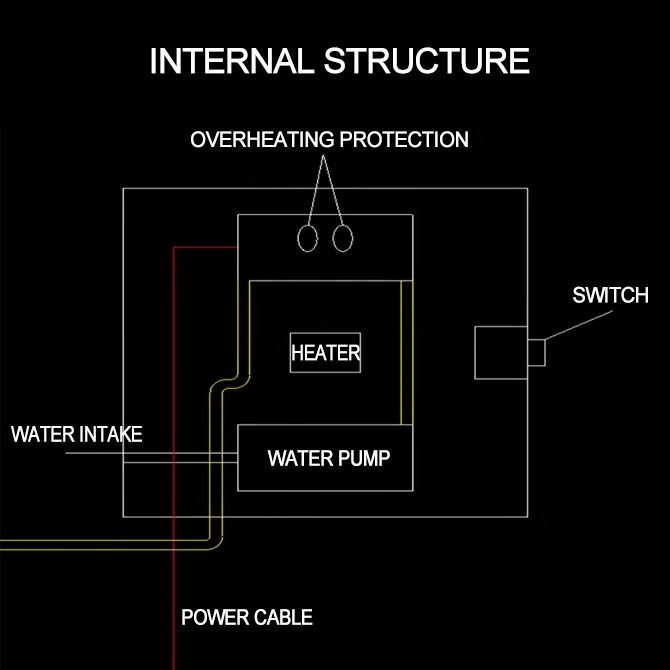

*-1)This steam controller contains:
*-A set of variable resistance regulators
*-A set of anti-overheating protection switches
*-A set of heaters (220V 2.5KW)
*One water pump (220V)
*A button switch (220V 10A)
*-2) Equipment start and stop control
● Press the "Power" button
to turn on the controller, the water inlet electromagnetic pump will start, and 100°C steam will be ejected immediately after the
steam generator enters the water.
● When the water level is too low, the pump cannot pump water, please add water in time to avoid damage to the machine due to dry
burning.
*-3) Protection function
The heater has anti-dry burning function. When the temperature rises to the protection temperature, the anti-dry burning component
is disconnected (which can be restored later). At this time,please add water immediately to avoid dry burning damage to the
machine.
*-4) Switch on and off
The controller can be turned on or off by the run/stop button on the controller panel.To
Five, operation steps
1. Turn on the power switch; it takes 3-4 minutes for the cold machine to start, and the temperature in the box can reach 100°C.

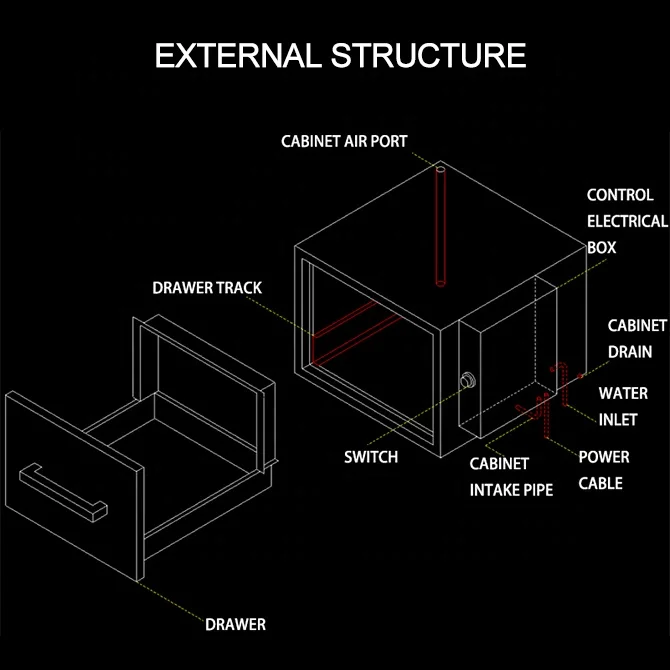

2. Open the drawer (the drawer should be fully open to close
the inner door to prevent the steam from coming out of the box). Be careful not to be scalded by the steam coming out of the
drawer.
3. Put the lunch box with the protective film in the box, close the drawer for 2-3 seconds, open the drawer (same as 2) and take
out the packed lunch box.
*-1)This steam controller contains:
*-A set of variable resistance regulators
*-A set of anti-overheating protection switches
*-A set of heaters (220V 2.5KW)
*One water pump (220V)
*A button switch (220V 10A)
*-2) Equipment start and stop control
● Press the "Power" button
to turn on the controller, the water inlet electromagnetic pump will start, and 100°C steam will be ejected immediately after the
steam generator enters the water.
● When the water level is too low, the pump cannot pump water, please add water in time to avoid damage to the machine due to dry
burning.
*-3) Protection function
The heater has anti-dry burning function. When the temperature rises to the protection temperature, the anti-dry burning component
is disconnected (which can be restored later). At this time,please add water immediately to avoid dry burning damage to the
machine.
*-4) Switch on and off
The controller can be turned on or off by the run/stop button on the controller panel.To
Five, operation steps
1. Turn on the power switch; it takes 3-4 minutes for the cold machine to start, and the temperature in the box can reach 100°C.
2. Open the drawer (the drawer should be fully open to close
the inner door to prevent the steam from coming out of the box). Be careful not to be scalded by the steam coming out of the
drawer.
3. Put the lunch box with the protective film in the box, close the drawer for 2-3 seconds, open the drawer (same as 2) and take
out the packed lunch box.

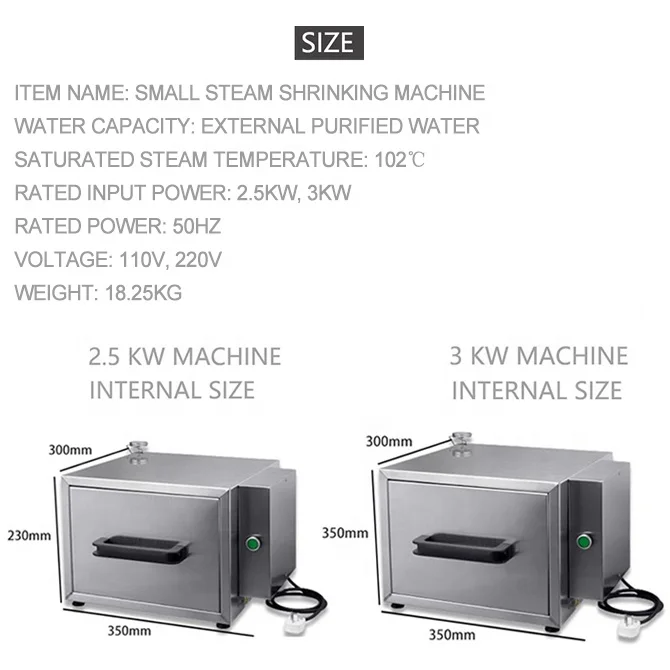

Item name | steam sterilization packaging machine | ||||||
Water capacity | External pure water | ||||||
Saturated steam temperature | 102°C | ||||||
Rated voltage | 110-220V | ||||||
Rated frequency | 50HZ | ||||||
Rated input power | 2.5KW, 3KW | ||||||
Size | 480*400*320mm | ||||||
Weight | 18.25kg | ||||||

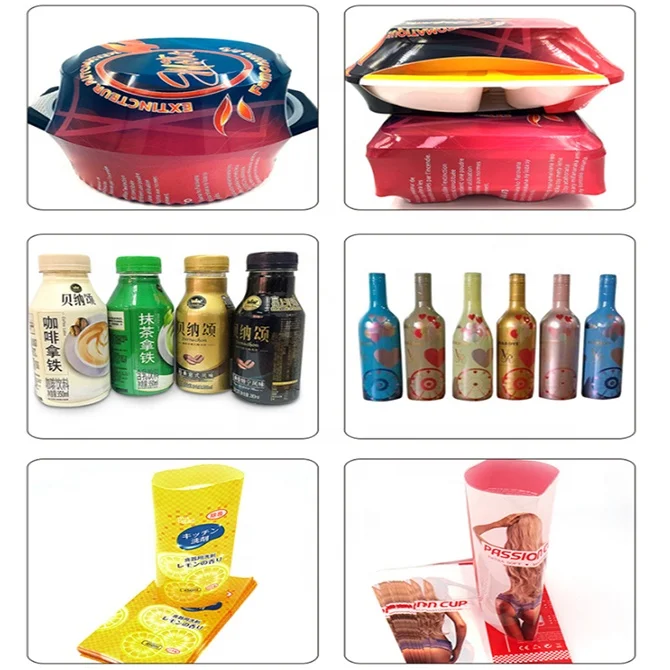

Sample Show
Title goes here.
The necessary conditions for the installation of the steam packaging machine
1. The load on the user's power socket and wire must be greater than the rated load of the steam generator, and the ground should
be flat and free of any corrosive,flammable, or explosive materials. It must be grounded and connected reliably.Warning: wrong
grounding may cause electric shock!
2.The current-carrying wire in the power cord is connected to a suitable 220V power supply with a control switch with leakage and
overcurrent protection devices.
3. The steam sterilization packaging machine must use water that has been treated with a water softener or clean pure water.
1. The load on the user's power socket and wire must be greater than the rated load of the steam generator, and the ground should
be flat and free of any corrosive,flammable, or explosive materials. It must be grounded and connected reliably.Warning: wrong
grounding may cause electric shock!
2.The current-carrying wire in the power cord is connected to a suitable 220V power supply with a control switch with leakage and
overcurrent protection devices.
3. The steam sterilization packaging machine must use water that has been treated with a water softener or clean pure water.
Common malfunctions | Failure phenomenon | Approach | ||
1 | No pumping after turning on the power switch (the electromagnetic pump does not sound) | The electromagnetic pump is faulty or the power is not turned on, replace the electromagnetic pump | ||
2 | The equipment is working, and the amount of steam is large, sometimes small or long The temperature won't rise | 1. It may be that the thermostat is disconnected, wait for 10 minutes to reduce the temperature and restart, if it still does not It says that the thermostat is damaged and needs to be replaced. 2. Check whether the steam nozzle and heater are blocked by foreign objects, and they still cannot be replaced after the blockage is cleaned. Heater. | ||
3 | No water is pumped, but the electromagnetic pump makes a noise | 1. The steam nozzle is blocked, clean the scale until the steam nozzle is unblocked. 2. It may be caused by water shortage, check whether the water supply is normal. | ||
The above failure types are for reference only. If any failure occurs, stop using it immediately and notify the professional maintenance personnel to repair it as soon as possible. | ||||
Title goes here.
*-Warning:
1. Always check whether there is enough pure water to ensure that the machine will not be used in the absence of water!
2.The host is a live device and should not be wetted by water to prevent short circuit or electric shock to people.
3. The steam sterilization packaging machine for take-out food is strictly prohibited to be used for food processing (for example:
food heating, steaming fish or sea, etc.); otherwise, the manufacturer will not guarantee it.
*-repair and maintenance
1. The sewage must be cleaned after the machine is used up every day to ensure that the water used in the machine is clean.
2. The water supply should be kept clean at all times to ensure that the sinking head of the water pipe can draw water.
3. Check the heating pipe and steam outlet regularly to avoid blockage and damage to the machine.6. Normally cut off the power
supply when the steam generator is not used, and check the wiring of the branch contactor of the leakage circuit breaker of all
electrical components. The loose ones should be tightened to prevent poor contact.Sparking burns wires and electrical devices.
4. It is forbidden to inspect and repair under high temperature or power-on state. The cabinet must be completely cooled down and
the power switch must be turned off before overhauling.
5. The generator must be equipped with softened water equipment and use softened water, otherwise the service life will be
reduced.
6. In order to ensure the correct operation of the equipment, it must be trained before use.
2.The host is a live device and should not be wetted by water to prevent short circuit or electric shock to people.
3. The steam sterilization packaging machine for take-out food is strictly prohibited to be used for food processing (for example:
food heating, steaming fish or sea, etc.); otherwise, the manufacturer will not guarantee it.
*-repair and maintenance
1. The sewage must be cleaned after the machine is used up every day to ensure that the water used in the machine is clean.
2. The water supply should be kept clean at all times to ensure that the sinking head of the water pipe can draw water.
3. Check the heating pipe and steam outlet regularly to avoid blockage and damage to the machine.6. Normally cut off the power
supply when the steam generator is not used, and check the wiring of the branch contactor of the leakage circuit breaker of all
electrical components. The loose ones should be tightened to prevent poor contact.Sparking burns wires and electrical devices.
4. It is forbidden to inspect and repair under high temperature or power-on state. The cabinet must be completely cooled down and
the power switch must be turned off before overhauling.
5. The generator must be equipped with softened water equipment and use softened water, otherwise the service life will be
reduced.
6. In order to ensure the correct operation of the equipment, it must be trained before use.
