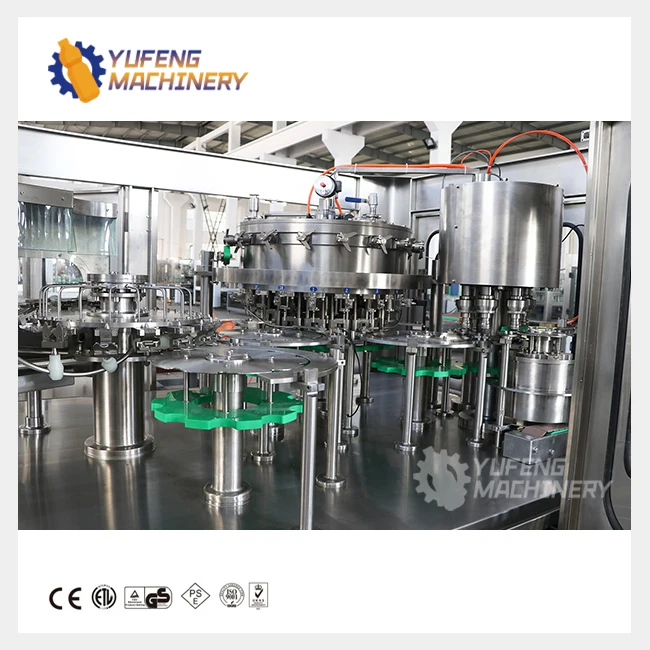

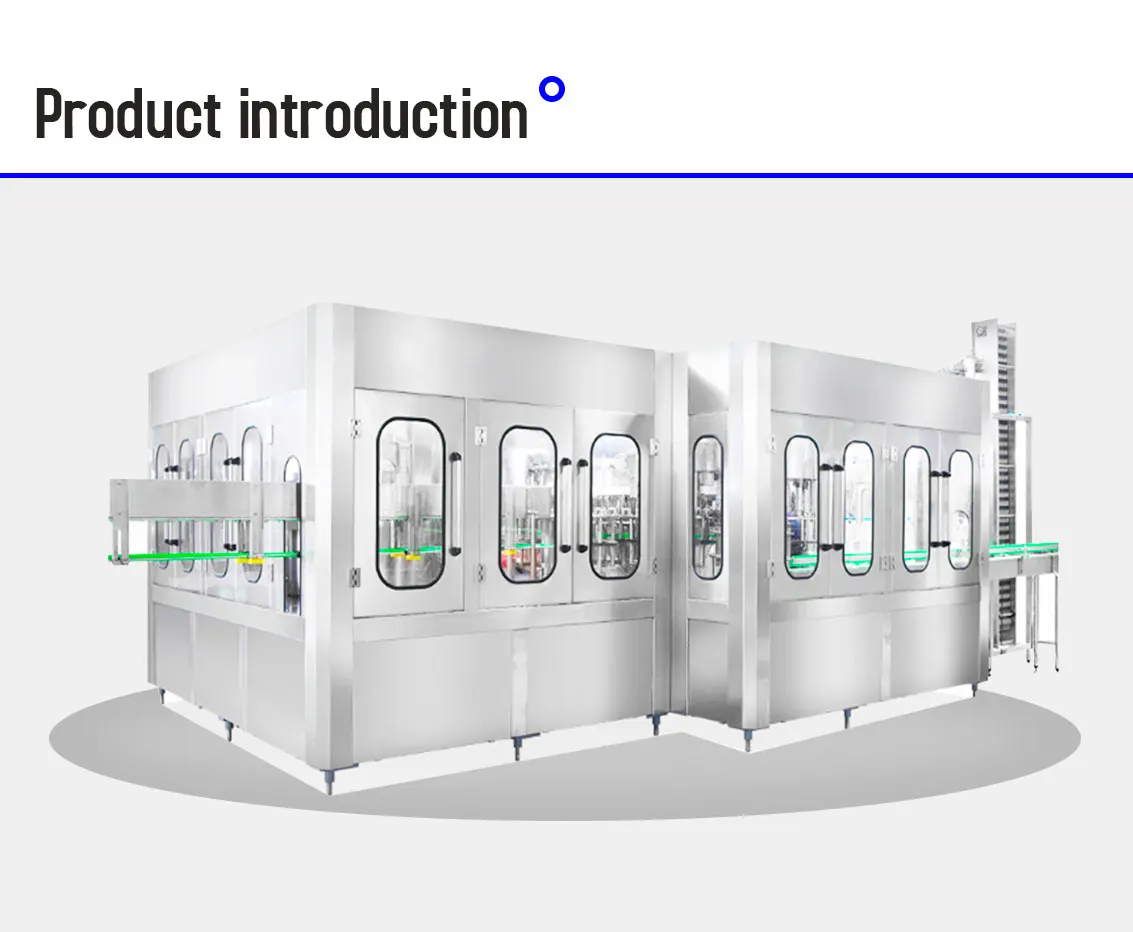

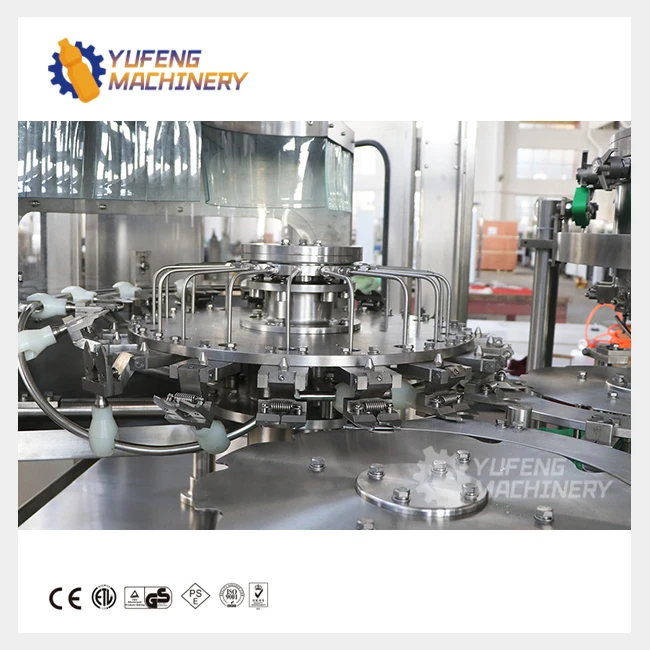

Fully Automatic 4500BPH PET Plastic Bottle Carbonated Soda Drink Filling Machine
Fully Automatic 4500BPH PET Plastic Bottle Carbonated Soda Drink Filling Machine
Fully Automatic 4500BPH PET Plastic Bottle Carbonated Soda Drink Filling Machine
Fully Automatic 4500BPH PET Plastic Bottle Carbonated Soda Drink Filling Machine
Fully Automatic 4500BPH PET Plastic Bottle Carbonated Soda Drink Filling Machine
Fully Automatic 4500BPH PET Plastic Bottle Carbonated Soda Drink Filling Machine
Fully Automatic 4500BPH PET Plastic Bottle Carbonated Soda Drink Filling Machine

Fully Automatic 4500BPH PET Plastic Bottle Carbonated Soda Drink Filling Machine

Share on (1600640439696):


Price:$50,000.00

Quantity:


Product Overview

Description




























Air Conveyor System
Adopt air conveyor system to feed bottle, this can keep the inside of the filling machine clean.

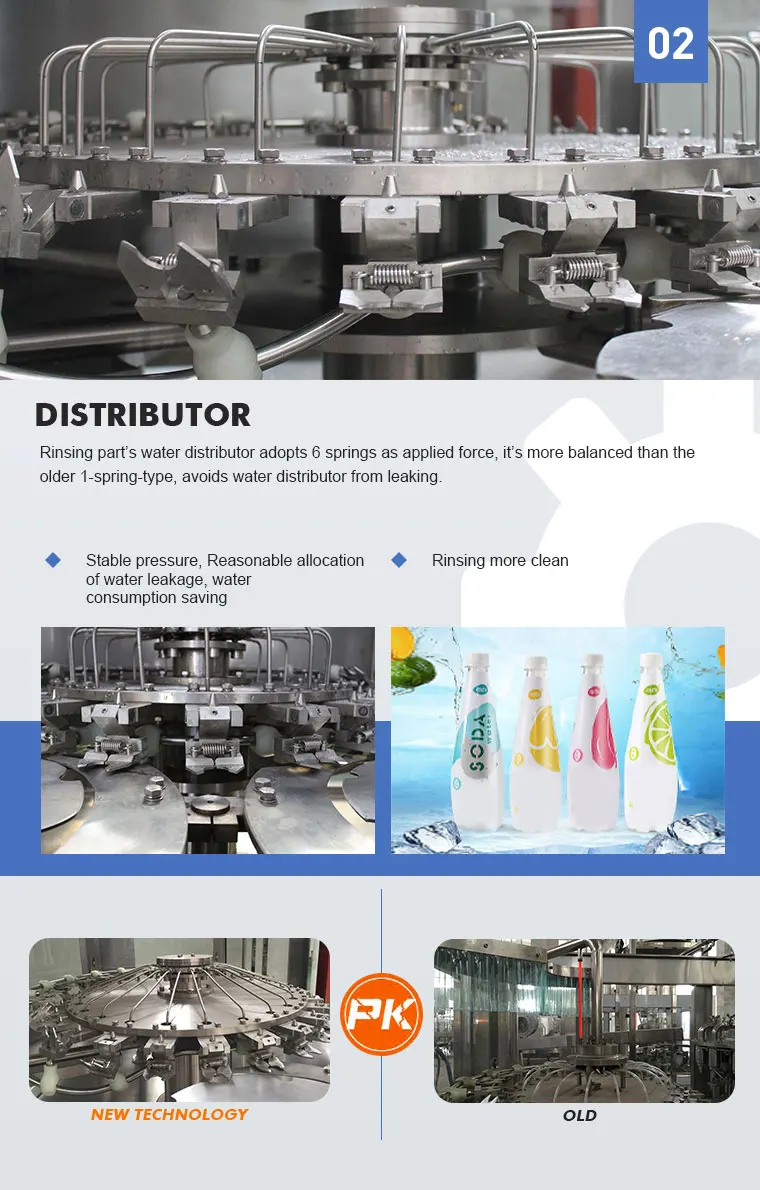

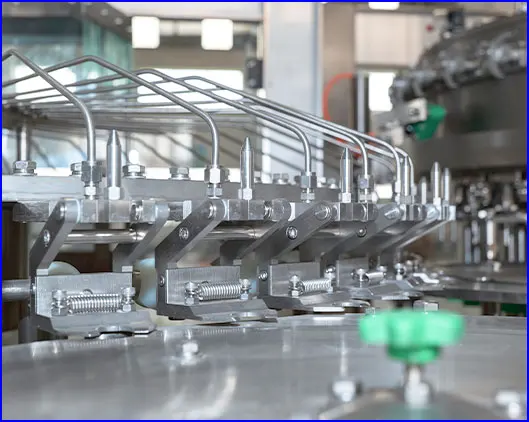

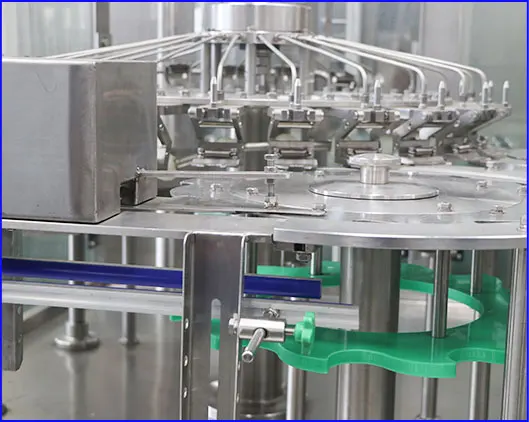

Bottle Washing
The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water.

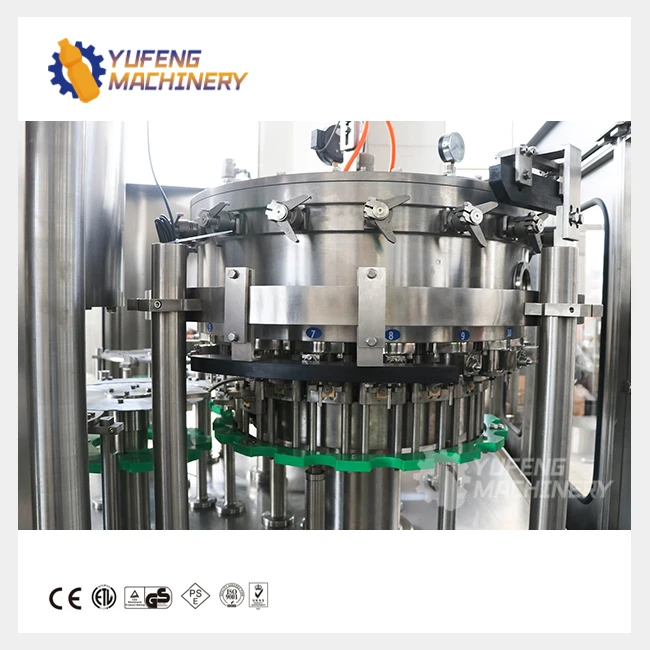

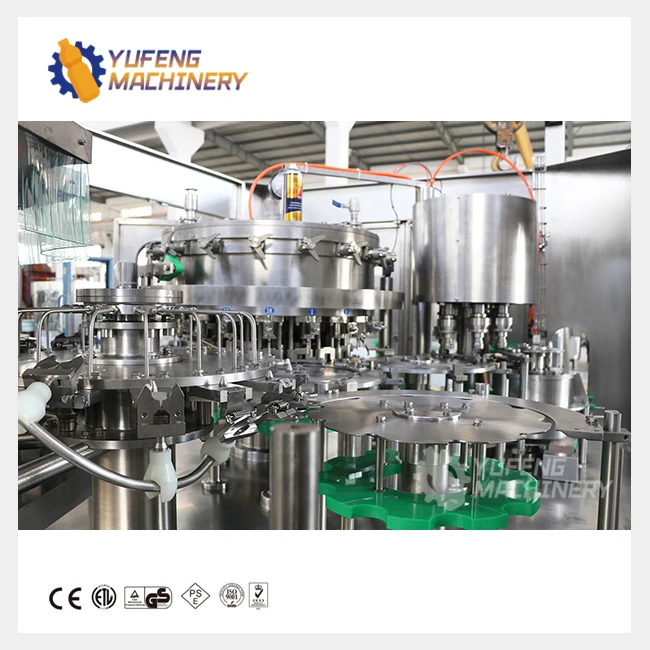

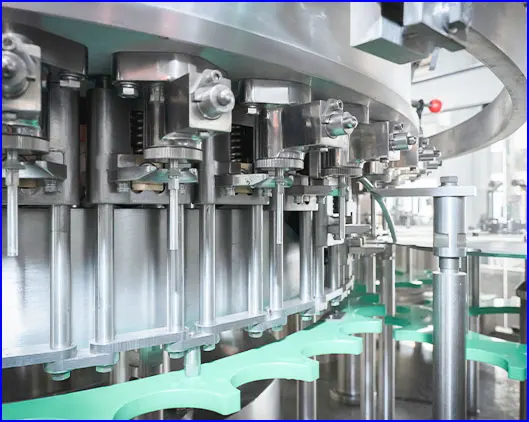

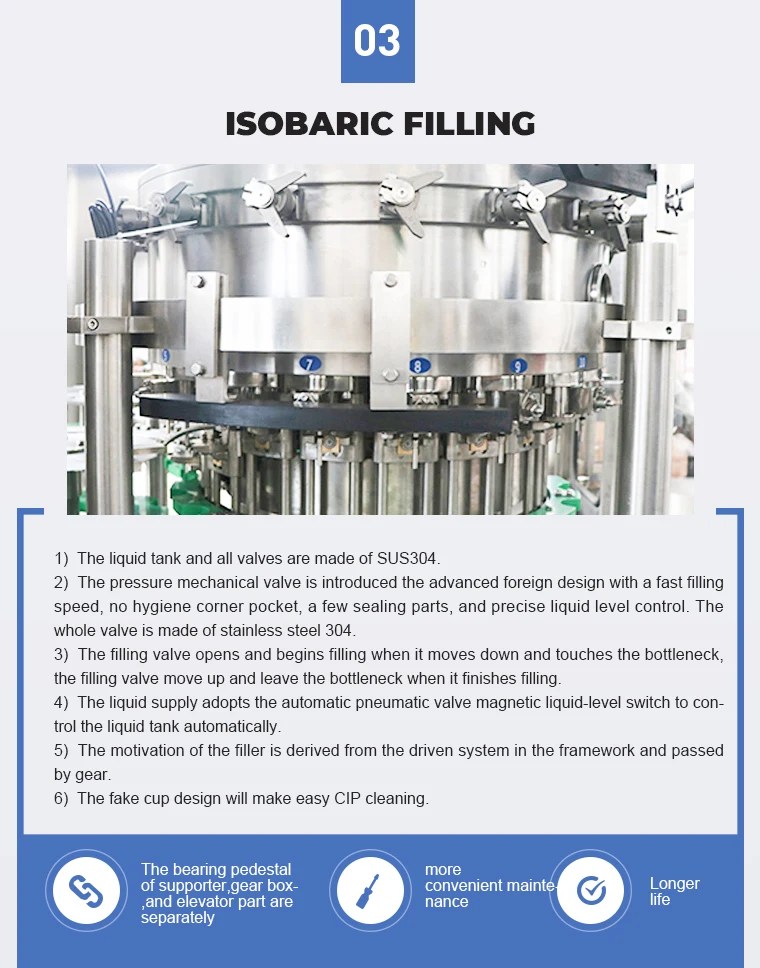

Bottle Filling
The filling valve opens and begins filling when it moves down and touches the bottle neck, the filling valve move up and leave the bottle neck when it finishes filling.

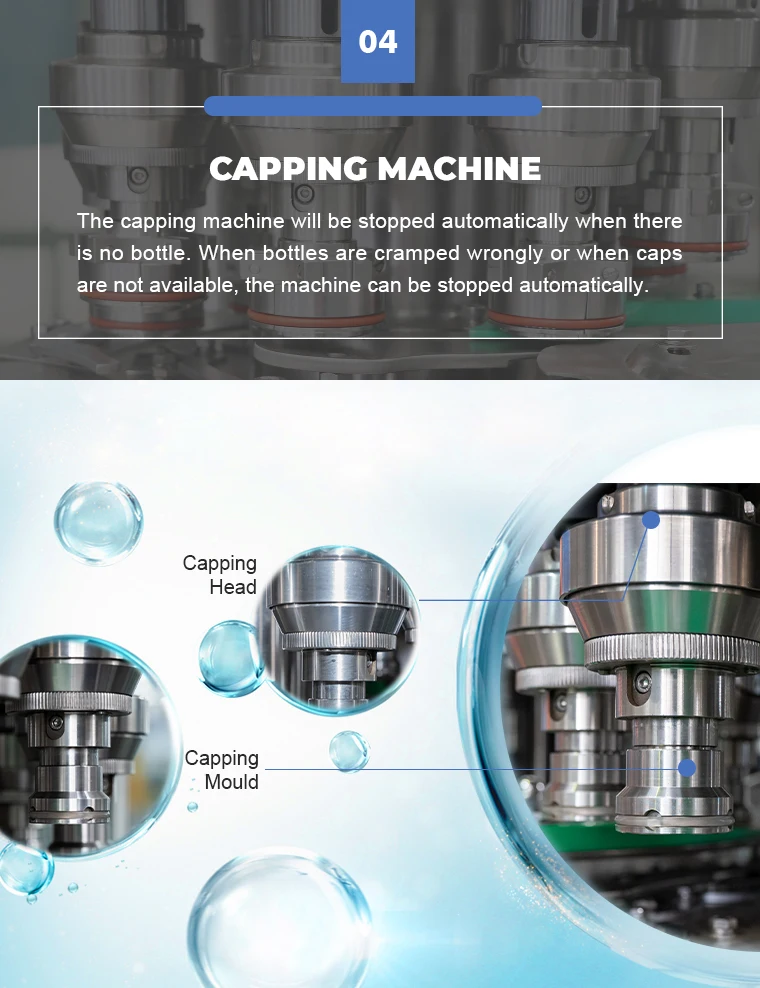

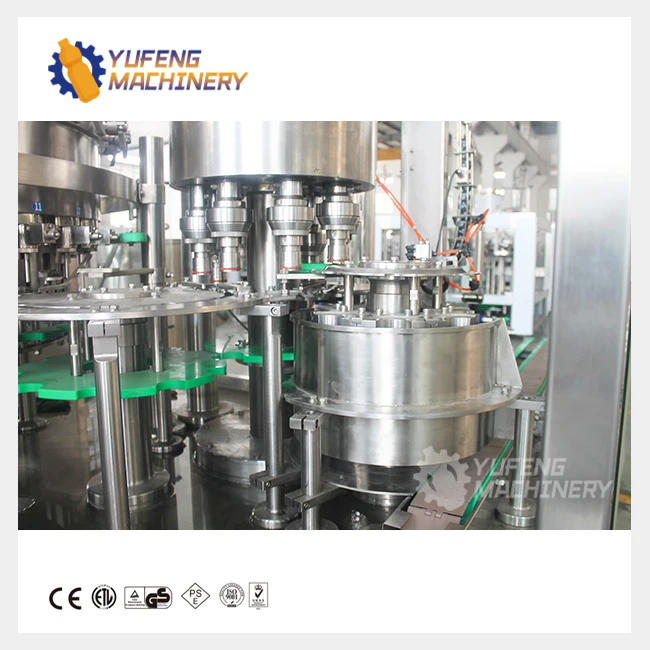

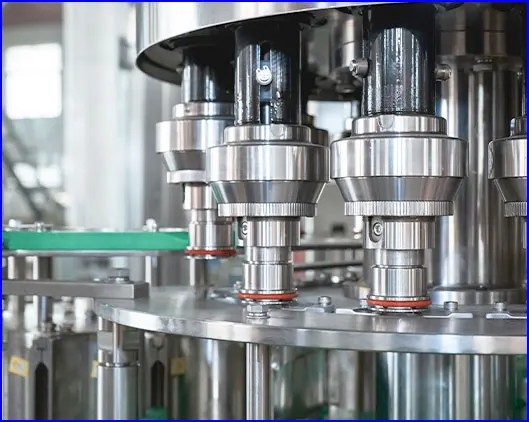

Bottle Capping
According to the different cap，the rotating of turns can be changed.


Technology Parameter
MODEL
DCGF
12-12-4
DCGF
18-18-6
DCGF
24-24-8
DCGF
32-32-10
DCGF
40-40-12
DCGF
50-50-14
DCGF
60-60-15
System Speed
2500 BPH
4500 BPH
7500 BPH
9500 BPH
11000 BPH
15000BPH
18000 BPH
Beverage Output
1250 LPH
2250 LPH
3750 LPH
4750 LPH
5500 LPH
7500LPH
9000 LPH
Mobile Machine
Yes
Yes
Yes
No
No
No
No
Washing
Head
 Number
12
18
24
32
40
50
60
Filling
Head
Number
12
18
24
32
40
50
60
Capping
Head
 Number
4
6
8
10
12
14
15
Machinery Footprint
1.5 sqm
4.5sqm
5sqm
7sqm
9sqm
9.5sqm
10sqm
Recommended Operator
1
1
1
1
1
1
1
Cap Elevator Type
Belt cap lifter
Belt cap lifter
Belt cap lifter
Belt cap lifter
Belt cap lifter
Belt cap lifter
Belt cap lifter

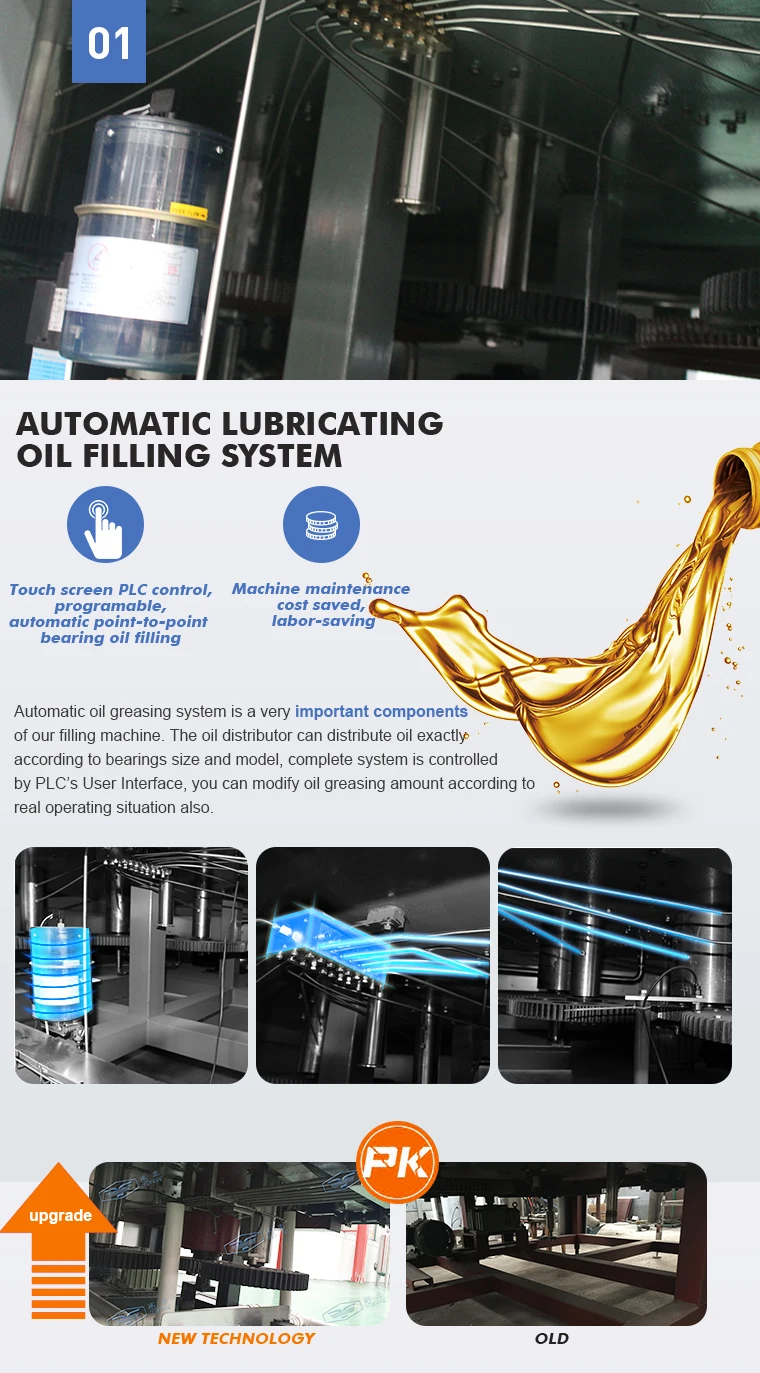

Lubrication System
No have
Semi-Auto
Semi-Auto
Automatic
Automatic
Automatic
Automatic
Optional Equipment
bottle unscrumbler;
Labeling machine;
Date printer; Packaging machine; Water treatment; Carbonated drink processing system; Conveyor
system

Bottle blowing machine; Labeling machine; Date printer; Packaging machine; Water treatment; Carbonated drink processing system; Conveyor
system
Preform; injection machine; Bottle blowing machine; Labeling machine; Date printer; Packaging machine; Water treatment; Conveyor
system
Preform; injection machine; Bottle blowing machine; Labeling machine; Date printer; Packaging machine; Water treatment; Conveyor
system
Preform; injection machine; Bottle blowing machine; Labeling machine; Date printer; Packaging machine; Water treatment; Conveyor
system
Preform; injection machine; Bottle blowing machine; Labeling machine; Date printer; Packaging machine; Water treatment; Conveyor
system
Preform; injection machine; Bottle blowing machine; Labeling machine; Date printer; Packaging machine; Water treatment; Conveyor
system

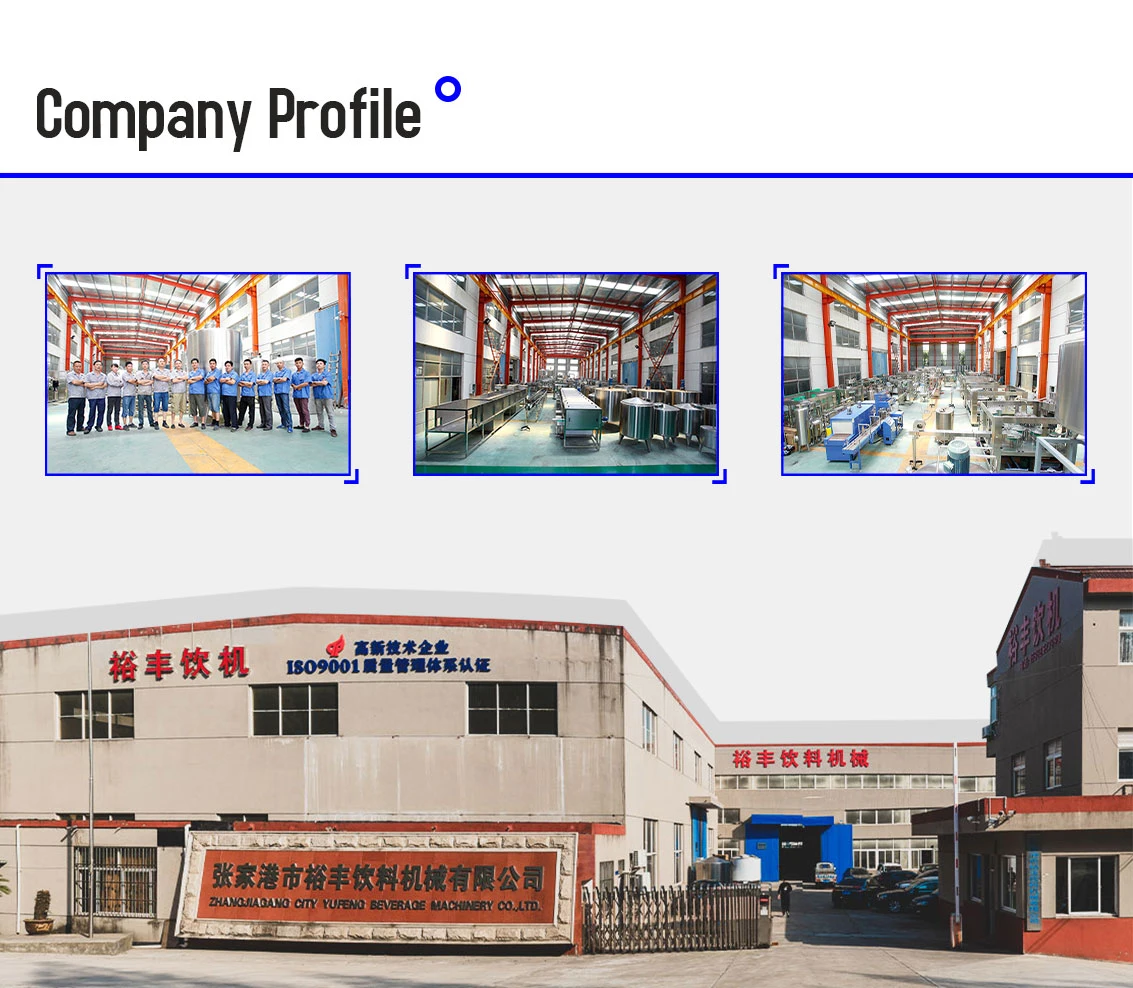

Zhangjiagang Yufeng Machinery Factory was found at 1998. It was renamed as Yufeng Beverage Machinery Co,.Ltd. in 2010. It is located at zhenbei road Leyu town Zhangjiagang city Jiangsu Province China.
We devoted to the development. For example we research and manufacture liquid food / water treatment / beverage packing / filling machine.
Our main products include " mineral water and purified water production line / carbonated beverage production line / 3 or 5 gallon production line etc. "
We sold our products to many cities with the strong technical force, advanced equipment, scientific management system and perfect after-sales service .












1.When can arrange the delivery after customers place the order ?
A: Normally production time is around 60-90 days,the exactly depend on what kind of machine you ordered .
2.How long time for installation?
A: According to your machines order,we will arrange one or two engineers to your factory,it will take about 1 to 2 weeks.
3.What kind payment be accepted by Yufeng?
A: We can accept L/C,Western Union,T/T.
4.How to install my machines when it arrives?how much the cost?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pays air tickets go and back,accommodation,food,and so on.
5.Installation and maintenance:
A:The machines should have good maintenance twice for 6 months,and for installation, you can get the manual guide from Yufeng,or we can sent our engineers to help you.
