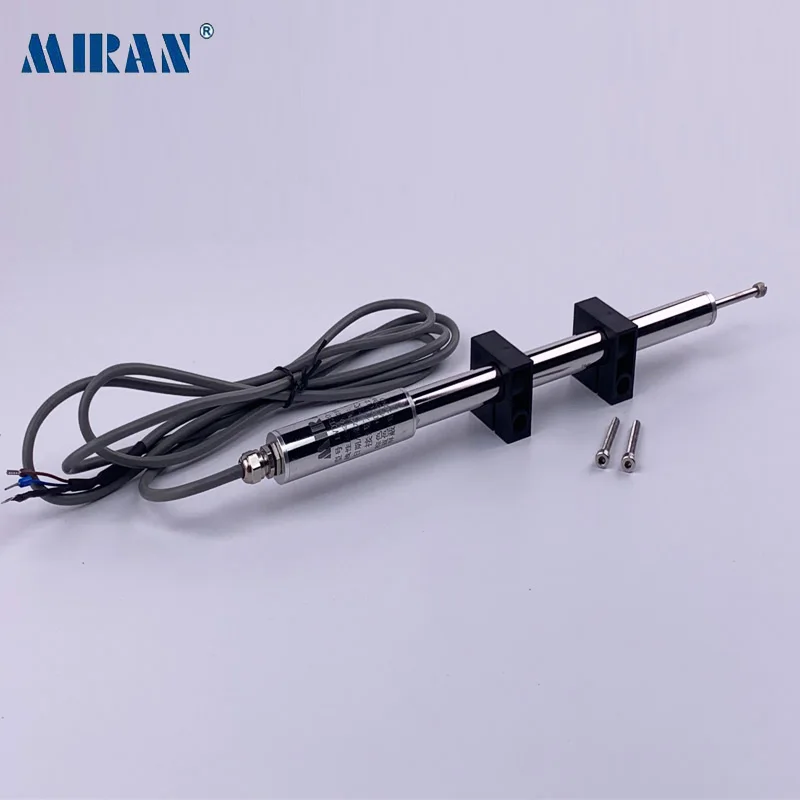

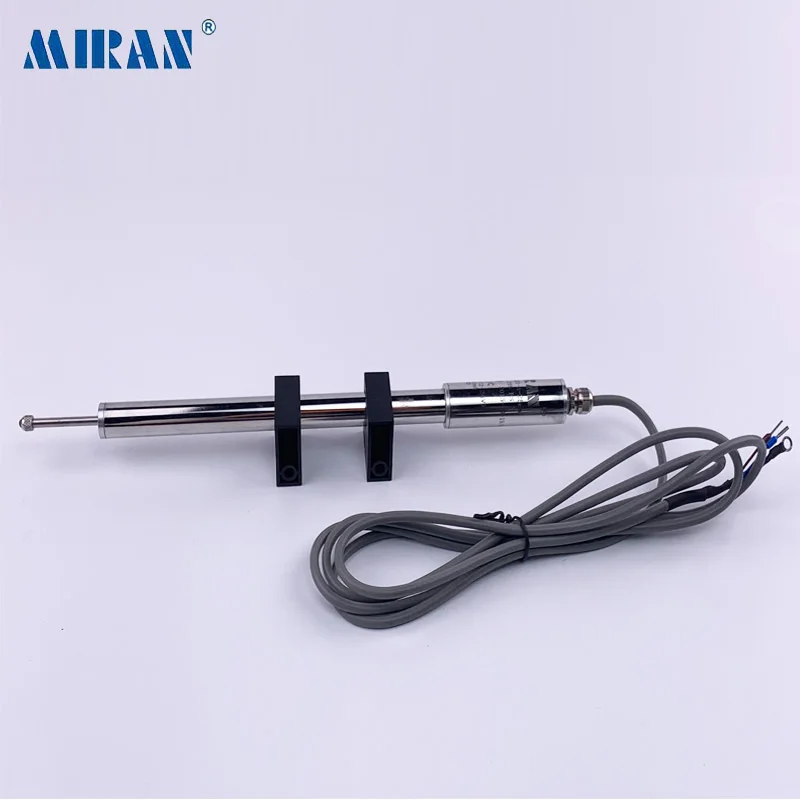

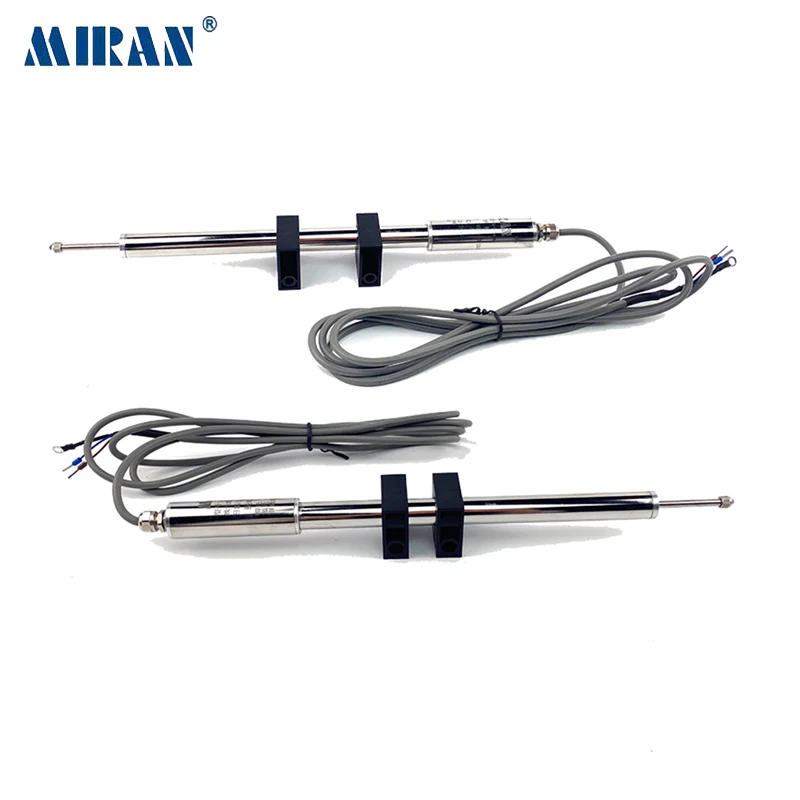

Miran LVDT20 5mm-100mm High Precision Linear Displacement Transducer / LVDT Sensor
The model has an excellent performance .It adopts convenient single power supply +12 ~ 24V DC power supply. The electronic circuit is sealed in 304 stainless steel tube, which can work in the harsh environment such as damp and dust. The standard output signal is 0-5v, 0-10v, 4-20ma or RS485 output which can be used by computer or PLC.
Applications
Differential transformer type displacement sensor (LVDT) can be widely used in aerospace, machinery, construction, textile, railway, coal, metallurgy, plastics, chemical industry, scientific research institutions and other industries of the national economy. The sensor is used to measure elongation, vibration, object thickness, expansion etc.
Main Feature
1.Built-in precision linear bearing, good repeatability ,outer diameter Φ 20 mm
2.The silicon nitride ceramic probe with good wear resistance
3.Measuring range :5-100mm, 304 stainless steel material
4.Dc single power supply, built-in high - performance signal demodulator
5.4-20mA output 2wires and 0-5V 0-10V (3 wires)
6.No sliding contact, long service life
7.5mm and 10mm range with black dust cover.
Detailed Images

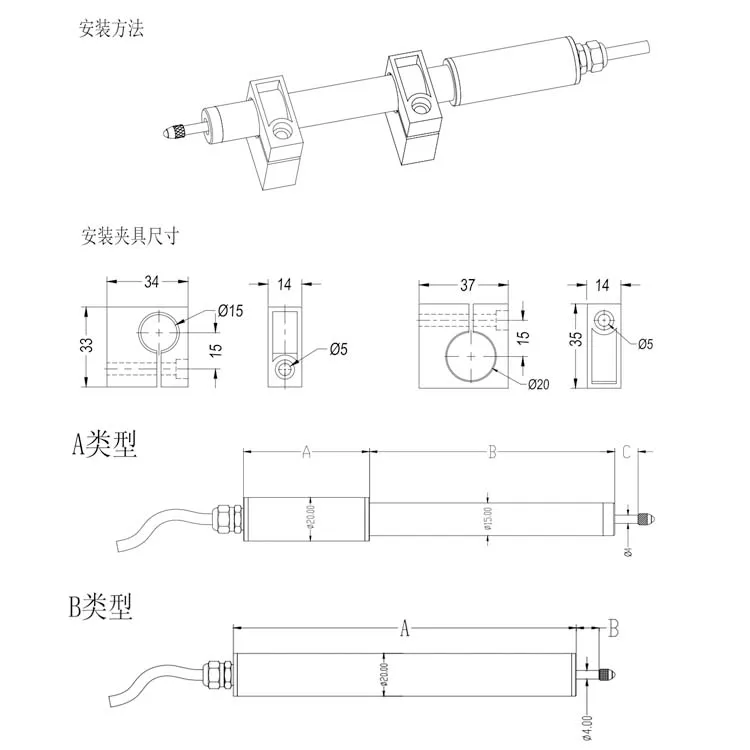

specification | LVDT20 ~Type A | ||||||||||||
Range（mm） | 5 | 10 | 20 | 25 | 40 | 50 | 100 | ||||||
Length of part A (mm) (0-5V /0-10V/4-20mA output） | 69 | 69 | 69 | 69 | 69 | 69 | 69 | ||||||
Length of part A(mm) （RS485 output） | 79 | 79 | 79 | 79 | 79 | 79 | 79 | ||||||
Length of part B(mm) | 90 | 90 | 100 | 100 | 243 | 243 | 338 | ||||||
Length of part C(mm) | 17 | 27 | 22 | 27 | 45 | 55 | 105 | ||||||
Packing & Delivery
1.Lead time:within 3-5 working days after receive payment.
2.Port: shenzhen
3.Shipping by DHL,TNT, FedEX, USP ,EMS etc.
4.Packing in a pvc tube with foam to ensure the safety of transportation.
