OEM HDMI Extender 50m MT ViKI ED04 IR 1080P@60HZ HDMI Extender
- Category: >>>
- Supplier: Guangdong Mt-Viki Electronics Technology Co. Ltd.
Share on (1600640487952):
Product Overview
Description
Products Description

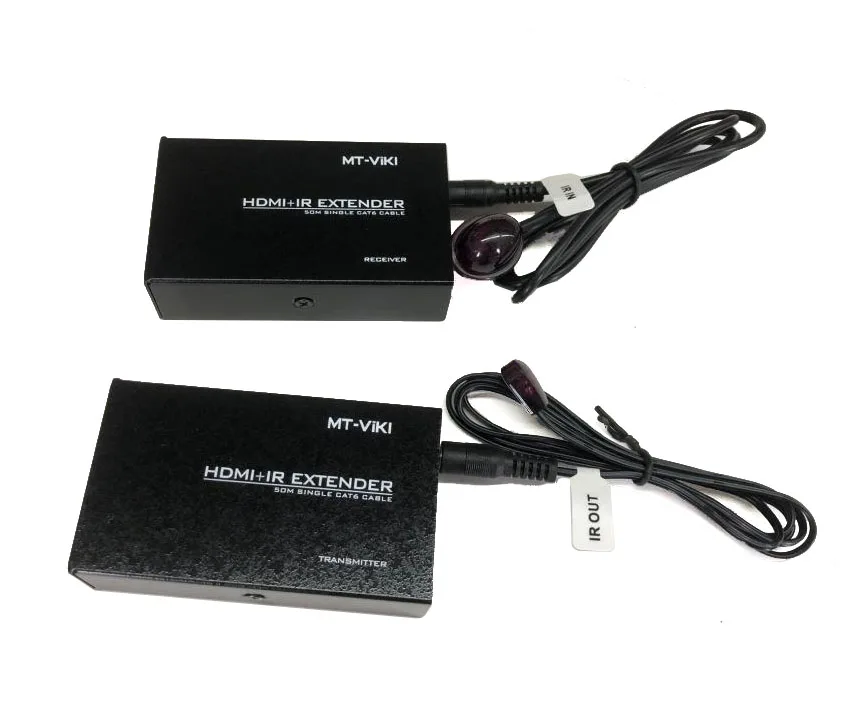

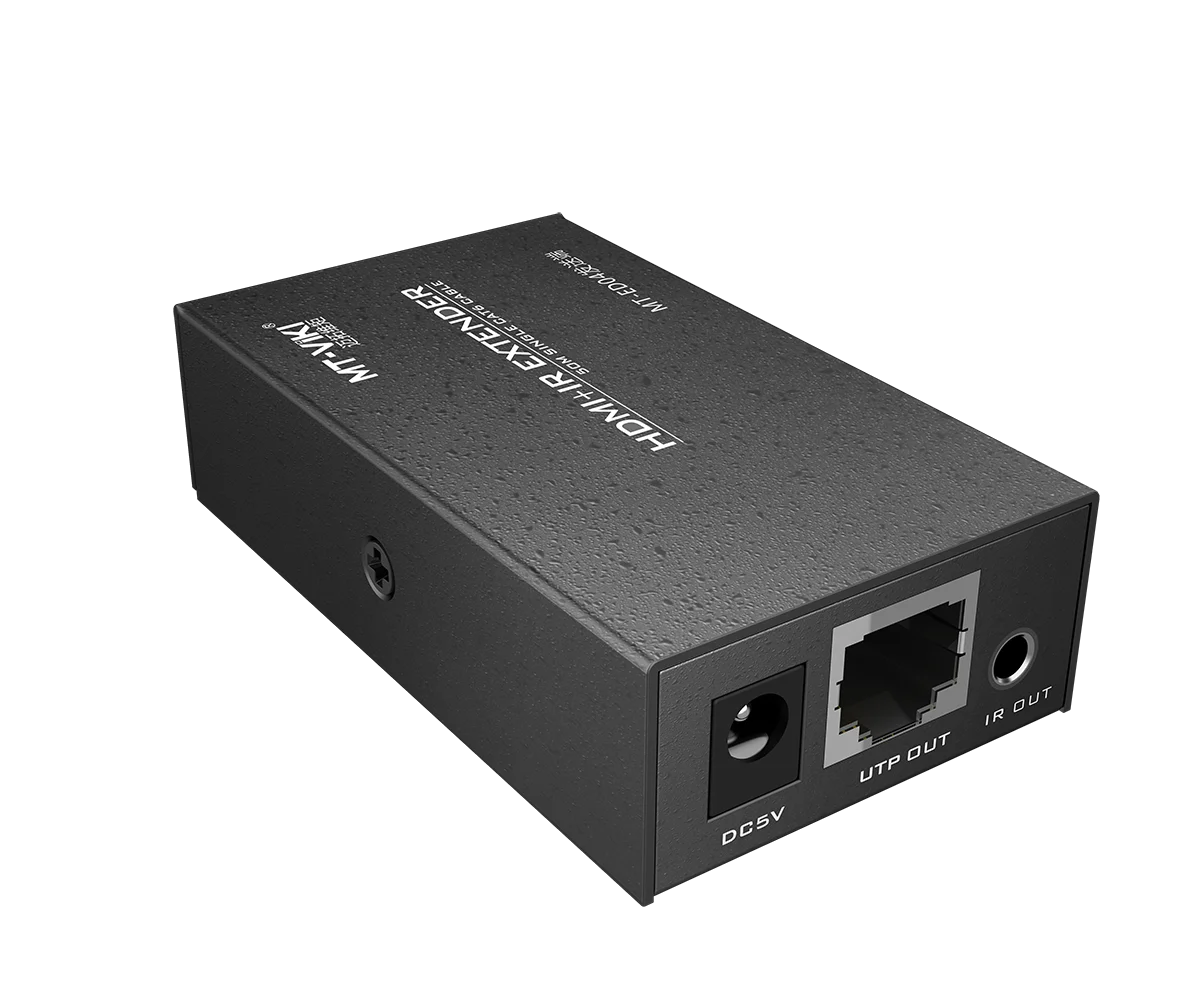

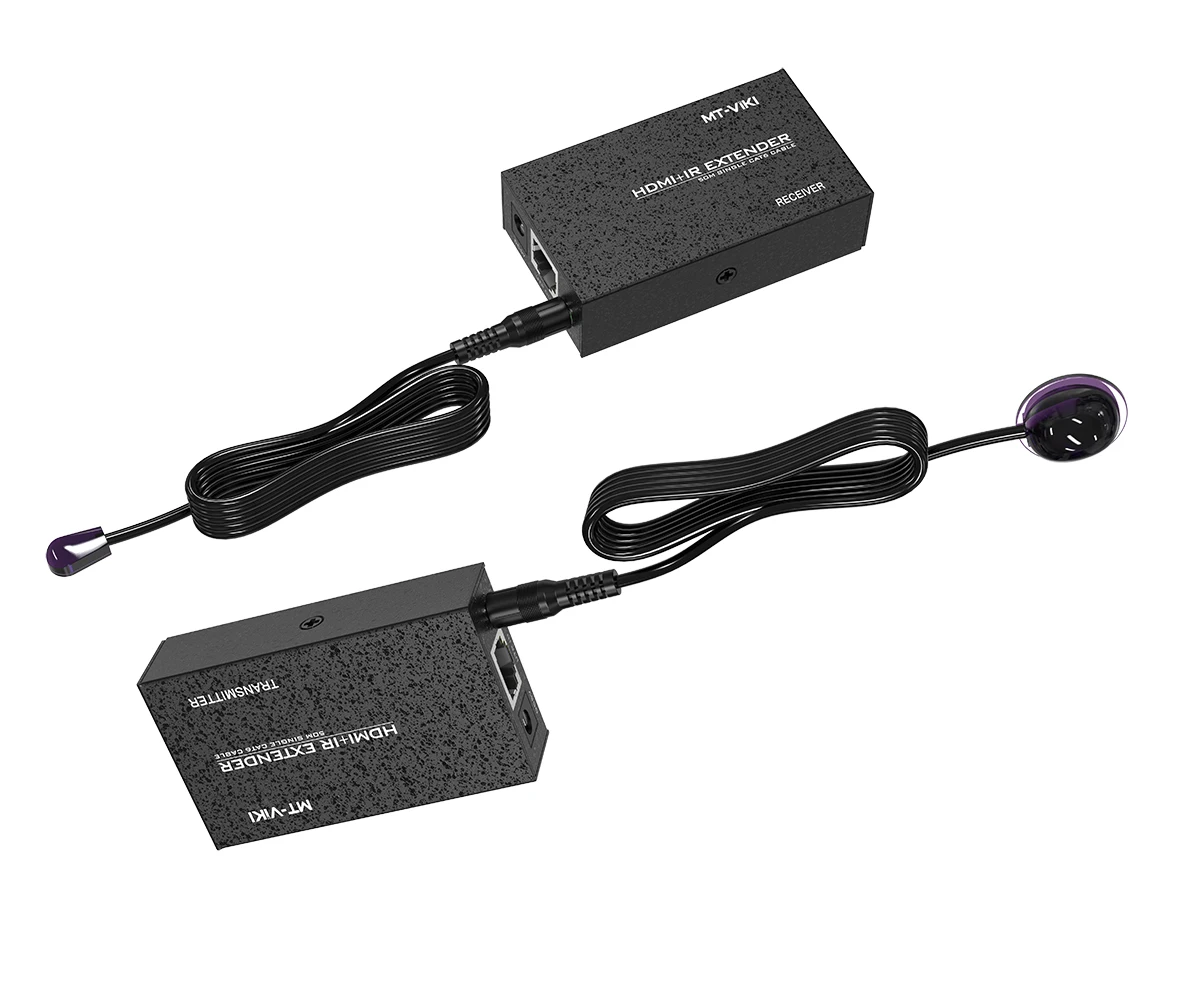

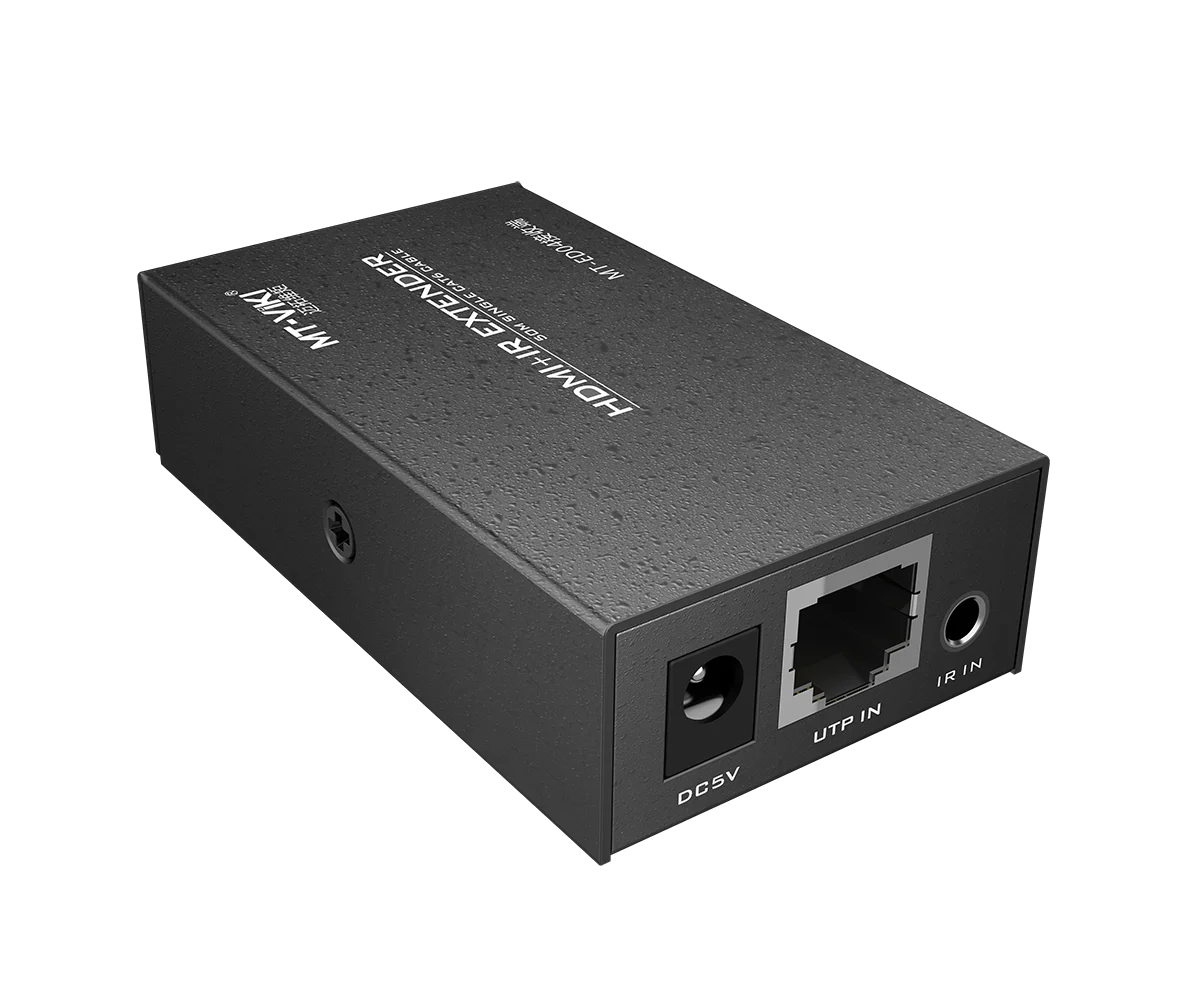

MT-VIKI ED04, HDMI Extender Over Cat5e/6 Cable
This HDMI Extender allows you use one piece of CAT5/6/7 cable to extend the HDMI signal up to 50 meters at 1080p resolution. It not only breaks the limitation of HDMI cable lengths but also has more flexibility and convenience for installation.
This HDMI Extender allows you use one piece of CAT5/6/7 cable to extend the HDMI signal up to 50 meters at 1080p resolution. It not only breaks the limitation of HDMI cable lengths but also has more flexibility and convenience for installation.
Product Features:
◆Compatible with HDCP1.4 protocol
◆Support video input: 1080p/1080i/720p/576p/576i/480p/480i
◆The max length of the cable between the transmitter and the receiver can be up to 50 meters.
◆Support external remote infrared control for easy operation on remote devices.
◆Comply with IEEE-568B standard.
◆Support 165Hz/1.65Gbps frame rate(total frame rate 4.95Gpbs) bandwidth.
◆Support uncompressed 2-frame audio, such as LPCM.
◆Support video input: 1080p/1080i/720p/576p/576i/480p/480i
◆The max length of the cable between the transmitter and the receiver can be up to 50 meters.
◆Support external remote infrared control for easy operation on remote devices.
◆Comply with IEEE-568B standard.
◆Support 165Hz/1.65Gbps frame rate(total frame rate 4.95Gpbs) bandwidth.
◆Support uncompressed 2-frame audio, such as LPCM.
Product Paramenters
Product Name | MT-ED04 |
Input Interface | 1 x HDMI |
Output Interface | 1 x HDMI |
Bandwidth | 1.65Gbps/165Hz |
Compliance | HDCP 1.4 Compatible |
Resolution | Up to 1920 x 1200p@60Hz |
Impedance | 100Ω |
Max. Distance | Up to 50m by cat6 cable |
Power | 5V |
Power Consumption | 3W |
Housing | Metal |
Dimension | 82*47*23mm |

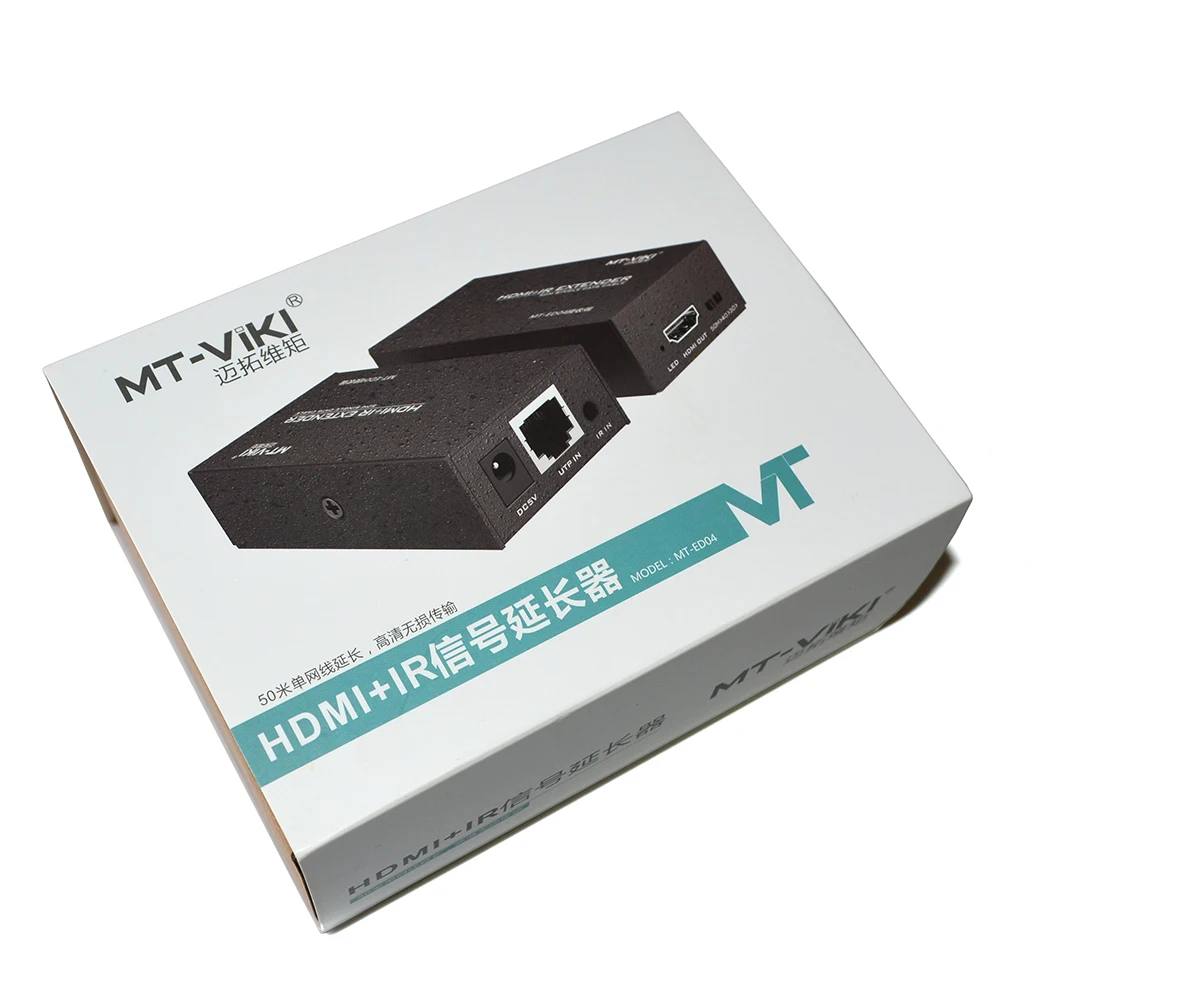

Products Packaging
Package include for this HDMI Extender
1 x receiver
2 x DC5V adapters
1 x manual
Company Profile
MT-ViKI Electronics Technology Co., ltd. was established in 2003, owing to a modern technology park with an area of 43,000 square meters, and the annual output is over 4 million units. MT-VIKI is specialized in A/V Matrix, KVM Switch, A/V Splitter, A/V Switch, A/V Converter, and Signal Extender. The Professional A/V line offers integrated video solutions for home and professional use for a variety of uses including corporate, education, hospitality, commercial, and home theater applications.
Why Choose Us
Our Advantages:
◆Nearly 20 years of manufacturing experience.
◆OEM/ODM | KVM Switch, HDMI Extender, Matrix Switch, HDMI Splitter.
◆Obtained 3C, UL, CE, FCC, ROHS and other certifications.
◆OEM/ODM | KVM Switch, HDMI Extender, Matrix Switch, HDMI Splitter.
◆Obtained 3C, UL, CE, FCC, ROHS and other certifications.
Exhibition
Certifications
FAQ
Q1: Are you a trade company or manufacturer?
R1: We are a professional manufacturer, Specialized in KVM Switch, Matrix Switch,Signal Extender,Audio and Video Splitter,Switcher,Signal Converter for more than 19 years.
Q2:How is the delivery time?
R2:For the sample,it would be around 2-7 days after receiving the payment, for mass production, about 25-30 days after receiving the deposit.
Q3: What are your strengths?
R3: Accepts OEM/ODM according to your custom-designed,have CE,FCC certifications.
Q4:If I'm not very clear the products functions,what should I do?
R4: Each of the the product has manual, you can contact us to sending you.
R1: We are a professional manufacturer, Specialized in KVM Switch, Matrix Switch,Signal Extender,Audio and Video Splitter,Switcher,Signal Converter for more than 19 years.
Q2:How is the delivery time?
R2:For the sample,it would be around 2-7 days after receiving the payment, for mass production, about 25-30 days after receiving the deposit.
Q3: What are your strengths?
R3: Accepts OEM/ODM according to your custom-designed,have CE,FCC certifications.
Q4:If I'm not very clear the products functions,what should I do?
R4: Each of the the product has manual, you can contact us to sending you.
