High magnification testing machine solutions Tool metallographic microscope ME300
Products Description

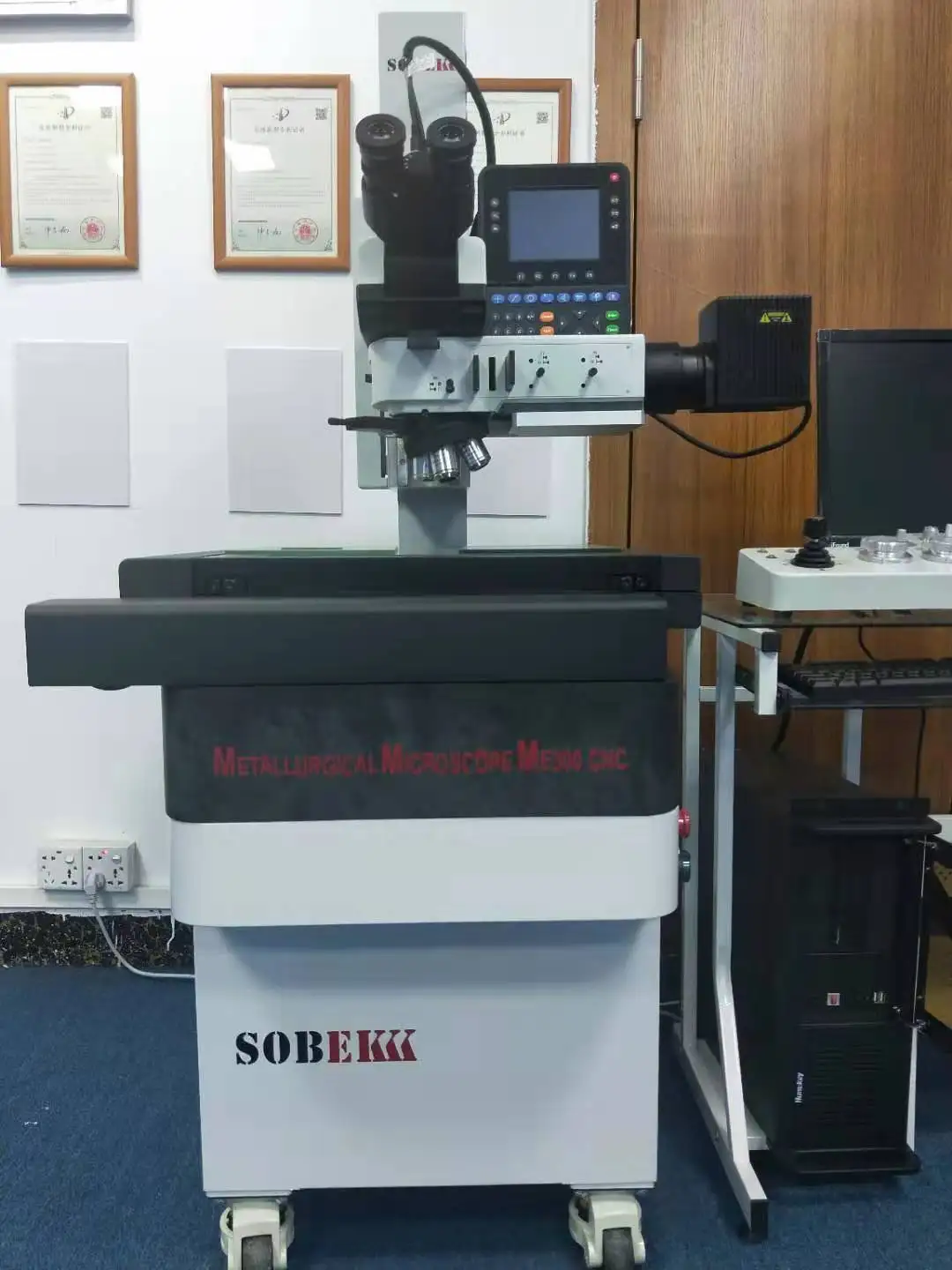

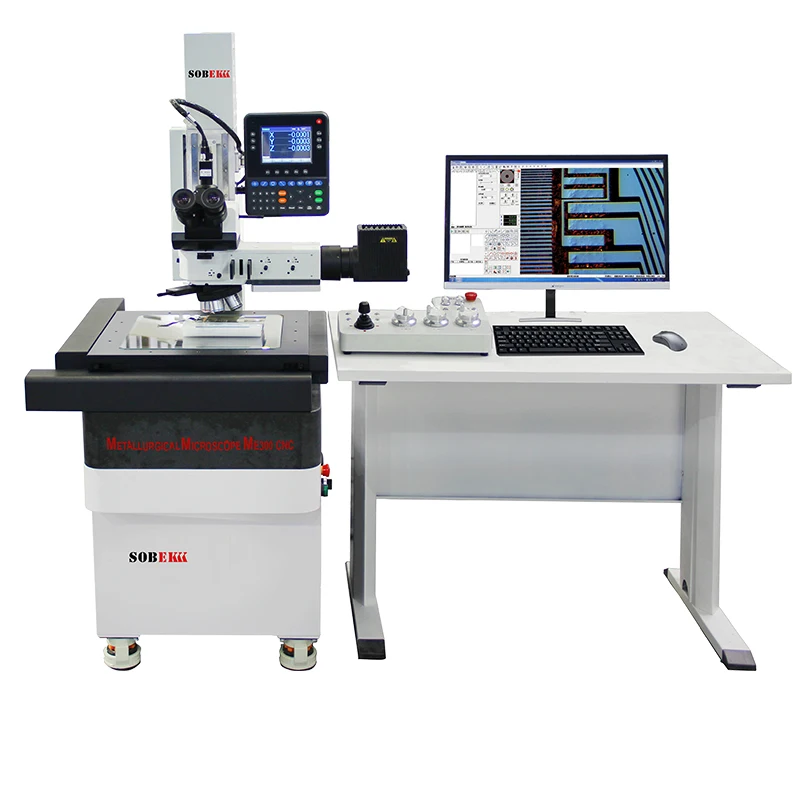

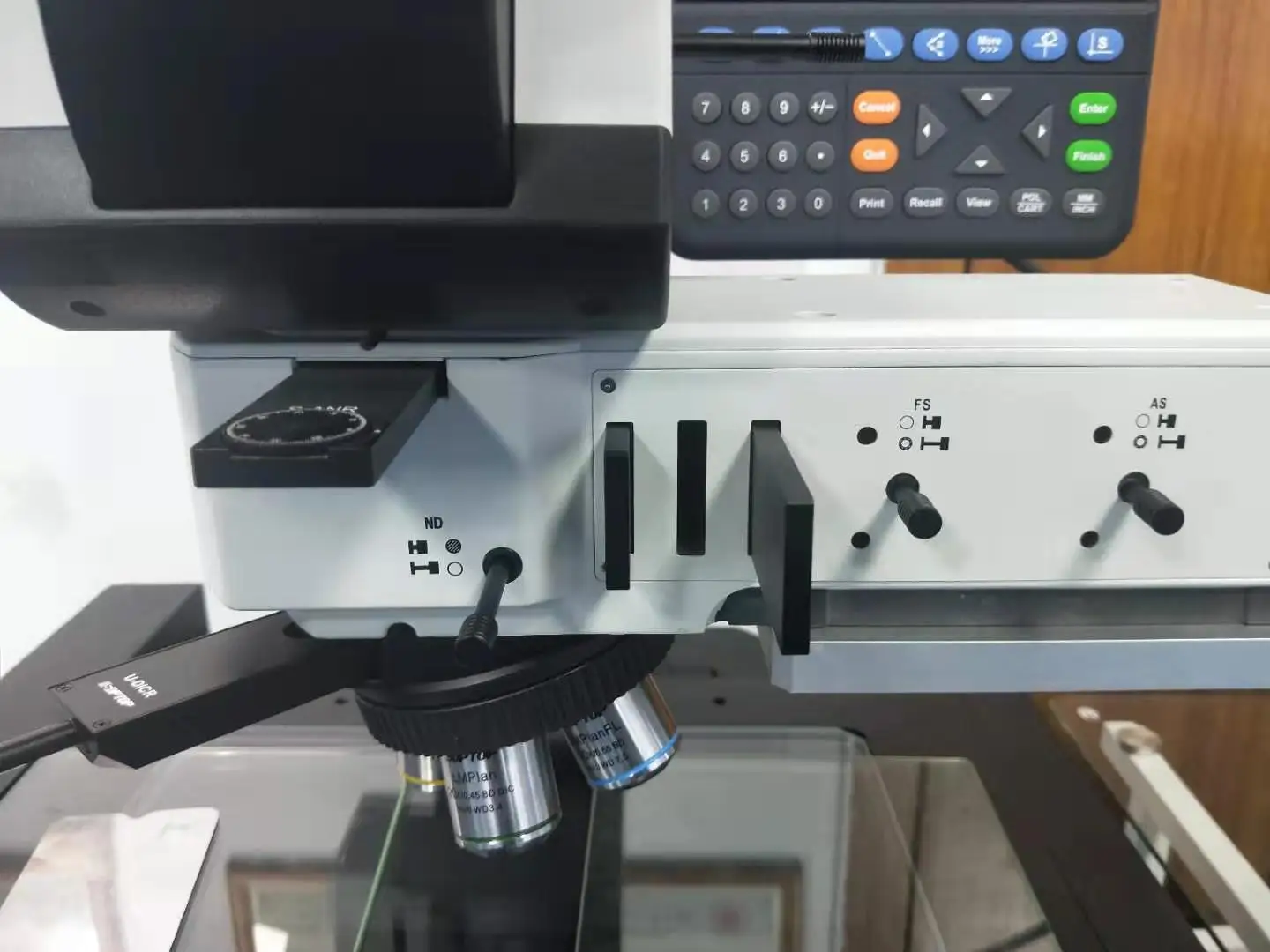

Tool metallographic microscope ME300
* Japan “Panasonic” AC servo motor, 3 axis CNC control, stable performance, high accuracy and repeatability
* High accuracy TBI" ground ball screw rod , accuracy of positioning 0.002mm
* Upright colume and base adopt high accuracy granite base
* High accuracy “Preme” linear scale resolution 0.0001mm
* Customized report support: Excel, PDF CAD
* High-resolution industry 1.3M pixel digital color CCD, resolution 1920*1080
* SOPTOP company CSIC infinity correction optical system ,or optional Nikon latest CFI60 optics
* High accuracy TBI" ground ball screw rod , accuracy of positioning 0.002mm
* Upright colume and base adopt high accuracy granite base
* High accuracy “Preme” linear scale resolution 0.0001mm
* Customized report support: Excel, PDF CAD
* High-resolution industry 1.3M pixel digital color CCD, resolution 1920*1080
* SOPTOP company CSIC infinity correction optical system ,or optional Nikon latest CFI60 optics

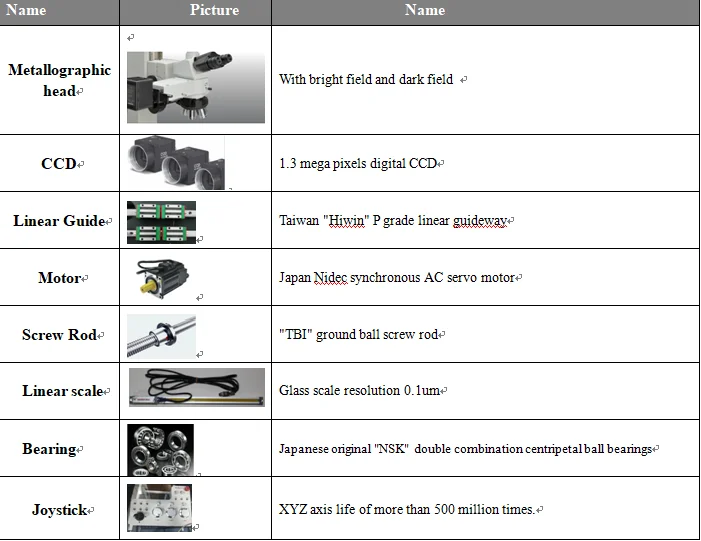

Main parts
Parameter
Model | ME-300CNC | ME-400CNC | |
Table travel range(XYZ) | 300*300*150mm | 400*300*150mm | |
Dimension | 610*850*1600mm | 1000*800*1600mm | |
Resolution | 0.0001mm | ||
XY axis Accuracy | 1.5+L/200 um | ||
Y axis Accuracy | 2+L/200um | ||
Repeatability accuracy | 2um | ||
X.Y move style | Automatic(joystick and software) | ||
X,Y move speed | 0-100mm/s | ||
Z move style | Automatic focus(servo motor)+ Manual pulse focus(Min travel distance 0.1um) | ||
Z move speed | 0-20mm/s | ||
CCD | High-resolution 1.3M pixel digital color CCD | ||
Software | SBK-CNC | ||
Work-table loading | 20KG | ||
Illuminating system | Cold light source transmission lighting, 10W LED reflection lighting | ||

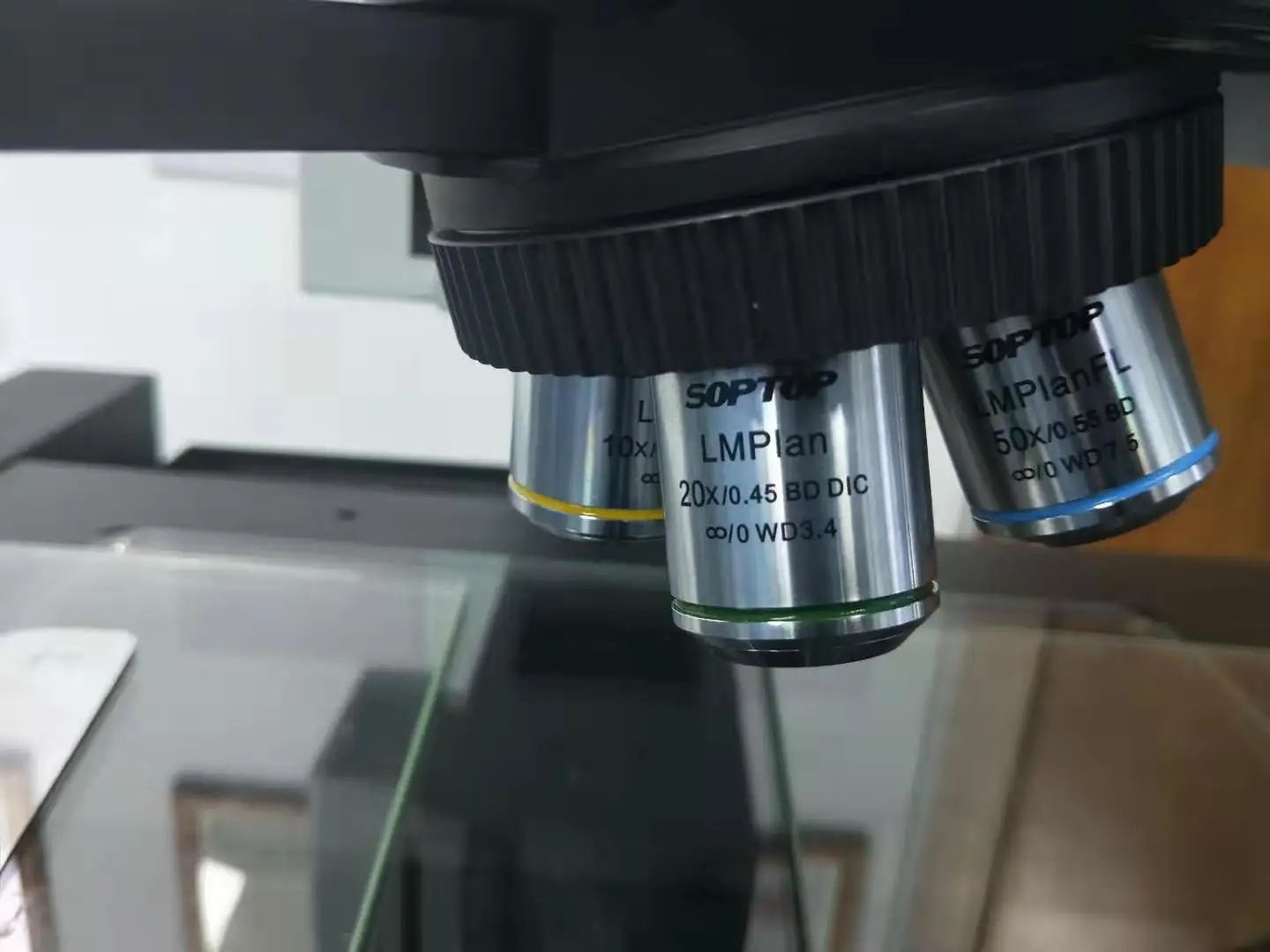

Nosepiece | Five-hole objective rotary table (with DIC slot) | ||

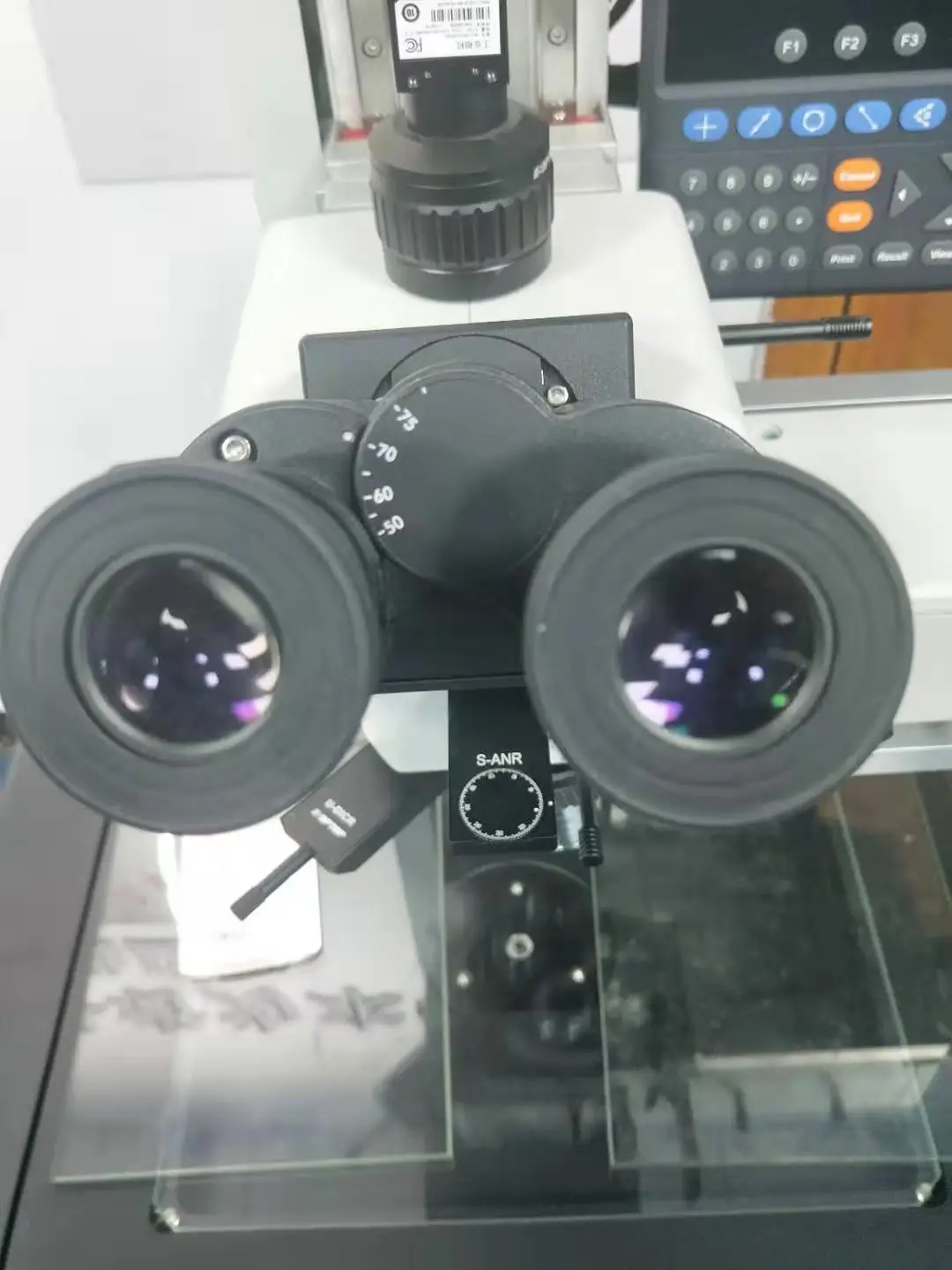

Optical eyepiece tube | Trinocular tube | ||
Eyepiece | WF 10X/22 | ||
Adaptor lens | 0.5X | ||
Magnification | Optical : 50X、100X、200X、500X, Image: 162.51X、314.95X、640.42X、1570.48X | ||
Metallographic Objective Lens (Bright & dark field ) | LWDPLAN 5X: (N.A) 0.14, working distance :10.8mm | ||
LWDPLAN 10X: (N.A) 0.25, working distance:10.0mm | |||
LWDPLAN 20X: (N.A) 0.40, working distance: 4.0 mm | |||
LWDPLAN 50X: (N.A)0.20, working distance: 2.0 mm | |||
Optical system | CSIC infinity correction optical system | ||
Power | 220V/50Hz/5A | ||
envirment requiry | temperature range：22±2℃，humidity range：30%-80% | ||
Application:
The instrument is widely used in various precision industries, such as electronic components, precision molds, springs, coarse cutting tools, plastics, rubber, screw processing, automotive parts, PCB and other precision industries
spring
Plastic parts
Mould
PCB
gear
hardware metal
Software

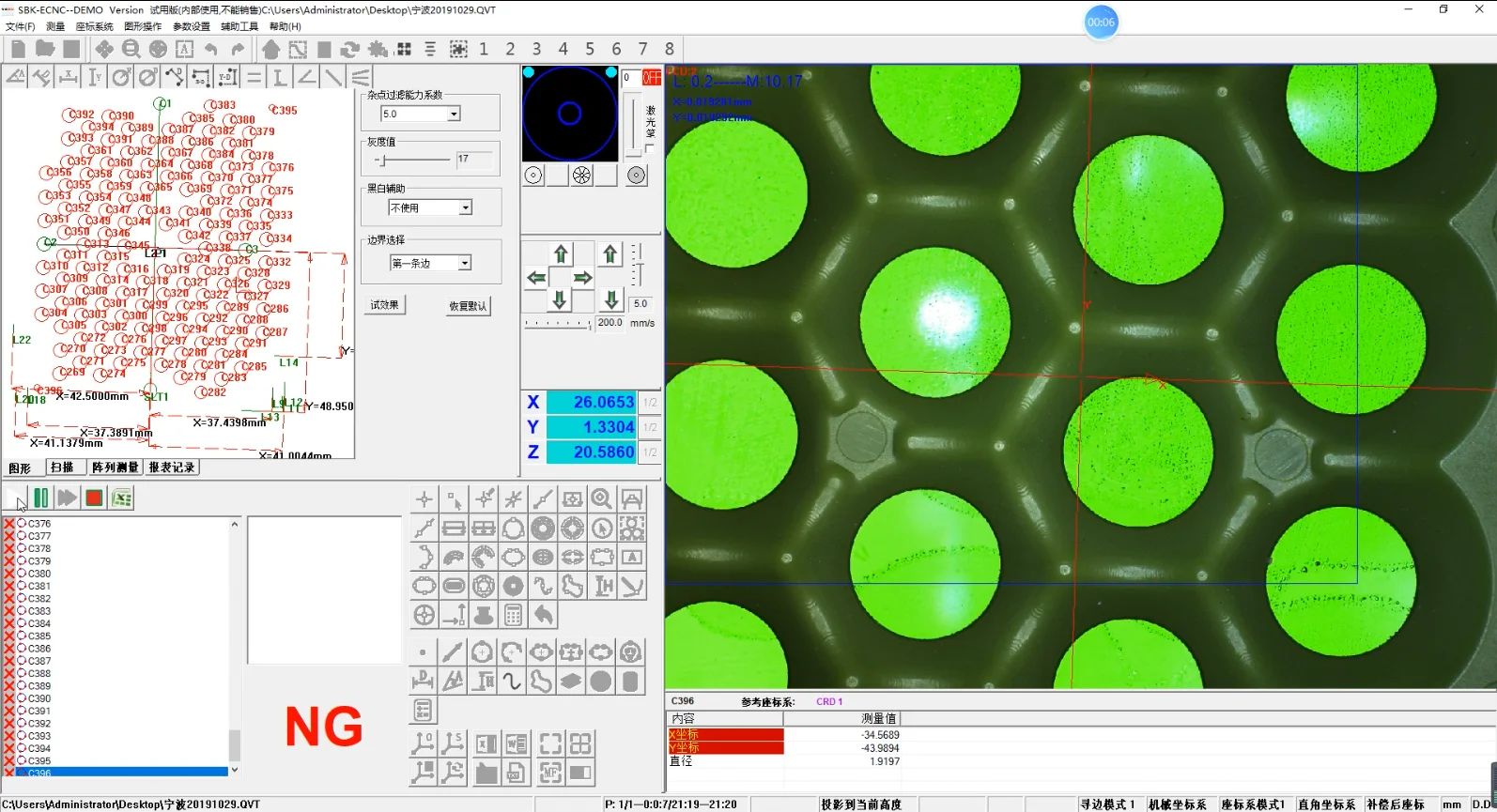

Software instruction(SBK-MM Full-Automatic Version)
* Parts model automatic knowledge take geometrical element characteristic function and automatic generation of test procedures.
* With functions of reverse engineering measurement.
* 12 report output: product measurement result documents can go directly to EXCEL and make the results be clear at a glance
* SPC statistical analysis: can calculate, CA CP and CPK, DRL, DRR, DR, MAX, MIN, AVG, RANGE, STD, and you can draw X - R
diagram, and line charts, histograms, etc.
* With functions of reverse engineering measurement.
* 12 report output: product measurement result documents can go directly to EXCEL and make the results be clear at a glance
* SPC statistical analysis: can calculate, CA CP and CPK, DRL, DRR, DR, MAX, MIN, AVG, RANGE, STD, and you can draw X - R
diagram, and line charts, histograms, etc.
