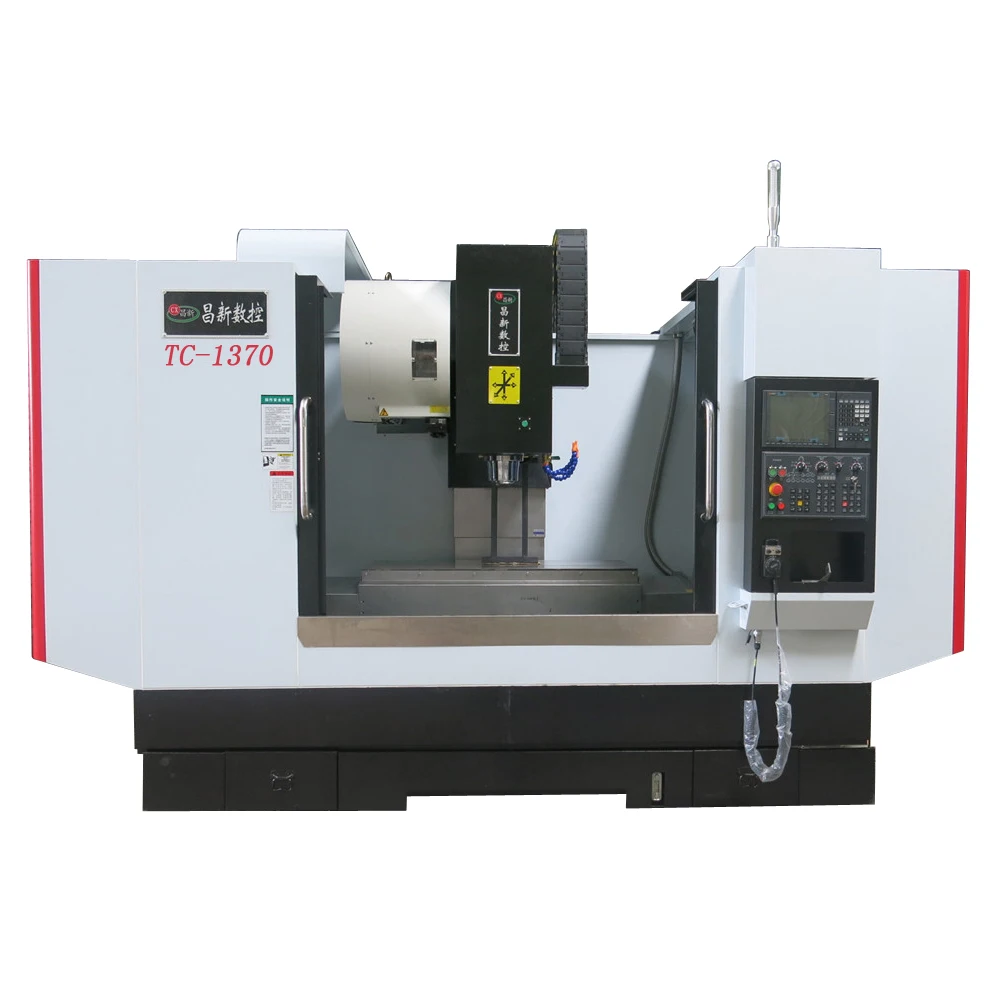

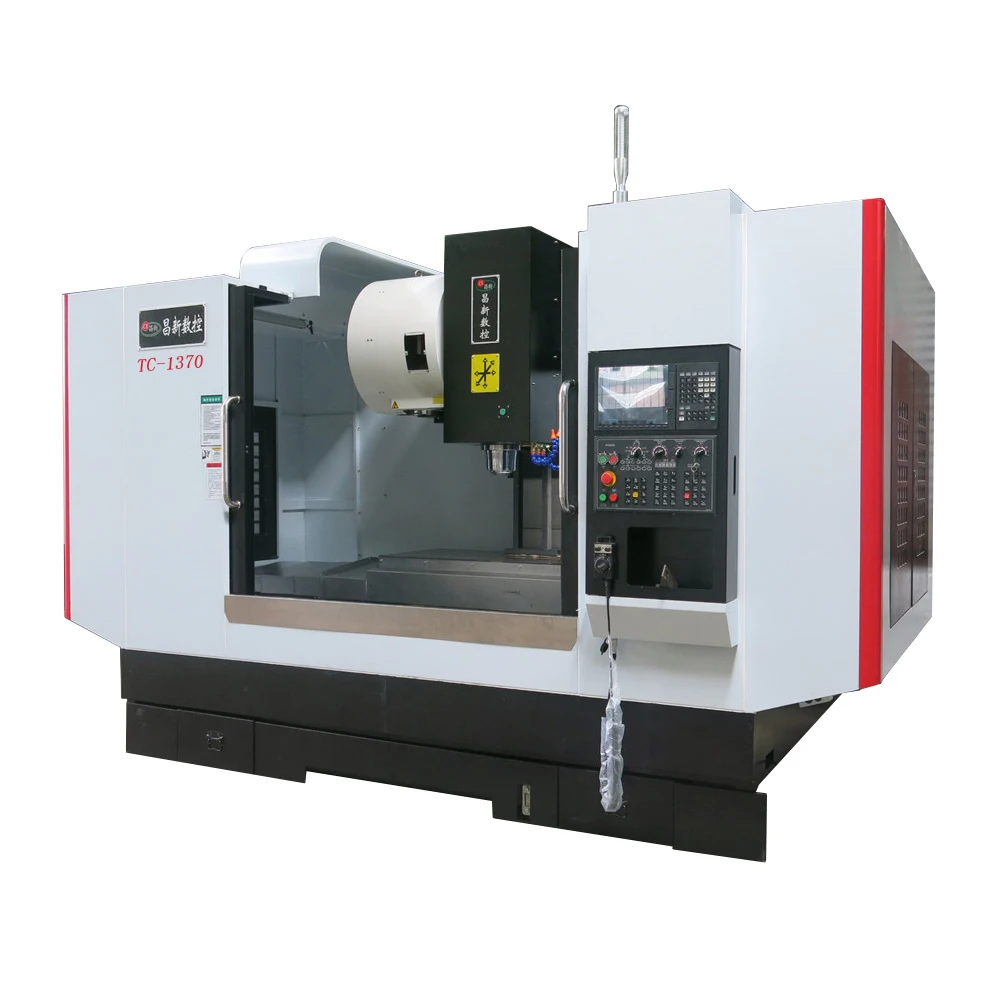

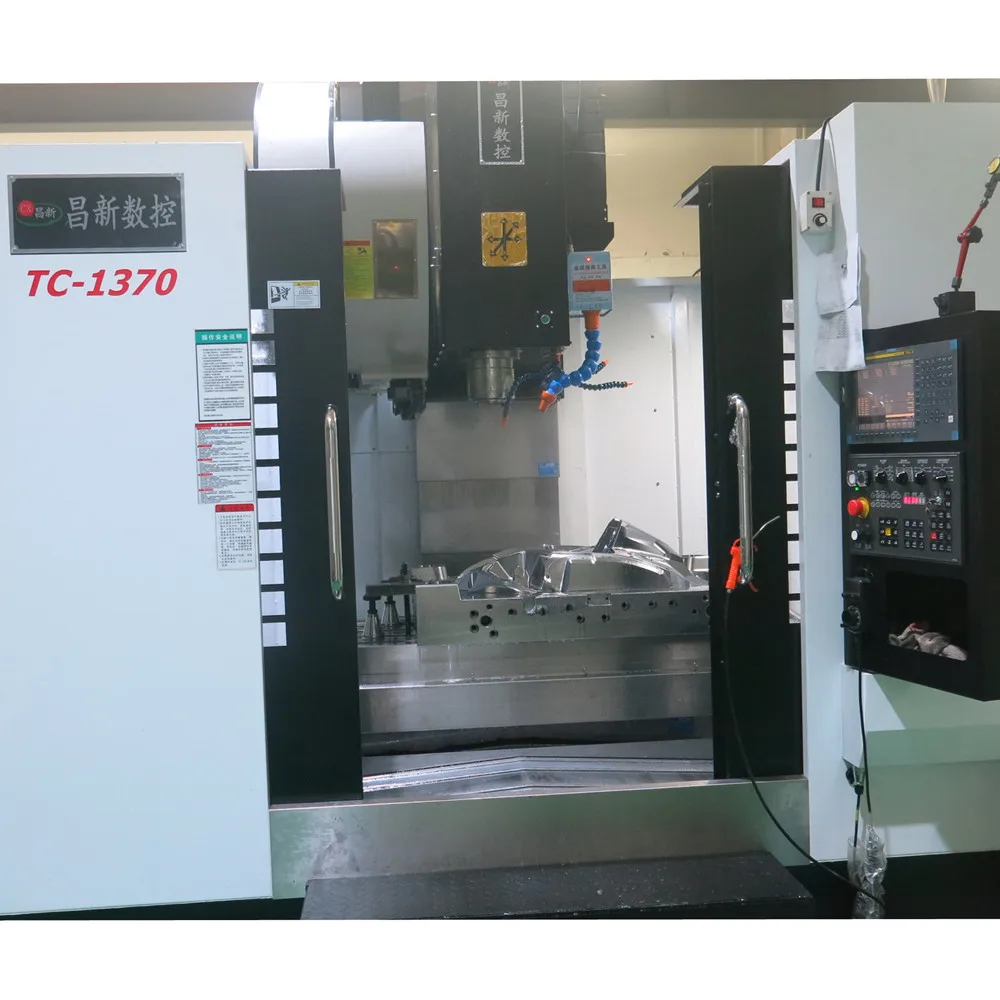

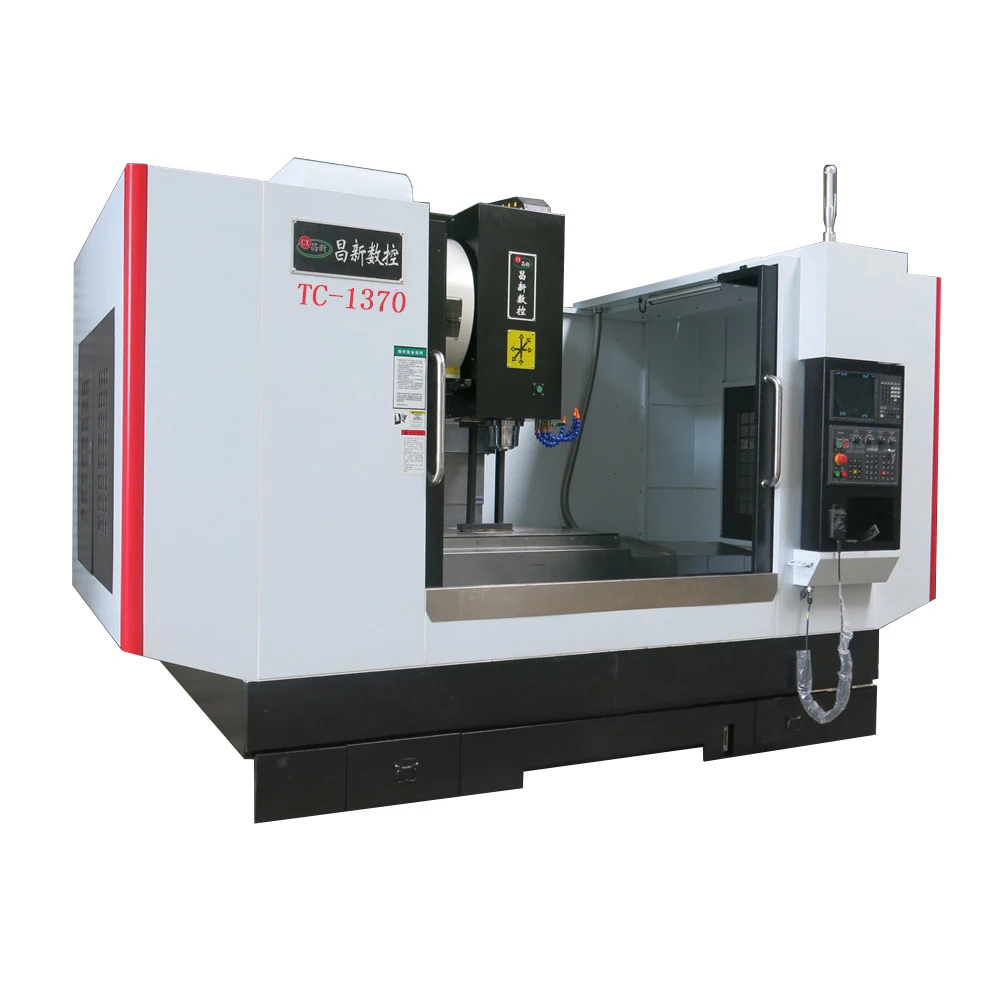

5 axis cnc milling machine center price VMC1370 for molds
- Category: >>>
- Supplier: Dongguan Chansin Hardware Machinery Co. Ltd.
Share on (1600640500644):
Product Overview
Description
Product Overview
5 axis cnc milling machine center price VMC1370 for molds

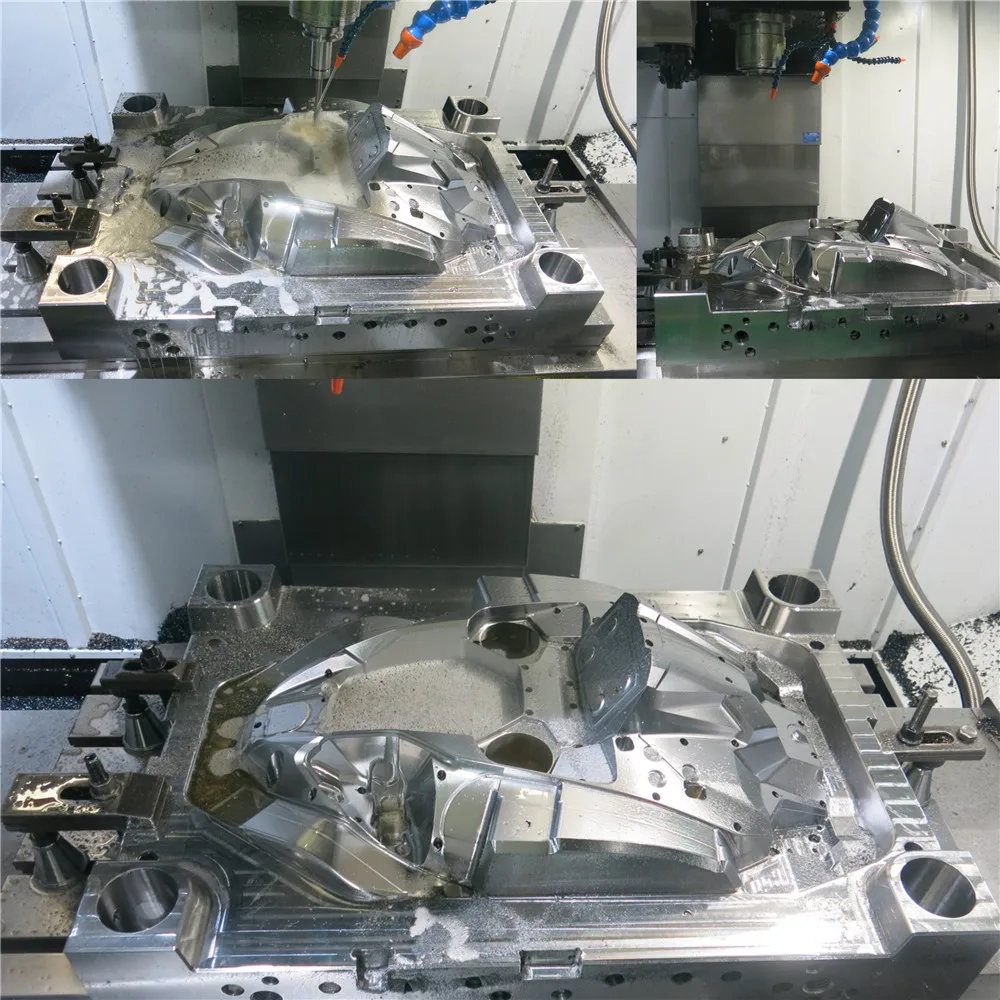

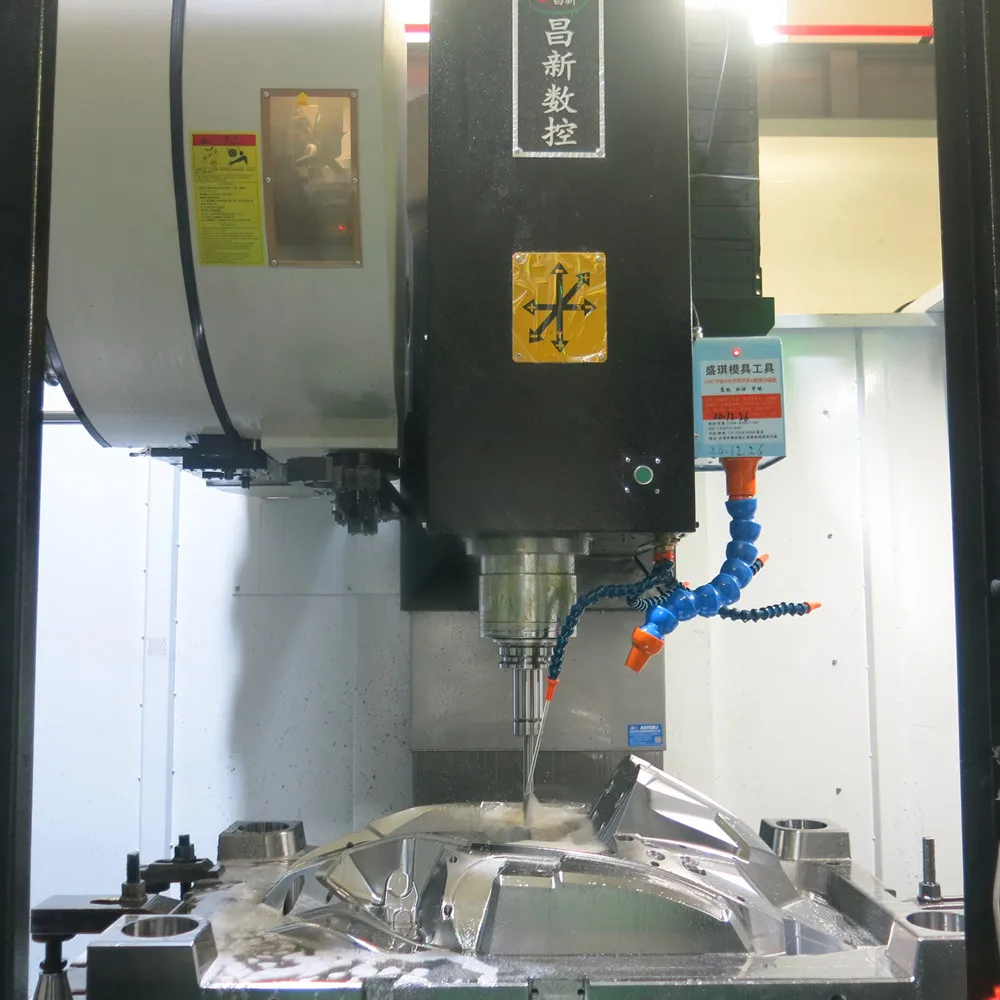

VMC1370 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the medium size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature alloy steel which are difficult for machining.
Suitable to machine large machinery parts, automotive part, mold etc.
With Taiwan high speed spindle to 8000rpm;
High accuracy; High speed; High rigidity; Low noise .
With Taiwan high speed spindle to 8000rpm;
High accuracy; High speed; High rigidity; Low noise .
FEATURES AT A GLANCE
VMC1370 advantages:
Features:
* cast iron high strength body
* Taiwan Syntec,Japan MITSUBISHI,Fanuc, Germany Siemens nc system
* Taiwan spindle BT50 direct connection
* Hiwin/PMI ball screw
* NSK bearing
* HIwin linear guide rails
* The cutting of the cooling system
* Full enclosed guard
* Automatic lubricating system
* Mechanical abnormal alarm trichromatic lamp
* BT50 arm type tool magazine (24 tools capacity)
* cast iron high strength body
* Taiwan Syntec,Japan MITSUBISHI,Fanuc, Germany Siemens nc system
* Taiwan spindle BT50 direct connection
* Hiwin/PMI ball screw
* NSK bearing
* HIwin linear guide rails
* The cutting of the cooling system
* Full enclosed guard
* Automatic lubricating system
* Mechanical abnormal alarm trichromatic lamp
* BT50 arm type tool magazine (24 tools capacity)
X axis
Y axis
Z axis
Taiwan Brand Spindle
8000rpm
Taiwan Brand Tool Magazine
24 tools
Working Table
1500mm*700mm
PRODUCT SPECIFICATIONS
Machine Body | Casting three linear guide ways high-strength body |
Spindle | original import Taiwan WLT / TD, 8000 rpm ,direct connection |
System | Mitsubishi M80A/Fanuc 0i-MF/Taiwan Syntec |
Spindle motor | Mitsubishi /Fanuc/Syntec |
Three-axis motor | Mitsubishi /Fanuc/Syntec |
Automatic lubrication system | pressurized volumetric automatic oiler, automatic balance distribution of lubricants (joint venture Baoteng brand oiler) |
Head balance system | The body comes with a counterweight balancing system |
High pressure chip system | high pressure motor, high pressure flushing (joint venture Sinaer brand water pump) |
Screw | original Taiwan imported Hiwin screw |
Spindle cooling | plus independent oil cooling system (joint venture Ruike brand oil cooler) |
Tool Magazine | Taiwan Sanjie arm type with 24 BT50 tools capacity |
Controller | standard Mitsubishi M80A/Fanuc 0i-MF/Taiwan Syntec color display |
X, Y, Z bearings | standard German FAG or Japan NSK |
Triaxial roller screw | standard Taiwan Taiwan Hiwin / PMI |
Spindle Knife cylinder | Standard Taiwan North Kui / Hao Cheng |
Couplings | Standard Germany BK3 SW*J |
Wind system combined with solenoid valve (triple) | standard joint venture Ogreut |
The main electrical accessories | standard Germany Schneider, Merlin Gerin |
Other air pressure components | standard joint venture Ogreut |
Circuit breakers, relays | standard Germany Schneider, Merlin Gerin |
Electric box air fan | standard joint venture FuRuize |
Transformer | standard joint venture AoHengda |
Work LED lamp | standard Taiwan Ou Si |
Hand control electronic hand wheel | standard Taiwan NEMICON |
Three-axis telescopic shield | standard joint venture Zhenfei |
Full cover | standard joint venture Jiancheng |
X/Y/Z-Axis Travel | 1300/700/700mm |
Distance from Spindle Nose to Table | 190-890mm |
Distance from Spindle Center to Column Guide Rail | 757mm |
Working Table Size | 1500*700mm |
Table Max Load | 1000kg |
T Slot | 5-18*135 |
Spindle Speed | 8000rpm |
Spindle Motor Power | 11-15kw |
X/Y/Z-Axis Motor Power | 3.0/3.0/3.0kw |
Rapid Traverse(X/Y/Z) | 24000mm/24000mm/18000mm/min |
Cutting Speed | 0-10000mm/min |
Spindle Taper Diameter | BT50/155mm |
Positioning Accuracy | ±0.008mm/500mm |
Repeat Positioning Accuracy | ±0.001mm/500mm |
Total Electricity Demand | 25KW |
Machine Size | 3650*3150*2950mm |
Machine Weight | 10.5ton |
Accessories | 1. Tool box (1 set) 2. Tool Holder(2 pcs) 3. Machine operating manual 4. Operation and programming manual 5. Servo Motor and Controller Manual 6. High pressure spray gun(1 pcs) |
Company Profile
FAQ
Q1: How can I choose the most suitable machines ?A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so
on.
Q3: What's the Payment Terms ?
A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q4: What's the MOQ?
A4: 1set
Q5: What's the warranty?
A5: One year.
You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so
on.
Q3: What's the Payment Terms ?
A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q4: What's the MOQ?
A4: 1set
Q5: What's the warranty?
A5: One year.
