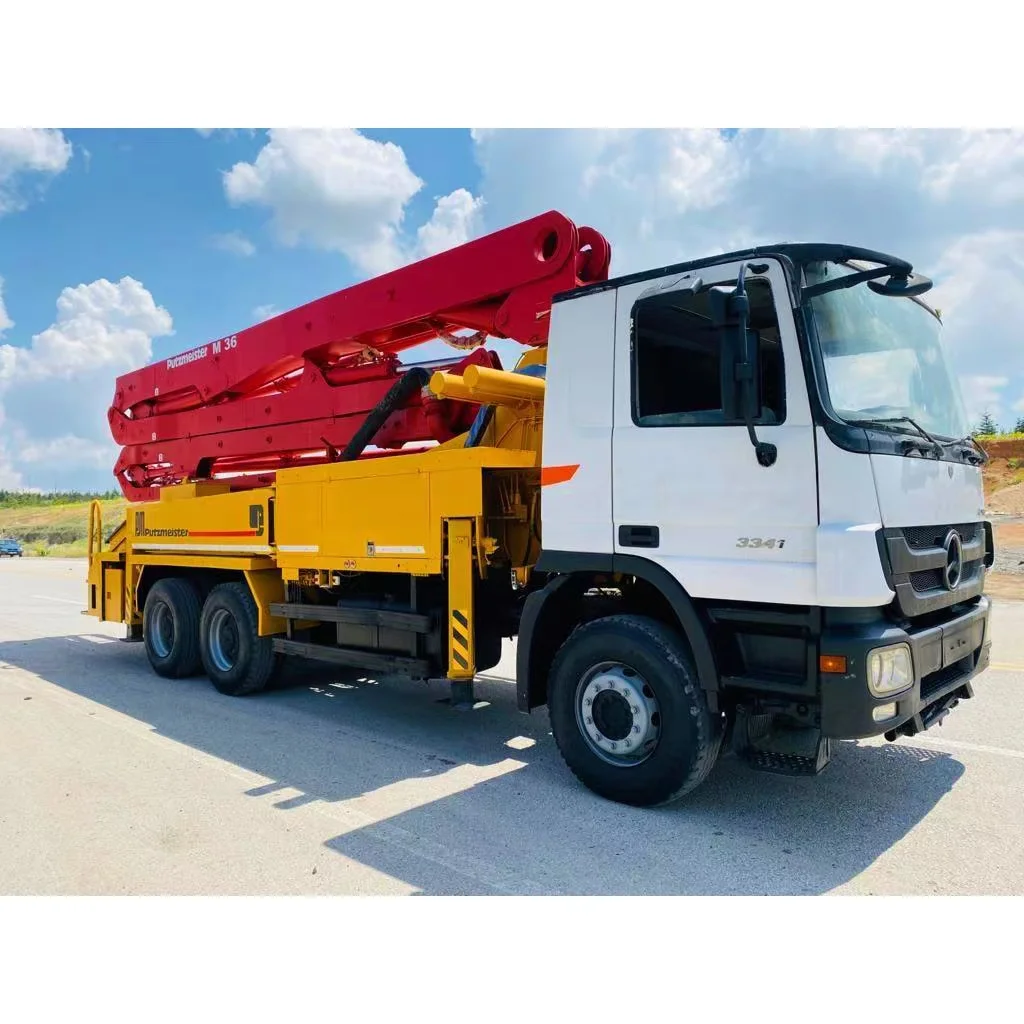

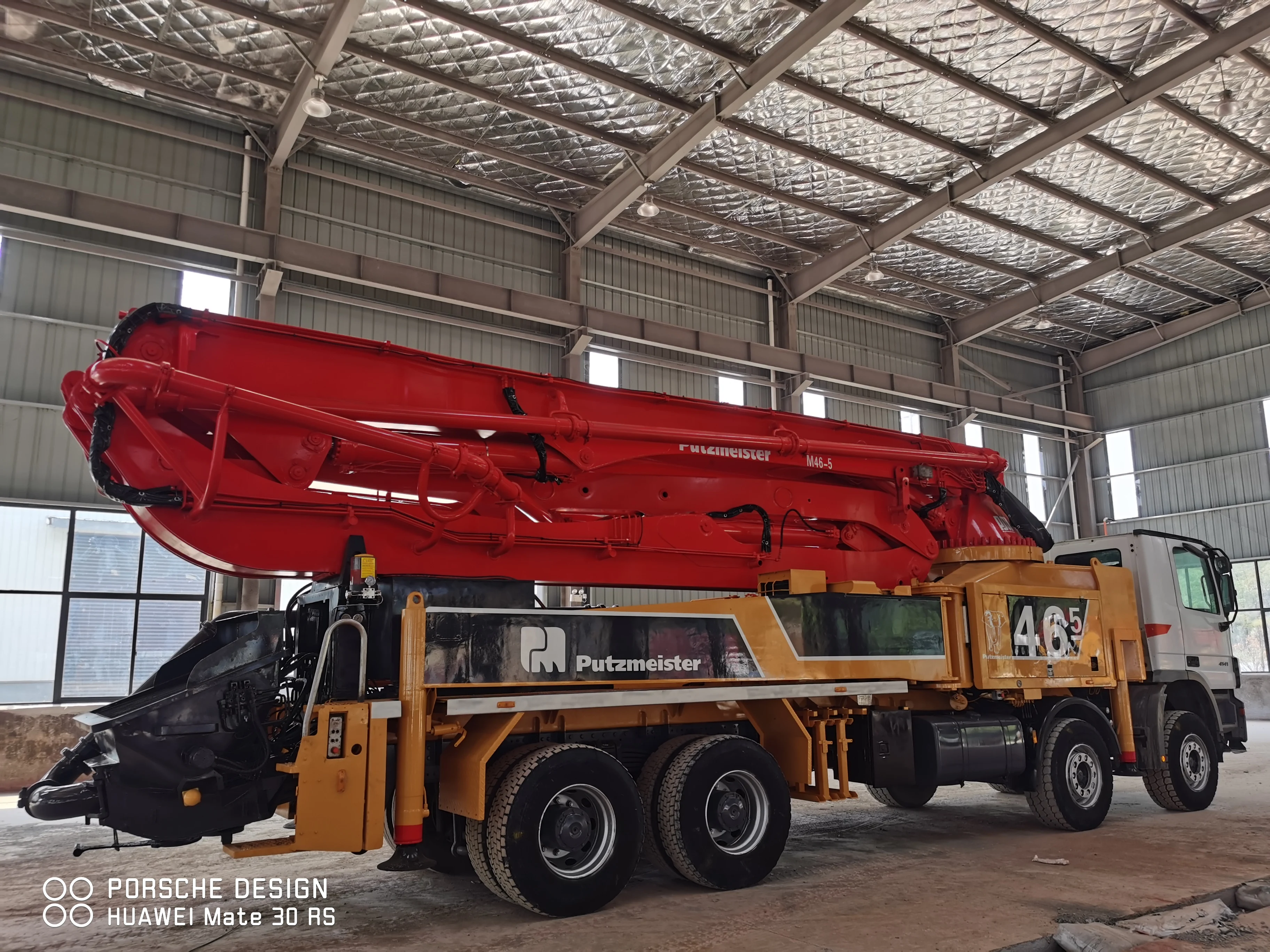

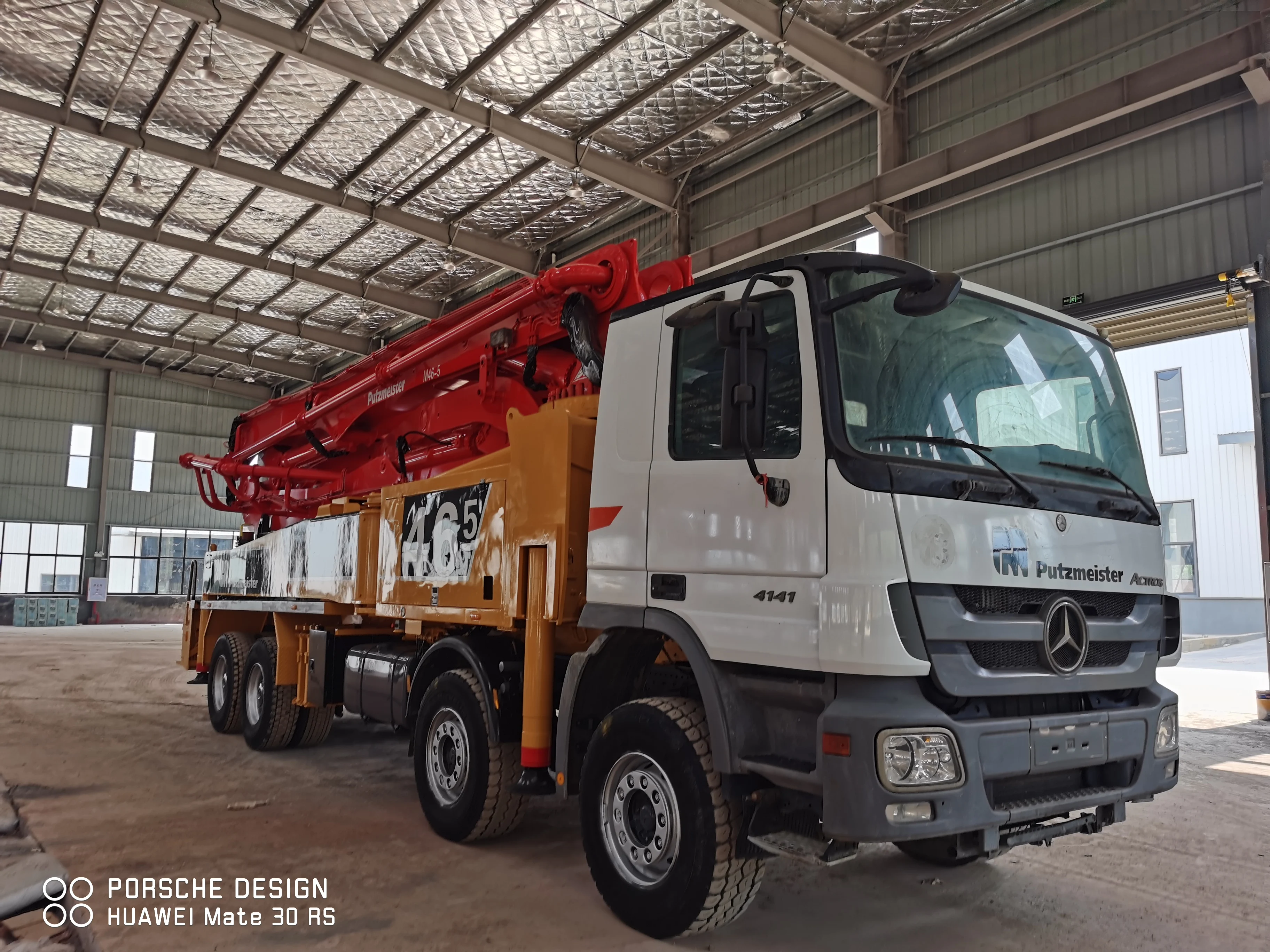

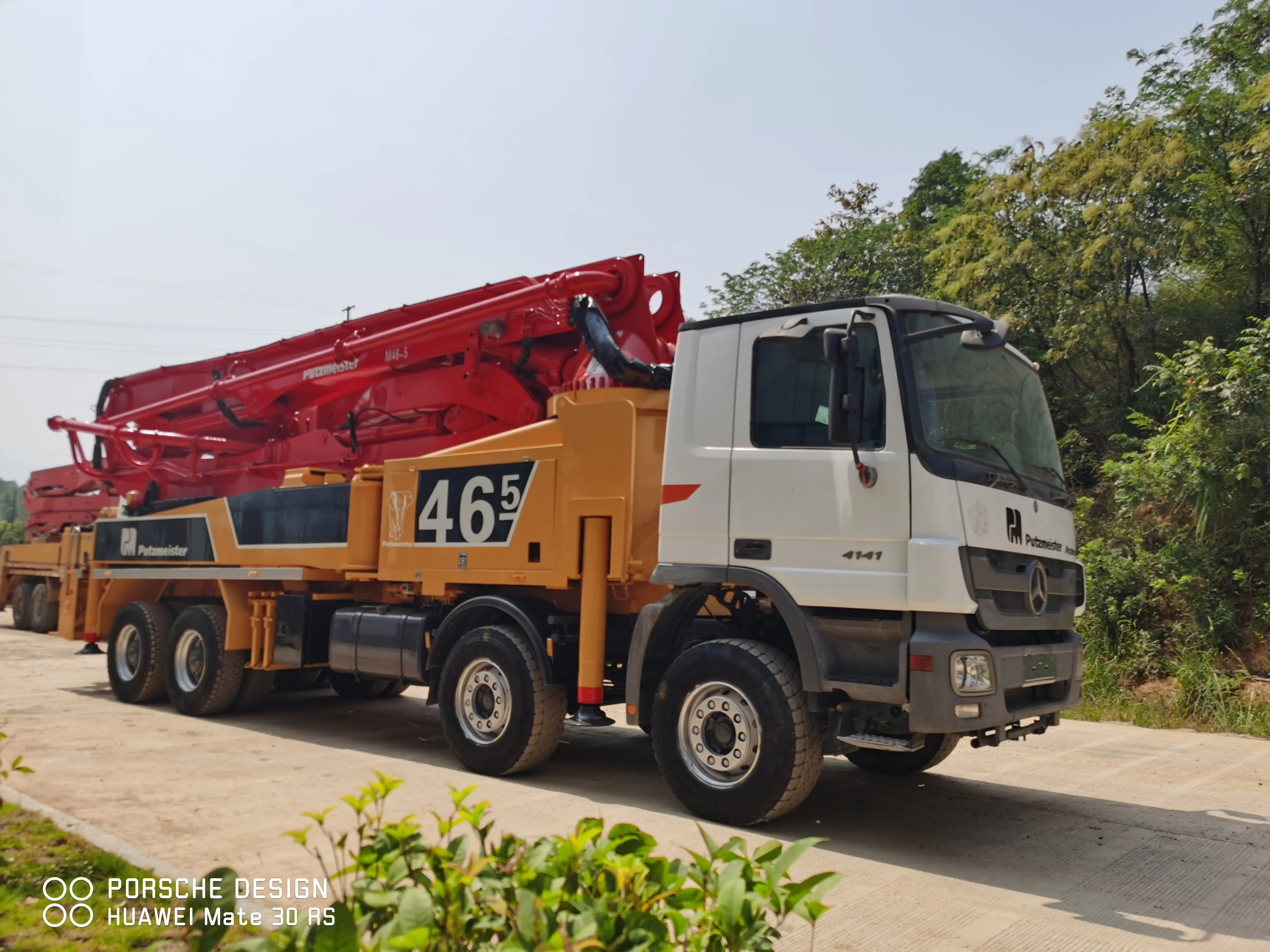

HOT SALE China Trade M47 5 meter Refurbished Pump Used putzmeister Diesel Cement Concrete Pump Truck PUTZMEISTER M46 5RZ
- Category: >>>
- Supplier: Achieve Innovations (Changsha) Co. Ltd.Achieve Ltd.
Share on (1600640512919):
Product Overview
Description

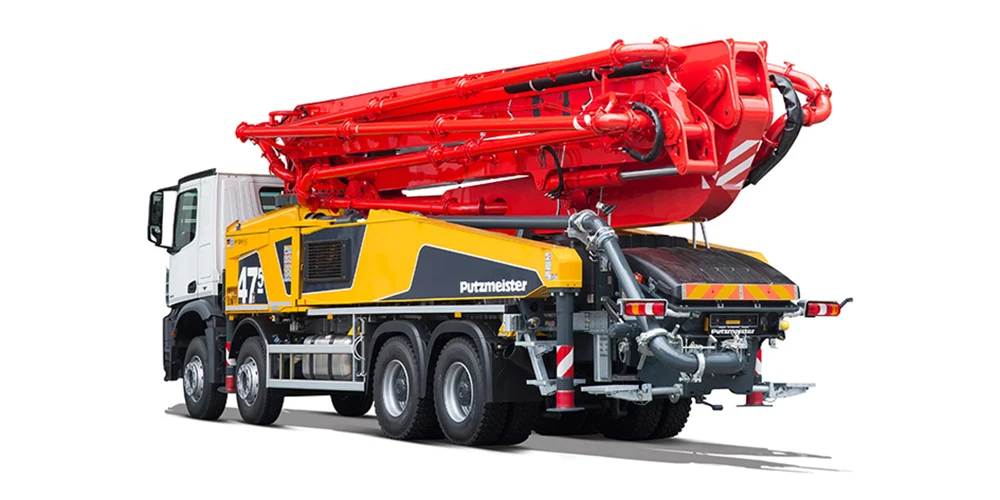

If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations.Different small support Options available:
Europe: ESC with permanent check of permitted arm positions and working ranges
Outside Europe: OSS (One Side Support)
Europe: ESC with permanent check of permitted arm positions and working ranges
Outside Europe: OSS (One Side Support)
Key Features
* Efficient work with Ergonic operating system
* Below 32 t total weight
* Smooth 5-section-boom with Roll Z-Folding
* TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (ESC and OSS, One
Side Support optional)
* Reduced service cost
* Boom tip load 160kg
* Below 32 t total weight
* Smooth 5-section-boom with Roll Z-Folding
* TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (ESC and OSS, One
Side Support optional)
* Reduced service cost
* Boom tip load 160kg

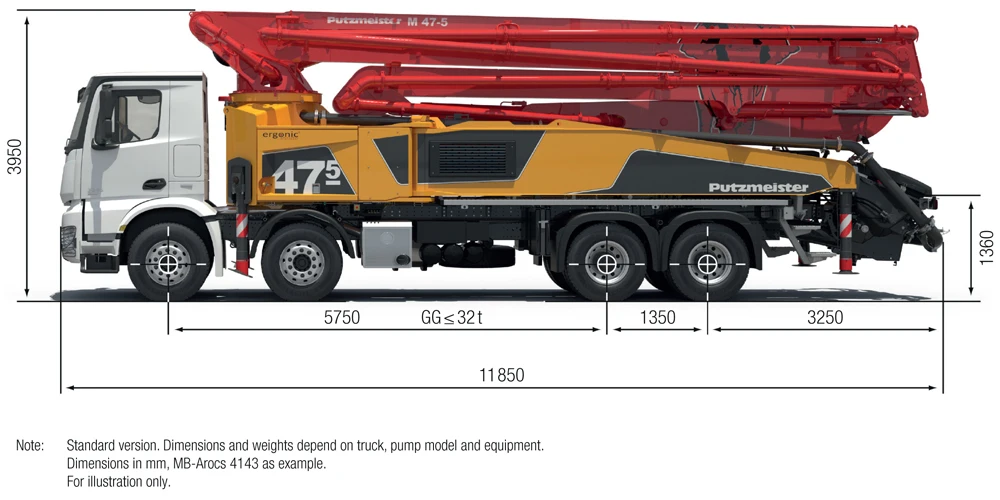

Front elevation
Right elevation
Left elevation
No | General Information | M47-5 | No | General Information | M47-5 |
1 | Arms | 5 | 9 | End Hose - Length | 3m |
2 | Folding Type | RZ-Folding | 10 | Delivery Line (DN, Pressure) | DN125/5.5 / 85 mm/bar |
3 | Vertical Reach | 46.1m | 11 | Support width Standard (front-rear) | 8.7 / 9.6 m |
4 | Horizontal Reach gross | 41.1m | 12 | Support width OSS (front-rear) | 5.6 / 6.9 m |
5 | Horizontal Reach net | 38 m | 13 | Support width ESC (front-rear) | 5.6 / 6.3 m |
6 | Reach Depth | 60kN | 14 | Length x Width x Height | 11.85 x 2.5 x 4 mm |
7 | Engine displacement | 32.4m | 15 | Total Weight (approx.) | under 32000 kg |
8 | Unfolding Height | 11.1m |
→ A reliable supplier in the Concrete Machinery lndustry for Premium Quality China-made products
→ Specializing in Reconditioned Concrete Pumps & Batching Plants & Parts
→ A professional team with more than 15 years experience in Concrete Machinery lndustry
→ Qualified supplier of CEMEX and HANSON group
→ All team members are from ZOOMLION & SANY
→ Exported to 50+ countries
→ Specializing in Reconditioned Concrete Pumps & Batching Plants & Parts
→ A professional team with more than 15 years experience in Concrete Machinery lndustry
→ Qualified supplier of CEMEX and HANSON group
→ All team members are from ZOOMLION & SANY
→ Exported to 50+ countries
VR
Q1:Are you a manufacture or a trading company?
A1:We are a trading company since 2018 year.
Q2:What is your advantage? More than a decade,We have been focusing on concrete pump since.
A2:-Professionally and Highly remanufactured standard for used concrete pump machines.
-Providing competitive price for customer.
-Professional sales service availably.
Q3:What is your main products?
A3:Truck-mounted concrete pump, Concrete pump truck , Concrete line pump,Concrete mixer truck, and Concrete pump spare parts, Crane and Lubricate oil .we have the whole series products you need.
Q4:What kind terms of payment can be accepted?
Q5:What about the deliverv time?
A5:7-30 days after receving the deposit.
Q6:What about the warranty time?
A6:12 months after shipment or 2000 working hours.
Q7:What about the Minimum Order Quantitv?
A7:The MOQ is 1 pcs.
A1:We are a trading company since 2018 year.
Q2:What is your advantage? More than a decade,We have been focusing on concrete pump since.
A2:-Professionally and Highly remanufactured standard for used concrete pump machines.
-Providing competitive price for customer.
-Professional sales service availably.
Q3:What is your main products?
A3:Truck-mounted concrete pump, Concrete pump truck , Concrete line pump,Concrete mixer truck, and Concrete pump spare parts, Crane and Lubricate oil .we have the whole series products you need.
Q4:What kind terms of payment can be accepted?
A4:Normally we can work on T/T term or L/C term.
Q5:What about the deliverv time?
A5:7-30 days after receving the deposit.
Q6:What about the warranty time?
A6:12 months after shipment or 2000 working hours.
Q7:What about the Minimum Order Quantitv?
A7:The MOQ is 1 pcs.
