New Type Smart Semi Automatic PET Blow Molding Machine Plastic Bottles Machine Makers
- Category: >>>
- Supplier: Zhangjiagang Comark Machinery Co. Ltd.
Share on (1600640516443):
Product Overview
Description

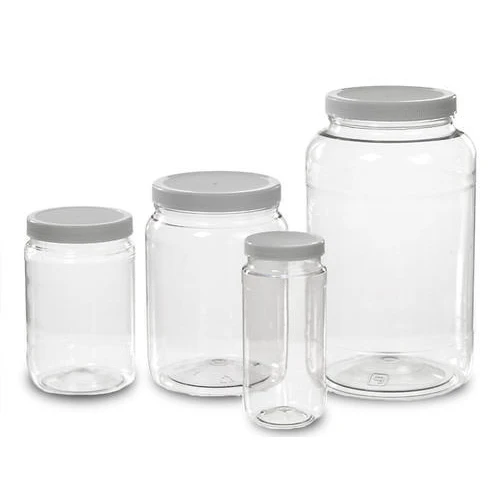

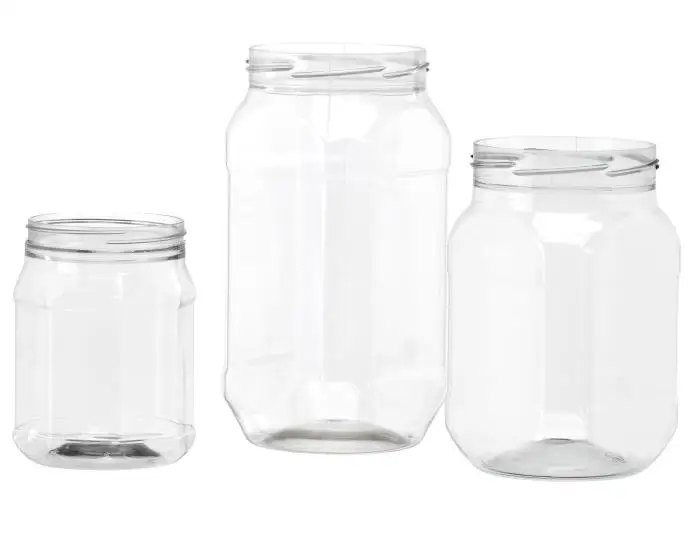

Final Products
Production Description

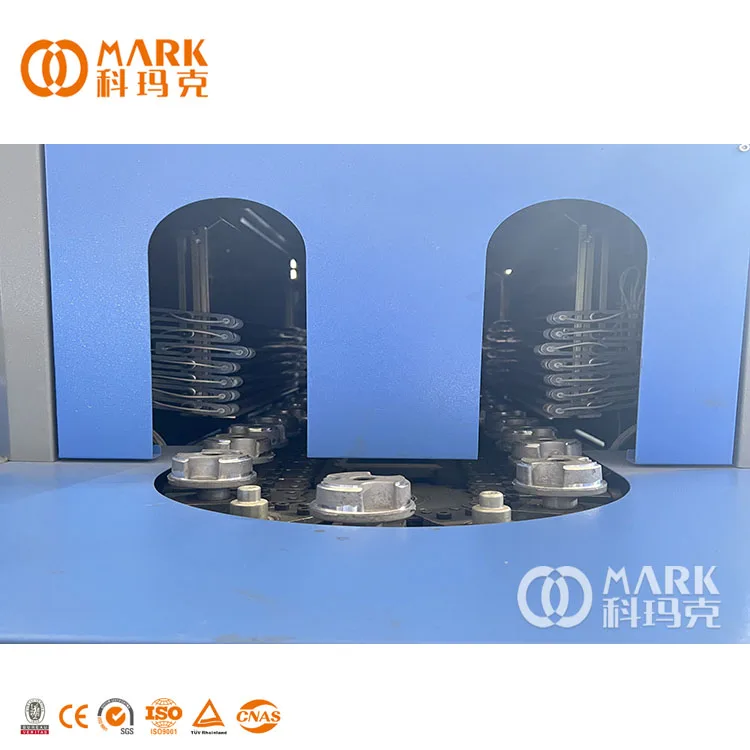

New Type Smart Semi Automatic PET Blow Molding Machine Plastic Bottles Machine Makers
1. It is controlled by imported electrical components, which has the advantages of accurate performance, strong stability and simple operation
2. It has the advantages of low investment, high efficiency, low power consumption, LED lights make the operation very convenient for employees, simple maintenance, and anti-pinch probes to improve the safety performance of the equipment

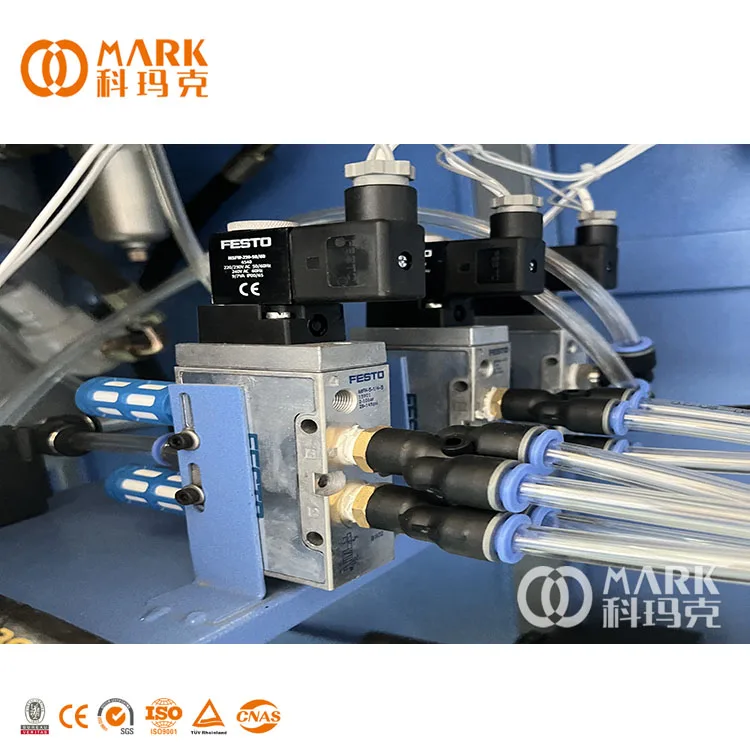

3. The use of famous brand pneumatic components and solenoid valves have high sensitivity, fast switching speed, low failure rate, safe and reliable operation, high control accuracy and fast response

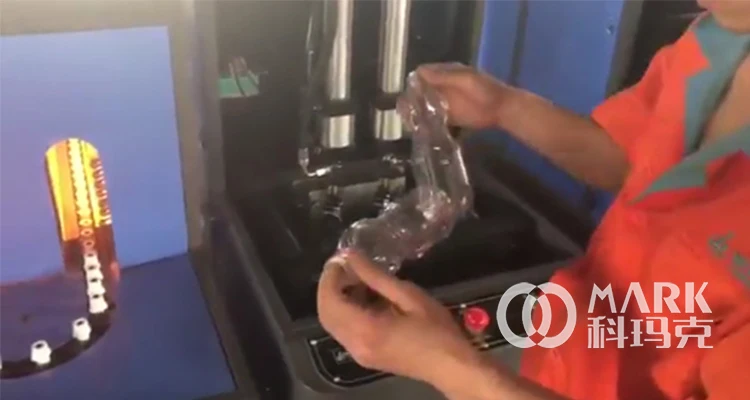

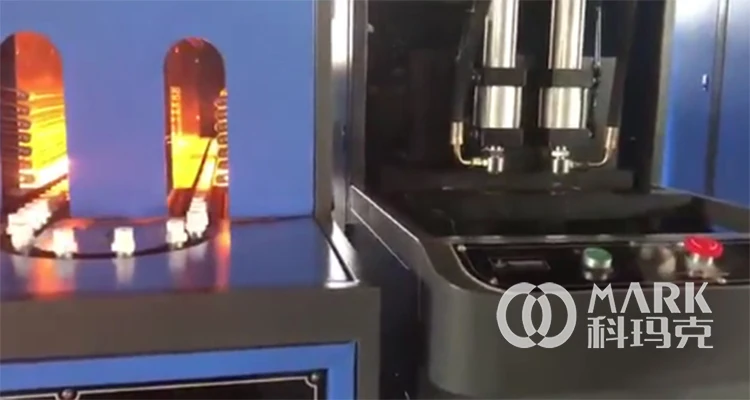

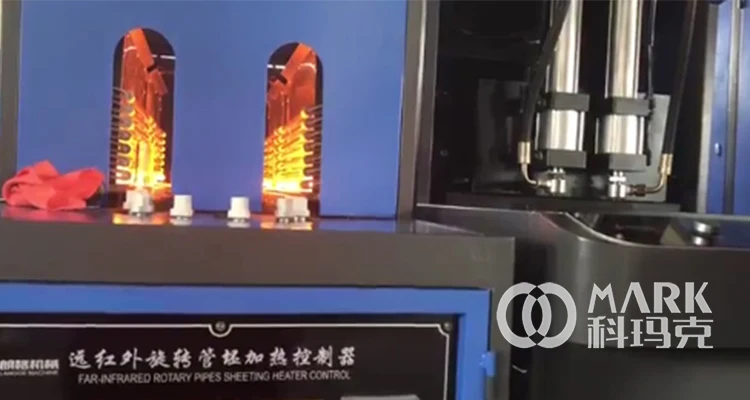

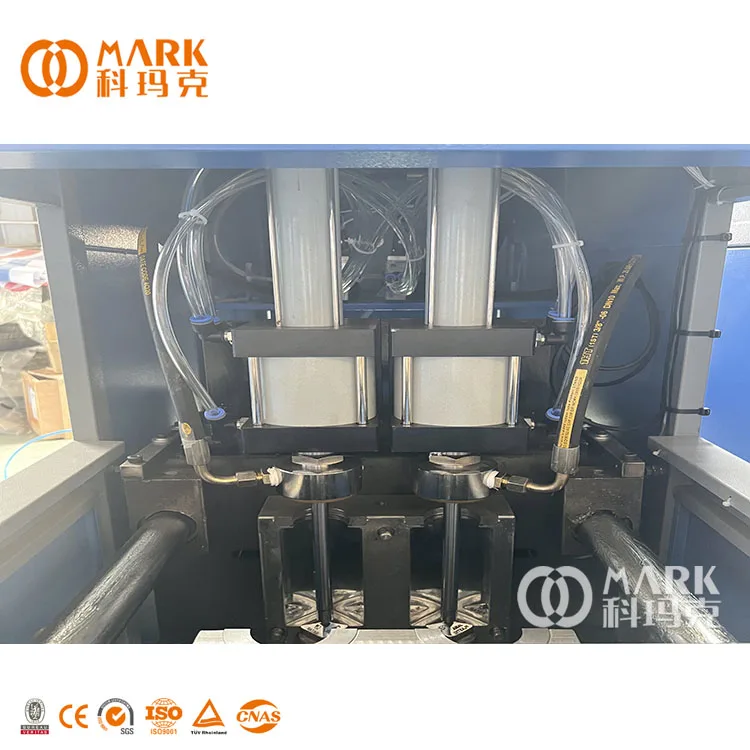

Production Pictures
Project name: Semi-automatic PET bottle blow molding machine

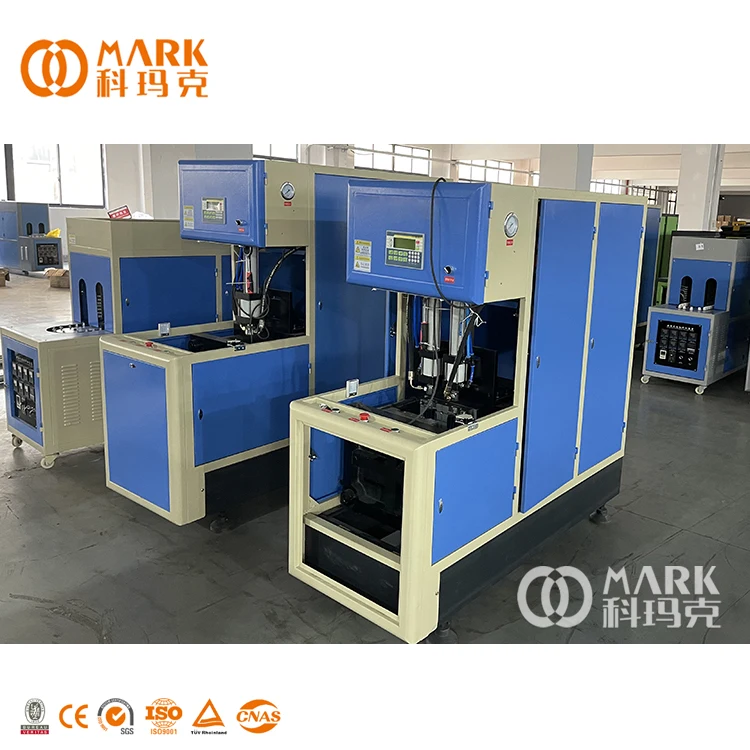

Machine type: Two sets of blowing machine + one set of preform heater
Machine type: Two sets of blowing machine + one set of preform heater
Bottle material: PET
Bottle type: 200 ml-2000 ml
Bottle design: According to customer sample, also we can help to design
Bottle type: 200 ml-2000 ml
Bottle design: According to customer sample, also we can help to design
Item | Specification | ||
Model | CO-2L | ||
Container | Product material | PET | |
Volume | 0.2L-2L | ||
Really output | 1200-1600PCS/H | ||

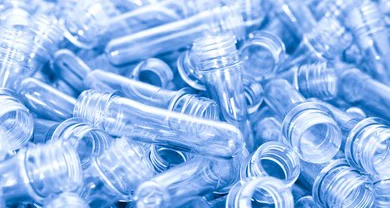

Preform length | 15mm-350mm | ||
Preform inner diameter | φ5mm-38mm | ||
Moulding | Max.mould plate Dimenstion(L x W) | 350x380mm | |
Max.mould thickness | 180mm | ||
Clamping force | 45KN | ||
Mould opening stroke | 160mm | ||
Machine size and weight | Main machine (L x W x H) | 160x60x161cm | |
Main machine weight | 500Kg | ||
Heater (L x W x H) | 187x63x145cm | ||
Heater weight | 250Kg | ||
Power | 17.5kw | ||
Complete Line Equipment
Water treatment system
It is mainly composed of the following equipments:
1> Pre-treatment system (water tank / multi-medium filter / active carbon filter / ion exchanger / precious filter)
2> Membrane separation system (ultrafilter / nanometer filter / RO reverse osmosis system)
3> Electrodialysis device / Sterilization system (UV device, ozone device) product water tank and so on.
1> Pre-treatment system (water tank / multi-medium filter / active carbon filter / ion exchanger / precious filter)
2> Membrane separation system (ultrafilter / nanometer filter / RO reverse osmosis system)
3> Electrodialysis device / Sterilization system (UV device, ozone device) product water tank and so on.
4> Used for pure water, mineral water and other bottled water，water for food and beverage production.
Bottle washing filling and capping machine
1> Water filling line production capacity is usual in 1,000-36,000bph, 0.25-2.5L PET bottles are available.
2> Water filling line can apply to fill natural spring water, purified water, carbonated water, flavored water into PET bottle by changing few spare parts.
3> Automatic water filling machine adopts rinsing, filling and capping 3-in-1 technology, PLC control, touch screen. It is mainly made of SUS304/ SUS316.
4> Pivotal electrical parts adopt Mitsubishi, OMRON, and SIEMENS for water filling production line.
5> The whole production filling line accuracy is more or less than 1%.
2> Water filling line can apply to fill natural spring water, purified water, carbonated water, flavored water into PET bottle by changing few spare parts.
3> Automatic water filling machine adopts rinsing, filling and capping 3-in-1 technology, PLC control, touch screen. It is mainly made of SUS304/ SUS316.
4> Pivotal electrical parts adopt Mitsubishi, OMRON, and SIEMENS for water filling production line.
5> The whole production filling line accuracy is more or less than 1%.
Shrink sleeve labeling machine
1> The mainly used for container labeling cylindrical, square or other special shapes of detergents, beverages, mineral water, food, etc.
2> Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.
2> Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.
3> High speed, high accuracy, stable performance.
4> Easy to operate and look elegant appearance.
4> Easy to operate and look elegant appearance.
Auto shrink packing machine
1> Compact &artistic shape. The frame is novel, unique.
2> Electronic induction feeding film, action is balanced and quickly replacing film.
3> Isothermal sealing cutter .The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.
4> Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.
5> The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
2> Electronic induction feeding film, action is balanced and quickly replacing film.
3> Isothermal sealing cutter .The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.
4> Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.
5> The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
Control System
S/ N | Name | Brand | Country |
1 | Main motor | ABB | Switzerland |
2 | Inverter | MITSUBISHI | Japan |
3 | PLC | OMRON | Japan |
4 | Touch screen | MITSUBISHI | Japan |
5 | Contactor | SCHNEIDER | France |
6 | Thermo-relay | SCHNEIDER | France |
7 | Air-break switch | SCHNEIDER | France |
8 | Proximity switch | TRUCK | USA |
9 | Photoelectric switch | BANNER | USA |
10 | Air circuit system | SMC | Japan |
11 | Water pump | Southern | China |
Successful Production Video
Why Choose Us
Zhangjiagang Comark Packaging Machinery Co.,ltd
Zhangjiagang Comark Packaging Machinery Co., Ltd. is located in Zhangjiagang Economic Development Zone on the Bank of the Yangtze River. It has an international standard plant of 20000 square meters. It is an enterprise specializing in the R & D and production of beverage packaging machinery.Our team has more than 20 professional technical R & D personnel, 2 doctors of food science and technology, 5 masters and 15 senior professional engineers. This provides a favorable guarantee for the stable operation of the machine with high output. Our company's equipment is of high quality and can operate stably.We have more than 15 years of packaging experience. We understand market supply and demand and can provide market analysis, project budget, equipment and technology configuration, machines installation and operator training, etc. We always provide turnkey solutions and related services.
FAQ
Q:How to find COMARK Machinery?
A:Search Alibaba, Made in China, Google, Youtube and find suppliers and manufacturer and not traders
Visit exhibition in different countries
Send Comark Machine an request and tell your basic inquiry
Comark Machine sales manager will reply you in short time and add instant chatting tool
Q:If we purchase machines, what can you provide for us?
A1:We can provide whole solutions.We have professional engineer who analysis production demand based on customer market demand and customer budget .
Visit exhibition in different countries
Send Comark Machine an request and tell your basic inquiry
Comark Machine sales manager will reply you in short time and add instant chatting tool
Q:If we purchase machines, what can you provide for us?
A1:We can provide whole solutions.We have professional engineer who analysis production demand based on customer market demand and customer budget .
A2:We have the bottle shape design according to customer inquire. We also can provide the machines layout for you according your factory figure plan.
A3:We will send our professional engineer to your factory as soon as you get all your machines ready, for installation, testing and teaching your technicians how to run the machines.
Q:When can I get my machine after I paid?
A:We will deliver the machines on time as the date we agreed both side. Normally production time is around 35-75 days. The exact time depends on what kinds of machine you ordered. The shipping time is based on your destination port.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you. You can come to China.Check it!
Q:When can I get my machine after I paid?
A:We will deliver the machines on time as the date we agreed both side. Normally production time is around 35-75 days. The exact time depends on what kinds of machine you ordered. The shipping time is based on your destination port.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you. You can come to China.Check it!
Q:What's your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
A:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
