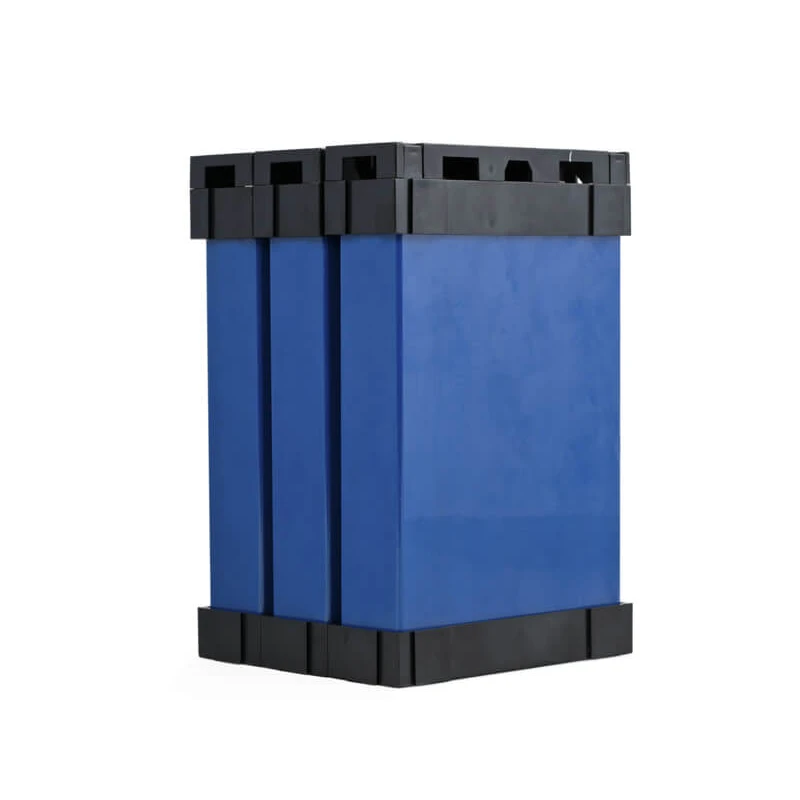

Lithium iron Phosphate Battery Cell 3.2V 105Ah 200Ah 230Ah 280Ah Bateria LiFePO4
- Category: >>>
- Supplier: Kowint Energy (shenzhen) Co. Ltd.
Share on (1600640525406):
Product Overview
Description
Specification
Item | Value | Note |
Cell Brand | REPT | |
Nominal Capacity | 230Ah | 1C@RT |
Nominal Voltage | 3.2V | |
Actual Voltage Range | 2.5-3.65V | |
Max. Continuous discharge current | ≤230A | Standard Value=115A |
Peak Discharge Current | ≤460A | @60s，SOC≥20% |
Max. Continuous charge current | ≤230A | Standard Value=115A |
Peak Charge Current | ≤460A | @60s，SOC≤80% |
Operating Temperature | Charge : 0℃~55℃ Discharge: -30℃~55℃ | |
Storage Temperature | -30℃~60℃ | |
Cell Dimensions | Thicknes: 53.7+1.5mm / -0.5mm Width: 173.9±0.5mm Total height: 204.6±0.6mm | |
Cathode Material | LFP | |
Weight | 4.09±0.12kg | |
Energy density | 180Wh/kg | |
Cycle life | ≥4000 times |
Product Description

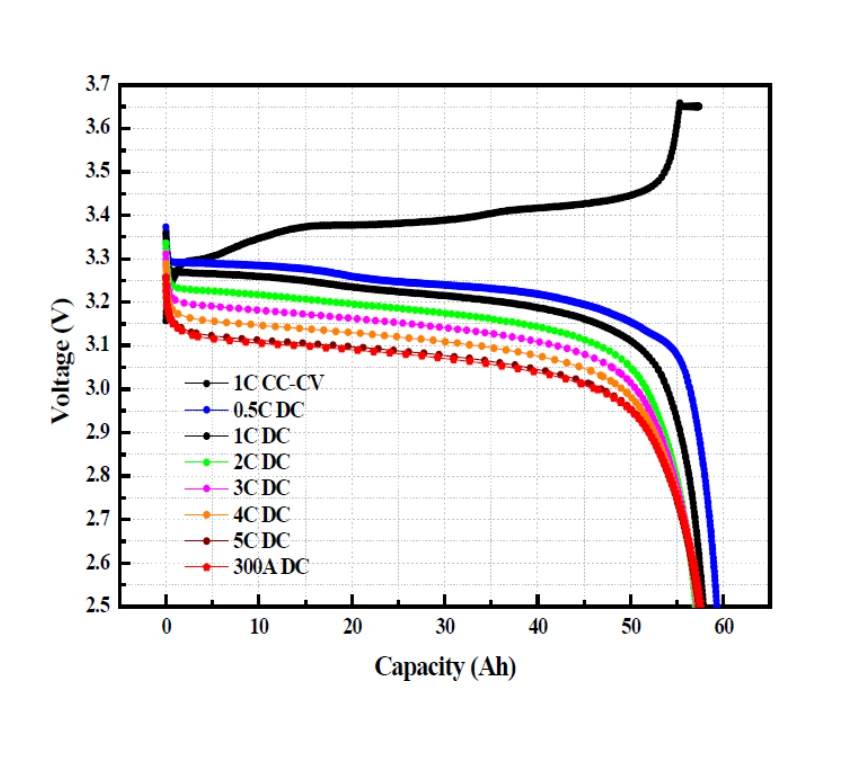

Cell Curve

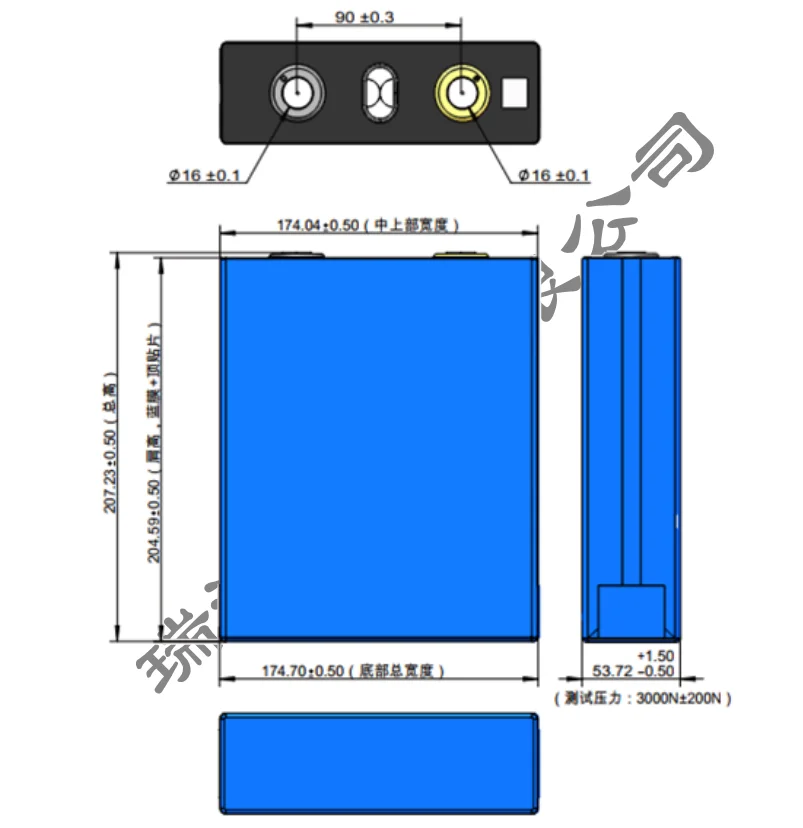

Dimension
Recommend Products
Company Profile
KOWINT ENERGY (SHENZHEN) CO., LTD. established in 2014, is a high-tech enterprise focusing on the R&D, design, production and sales of lithium battery energy storage systems, BMS, EMS and lithium battery modules.
We have continuous independent innovation capabilities, excellent lithium battery module development & design abilities and advanced manufacturing technology. Our products have passed UL, CE, ROHS, TUV, PSE and other related certifications, our factory has passed ISO9001 and ISO14000 system certification.
We have continuous independent innovation capabilities, excellent lithium battery module development & design abilities and advanced manufacturing technology. Our products have passed UL, CE, ROHS, TUV, PSE and other related certifications, our factory has passed ISO9001 and ISO14000 system certification.
Production Process
Cell sorting
Preload section
Polarity test
Highly automated laser spot welding
Welding Section
Integration section
Dielectric Withstand Voltage Test
Packing
Aging test
Automated production lines are equipped with MEX systems, traceable to every production link of every product
100% Aging Test & Connection Test for each battery before leaving the factory
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
