fan water spray,nozzle sprayer v nozzle 11005
US $1.40-$1.54

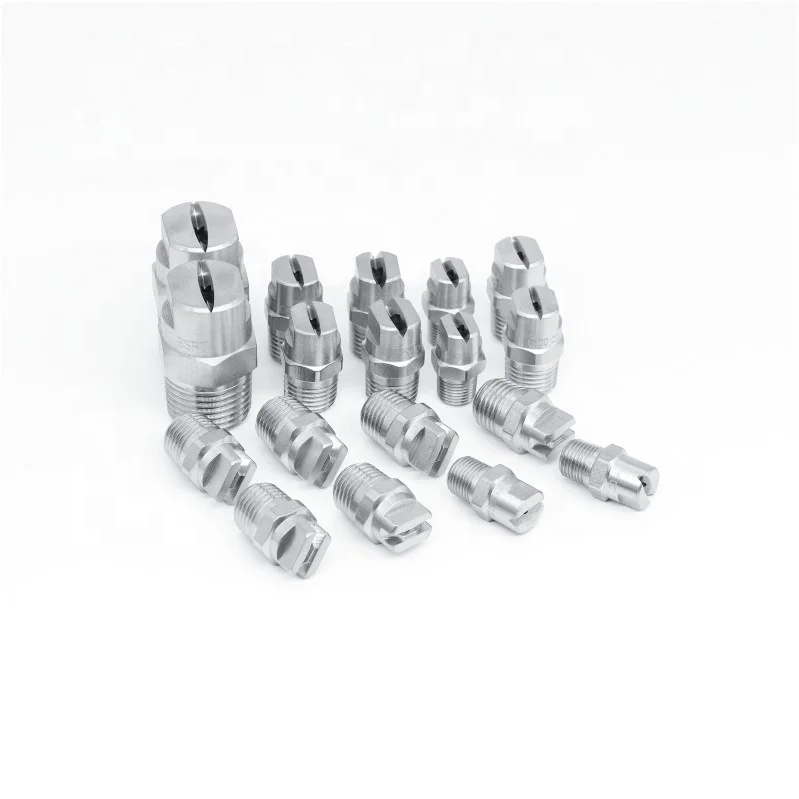

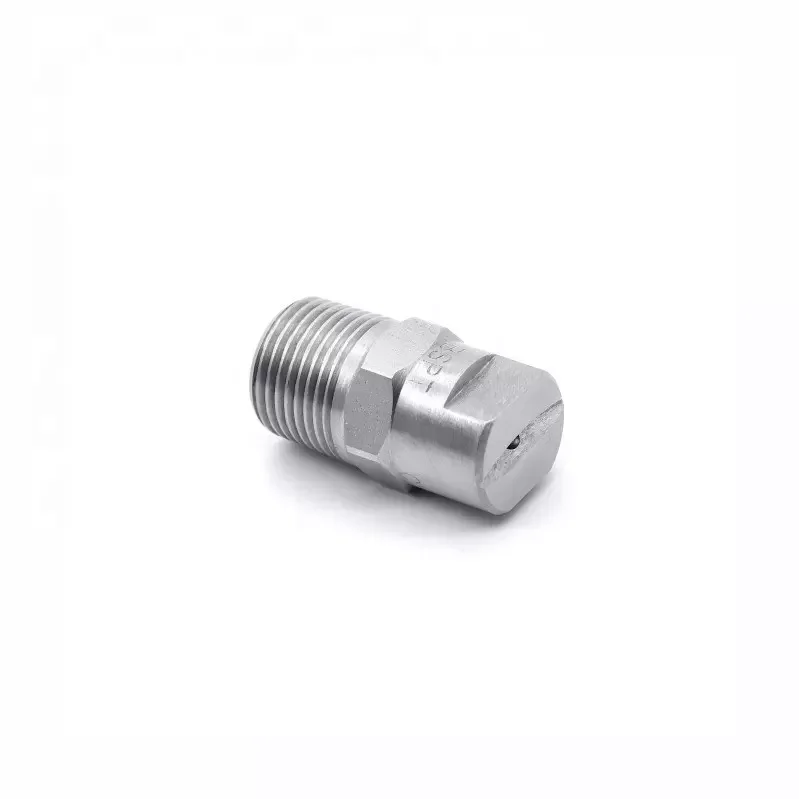

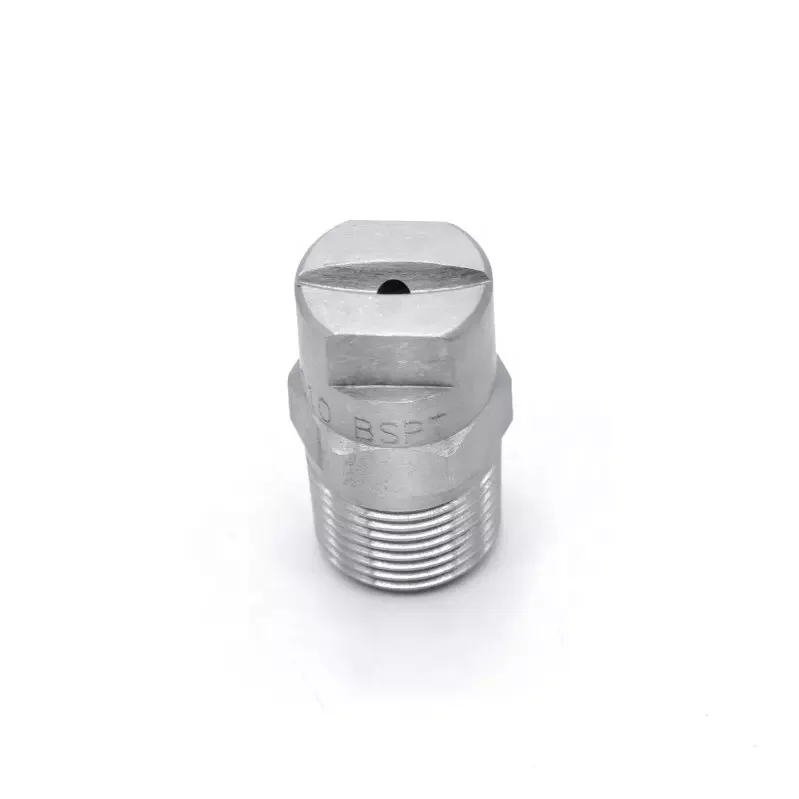

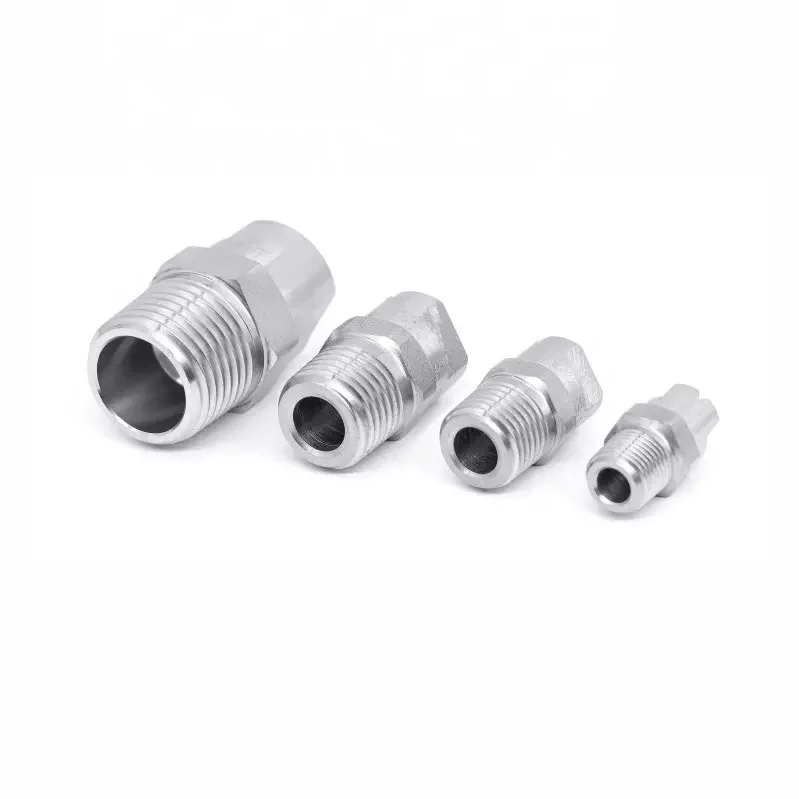

CYCO 1/4 1/8 3/4 3/8 Brass 303SS 316SS Stainless Steel Flat Fan Spray Nozzle NPT and BSPT
- Category: >>>
- Supplier: Dongguan Changyuan Spraying Technolgoy Co. Ltd.
Share on (1600640537604):
Product Overview
Description
Products Description
Features：
CC flat fan spray nozzles feature a high impact solid steam or a flat fan spray pattern with the spray angles between
0°- 110°. They produce a uniform distribution of small to medium sized drops. Properly aligned, the specially tapered spray edges make a evenly coverage. CC and CC-L series nozzles have external piping thread connector and their flow rate are lower than 3.9L/min at 3 bar. Inner strainer is available for CC-L Series nozzle with male connector only. Standard flow rates of CC-N and CC-M Series are 3.9L/min or larger at 3 bar. All have external piping thread connector.
█ One-piece/heavy construction
0°- 110°. They produce a uniform distribution of small to medium sized drops. Properly aligned, the specially tapered spray edges make a evenly coverage. CC and CC-L series nozzles have external piping thread connector and their flow rate are lower than 3.9L/min at 3 bar. Inner strainer is available for CC-L Series nozzle with male connector only. Standard flow rates of CC-N and CC-M Series are 3.9L/min or larger at 3 bar. All have external piping thread connector.
█ One-piece/heavy construction
█ Straight-through orifice minimizes clogging
█ Machined from bar stock to exacting standards
Application:
1. Chemical cleaning
2. Product washing / rinsing
3. Pressure cleaning
4. Cooling and quenching
5. Fire suppression /prevention
6. Fire fighting
7. Net blanket low pressure cleaning
8. Spray coating
9. Roller and scraper ordering
█ Machined from bar stock to exacting standards
Application:
1. Chemical cleaning
2. Product washing / rinsing
3. Pressure cleaning
4. Cooling and quenching
5. Fire suppression /prevention
6. Fire fighting
7. Net blanket low pressure cleaning
8. Spray coating
9. Roller and scraper ordering
Specification
Product name | CC Flat fan spray nozzle |
Material | Stainless Steel and Brass |
Thread size | 3/8", 1/2",3/8",3/4",1-1/4",1-1/2",2" |
Thread type | BSPT,NPT |
Spray pattern | flat fan |
Pressure | 0.3-35 Bar (4-508 Psi) |
Capacity | 0.1-540 L/min |
Spray angle | 0° - 110° |
Drop size | 100-300μm |
Application | 1. Chemical cleaning 2. Product washing / rinsing 3. Pressure cleaning 4. Cooling and quenching 5. Fire suppression / prevention 6. Fire fighting 7. Net blanket low pressure cleaning 8. Spray coating 9. Roller and scraper ordering |

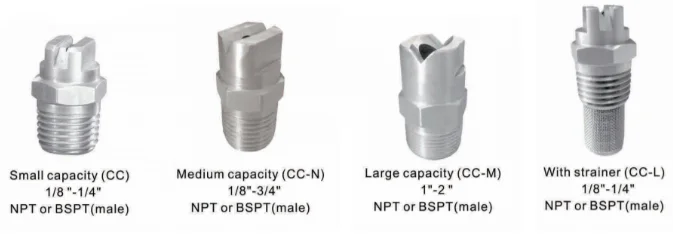

Available Models.
This CC series flat fan nozzle have 4 different flow rate for your choice: CC-small, CC-middle, CC-large, CC with strainer. Youcan choose the right one according to your requirement.

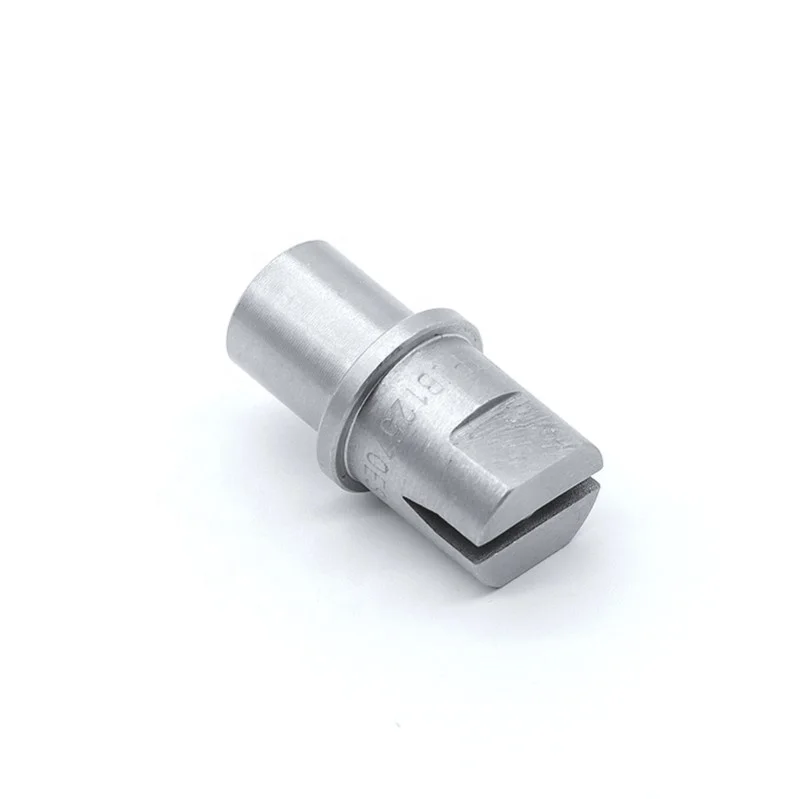

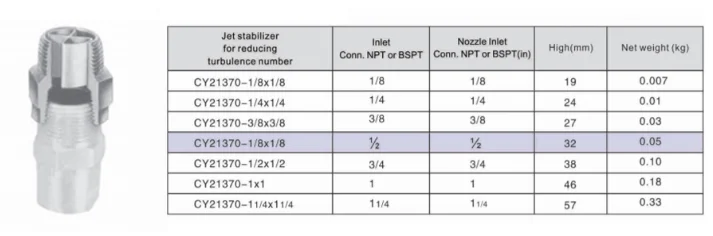

Jet stabilizers
Jet stabilizers installed in the heads of flat fan spray nozzle increase the spray distance and the durative power. When spray nozzles are installed on T-shaped pipe, branching pipe or bend pipe and the fluid swerve into the nozzle, turbulence occurs, which diffuses the jet flow. The stabilizer minimizes the diffusion and concentrate the jet flow through a thinner and stable way,offering a better performance in jet distance and durative power.
Jet stabilizers installed in the heads of flat fan spray nozzle increase the spray distance and the durative power. When spray nozzles are installed on T-shaped pipe, branching pipe or bend pipe and the fluid swerve into the nozzle, turbulence occurs, which diffuses the jet flow. The stabilizer minimizes the diffusion and concentrate the jet flow through a thinner and stable way,offering a better performance in jet distance and durative power.
Spray Pattern
This CC series stainless steel nozzle features a flat fan pattern, see the effect below.
This CC series stainless steel nozzle features a flat fan pattern, see the effect below.
Company Profile
Dongguan Changyuan Spraying Technology Co.,Ltd
Dongguan Changyuan Spraying Technology Co., Ltd. which was found in the year 1997 is a professional Hi-tech Spraying
&Purification company with branches in Beijing, Shanghai and Shenzhen. We specialize in manufacturing and selling of spray nozzle products and accessories. Our company has ISO9001, ISO14001, IATF 16949, and SGS Certificates. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Rich experience in massive production of spray nozzle products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its highest quality, short lead-time, fast delivery, and timely after-services.
&Purification company with branches in Beijing, Shanghai and Shenzhen. We specialize in manufacturing and selling of spray nozzle products and accessories. Our company has ISO9001, ISO14001, IATF 16949, and SGS Certificates. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Rich experience in massive production of spray nozzle products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its highest quality, short lead-time, fast delivery, and timely after-services.
CYCO offers a wide range of highly competitive spray nozzle products. Our main products include spray nozzle,water
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle. Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and so on.And our products have been exported to many foreign countries, such as USA, German, England, Japan, Korean,Russia,India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
mist nozzle, tank wash nozzle, dry fog humidifier, air atomizing nozzle, fire fighting nozzle, dry fog nozzle, flat fanspray
nozzle, hollow cone nozzle, full cone nozzle, spiral nozzle, oil burner & snow making nozzle, spiral nozzle, plastic nozzle,pulp and paper nozzle. Our products are widely used in washing, cooling, dust control, fire protection, spraying, coating, surface treatment and so on.And our products have been exported to many foreign countries, such as USA, German, England, Japan, Korean,Russia,India,UAE,Brazil and many other countries. We have established long-term cooperation with our partners in these countries.
Advanced Production Equipments:
8 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good for preliminary machining (less orifice).
9 Drilling Machines.2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
2 Laser marking machines.
8 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good for preliminary machining (less orifice).
9 Drilling Machines.2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
2 Laser marking machines.
Ordering process
Transportation
FAQ
Q1. Can you help me with my project?
-Yes, of course. Let us help you to design the right misting system for you. Send to us an email with description, drawings, pictures of the area you want to cool/mist and we'll send you a quote for free.
Q2. Can I have a sample order for this nozzle?
-Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
Q4. How do you ship the nozzles and how long does it take to arrive?
-We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
-Yes, we offer 3 months warranty to our formal products.
Q6. How to order?
-Step 1 : send an inquiry
-Step 2 : confirm the operating conditions
-Step 3 : product recommendation and quotation
-Step 4 : sampling
-Step 5 : confirm order details and make a payment
-Step 6 : proceed with product preparation upon receipt of payment
-Step 7 : shipping
Q7. Nozzle Questions?
-We have answers. With over 21 years experience and 5,000,000+ nozzles shipped, you can trust us with your spray application. Call or contact us today to learn how partnering with CYCO can make your project a success.
