MT ViKI OEM ODM 4K30Hz 16 in 16 out HDMI Matrix Switch with RS232 serial port WEB control 16X16 HDMI Matrix
- Category: >>>
- Supplier: Guangdong Mt-Viki Electronics Technology Co. Ltd.
Share on (1600640539700):
Product Overview
Description
Products Description
•MT-HD1616 16 input 16 output HDMI matrix switch is a high-performance professional switching device with embedded intelligentcontrol, which is used to switch each audio and video input signal to any output channel of audio and video synchronously or asynchronously. •Adopt unique processing method, which greatly improves the switching speed of the equipment. The control method is flexible, with long-life operation button panel, large-screen dot-matrix LCD screen displays various information, and provides a standard RS-232 communication interface, which is convenient for users to cooperate with various remote control devices (such as Crestron, AMX, CREATOR, etc.) .In combination with infrared remote control equipment.
Product Features:
•US 12.75G high-bandwidth original imported switching chip
•Supports HDCP decoding, Blu-ray, 3D;
•Support signal timing rearrangement, 36-bit true color technology;
•Support maximum resolution: 4Kx 2K@30Hz, 1080P 3D@60Hz;.

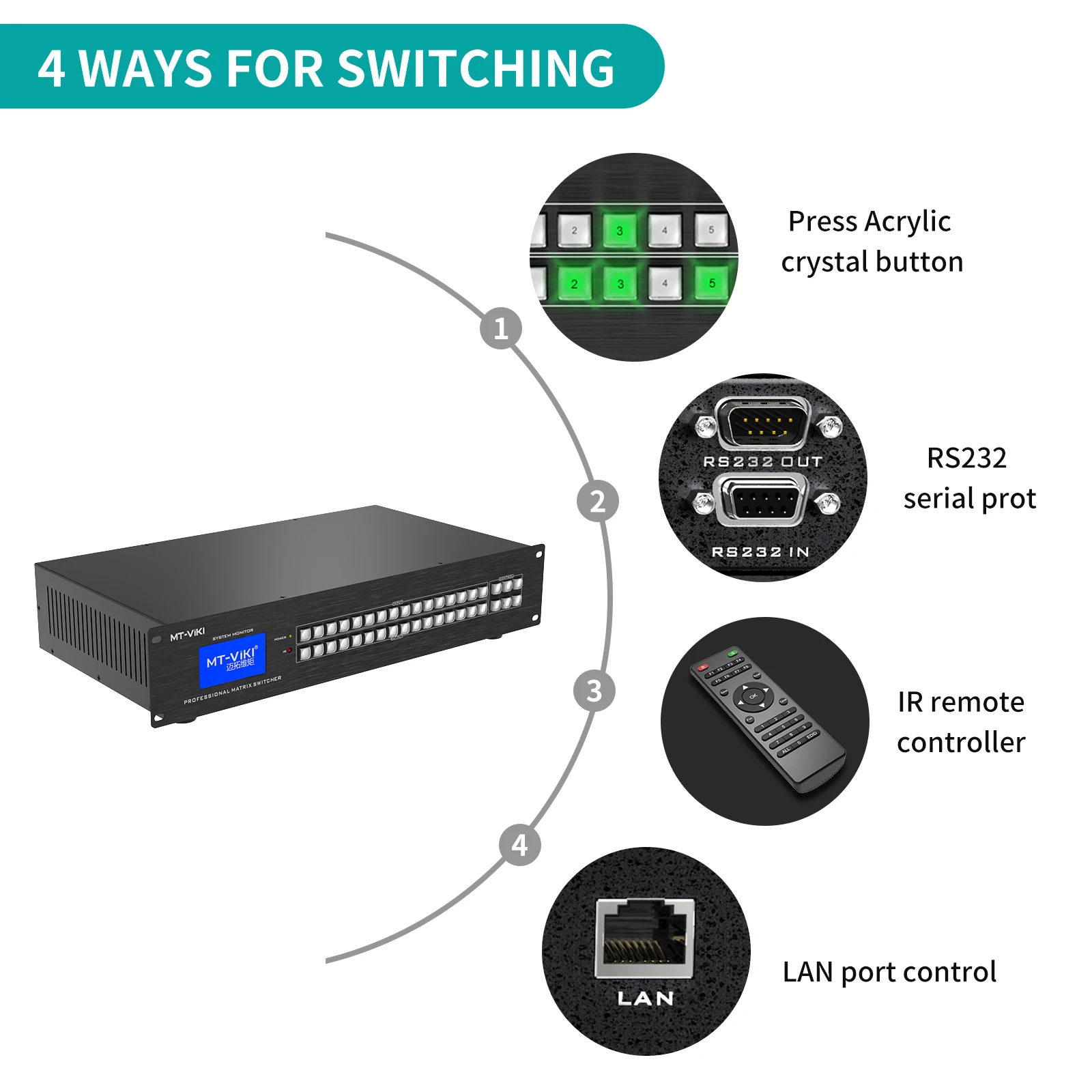

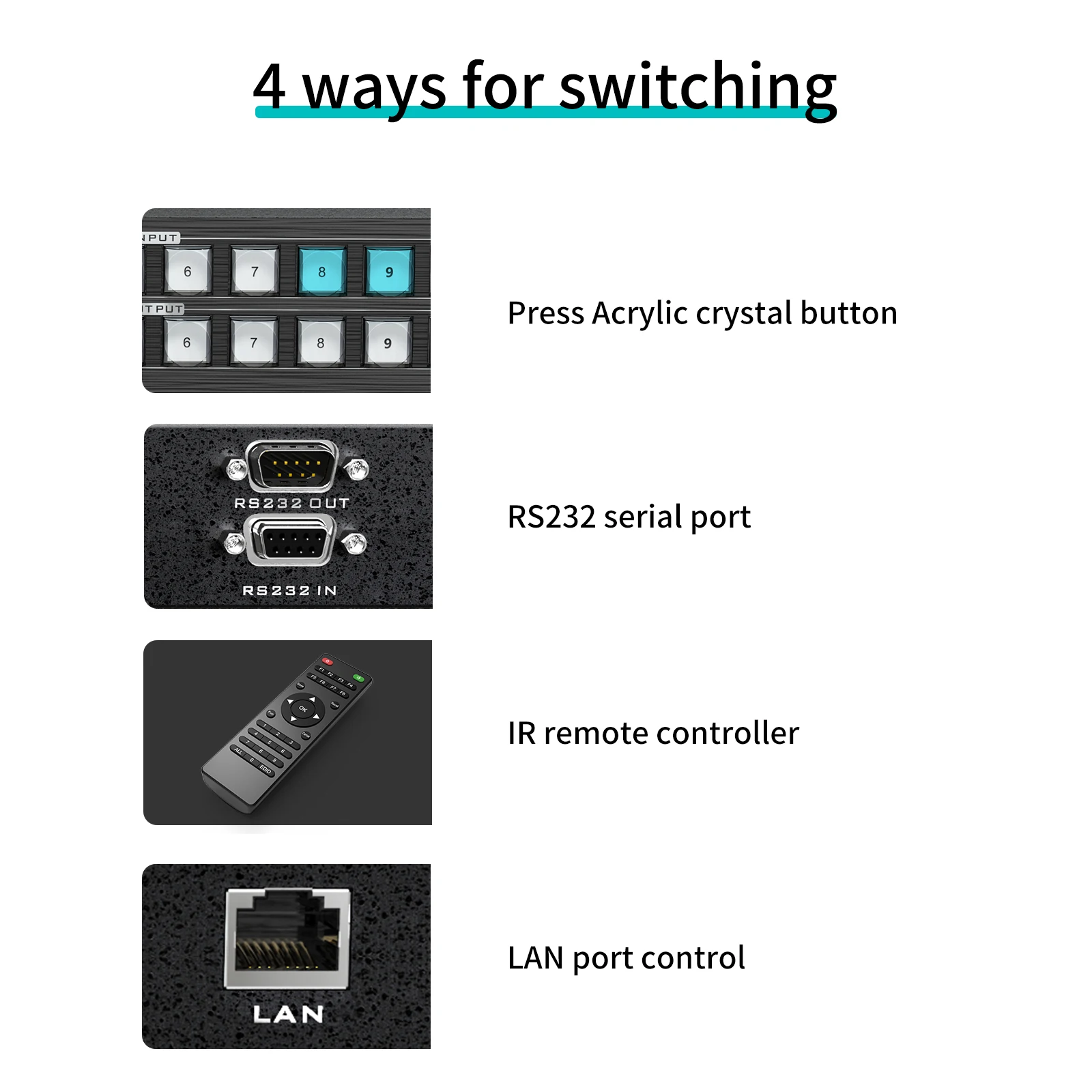

•Support multiple control methods :buttons, infrared remote
•control, RS232 serial port, etc., and WEB control is optional;
•Support EDID rewritable and EDID adaptive functions
•Long-line drive capability: The input has automatic equalization, which
•effectively reduces the deterministic jitter caused by line transmission;
•Supports HDCP decoding, Blu-ray, 3D;
•Support signal timing rearrangement, 36-bit true color technology;
•Support maximum resolution: 4Kx 2K@30Hz, 1080P 3D@60Hz;.
•Support multiple control methods :buttons, infrared remote
•control, RS232 serial port, etc., and WEB control is optional;
•Support EDID rewritable and EDID adaptive functions
•Long-line drive capability: The input has automatic equalization, which
•effectively reduces the deterministic jitter caused by line transmission;
Product Paramenters
Product Name | 16 in 16 out HDMI matrix switch |
Model Name | MT-HD1616 |
Input/Output interface | 16 in 16 out HDMI interface |
Support Resolution | 480i, 576i, 480p, 576p, 720p ,1080i, 1080p@24/30/50/60/120Hz, 1080P 3D@60Hz, 4K*2K@30Hz |
Control interface | 1* RS-232 IN, 1* RS-232 OUT, 1* RJ-45 |
Protocol standard | Support EDID management and rewritable, HDCP decoding |
Color space | Support RGB444, YUV444, YUV422 color space, support x.v.Color extended color gamut standard |
Electrostatic protection | Human discharge mode: ± 8kV (air gap discharge) ± 4kV (contact discharge) |
Control method | Standard button, RS232, IR control switching; optional WEB |
Power adapter | AC:110V-240V 50/60Hz DC:12V/3A |
Input voltage | Power AC 100V ~ 260VAC, 50/60 Hz |
Power consumption | 30W(max) |
Dimension(mm) | 448×250×90 |
Weight | 6Kg |
Operating temperature | 0 ºC~40 ºC/32 ºF~104 ºF |
Storage temperature | −20 ºC~60 ºC/−4 ºF~140 ºF |
Products Packaging

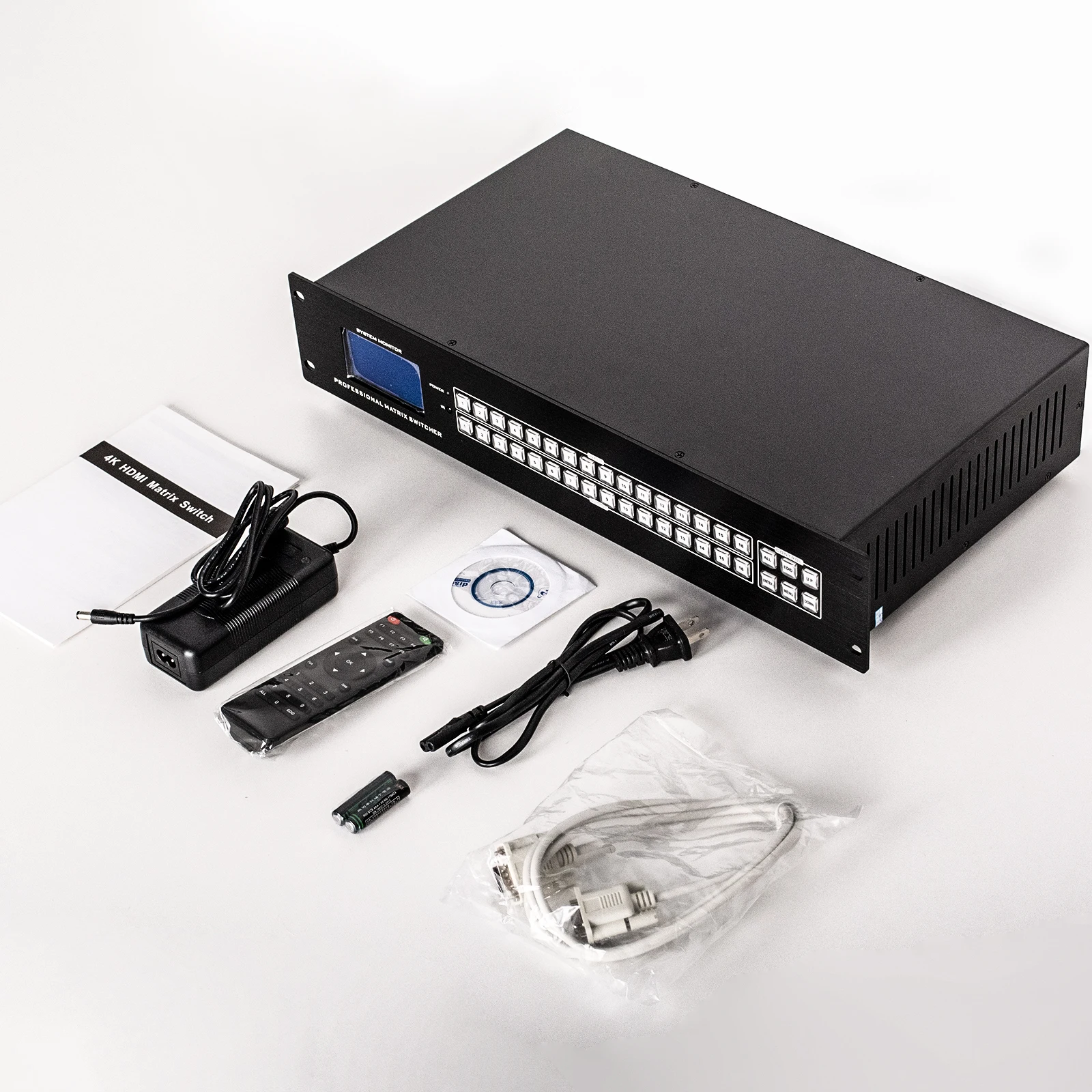

Package list (Model: MT-HD1616)
This matrix switch has the following packing accessories:
1* HDMI Matrix switch
1* Power Adapter
1* RS232 Cable
1* User Manual
1* CD
1* Remote
1* HDMI Matrix switch
1* Power Cable
1* Power Adapter
1* RS232 Cable
1* User Manual
1* CD
1* Remote
