Automatic glass jar detergent liquid soap 5L bottle oil filling capping and labeling machine bottling packing production line
- Category: >>>
- Supplier: Shandong Rybo Machine Co. Ltd.
Share on (1600640579540):
Product Overview
Description
Product Description

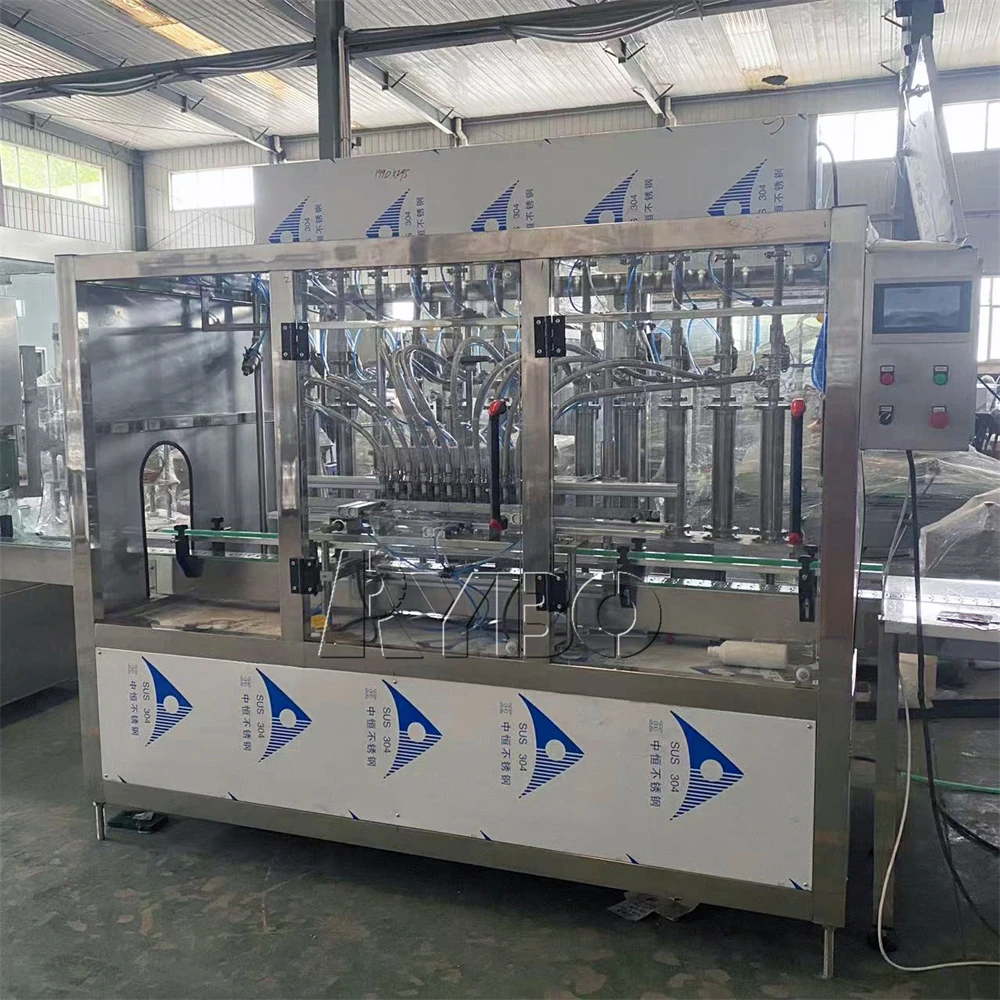

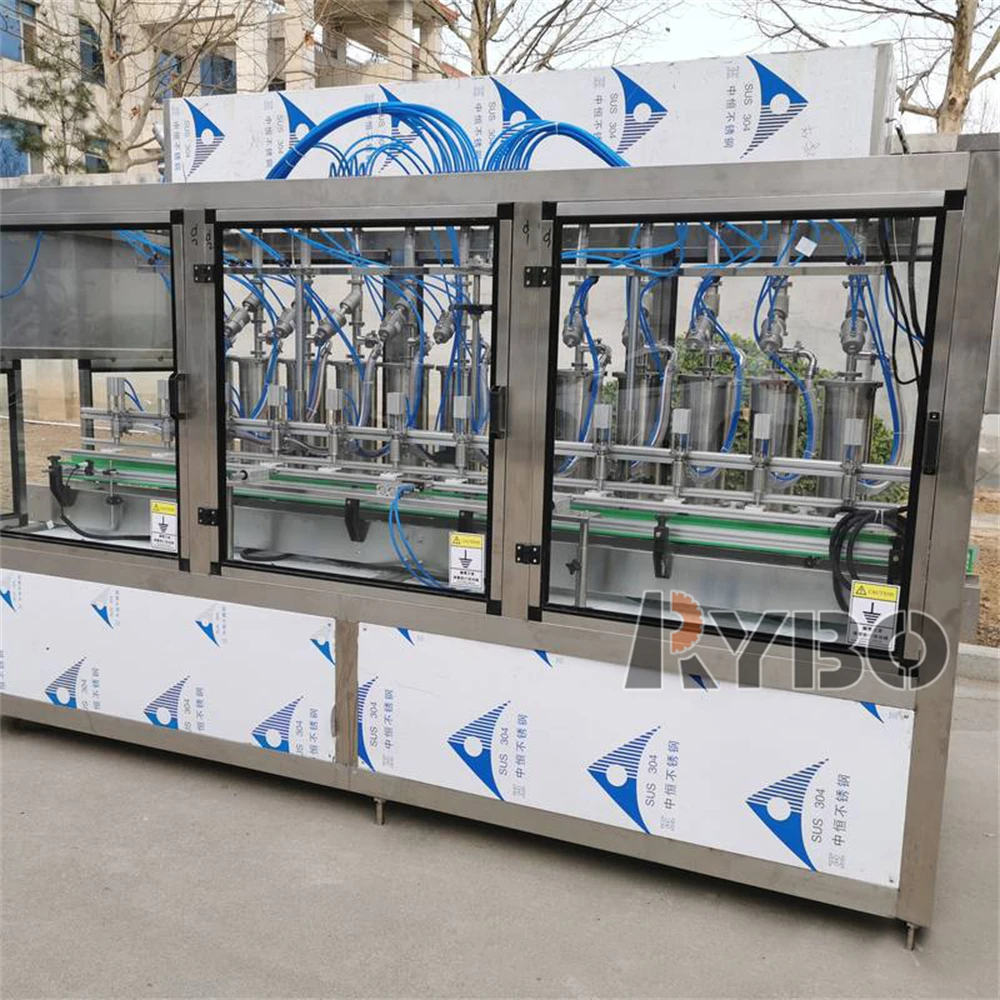

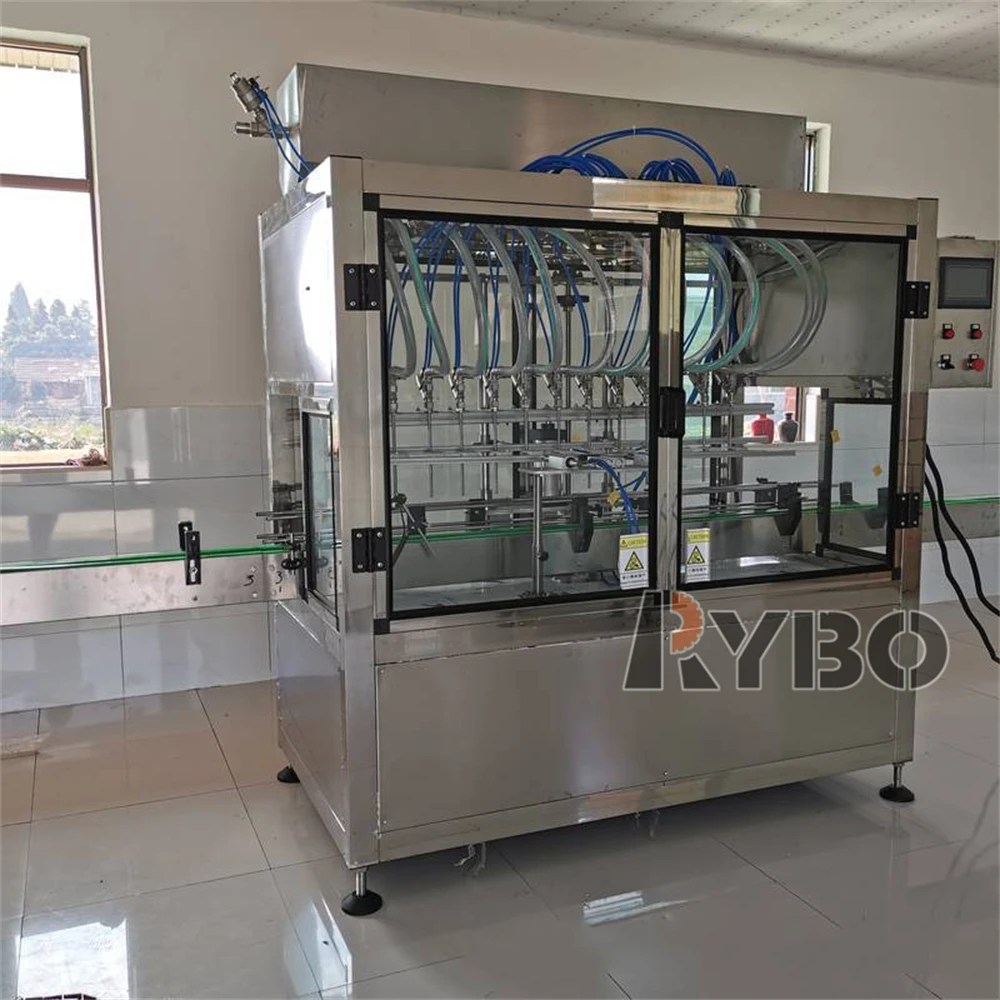

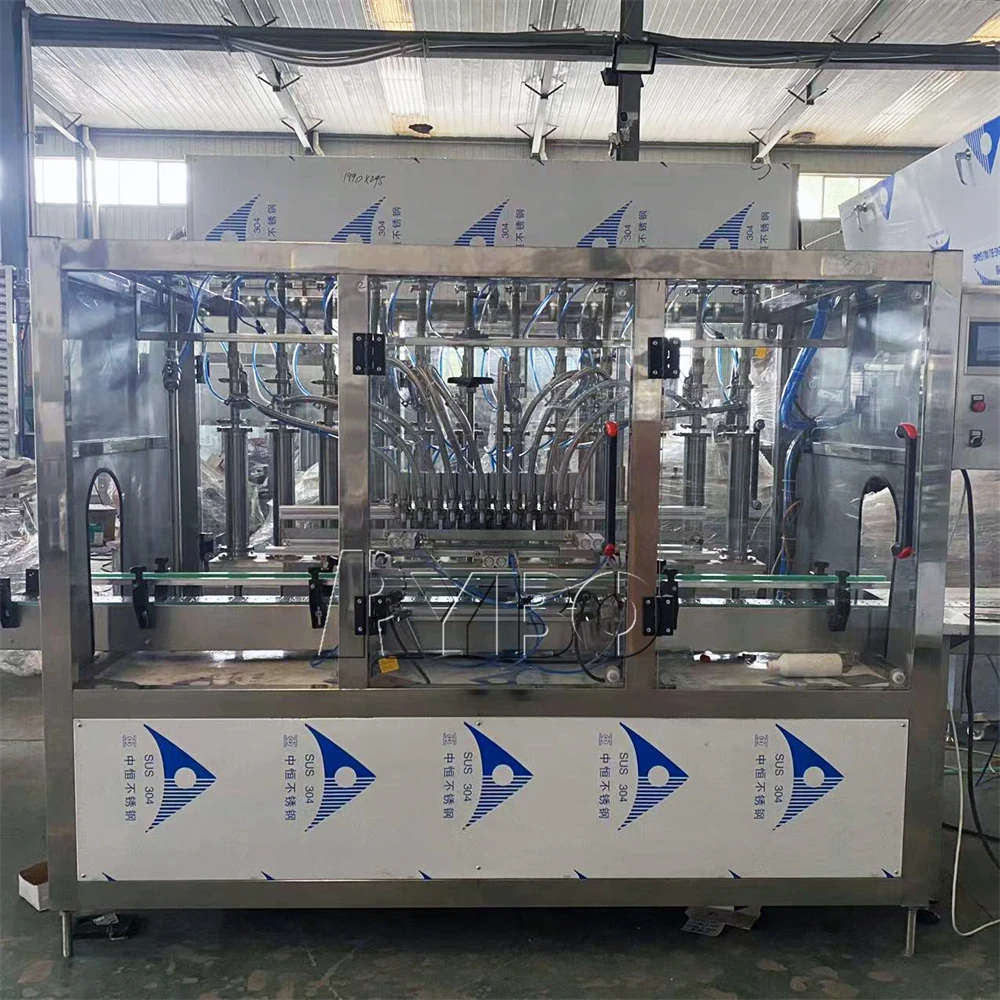

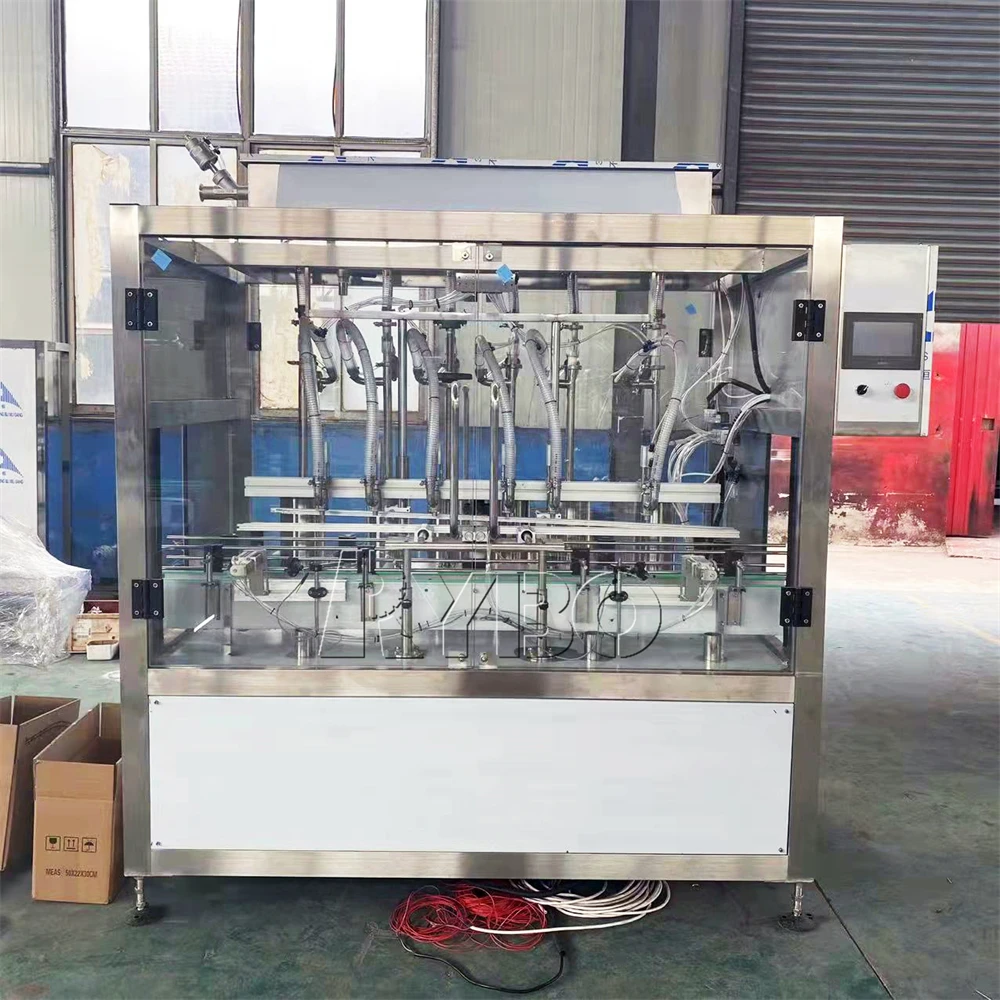

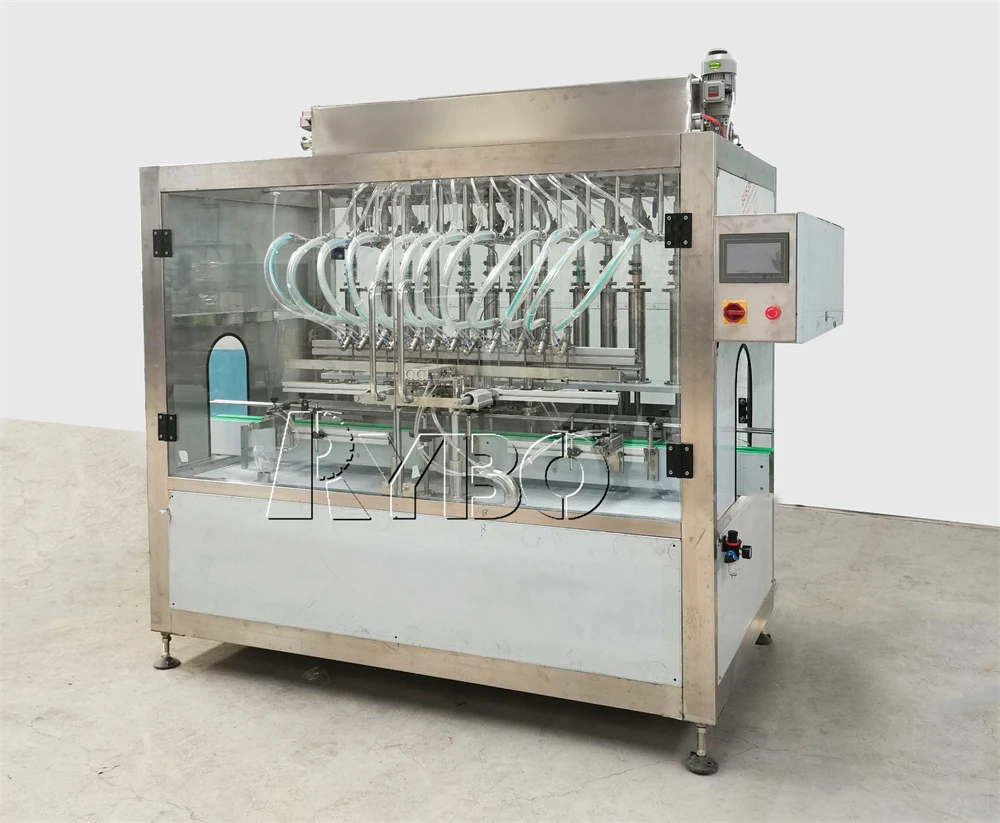

Automatic Piston Filling Machine
This filling machine is driven by servo motor and adopts piston measurement, which has fast filling speed, stable operation and accurate measurement. It is mainly used for filling various viscous liquids such as edible oil, motor oil, chemical grease, and daily chemical products. It is mainly suitable for 100-5000ml bottle packaging, and can also be customized according to customer requirements.
Application
Specification
Model | ZS-4 | ZS-6 | ZS-8 | ZS-12 | ZS-16 | ||||
Filling Nozzles | 4 | 6 | 8 | 12 | 16 | ||||
Filling volume | 50-1000ml, 500-2500ml, 1000-5000ml | ||||||||
Filling Tolerance | ±0.1% | ||||||||
Air pressure | 0.6-0.8Mpa | ||||||||
Power | 2.5Kw | 4.5Kw | 4.5Kw | 6.8Kw | 9.0Kw | ||||
Capacity (BPH) | 600-800 | 800-1000 | 1000-1500 | 1500-2000 | 2000-2400 | ||||
Overall Size（CM） | 110*110*180 | 180*110*180 | 200*110*180 | 260*110*180 | 320*110*180 | ||||
Features:
1. It has large adjustment range of suitable bottle capacity, 50-1000ml, 1000ml-5000ml
2. It is driven by servo motor, which make machine working more quickly and stably, low noise.

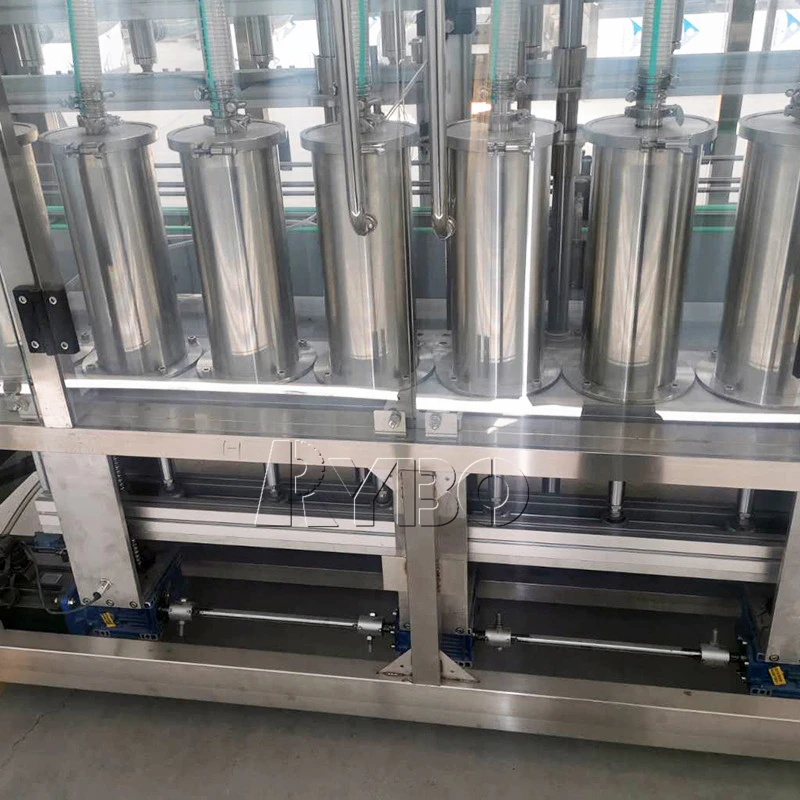

3. It adopts piston measurement, which make filling tolerance ≤0.1%
4. Variable speed filling, fast first and then slow to prevent liquid splashing.
5. Vacuum suction filling valve to prevent liquid dripping. According to different materials, different filling valves are used.
6. The filling volume can be adjusted just through the touch screen, simple operation.

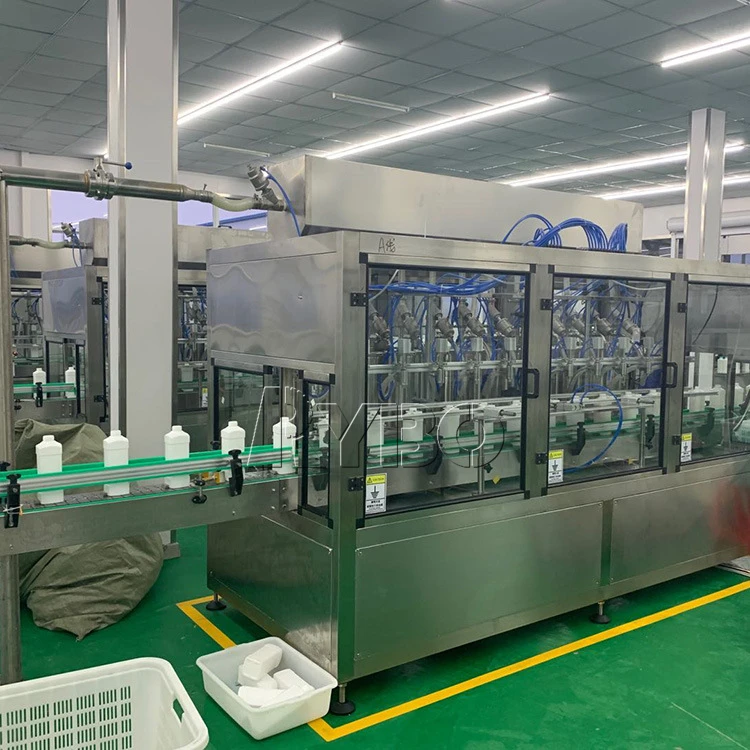

Real Case of Customers
We will make different filling production lines for customers according to the requirements of customers and the characteristics of materials.
You can check the different types of filling machines as below according to
viscosity & fluidity of your material and capacity of your containers.
The Complete Line
We Can Supply Turnkey Project From A to Z
Normally Speaking, The whole complete oi filling production line including:
1. Bottle Feeder
2. Filling Machine
3. Capping Machine
4. Coding Machine
5. Light Checker
6. Labeling Machine
7. Carton Sealing Machine
Some machines can also be increased to the production line according to customer requirements, such as Foil Sealer, Carton Packer, Palletizers, etc.
Liquid Filling Machine
We will choose different filling methods for you according to the viscosity and fluidity of your filling materials and the size of the container. We have gravity filling machines, flow meter filling machines, piston filling machines, weighing filling machines, etc.
Bottle Capping Machine
We will choose a suitable capping machine for you according to different types of bottle caps, and the sealing is firm and beautiful without leakage.
Bottle Dryer
The drying machine is mainly used for drying bottles before labeling. It adopts super fan, which has stronger wind power and more energy saving. The energy consumption is only 1/3 of the ordinary fan. The spider hand air supply channel is easier to adjust the angle, so that there is no dead angle in 360 degrees of drying, drying is better and fast.
Bottle Labeling Machine
According to customer request and market demand, we provide the better solution for the label typies, We have various kinds of options like PVC sleeve label ,BOPP hot glue label, Adhesive stick label, Cold glue paper label. Then we choose different labeling machine according to your labels type.
Coding Machine
In the food and beverage industry, coding is very important and strict, it can show the expiration date of the product. We are able to offer different options, inkjet coders and laser coders.
Inkjet coder is more economical, but have consumables in the later. The price of laser coding machine is higher, but it is more convenient and clean, and it is convenient for later maintenance.
Carton Sealing Machine
The carton sealing machine can automatically complete the folding and sealing process, which is simple and convenient, and saves a lot of labor. Can be adapted to different size cartons.
Bottle Blowing Machine
We supply the Complete Bottle Blowing System, start from PET preform injection molding machine, and PET Bottle blowing machine, including air compressor system and water-cooling system.
Company Profile
Shandong Rybo Machine Co., Ltd. established in 2011, is a professional manufacturer and supplier of water treatment, liquid filling and packaging machinery, has more than 10 years professional experience in this area.
Rely on advanced production technology and rich professional knowledge. we are committed to the development, production and sales of a variety of liqud filling and packing machine such as water, beverage, wine, oil Daily chemical products.
And we strive to provide customers from all over the world the most professional, economical solutions and the most intimate and complete services.Our machines have been exported to more than 40 countries and get lots of good reviews.
Our Advantages
1. We have more than 10 years of experience in the design and development of liquid packaging machinery.
3. We have an engineer R&D team of more than 10 people, a professional sales team of more than 10 people and an after-sales team of more than 20 people, who can guarantee our machines high quality and reply our customer to solve problems within 12 hours.
5. We have established a set of efficient and rigorous manufacturing process and quality control system, cooperated with high-end digital machine tools introduced from advanced countries in the world, relying on ERP system, MES system and DNC system, from raw material preparation to precision parts. Processing, welding, sheet metal fabrication, equipment assembly and debugging are all under the control of professional technicians in Rybo.
6. 95% of the production processes of parts manufacturing are completed in Rybo, and there is no need for outsourcing processing. The manufacturing cycle has strong flexibility and can respond to customers’ urgent needs at any time.
2. We have standardized workshop and we have numerous advanced CNC production equipment, which ensures our products are beautiful and precise
3. We have an engineer R&D team of more than 10 people, a professional sales team of more than 10 people and an after-sales team of more than 20 people, who can guarantee our machines high quality and reply our customer to solve problems within 12 hours.
4. We have passed ISO 9001 and CE certification.
5. We have established a set of efficient and rigorous manufacturing process and quality control system, cooperated with high-end digital machine tools introduced from advanced countries in the world, relying on ERP system, MES system and DNC system, from raw material preparation to precision parts. Processing, welding, sheet metal fabrication, equipment assembly and debugging are all under the control of professional technicians in Rybo.
6. 95% of the production processes of parts manufacturing are completed in Rybo, and there is no need for outsourcing processing. The manufacturing cycle has strong flexibility and can respond to customers’ urgent needs at any time.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q For a new starter, how can you help me start and run a water or beverage bottling plant?
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines.
Q How can I know the quality of your machines before I order?
A We have established a set of efficient and rigorous manufacturing process and quality control system, cooperated with high-end digital machine tools introduced from advanced countries in the world, relying on ERP system, MES system and DNC system, from raw material preparation to precision parts. Processing, welding, sheet metal fabrication, equipment assembly and debugging are all under the control of professional technicians in Rybo.You are also very welcome to visit our company in China to see the machine running in our factory.
Q How can we check our machines if we order the machines from you?
A We will test all the machines based on very rigorous standards before shipment and you can come to inspect the machines or we can take videos for you.
Q How can I install and debug the machines?
A If the machine is small and simple to install, you can do it by yourself. We will supply guiding pictures and vedios for helping. If the machine is big and complex, we can send our engineer to your place to install the machine. you should pay the round air tickets and salary. and you should arrange the accommodation for them during the trip.
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines.
Q What is the guarantee or warranty of your machines?
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
Q How can I know the quality of your machines before I order?
A We have established a set of efficient and rigorous manufacturing process and quality control system, cooperated with high-end digital machine tools introduced from advanced countries in the world, relying on ERP system, MES system and DNC system, from raw material preparation to precision parts. Processing, welding, sheet metal fabrication, equipment assembly and debugging are all under the control of professional technicians in Rybo.You are also very welcome to visit our company in China to see the machine running in our factory.
Q How can we check our machines if we order the machines from you?
A We will test all the machines based on very rigorous standards before shipment and you can come to inspect the machines or we can take videos for you.
Q How can I install and debug the machines?
A If the machine is small and simple to install, you can do it by yourself. We will supply guiding pictures and vedios for helping. If the machine is big and complex, we can send our engineer to your place to install the machine. you should pay the round air tickets and salary. and you should arrange the accommodation for them during the trip.
