Touch Button 4500W 24VDC 230VAC Pure Sine Wave Inverter with 160A MPPT Solar Charger Controller and Wi Fi

Product Overview

Description

Touch Button 4500W 24VDC 230VAC Pure Sine Wave Inverter with 160A MPPT Solar Charger Controller and Wi-Fi







Feature



Pure sine wave output inverter

The product is compact and beautiful, with 6.25 inch LCD display and touch buttons

The utility input voltage range can be selected according to the requirements of the load (home appliance/PC)

Battery charging current can be set via LCD according to load requirements

Smart battery charging design makes the battery more fully utilized

utility/battery priority input mode can be set via LCD display

Compatible with mains and generator inputs

utility and PV complementary power supply loads to ensure maximum utilization of PV

Auto restart function when PV/utility recovers

Overload, high temperature, inverter output short circuit protection

Cold start function

special mode for lithium battery to prolong the battery life

Support different communication methods:RS232,RS485,WIFI

WIFI monitoring and setting(optional)

Dust filter(optional)







MODEL	MPS-VX 4.5KW	MPS-VX 6.5KW	MPS-VX 7.2KW
Rated Power	4500W	6500W	7200W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range	50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage (Batt.)	230VAC±5%
Surge Power	9000VA	13000VA	14400VA
Efficiency(Peak)PV to INV	97%
Efficiency(Peak)BAT to INV	94%
Transfer Time	10ms(for personal computers) 20ms(for home appliances)
Wave Form	Pure Sine Wave
BATTERY&AC CHARGER
Battery Voltage	28.2Vdc	56.4Vdc	56.4Vdc
Floating Charge Voltage	27Vdc	54Vdc	54Vdc
Overcharge Protection	32Vdc	63Vdc	63Vdc
Max Charge Current	150A	130A	150A
SOLAR CHARGER
Max PV Array Power	5500W	6500W	8000W
MPPT Range@ Operating Voltage	120-450Vdc
Maximum PV Array Open Circuit Voltage	450Vdc
Maximum Charging Current	150A	130A	150A
Maximum Efficiency	99%
PHYSICAL
D*W*H(mm)	400*250*85mm
Net Weight(kg)	7.5kg
Communication Interface	RS485/RS232(Standard) WIFI(Optional)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0℃-50℃
Storage Temperature	-15℃-60℃

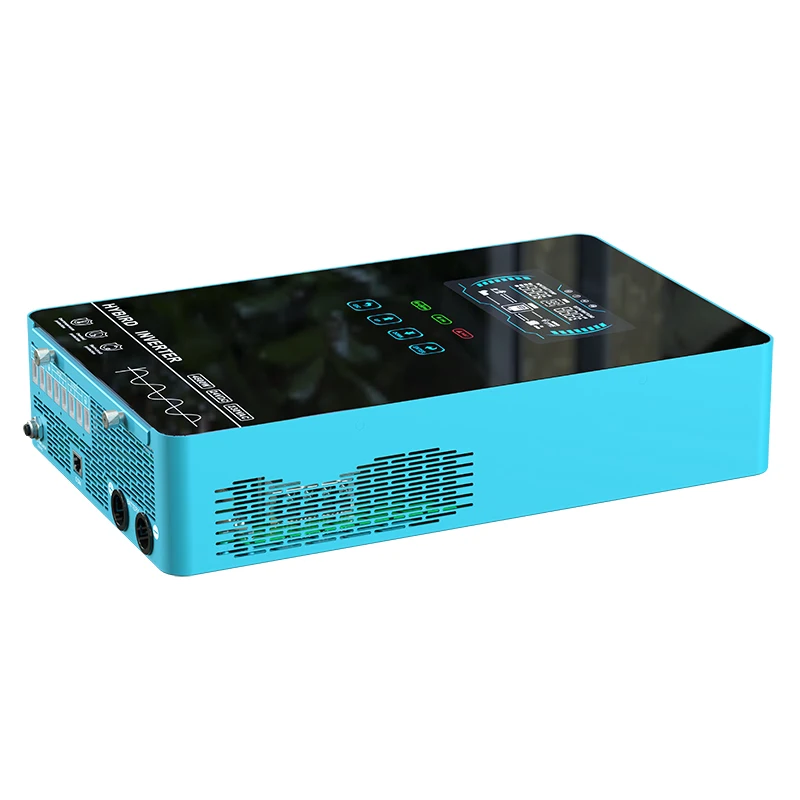

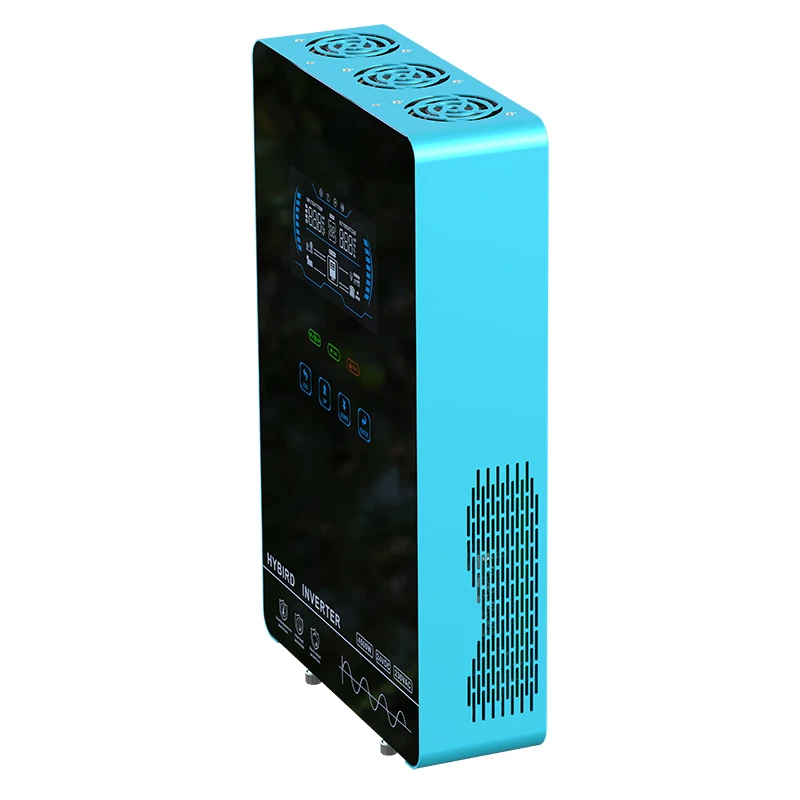

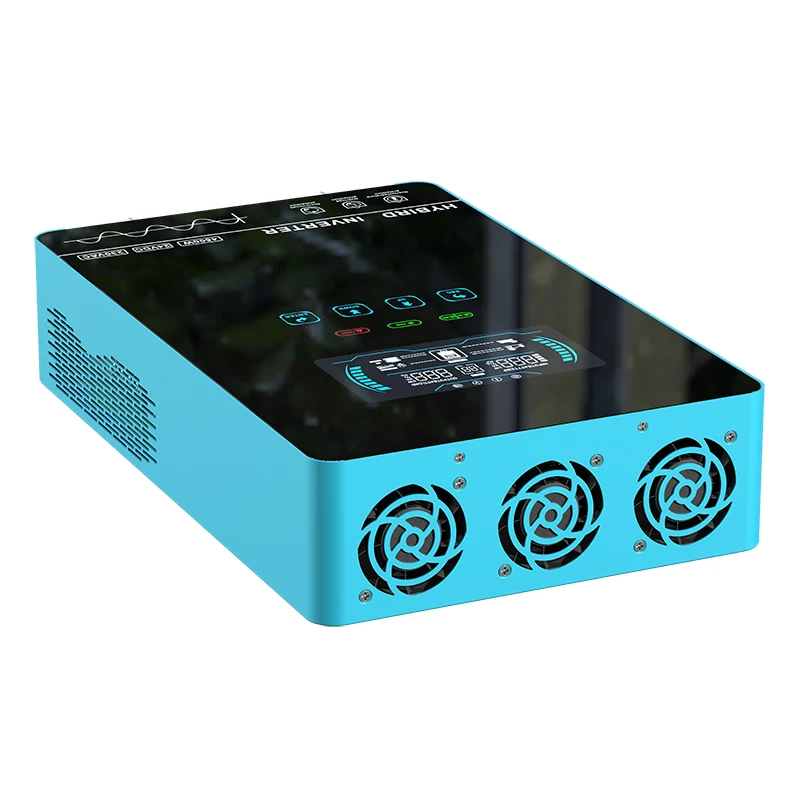

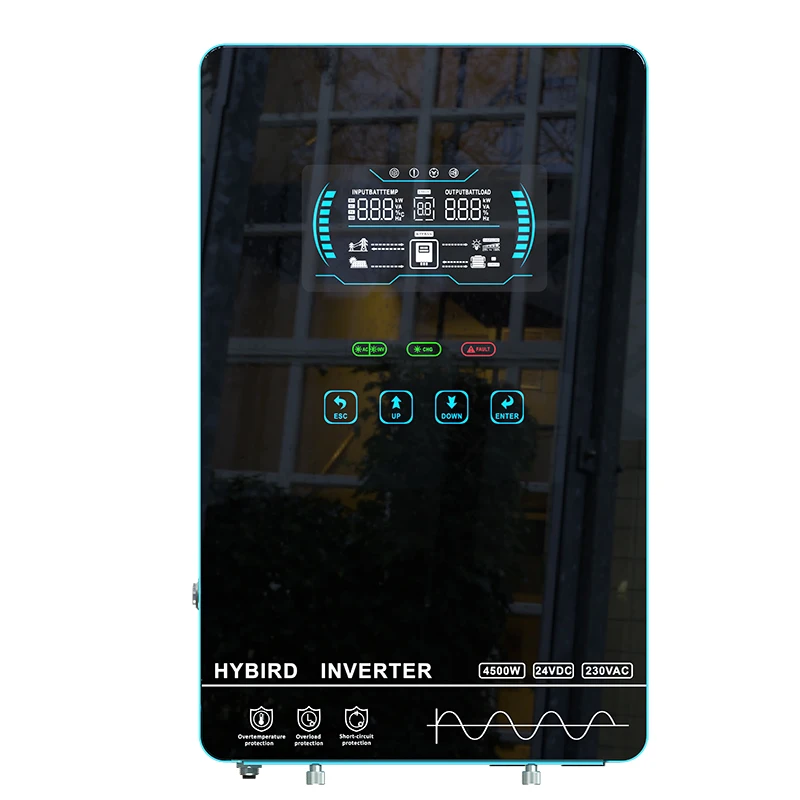

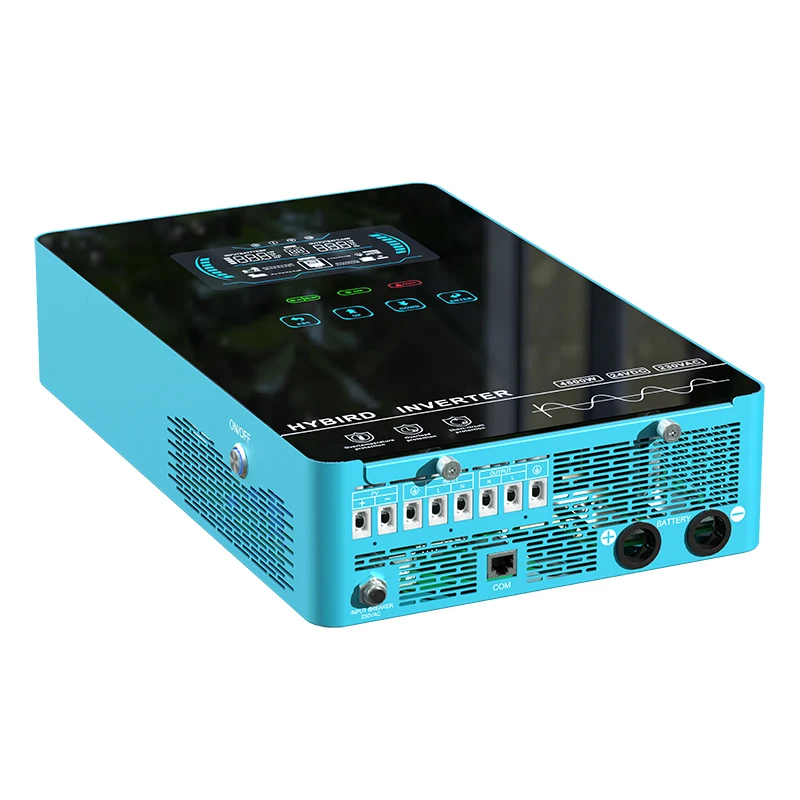

PRODUCT SHOW
