Product Overview
Description

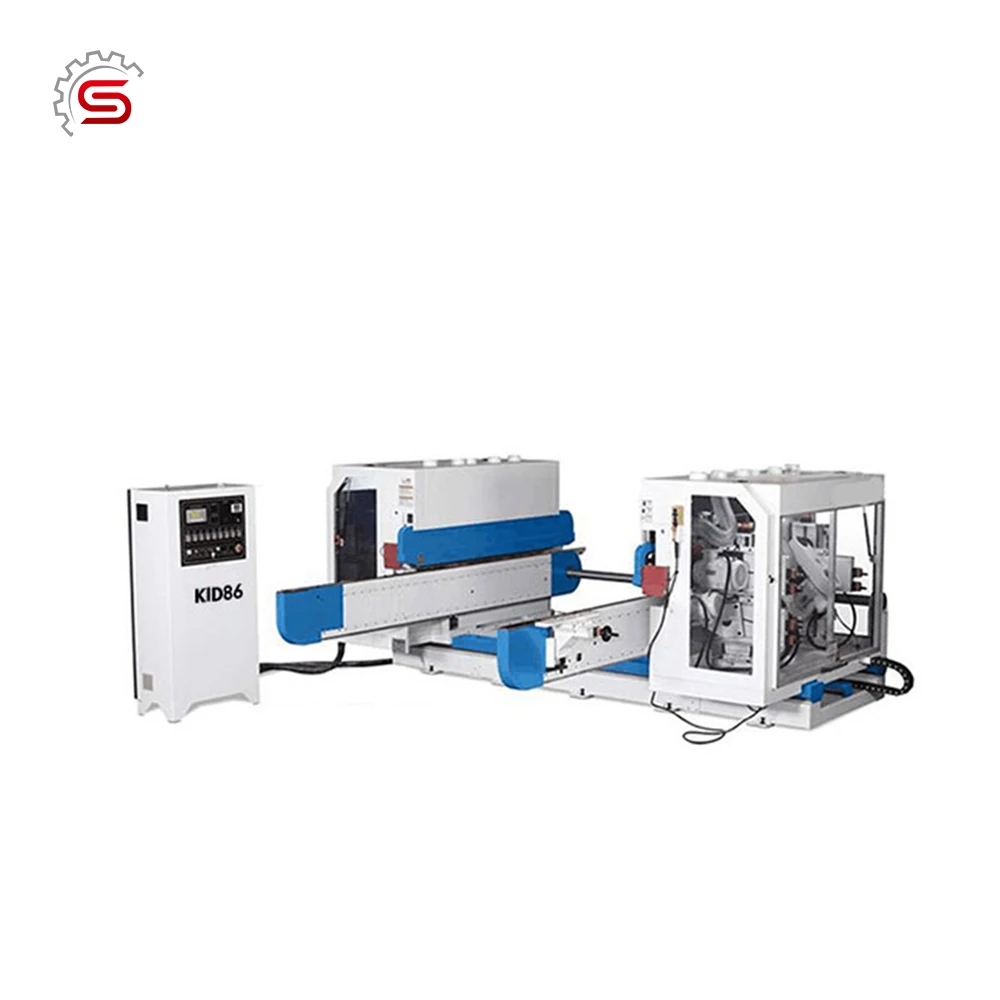

For KID86 series Double End Tenoner, the machine base is processed in largeCNCmachine. Two high precision linear orbits are assembled to assure the stable movement and high precision.
Adopted inverter feeding, feeding speed ups to 5~25m/min
All the electric components are adopted international brands to assure stable and excellence performance.
This model is suitable to process the cutting and grooving in flooring, doors, furniture ectfields.
Adopted inverter feeding, feeding speed ups to 5~25m/min
All the electric components are adopted international brands to assure stable and excellence performance.
This model is suitable to process the cutting and grooving in flooring, doors, furniture ectfields.
Specification & Type | KID8610 | KID8625 |
Working length | 250-1000mm | 250-2500mm |
Working Thickness | 6-80mm | 6-80mm |
Scoring Saw Diameter | φ 200mm | φ 200mm |
Cut-off Saw Diameter | φ 305mm | φ 305mm |
Milling Cutter Diameter | Φ125-φ180mm | Φ125-φ180mm |
Scoring Saw Inner Diameter | φ25.4mm | φ25.4mm |
Cut-off Saw Inner Diameter | Φ30mm | Φ30mm |
Milling Cutter Inner Diameter | Φ40mm | Φ40mm |
Scoring Saw Motor | 2.2kw | 2.2kw |
Cut-off Saw Motor | 4kw | 4/5.5kw |
Milling Cutter Motor | 5.5kw | 5.5kw |
Feeding Speed | 5-25m/min | 5-25m/min |
Milling Cutter Speed | 7500r/min | 7500r/min |
Saw Blade Speed | 3000r/min | 3000r/min |
Total Motor Power | 27kw | 27/30kw |
Dust Outlet Dia | 120mm*6pcs 60mm*6pcs | 120mm*6pcs 60mm*6pcs |
Weight | 4.2T | 5.2T |
Dimension | 3000*3000*1950mm | 4500*3300*1950mm |

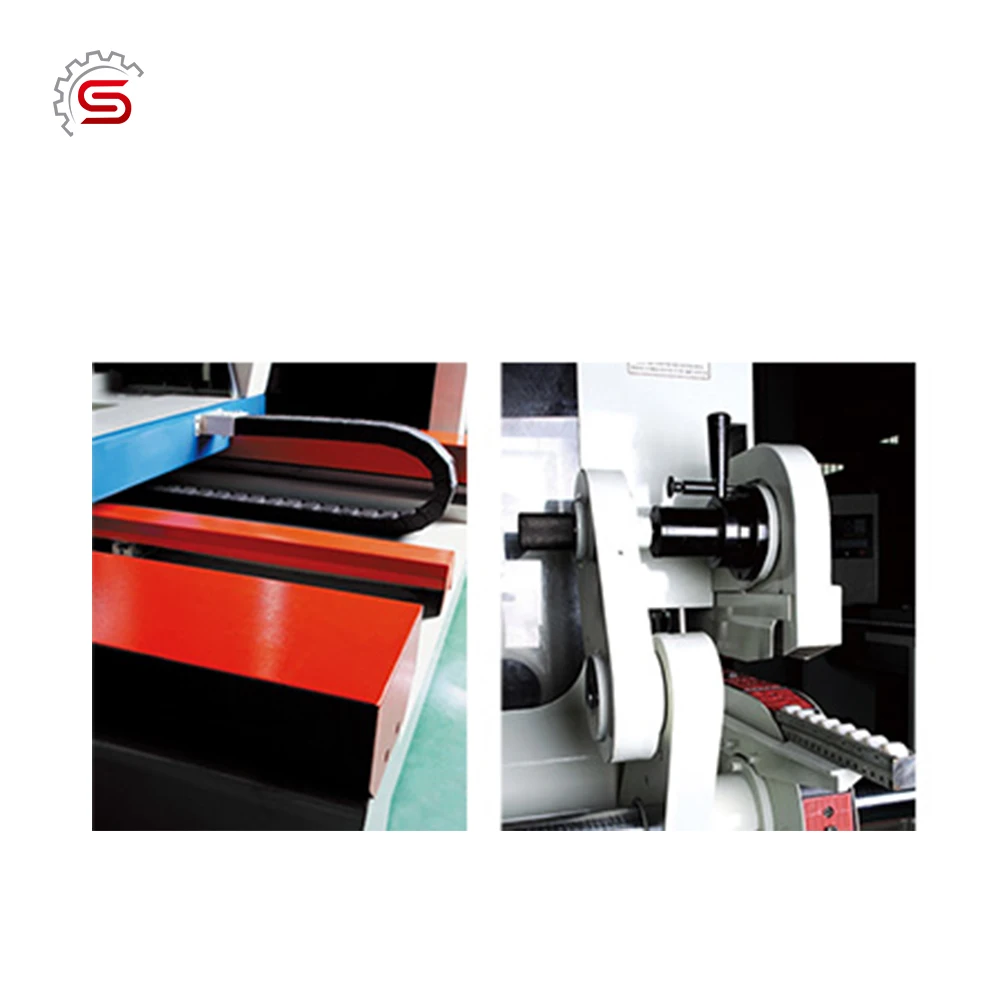

Electrical movement for the pressure belt with pneumatic locked and controlled by PLC text.

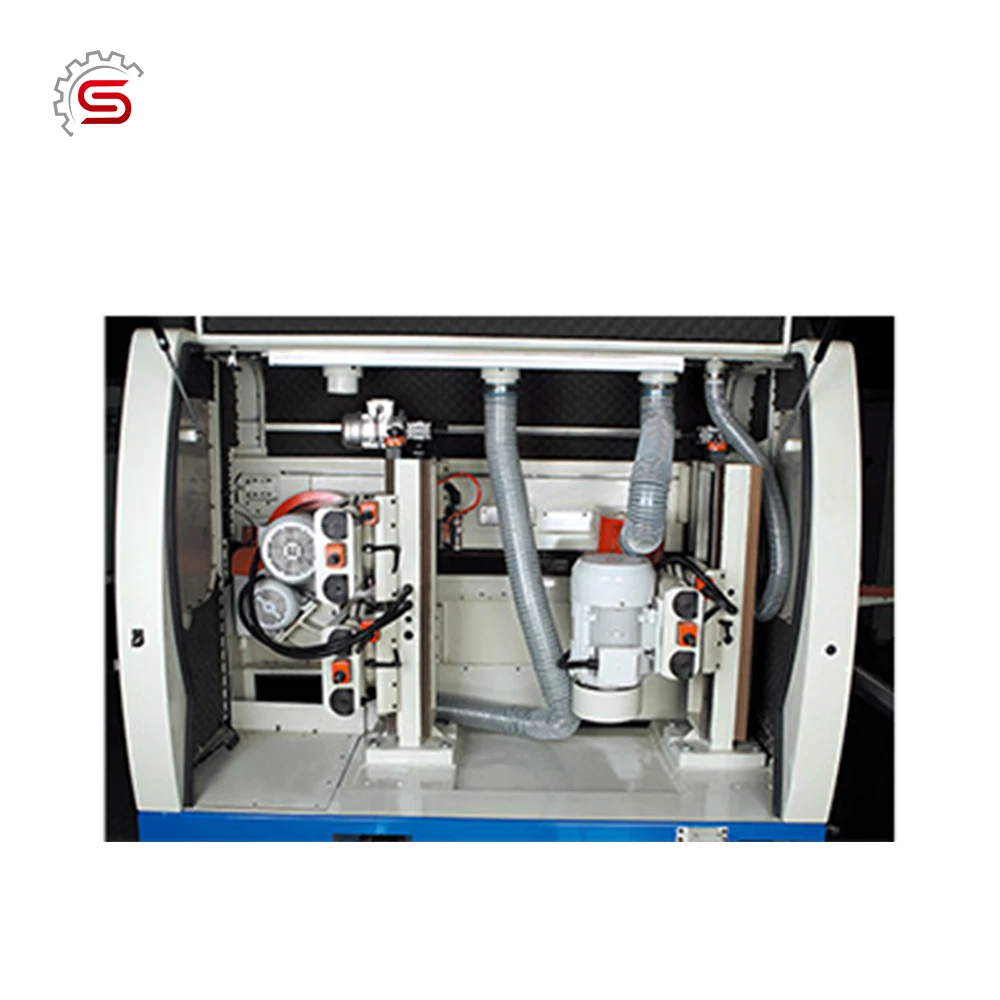

Machine base is processed by big CNC machine, over 1300mm width. Two high precision linear orbits are assembled and with steel dust cover.

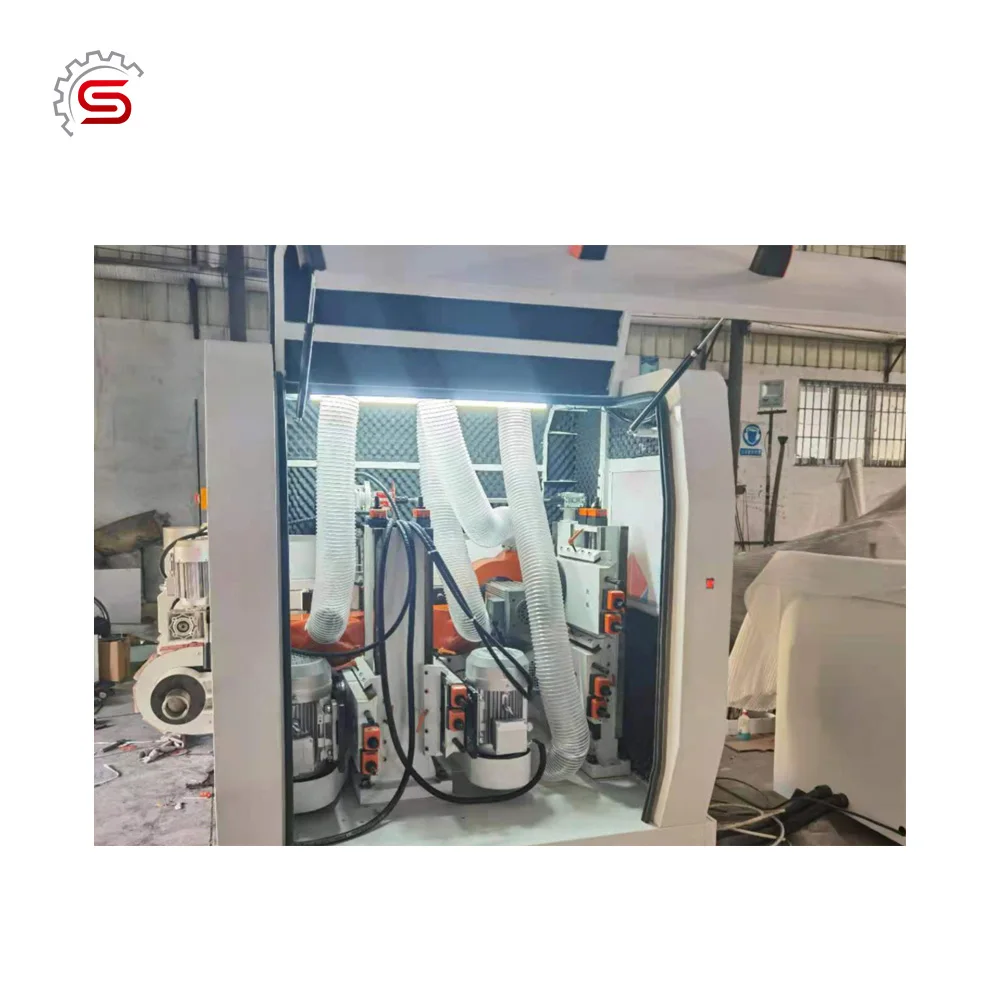

All the tools with protection cover. Under the saws, there has over 400mm width 90°dust collector, easy to clean.
With the special location locked system and little fence against the work pieces just with the surface, so it will not leave
pressed mark in the work pieces.
High speed spindle (7500 r/min)

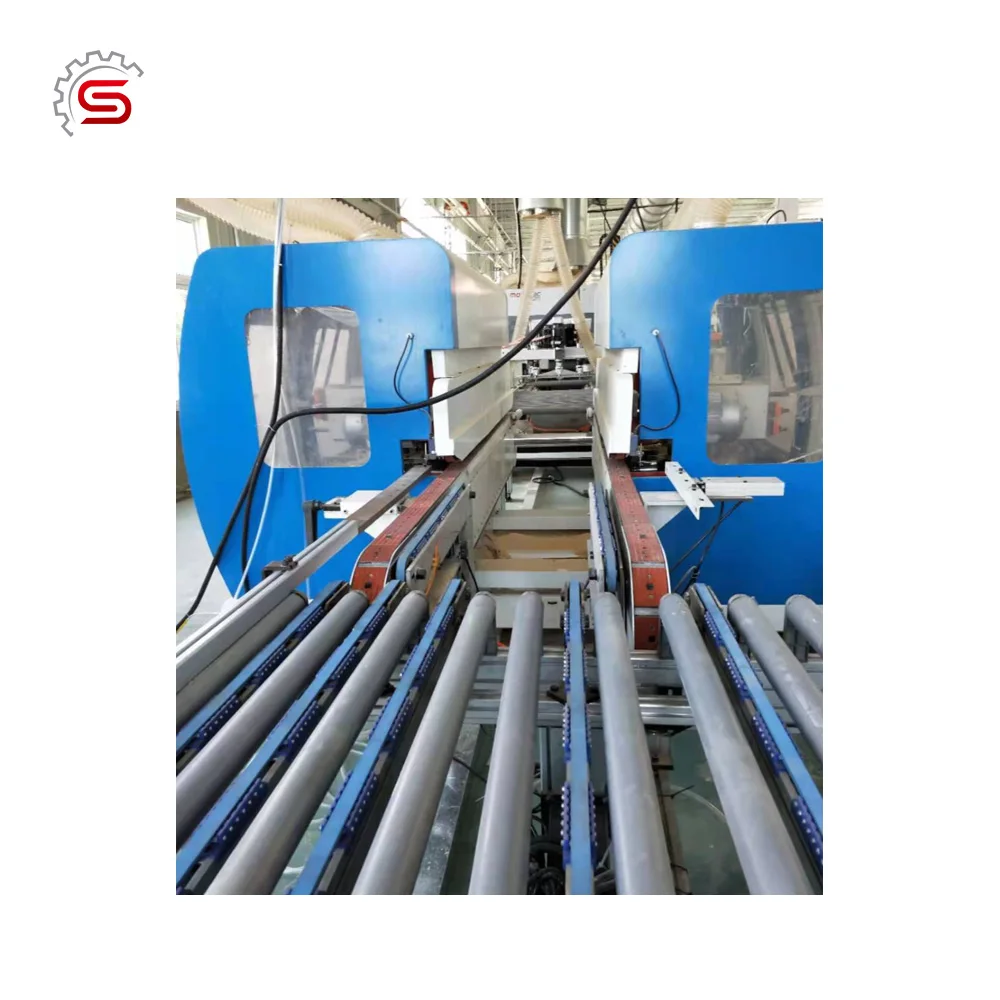

High precision lightweight convey belt is assembled with bearings. High feeding speed and less noise, it is suitable for high speed processing.
Machine base is processed by big CNC machine, over 1300mm width. Two high precision linear orbits are assembled and with steel dust cover.
All the tools with protection cover. Under the saws, there has over 400mm width 90°dust collector, easy to clean.
With the special location locked system and little fence against the work pieces just with the surface, so it will not leave
pressed mark in the work pieces.
High speed spindle (7500 r/min)
High precision lightweight convey belt is assembled with bearings. High feeding speed and less noise, it is suitable for high speed processing.
