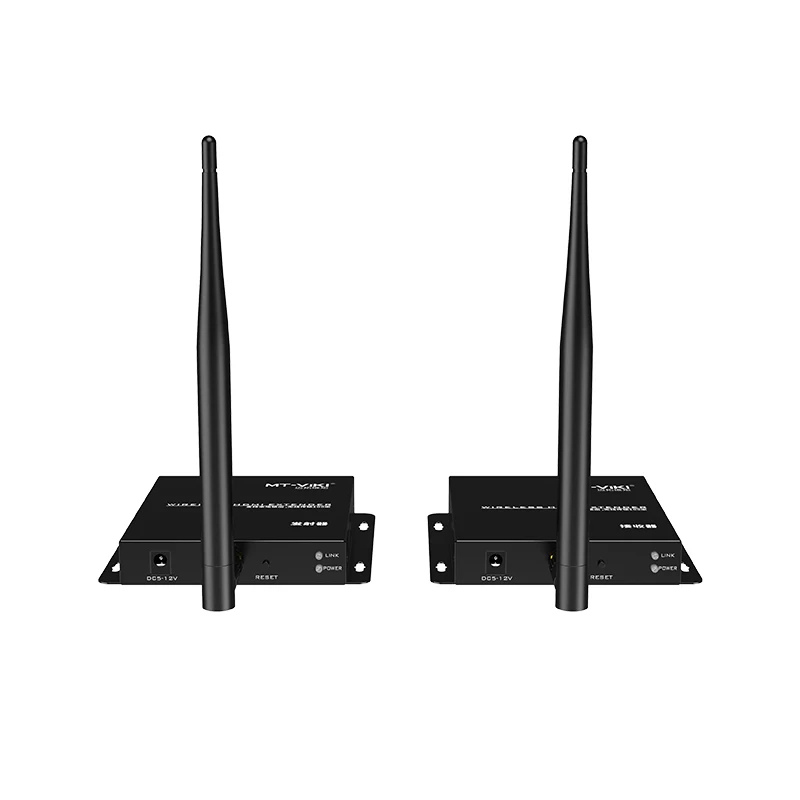

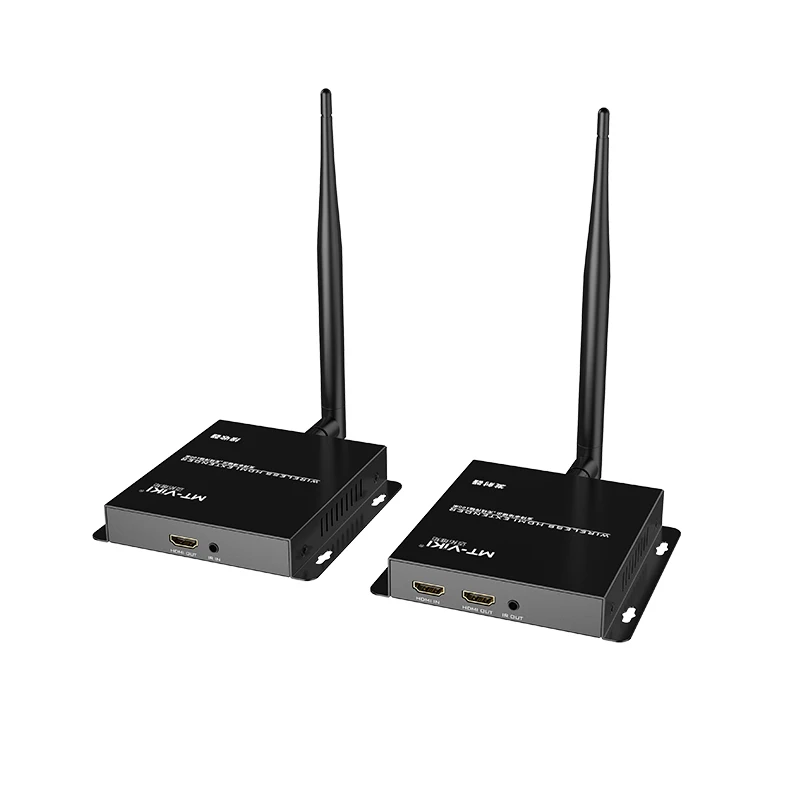

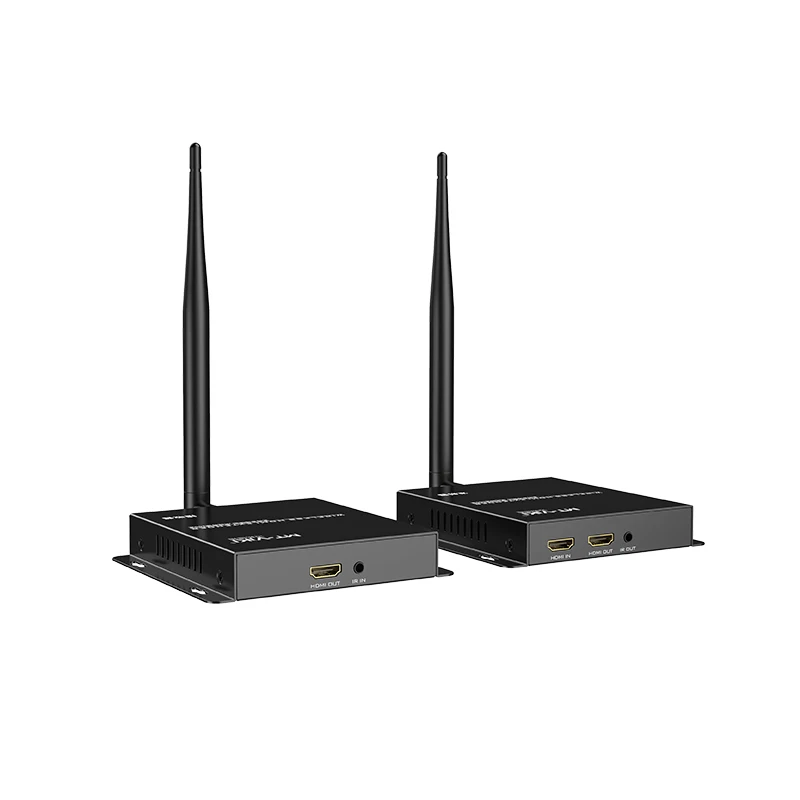

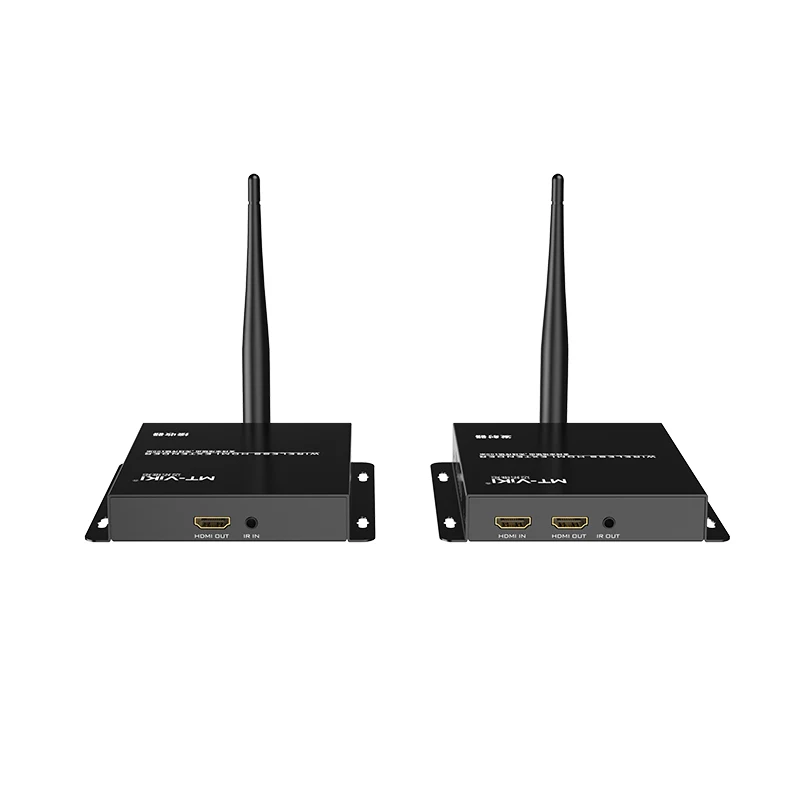

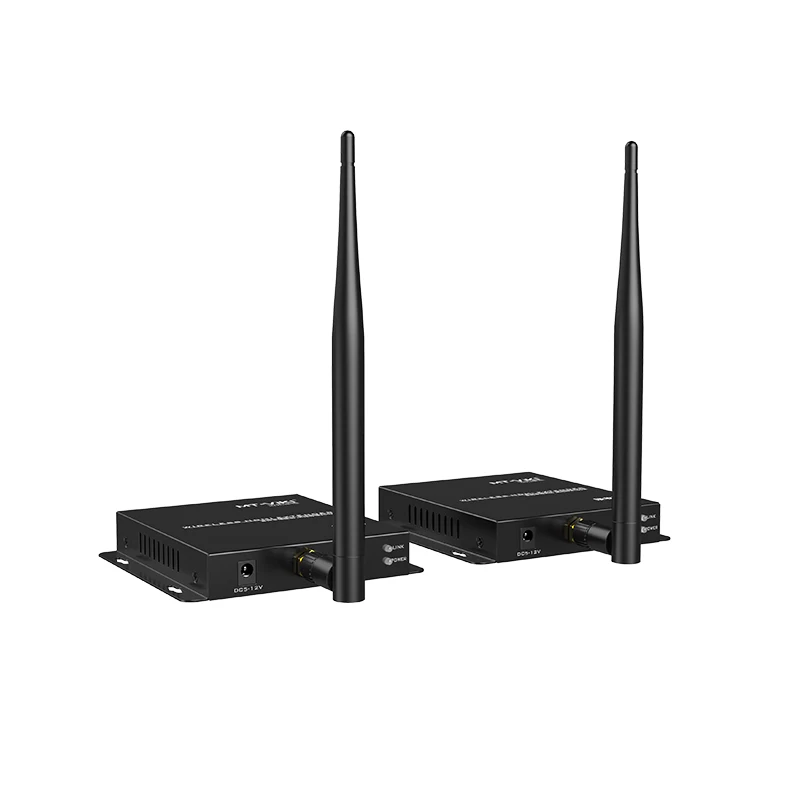

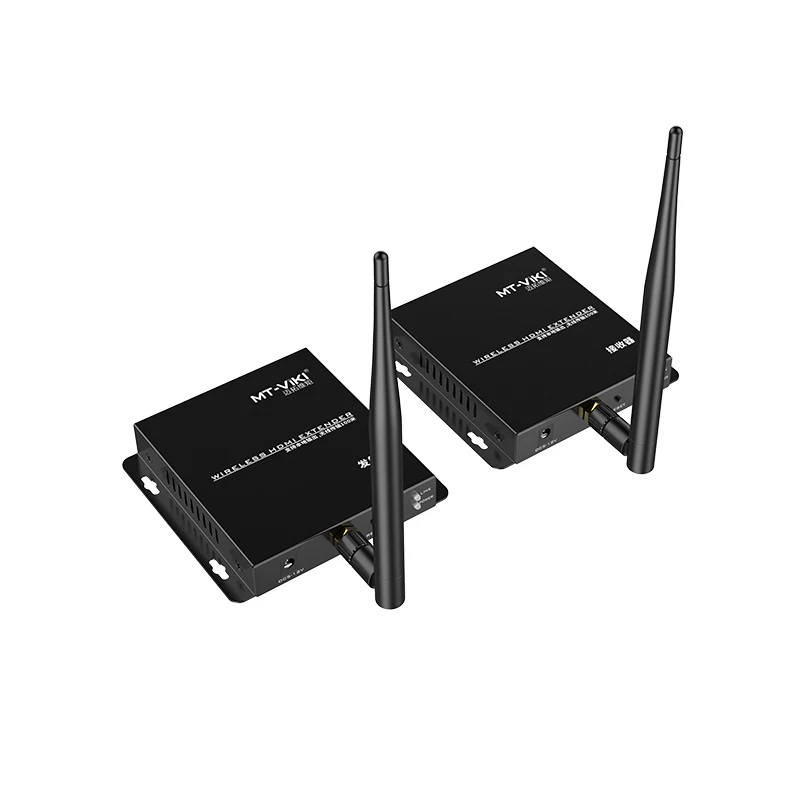

extender 100m rx tx hdmi extender 1080p wireless hdmi extender
- Category: >>>
- Supplier: Guangdong Mt-Viki Electronics Technology Co. Ltd.
Share on (1600640644175):
Product Overview
Description
This wireless 100m HDMI extender use standard TCP/ IP protocol, support one to multiple via wifi to transimit HD signal. And white with IR expand function that make easy operation at remote side. This MT-VIKI HDMI extender has excellent image processing and transmission capabilities, making signal transmission smoother and more stable.
Features:
1. Transmit HDMI signal over WIFI, the distance up to 300m
2. The resolution reach to 1920*1080P@60Hz
3. HDMI1.3 compatible
4. Dedicated format is used to compress and decompress video, effectively improving transmission efficiency and ensuring smooth playback
5. HDCP1.2 compatible--High bandwidth digital content protect technology
6. Support IR controller
7. Support automatically identify and configure various display modes
8. Built in auto balanced system
9. Built in ESD protection
10. Plug and play
Specification:
Prama | Detail | ||
Video | Protocol | HDMI1.3 HDCP1.2 | |
Compress format | H.264 | ||
Bandwidth | 165MHz, Full digital | ||
Port bandwidth | Total bandwidth 6.75Gbps | ||
Max. resolution | 1920*1080p@60Hz | ||
Port | HDMI-A | ||
Resistance | 100Ω | ||
The Max HDMI distance | Less 5m at 1920*1080p@60Hz | ||
IR | Port | 3.5mm audio port | |
Signal direction | Single transmit | ||
Signal type | Digital signal | ||
Input level loading frequency | 20-60KHz | ||
Wifi | RF power | 13 dbm | |
WIFI standard | 802.11ac | ||
Signal direction | Single | ||
WIFI frequency | 2.4GHz/5 GHz | ||
Transmission distance | EDW100(100m)/EDW300(300m) Empty area without obstacles | ||
Other
| Power | Power adapter: DC12V | |
Consumption | MAX 9W | ||
Operation Temperature | -5℃ to 70℃ | ||
Operation Humidity | 50% to 90% | ||
Dimension | 101* 118* 22mm | ||
