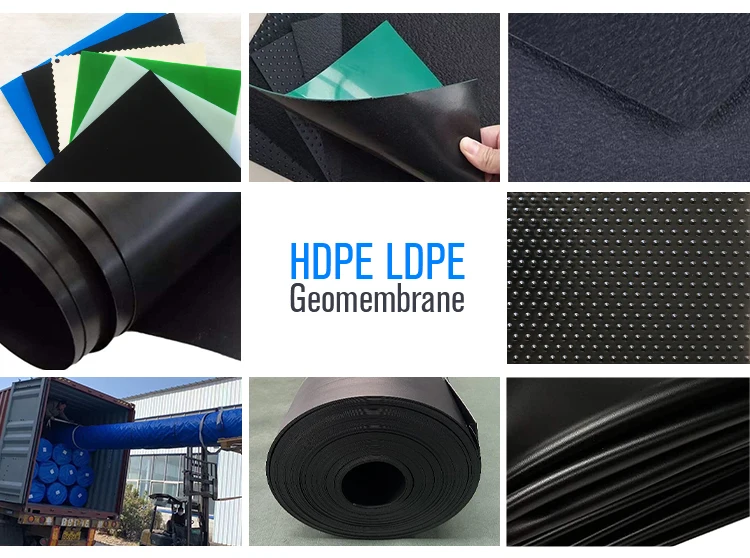

geosynthetics smooth HDPE geomembrane pond liner
- Category: Earthwork Products >>>
- Supplier: Tianjin Colinvitch Technology Co. Ltd.
Share on (1600640649246):
Product Overview
Description
Products Description
Thickness | 0.1-4.0mm |
Length | 50-200m /roll or as requested |
Width | 1m~8m |
Material | HDPE LDPE LLDPE |
Surface | Smooth surface, single surface textured,dual surfaces textured |
Standard | ASTM GRI-GM13 |
Certification | CE/ISO9001 |
Package | Woven Bags |
Thickness | 0.75 | 1.0 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
Density g/m2 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 |
Tensile yield strength (N/mm) | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
Tensile breaking strength (N/mm) | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
Bongation at yield(%) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
Elongation at break(%) | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 |
Tear resistance(N) | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
Puncture strength(N) | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
Tensile load stress cracking | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
Carbon black content(%) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
Product Features
1. Good physical and mechanic performance.2. High tearing resistance, strong deformation adptability.
3. Corrosion resistance, aging resistance.
4. Good adaptability to high and low temperature, non-toxicity, long service life.
5. Good waterproof, drainage, anti-seepage and damp proof effects.
6. Complete width and thickness specifications, low cost and easy installation.
3. Corrosion resistance, aging resistance.
4. Good adaptability to high and low temperature, non-toxicity, long service life.
5. Good waterproof, drainage, anti-seepage and damp proof effects.
6. Complete width and thickness specifications, low cost and easy installation.

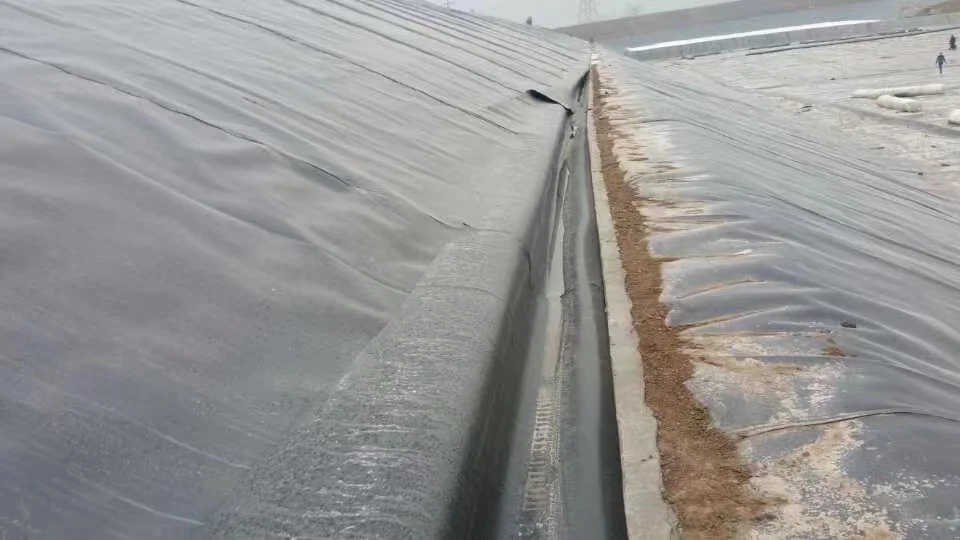

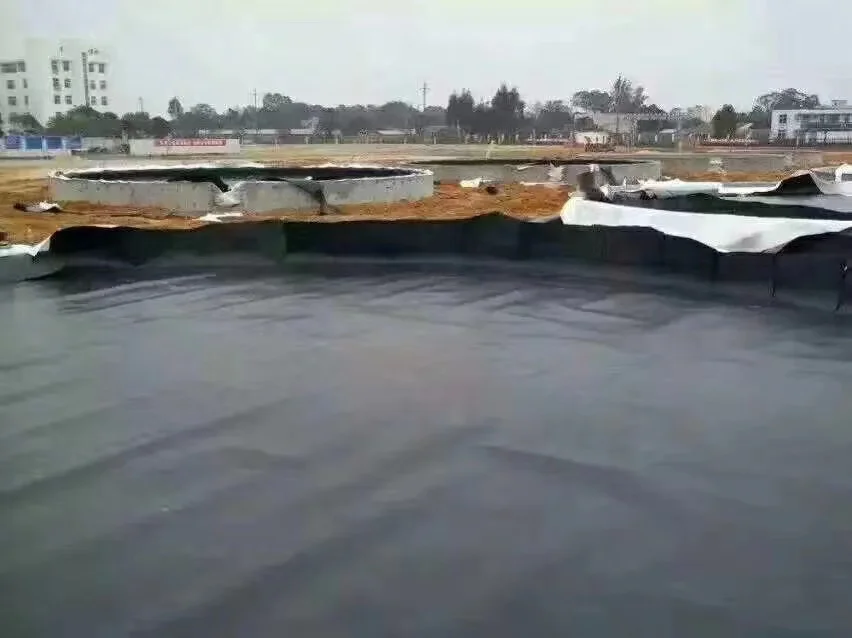

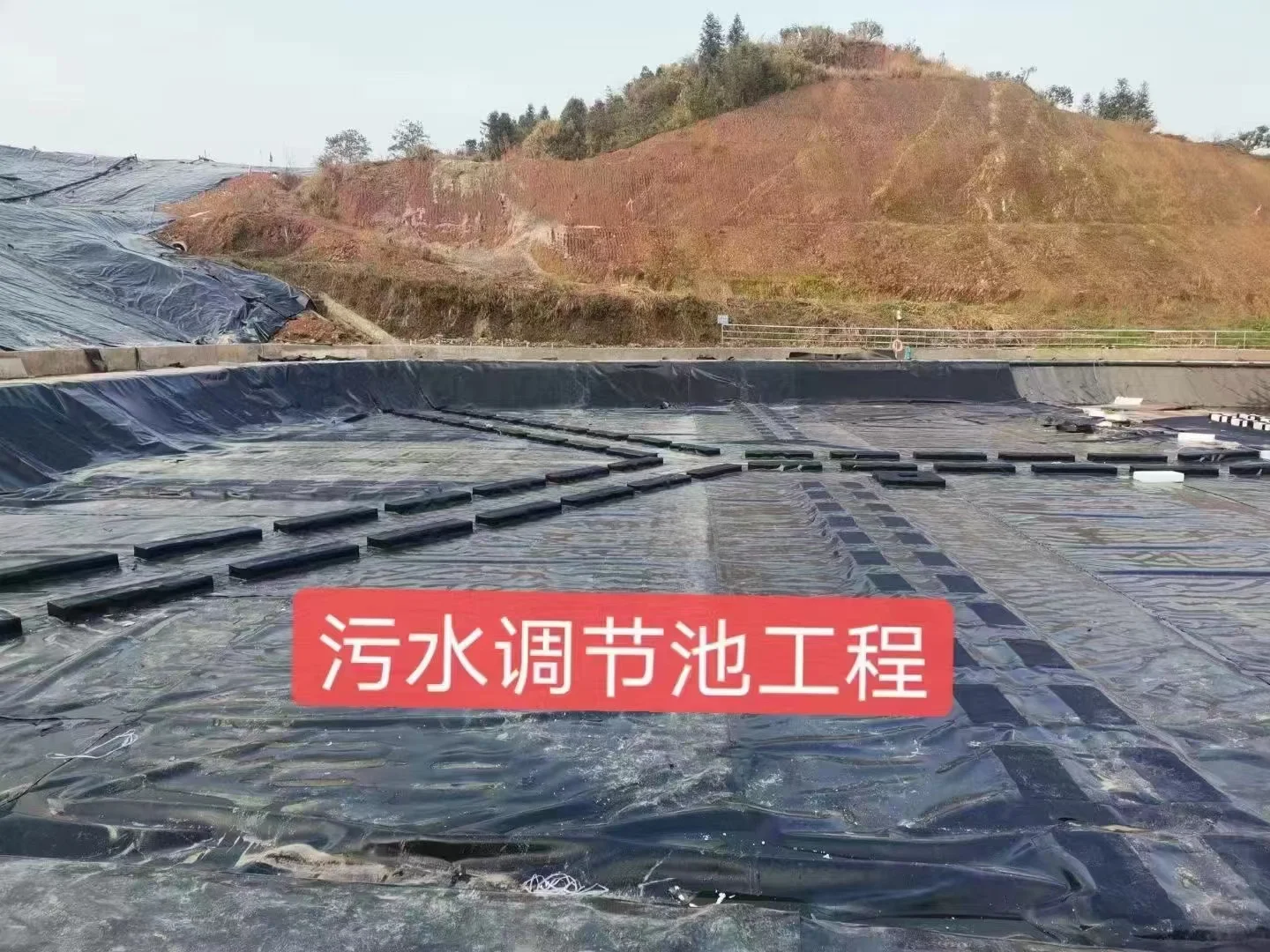

Product Application

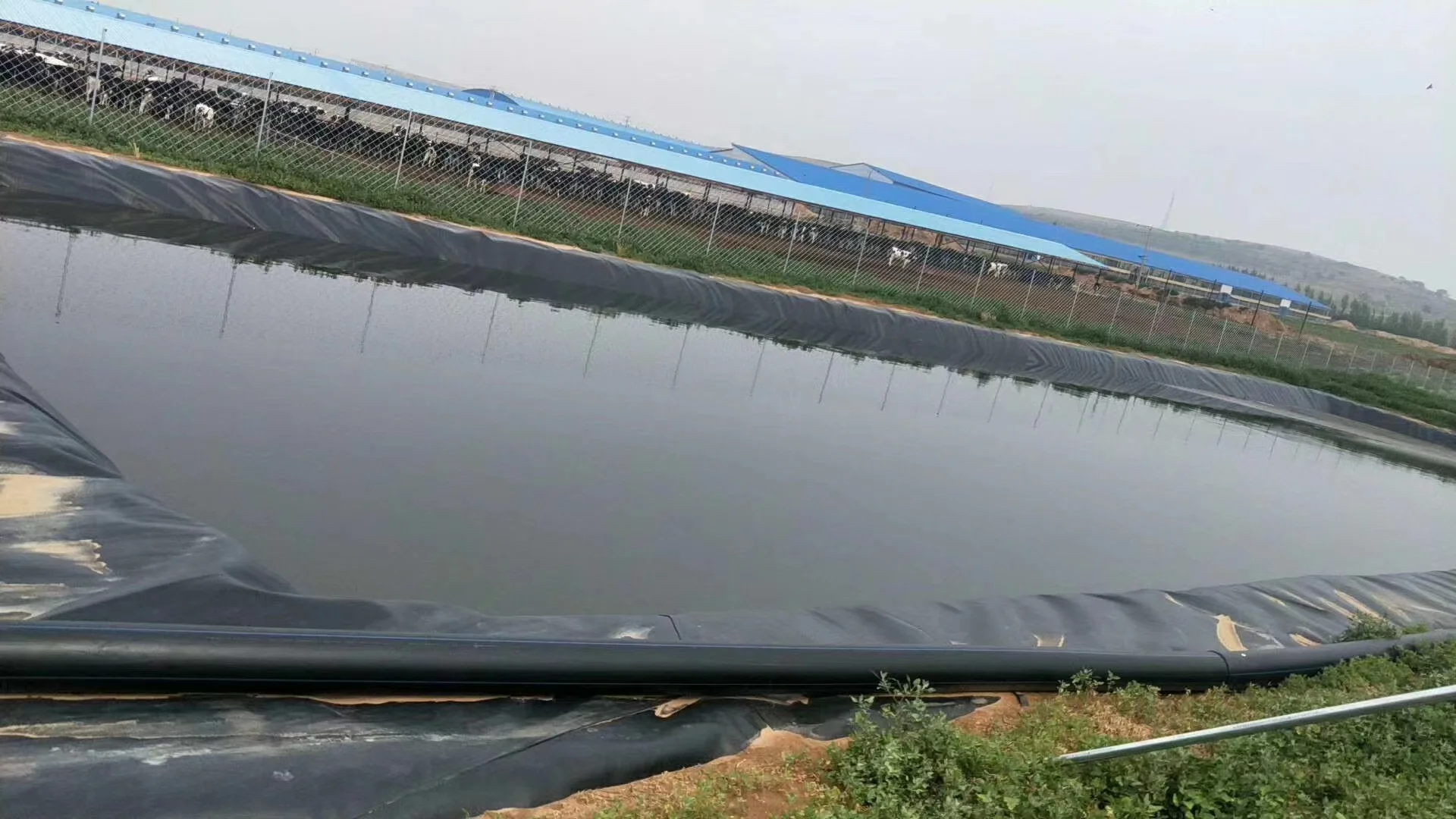

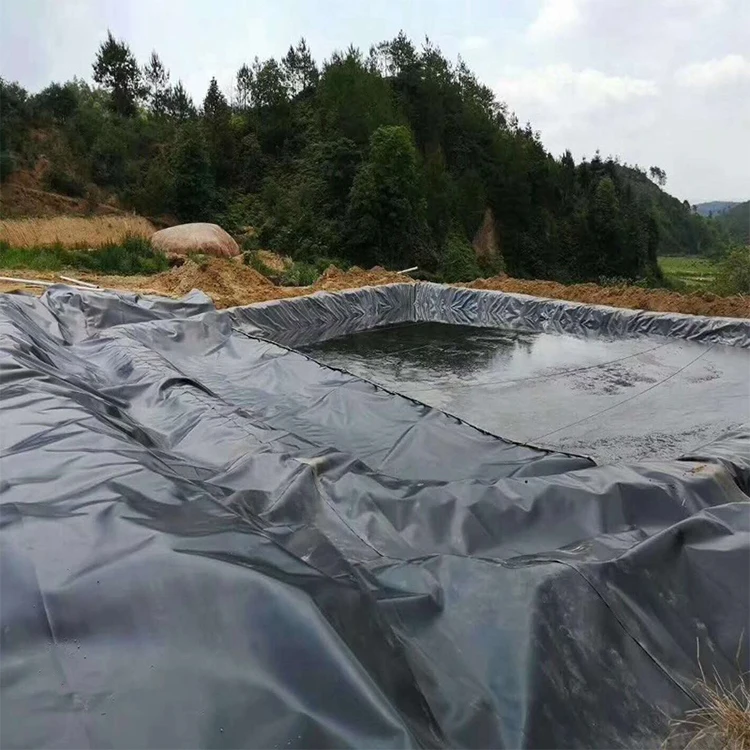

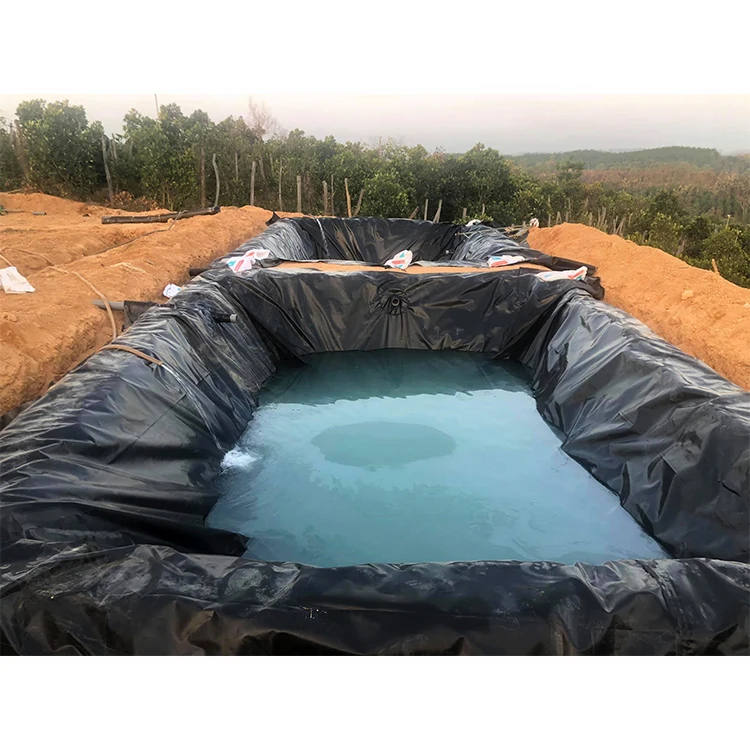

Aquaculture Industry

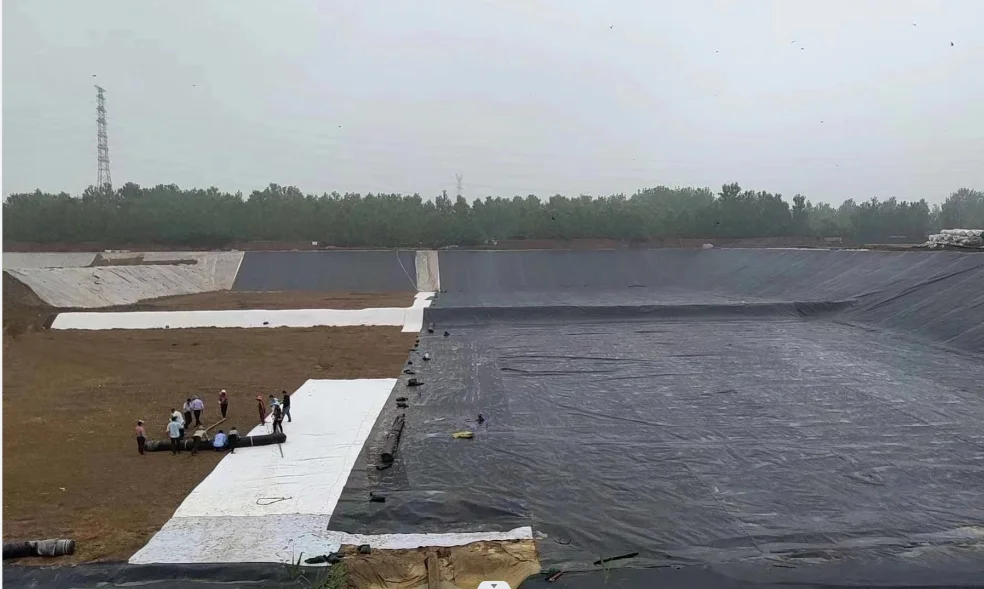

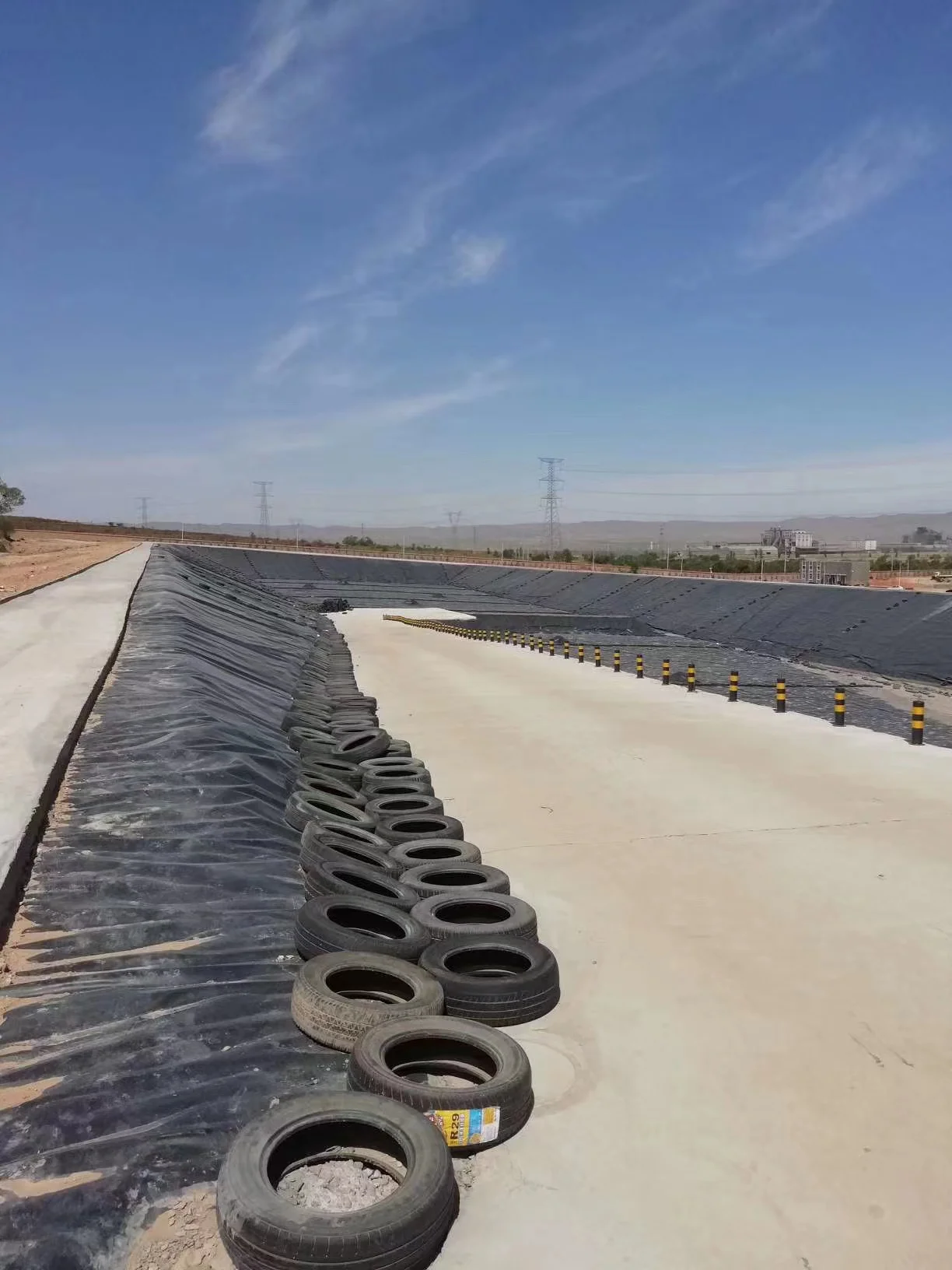

Water Conservancy
Municipal Engineering
Petrifaction
For example, anti seepage of oil storage tanks in chemicalplants, refineries and gas stations, lining of chemical reaction tank and sedimentation tank, secondary lining, etc.

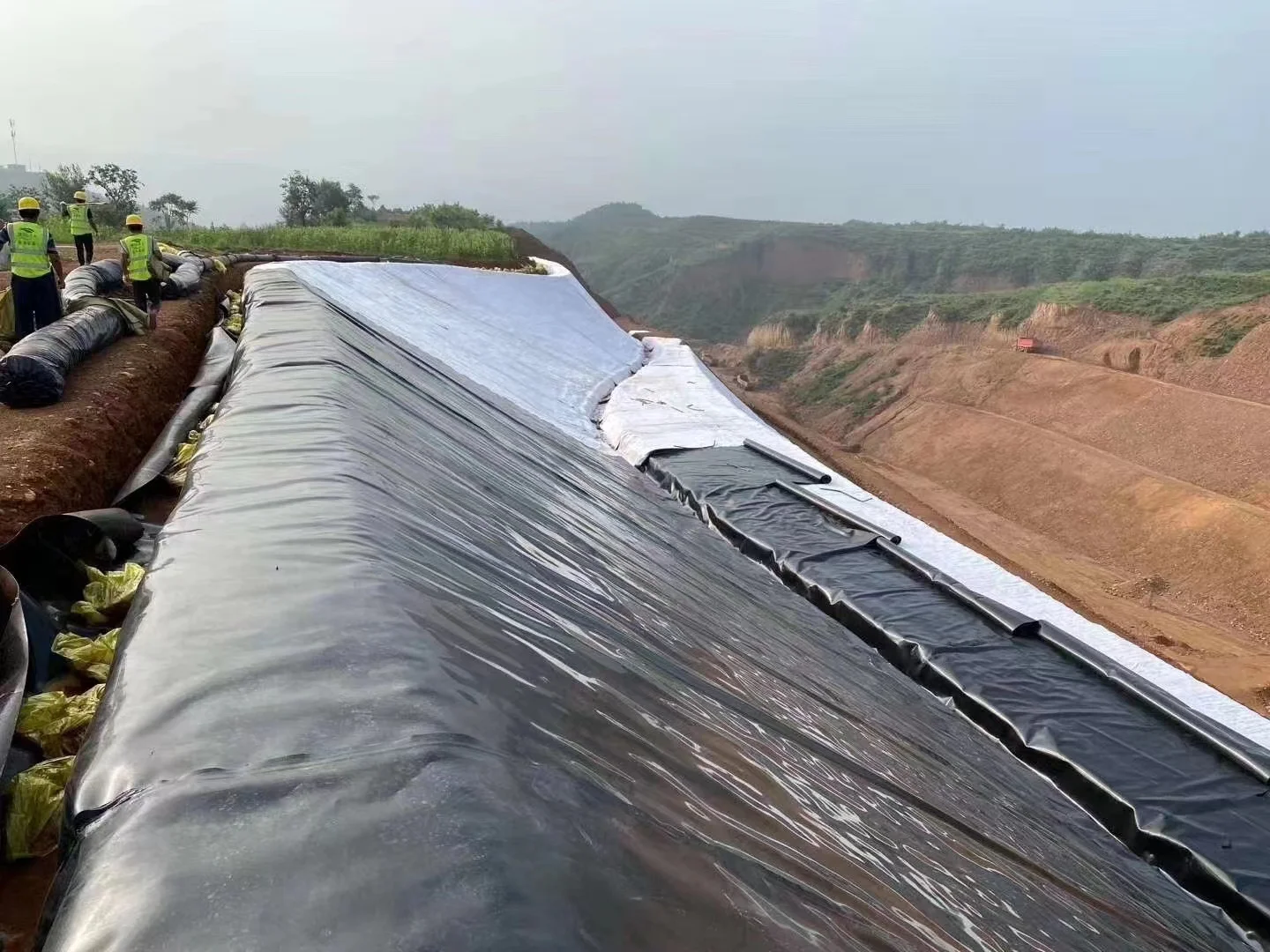

Mining Industry
For example, anti seepage of bottom lining of washing pond, heap leaching pool, ash yard, dissolving pool, sedimentation tank,
storage tard, tailings pond, etc.
Why Choose Us?
Company Profile

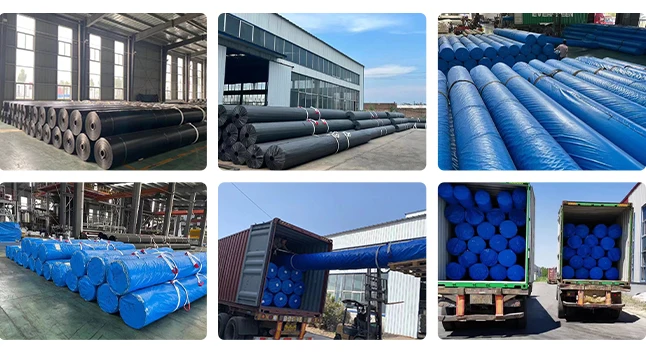

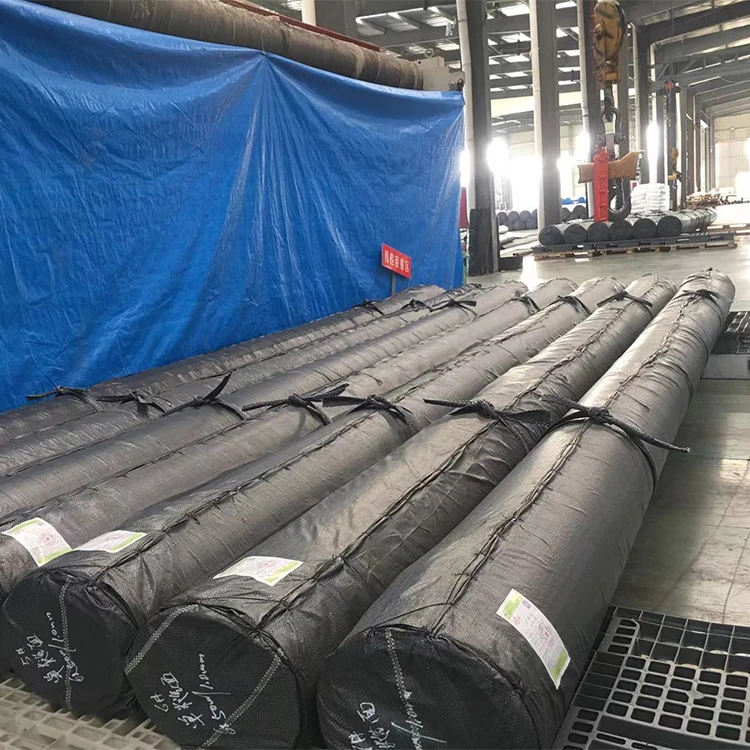

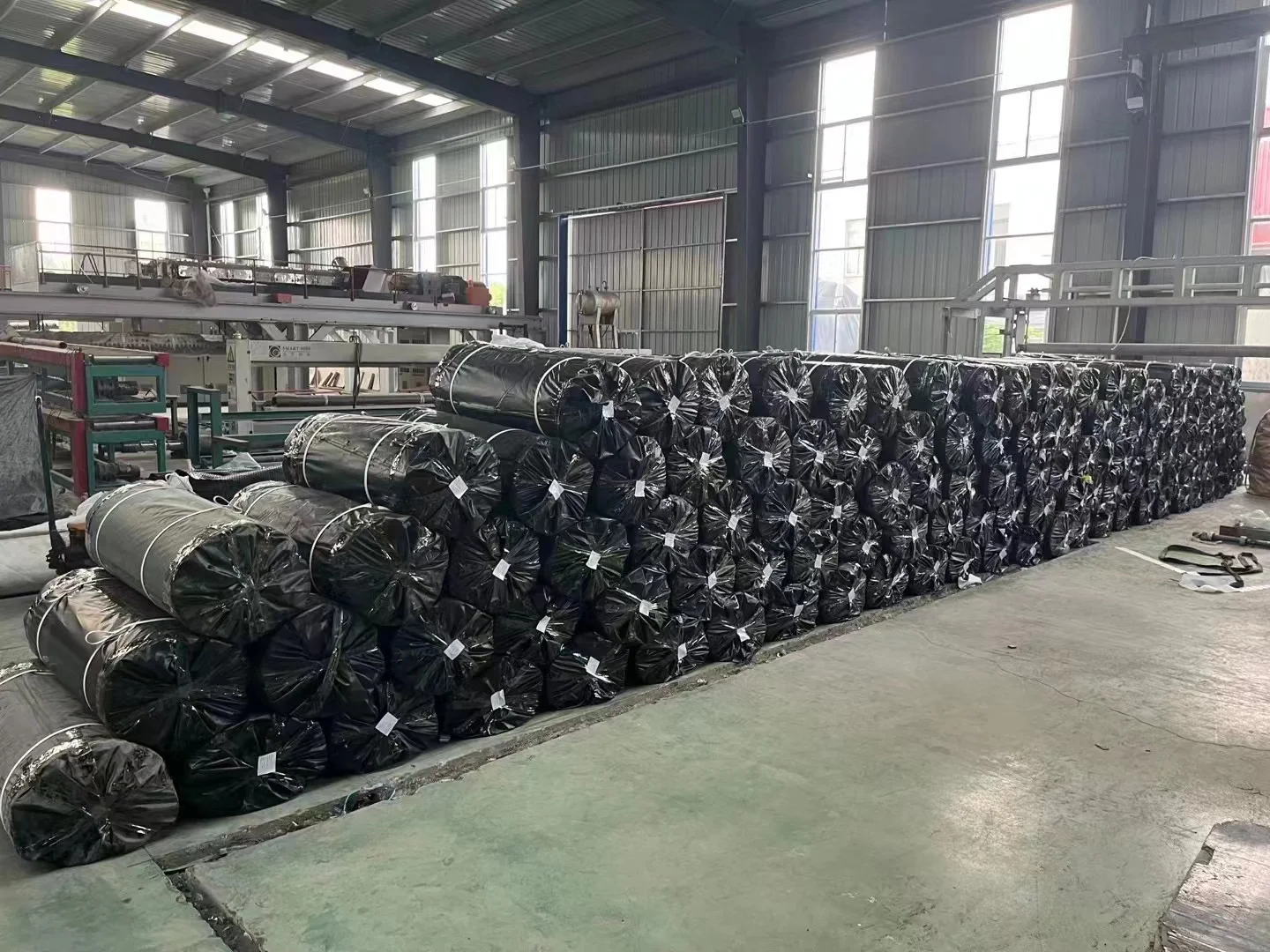

Packaging & Shipping
FAQ
1:Are you manufacturer or trade company?
We are a professional geosynthetic products manufacture, we will provide you with top-class service.
2:Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
3:Can you do OEM?
Yes, of course. We can produce the products as your request.
4: Do you provide samples ? is it free ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
5:How long is your delivery time?
Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according toquantity.
6:Can I get a discount?
We will be glad to give you a discount if your order is big enough.
We are a professional geosynthetic products manufacture, we will provide you with top-class service.
2:Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
3:Can you do OEM?
Yes, of course. We can produce the products as your request.
4: Do you provide samples ? is it free ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
5:How long is your delivery time?
Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according toquantity.
6:Can I get a discount?
We will be glad to give you a discount if your order is big enough.
