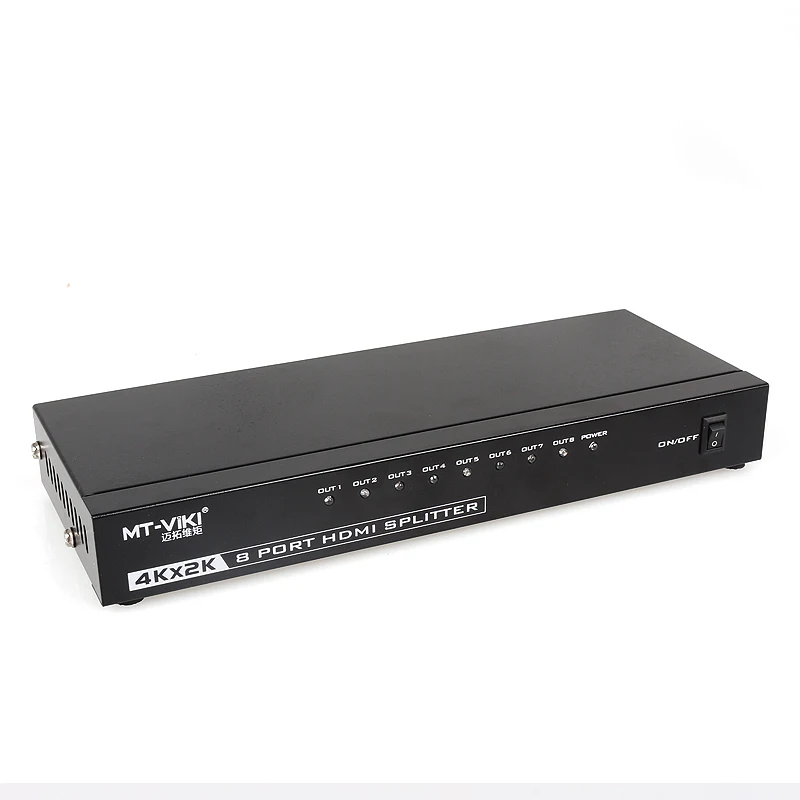

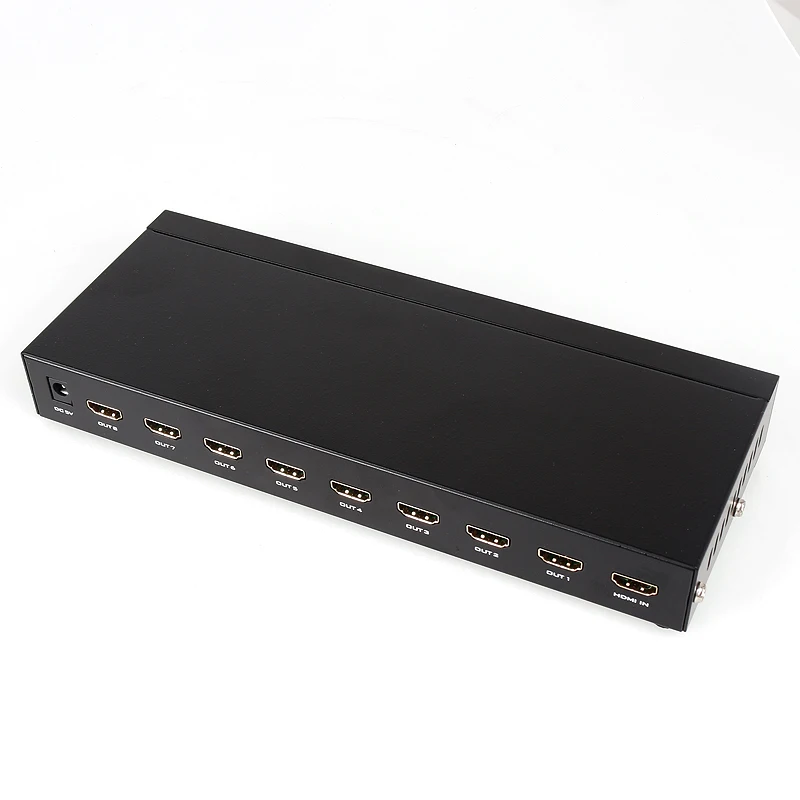

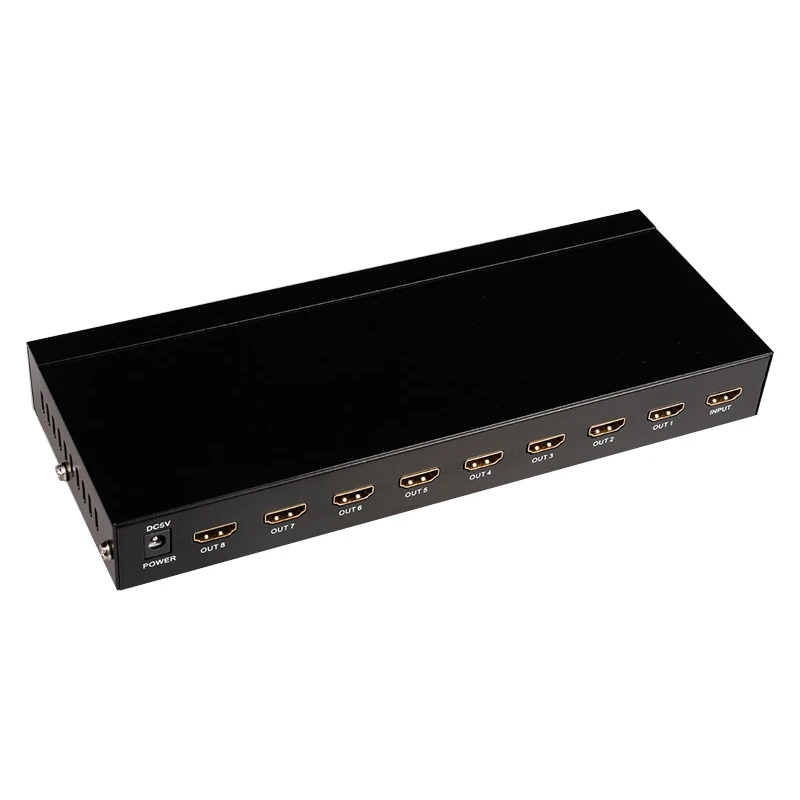

mt viki 2.0 4k 60hz 8 way 1 in 8 out hdmi splitter 1x8
- Category: >>>
- Supplier: Guangdong Mt-Viki Electronics Technology Co. Ltd.
Share on (1600640651121):
Product Overview
Description
Product Description
The SP148 H-DMI splitter is the perfect solution for anyone who needs to send one source of digital high definition video to eight HDMI displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
Product Feature
- Connects one HDMI source to eight HDMI displays at the same time
- HDMI (3D, deep, color, 4kx2k), HDCP compatible
- Supports resolutions of up to ultra HD 4kx2k and 1080p full HD
- Features EDID expert technology:
- support EDID
- Built-in EDID mode selection
- Supports DolbyTrue HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports up to 225MHz bandwidth for high performance video
- Signaling rates up to 3.4Gbits
- Plug-and-play no software installation required
Specifications
| Video Input | Interface | 1 x HDMI Type A Female (Black) |
| Impedance | 100Ω | |
| Max distance | 15 m | |
| Video Output | Interface | 8 x HDMI Type A Female (Black) |
| Impedance | 100 Ω | |
| Video | Max. data rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. pixel clock | 225MHz | |
| Compliance | HDMI (3D, Deep Color, 4K); | |
| HDCP Compatible | ||
| Max resolutions | Up to 4K@60Hz (4:4:4) | |
| Max distance | Up to 15 m | |
| Audio | Input | 1 x HDMI Type A Female (Black) |
| Output | 8 x HDMI Type A Female (Black) | |
| EDID Settings | EDID Mode:Default Port 1 | |
| Power | Connector:1 x DC Jack | |
| Consumption: 5 VDC, | ||
| Environment | Operating Temp. | -45°C-80°C |
| Storage Temp. | ||
| Humidity | 50-90% RH, Non-Condensing | |
| Housing | Metal | |
| Weight | ||
| Dimensions | 25*10*3 cm | |
| (L x W x H) | ||
| Carton Lot | 20 pcs | |
