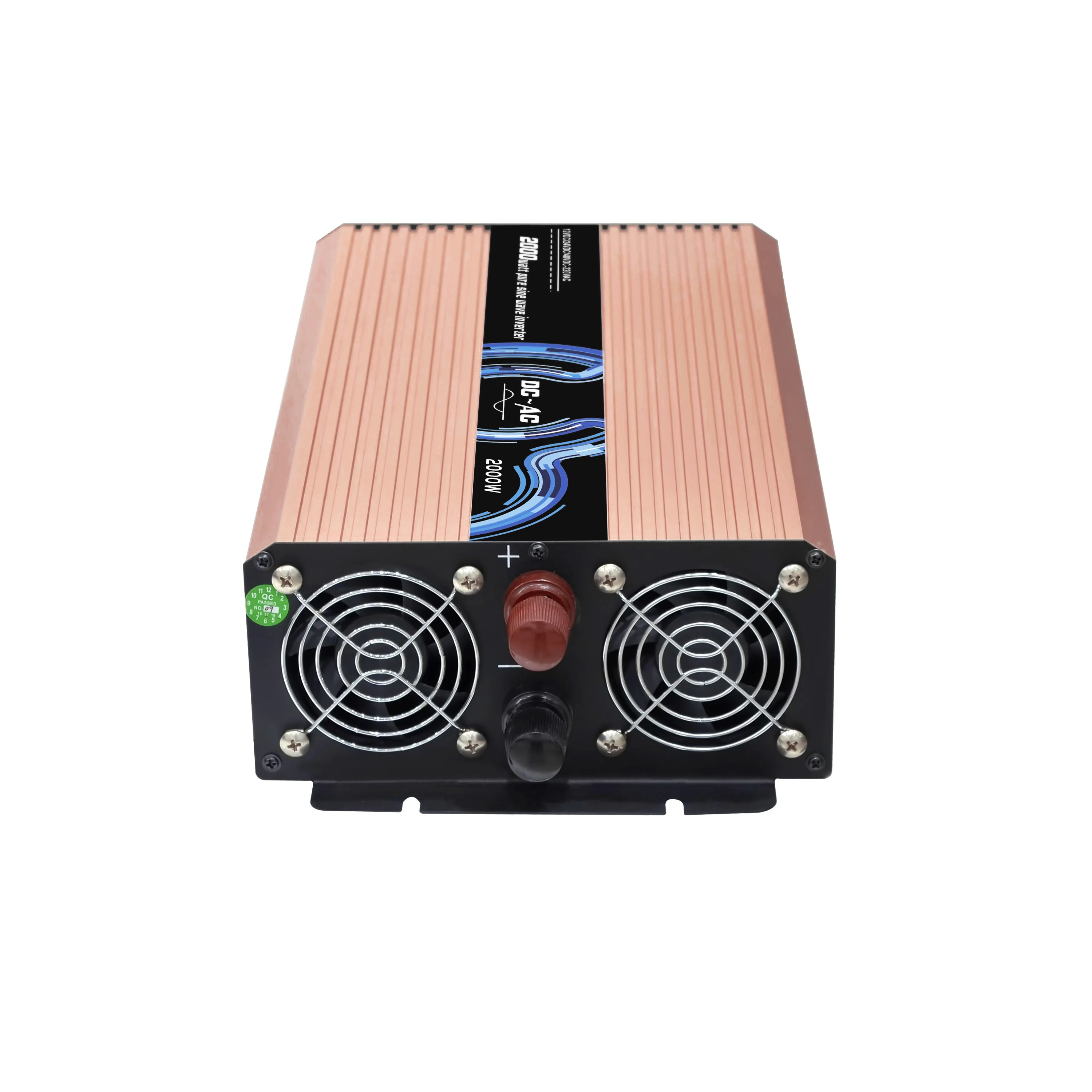

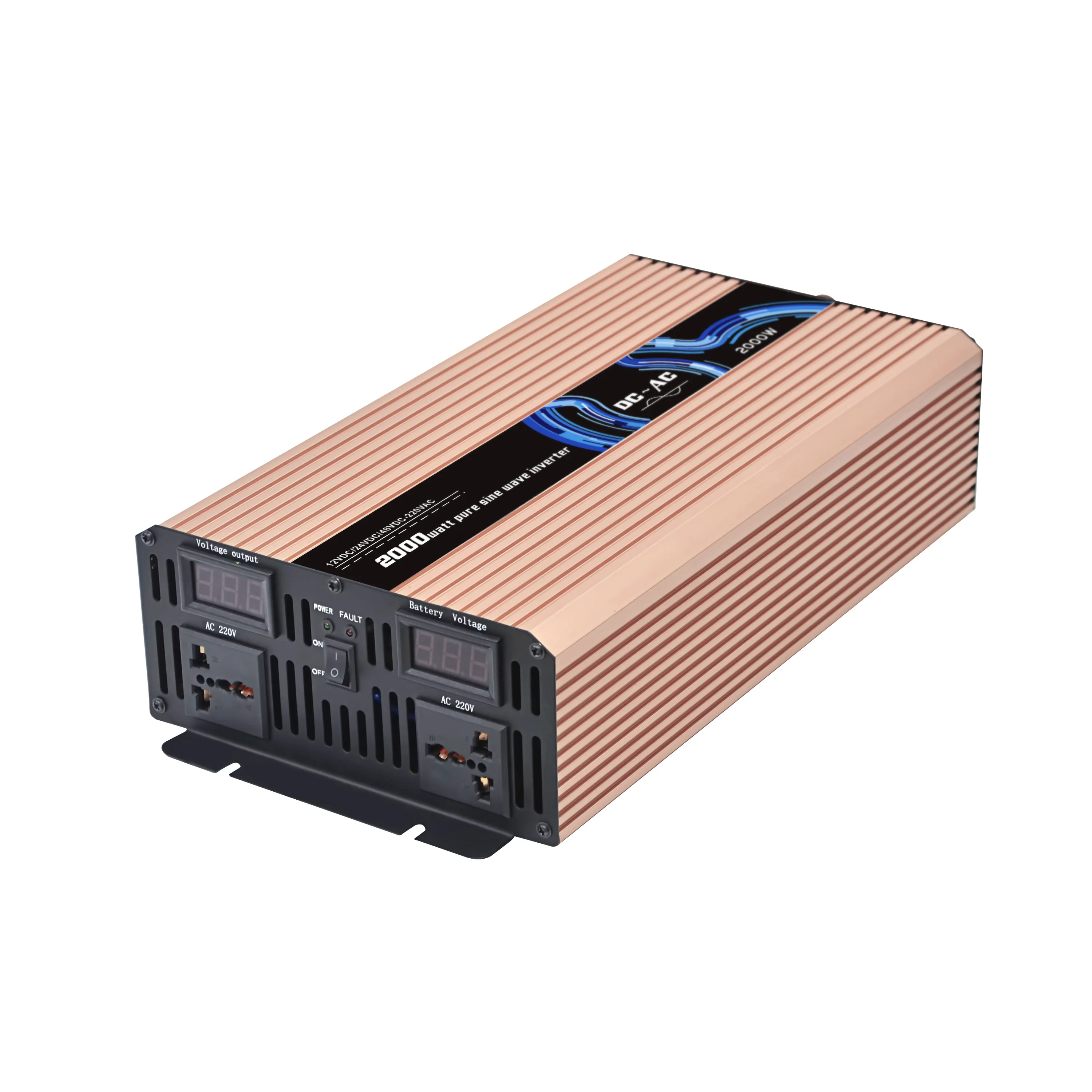

12v 24v high frequency transformer generator portable mobile phone charger 2000 watt 1.5 kw power inverter
- Category: >>>
- Supplier: COREPLUS INDUSTRIAL COMPANY LIMITED
Share on (1600640653012):
Product Overview
Description
Product Description
Product Feature
1. Soft-start function
2. DC/AC isolation
3. Pure sine wave output
4.Excellent load adaptability and stability
5.Strong startup ability, high efficiency conversion
6.Industrial universal socket designed for wide applicability
7.Small volume, light, safe to use, portable
8.Protection against over-heating,over-voltage,under-voltage,over load and short-circuits
Product Parameters
| Specification | ||||||||
| Model : GP-C | 30112/24 | 50112/24 | 10212/24 | 15212/24 | 20212/24 | 25224 | 30224 | |
| Rated Power | 300W | 500W | 1000W | 1500W | 2000W | 2500W | 3000W | |
| Battery Voltage | DC 12V/24V | DC 24V | ||||||
| Size(L*W*Hmm) | 197*55*150 | 350*150*63 | 407*198*90 | 470*222*90 | ||||
| Package Size(L*W*Hmm) | 210*80*175 | 370*105*185 | 432*125*233 | 520*138*272 | ||||
| N.W.(kg) | 1 | 1 | 2.2 | 4.2 | 4.5 | 7.2 | 7.2 | |
| G.W.(kg)(Carton Packing) | 1.5 | 1.5 | 2.5 | 4.8 | 5 | 8 | 8 | |
| Input | DC input voltage range | 10.5-15VDC (single battery voltage) | ||||||
| Voltage of the battery switched on automatically | ≥11V (single battery voltage) | |||||||
| Ouput | Output voltage (battery mode) | 220VAC±2% | ||||||
| Output frequency (battery mode) | 50/60HZ±1% | |||||||
| Efficiency | ≥85% | |||||||
| Output wave form | Pure Sine Wave | |||||||

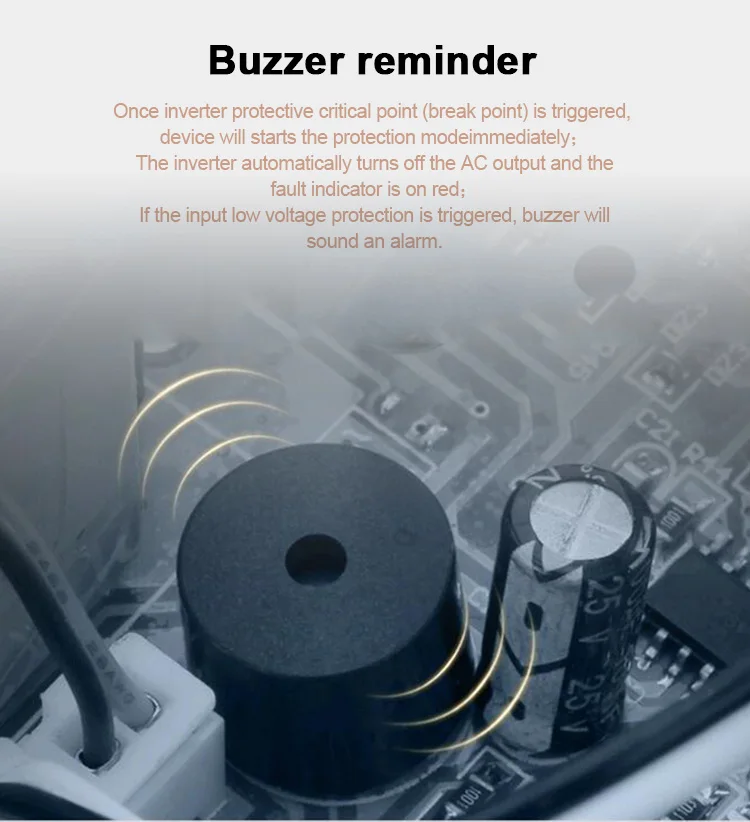

| Protection | Battery low voltage alarm | 9.5VDC±0.5V (single battery voltage) | ||||||
| Battery over voltage protection | 15VDC±0.5V (single battery voltage) | |||||||
| Ouput undervoltage protection (Battery mode) | ≤187VAC Turn off the output | |||||||
| Output short circuit protection (Battery mode) | machine shut off,battery cut off | |||||||
| Over power protection | 110% more than rated capacity | |||||||
| Temperature protection | ≥90℃ machine shut off | |||||||
| Protection instructions: Turn off the machine during protection and the machine will automatically return to normal after troubleshooting | ||||||||

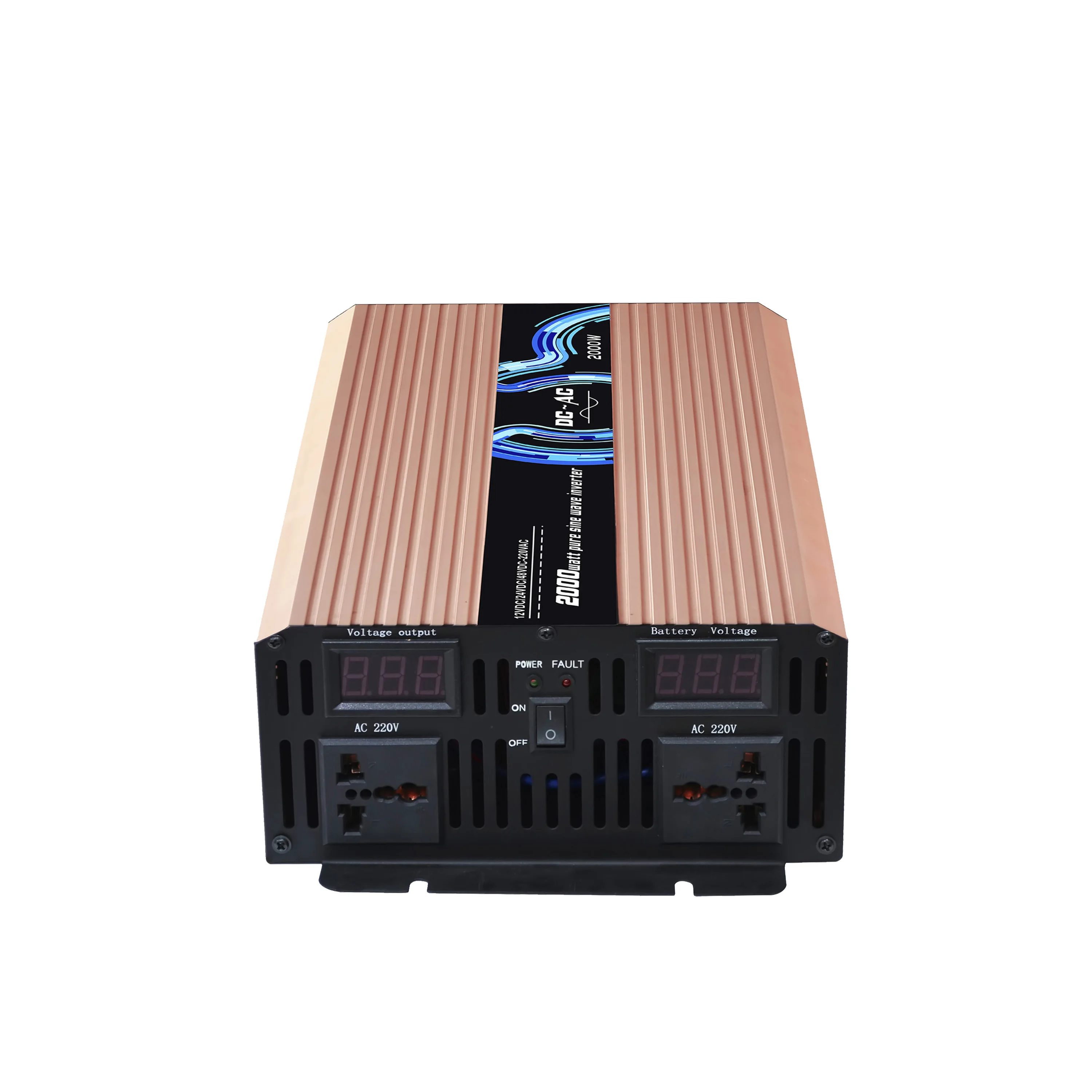

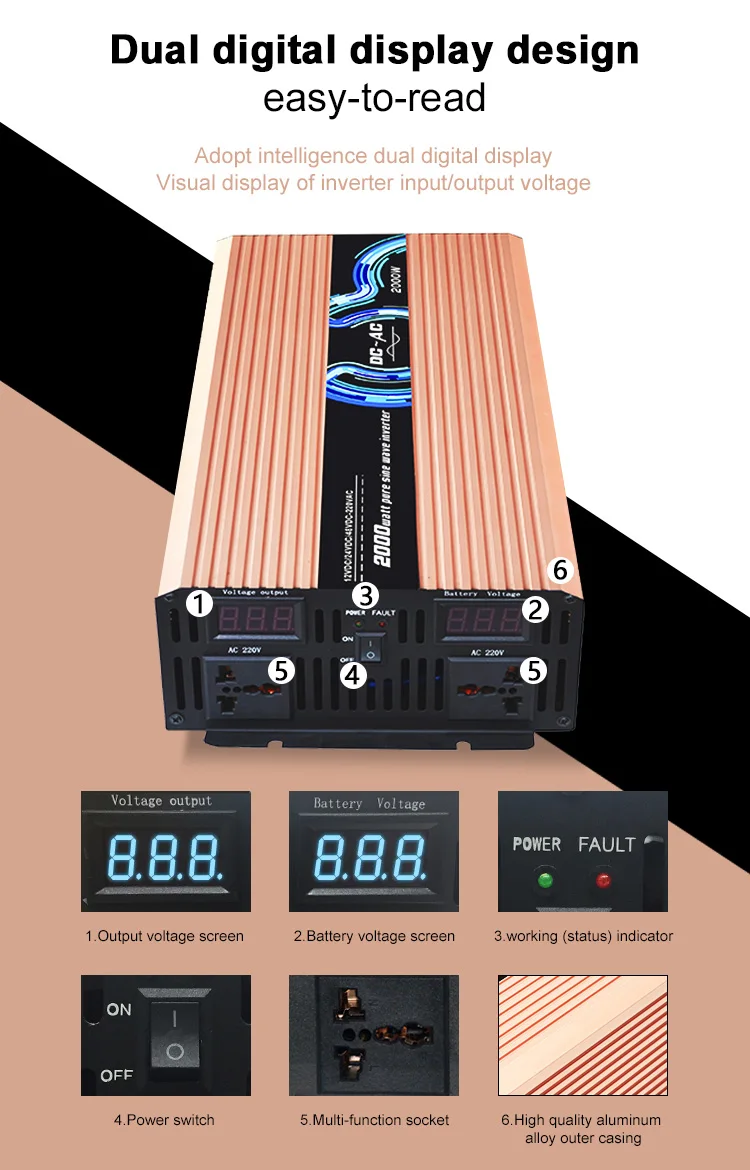

| Display | LED. Red light:battery fault, Green light: Normal electricity | LED. Red light:battery fault, Green light: Normal electricity+Digital tube voltmeter | ||||||

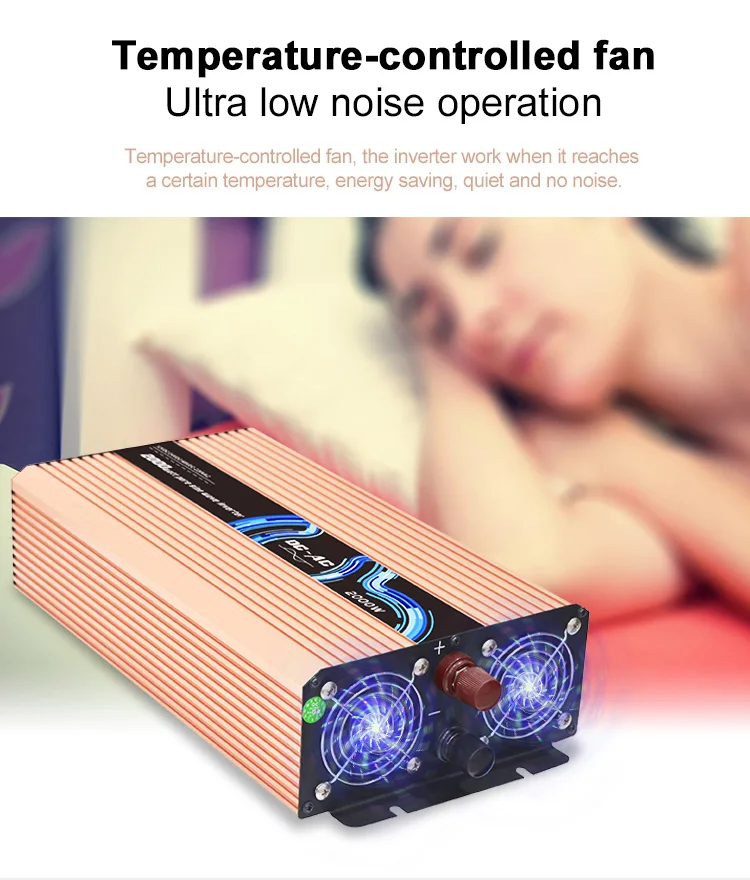

| Thermal method | Cooling fan in intelligent control | |||||||
| On-off | locking-type | |||||||
| Environment | Operating temperature | -10℃~+40℃ | ||||||
| Storage temperature | -15℃~60℃ | |||||||
| Noise | ≤60dB | |||||||
| Highest altitude | 2000m(More than derating) | |||||||
| Relative humidity | 0%~95%(No condensation) | |||||||

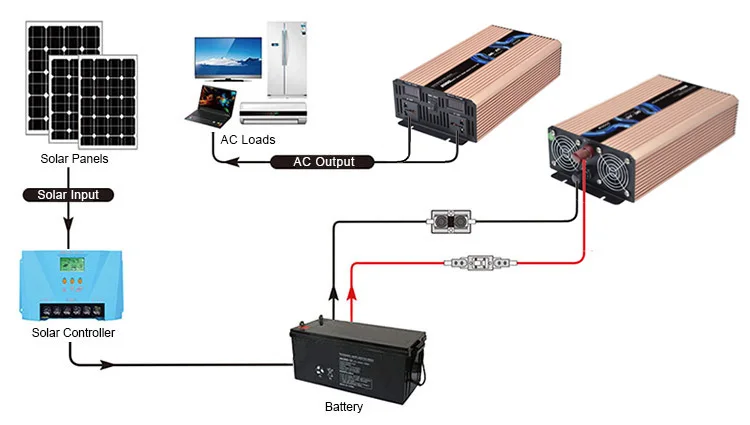

Product Uses
Packing & Shipping
Packing:
1. Attach the color sticker and label of the controller.
2. Put the controller and instruction manual into the color box.
3. Put into export carton.
4. Enter the warehouse and wait for shipment.

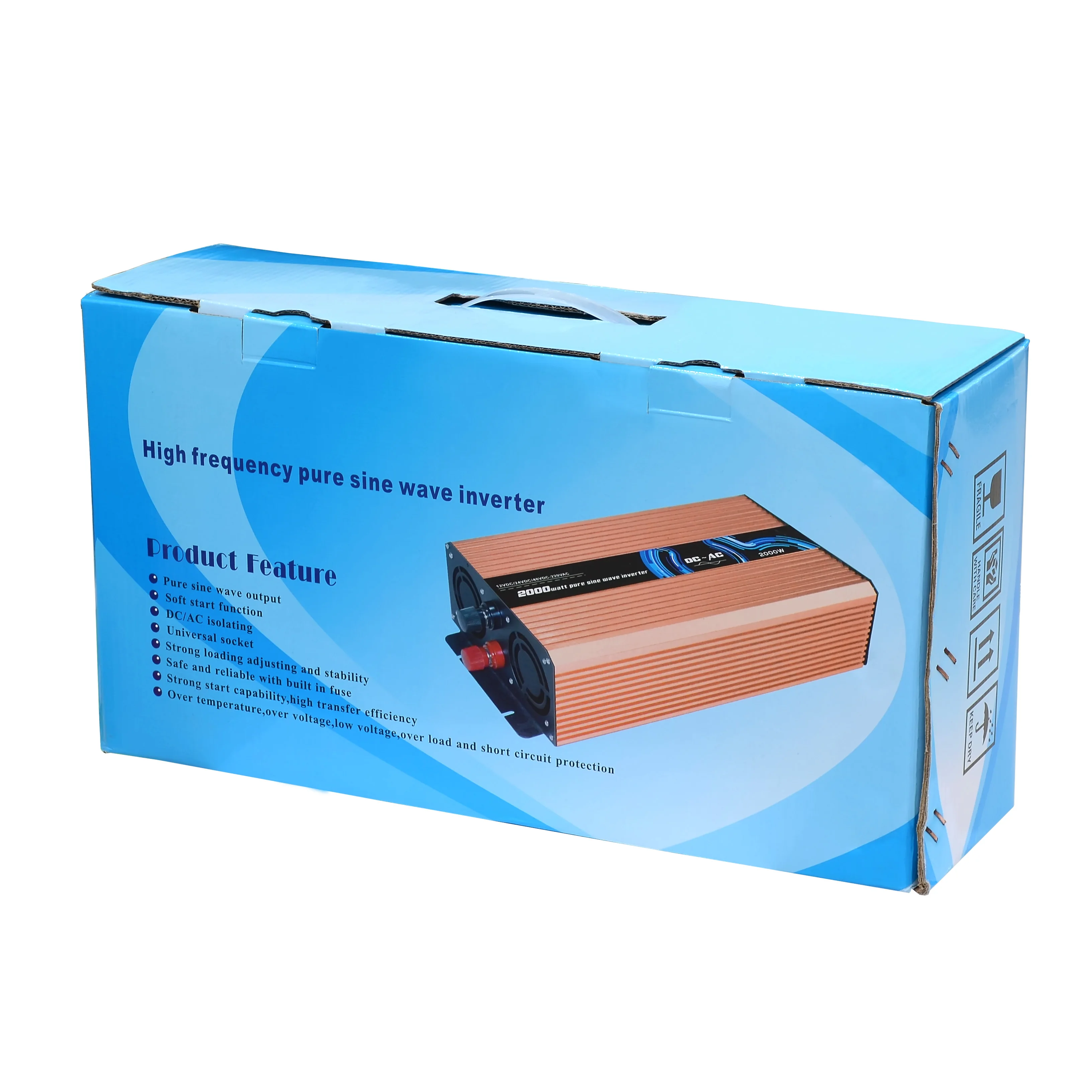

Kraft box packaging, Chinese and English manual, screwdriver, transparent bag, PE bags, OPP bags, Foam Cotton, Custom bags+carton case+carton box or as your requirement.
Main port:
Guangzhou/Shenzhen/Hongkong or as required.
Express Company:
DHL, TNT, UPS, FedEx, etc.
