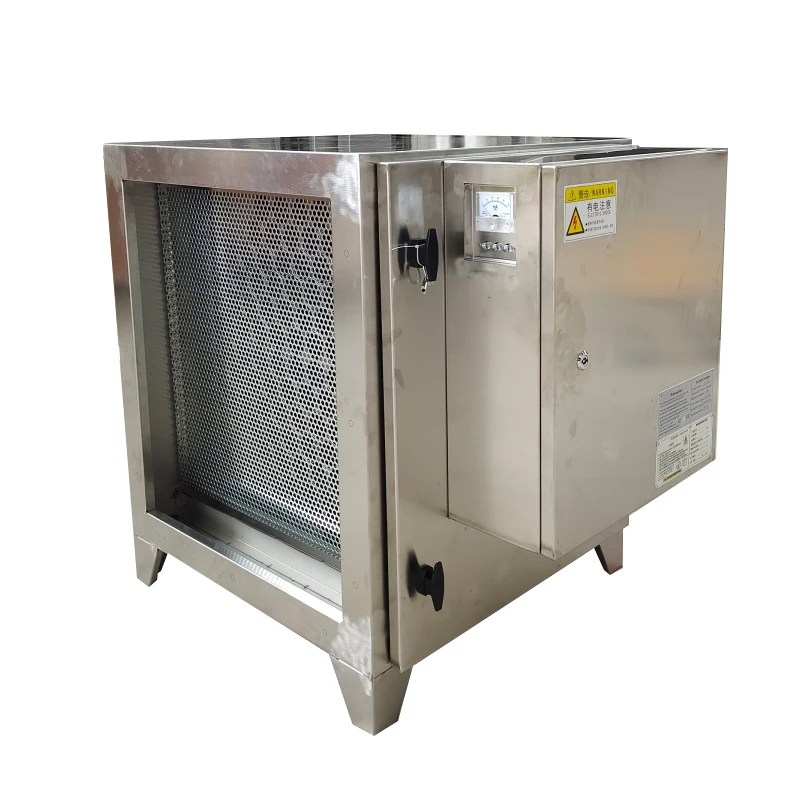

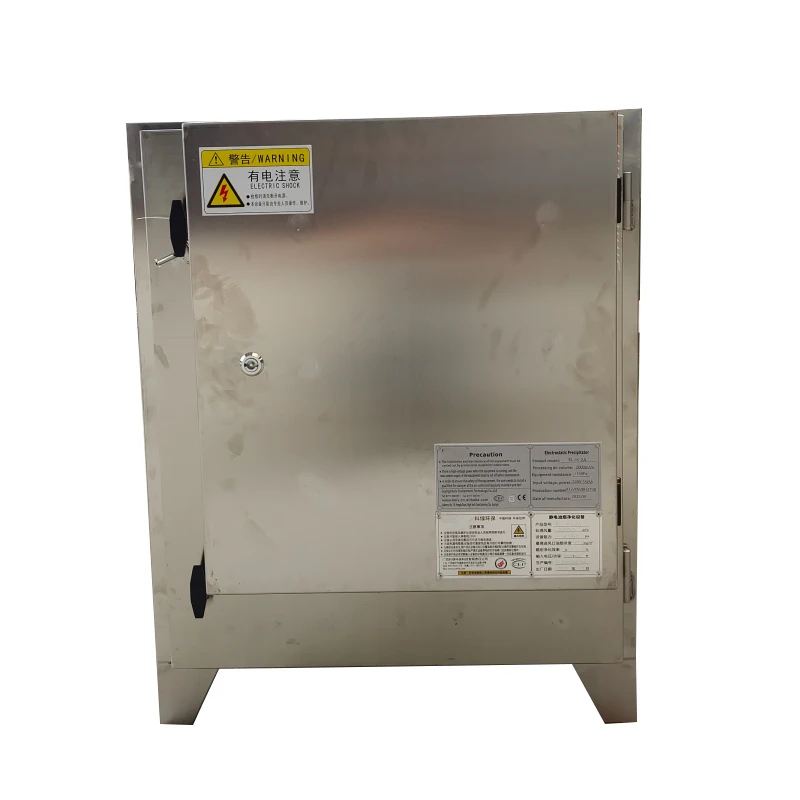

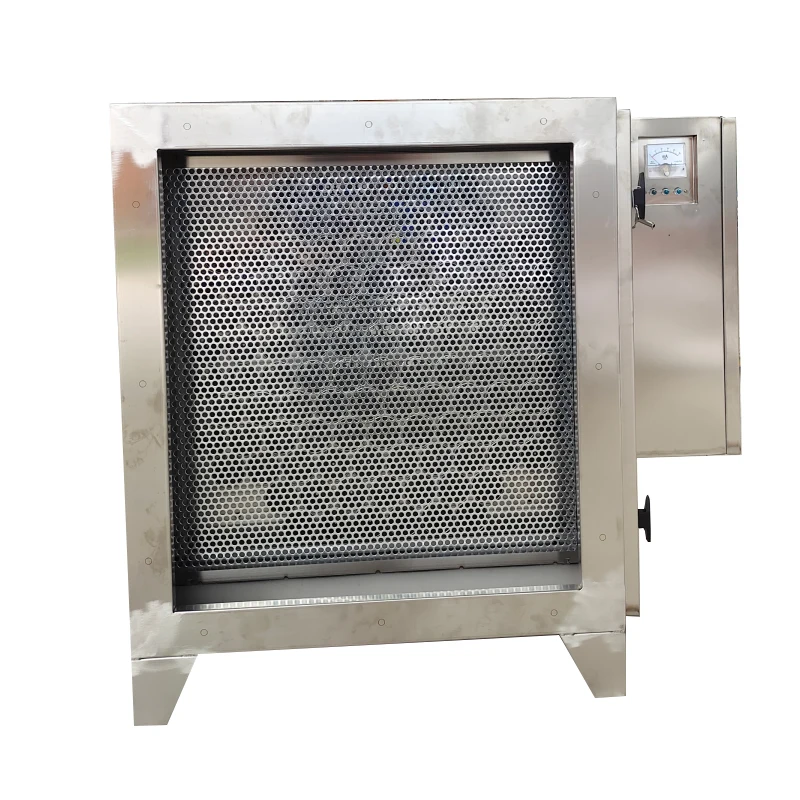

Coffee Smoke Filter For Coffee Manufacturer Factory H 2A Commercial Kitchen Stainless Steel Electrostatic Precipitator
- Category: >>>
- Supplier: Guangxi Kelv Environment Technology Co. Ltd.
Share on (1600640668956):
Product Overview
Description

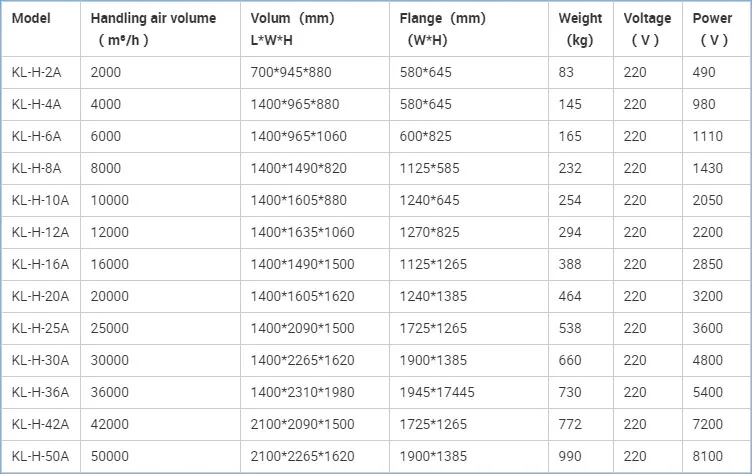

Product Details
Model | KL-H-2A | ||||||
Handling air volume （ m³/h ） | 2000 | ||||||
Volum（mm） L*W*H | 700*945*800 | ||||||
Flange（mm） （W*H） | 580*645 | ||||||
Weight （kg） | 83 | ||||||
Voltage （ V ） | 220 | ||||||
Power （ W） | 490 | ||||||
Material | stainless steel | ||||||
Purification rate | More than five years of service life, 98% oil fume purification efficiency | ||||||

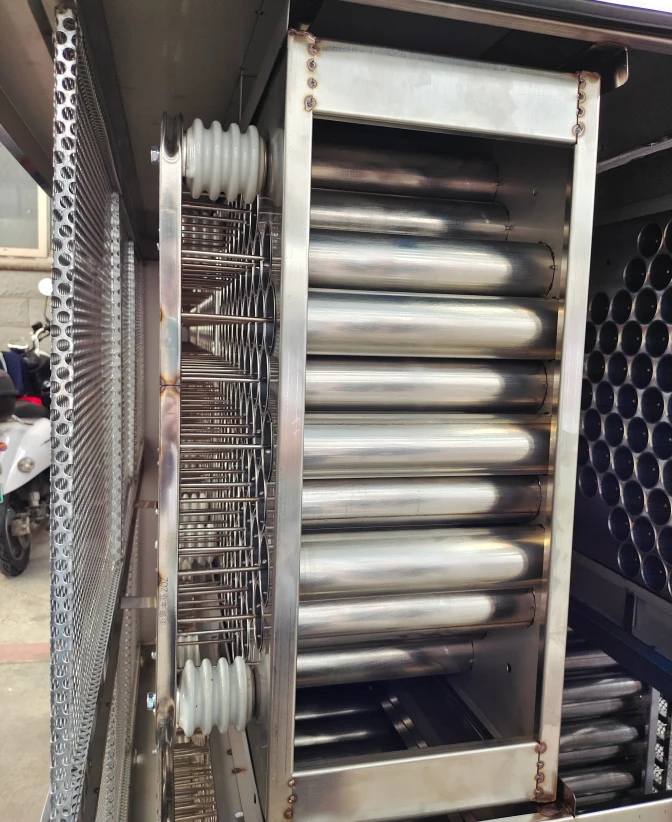

Production Process
Use environment
What is ESP
What is electrostatic precipitator（ESP）?
An electrostatic precipitator is a type of filter (dry scrubber) that uses static electricity to remove oil fume from exhaust
fumes before it exit from the exhaust pipe.

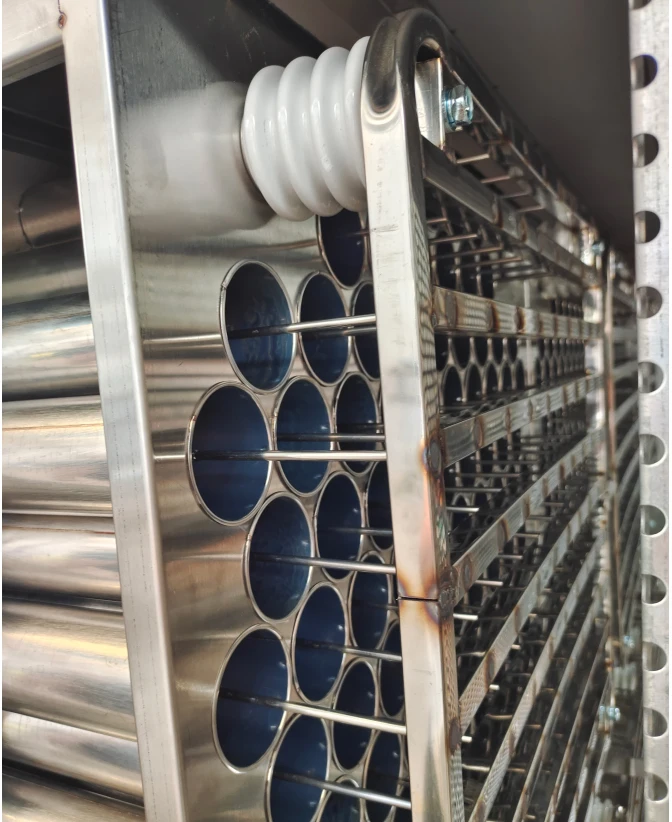

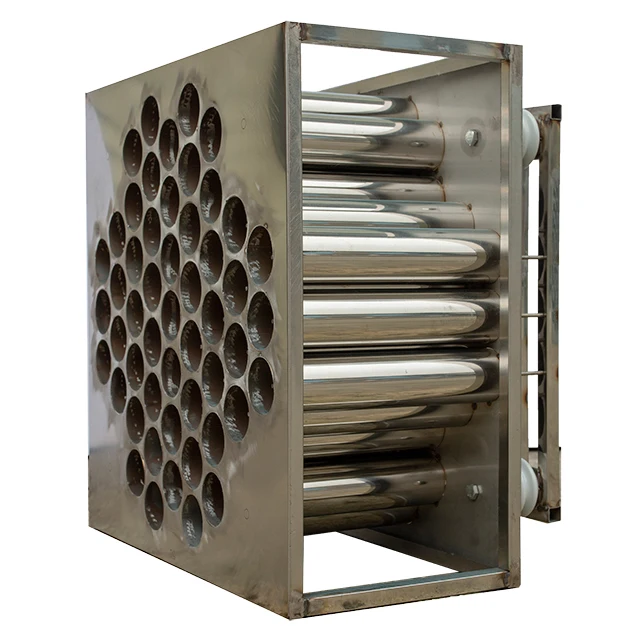

The core part of the ESP is the electric field.Engineers build up a honeycomb structure electric filed which is charged with a high voltage by high voltage power supply. Oil fume particles pick up a charge when they pass the charged electrodes. Then the charged oil fume particles are attracted to oppositely charged collecting cylinders.
As a result,85%-95% of oil fume will be removed！
fumes before it exit from the exhaust pipe.
The core part of the ESP is the electric field.Engineers build up a honeycomb structure electric filed which is charged with a high voltage by high voltage power supply. Oil fume particles pick up a charge when they pass the charged electrodes. Then the charged oil fume particles are attracted to oppositely charged collecting cylinders.
As a result,85%-95% of oil fume will be removed！
Working principle:
Electrostatic remove oil fume technology is the use of the cathode in the high voltage electric field emitted electron and because of the negative ions generated by electron impact air to capture the soot particles, generally in the zero point can make the soot particle in a few seconds with enough charge a charged particle in the electric field is the function of electric field force,make the soot particles are anode adsorption, sedimentation at the anode, so as to achieve the purpose of purifying oil fume.

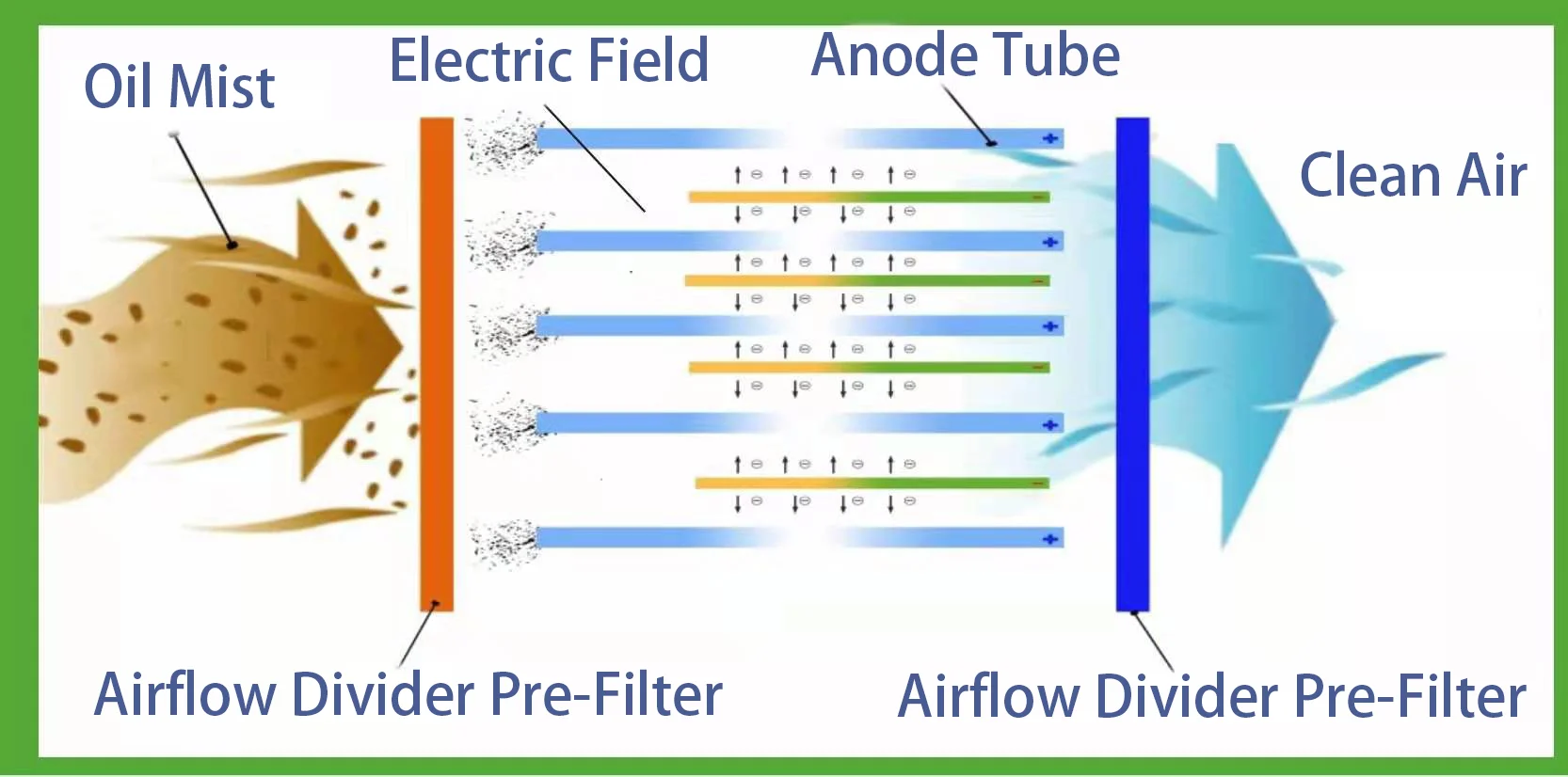

Principle of Electrostatic Purification
Note: Theoretically, the electric power to separate charged particles is proportionate to the product of the amount of charged particles and the strength of the collectingelectric field. The magnitude of this electric power, for a 1 um particle with a specific gravity of 1, is 3000 times that of gravity, which is the reason for the high efficiency ofthe dual electric field.
Company Information
Guangxi Kelv Environmental Protection Technology Co., Ltd. is a high-tech enterprise focusing on the research and development, production, sales and after-sales of electrostatic commercial fume purification equipment, dust purification equipment and high-frequency and high-voltage intelligent power supplies. Main products: catering oil fume purification equipment, plasma photo-oxygen catalysis industrial waste gas treatment equipment, water spray equipment, ultraviolet deodorization equipment, activated carbon deodorization equipment.
