Product Overview

Description





Product Description


4-Port H-DMI splitter MT-SP104M is the perfect solution for anyone who needs to send one source of digital high definition video to two HDMI displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

Product Feature



  • Connects one HDMI source to four HDMI displays at the same time

  • HDMI 3D deep color, HDCP compatible

  • Supports resolutions of up to1080p Full HD

  • Support EDID mode selection

  • Supports dolby true HD and DTS HD master audio

  • Long distance transmission – up to 15 m (24 AWG)

  • Supports up to 340MHz bandwidth for high performance video

  • Signaling rates up to 3.4 Gbits

  • Plug-and-play – no software installation required


Application



  • PC/TV/PS game/laptop/TV box/projector etc.

  • Broadcasting video information (news headline, stock prices, airline, train schedule, etc. )

  • Monitoring harsh work environment from safe location.

  • Classroom or company training facilities.


Specifications









































































































Video InputInterface1 x HDMI Type A Female
Impedance100 Ω
Max distance15 m
Video OutputInterface4 x HDMI Type A Female
Impedance100 Ω
VideoMax. data rate10.2 Gbps (3.4 Gbps Per Lane)
Max. pixel clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K);
HDCP Compatible
Max resolutionsUp to 4K@30Hz
Max distanceUp to 15 m
EDID SettingsEDID Mode: Default / Port 1 / Auto
PowerConnector:1 x DC Jack
Consumption: 5 VDC, 1.5A
EnvironmentOperating Temp. -5-55 °c
Storage Temp. -20-60 °c
Humidity5-90% RH, Non-Condensing
Physical
Properties		HousingMetal
Weight0.27kg
Dimensions9.5 x 6 x 2 cm
(L x W x H)
Carton Lot60 pcs
package Contents1xUser Manual, 1xpower adapter,1x HDMI Splitter

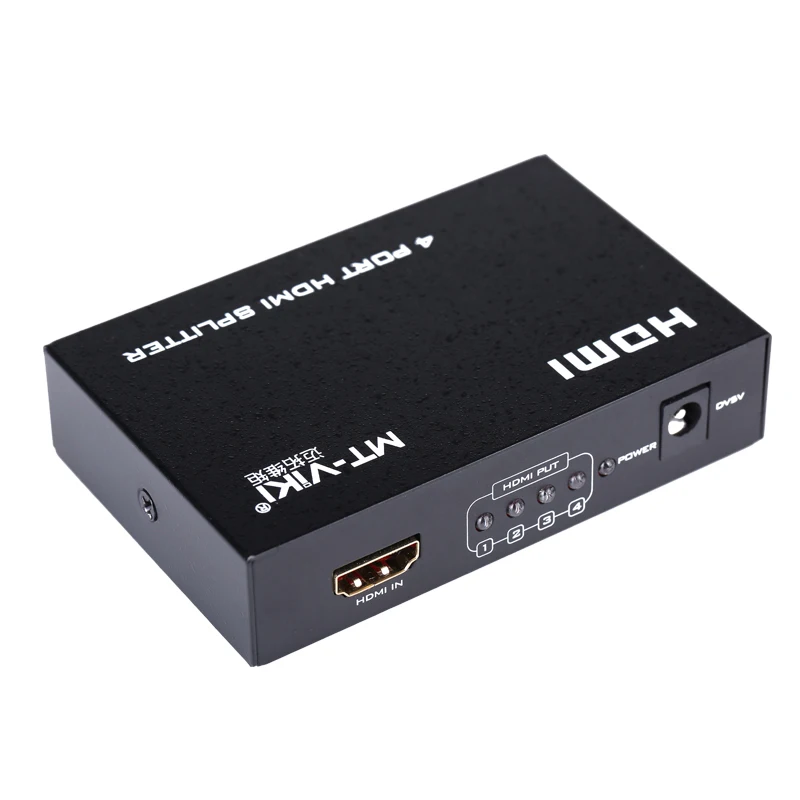

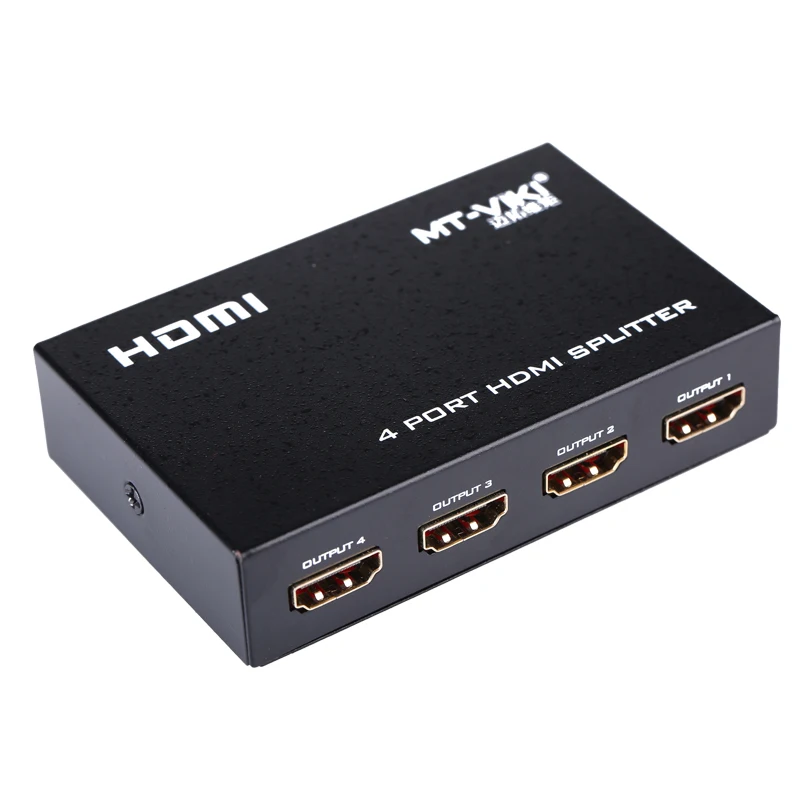

Product Image

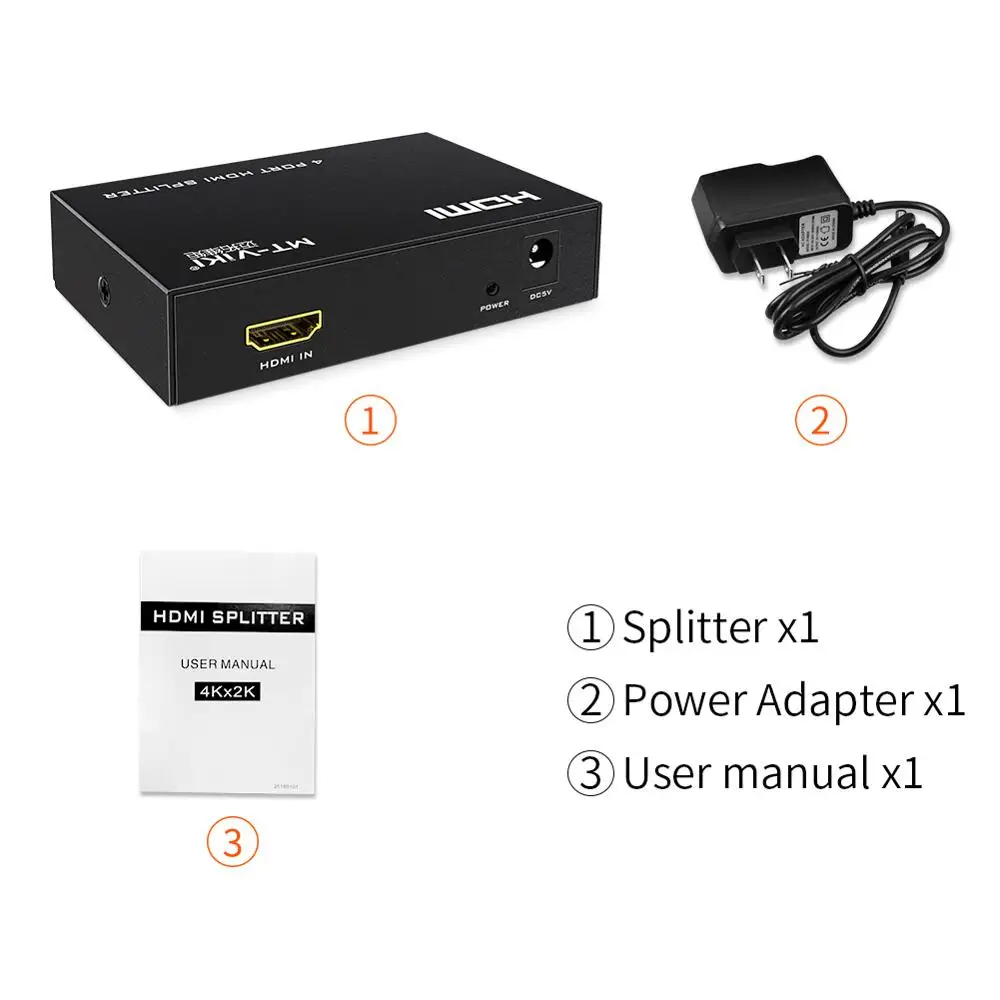

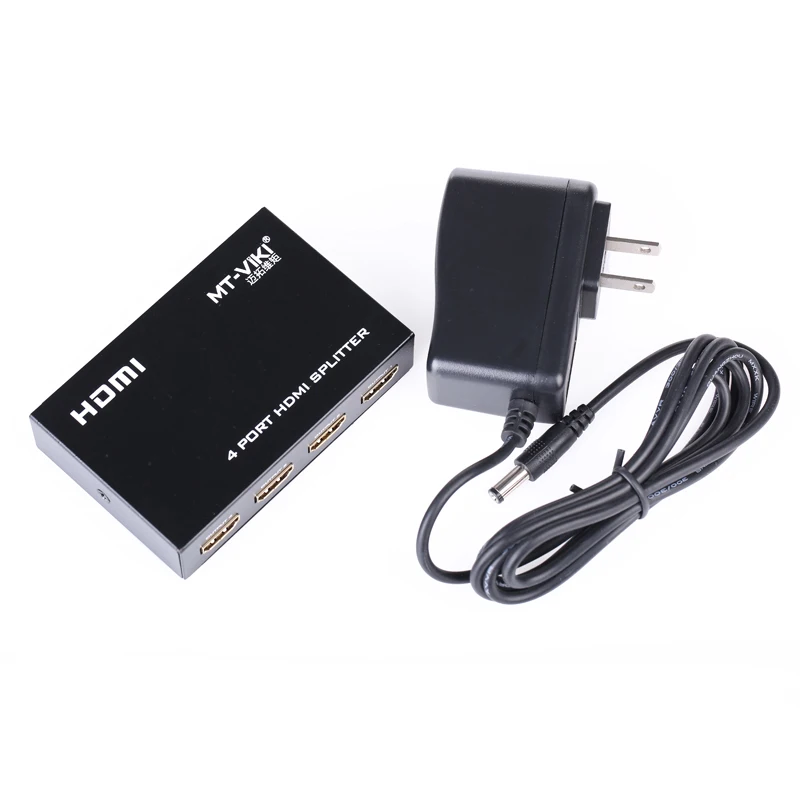

Packing List





1X 4 Port HDMI Splitter
1X DC Power Supply (EU/US/UK...)
1X User Manual
