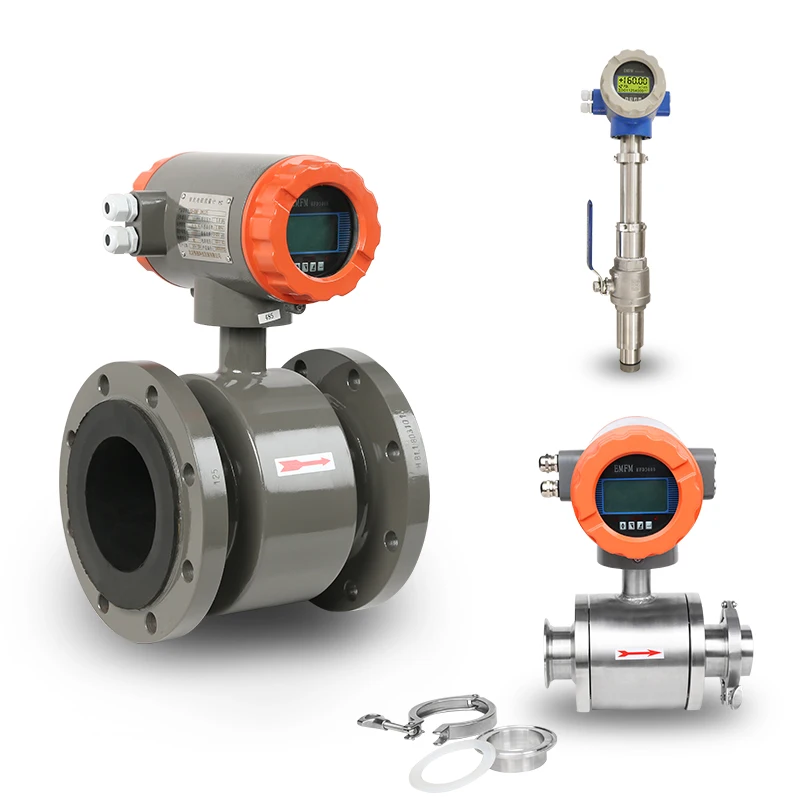

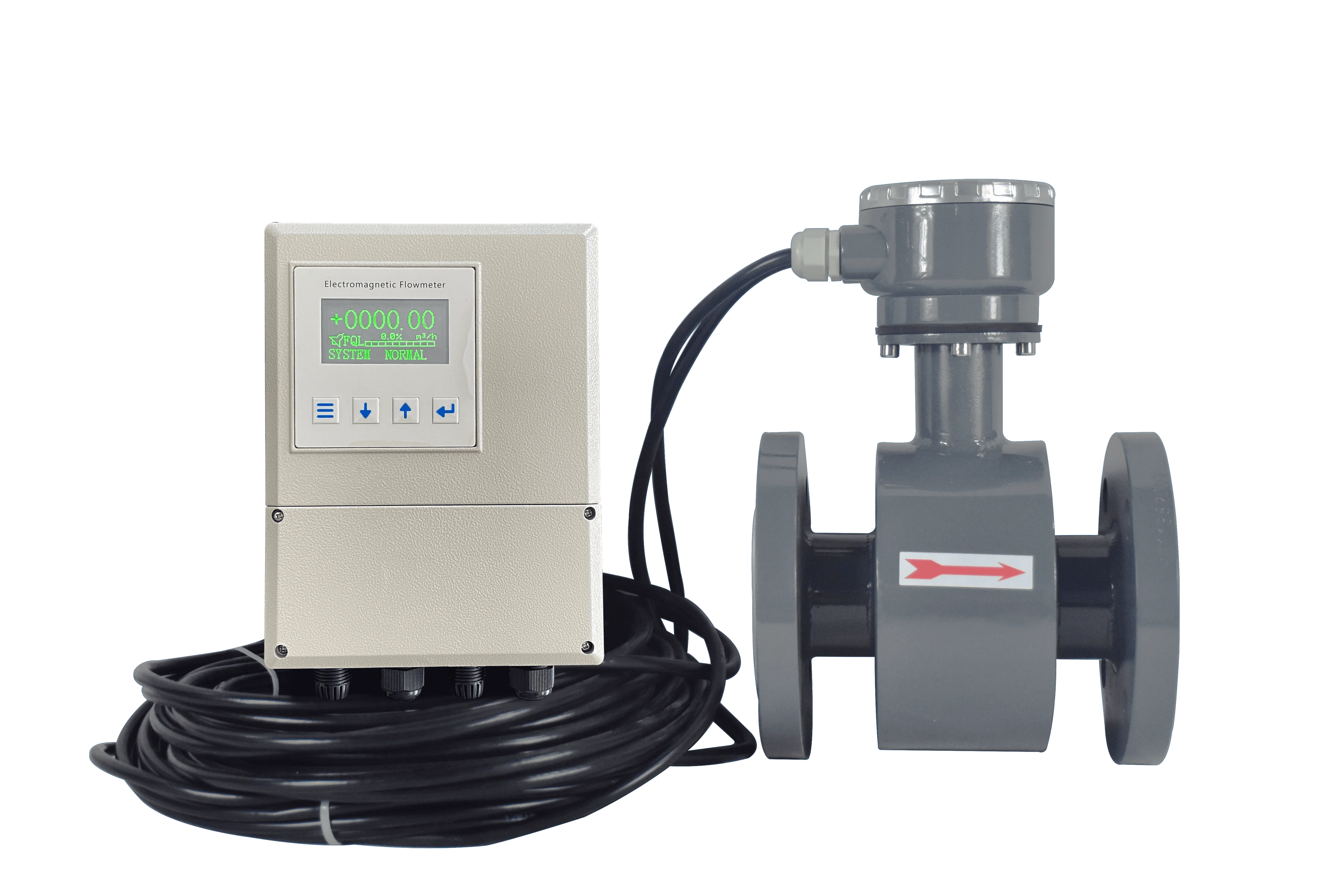

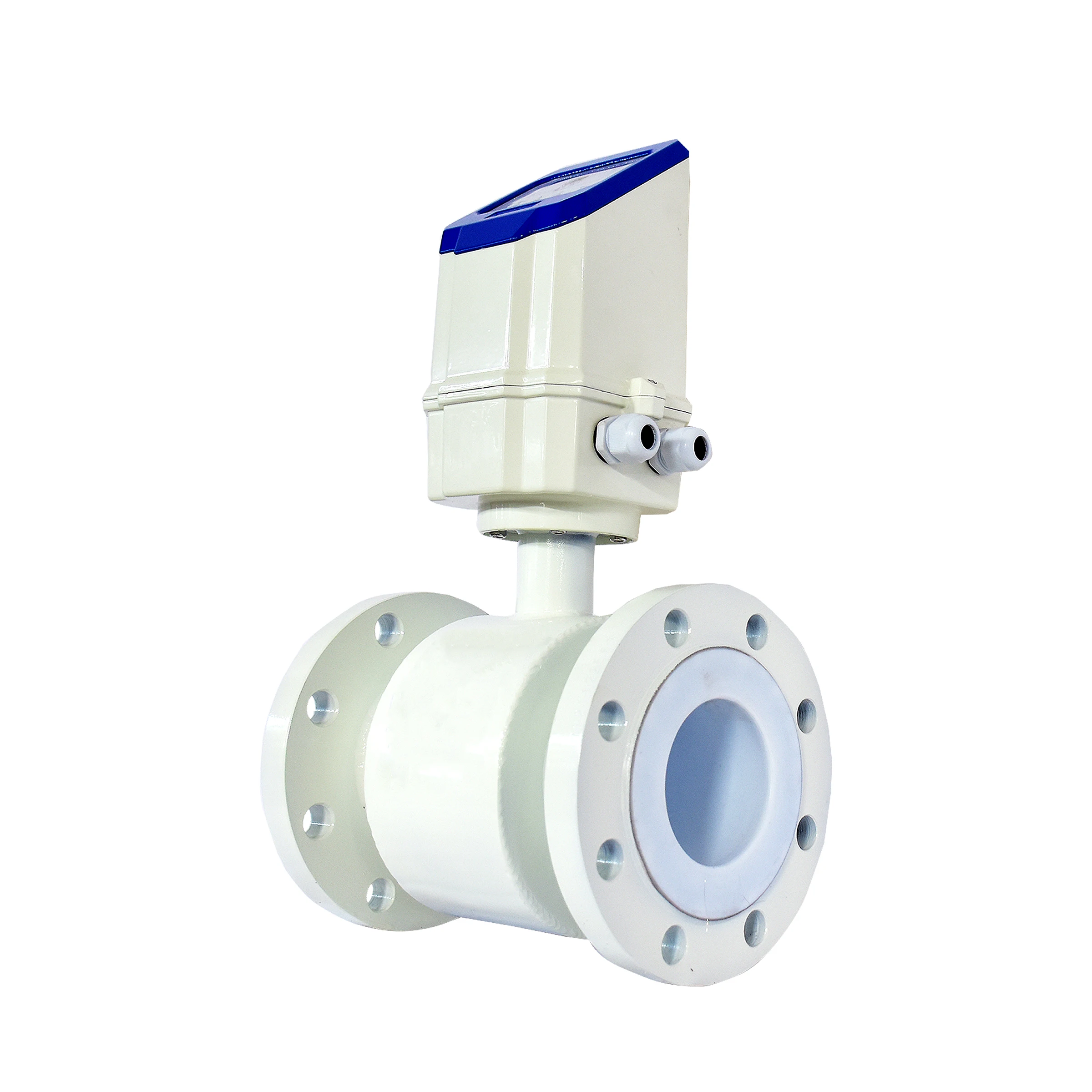

flanged gsm lime slurry flow meter of water empty pipe alarm output electromagnetic flowmeter
- Category: >>>
- Supplier: Kaifeng Huabang Instrument Co. Ltd.
Share on (1600640704142):
Product Overview
Description
1. 220V/AC, 24V/DC two power supply modes can be selected;
2. The meter head is inclined at 45°, which is more convenient and clear when viewing data;
3. Boot display can be customized exclusive Company name and Logo;
4. The cumulative number of digits can reach 10 digits, and the font colors are White, Yellow, and Green to choose from.
2. The meter head is inclined at 45°, which is more convenient and clear when viewing data;
3. Boot display can be customized exclusive Company name and Logo;
4. The cumulative number of digits can reach 10 digits, and the font colors are White, Yellow, and Green to choose from.
Product Parameter
Main power : | AC220V 50HZ / DC24V / DC12V | ||
Power consumption: | <15W (Supporting power consumption with sensors ) | ||
Display and buttons: | Display in Chinese and English, can display instantaneous flow, accumulated flow and alarm display (excitation open circuit alarm, empty pipe alarm, flow over limit alarm). Four membrane touch switches for data setting | ||
Counter: | Forward total, reverse total | ||
Output signal: | Analog output: | Two-way two-way, fully isolated 0~10mA/4~20mA | |
Output signal: | Frequency output: | Load resistance: 0~1.5kΩ when 0~10mA; 0~750Ω when 4~20mA | |
Alarm Output: | Forward and reverse flow output, the upper limit of output frequency can be set within 1~5000Hz. Open collector bidirectional output of transistor with photoelectric isolation. The external power supply is not greater than 35V, and the maximum current of the collector when it is turned on is 50mA | ||
Pulse output: | Two-way open collector alarm output with photoelectric isolation transistor. The external power supply is not greater than 35V, and the maximum current of the collector when it is turned on is 250mA. Alarm status: fluid empty pipe, excitation disconnection, flow overrun | ||
Matching accuracy: | ±0.5% of indicated value, optional ±0.3% or ±0.2% of indicated value | ||
Damping time constant: | Continuous variable from 0~100s (90%) time grading optional | ||
Communication: | Optional RS485 serial communication interface | ||
Protection class: | IP65 | ||
Explosion-proof mark: | Ex d ia [ia Ga]q IICT6Gb | ||

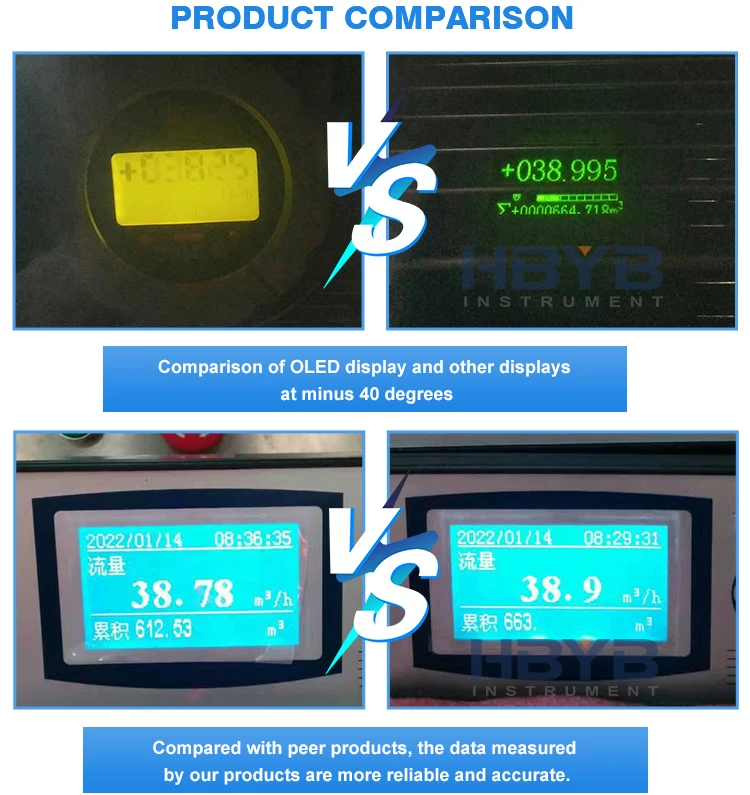

At -40℃, the comparison between our OLED display and the displays of other products in the same industry (There will be no problems such as blurring of the display);
Certifications

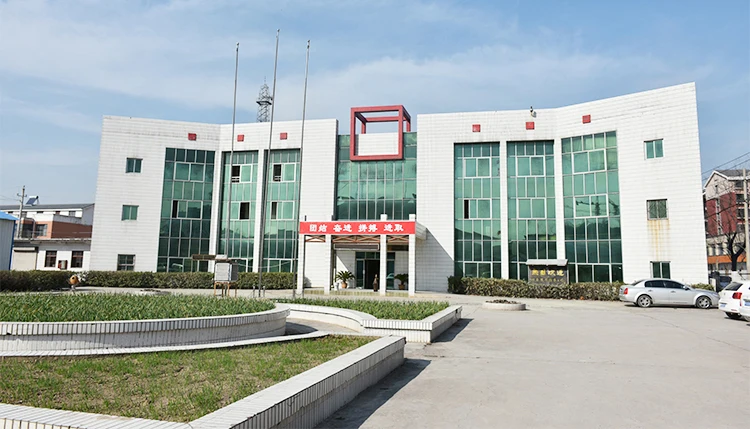

Company Information
Our company has CE, ISO certification, Explosion-proof certification, more than 30 real-type new patents.
The company’s main products are Electromagnetic flowmeters, Vortex flowmeters, Ultrasonic flowmeters, Turbine flowmeters, Open channel flowmeters,Orifice flowmeters, Metal rotor flowmeters, Thermal gas mass flowmeters, etc., which can meet the needs of different occasions.And can design and produce special customized products according to user requirements.
Every year, customers from all over the world come to visit our factory, and our company will also travel to many countries to participate in exhibitions from all over the world.
We sincerely invite you to visit our factory and the exhibition site, and sincerely invite you to join us!
FAQ
1. If I need a sample for pretest, do you sale sample for this inquiry?
Yes, we can sale sample for pretest. If you need this service, please contact us and we will give you a quotation.
2. How is the product quality?
We have ISO, CE certification, we can send you the certification test of our company.
3. How about the price?
Because we believe that quality is the most important, we will provide the best quality products at reasonable prices.
4. Can I visit your factory?
Of course, if you need, we will help you visit our factory.
5. Can you produce products according to my own drawings?
Yes, we provide OEM service.
2. How is the product quality?
We have ISO, CE certification, we can send you the certification test of our company.
3. How about the price?
Because we believe that quality is the most important, we will provide the best quality products at reasonable prices.
4. Can I visit your factory?
Of course, if you need, we will help you visit our factory.
5. Can you produce products according to my own drawings?
Yes, we provide OEM service.
