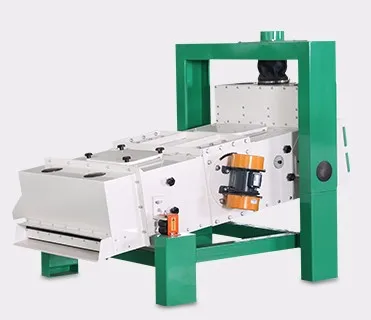

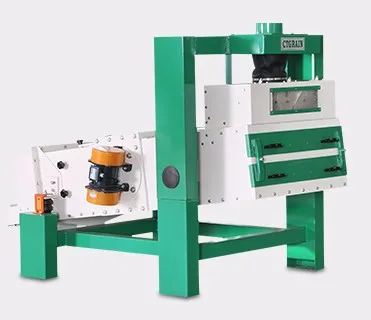

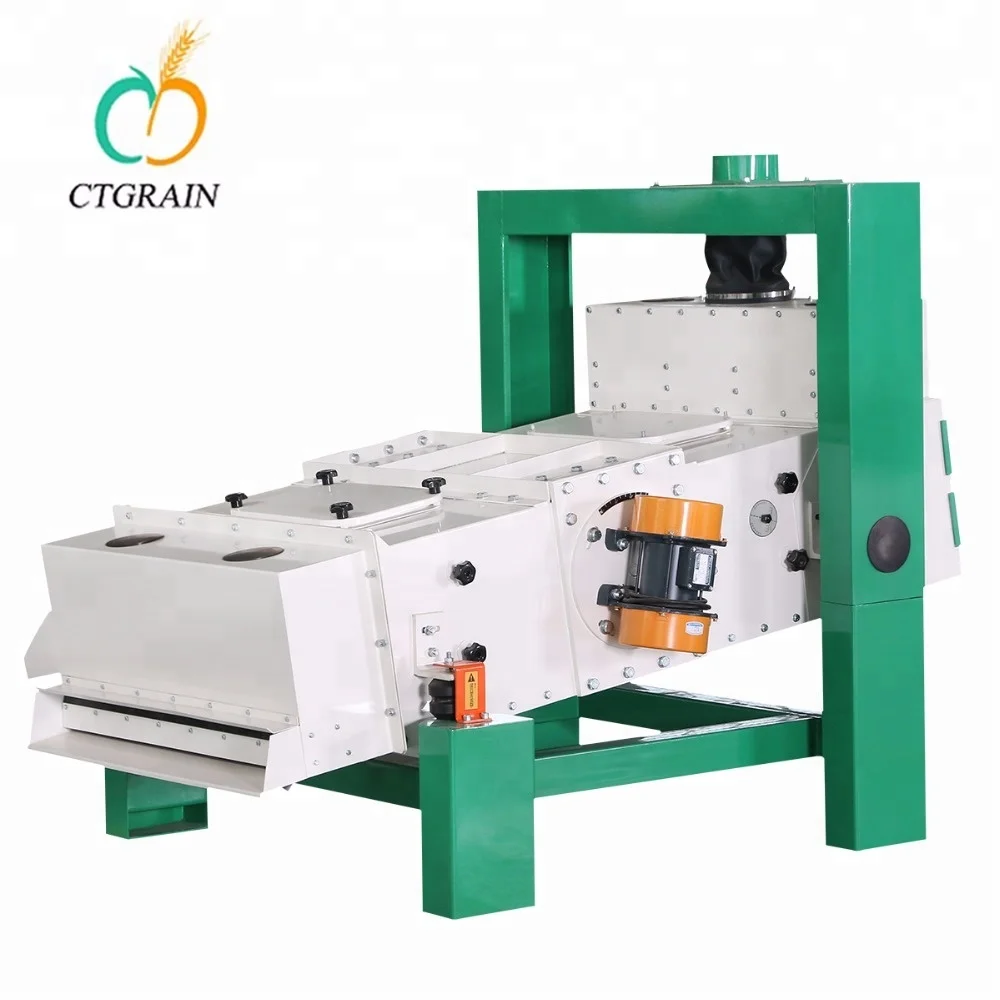

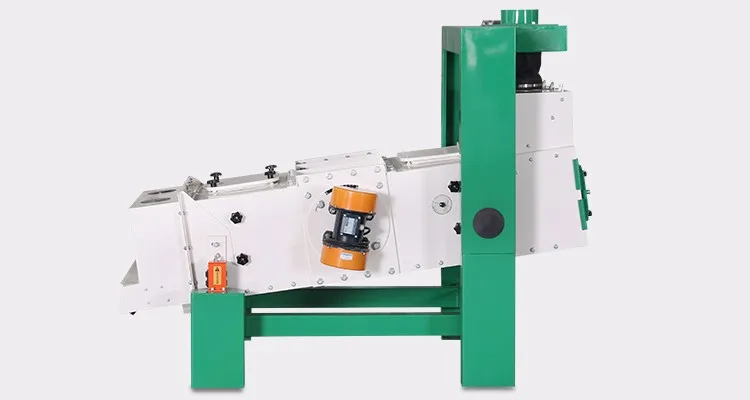

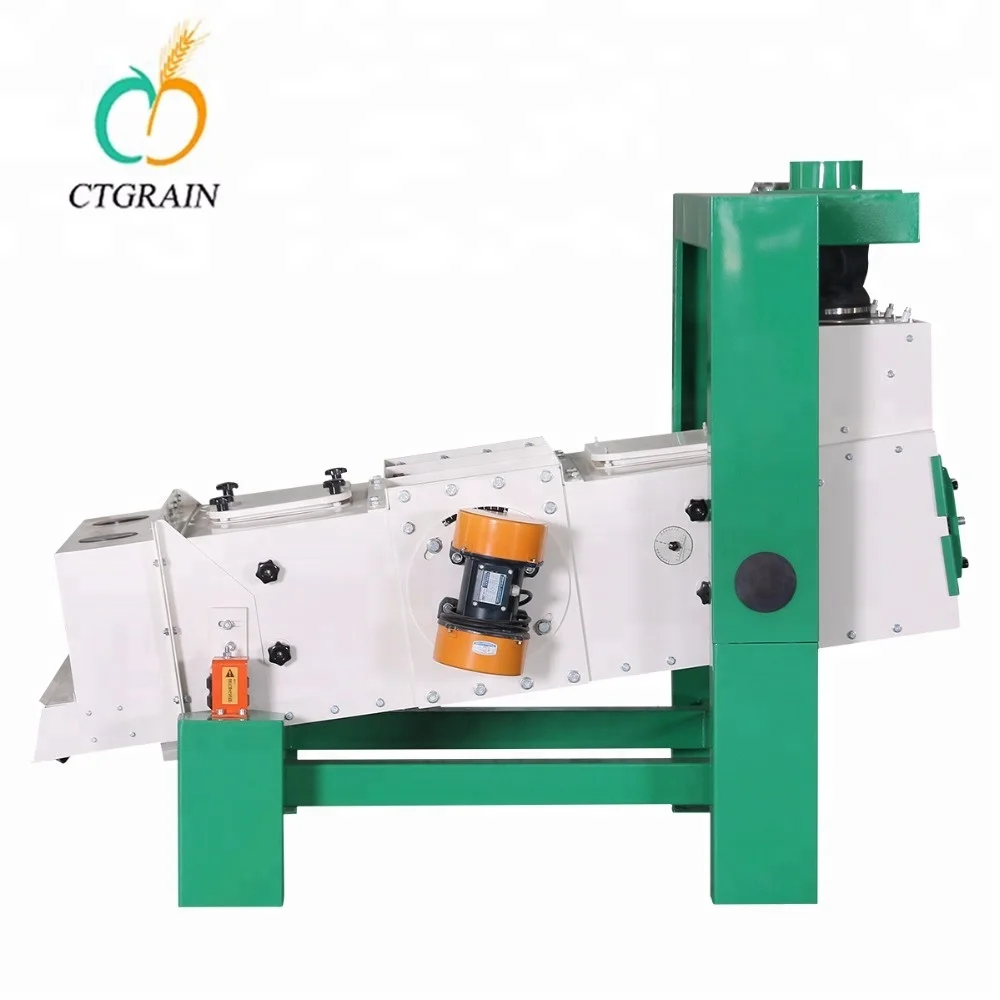

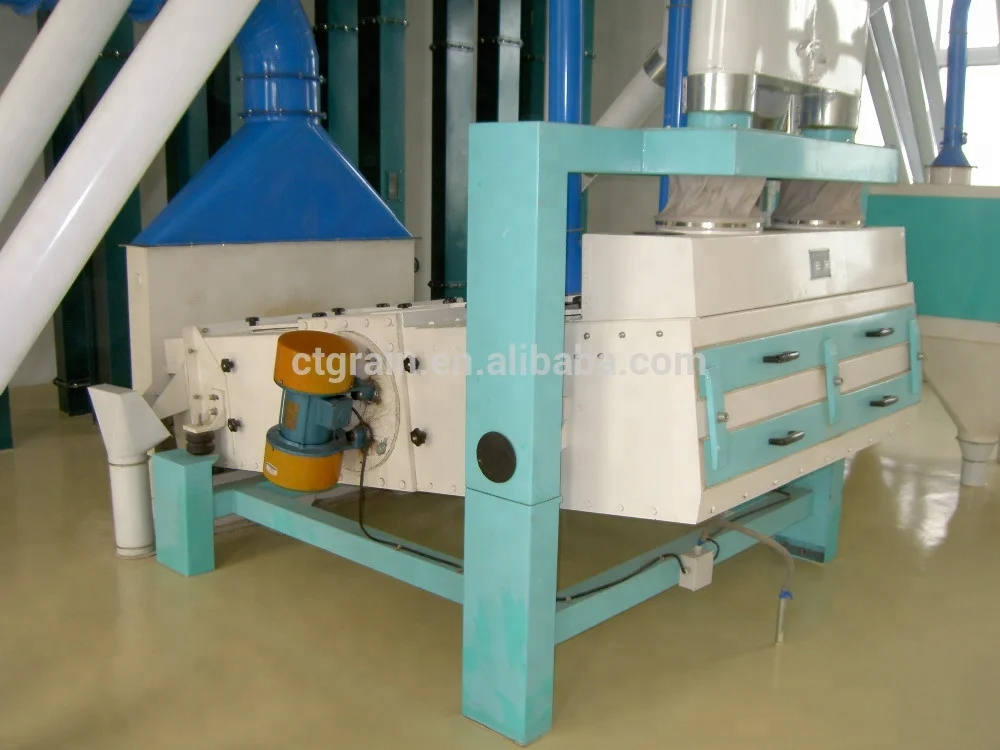

High quality grain cleaning equipment rotary screen
The machine for grain cleaning and classifying
* Widely used in the flour mill, rice mill, feed mill.
* Also used in Chemical, Oil, and other industries.
Working principle
Vibrato separator is designed with different sieve to remove the impurities according to the different length, width, thickness and weight between the grain and impurities. under the function of vibration motor, the materials on the sieve will vibrate and de-compact inordinately, so the materials will grade automatically.
Features
1) Two layer sieves make the machine with the best cleaning effect
2) The degree of sieves are adjustable.
3) Two vibrato motors drive the machine, stable running, low power and low noise.
Technical Parameter List: | ||||||||||||||
Type/Parameter | Power | Capacity (t/h) | Weight | Air Pressure | Amplitude | Shape Size | ||||||||
KW | Pre-cleaning | Cleaning | Kg | m3/min | mm | L x W x H (mm) | ||||||||
TQLZ60X100 | 2x0.25 | 10-12 | 3-4 | 360 | 32 | 5-5.5 | 1640x1210x1322 | |||||||
TQLZ100X100 | 2x0.25 | 16-20 | 5-7 | 420 | 52 | 5-5.5 | 1640x1550x1382 | |||||||
TQLZ100X150 | 2x0.37 | 26-30 | 9-11 | 520 | 80 | 5-5.5 | 2170x1550x1530 | |||||||
TQLZ100X200 | 2x0.37 | 35-40 | 11-13 | 540 | 90 | 5-5.5 | 2640x1550x1557 | |||||||
TQLZ150X150 | 2x0.75 | 40-45 | 14-16 | 630 | 110 | 5-5.5 | 2170x2180x1600 | |||||||
TQLZ150X200 | 2x0.75 | 55-60 | 20-22 | 650 | 135 | 5-5.5 | 2660x2180x1636 | |||||||
TQLZ180X200 | 2x1.1 | 70-75 | 24-26 | 1000 | 160 | 5-5.5 | 2700x2480x1873 | |||||||

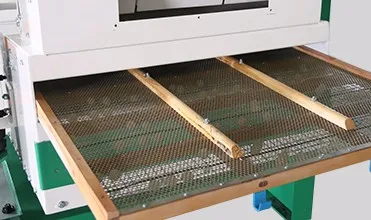

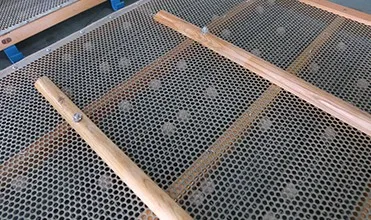

Sieve frame:
Sieve plate is made of high quality steel plate, its hole size is determined by the flow process; easy to install and disassemble; sieve frame compress vertically to prevent jumping.
Ball cleaners:
In the process of sieving, a good sieve surface cleaning is one of the important factors to ensure high efficiency sieving. The movement of the ball cleaners can clean the sieve plate, and the blockage rate is low.

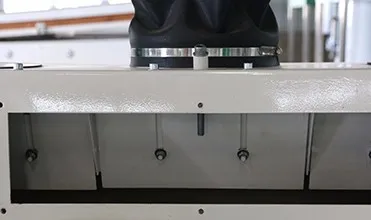

Feed box:
can be overturned or disassembled, easy to draw out and insert the sieve frame.

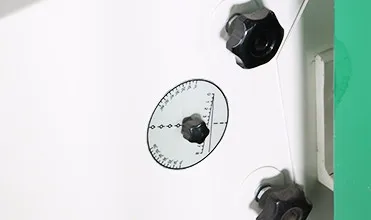

It is very convenient to adjust the inclination of the sieve surface: the machine frame is made by pressed steel plate, and the sieve frame is supported by height-adjustable cross arms.

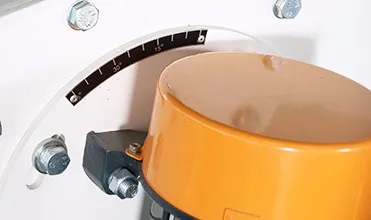

The amplitude of vibration motor can be adjusted according to the material characteristics, capacities and so on.
Related Products
About Us
The company focuses on technology reformation, improving the manufacturing ability and quality of machine. The company took the lead in the introduction of CNC laser cutting machine, CNC bending machine, CNC lathes and other advanced processing equipment.
Our company adopt steel plate laser cutting machine, CNC bending machine, carbon dioxide arc welding and argon arc welding, welding scale, rotary automatic welding, electrostatic spraying surface treatment, continuous improvement and innovative models. Our products are not only has good performance, but also easy for installation and maintenance with low cost. The product with advanced technology, reliable quality, and nice appearance has been appreciated by many clients.

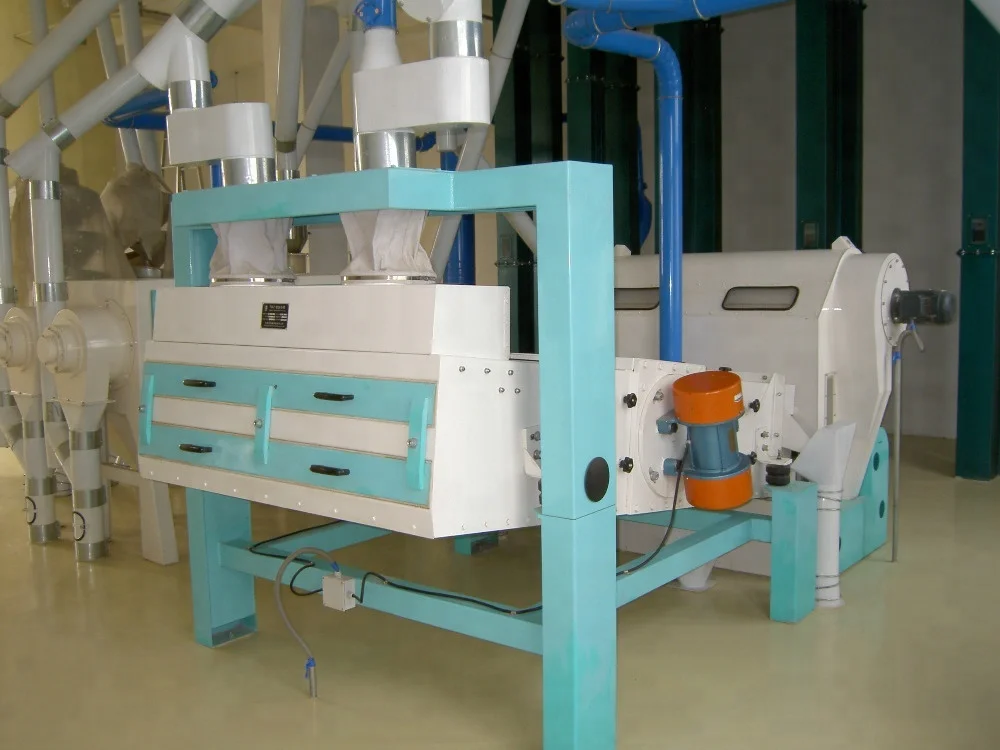

Project installation: we have professional electrical and mechanical project installation team. The display of the equipment is neat, reasonable, beautiful, generous, and easy maintenance.
The commissioning is carried out under the guidance of experienced experts and professors on the spot. The test can be successful by one time commissioning, and can totally meet or exceed the design specifications and requirements.
Our machinery are widely used in many domestic users. And our turn-key projects and single equipment were exported to Thailand, Burma, Australia, Sri Lanka, Italy, Germany, Chile, Argentina, Brazil, Ukraine and other more than 20 countries and regions. Many clients around the world have visited our company on business.We warmly welcome clients and supplied excellent solutions with best quality equipment and technical services, and we received high recognition from them.
Certificate
The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on.The products have passed ISO9001:2000 international quality management system, European Union CE quality certification and other international quality management system certification.It also has obtained Henan Province Science and Technology Type Sme Certification , National High-tech Enterprise Certification and 7 national invention patent certificates.The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning a.These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.
FAQ
1.Q: Are you the manufacturer?
A :Yes, We are a professional flour milling machine manufacturers.
2.Q :Will you help to install the machines?
A :Yes, our engineers can indicate installation,test running, and training local operators. Engineers available to service machinery overseas after-sales Service
3.Q : Do you accept small order?
A : Yes,We accept small order , the MOQ is 1.
4.Q: How do I make payment for my order?
A: You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.
5.Q: What's the warranty time?
A: Our warranty time is 12 months, so you can trust us and the quality of our machine.
