Product Overview
Description

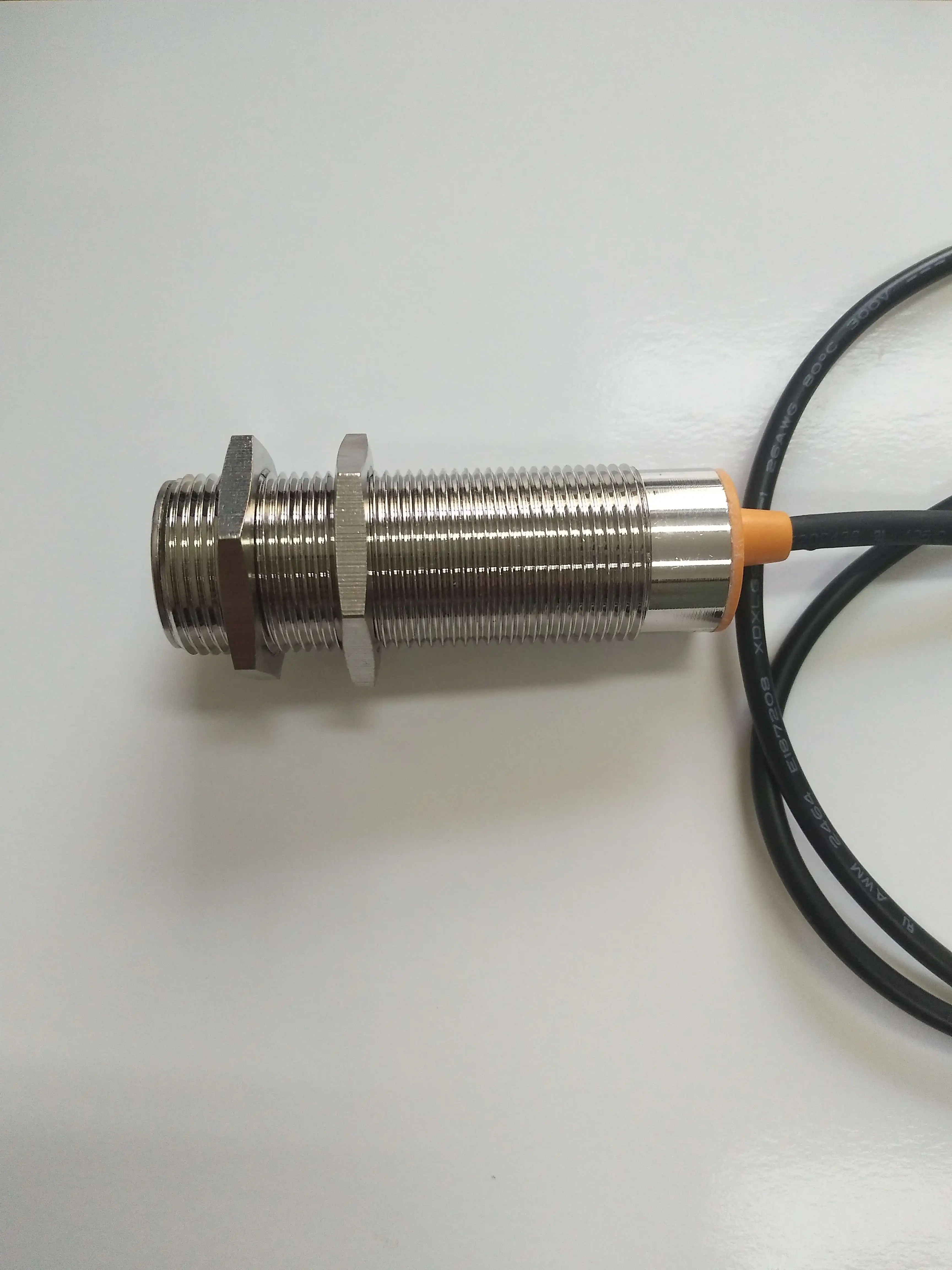

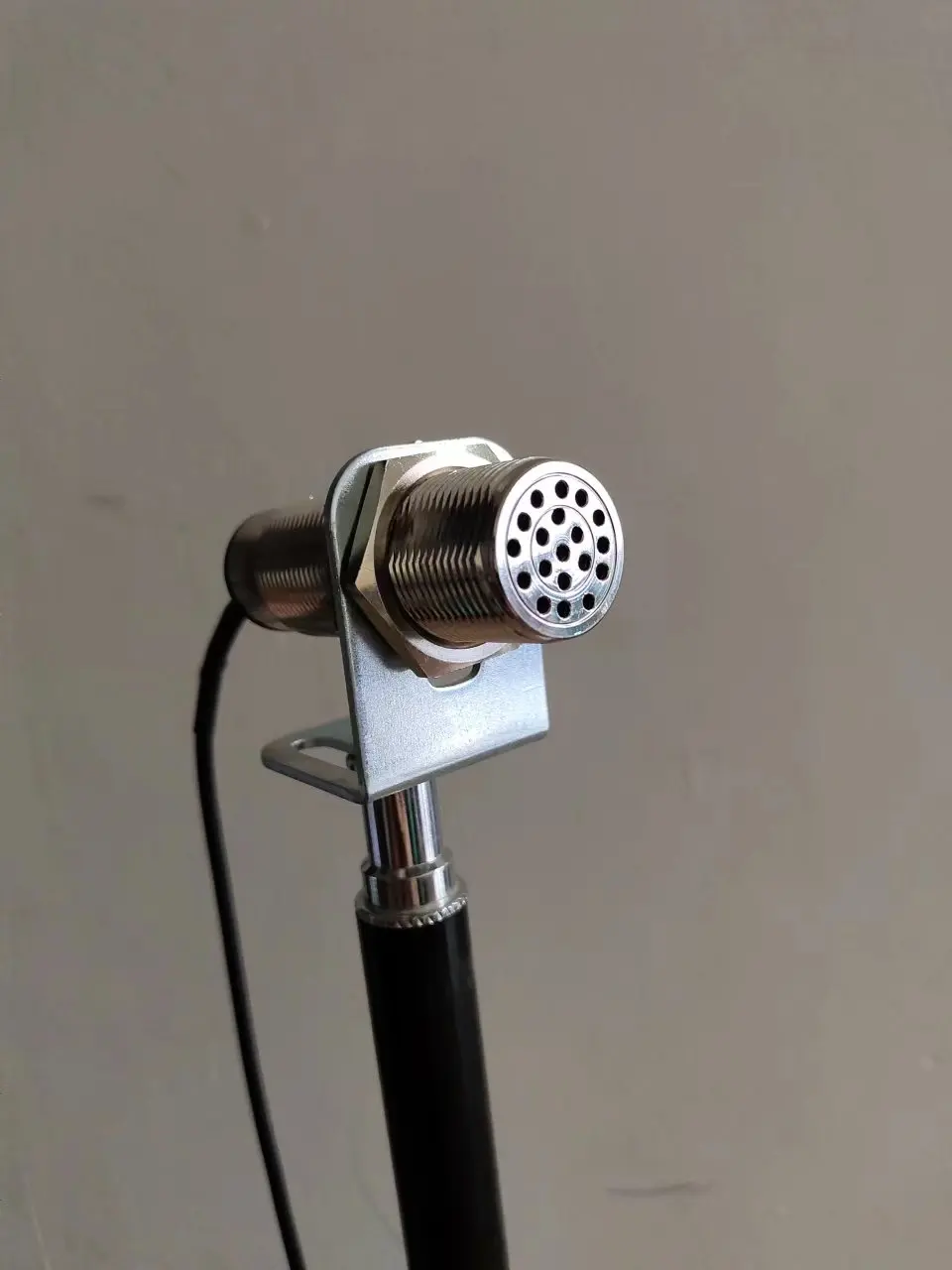

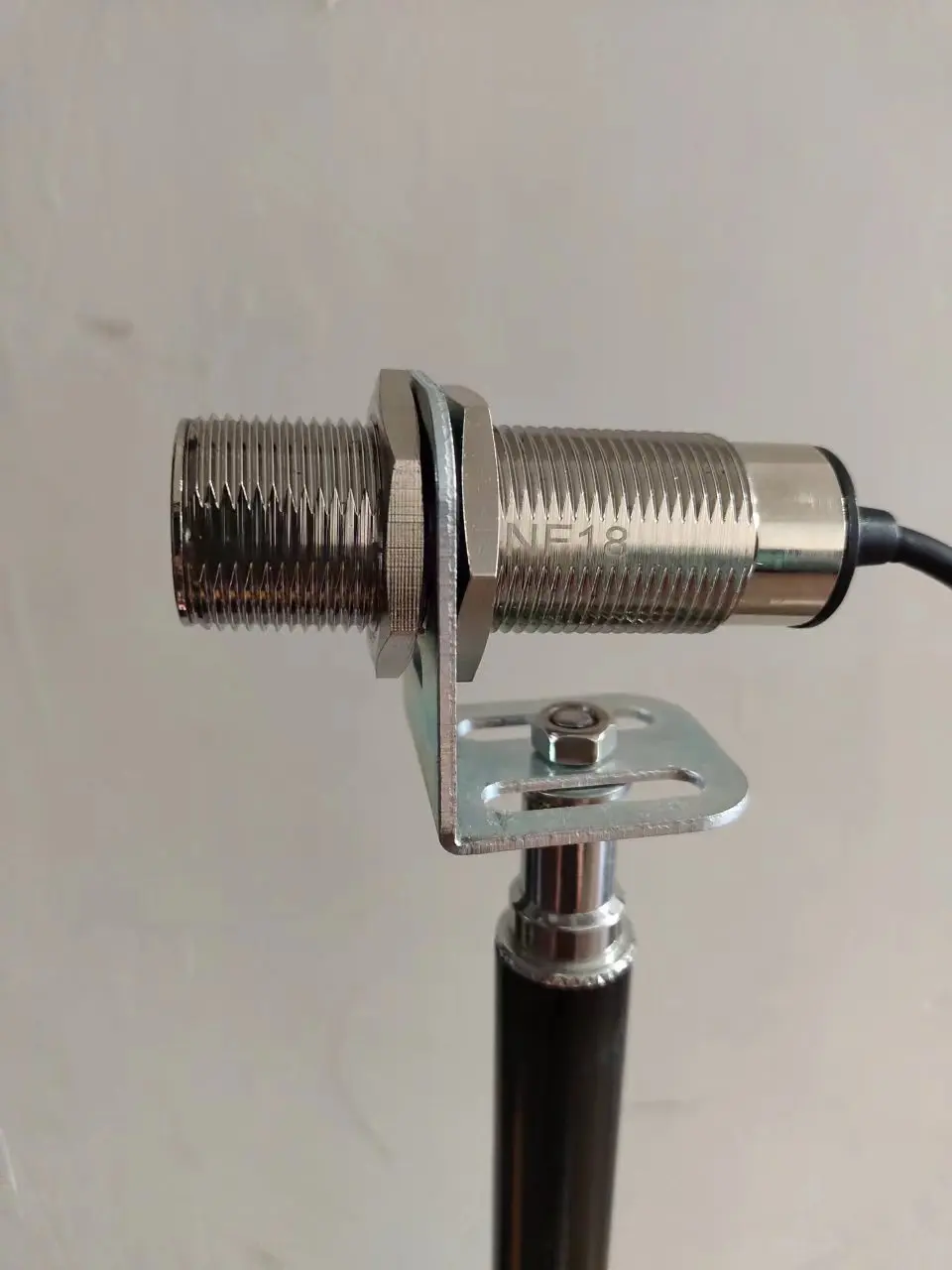

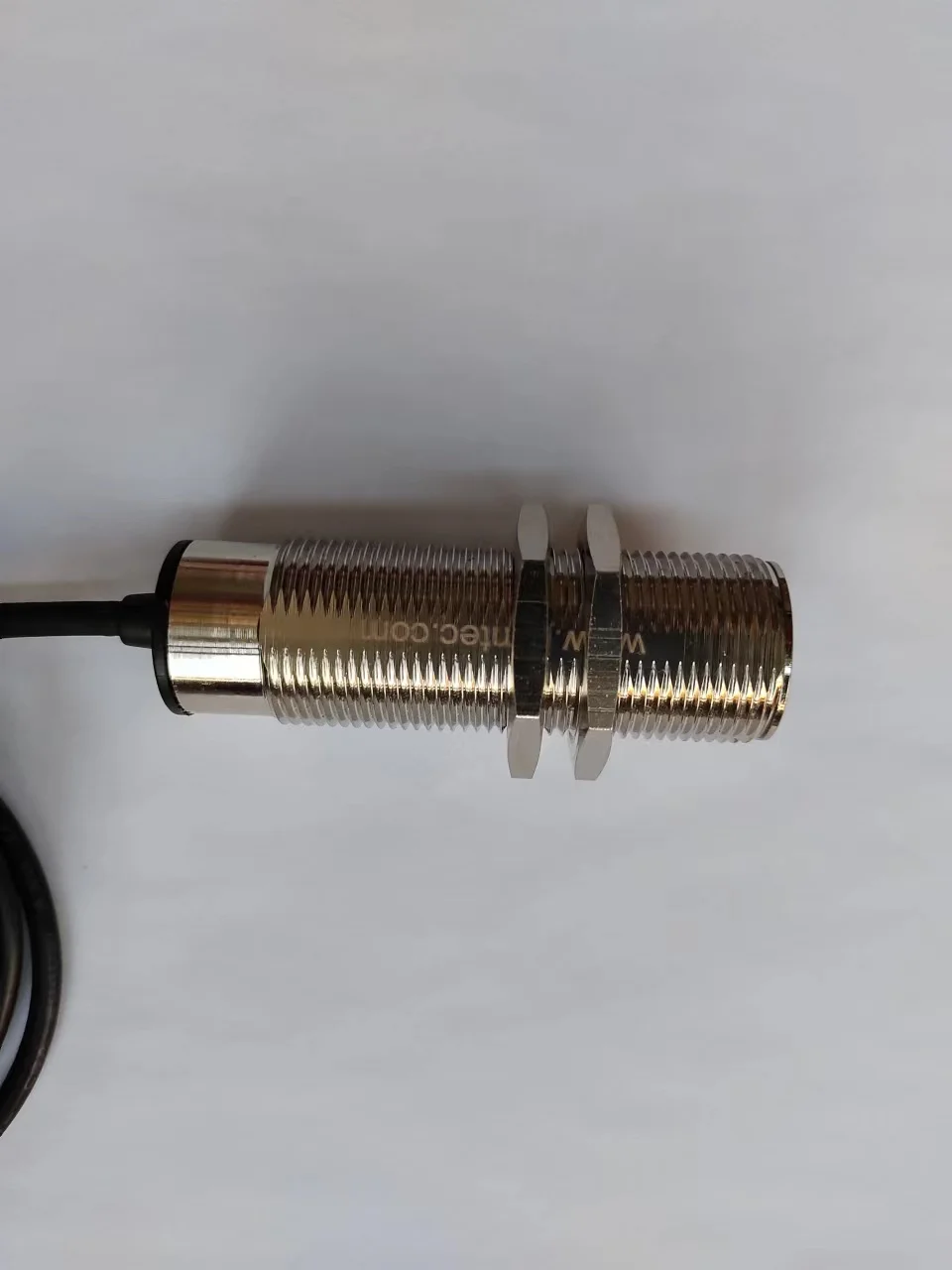

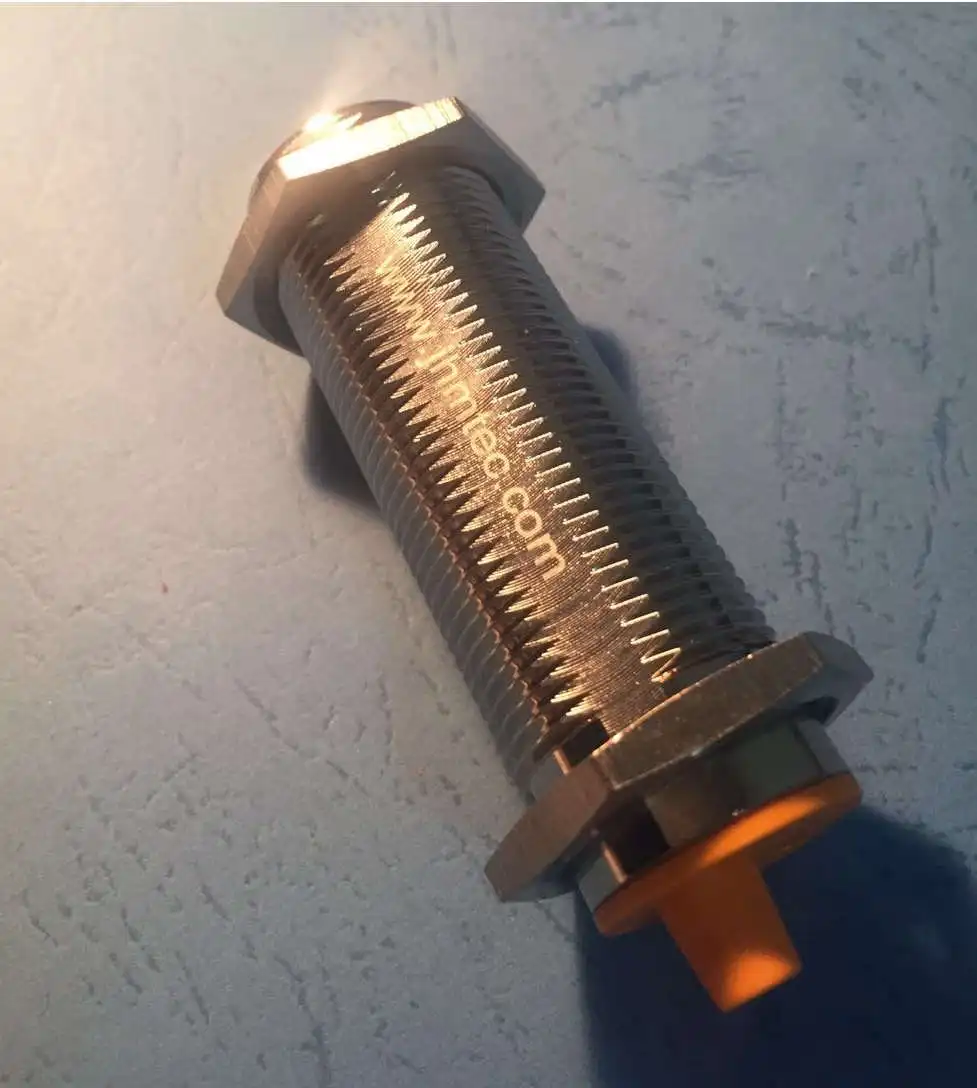

Product display
Portdefinition:
Red line connected to power supply, black wire grounding, white wire RS232 signal output terminal, RS232 communication mode 38400,n, 8,1, output interval 500ms / time.
Red line connected to power supply, black wire grounding, white wire RS232 signal output terminal, RS232 communication mode 38400,n, 8,1, output interval 500ms / time.
Output package format:
Start character 0xff (1byte) + Device ID (8byte) + Data Length (1byte) + Frequency point amplitude value (31byte) + The decimalpart (16byte) + The CRC calibration value is high (1byte) + CRC calibration low test value (1byte).
a.Start character: 0xff.
b.Device ID 7 bytes: string "JHM-NF18", corresponding to 16 binant data 0x4a 0x48 0x4d 0x2d 0x4e 0x46 0x31 0x38 .
Start character 0xff (1byte) + Device ID (8byte) + Data Length (1byte) + Frequency point amplitude value (31byte) + The decimalpart (16byte) + The CRC calibration value is high (1byte) + CRC calibration low test value (1byte).
a.Start character: 0xff.
b.Device ID 7 bytes: string "JHM-NF18", corresponding to 16 binant data 0x4a 0x48 0x4d 0x2d 0x4e 0x46 0x31 0x38 .
c. Data Length 0x2f (31 + 16).
d.31 Point amplitude dB value integer part: Point F (n) = n * 200Hz (0 <n<32),amplitude per unit of decibel dB.
d.31 Point amplitude dB value integer part: Point F (n) = n * 200Hz (0 <n<32),amplitude per unit of decibel dB.
<32),amplitude per unit of decibel db.
e. 16 Byte decimal part, in order to reduce the communication time, the decimal part is combined processing,the decimals of the frequency points F (2n) and F (2n + 1) are merged into 1 byte.
f. The CRC check value, the CRCH and C R C L of the 47-byte data part only.
e. 16 Byte decimal part, in order to reduce the communication time, the decimal part is combined processing,the decimals of the frequency points F (2n) and F (2n + 1) are merged into 1 byte.
f. The CRC check value, the CRCH and C R C L of the 47-byte data part only.
Product model | JHM-NF18 |
Appearance specifications | 80mmX25mm |
Measurement error | +/- 1.5dB（2KHz 94dBcheck） |
Conversion accuracy | 0.1dB |
Output mode | RS232 Interface output(38400.n.8.1) |
Measuring range | 30dB ---- 130dB(Automatic shift) |
Frequency response | 35 Hz to 20KHz |
Frequency resolution | 200Hz |
Frequency of sampling | 25.6KHz(128 Point sampling) |
Working and storage temperature | -10 ----- 60℃ |
Working and storage humidity | 10 ----- 90RH% |
Power standard | DC9 - 12V(Ripple <0.5%) current 30Ma |
