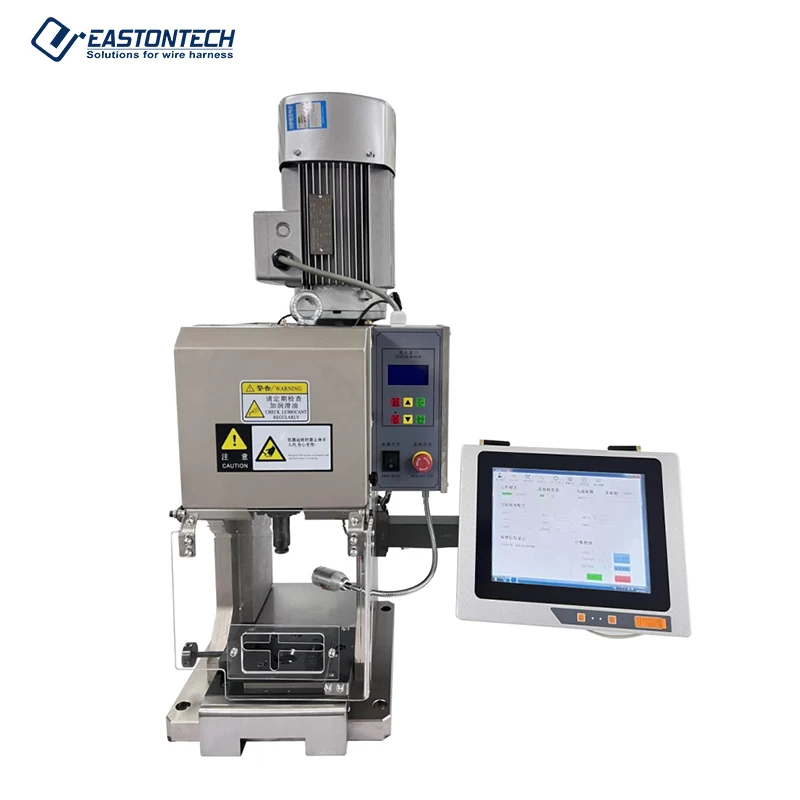

EW 5195 2T 40mm stroke euro crimping applicator crimp mold European terminal crimping machine
- Category: >>>
- Supplier: Wenzhou East World Automation Equipment Co. Ltd.
Share on (1600640808165):
Product Overview
Description
· Quick changeover, setup and cycle times
· Minimal material used during setup
· Easy to operate with TopTouch.

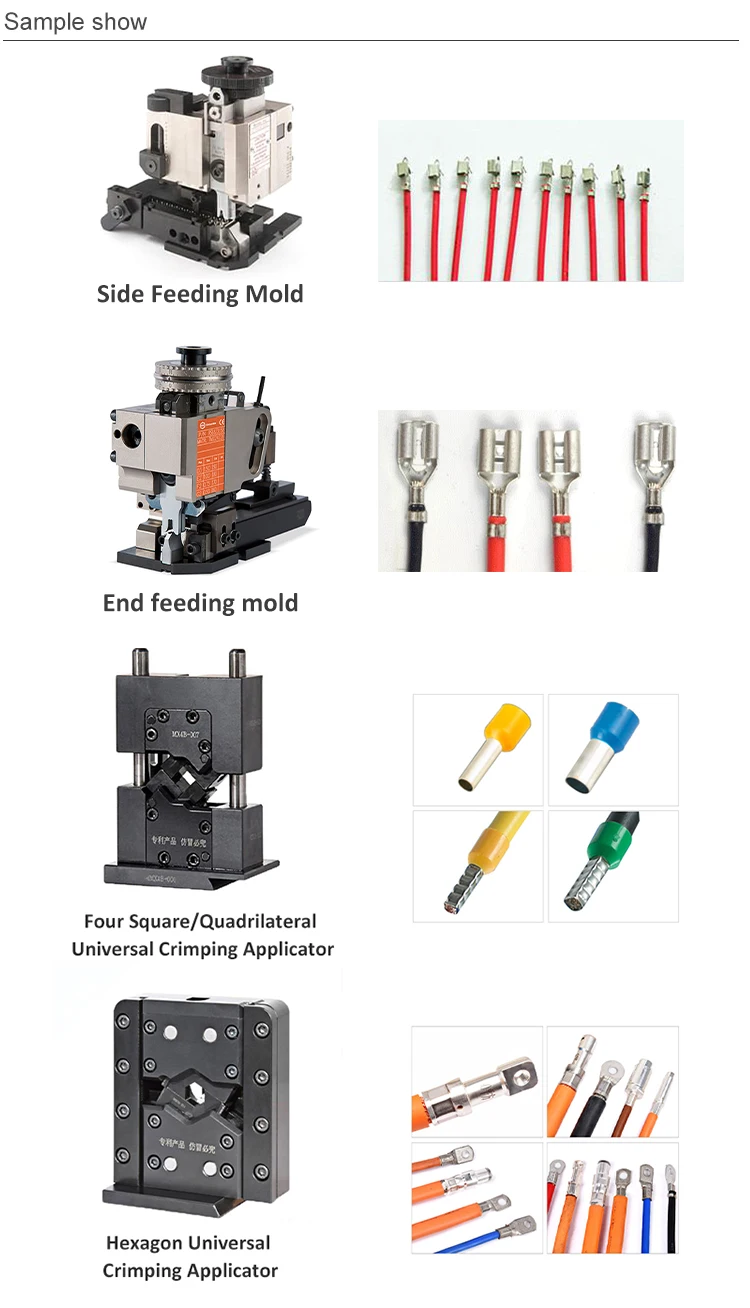

· Flexiblity adaptation between different type of applicators
· Servo motor driven mode with dependable solid casting structure
· Optional function: Integrated crimp force analysis CFA / CFA+;
Our Terminal Crimping Machine has CE certification

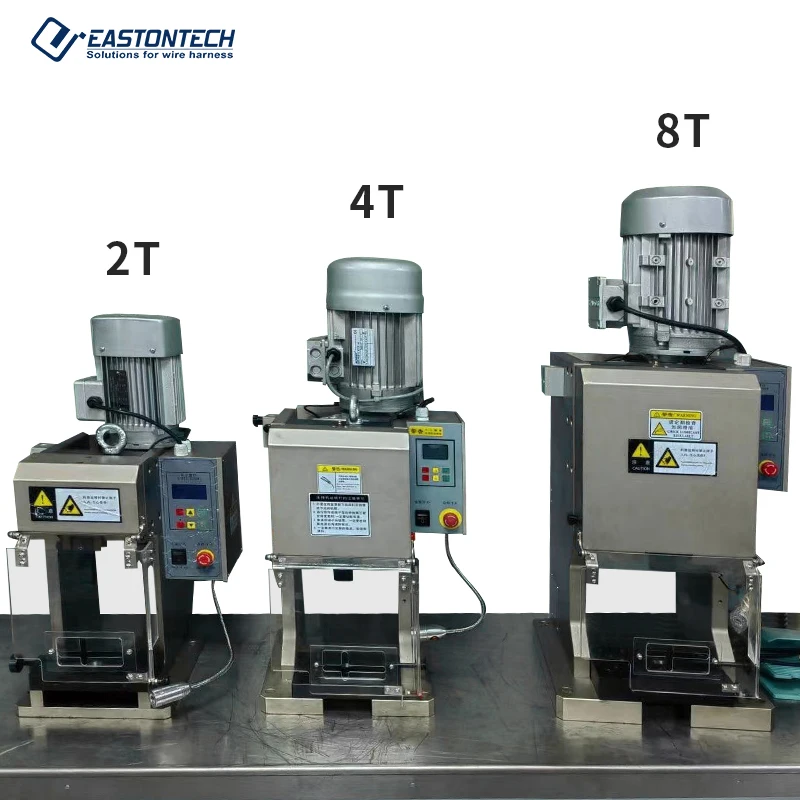

Model | EW-5195-2T | EW-5195-4T | EW-5195-8T |
Power | AC110/220/50/60HZ | AC110/220/50/60HZ | AC110/220/50/60HZ |
Rated Power | 0.75KW | 1.5KW | 3.0KW |
Stroke | 30mm/40mm | 30mm/40mm | 30mm/40mm |
Crimp Force | 20KN(2T) | 40KN(4T) | 80KN(8T) |
Closed height (Optional) | Japan mold:119.7mm EU mold:135.78mm Stamping mold: 192mm+10mm | Japan mold:119.7mm EU mold:135.78mm Stamping mold: 192mm+10mm | Japan mold:119.7mm EU mold:135.78mm Stamping mold: 192mm+10mm |
Adjustment | 10mm/6mm | 10mm/2mm | 10mm/2mm |
Wire Size | 0-4mm² | 0-8 mm² | 0-16 mm² |

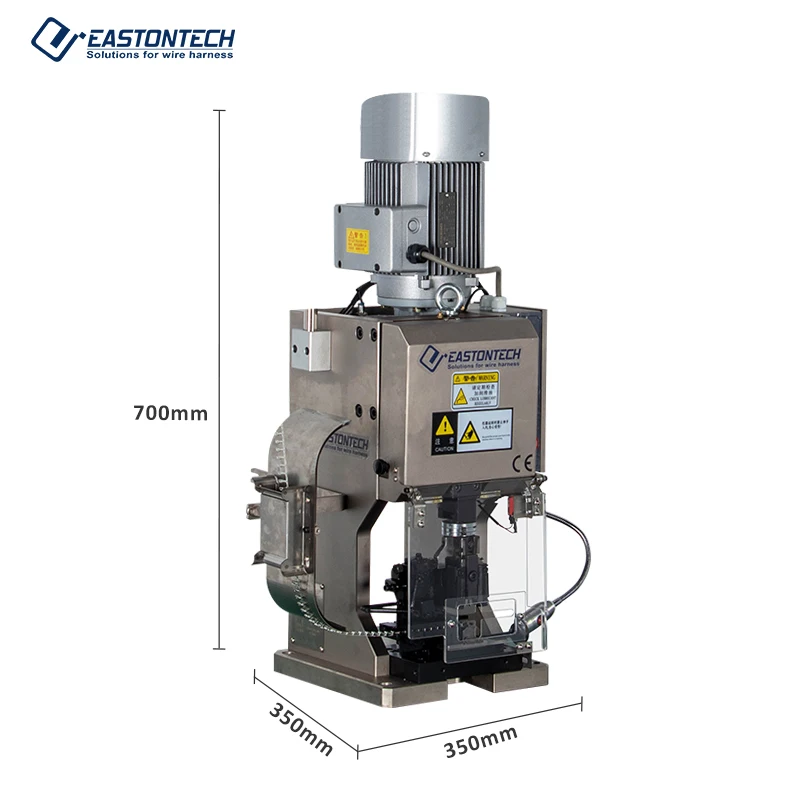

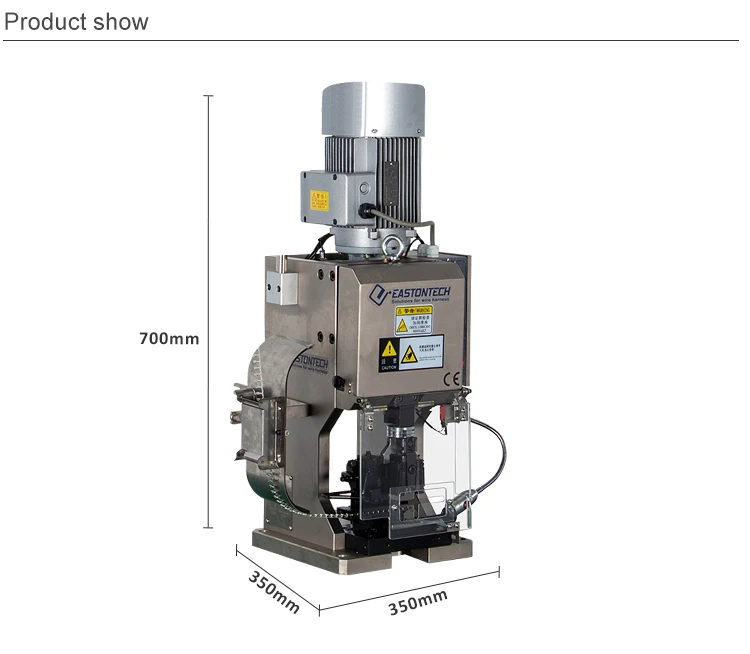

Dimension | 350*350*700mm | 360*360*840mm | 450*420*1010mm |
Weight | 85KG | 115KG | 220KG |
