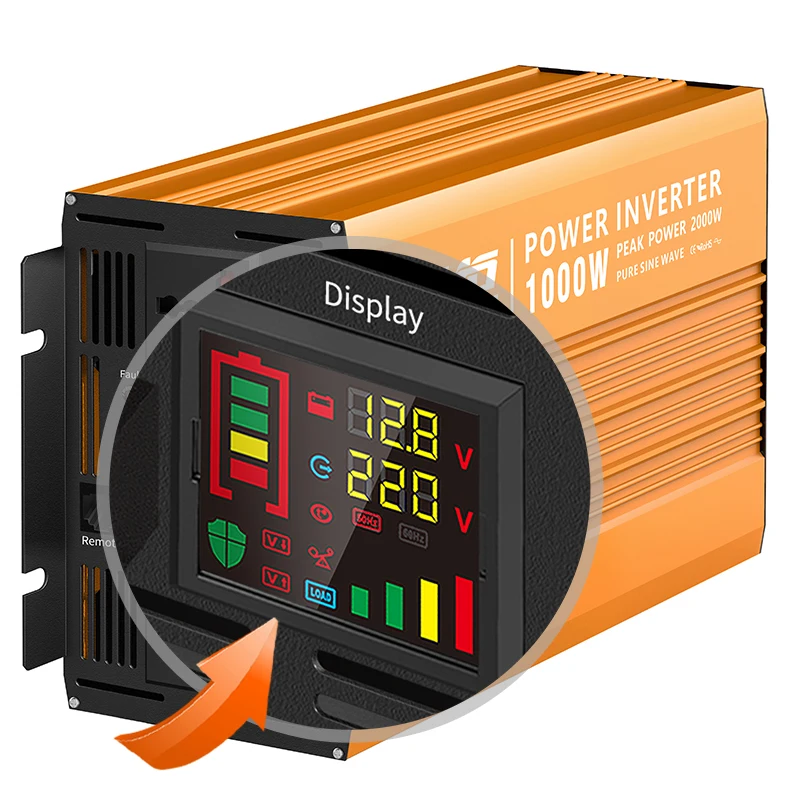

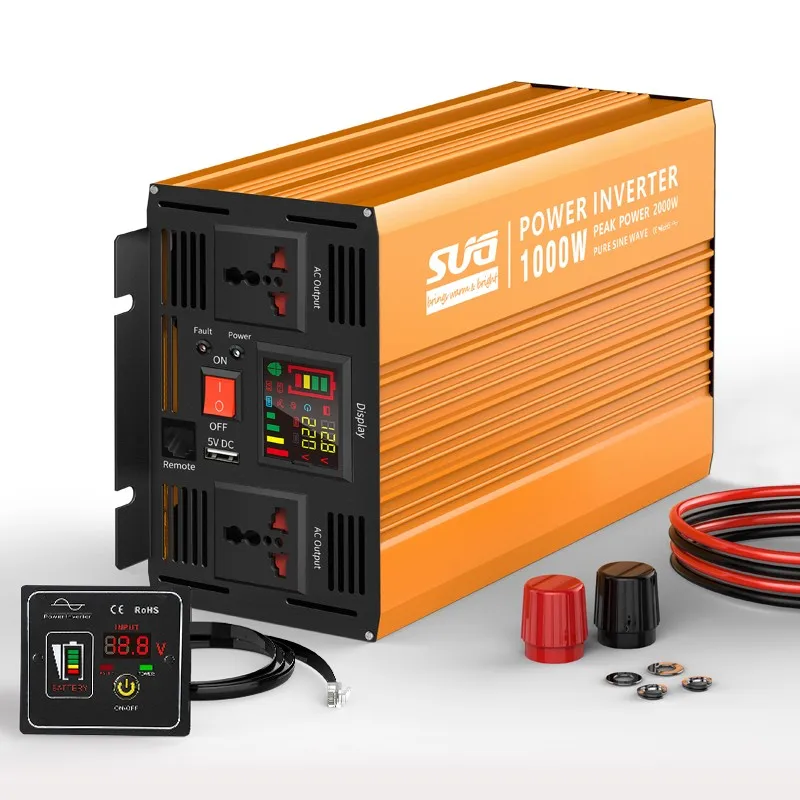

1000W Ce Intelligent 12Vdc To 220Vac Inverter With Display Pure Sine Wave Solar Power Inverter
- Category: >>>
- Supplier: Zhejiang Sug New Energy Co. Ltd.
Share on (1600640812485):
Product Overview
Description
Our Advantages
Honest marketing
1.we are manufacturer with production experience for more than 10 years
2.We own ISO,CE,ROHS,FCC,ETL,PSE certificates
3.We accept OEM and ODM
4.Our salesman is with rich experience in foreign trade and efficient work efficiency
5.High-quality after-sales service to solve all your doubts
2.We own ISO,CE,ROHS,FCC,ETL,PSE certificates
3.We accept OEM and ODM
4.Our salesman is with rich experience in foreign trade and efficient work efficiency
5.High-quality after-sales service to solve all your doubts
Product Paramenters
Model | SGPE1000-121 | SGPE1000-122 | SGPE1000-241 | SGPE1000-242 | SGPE1000-481 | SGPE1000-482 | |||||
Rated Power | 1000W | ||||||||||
Surge Power | 2000W(few seconds) | ||||||||||
Input Voltage | 12VDC | 24VDC | 48VDC | ||||||||
Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | |||||
USB Port | 5V 2A | ||||||||||
Frequency | 50Hz±3 or 60Hz±3 | ||||||||||
Output Waveform | Pure Sine Wave | ||||||||||
Soft Start | YES | ||||||||||
AC Regulation | THD<3%(Linear Load) | ||||||||||
Output Efficiency | 94% MAX | ||||||||||
No Load Current | 0.6A | 0.3A | 0.1A | ||||||||
DC Voltage Range | 10-15.5V | 20-31V | 40-61V | ||||||||
Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | ||||||||
Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | ||||||||
Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | ||||||||
Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | ||||||||
Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V | ||||||||
Cooling Way | Intelligent Cooling Fan | ||||||||||
Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit | ||||||||||
Working Temperature | -10ºC - +50ºC | ||||||||||
Net Dimension | 28.6*16.5*9.2cm (L×W×H) | ||||||||||
Meas./Ctn | 48*46*40cm / 6pcs | ||||||||||
N.W./Unit | 3.1KG | ||||||||||
G.W./Ctn | 22KGS | ||||||||||
Packing | box | ||||||||||
Warranty | 2 Years | ||||||||||
Products Description
Recommend Products
Company Profile
Production workshop
FAQ
Q:Are you a directly factory or trading company?
A:We are inverter manufacturer.
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality
controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.AII of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!
Q:Warranty and return:
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q:Is sample available and free?
A:Sample is available, but the sample cost should be pay by you. The cost of sample will be refund after further order.
Q:Do you accept customized order?
A:Yes, we do.
Q:What's the delivery time?
A:It usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity.
A:We are inverter manufacturer.
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality
controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.AII of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!
Q:Warranty and return:
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q:Is sample available and free?
A:Sample is available, but the sample cost should be pay by you. The cost of sample will be refund after further order.
Q:Do you accept customized order?
A:Yes, we do.
Q:What's the delivery time?
A:It usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity.
