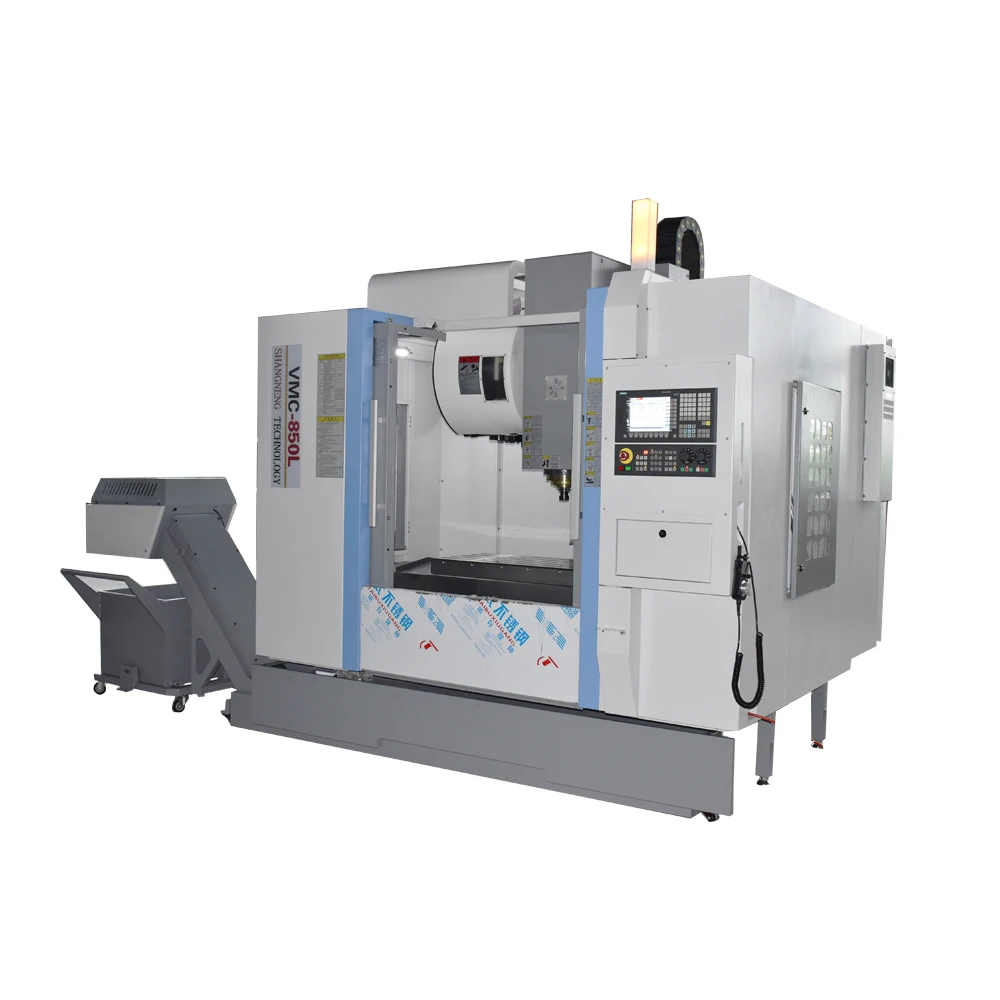

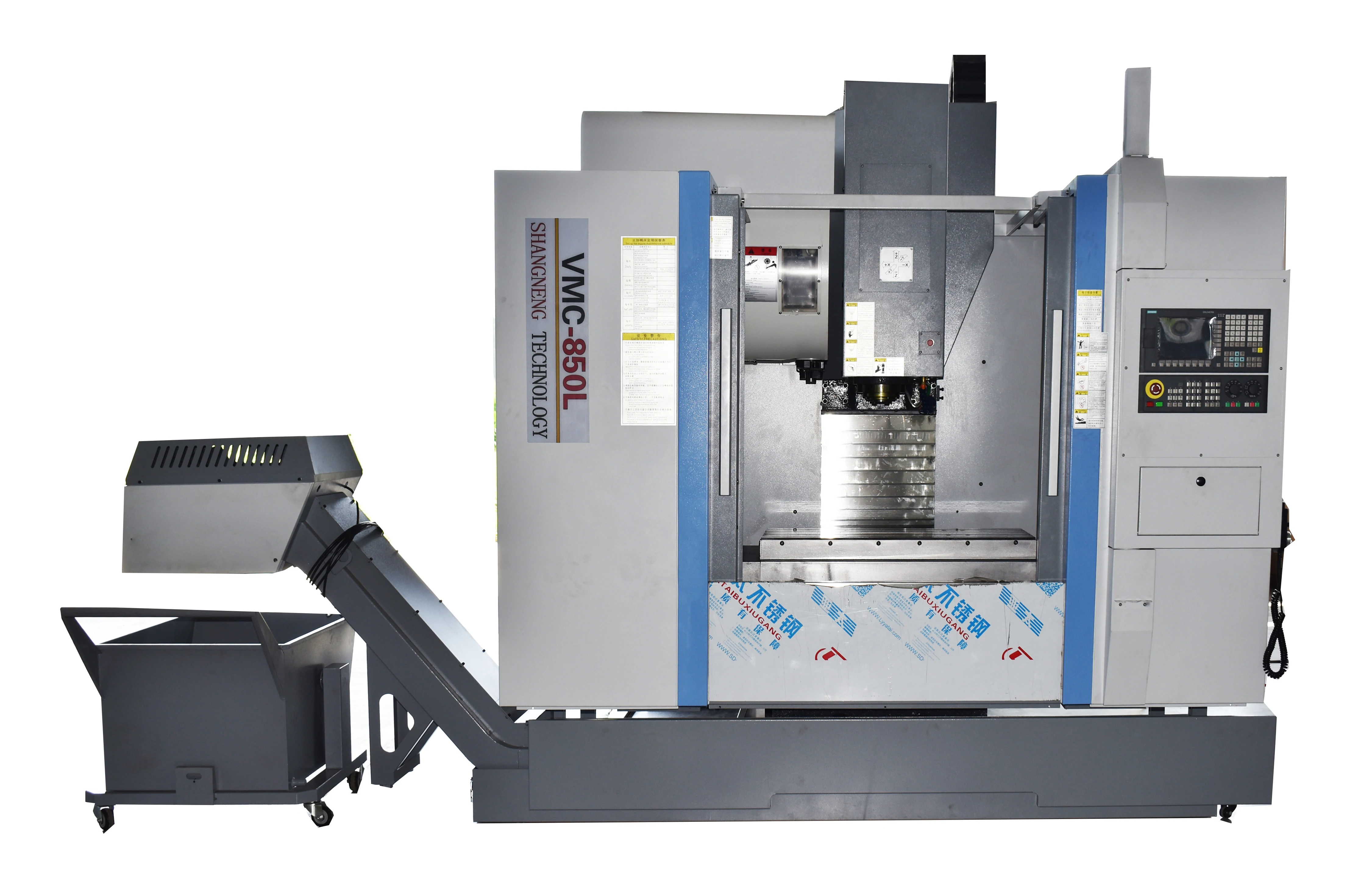

High Speed 12000rpm Spindle VMC machine center VMC855 VMC850L cnc milling machine for metal 3/4/5 axis
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600640827685):
Product Overview
Description
Product Overview

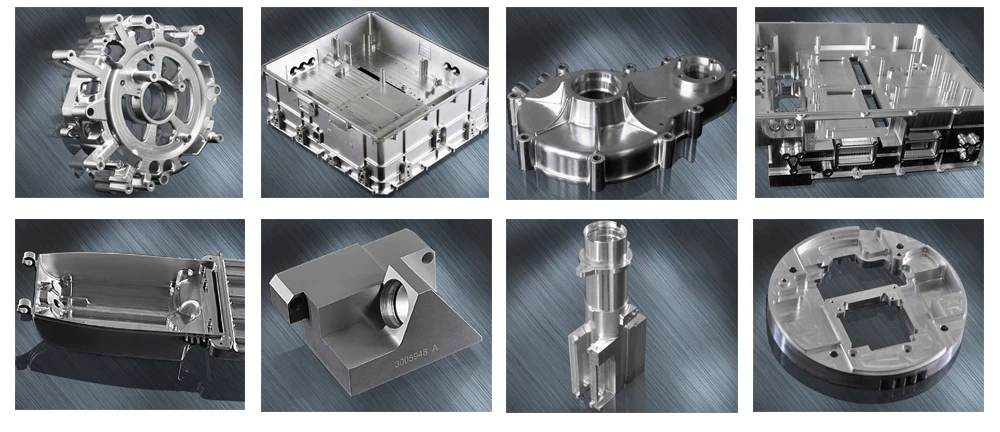

Widely Applications
PRODUCT SPECIFICATIONS
Item | Unit | VMC850L | VMC855L |
Table size | mm | 1000*500 | 1000*550 |
Load capacity | kg | 400 | 500 |
T slot | 5-18*90 | 5-18*90 | |
X axis travel | mm | 800 | 800 |
Y axis travel | mm | 500 | 550 |
Z axis travel | mm | 500 | 550 |
Distance from spindle nose to table | mm | 150-650 | 120-670 |
Distance from spindle center to column slide way | mm | 550 | 595 |
Tool shank | BT40 | BT40 | |
Spindle speed | rmp | 8000 | 8000 |
Spindle motor power | KW | 7.5 | 7.5 |
Max diameter of tool | mm | φ80/φ150 | φ80/φ150 |
Max length of tool | mm | 250 | 250 |
Max weight of tool | kg | 8 | 8 |
X/Y axis rapid moving speed | mm | 48000 | 48000 |
Z axis rapid moving speed | mm | 48000 | 48000 |
Feed rate | mm/min | 1-10000 | 1-10000 |
Positioning accuracy | mm | ±0.008 | ±0.008 |
Repeated positioning accuracy | mm | ±0.002/300 | ±0.002/300 |
Out Dimension | mm | 2700*2400*2600 | 2800*2500*2650 |
Machine weight | kg | 5500 | 5700 |

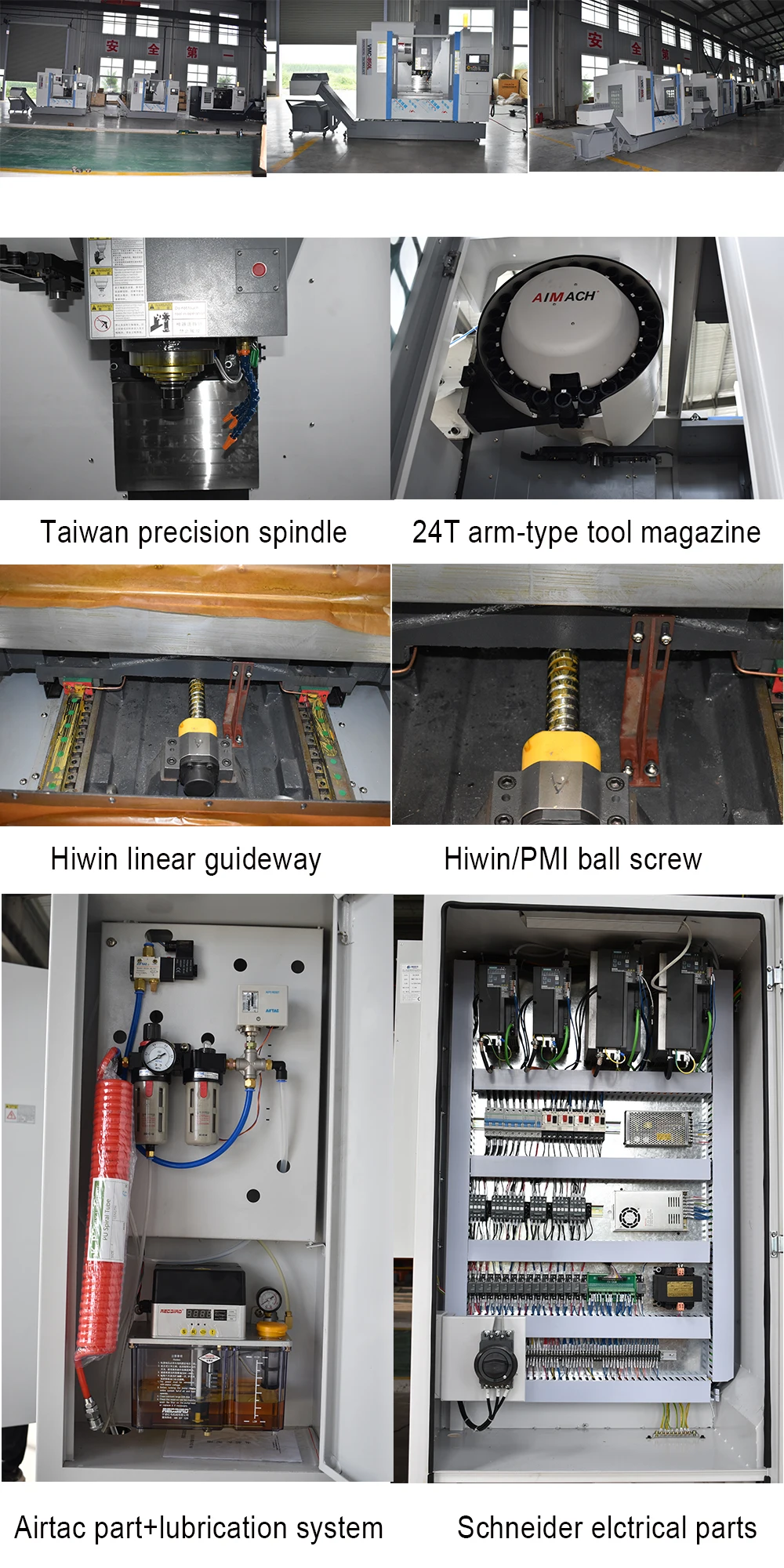

PRODUCT CONFIGURATION
SIMILAR PRODUCTS
PACKAGES AND SERVICE
COMPANY INFO
FAQ
1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK ,KND, SYNTEC. It depends on your choice.
3. Payment Terms
30% by T/T as deposit, 70% balance by T/T before delivery. If others payment terms, we can discuss.
4. How can I choose the most suitable machines?
Please tell us your detailed requirements, then we will give you the best solutions
5. Do you provide frame or customized service?
Yes,we provice frame and customized service including LOGO,outlook and configurations of the machine.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK ,KND, SYNTEC. It depends on your choice.
3. Payment Terms
30% by T/T as deposit, 70% balance by T/T before delivery. If others payment terms, we can discuss.
4. How can I choose the most suitable machines?
Please tell us your detailed requirements, then we will give you the best solutions
5. Do you provide frame or customized service?
Yes,we provice frame and customized service including LOGO,outlook and configurations of the machine.
