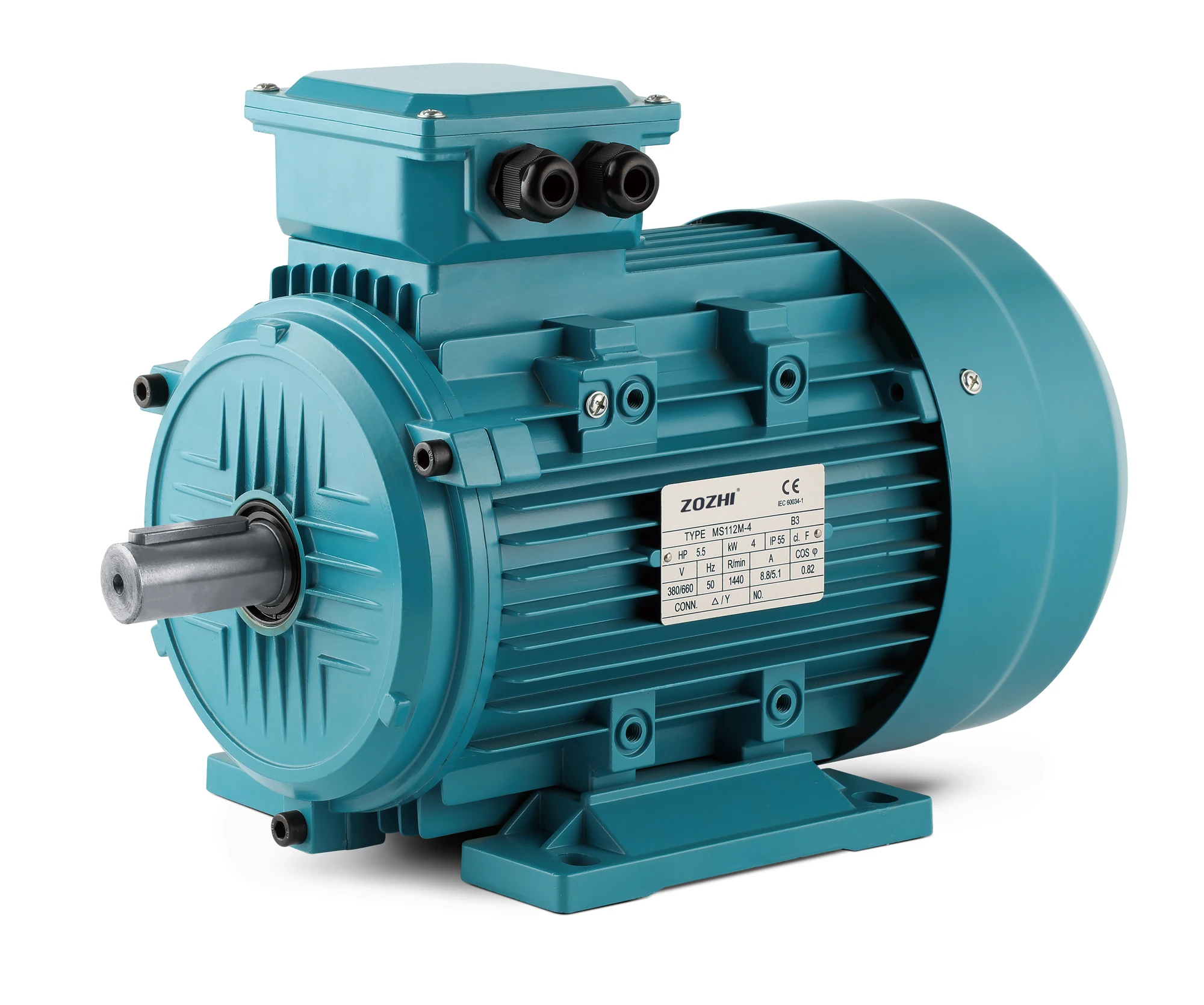

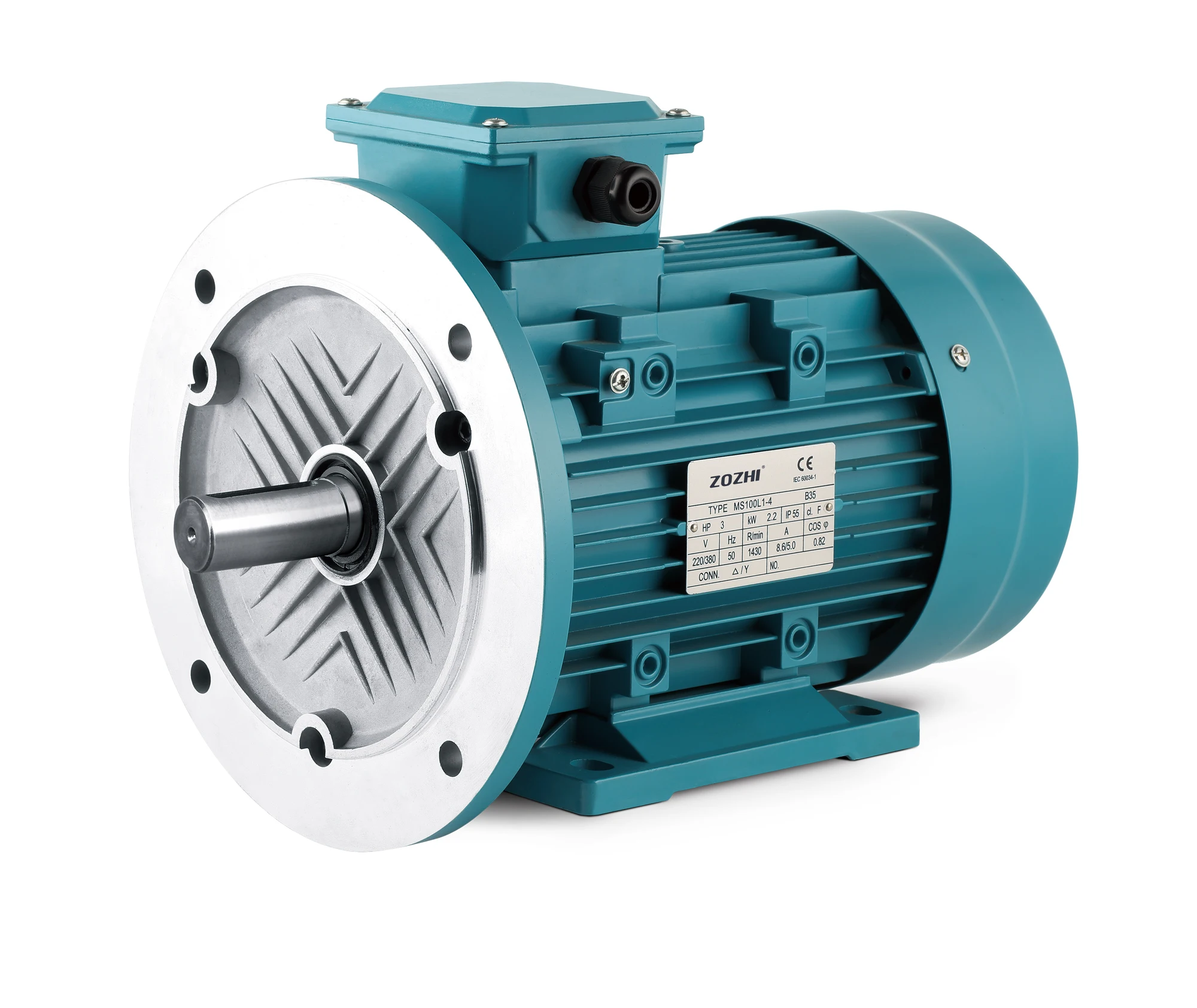

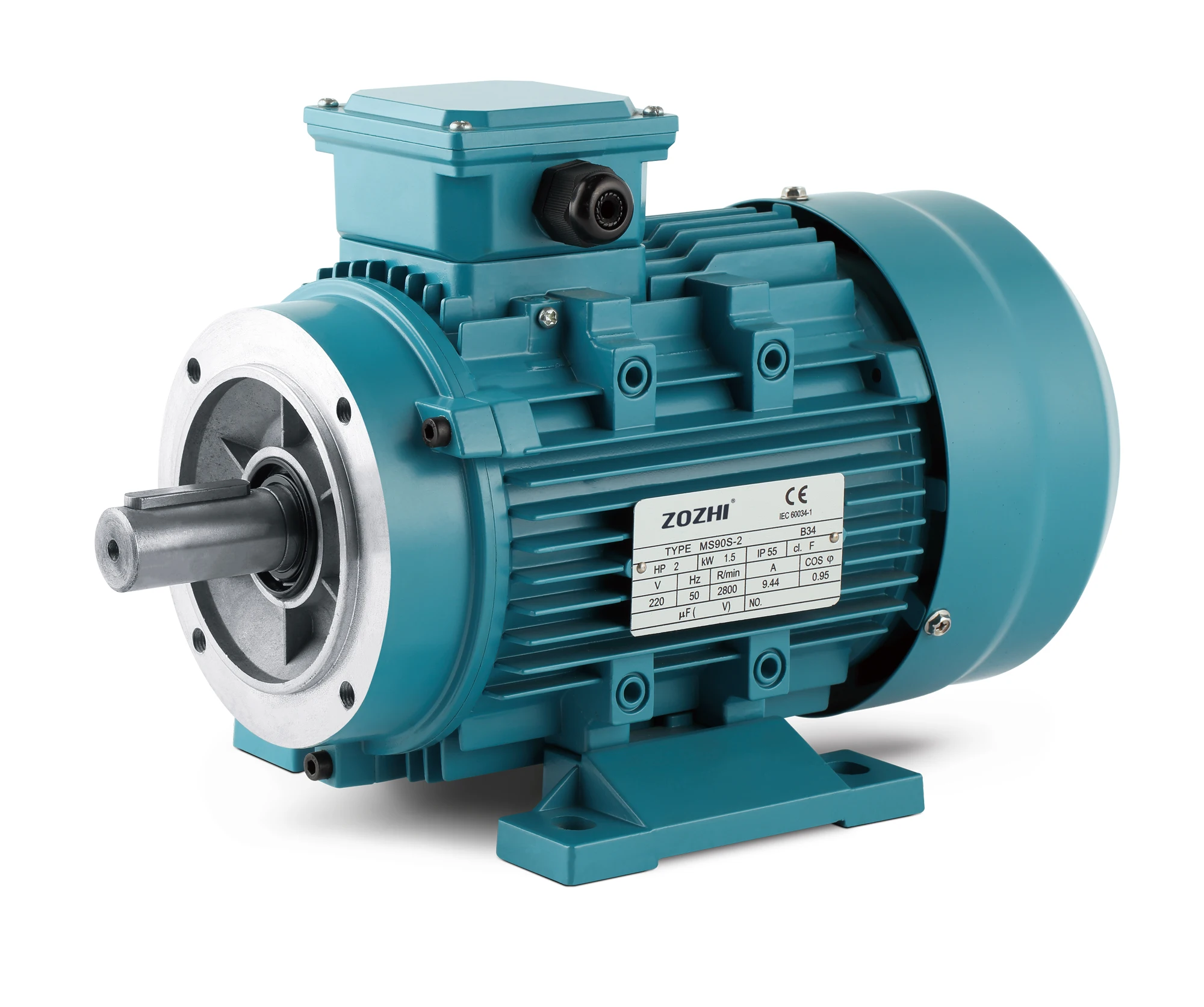

High quality 160M1 2 1hp 1.5hp 8hp 380v winding machine electric motors
- Category: >>>
- Supplier: Fuan Zhongzhi Pump Co. Ltd.
Share on (1600640827703):
Product Overview
Description
Product Description
Three phase, MS (IE1/IE2/IE3) series aluminum housing motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment and agricultural fields whter superior quality, and reliability is demanded
MS series is designing and manufacturing according to the parameters of the new eruopean classification standard for high-efficiency IE1, IE2&IE3
IE3 series Super high-efficiency motor is according to IEC 60034-1 part 1: energy efficiency classification and performance of rotating motor and IEC 60034-2-1 part 2-1: losses and testing method of rotating motor, which is the most authoritative efficiency classification standard in the world. These motors are also in compliance with the efficiency standards covered by USA NEMA, CANADA CSA Premium efficiency,AUSTRALIA AS, NEW ZEALAND NZS, CEMEP, JIS,and Chinese GB motor standard.
Working Condition
Ambient temperature : -15℃≤~≤40℃
Altitude: not exceed 1000m
IE3 series Super high-efficiency motor is according to IEC 60034-1 part 1: energy efficiency classification and performance of rotating motor and IEC 60034-2-1 part 2-1: losses and testing method of rotating motor, which is the most authoritative efficiency classification standard in the world. These motors are also in compliance with the efficiency standards covered by USA NEMA, CANADA CSA Premium efficiency,AUSTRALIA AS, NEW ZEALAND NZS, CEMEP, JIS,and Chinese GB motor standard.
Working Condition
Ambient temperature : -15℃≤~≤40℃
Altitude: not exceed 1000m
Insulation Class: F
Rated voltage: ±5%
Rated voltage: ±5%
Company Profile
Technology Data
FRAME | POWER KW HP | Voltage (V) | Current (A) | Speed (r/min) | EFF.% 50% 75% 100% | P.F. | ||||||
IE3 MS801-2 | 0.75 | 1 | 230/400 | 2.82/1.63 | 2820 | 79.7 | 81 | 80.7 | 0.831 | |||
IE3 MS802-2 | 1.1 | 1.5 | 230/400 | 4.0/2.3 | 2820 | 81.5 | 82.9 | 82.7 | 0.836 | |||
IE3 MS90S-2 | 1.5 | 2 | 230/400 | 5.23/3.02 | 2840 | 84 | 85 | 84.2 | 0.857 | |||
IE3 MS90L-2 | 2.2 | 3 | 230/400 | 7.44/4.3 | 2840 | 86 | 86.5 | 85.9 | 0.865 | |||
IE3 MS100L-2 | 3 | 4 | 230/400 | 9.9/5.72 | 2850 | 88.2 | 87.3 | 87.1 | 0.873 | |||
IE3 MS112M-2 | 4 | 5.5 | 400/690 | 7.48/4.32 | 2870 | 88 | 88.4 | 88.1 | 0.88 | |||
IE3 MS132S1-2 | 5.5 | 7.5 | 400/690 | 10/5.8 | 2900 | 89.1 | 89.6 | 89.2 | 0.89 | |||
IE3 MS132S2-2 | 7.5 | 10 | 400/690 | 13.5/7.8 | 2900 | 90 | 90.5 | 90.1 | 0.892 | |||
IE3 MS160M1-2 | 11 | 15 | 400/690 | 19.5/11.3 | 2920 | 89.8 | 91.3 | 91.2 | 0.896 | |||
IE3 MS160M2-2 | 15 | 20 | 400/690 | 26.2/15.1 | 2920 | 91.6 | 92 | 91.9 | 0.805 | |||
IE3 MS160L-2 | 18.5 | 25 | 400/690 | 31.9/18.4 | 2920 | 92.1 | 92.5 | 92.4 | 0.91 | |||
IE3 MS802-4 | 0.75 | 1 | 230/400 | 2.97/1.72 | 1400 | 81 | 82.7 | 82.5 | 0.77 | |||
IE3 MS90S-4 | 1.1 | 1.5 | 230/400 | 4.25/2.45 | 1420 | 82.6 | 84.3 | 84.1 | 0.775 | |||
IE3 MS90L-4 | 1.5 | 2 | 230/400 | 5.68/3.28 | 1420 | 83.8 | 85.4 | 85.3 | 0.778 | |||
IE3 MS100L1-4 | 2.2 | 3 | 230/400 | 8.0/4.62 | 1440 | 84.3 | 86.7 | 86.7 | 0.798 | |||
IE3 MS100L2-4 | 3 | 4 | 230/400 | 10.8/6.2 | 1440 | 86 | 87.6 | 87.7 | 0.801 | |||
IE3 MS112M-4 | 4 | 5.5 | 400/690 | 7.97/4.6 | 1450 | 88.3 | 88.8 | 88.6 | 0.821 | |||
IE3 MS132S-4 | 5.5 | 7.5 | 400/690 | 10.8/6.2 | 1450 | 89 | 89.7 | 89.6 | 0.825 | |||
IE3 MS132M-4 | 7.5 | 10 | 400/690 | 14.4/8.32 | 1450 | 90.1 | 90.6 | 90.4 | 0.834 | |||
IE3 MS160M-4 | 11 | 15 | 400/690 | 20.8/12.0 | 1460 | 90.5 | 91.5 | 91.4 | 0.838 | |||
IE3 MS160L-4 | 15 | 20 | 400/690 | 27.9/16.1 | 1460 | 91.5 | 92.5 | 92.1 | 0.847 | |||
IE3 MS90S-6 | 0.75 | 1 | 230/400 | 3.42/1.97 | 910 | 77.5 | 94.4 | 78.9 | 0.7 | |||
IE3 MS90L-6 | 1.1 | 1.5 | 230/400 | 4.8/2.78 | 910 | 80.2 | 81.3 | 81 | 0.71 | |||
IE3 MS100L1-6 | 1.5 | 2 | 230/400 | 6.35/3.66 | 930 | 81.3 | 82.6 | 82.5 | 0.72 | |||
IE3 MS112M-6 | 2.2 | 3 | 230/400 | 8.98/5.2 | 940 | 83.2 | 85 | 84.3 | 0.73 | |||
IE3 MS132S-6 | 3 | 4 | 230/400 | 11.9/6.87 | 960 | 84.5 | 85.8 | 85.6 | 0.74 | |||
IE3 MS132M1-6 | 4 | 5.5 | 400/690 | 9.0/5.2 | 960 | 85.3 | 86.9 | 86.8 | 0.745 | |||
IE3 MS132M2-6 | 5.5 | 7.5 | 400/690 | 12.1/7.0 | 960 | 86.9 | 88.2 | 88 | 0.75 | |||
IE3 MS160M-6 | 7.5 | 10 | 400/690 | 16.1/9.3 | 970 | 87.5 | 89 | 89.1 | 0.76 | |||
IE3 MS160L-6 | 11 | 15 | 400/690 | 22.9/13.2 | 970 | 89 | 90.2 | 90.3 | 0.77 | |||
Application
Hot Products
Our Customer
Exhibition
FAQ
Q1 Are you a manufacturer or a trading company? We are a manufacturer of water pump and motor in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Available.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Available.
